4KSP18-P
1 x 8 HDMI 4K Splitter
User Manual

Disclaimers
The information in this manual has been carefully checked and is
believed to be accurate. AV Access Technology Limited assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
AV Access Technology Limited assumes no responsibility for any
inaccuracies that may be contained in this document. AV Access
Technology Limited also makes no commitment to update or to keep
current the information contained in this document.
AV Access Technology Limited reserves the right to make
improvements to this document and/or product at any time and
without notice.
Copyright
Copy, Reproduce, Distribute and/or Edit of this document or part of it
as well as utilization of its contents and communication thereof to
others without express authorization are prohibited. Offenders will be
held liable for payment of damages. All rights created by patent grant
or registration of a utility model or design patent are reserved.
Copyright ©2016 AV Access Technology Limited All rights reserved.
Trademarks Notice
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
Contact Us
Business inquiry: [email protected]om
Technical problems: s[email protected]

Important Safety Instructions
Do not expose this device to rain, moisture, dripping or splashing.
No objects filled with liquids, such as vases, shall be placed on the
device.
Do not install or place this unit in a bookcase, built-in cabinet or in
another confined space. Ensure the unit is well ventilated.
To prevent risk of electric shock or fire hazard due to overheating,
do not obstruct the unit’s ventilation openings with newspapers,
tablecloths, curtains, and similar items.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other devices (including amplifiers) that
produce heat.
Do not place sources of naked flames, such as lighted candles, on
the unit.
Clean this device only with dry cloth.
Unplug this device during lightning storms or when unused for
long periods of time.
Protect the power cord from being walked on or pinched,
particularly at plugs.
Only use attachments / accessories specified by the manufacturer.
Refer all servicing to qualified service personnel.

Table of Contents
Overview...............................................................................................................2
Package Contents.................................................................................................................. 3
Front Panel............................................................................................................................... 4
Rear Panel................................................................................................................................. 5
EDID Presets ............................................................................................................................ 6
Installation Instructions.....................................................................................10
Specification .......................................................................................................12
Warranty .............................................................................................................14

Overview
Overview
4KSP18-P is a 1x8 HDMI splitter for HDMI 2.0 with 4k@60Hz 4:2:0 8 bit
which reliably distributes one HDMI source signal to 8 HDMI displays.
It also provides EDID management which provides multiple EDID
options for various output resolutions, and HDCP management which
authenticates HDCP encryption between all devices, ensuring the
HDMI source reliably outputs correct content for display.
Additional features include input cable equalization and signal
regeneration compensation, which reduces the need for additional
signal conditioning equipment by compensating for signal loss when
using a long input cable or cascading multiple units.
Distributes one HDMI source to 8 HDMI displays
HDMI 2.0 with 4K@60Hz 4:2:0 8bit
Automatic HDCP 1.4 compatibility
Independent DIP switch for EDID management
Multiple splitters can be cascaded to expand distribution
Threaded power port for locking or standard 12V DC connection
Front panel LED indicators for I/O and Power connectivity
Automatic input cable equalization and signal regeneration
compensation
www.avaccess.com 2

Overview
Package Contents
Before you start the installation of the product, please check the
package contents:
1 x 4KSP18-P Splitter
1 x Power Supply (DC 12V 1.5A)
1 x Mounting Brackets (Pair)
1 x User Manual
www.avaccess.com 3

Overview
Front Panel
1 2 3
ID Name Description
1 Input LED ON: HDMI source is connected to the splitter.
OFF: No HDMI source is connected to the splitter.
2 Output LED
1~8
ON: HDMI display is connected to the splitter.
OFF: No
HDMI display is connected to the
splitter.
3 Power LED ON: The splitter is on.
OFF: The splitter is off.
www.avaccess.com 4

Overview
Rear Panel
ID Name Description
1 12V DC
12V DC power input, threaded port for
standard or locking connection
2 HDMI OUT1~8 Connects to HDMI display devices
3 HDMI IN Connects to HDMI source device
4 EDID Choose different EDID modes
www.avaccess.com 5

Overview
EDID Presets
EDID (Extended Display Identification Data) is data generated from
each display in the system to communicate the capabilities of the
device. The splitter features an EDID copy mode that can be used
when the EDID does not meet the installation requirements. The EDID
mode has several options available to encourage device
communication.
Note: Repower the device to make the change effective.
Position Descriptions
0 Smart EDID (default setting)[Note]
1 1080i, 2CH Audio
2 1080i, Dolby/DTS5.1
3 1080i, HD Audio
4 1080P, 2CH Audio
5 1080P, DOLBY/DTS5.1
6 1080P, HD Audio
7 3D, 2CH Audio
8 3D, DOLBY/DTS5.1
9 3D, HD Audio
www.avaccess.com 6

Overview
Position Descriptions
10 1280x1024 DVI
11 1920x1080 DVI
12 1920x1200 DVI
13 4K@30HZ ,2CH Audio
14 4K@60HZ ,2CH Audio
15 Copy EDID from HDMI output1
Note:
If failed to copy EDID, the device will output 1080p with stereo
audio.
Smart EDID:
Splitter is built-in 5 EDID: 4K@60Hz 4:4:4 HDR; 4K@60Hz 4:2:0
HDR; 4K@30Hz 4:4:4 HDR; 1080P@60Hz 2ch and 720P@60Hz 2ch.
when the device is power on, it will compares all the EDID of
display devices and choose the lowest resolution to compare
with the 5 EDID that are built-in the splitter, finally select the one
from the 5 EDID which can be supported by the lowest EDID
display to the input source. In addition, the splitter will detect the
output signals of every time plug, unplug, sink standby or sink on
to select the appropriate EDID as above process.
Take 4K as an example:
www.avaccess.com 7

Overview
First, switching a 4k source to 4K TV, the splitter will automatically
output 4K signal to 4K TV.
Then, switching a 4k source to 1080P TV, the splitter will
automatically output 1080P signal to 1080P T V.
www.avaccess.com 8

Overview

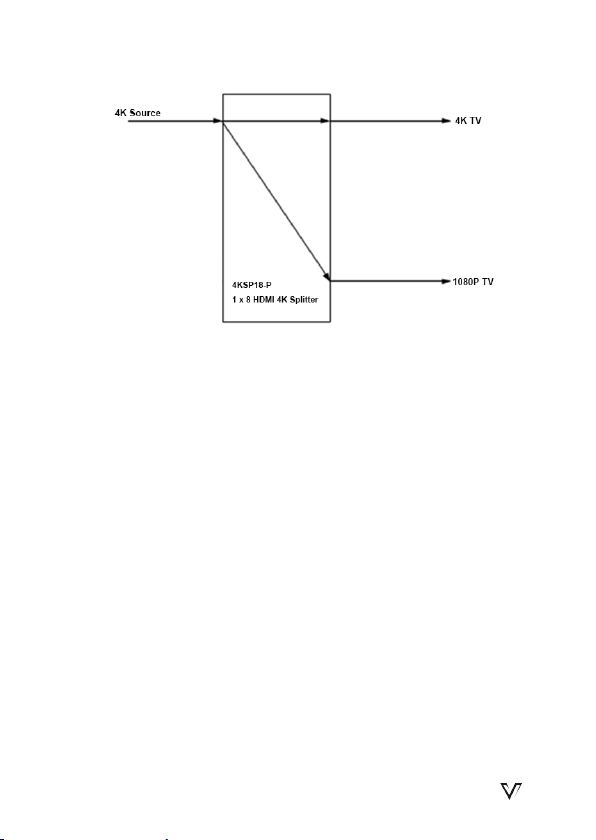

Finally, switching the 4K source to 4K TV and 1080P TV, the
splitter will automatically output 1080P signal to both 4K TV and
1080P TV.
www.avaccess.com 9

Installation Instructions
Installation Instructions
1. Using a quality HDMI cable, connect an HDMI source (such as
Blu-ray, games console, satellite/cable TV, media server etc.) to
HDMI IN port of the splitter.
Note: Ensure power supplies are disconnected from all devices before
installation.
2. Connect HDMI display devices (LED/LCD display or projector) to
the HDMI OUT ports of the splitter.
3. Insert the 12V power adapter into the power input port of the
splitter and connect to power supply after ensuring the source
and displays are properly connected.
4. Check that the Power and HDMI IN/OUT LEDs on the front panel
are fully lit for correct connection. If not, check cable
connections.
Note: Both source and display devices must be powered on for the
splitter to detect device connections.
www.avaccess.com 10

Installation Instructions
www.avaccess.com 11

Specification
Specification
Technical
Input 1 x HDMI IN (Type A female connector)
Output 8 x HDMI OUT (Type A female connector)
Input / Output Signal
Type HDMI 2.0 with 4K@60Hz 4:2:0 8bit
Input / Output
Resolution Support
VESA:
640x480@60Hz, 800x600@60Hz,
1024x768@60Hz, 1280x768@60Hz,
1280x800@60Hz, 1280x960@60Hz,
1280x1024@60Hz, 1360x768@60Hz,
1366x768@60Hz, 1400x1050@60Hz,
1440x900@60Hz, 1600x900@60Hz,
1600x1200@60Hz, 1680x1050@60Hz,
1920x1200@60Hz.
SMPTE:
[email protected]/60Hz,
[email protected]/60Hz,
[email protected]/24Hz/25Hz/29.97Hz/3
0Hz/50Hz/59.94Hz/60Hz,
1920x1080i@50Hz/60Hz,
[email protected]/24Hz/25Hz/29.97Hz/
30Hz/50Hz/59.94Hz/60Hz
3840x2160@24Hz/25Hz/30Hz/50Hz/60Hz,
4096x2160@24Hz/25Hz/30Hz/50Hz/60Hz.
www.avaccess.com 12

Specification
Technical
Input Video Level 0.5~1.2 Vp-p
Input DDC Signal 5 Vp-p
General
Operating Temperature 0 to 45°C (32 to 113 °F)
Storage Temperature -20 to 70°C (-4 to 158 °F)
Humidity 10% to 90%, non-condensing
Power Supply DC 12V 1.5A
Power Consumption
(Maximum) 8W (4K@60Hz)
ESD Protection
Human-body Model:
±8kV(Air-gap discharge)/
±4kV(Contact discharge)
Device Dimensions
(W x H x D) 257.2mm x 18mm x 89.7mm
Product Weight 0.58kg
www.avaccess.com 13

Warranty
Warranty
Products are backed by a limited 3-year parts and labor warranty. For
the following cases AV Access Technology Limited shall charge for the
service(s) claimed for the product if the product is still remediable and
the warranty card becomes unenforceable or inapplicable.
1. The original serial number (specified by AV Access Technology
Limited) labeled on the product has been removed, erased,
replaced, defaced or is illegible.
2. The warranty has expired.
3. The defects are caused by the fact that the product is repaired,
dismantled or altered by anyone that is not from an AV Access
Technology Limited authorized service partner. The defects are
caused by the fact that the product is used or handled
improperly, roughly or not as instructed in the applicable User
Guide.
4. The defects are caused by any force majeure including but not
limited to accidents, fire, earthquake, lightning, tsunami and war.
5. The service, configuration and gifts promised by salesman only
but not covered by normal contract.
6. AV Access Technology Limited preserves the right for
interpretation of these cases above and to make changes to
them at any time without notice.
Thank you for choosing products from AV Access.
