Avalla R-2000 User manual

Air Purifiers
R-45 R-90 R-120 R-150 R-190
Read this manual carefully before use and keep it for future
reference. Failure to do so may result in injury, property
damage and may void the warranty.
avalla.com
R-2000 R-2200 R-4000 R-4200 R-8000

02En
Contents
03 R-45, R-90, R-120, R-150, R-190
04 Quick start guide: R-45
05 Quick start guide: R-90
06 Quick start guide: R-120
07 Quick start guide: R-150
08 Quick start guide: R-190
09 Air quality indicator
• Storage
• Disposal
• Symbols from plug transformer
10 Health and safety
• General safety instructions
• Connection to the power supply
12 Specifications
12 Troubleshooting
13 R-2000, R-2200, R-4000, R-4200, R-8000
14 First time set up: all units
• Air quality indicator: all units
• ION mode: R-4000 / R-4200 / R-8000
• UV mode: R-8000
15 Quick start guide: R-2000 / R-2200
16 Quick start guide: R-4000 / R-4200
17 Quick start guide: R-8000
18 Storage and disposal
• Storage
• Disposal
• Symbols from plug transformer
19 Health and safety
• General safety instructions
• Connection to the power supply
21 Specifications
21 Troubleshooting
English
iBuy your spare filters at: www.avalla.com

R-45, R-90, R-120, R-150, R-190
R-45 R-90 R-120 R-150 R-190

04En

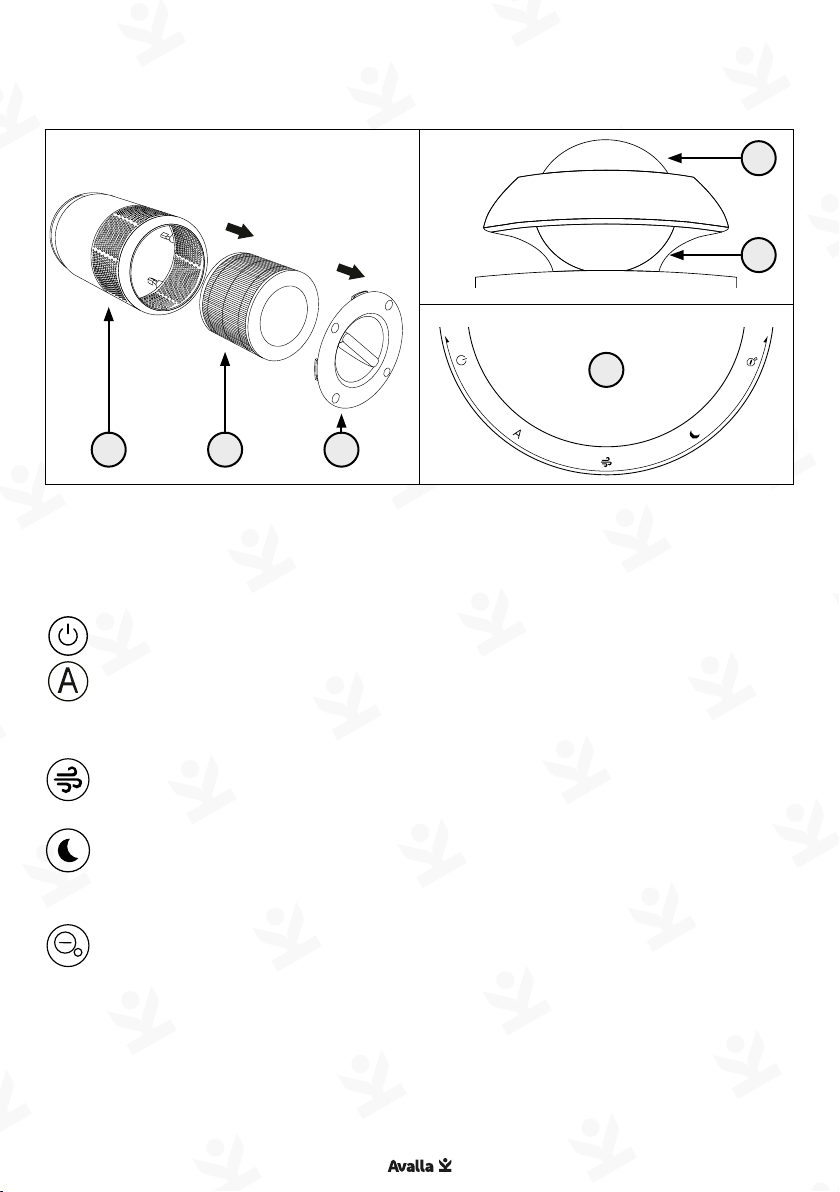

Quick start guide: R-45
Parts guide Touch control panel
Power - Turn unit on / off.
Fan speed – Press to select your preferred fan speed. The
options are low, medium, high, or sleep. With sleep mode
enabled, the fan is at its lowest and the display dims.
Timer – Press to select how many hours until you would like
the air purifier to automatically turn off. If no timer indicator
light is on, the timer is disabled.
Night light – Press to turn the night light on / off.
Filter reset – If the indicator light turns orange, replace the
filter, press and hold the filter reset button for three seconds
to reset the timer.
Make sure your purifier is switched off and unplugged from the
mains power supply. Open the air filter cover, remove all packaging
from the new filter, and insert.
Re-attach the air filter cover and reset the filter timer.

05 En
Parts guide Touch control panel
Quick start guide: R-90
Power - Turn unit on / off.
Fan speed – Press to select your preferred fan speed. The
options are low, medium, high, or sleep. With sleep mode
enabled, the fan is at its lowest and the display dims.
Timer – Press to select how many hours until you would like
the air purifier to automatically turn off. If no timer indicator
light is on, the timer is disabled.
Night light – Press to turn the night light on / off.
Filter reset – If the indicator light turns orange, replace the
filter, press and hold the filter reset button for three seconds
to reset the timer.
Make sure your purifier is switched off and unplugged from the
mains power supply. Open the air filter cover, remove all packaging
from the new filter, and insert.
Re-attach the air filter cover and reset the filter timer.

06En

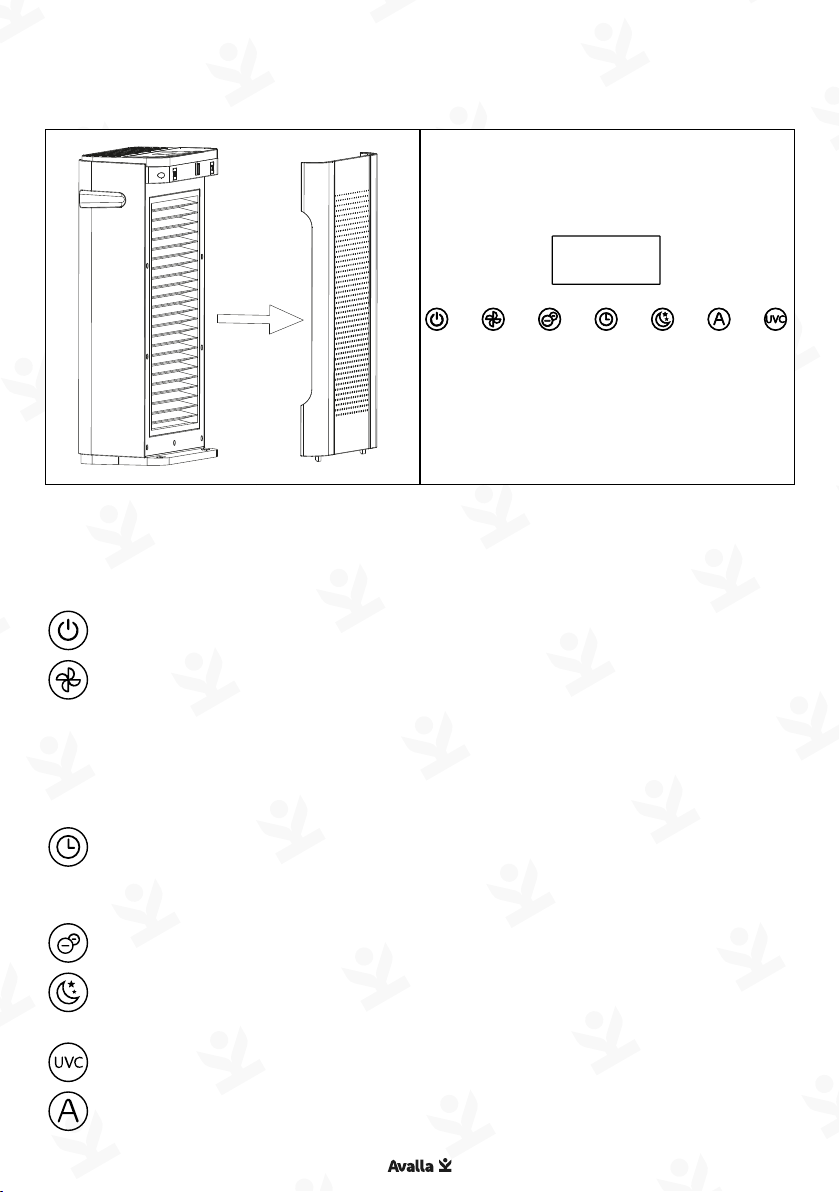

Quick start guide: R-120
Power - Press to turn the unit on / off.
Fan speed – Press to select your preferred fan speed. The
options are low, medium, high, sleep or auto. In auto, the fan
speed will adjust automatically depending on the air quality.
Sleep mode will use the quietest fan speed and switch off the
display. Tap any button to wake.
Timer – Press to select how many hours until you would like
the air purifier to automatically turn off. If no timer indicator
light is on, the timer is disabled.
Lock / Filter reset – Press and hold for 3 seconds to enable /
disable child lock function.
When the filter needs to be replaced, the filter symbol
illuminates. Replace filter then press and hold the Lock button
for 3 seconds to reset. Normal Lock function will resume.
UVC - Press to enable / disable the UVC function.
Parts guide Touch control panel
Make sure your purifier is switched off and unplugged from the
mains power supply. Open the air filter cover, remove all packaging
from the new filter, and insert.
Re-attach the air filter cover and reset the filter timer.

07 En

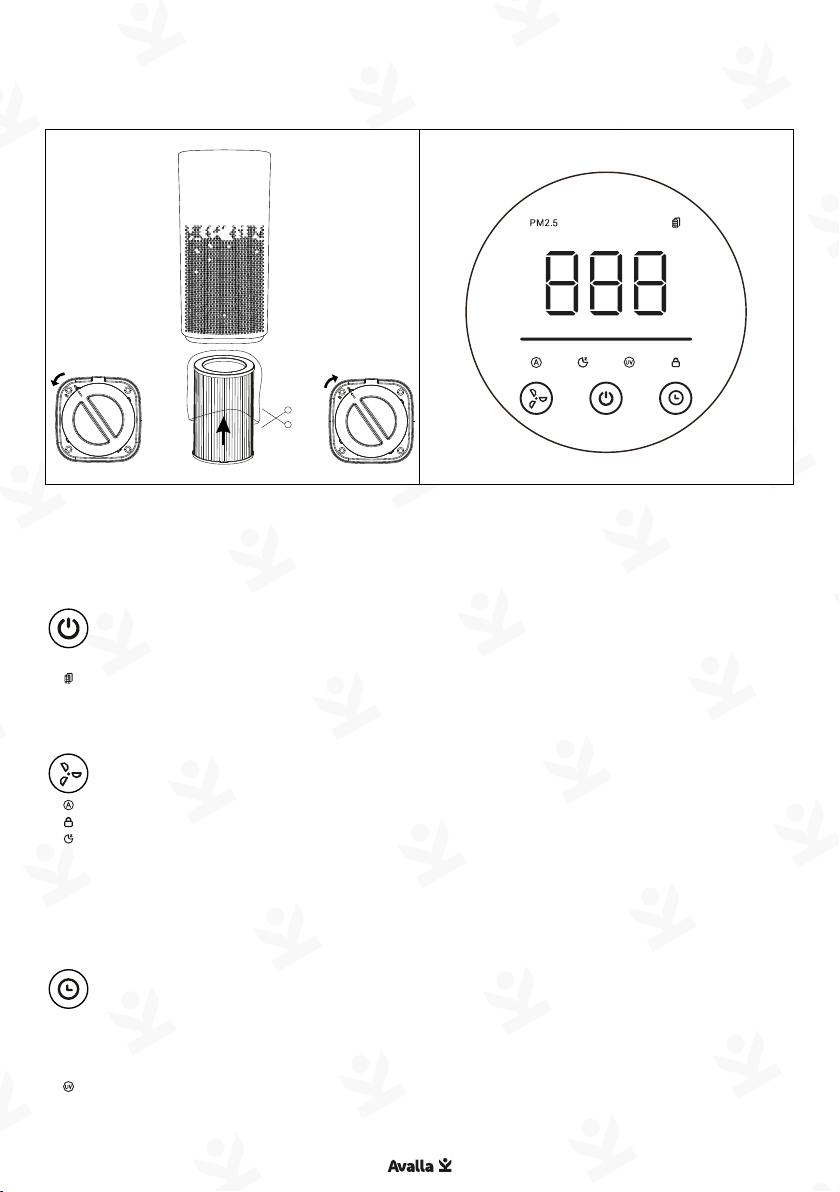

Quick start guide: R-150
Power - Press to turn the unit on / off.
Fan speed / Filter reset – Press to select your preferred fan
speed. The options are low, medium or high.
When the filter needs to be replaced, the PM2.5 icon will flash.
Replace filter then press and hold Fan speed button for 3
seconds to reset. Normal Sleep function will resume.
Timer – Press to select how many hours until you would like
the air purifier to automatically turn off. If no timer indicator
light is on, the timer is disabled.
Ion - Enables negative ion feature.
Sleep mode – Sleep mode will use the quietest fan speed and
switch off the display. Tap any button to wake.
UVC - Press to enable / disable the UVC function.
Auto mode - In auto, the fan speed will adjust automatically
depending on the air quality.
Parts guide Touch control panel
Make sure your purifier is switched off and unplugged from the
mains power supply. Open the air filter cover, remove all packaging
from the new filter, and insert.
Re-attach the air filter cover and reset the filter timer.

08En

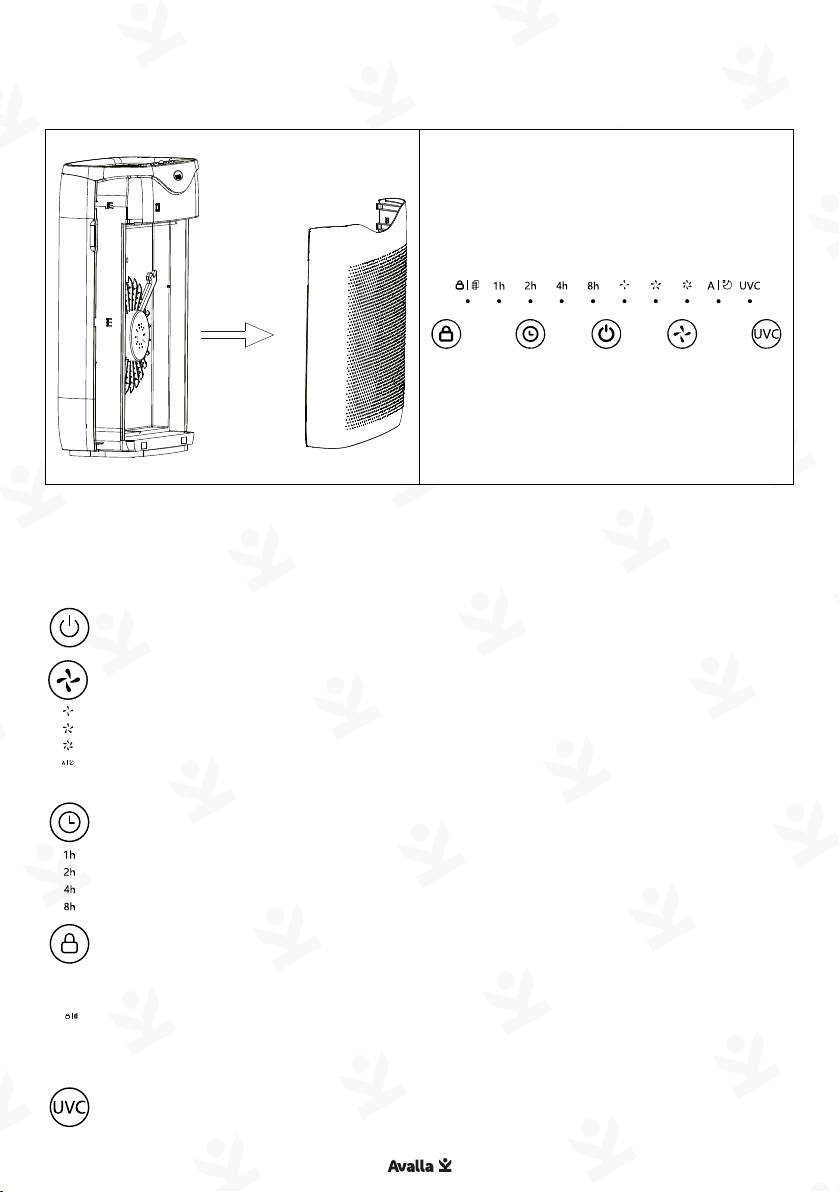

Quick start guide: R-190
Power / Filter reset - Press to turn the unit on / off.
When the filter needs to be replaced, the filter symbol
illuminates. Replace filter then press and hold power button
for 5 seconds to reset.
Fan speed / Lock – Press to select your preferred fan speed.
The options are low, medium, high, sleep or auto. In auto,
the fan speed will adjust automatically depending on the air
quality. Sleep mode will use the quietest fan speed and switch
off the display. Tap any button to wake.
Press and hold for 5 seconds to enable / disable child lock
function.
Timer / UVC – Press to select how many hours until you
would like the air purifier to automatically turn off. If no timer
indicator light is on, the timer is disabled.
Press and hold the Timer button for 5 seconds to turn on / off
the UVC function.
Parts guide Touch control panel
Make sure your purifier is switched off and unplugged from the
mains power supply. Open the air filter cover, remove all packaging
from the new filter, and insert.
Re-attach the air filter cover and reset the filter timer.

09 En
Storage
Disposal
Symbols from plug transformer
The adjacent symbol of a crossed-out wheeled bin indicates
that this device is subject to Directive 2012/19/EU. This
directive states that you must not dispose of this device
with your general household waste at the end of its working
life, but rather take it to a specially established collection point,
recycling centre or waste disposal company. This disposal is free of
charge for you. Protect the environment and dispose of it properly.
The pre-filter and body of the unit should be cleaned regularly and
prior to long term storage. Always store in a cool, dry place.
• Ensure the unit is switched off and unplugged from the mains
power.
• Remove the filter from the unit.
• Clean the filter chamber, air inlet and the outside of the unit
with a dry cloth.
• Clean the pre-filter with a soft, dry brush.
Warning: Do not use any abrasive materials or cleaning
products on any part of the air purifier. The filters are not
washable. Only use genuine Avalla filters designed for this
specific model.
Air quality indicator
PM2.5 0-50
Good
PM2.5 51-100
Moderate
PM2.5 100+
High Risk
For models R-120 and R190:
The PM2.5 sensor monitors real-time air quality and displays this on
the LCD display and with a represent colour.
C7 polarised infinity
coupler Safety isolating. Products with this
symbol are designed so
the output is electrically
isolated from the unit.
Indoor use only Power supply unit,
switch mode. SMPS

10En
Health and safety
General safety instructions
The following must always be observed for safety
• This appliance is not intended to be used by children. Persons
with lack of experience or knowledge, reduced physical, sensory,
or mental capabilities, can use this appliance if they have been
given supervision or instruction concerning use of the appliance
in a safe way.
• Component parts must only be replaced with identical repair
parts.
• The appliance must be disconnected from its power source
during servicing, cleaning or when not in use. Do not use
chemicals to clean the appliance.
• Always operate the unit from power outlet of equal voltage,
frequency and rating as indicated on the product identification
plate.
• Do not operate with wet hands. Keep the unit away from
sources or water, moisture, or any other liquids.
• Do not leave the unit running unattended. Do not unplug or tilt
the unit while it is in operation.
• Do not unplug by pulling on the power cord.
• Do not put objects on the unit, climb or sit on the unit.
• Do not insert fingers or other objects into the air outlet.
• Do not operate the unit if it is dropped, damaged or showing
signs of product malfunction.
• The unit must be installed in accordance with national wiring
regulations.
• The appliance must be stored in a manner to prevent
mechanical damage.
• Do not place in direct sunlight or near objects that may cause
mechanical vibration or shock.
Symbols from the unit
Read the
instruction
manual
UK
Conformity
Assessed
European
Conformity Class II Construction
(Double
Insulated)
WEEE - Waste Electrical
& Electronic Equipment.
Do not dispose of Waste
Electrical & Electronic
Equipment in with
domestic rubbish.

11 En
• Position the unit on an even / flat surface, away from excessive
dust, and always maintain the unit to ensure that excessive dust
does not accumulate anywhere on the unit.
• Do not use the appliance where combustible / flammable gases
or vapours are present.
• Do not use the appliance outdoors, it is designed only for indoor
use.
• This appliance is not a substitute for proper ventilation.
• Never use the appliance unless it is fully assembled and with
filters in place.
• Leave at least 20cm free space around the appliance and at least
30cm free space above the appliance.
• Do not use this appliance when using indoor smoke-type insect
repellents or in places with oily residues, burning incense, or
chemical fumes.
• Do not use the appliance in a room with major temperature
changes, as this may cause condensation inside the appliance.
• Always wash your hands thoroughly after changing or cleaning a
filter.
Caution: Risk of electric shock. Do not open.
• This appliance is supplied with a moulded 3 pin mains plug for
your safety. The value of the fuse fitted is marked on the pin
face of the plug. Should the fuse need replacing, ensure the
substitute is of the correct rating, approved to BS1362 and ASTA
or BSI Kite marked.
ASTA: BSI:
• The fuse cover is removable with a small plain slot screwdriver.
Ensure the fuse cover is replaced before attempting to
connect the plug to an electrical outlet. If the cover is missing,
a replacement must be obtained or the plug replaced with a
suitable type.
• The R-190 uses a maximum-output 24v at 2.0A transformer.
Ensure you use the supplied transformer with this product.
• If a replacement plug is to be fitted this must be carried out by a
qualified electrician.
• The damaged or incomplete plug, when cut from the cable
should be disabled to prevent connection to a live electrical
outlet.
• This appliance is Class II and is designed for connection to a
power supply matching that detailed on the rating label and
compatible with the plug fitted.
• If an extension lead is required, use an approved and compatible
lead rated for this appliance. Follow all the instructions supplied
with the extension lead.
Connection to the power supply

12En
Troubleshooting
Specifications
Issue Cause identification Solution
The unit does not
operate Is the filter replacement light on? Replace the filter
Excessive noise
Has the protective cover
been removed from the
filter?
Remove the filter protective
cover
Is the unit positioned on flat
ground? Place the unit on flat, firm ground
The unit powered
off Was the unit turned on for 48 hours?
After 48 hours of
continuous use, the unit will
automatically power down
for safety
• Double insulated :This product requires no earth connection
as supplementary insulation is applied to the basic insulation to
protect against electric shock in the event of failure of the basic
insulation.
Important: If using an extension lead, follow the instructions that
came with your lead regarding maximum load while cable is
wound. If in doubt, ensure that the entire cable is unwound. Using a
coiled extension lead will generate heat which could melt the lead
and cause a fire.
Failure to abide by any of these warnings could result in a fire,
explosion, electric shock, injury, death, and property damage.
R-45 R-90 R-120 R-150 R-190
Power 11W 42W 50W 50W 35W
CADR 70m/Hr 130m/Hr 200m/Hr 300m/Hr 400m/Hr
Coverage 18m 34m 52m78m 104m
Max noise <48dB <50dB <50dB <50dB <55dB
Min noise <32dB <32dB <35dB <35dB <37dB
Avalla Ltd. Unit A 73, Common Road, Chandler’s Ford,
Eastleigh, SO53 1HE. United Kingdom
Company no. 13477899
[e-mail]

13 En
R-2000 R-2200 R-4000 R-4200 R-8000
R-2000, R-2200, R-4000, R-4200, R-8000

14En
Air quality indicator: all units
ION mode: R-4000 / R-4200 / R-8000
UV mode: R-8000
First time set up: all units
PM2.5 0-75
Good
PM2.5 76-150
Moderate
PM2.5 151+
High Risk
The PM2.5 sensor monitors real-time air quality. The ‘Air quality
indicator’ will change colour depending on air quality.
ION mode negatively charges particles as they pass through your
air purifier causing them to clump together and become more
easily embedded in the True HEPA filter.
The R-8000 uses UV light to safely disable airborne bacteria and
viruses.
Open the ‘Air filter cover’, remove all packaging from the ‘Air filter’
and the power adaptor. Re-insert the ‘Air filter’ and re-attach the
‘Air filter cover’
Plug the power adaptor into the rear of the unit and reset the filter
timer following ‘Filter reset’ instructions.

15 En
Quick start guide: R-2000 / R-2200
Parts guide Controls
Power - When you first plug the unit in, the ‘Visor’ will open
and the unit will perform an air quality test in Auto mode.
The fan will blow at high speed then react to the air quality
automatically. To switch the unit off, press the middle of the
‘Air quality indicator’ or slide the ‘Visor’ all the way down. To
turn the unit on again, press the ‘Power button’.
Fan speed – To manually select the fan speed, move the ‘Visor’
up to increase fan speed and down to decrease. There are
three fan speeds; low, medium and high.
Filter reset – If the ‘Air quality indicator’ flashes red, replace
the ‘Air filter’, press and hold the centre of the ‘Air quality
indicator’ for seven seconds to reset the timer.
01. Main body
02. Air filter
03. Air filter cover
04. Visor
05. Power button (Visor closed)
06. Air quality indicator (Visor
open)
05
06
04
01 02 03

16En
Parts guide Controls
Quick start guide: R-4000 / R-4200
Power - Turn the ‘Dome’ to this position to turn the unit off.
Auto mode – Turn the ‘Dome’ to this position to select Auto
mode. The unit will adjust fan speed according to the air
quality.
High speed - Turn the ‘Dome’ to this position to select high
speed. The fan will run at maximum speed.
Sleep mode – Turn the ‘Dome’ to this position to select sleep
mode. The fan will run at low speed and the lights on the unit
will dim.
ION - Turn the ‘Dome’ to this position and press to toggle ION
on or off in any mode. Turn the ‘Dome’ back to your selected
mode.
Filter reset – If the ‘Air quality indicator’ flashes orange,
replace the ‘Air filter’, press and hold the ‘Dome’ for five
seconds to reset the timer.
07
04
06
01 02 03
01. Main body
02. Air filter
03. Air filter cover
04. Dome
06. Air quality indicator
07. Control panel (on top of unit)

17 En
Quick start guide: R-8000
Power - Press ‘Power’ to turn the unit on / off.
Fan speed – Press to select your preferred fan speed. The
options are low, high, sleep or auto. Your selected speed will be
shown on the ‘Digital display’.
Sleep mode will use the quietest fan speed and switch off the
display. Tap any button to wake.
In auto, the fan speed will adjust automatically depending on
the air quality.
UV/ION - Long press to enable / disable the UV and ION
functions. The UV and ION functions will disable after 2 hours.
Timer – Press to select how many hours until you would like
the air purifier to automatically turn off. The timer cycles
between 2H-4H-8H-12H and OFF.
Filter reset - When the filter needs to be replaced, the ‘Air
filter’ symbol flashes yellow. Replace the ‘Air filter’ then press
and hold the UV/ION button for seven seconds to reset.
Parts guide Controls / Display
01. Main body
02. Air filter
03. Air filter cover
04. Air quality indicator
05. Control panel (on top of unit)
06. Digital display
01
02
03
04
05
06
Low High Sleep Auto

18En
Warning: Do not use any abrasive materials or cleaning
products on any part of the air purifier. The filters are not
washable. Only use genuine Avalla filters designed for this specific
model.
Storage
Disposal
Symbols from plug transformer
The adjacent symbol of a crossed-out wheeled bin indicates
that this device is subject to Directive 2012/19/EU. This
directive states that you must not dispose of this device
with your general household waste at the end of its working
life, but rather take it to a specially established collection point,
recycling centre or waste disposal company. This disposal is free of
charge for you. Protect the environment and dispose of it properly.
The pre-filter and body of the unit should be cleaned regularly and
prior to long term storage. Always store in a cool, dry place.
• Ensure the unit is switched off and unplugged from the mains
power.
• Remove the filter from the unit.
• Clean the filter chamber, air inlet and the outside of the unit
with a dry cloth.
Coaxial power
connector Safety isolating. Products with this
symbol are designed so
the output is electrically
isolated from the unit.
Indoor use only Power supply unit,
switch mode. SMPS
Storage and disposal
UK
Conformity
Assessed
European
Conformity Class II Construction
(Double
Insulated)
WEEE - Waste Electrical
& Electronic Equipment.
Do not dispose of Waste
Electrical & Electronic
Equipment in with
domestic rubbish.

19 En
Health and safety
General safety instructions
The following must always be observed for safety
• This appliance is not intended to be used by children. Persons
with lack of experience or knowledge, reduced physical, sensory,
or mental capabilities, can use this appliance if they have been
given supervision or instruction concerning use of the appliance
in a safe way.
• Component parts must only be replaced with identical repair
parts.
• The appliance must be disconnected from its power source
during servicing, cleaning or when not in use. Do not use
chemicals to clean the appliance.
• Always operate the unit from power outlet of equal voltage,
frequency and rating as indicated on the product identification
plate.
• Do not operate with wet hands. Keep the unit away from
sources or water, moisture, or any other liquids.
• Do not leave the unit running unattended. Do not unplug or tilt
the unit while it is in operation.
• Do not unplug by pulling on the power cord.
• Do not put objects on the unit, climb or sit on the unit.
• Do not insert fingers or other objects into the air outlet.
• Do not operate the unit if it is dropped, damaged or showing
signs of product malfunction.
• The unit must be installed in accordance with national wiring
regulations.
• The appliance must be stored in a manner to prevent
mechanical damage.
• Do not place in direct sunlight or near objects that may cause
mechanical vibration or shock.
Symbols from the unit
Read the
instruction
manual
European
Conformity Class II Construction
(Double
Insulated)
WEEE - Waste Electrical
& Electronic Equipment.
Do not dispose of Waste
Electrical & Electronic
Equipment in with
domestic rubbish.

20En
• Position the unit on an even / flat surface, away from excessive
dust, and always maintain the unit to ensure that excessive dust
does not accumulate anywhere on the unit.
• Do not use the appliance where combustible / flammable gases
or vapours are present.
• Do not use the appliance outdoors, it is designed only for indoor
use.
• This appliance is not a substitute for proper ventilation.
• Never use the appliance unless it is fully assembled and with
filters in place.
• Leave at least 20cm free space around the appliance and at least
30cm free space above the appliance.
• Do not use this appliance when using indoor smoke-type insect
repellents or in places with oily residues, burning incense, or
chemical fumes.
• Do not use the appliance in a room with major temperature
changes, as this may cause condensation inside the appliance.
• Always wash your hands thoroughly after changing or cleaning a
filter.
Caution: Risk of electric shock. Do not open.
• This appliance is supplied with a moulded 3 pin mains plug for
your safety. The value of the fuse fitted is marked on the pin
face of the plug. Should the fuse need replacing, ensure the
substitute is of the correct rating, approved to BS1362 and ASTA
or BSI Kite marked.
ASTA: BSI:
• The fuse cover is removable with a small plain slot screwdriver.
Ensure the fuse cover is replaced before attempting to
connect the plug to an electrical outlet. If the cover is missing,
a replacement must be obtained or the plug replaced with a
suitable type.
• Ensure you use the supplied transformer with this product.
• If a replacement plug is to be fitted this must be carried out by a
qualified electrician.
• The damaged or incomplete plug, when cut from the cable
should be disabled to prevent connection to a live electrical
outlet.
• This appliance is Class II and is designed for connection to a
power supply matching that detailed on the rating label and
compatible with the plug fitted.
• If an extension lead is required, use an approved and compatible
lead rated for this appliance. Follow all the instructions supplied
with the extension lead.
Connection to the power supply
