Avalue Technology OFM-21W00 User manual

Part No. E2017OM21A0R
OFM-21W00
21.5” Full-HD Open frame PCAP Touch Monitor
Quick Reference Guide
1st Ed –24 May, 2021
Copyright Notice
Copyright 2021 Avalue Technology Inc., ALL RIGHTS RESERVED.

OFM-21W00
2 OFM-21W00 Quick Reference Guide
Federal Communication Commission Interference Statement
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT
MAY CAUSE UNDESIRED OPERATION.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction, may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Notice:
(1) A Unshielded-type power cord is required in order to meet FCC emission limits and also to prevent
interference to the nearby radio and television reception. It is essential that only the supplied
power cord by used.
(2) Use only shielded cables to connect I/O devices to this equipment.
(3) Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.

Quick Reference Guide
OFM-21W00 Quick Reference Guide
3
FCC RF Radiation Exposure Statement
This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65 and found compliant
to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF
Exposure from radio frequency devices. The radiated output power of this Wireless LAN device is far
below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a
manner that the potential for human contact during normal operation is minimized. When nearby
persons has to be kept to ensure RF exposure compliance, in order to comply with RF exposure limits
established in the ANSI C95.1 standards, the distance between the antennas and the user should not
be less than 20 cm.

OFM-21W00
4 OFM-21W00 Quick Reference Guide
WARNING
“CAUTION – Use suitable mounting apparatus to avoid risk of injury.”
“CAUTION – This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures”
“CAUTION –Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to the instructions.”
“CAUTION - Use a power cord that matches the voltage of the power outlet, which has been approved
and complies with the safety standard of your particular country.”
“WARNING – To avoid risk of electric shock, this equipment must only be connected to a supply
mains with protective earth.”

Quick Reference Guide
OFM-21W00 Quick Reference Guide
5
Content
1. Getting Started............................................................................................................6
1.1 Safety Precautions ................................................................................................6
1.2 Packing List...........................................................................................................6
1.3 System Specifications ...........................................................................................7
1.4 System Overview.................................................................................................10
1.4.1 Bottom View............................................................................................................................... 10
1.5 System Dimensions.............................................................................................11
1.5.1 Front and Rear side ................................................................................................................... 11
1.6 Panel Mounting ........................................................................................................12
1.7 Wall Mounting...........................................................................................................25
2. Hardware Configuration...........................................................................................37
2.1 OFM-21W00 connector mapping.........................................................................38
2.1.1 VGA connector (VGA)................................................................................................................ 38
2.2 OSD Key Setting .................................................................................................39
2.2.1 OSD Key Function: .................................................................................................................... 39
2.2.2 OSD Key TREE Table: .............................................................................................................. 40

OFM-21W00
6 OFM-21W00 Quick Reference Guide
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x OFM-21W00 Industrial Touch Monitor

Quick Reference Guide
OFM-21W00 Quick Reference Guide
7
1.3 System Specifications
Board Specification
Mother Board
ACC-ADBOARD-12R
Optional DC to DC convert Board 9V to 36V(ACC-POWERBOARD-01R)
CPU
RTD2556T
CPU Cooler (Type)
Fanless
Power Supply
DC in
Adapter
ACC-ADP-060N-07R
(AC/DC adapter 12V/5A 90 Plug Type)
Speaker
2 x Speaker(2W)
Other Component
OSD control board (OSD-5KEY-A001)
Optional DC to DC converter Board 9V to 36V (PB-GL01)
Optional Millitronic WiFi 6 Media Server Module
Panel
LCD Panel
21.5" LVDS Panel, 1920*1080
LCD Control Board
Built in
B/L
Inverter/Converter
LED driving board for D2626514G1PA
Touch Screen
21.5" PCAP Multi-Touch, 10 points
Touch Controller
EETI
External I/O
USB Port
1 x USB type B for touch function
Video Port
1 x VGA, 1 xHDMI, 1 x DP input connectors
Audio Port
1 x Audio phone jack in
Wireless LAN
Antenna
2 x Antenna Mounting with Dust Cover for Optional Millitronic WiFi 6 Media
Server Module
Indicator Light
1 x LED (from OSD 5 keys)
Others
OSD key(5 keys)
Mechanical
Power Type
12V DC in (optional 9~36V)
Power Connector
Type
12V DC jack in
(Option for wide voltage 9~36V DC jack & phoenix connector in)
Dimension
501.88 x 296.2 x 53.4 mm
Weight
4.1 Kg
Color
Silver
Fanless
Fanless
Reliability

OFM-21W00
8 OFM-21W00 Quick Reference Guide
EMI Test
CE/FCC Class A
Vibration Test
Random Vibration Operation
1 Test PSD : 0.00454G²/Hz , 1.5 Grms
2 System condition : operation mode
3 Test frequency : 5~500 Hz
4 Test axis : X,Y and Z axis
5 Test time : 30 minutes per each axis
6 IEC60068-2-64 Test Fh
7 Storage : N/A
Sine Vibration test (Non-operation)
1 Test Acceleration : 2G
2 Test frequency : 5~500 Hz
3 Sweep：1 Oct/ per one minute. (logarithmic)
4 Test Axis : X,Y and Z axis
5 Test time :30 min. each axis
6 System condition : Non-Operating mode
7. Reference IEC 60068-2-6 Testing procedures
Package Vibration Test:
1 Test PSD : 0.026G²/Hz , 2.16 Grms
2 Test frequency : 5~500 Hz
3 Test axis : X,Y and Z axis
4 Test time : 30 minutes per each axis
5 IEC 60068-2-64 Test Fh
Mechanical Shock
Test
1 Wave from : Half Sine wave
2 Acceleration Rate : 10g for operation mode
3 Duration Time : 11ms
4 No. of shock : Z axis 300 times
5 Test Axis : Z axis
6 operation mode
7 Reference IEC 60068-2-27 testing procedures
Test Eb : Shock Test
Drop Test
Package drop test
Reference ISTA 2A, Method : IEC-60068-2-32 Test:Ed
Test Ea : Drop Test
1 Test phase : One corner, three edges, six faces
2 Test high : 96.5cm
3 Package weight : 5Kg
4 Test drawing

Quick Reference Guide
OFM-21W00 Quick Reference Guide
9
4-feet drop resistance without package
MIL-STD-810G
Operating
Temperature
0°C ~ 50°C (32°F ~ 122°F)
Operating
Humidity
40°C @ 95% Relative Humidity, Non-condensing
Storage
Temperature
-20°C ~ 60°C (-4°F ~ 140°F)
Note: Specifications are subject to change without notice.

OFM-21W00
10 OFM-21W00 Quick Reference Guide

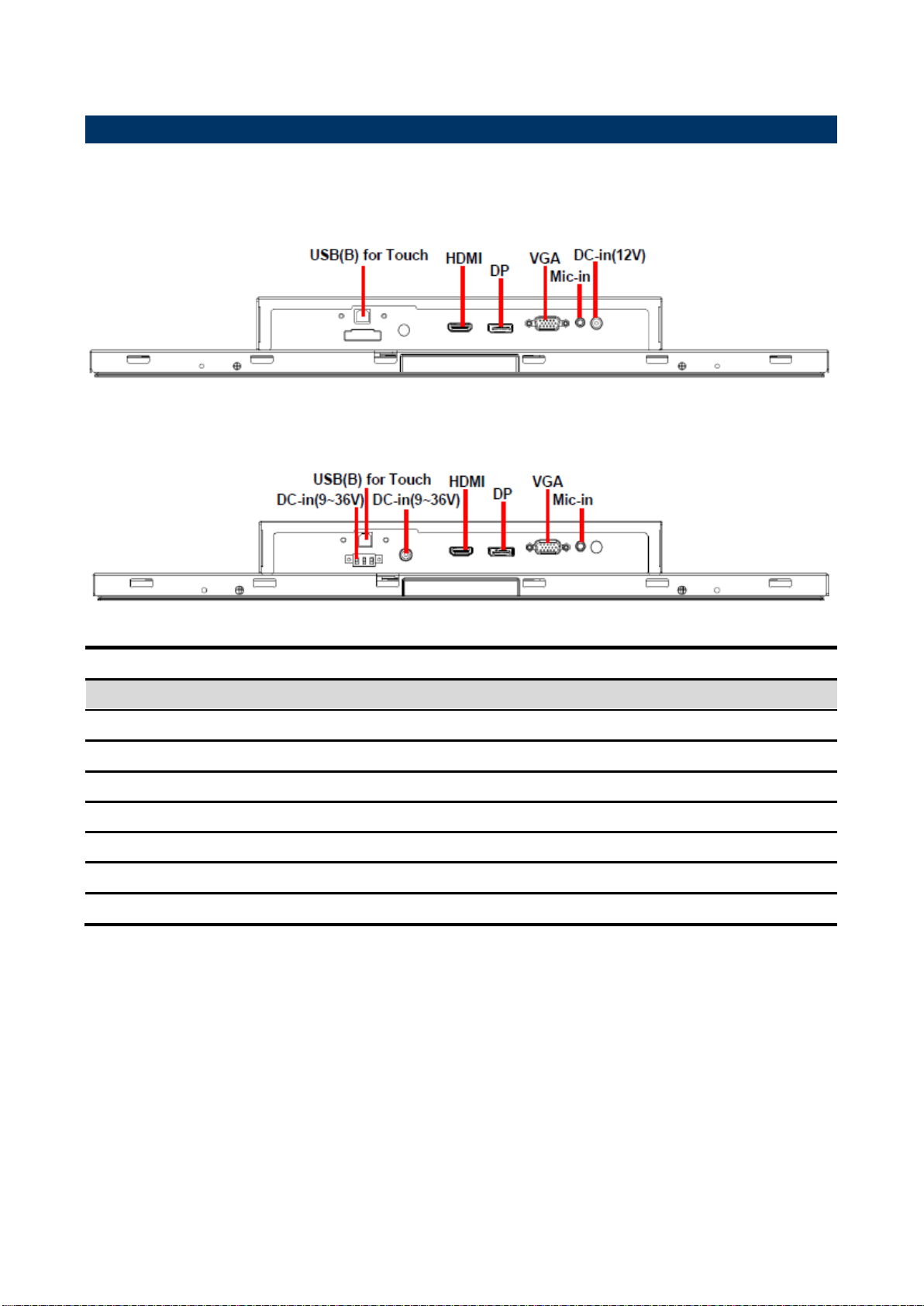

1.4 System Overview
1.4.1 Bottom View
12V DC-in (Default)
9~36V DC-in (Optional)
Connectors
Label
Function
Note
DP
DP connector
HDMI
HDMI connector
VGA
VGA connector
USB(B) for Touch
USB(B) connector for Touch
Mic-in
Mic-in audio jack
DC in(12V)
DC power-in connector
DC in(9~36V)
DC power-in connector

Quick Reference Guide
OFM-21W00 Quick Reference Guide
11
1.5 System Dimensions
1.5.1 Front and Rear side
(Unit: mm)

OFM-21W00
12 OFM-21W00 Quick Reference Guide
1.6 Panel Mounting
Panel mount is the solution for mounting OFM into the opening of wall (or cabinet).
The dimension of opening is as below:
(Installation
surface)
(Opening dimension)
(Opening dimension) (Opening dimension)
A
A
(Panel thickness)
(Unit: mm)

Quick Reference Guide
OFM-21W00 Quick Reference Guide
13
Step1. Insert and fasten 10 pcs Hexagon Studs on each side of the OFM-21W00 Panel Bracket.
2
Hexagon Stud
10
1
OFM-21W00
1
Item
Part Name
Quantity

OFM-21W00
14 OFM-21W00 Quick Reference Guide

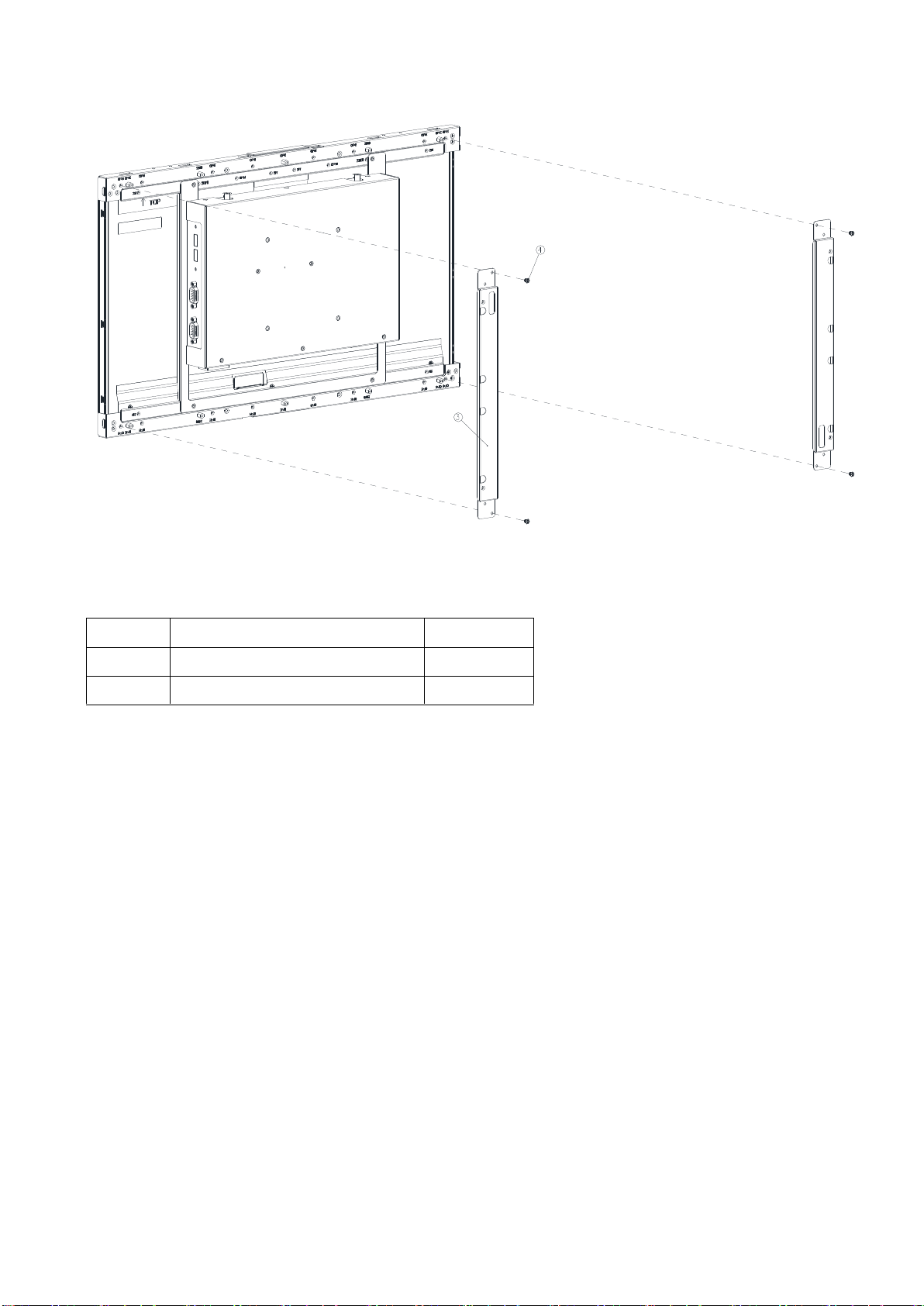

Step2. Assemble the 2pcs Bracket-RL on the left and right sides of the OFM-21W00 bracket by fastening 4
pcs screws on each side.
4
Screw
4
3
Bracket-RL
2
Item
Part Name
Quantity

Quick Reference Guide
OFM-21W00 Quick Reference Guide
15
Step3. Assemble the Front Bracket to OFM-21W00 and fasten 10 pcs screws on the corresponding Hexagon
Studs.
5
Front Bracket
1
4
Screw
10
Item
Part Name
Quantity

OFM-21W00
16 OFM-21W00 Quick Reference Guide
Step4. Assemble the 6pcs Panel kit Brackets on the Front Bracket and fasten the 16 pcs screws to the
corresponding holes.
4
Screw
16
6
Panel kit Bracket
6
Item
Part Name
Quantity

Quick Reference Guide
OFM-21W00 Quick Reference Guide
17
(outside the wall (or cabinet) opening)
Step5. Embed the OFM-21W00 semi-finished product into the wall (or cabinet) opening.
7
Wall
1
Item
Part Name
Quantity

OFM-21W00
18 OFM-21W00 Quick Reference Guide
(inside the wall (or cabinet))
Step6. Fasten the Panel mount screw*12 to the Panel mount kit bracket*12 (as shown in Figure 6-1), and
then attach them to the Panel Kit Bracket*6 fixing slots.
Figure 6-1
9
Panel mount Screw
12
8
Panel Mount Kit Bracket
12
6
Panel Kit Bracket
6
Item
Part Name
Quantity

Quick Reference Guide
OFM-21W00 Quick Reference Guide
19

OFM-21W00
20 OFM-21W00 Quick Reference Guide
Step7. Fasten the Panel mount screw*12 against the wall, so that the entire module can be secured by the
Panel mount screws and Panel mount kit brackets.
9
Panel mount Screw
12
7
Wall
1
Item
Part Name
Quantity
