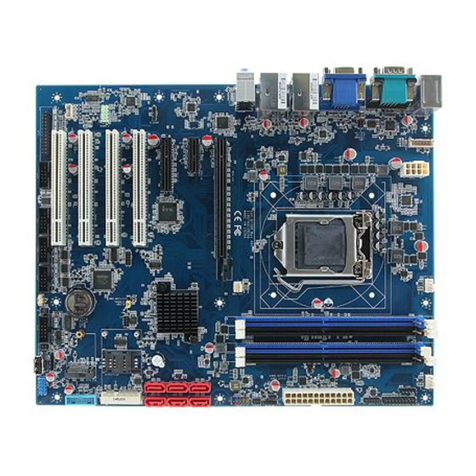

Avalue Technology EAX-C236KP User manual

Part No. E2047AKBX00R
EAX-C236KP
Intel® Core™ Processors with Intel® C236 ATX Motherboard
User’s Manual
1st Ed –06 September 2017

EAX-C236KP User’s Manual
2 EAX-C236KP User’s Manual
FCC Statement
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
Notice
This guide is designed for experienced users to setup the system within the shortest time.
For detailed information, please always refer to the electronic user's manual.
Copyright Notice
Copyright 2017 Avalue Technology Inc., ALL RIGHTS RESERVED.
No part of this document may be reproduced, copied, translated, or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without the prior written
permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their respective
owners.
Disclaimer
Avalue Technology Inc. reserves the right to make changes, without notice, to any product,
including circuits and/or software described or contained in this manual in order to improve
design and/or performance. Avalue Technology assumes no responsibility or liability for the
use of the described product(s), conveys no license or title under any patent, copyright, or
masks work rights to these products, and makes no representations or warranties that

User’s Manual
EAX-C236KP User’s Manual
3
these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration
purposes only. Avalue Technology Inc. makes no representation or warranty that such
application will be suitable for the specified use without further testing or modification.
Life Support Policy
Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN
LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL
OF Avalue Technology Inc.
As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for
surgical implant into body, or (b) support or sustain life and whose failure to perform,
when properly used in accordance with instructions for use provided in the labeling, can
be reasonably expected to result in significant injury to the user.
2. A critical component is any component of a life support device or system whose
failure to perform can be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or effectiveness.
A Message to the Customer
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user’s manual
first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/

EAX-C236KP User’s Manual
4 EAX-C236KP User’s Manual
Product Warranty
Avalue warrants to you, the original purchaser, that each of its products will be free from
defects in materials and workmanship for two years from the date of purchase.
This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Avalue, or which have been subject to
misuse, abuse, accident or improper installation. Avalue assumes no liability under the
terms of this warranty as a consequence of such events. Because of Avalue’s high
quality-control standards and rigorous testing, most of our customers never need to use our
repair service. If any of Avalue’s products is defective, it will be repaired or replaced at no
charge during the warranty period. For out-of-warranty repairs, you will be billed according
to the cost of replacement materials, service time, and freight. Please consult your dealer
for more details. If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example,
CPU type and speed, Avalue’s products model name, hardware & BIOS
revision number, other hardware and software used, etc.) Note anything
abnormal and list any on-screen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product,
and any helpful information available.
3. If your product is diagnosed as defective, obtain an RMA (return material
authorization) number from your dealer. This allows us to process your good
return more quickly.
4. Carefully pack the defective product, a complete Repair and Replacement
Order Card and a photocopy proof of purchase date (such as your sales
receipt) in a shippable container. A product returned without proof of the
purchase date is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it
prepaid to your dealer.

User’s Manual
EAX-C236KP User’s Manual
5
Content
1. Getting Started............................................................................................................8
1.1 Safety Precautions....................................................................................................8
1.2 Packing List...............................................................................................................8
1.3 Document Amendment History .................................................................................9
1.4 Manual Objectives...................................................................................................10
1.5 System Specifications.............................................................................................11
1.6 Architecture Overview—Block Diagram..................................................................15
2. Hardware Configuration...........................................................................................16
2.1 Product Overview....................................................................................................17
2.2 Jumper and Connector List.....................................................................................18
2.3 Setting Jumpers & Connectors ...............................................................................20
2.3.1 Serial port 1 pin9 signal select (JRI1) ............................................................................................ 20
2.3.2 Serial port 2 pin9 signal select (JRI2) ............................................................................................ 20
2.3.3 AT/ATX Power Mode Select (JATATX1)........................................................................................ 21
2.3.4 Clear CMOS (JCMOS1)................................................................................................................. 21
2.3.5 Serial port 2 connector (JCOM2A)................................................................................................. 22
2.3.6 COM2 RS485/422 connector (JCOM2B)....................................................................................... 22
2.3.7 Serial port 3/4/5/6 connector (JCOM3/4/5/6) ................................................................................. 23
2.3.8 General purpose I/O connector (JDIO1) ........................................................................................ 23
2.3.9 SGPIO connector (JSGPIO1) ........................................................................................................ 24
2.3.10 ATX Power connector (ATXPWR1)........................................................................................... 24
2.3.11 Power connector (ATX12V1)..................................................................................................... 25
2.3.12 SMBus connector (JSMB1)........................................................................................................ 25
2.3.13 USB connector 1 (JUSB1)......................................................................................................... 26
2.3.14 USB connector 2 (JUSB2)......................................................................................................... 26
2.3.15 USB connector 4 (JUSB4)......................................................................................................... 27
2.3.16 Battery connector (JBAT1)......................................................................................................... 27
2.3.17 Audio connector (JAUDIO1) ...................................................................................................... 28
2.3.17.1 Signal Description –Audio connector (JAUDIO1).................................................................. 28
2.3.18 LPC connector (JLPC1)............................................................................................................. 28
2.3.19 SPI connector (JSPI1) ............................................................................................................... 29
2.3.20 Speaker connector (JSPK1) ...................................................................................................... 29
2.3.21 Miscellaneous setting connector (JFP1).................................................................................... 30
2.3.22 CPU fan connector (CPUFAN1) ................................................................................................ 30
2.3.23 System fan connector 1 (SYSFAN1) ......................................................................................... 31
2.3.24 System fan connector 2 (SYSFAN3) ......................................................................................... 31

EAX-C236KP User’s Manual
6 EAX-C236KP User’s Manual
2.3.25 PS/2 keyboard & mouse connector (JKBMS1).......................................................................... 32
2.3.26 S/PDIF connector (JSPDIF1)..................................................................................................... 32
2.3.27 External Speaker connector (JBZ1)........................................................................................... 33
2.3.28 LPT connector (LPT1)................................................................................................................ 33
2.3.29 Auxiliary Panel connector (JAUXP1) ......................................................................................... 34
2.3.30 Gigabit LAN (RJ-45) connector (LAN1/2) .................................................................................. 34
3.BIOS Setup....................................................................................................................35
3.1 Introduction .............................................................................................................36
3.2 Starting Setup .........................................................................................................36
3.3 Using Setup ............................................................................................................37
3.4 Getting Help............................................................................................................38
3.5 In Case of Problems................................................................................................38
3.6 BIOS setup..............................................................................................................39
3.6.1 Main Menu...................................................................................................................................... 39
3.6.1.1 System Language.................................................................................................................. 40
3.6.1.2 System Date.......................................................................................................................... 40
3.6.1.3 System Time.......................................................................................................................... 40
3.6.2 Advanced Menu ............................................................................................................................. 41
3.6.2.1 CPU Configuration................................................................................................................. 41
3.6.2.1.1 CPU-Power Management Control......................................................................................... 42
3.6.2.2 PCH-FW Configuration.......................................................................................................... 43
3.6.2.2.1 Firmware Update Configuration............................................................................................. 44
3.6.2.2.2 OEM Flags Settings............................................................................................................... 44
3.6.2.3 Trusted Computing................................................................................................................ 45
3.6.2.4 APCI Settings ........................................................................................................................ 45
3.6.2.5 S5 RTC Wake Settings.......................................................................................................... 46
3.6.2.6 Super IO Configuration.......................................................................................................... 48
3.6.2.6.1 Serial Port 1 Configuration .................................................................................................... 49
3.6.2.6.2 Serial Port 2 Configuration .................................................................................................... 50
3.6.2.6.3 Serial Port 3 Configuration .................................................................................................... 50
3.6.2.6.4 Serial Port 4 Configuration .................................................................................................... 51
3.6.2.6.5 Serial Port 5 Configuration .................................................................................................... 51
3.6.2.6.6 Serial Port 6 Configuration .................................................................................................... 52
3.6.2.6.7 Parallel Port Configuration..................................................................................................... 53
3.6.2.7 NCT6106D H/W Monitor........................................................................................................ 53
3.6.2.7.1 Smart Fan Configuration ....................................................................................................... 54
3.6.2.8 Serial Port Console Redirection ............................................................................................ 54
3.6.2.8.1 COM1 .................................................................................................................................... 55
3.6.2.9 Intel TXT Configuration.......................................................................................................... 56
3.6.2.10 Network Stack Configuration................................................................................................. 57

User’s Manual
EAX-C236KP User’s Manual
7
3.6.2.11 CSM Configuration ................................................................................................................ 58
3.6.2.12 USB Configuration................................................................................................................. 59
3.6.3 Chipset.......................................................................................................................................... 60
3.6.3.1 System Agent (SA) Configuration.......................................................................................... 61
3.6.3.1.1 Graphics Configuration.......................................................................................................... 61
3.6.3.1.2 DMI/OPI Configuration .......................................................................................................... 62
3.6.3.1.3 PEG Port Configuration......................................................................................................... 62
3.6.3.1.4 Memory Configuration ........................................................................................................... 64
3.6.3.2 PCH-IO Configuration.......................................................................................................... 64
3.6.3.2.1 PCI Express Configuration .................................................................................................... 65
3.6.3.2.2 SATA And RST Configuration ............................................................................................... 71
3.6.3.2.3 HD Audio Configuration......................................................................................................... 72
3.6.4 Security......................................................................................................................................... 73
3.6.4.1 Secure Boot menu................................................................................................................. 73
3.6.4.1.1 Key Management................................................................................................................... 74
3.6.5 Boot .............................................................................................................................................. 75
3.6.6 Save and exit................................................................................................................................ 76
3.6.6.1 Save Changes and Reset...................................................................................................... 76
3.6.6.2 Discard Changes and Reset.................................................................................................. 76
3.6.6.3 Restore Defaults.................................................................................................................... 76
3.6.6.4 Launch EFI Shell from filesystem device .............................................................................. 76
4. Drivers Installation.......................................................................................................77
4.1 Install Chipset Driver...............................................................................................78
4.2 Install VGA Driver....................................................................................................79
4.3 Install SOL Driver....................................................................................................80
4.4 Install Audio Driver (For Realtek ALC892 HD Audio)..............................................81
4.5 Install LAN Driver....................................................................................................82
4.6 Install RST Driver....................................................................................................84
5. Mechanical Drawing ....................................................................................................86

EAX-C236KP User’s Manual
8 EAX-C236KP User’s Manual
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
Before you begin installing your single board, please make sure that the
following materials have been shipped:
1 x EAX-C236KP motherboard
2 x SATA cable
1 x I/O Shield

User’s Manual
EAX-C236KP User’s Manual
9
1.3 Document Amendment History
Revision
Date
By
Comment
1st
September 2017
Avalue
Initial Release

EAX-C236KP User’s Manual
10 EAX-C236KP User’s Manual
1.4 Manual Objectives
This manual describes in details Avalue Technology EAX-C236KP Single Board.
We have tried to include as much information as possible but we have not duplicated
information that is provided in the standard IBM Technical References, unless it proved to
be necessary to aid in the understanding of this board.
We strongly recommend that you study this manual carefully before attempting to set up
EAX-C236KP or change the standard configurations. Whilst all the necessary information is
available in this manual we would recommend that unless you are confident, you contact
your supplier for guidance.
Please be aware that it is possible to create configurations within the CMOS RAM that
make booting impossible. If this should happen, clear the CMOS settings, (see the
description of the Jumper Settings for details).
If you have any suggestions or find any errors regarding this manual and want to inform us
of these, please contact our Customer Service department with the relevant details.

User’s Manual
EAX-C236KP User’s Manual
11
1.5 System Specifications
System
CPU
Intel® LGA1151 Socket Supports 6/7th Generation Core™/ Intel® Xeon® Process
E3-1200 v5/v6 Family (Workstation) / Intel® Pentium® / Celeron ® Processors (Max.
TDP at 95W)
Intel® C236 Express Chipset Intel® C236 Express Chipset
BIOS
AMI uEFI BIOS, 128Mbit SPI Flash ROM
System Chipset
Intel® C236 Express Chipset
I/O Chip
Nuvoton® NCT6106D
System Memory
Four 288-pin DDR4 2133MHz DIMM socket, supports up to 64GB Max
(ECC memory supported by CPU)
Watchdog Timer
H/W Reset, 5 ~ 255 seconds/5 ~ 255 minutes
H/W Status
Monitor
CPU temperature monitoring
Voltages monitoring
CPU fan speed control
Expansion
1 x PCI-e x 16
1 x PCI-e x 4
1 x PCI-e x 1
4 x PCI
1 x M.2 2230 KeyA Slot support WiFi module
1 x SIM card slot
1 x Full Size Mini-PCIe with mSATA Support (SATA III)
S3/S4
Yes (S0/S3/S4/S5)
Display
Chipset
Intel® C236 Express chipset
Resolution
VGA: 2048 x 1536 @ 50 Hz
HDMI: 4096 x 2160 @ 24 Hz, 2560 x 1600 @ 60 Hz
DP: 4096 x 2304 @ 60Hz
Multiple Display
Triple Display
Audio
Audio Codec
Realtek ALC892 HD Audio Decoding Controller with 6W Amplifier
Ethernet
LAN Chip
1 x Intel® I219LM Gigabit Ethernet PHY
1 x Intel® I211AT PCI-e Gigabit Ethernet
Internal I/O
Connectors
Internal I/O
Connector
Storage:
- 1 x SATA III or 1 x full size Mini PCI-e support mSATA by auto switch IC

EAX-C236KP User’s Manual
12 EAX-C236KP User’s Manual
- 5 x SATA III
1 x M.2 2230 Slot support WiFi module
1 x PCI-e Slot with SIM card slot
Onboard Infineon SLB9665 support TPM 2.0(co-lay TPM 1.2)
COM:
COM 1 Pin9 power selection:
- 1 x 1 x 3 pin, pitch 2.0mm connector for COM1 & COM2 support RS232 with Pin 9,
+5V&+12V/RI
COM 2~6:
- 1 x 2 x 5 pin, pitch 2.54mm BOX connector for COM2 support RS232 with Pin 9,
+5V&+12V/RI
- 1 x 1 x 3 pin, pitch 2.0mm connector for COM1 & COM2 support RS232 with Pin 9,
+5V&+12V/RI
- 1 x 2 x 3 pin, pitch 2.00mm connector for COM2: support RS422/485 connector, Pin
5 with +5V
By BIOS setting RS232/422/485 Selection.
COM3~6:
- 4 x 2 x 5 pin, pitch 2.54mm BOX connector for COM3~6: support RS-232
connector, Pin 9 with RI Supported
3 x USB 2.0 by pin header, 1 x USB 2.0 By Vertical type A connector
1 x 2 x 10 pin, pitch 2.0mm connector for USB 3.0
USB Wake up by BIOS Setting
1 x 1 x 4 pin, pitch 2.54mm CPU fan connector with smart fan function supported
1 x 1 x 4 pin, pitch 2.54mm System fan connector with smart fan function supported
1 x 1 x 3 pin, pitch 2.54mm System fan connector
1 x 2 x 5 pin, pitch 2.54mm connector for front panel
1 x 2 x 10 pin, pitch 2.54mm connector for Auxiliary panel
1 x 4 pin, pitch 2.54mm connector for Speaker Buzzer
1 x 2 x 5 pin, pitch 2.54mm connector for front Audio
1 x 4 pin, pitch wafer 2.00mm connector for 6W x 2 Speaker
1 x 1 x 4 pin, pitch 2.54mm connector for S/PDIF
1 x 1 x 3pin, pitch 2.54mm connector for COMS Clear
1 x Vertical type battery connector
Co-lay 1 x 2 Pin Pitch 1.25mm horizontal type battery connector
1 x 2 x 6 pin, pitch 2.00mm connector for 8 bits GPIO
1 x 6 pin, pitch 2.00mm connector for SGPIO
1 x 5 pin, pitch 2.54mm connector for SMBus
1 x 2 x 4 pin, pitch 2.00mm connector for BIOS SPI
1 x 2 x 5 pin, pitch 2.0mm connector for LPC
Onboard buzzer

User’s Manual
EAX-C236KP User’s Manual
13
1 x 2 x 13 pin, pitch 2.54mm wafer connector for LPT
1 x 1 x 6 pin, pitch 2.5mm wafer connector for KB / Mouse
1 x 1 x 3 pin pitch 2.00mm connector for AT/ATX jumper
1 x 2 x 12 pin ATX power connector
1 x 2 x 4 pin ATX 12V power connector
Rear I/O
Connectors
Rear Side
External I/O
Connector
2 x RJ-45 with Dual deck USB 3.0 connector
1 x VGA
1 x DP
1 x HDMI
COM1 support RS-232 DB9 connector, Pin 9 with /+5V/+12V/RI Supported
1 x Line-out,1 x Mic-In,1 x Line-in
PS/2 KB/MS + USB2.0 connector
Mechanical &
Environmental
Power
Requirement
+12V/+5V/5VSB/+3.3V/-12V
ACPI
Single power ATX Support S0, S3, S4, S5
Power on Type
AT / ATX mode
Operating Temp.
0 ~ 60°C (32~140°F)
Storage Temp.
-40 ~ 75°C
Operating
Humidity
0% ~ 90% relative humidity, non-condensing
Size (L x W)
12" x 9.6" (304.8mm x 243.84mm)
Weight
0.60 kg
Note: Specifications are subject to change without notice.

EAX-C236KP User’s Manual
14 EAX-C236KP User’s Manual

User’s Manual
EAX-C236KP User’s Manual
15
1.6 Architecture Overview—Block Diagram
The following block diagram shows the architecture and main components of EAX-C236KP.

EAX-C236KP User’s Manual
16 EAX-C236KP User’s Manual
2. Hardware
Configuration

User’s Manual
EAX-C236KP User’s Manual
17
2.1 Product Overview

EAX-C236KP User’s Manual
18 EAX-C236KP User’s Manual
2.2 Jumper and Connector List
You can configure your board to match the needs of your application by setting jumpers. A
jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often protected by a plastic cover) that
slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.
To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,
2, and 3. In this case, you would connect either two pins.
The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers.
Connectors on the board are linked to external devices such as hard disk drives, a
keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to
configure your system to suit your application.
If you have any doubts about the best hardware configuration for your application, contact
your local distributor or sales representative before you make any changes.
The following tables list the function of each of the board’s jumpers and connectors.
Jumpers
Label
Function
Note
JRI1/2
Serial port 1/2 pin9 signal select
3 x 2 header, pitch 2.00mm
JATATX1
AT/ATX Power Mode Select
3 x 1 header, pitch 2.00mm
JCMOS1
Clear CMOS
3 x 1 header, pitch 2.54mm
Connectors
Label
Function
Note
CPUFAN1
CPU fan connector
4 x 1 wafer, pitch 2.54mm
SYSFAN1
System fan connector 1 (with smart fan
function supported)
4 x 1 wafer, pitch 2.54mm
SYSFAN3
System fan connector 2
3 x 1 wafer, pitch 2.54mm
JFP1
Miscellaneous setting connector
5 x 2 header, pitch 2.54 mm
DIMM1/2/3/4
288-pin DDR4 DIMM socket
AUDIO1
Audio connector

User’s Manual
EAX-C236KP User’s Manual
19
JAUDIO1
Audio connector 2
5 x 2 header, pitch 2.54 mm
JAUXP1
Auxiliary Panel connector
10 x 2 header, pitch 2.54 mm
JSPI1
SPI connector
4 x 2 header, pitch 2.00mm
COM1
Serial Port 1 connector
D-sub 9 pin, male
JCOM2A
Serial Port 2 connector
5 x 2 wafer, pitch 2.54mm
JCOM2B
COM2 RS485/422 connector
3 x 2 header, pitch 2.00 mm
JCOM3/4/5/6
Serial Port 3/4/5/6 connector
5 x 2 wafer, pitch 2.54mm
JBZ1
External Speaker connector
4 x 1 header, pitch 2.54 mm
JDIO1
General purpose I/O connector
6 x 2 header, pitch 2.00mm
JSGPIO1
SGPIO connector
3 x 2 header, pitch 2.00 mm
JSPK1
Speaker connector
1 x 4 wafer, pitch 2.00 mm
PSUSB1
PS/2 keyboard & mouse connector
2 x USB 2.0 connector
JKBMS1
PS/2 keyboard & mouse connector
6 x 1 wafer, pitch 2.50 mm
LAN1/2
2 x RJ-45 with Dual deck USB 3.0
connector
JUSB1
USB connector 1
10 x 2 wafer, pitch 2.00mm
JUSB2
USB connector 2
5 x 1 header, pitch 2.54mm
JUSB3
USB connector 3
JUSB4
USB connector 4
5 x 2 header, pitch 2.54mm
JLPC1
LPC connector
5 x 2 header, pitch 2.00mm
PCIE1/2/3
PCIe slot 1/2/3
PCI1/2/3/4
PCI slot 1/2/3/4
JBAT1
Battery connector
2 x 1 wafer, pitch 1.25mm
MPCIE1
Mini-PCI connector
ATXPWR1
ATX Power connector
12 x 2 wafer, pitch 4.20mm
ATX12V1
Power connector
2 x 4 wafer, pitch 4.20mm
SATA1~6
Serial ATA connector 1~6
HDMI1
HDMI connector
DP1
DP connector
VGA1
VGA connector
NGFF1
M.2 2230 KeyA Slot support WiFi module
LPT1
LPT connector
13 x 2 header, pitch 2.54mm
JSIM1
SIM card slot
JSPDIF1
S/PDIF connector
JSMB1
SMBus connector
5 x 1 header, pitch 2.54mm

EAX-C236KP User’s Manual
20 EAX-C236KP User’s Manual
2.3 Setting Jumpers & Connectors
2.3.1 Serial port 1 pin9 signal select (JRI1)
* Default
Ring*
+5V
+12V
2.3.2 Serial port 2 pin9 signal select (JRI2)
* Default
Ring*
+5V
+12V
