Avalue Technology EMX-PNV User manual

Part No. E2017XPNV00R
EMX-PNV
Intel® Atom™ PNV-M/ PNV-D Mini ITX Motherboard
with Intel® ICH8-M Chipset
Quick Installation Guide
1st Ed – September 1st 2010

EMX-PNV Quick Installation Guide
2 EMX-PNV Quick Installation Guide
FCC Statement
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
Copyright Notice
Copyright ©2010 Avalue Technology Inc., ALL RIGHTS RESERVED.
No part of this document may be reproduced, copied, translated, or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without the prior written
permission of the original manufacturer.
A Message to the Customer
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more

EMX-PNV Quick Installation Guide
EMX-PNV Quick Installation Guide 3
detailed than the ones we can give over the phone. So please consult the user’s manual
first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/
If you still cannot find the answer, gather all the information or questions that apply to your
problem, and with the product close at hand, call your dealer. Our dealers are well trained
and ready to give you the support you need to get the most from your Avalue’s products. In
fact, most problems reported are minor and are able to be easily solved over the phone.
In addition, free technical support is available from Avalue’s engineers every business day.
We are always ready to give advice on application requirements or specific information on
the installation and operation of any of our products. Please do not hesitate to call or e-mail
us.
Headquarters and Branch
Avalue Technology Inc.
7F, 228, Lian-cheng Road, Chung Ho City, Taipei, Taiwan
Tel: [phone] Fax: [phone]
Information: [email protected] Service:[email protected]
Avalue USA Avalue Europe
Avalue Technology Inc.
200 Tornillo Way, Suite 210, Tinton Falls,
NJ 07712
Tel: [phone]
Fax: [phone]
Information: [email protected]
Service: [email protected]
Avalue Europe A/S
Moelledalen 22C, 3140
Aalsgaarde, Denmark
Tel: [phone]
Fax:[phone]
Information: [email protected]
Service: [email protected]
BCM Advanced Research Avalue China
BCM Advanced Research
an Avalue Company
7 Marconi, Irvine, CA92618
Tel: [phone]
Fax: [phone]
Information: [e-mail]
Web: www.bcmcom.com
Avalue Technology Inc.
Room 805, Building 9,No.99 Tianzhou Rd.,
Caohejing Development Area,
Xuhui District, Shanghai
Tel: [phone]
Fax:[phone]
Information: [e-mail]
Service: [email protected]

EMX-PNV Quick Installation Guide
4 EMX-PNV Quick Installation Guide
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
Always note that improper disassembling action could cause damage to the
motherboard. We suggest not removing the heatsink without correct
instructions in any circumstance. If you really have to do this, please contact
us for further support.
1.2 Packing List
Before you begin installing your single board, please make sure that the
following materials have been shipped:
z1 x EMX-PNV Mini ITX Main Board
z1 x DVD-ROM contains the followings:
⎯User’s manual in pdf file
⎯Driver
z2 x SATA & power cable

EMX-PNV Quick Installation Guide
EMX-PNV Quick Installation Guide 5
2. Hardware
Configuration

EMX-PNV Quick Installation Guide
6 EMX-PNV Quick Installation Guide
2.1 Product Overview

EMX-PNV Quick Installation Guide
EMX-PNV Quick Installation Guide 7
2.2 Jumper and Connector List

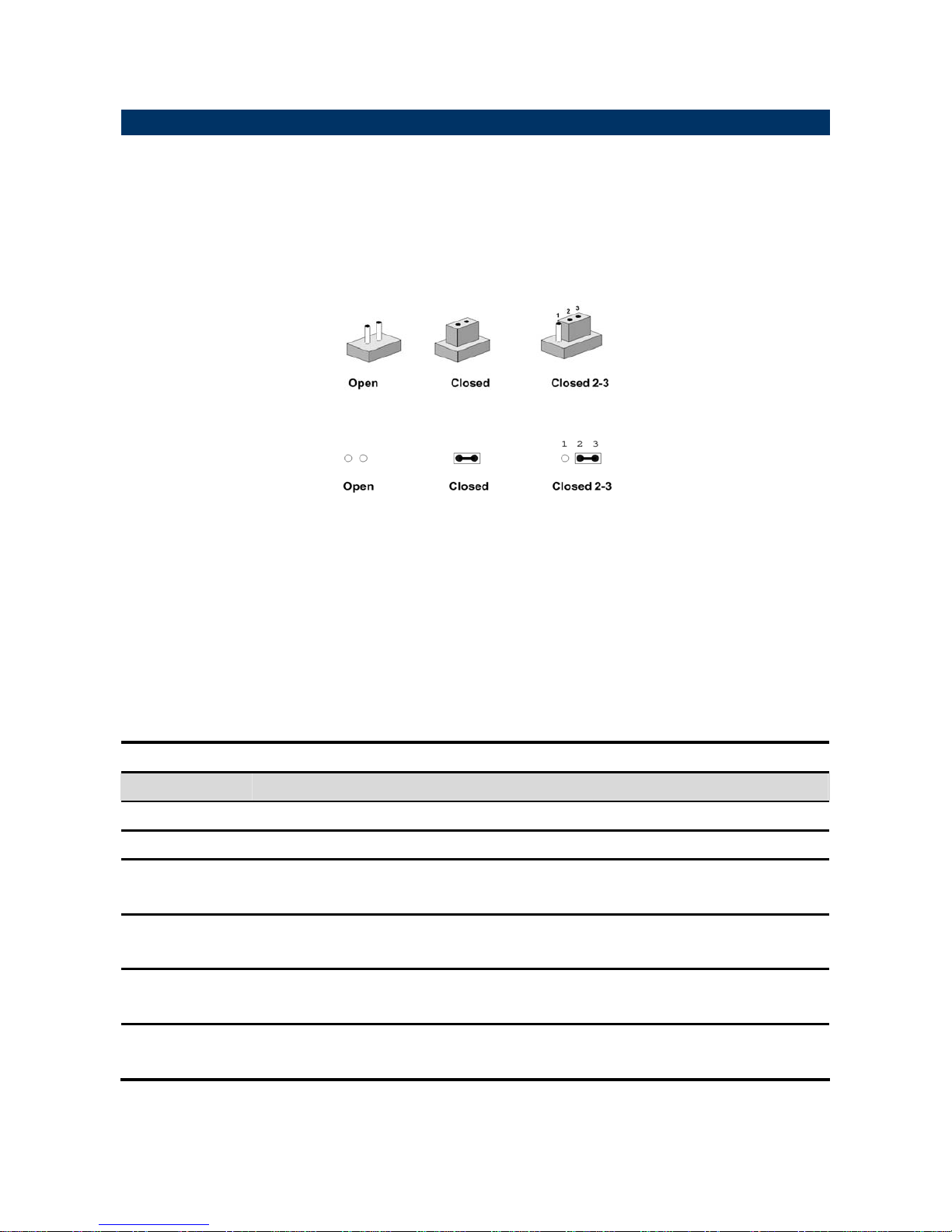

You can configure your board to match the needs of your application by setting jumpers. A
jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often protected by a plastic cover) that
slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.
To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,
2, and 3. In this case, you would connect either two pins.
The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers.
Connectors on the board are linked to external devices such as hard disk drives, a
keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to
configure your system to suit your application.
If you have any doubts about the best hardware configuration for your application, contact
your local distributor or sales representative before you make any changes.
The following tables list the function of each of the board’s jumpers and connectors.
Jumpers
Label Function Note
JBAT1 Clear CMOS 3 x 1 header, pitch 2.54 mm
JFTP1 Miscellaneous setting connector 8 x 2 header, pitch 2.54 mm
JP1 Serial port 3 pin 9 signal select – Ring,
+5V, +12V power select 3 x 2 header, pitch 2.0 mm
JP2 Serial port 4 pin 9 signal select – Ring,
+5V, +12V power select 3 x 2 header, pitch 2.0 mm
JP3 Serial port 2 pin 9 signal select – Ring,
+5V, +12V power select 3 x 2 header, pitch 2.0 mm
JP4 Serial port 1 pin 9 signal select – Ring,
+5V, +12V power select 3 x 2 header, pitch 2.0 mm

EMX-PNV Quick Installation Guide
8 EMX-PNV Quick Installation Guide
Connectors
Label Function Note
CN1 Speaker out connector 4 x 1 wafer, pitch 2.0mm
CN2 USB connector 4 & 5 5 x 2 header, pitch 2.54 mm
CN3 USB connector 6 & 7 5 x 2 header, pitch 2.54 mm
CN4 SPI connector 3 x 2 header, pitch 2.0 mm
CN5 Serial port 4 connector 5 x 2 header, pitch 2.54 mm
CN6 LCD inverter connector 5 x 1 wafer, pitch 2.0mm
CN7 Serial port 3 connector 5 x 2 header, pitch 2.54 mm
CN8 CD-ROM Audio connector 4 x 1 wafer, pitch 2.0mm
CN9 Front audio connector 5 x 2 header, pitch 2.54 mm
CN10 USB connector 0 & 1 (Co-lay with LAN1)
CN11 USB connector 2 & 3 (Co-lay with LAN2)
CN12 PS/2 keyboard & mouse connector
CN13 Audio connecter
COM1 Serial port 1/ 2 connector D-sub 9-pin, male
DIMM1 DIMM slot
DIO1 General purpose I/O connector 10 x 2 header, pitch 2.54 mm
FAN1 CPU fan connector 3 x 1 wafer, pitch 2.54mm
FAN2 System fan connector 3 x 1 wafer, pitch 2.54mm
JVGA1 VGA power connector 5 x 2 header, pitch 2.0 mm
JVGA2 VGA connector 5 x 2 header, pitch 2.0 mm

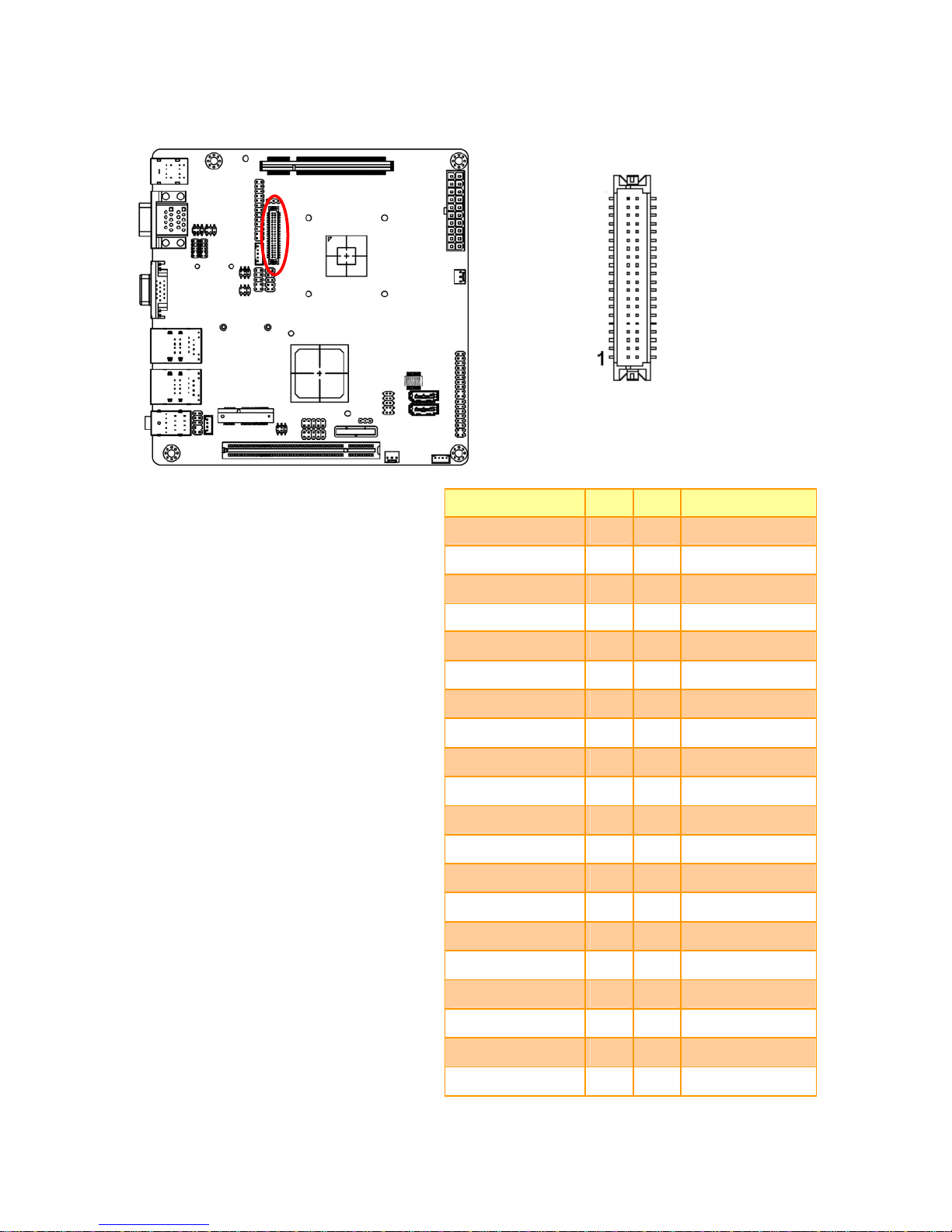

LPT1 Print port connector 13 x 2 header, pitch 2.54mm
LVDS1 LVDS connector 20 x 2 header, pitch 1.25mm
PCI1 PCI slot
PCIE1 PCIE slot
PWR1 ATX power connector 10 x 2 wafer, pitch 2.54mm
SATA1 Serial ATA connector 1
SATA2 Serial ATA connector 2
TOUCH1 Touch panel connector 5 x 2 header, pitch 2.54 mm
TSW1 4W/ 5W/ 8W power mode select DIP-SW, 6P
VGA1 VGA connector D-sub 15-pin, female
VR1 LCD backlight brightness adjustment 3 x 1 header, pitch 2.54mm

EMX-PNV Quick Installation Guide
EMX-PNV Quick Installation Guide 9
2.3 Setting Jumpers & Connectors
2.3.1 Clear CMOS (JBAT1)
* Default
Protect*
Clear CMOS
2.3.2 Miscellaneous setting connector (JFTP1)
* Default
Signal PIN PIN Signal
12 SB_LED+
AUX TIN
34 GND
+3.3V 56
HDD_LED 78
BUZZER
910 PWR_LED+
RESET
11 12 GND
13 14
PWRBTN
15 16
Open: AT
Short: ATX

EMX-PNV Quick Installation Guide
10 EMX-PNV Quick Installation Guide

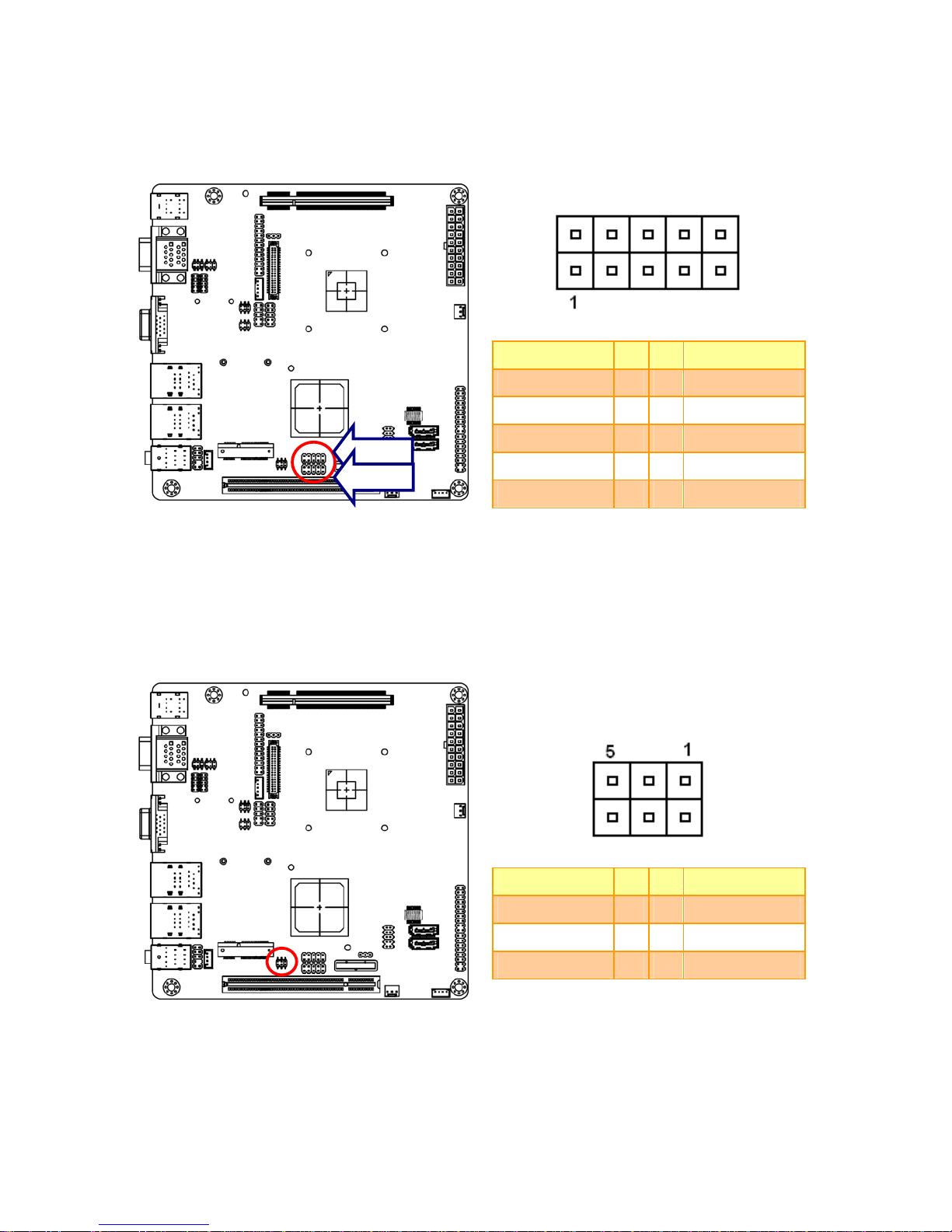

2.3.3 Serial port 3/ 4/ 2/ 1 pin 9 signal select (JP1/ JP2/ JP3/ JP4)
* Default
JP1
Ring*
+5V
+12V
JP2/ 3/ 4
Ring*
+5V
+12V
2.3.4 Speaker out connector (CN1)
Signal PIN
AMP_OUT_LP 1
AMP_OUT_LN 2
AMP_OUT_RN 3
AMP_OUT_RP 4
JP4 JP3
JP1
JP2

EMX-PNV Quick Installation Guide
EMX-PNV Quick Installation Guide 11
2.3.5 USB connector 4 & 5/ 6 & 7 (CN2/ CN3)
Signal PIN PIN Signal
+5V 12 GND
P4-/P6- 3 4 GND
P4+/P6+ 56 P5+/P7+
GND 7 8 P5-/P7-
GND 910 +5V
2.3.6 SPI connector (CN4)
Signal PIN PIN Signal
+3.3V 12 GND
SPI_CS0# 3 4 SPI_CLK
SPI_SO 56 SPI_SI
CN2
CN3

EMX-PNV Quick Installation Guide
12 EMX-PNV Quick Installation Guide
2.3.7 Serial port 4/ 3 connector (CN5/ CN7)
Signal PIN PIN Signal
DCD 12 RxD
TxD 3 4 DTR
GND 56 DSR
RTS 7 8 CTS
RI 9 10 NC
2.3.8 LCD backlight brightness adjustment (VR1)
Signal PIN
+5V 1
BRIGHT 2
GND 3
Variation Resistor
(Recommended: 4.7KΩ,
>1/16W)
CN7
CN5

EMX-PNV Quick Installation Guide
EMX-PNV Quick Installation Guide 13
2.3.9 LCD Inverter Connector (CN6)
Signal PIN
+5V 5
BRIGHT 4
LBKLT_EN 3
GND 2
+12V 1
Note:
For inverters with adjustable Backlight function, it is possible to control the LCD brightness through
the VR signal controlled by VR1. Please see the VR1 section for detailed circuitry information.
2.3.9.1 Signal Description – LCD Inverter Connector (CN6)
Signal Signal Description
BRIGHT Vadj = 0.75V ~ 4.25V (Recommended: 4.7KΩ, >1/16W)
LBKLT_EN LCD backlight ON/OFF control signal

EMX-PNV Quick Installation Guide
14 EMX-PNV Quick Installation Guide
2.3.10 CD-ROM Audio Connector (CN8)
Signal PIN
R 4
GND 3
L 2
GND 1
2.3.11 Front audio connector (CN9)
Signal PIN PIN Signal
MIC2_L 12 GND
MIC2_R 3 4 +3.3V
LINE2_R 56 MIC2_JD
SENSE_B 7
LINE2_L 910 LINE2_JD

EMX-PNV Quick Installation Guide
EMX-PNV Quick Installation Guide 15
2.3.12 General purpose I/O connector (DIO1)
Signal PIN PIN Signal
DI0 1 2 DO0
DI1 3 4 DO1
DI2 5 6 DO2
DI3 7 8 DO3
DI4 9 10 DO4
DI5 11 12 DO5
DI6 13 14 DO6
DI7 15 16 DO7
SMB_CLK 17 18 SMB_DAT
GND 19 20 +5V

EMX-PNV Quick Installation Guide
16 EMX-PNV Quick Installation Guide
2.3.13 CPU fan connector (CPU_FAN)
FAN1
FAN2
Signal PIN
GND 1
+12V 2
FAN_TAC1 3
2.3.14 VGA power connector (JVGA1)
Signal PIN PIN Signal
GND 10 9 GND
+12V 8 7 +12V
+12V 6 5 +12V
+3.3V 4 3 +3.3V
+5V 2 1 +5V
FAN2
FAN1

EMX-PNV Quick Installation Guide
EMX-PNV Quick Installation Guide 17
2.3.15 VGA connector (JVGA2)
Signal PIN PIN Signal
HS 10 9 VS
DAT 8 7 GND
DCK 6 5 B
GND 4 3 G
+5V 2 1 R
2.3.16 Print port connector (LPT1)
Signal PIN PIN Signal
P_-STB 1 2 P_AFD#
PD0 3 4 P_ERR#
PD1 5 6 P_INIT#
PD2 7 8 P_SLIN#
PD3 9 10 GND
PD4 11 12 GND
PD5 13 14 GND
PD6 15 16 GND
PD7 17 18 GND
P_ACK# 19 20 GND
P_BUSY 21 22 GND
P_PE 23 24 GND
P_SLCT 25 26 GND

EMX-PNV Quick Installation Guide
18 EMX-PNV Quick Installation Guide
2.3.17 LVDS connector (LVDS1)
Signal PIN PIN Signal
NC 39 40 NC
GND 37 38 GND
NC 35 36 LVDSA_CLK-
NC 33 34 LVDSA_CLK+
GND 31 32 GND
NC 29 30 NC
NC 27 28 NC
GND 25 26 GND
NC 23 24 NC
NC 21 22 NC
GND 19 20 GND
NC 17 18 LVDSA_D2-
NC 15 16 LVDSA_D2+
GND 13 14 GND
LVDSA_D1- 11 12 LVDSA_D0-
LVDSA_D1+ 9 10 LVDSA_D0+
GND 7 8 GND
LCDSA_DDC_SC 5 6 LCDSA_DDC_SD
+3.3V 3 4 +5V
+3.3V 1 2 +5V

EMX-PNV Quick Installation Guide
EMX-PNV Quick Installation Guide 19
2.3.18 ATX power connector (PWR1)
Signal PIN PIN Signal
+3.3V 11 1 +3.3V
-12V 12 2 +3.3V
GND 13 3 GND
PS_ON# 14 4 +5V
GND 15 5 GND
GND 16 6 +5V
GND 17 7 GND
NC 18 8 NC
+5V 19 9 +5V
+5V 20 10 +12V
2.3.19 4W/ 5W/ 8W power mode select (JSW1)
TSW1 4-WIRE 5-WIRE 8-WIRE
1 ON OFF ON
2 ON ON OFF
3 ON ON OFF
4 ON ON OFF
5 ON ON OFF

EMX-PNV Quick Installation Guide
20 EMX-PNV Quick Installation Guide
2.3.20 Touch panel connector (TOUCH1)
Signal PIN PIN Signal
X+2 1 2 X+
Y+2 3 4 Y+
GND 5 6 PROBE
X-2 7 8 X-
Y-2 9 10 Y-
Touch1 4-WIRE 5-WIRE 8-WIRE
1 N/A N/A Right Excite
2 Right TR Right Sense
3 N/A N/A Bottom
Excite
4 Bottom LR Bottom
Sense
5 GND GND GND
6 N/A Sense N/A
7 N/A N/A Left Excite
8 Left TL Left Sense
9 N/A N/A Top Excite
10 Top LL Top Sense
