Avantco Equipment 177P78 User manual

User Manual
www.AvantcoEquipment.com 1
Panini Grills
Models: 177P78, 177P84, 177P70S, 177P75SG, 177P85S, 177P88SG
Please read and keep these instructions. Indoor use only.
10/2013
User Manual

User Manual
2 www.AvantcoEquipment.com
Thank you for purchasing and using our Panini/Sandwich Grill. To make best use of this product and avoid damage
and injury, please read this manual carefully before using the machine, and keep it handy for future reference. The
Sandwich Grill design combines the advantages of stylish design, efficient construction, ease of operation and simple
maintenance. The grill temperature can be easily adjusted to suit cooking requirements, and, while mainly used for
sandwich grilling, the grill may be used for other foods.
WARNING: Any modifications or incorrect installation, unauthorized adjustments or maintenance by unauthorized per-
sonnel may result in property loss or injury. Please contact the supplier for any
necessary adjustment or repair, which should only be done by trained professionals.
CAUTION: For your safety, do not place or store any flammable liquid or gas items near the sandwich grill.
WARNING: This equipment must be connected to a grounded power outlet for your safety.

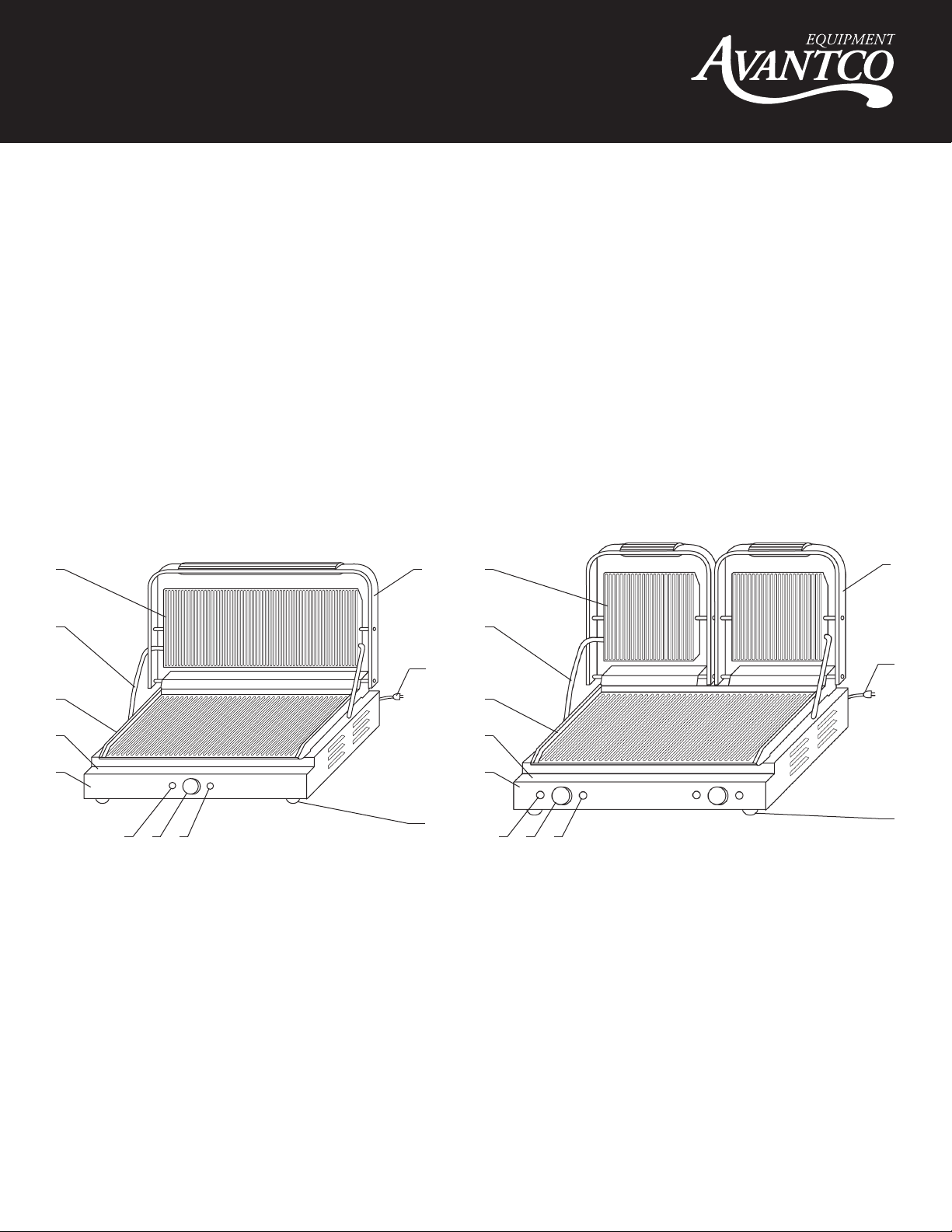

External Structure & Parts List
Single Grill Double Grill
Models: P78, P70S, P75SG Models: P84, P85S, P88SG
1. Power Indicator 1. Power Indicator
2. On/Off switch & temperature control 2. On/Off switch & temperature control
3. Heating cycle indicator 3. Heating cycle indicator
4. Lower body 4. Lower body
5. Grease collector 5. Grease collector
6. Lower grill 6. Lower grill
7. Feed wire protective tube 7. Feed wire protective tube
8. Upper grill 8. Upper grill
9. Handle 9. Handle
10. Power supply cord 10. Power supply cord
11. Rubber feet 11. Rubber feet
10
11
98
7
6
5
4
3 2 1
10
11
9
8
7
6
5
4
3 2 1

User Manual
www.AvantcoEquipment.com 3
Notes
1. This product is intended for commercial use only.
2. Do not disassemble or modify the machine.
3. Lift the upper grill assembly smoothly; jerking it up may cause damage or injury.
4. Before cleaning, disconnect power and allow machine to cool.
5. Do not immerse in water or spray water onto the grills. Water may cause short circuit and injury or damage.
6. To avoid damage, do not jam materials onto the grill or place heavy objects there.
7. When the machine is in use, the body and grill plates are hot, and will cause burns if touched.
8. Do not use an ungrounded power supply cord.
Cautions
1. It is recommended that the machine be unplugged during thunderstorms to avoid potential damage from nearby
lightning strikes.
2. Avoid damaging the controls or grill surfaces with sharp or heavy objects.
3. Turn off power after daily use.
4. Do not use the machine with a damaged power cord.
5. Any internal repair or maintenance should be performed by a factory authorized repair technician.
Important Features
1. Convenient independent temperature controls are easy to set and may result in overall power savings (double unit).
2. Grill temperatures may be set for different uses at the same time (double unit).
3. External shell and grease collector tray are stainless steel.
4. The grills are designed to be easy to use and maintain.

User Manual
4 www.AvantcoEquipment.com
Specifications
Single Panini Grill Double Sandwich Grill
Model Number P78, P70S, P75SG P84, P85S, P88SG
Voltage 120V, 60 Hz 120V, 60 Hz
Power 1.75 Kw 2x1.75 Kw
Temp. Controls 1 2
Temp. Range 120 F - 570 F 120 F- 570 F
Upper Grill (overall) 13"x 8 3/4" 8 7/16"x 16 7/8"
Lower Grill 13"x 8 3/4" 9 1/16"x 18 3/16"
Overall Size 17"x 12"x 10" 22 7/16"x 15 9/16"x 8 1/4"
Notes
1. This machine is intended for use at 120V 60 Hz only.
2. A suitable circuit protector (fuse, circuit breaker, etc. ) should be located near the machine.
3. Be certain cable is properly connected to voltage source.
4. Do not place any hard objects on the grill. Do not slam the grill closed.
5. Recommended temperature range for normal use is 392°-482°F.
6. The machine is intended for use where room temperature is below 113°F and humidity below 85%.
7. Do not use caustic or abrasive products for cleaning.
Operating Instructions
1. Be sure power cord is properly connected to a proper source (120V, 60 Hz)
2. Power indicator should indicate power available (light on).
3. Set to desired temperature (heating indicator will come on). Warm-up time is approximately 7-8 minutes. Heating
indicator will cycle at set temperature.
4. When set temperature is reached, lift top grill, using black handle, and lightly grease grill plates with vegetable oil.
Place food on grill and lightly press handle down. Excess oil will collect in the grease collection tray. Remove food
when cooked. The heating elements will automatically cycle as needed.
5. Turn machine off when no longer needed and unplug from power source.
Instructions for First Time Use
In order to protect the plates of your new grill during transportation, a layer of food-safe oil was coated on the surface
prior to shipment. This oil is harmless, but must be removed before you begin to use. To remove, preheat the grill until
the oil liquifies. Next, carefully wipe away the melted oil with a clean, soft cloth. Once all of the oil is removed you can
begin to use your grill

User Manual
www.AvantcoEquipment.com 5
Cleaning and Maintenance
1. Disconnect machine before cleaning and allow to cool.
2. Use only a damp towel with non-corrosive cleaner. Do not immerse or flush with water.
3. Wipe down outside surface to remove any soil.
4. Store in a dry clean area when not in use.
Troubleshooting
Problem Possible Cause Action
Grill plates do not heat even though power
indicators are lit.
Defective controller Replace controller
Defective heater(s) Replace heater(s)
Temperature can not be controlled. Defective controller Replace controller
Heating appears normal but power indicators
are not lit.
Defective indicator(s) Replace
No action when power is turned on. Defective fuse or open circuit
breaker
Replace fuse or reset circuit
breaker
Do not use the machine if any of the above occur.
Any troubleshooting corrections should be performed by a qualified technician.
Daily Check
Before using the machine, visually inspect for any signs of damage or frayed power cord.
Be certain machine is on a level countertop.
After turning it on, check for anything unusual before you use it.
Inspect the machine every day before using.
If there is any question about operation, do not use.
Attack tough grease, oil, and carbon with this ready to use decarbonizer
and degreaser. Its unique formula is designed to clean ovens, grills,
hoods and a wide variety of other surfaces.

User Manual
6 www.AvantcoEquipment.com
Parts List Single Grill
1. Power Light 26. Upper Platen
2. Temperature Control with Switch 27. Upper Heater
3. Screw M4x6 28. Wiring Guide Tube
4. Heating Cycle Indicator 29. Wiring Guide Tube Stop
5. Lower Case 30. Guide Tube Retainer
6. Internal Wrenching Screw M6x10 31. Retaining Ring
7. Flat Washer 32. Upper Platen Shaft
8. Internal Wrenching Screw M5x25 33. Internal Wrenching Screw M6x8
9. Flat Spacer 34. Internal Wrenching Screw M6x8
10. Torsion Spring 35. Handle 35. Handle Frame
11. Rear Shaft 36. Grease Collector
12. Shaft Retainer 37. Oil Tray
13. Internal Wrenching Screw M6x40 40. Bottom Insulator
14. Rear Upper Cover 41. Bottom Pan
15. Slotted Screw M4x8 42. Slotted Screw M4x8
16. Spring Pin 43. Barrier Strip Mounting Plate
17. Ground Screw M6x15 44. Slotted Screw M4x8
18. Power Cord 45. Ceramic Terminal Board
19. Lower Grill 46. Hex Head Screw M6x20
20. Upper Grill Cover 47. Hex Nut M4
21. Slotted Screw M4x8 48. Rubber Foot
22. Top Cover 49. Rubber Heater Pressure Plate
23. Slotted Screw M4x8 50. Bottom Heater
24. Upper Insulator 51. Internal Wrenching Screw M6x8
52. Bottom Cover 53. Phillips Head Screw M4x8
54. Hex Nut M6
Parts List
1. Power Light 26. Upper Platen
2. Temperature Control with Switch 27. Upper Heater
3. Screw M4x6 28. Wiring Guide Tube
4. Heating Cycle Indicator 29. Wiring Guide Tube Stop
5. Lower Case 30. Guide Tube Retainer
6. Internal Wrenching Screw M6x10 31. Retaining Ring
7. Flat Washer 32. Upper Platen Shaft
8. Internal Wrenching Screw M5x25 33. Internal Wrenching Screw M6x8
9. Flat Spacer 34. Internal Wrenching Screw M6x8
10. Torsion Spring 35. Handle
11. Rear Shaft 36. Handle Frame
12. Shaft Retainer 37. Oil Tray
13. Internal Wrenching Screw M6x40 40. Bottom Insulator
14. Rear Upper Cover 41. Bottom Pan
15. Slotted Screw M4x8 42. Slotted Screw M4x8
16. Spring Pin 43. Barrier Strip Mounting Plate
17. Ground Screw M6x15 44. Slotted Screw M4x8
18. Power Cord 45. Ceramic Terminal Board
19. Lower Grill 46. Hex Head Screw M6x20
20. Upper Grill Cover 47. Hex Nut M4
21. Slotted Screw M4x8 48. Rubber Foot
22. Top Cover 49. Rubber Heater Pressure Plate
23. Slotted Screw M4x8 50. Bottom Heater
24. Upper Insulator 51. Internal Wrenching Screw M6x8
52. Bottom Cover
53. Phillips Head Screw M4x8
54. Hex Nut M6
Single Grill

User Manual
www.AvantcoEquipment.com 7

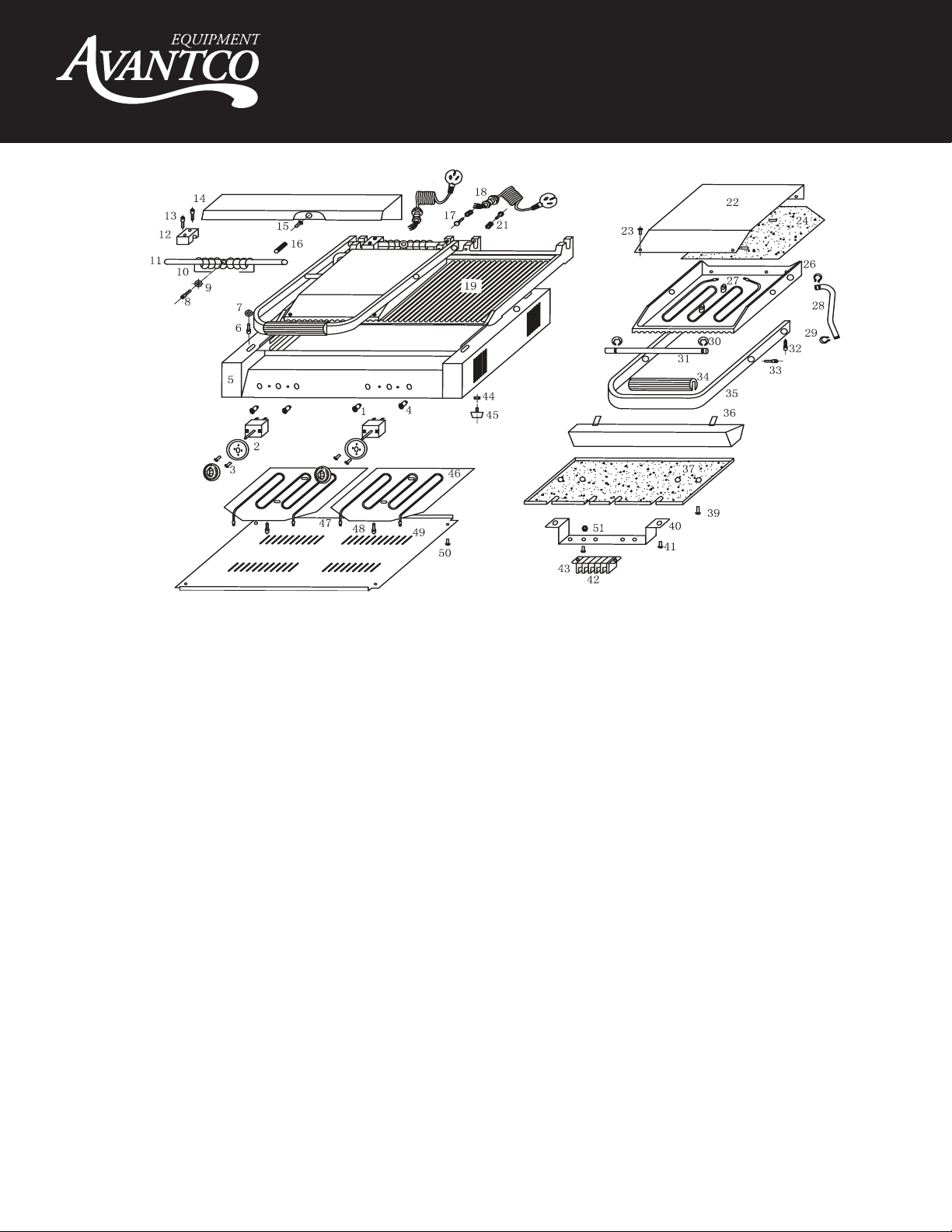

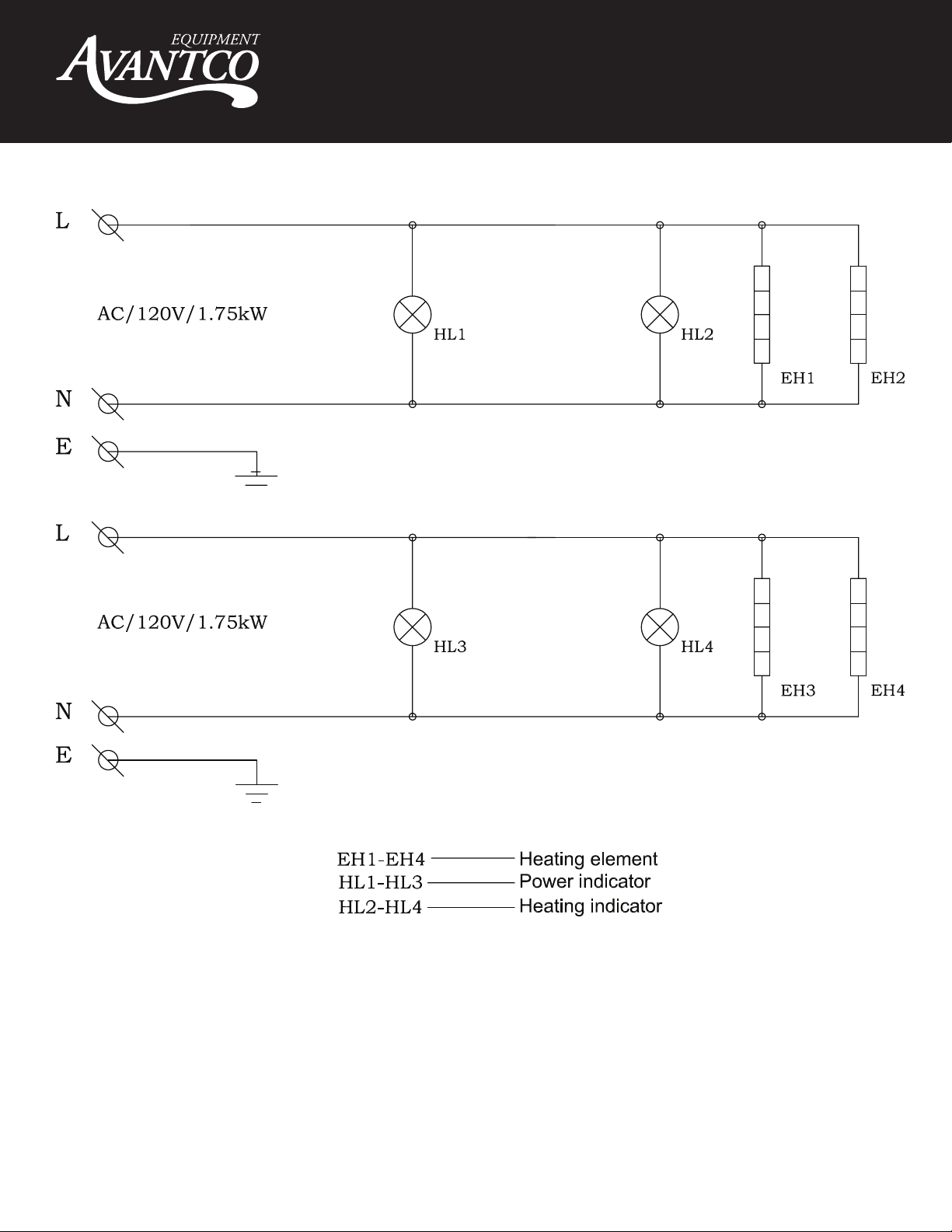

Parts List Double Grill
1. Power Light 26. Upper Platen
2. Temperature Control with Switch 27. Upper Heater
3. Screw M4x6 28. Wiring Guide Tube
4. Heating Cycle Indicator 29. Guide Tube Retainer
5. Lower Case 30. Retaining Ring
6. Internal Wrenching Screw M6x10 31. Upper Platen Shaft
7. Flat Washer 32. Internal Wrenching Screw M6x8
8. Internal Wrenching Screw M5x25 33. Internal Wrenching Screw M6x8
9. Flat Spacer 34. Handle
10. Torsion Spring 35. Handle Frame
11. Rear Shaft 36. Oil Tray
12. Shaft Retainer 37. Bottom Insulator
13. Internal Wrenching Screw M6x40 39. Slotted Screw M4x8
14. Rear Upper Cover 40. Barrier Strip Mounting Plate
15. Slotted Screw M4x8 41. Slotted Screw M4x8
16. Spring Pin 42. Ceramic Terminal Board
17. Ground Screw M6x15 43. Hex Head Screw M6x20
18. Power Cord 44. Hex Nut M4
19. Lower Grill 45. Rubber Foot
20. Upper Grill Cover 46. Rubber Heater Pressure Plate
21. Slotted Screw M4x8 47. Bottom Heater
22. Top Cover 48. Internal Wrenching Screw M6x8
23. Slotted Screw M4x8 49. Bottom Cover
24. Upper Insulator 50. Phillips Head Screw M4x8
51. Hex Nut M6
Parts List
1. Power Light 26. Upper Platen
2. Temperature Control with Switch 27. Upper Heater
3. Screw M4x6 28. Wiring Guide Tube
4. Heating Cycle Indicator 29. Guide Tube Retainer
5. Lower Case 30. Retaining Ring
6. Internal Wrenching Screw M6x10 31. Upper Platen Shaft
7. Flat Washer 32. Internal Wrenching Screw M6x8
8. Internal Wrenching Screw M5x25 33. Internal Wrenching Screw M6x8
9. Flat Spacer 34. Handle
10. Torsion Spring 35. Handle Frame
11. Rear Shaft 36. Oil Tray
12. Shaft Retainer 37. Bottom Insulator
13. Internal Wrenching Screw M6x40 39. Slotted Screw M4x8
14. Rear Upper Cover 40. Barrier Strip Mounting Plate
15. Slotted Screw M4x8 41. Slotted Screw M4x8
16. Spring Pin 42. Ceramic Terminal Board
17. Ground Screw M6x15 43. Hex Head Screw M6x20
18. Power Cord 44. Hex Nut M4
19. Lower Grill 45. Rubber Foot
20. Upper Grill Cover 46. Rubber Heater Pressure Plate
21. Slotted Screw M4x8 47. Bottom Heater
22. Top Cover 48. Internal Wrenching Screw M6x8
23. Slotted Screw M4x8 49. Bottom Cover
24. Upper Insulator 50. Phillips Head Screw M4x8
51. Hex Nut M6
Double Grill
