Hot Dog Roller Grills
User Manual
Model: 177RG1830RC, 177RG1850RC
Please read and keep these instructions. Indoor use only.
10/2020

User Manual
2 www.AvantcoEquipment.com
Product Features
1. Avantco Equipment’s hot dog roller grills feature convenient temperature controls making them energy-efficient and
power saving.
2. The high torque motor drive system is designed for long-lasting durability.
3. The eleven non-stick roller grills have separate controls for front and back rollers.
4. The base is made of stainless steel with an extractable stainless steel oil plate, which keeps the machine
easy to clean.
5. Teflon seals prevent grease from entering the base and coming into contact with the motor and drive chain.
6. Rear mounted controls help prevent accidental setting changes in front-of-house settings.
7. Slanted design provides excellent product visibility.

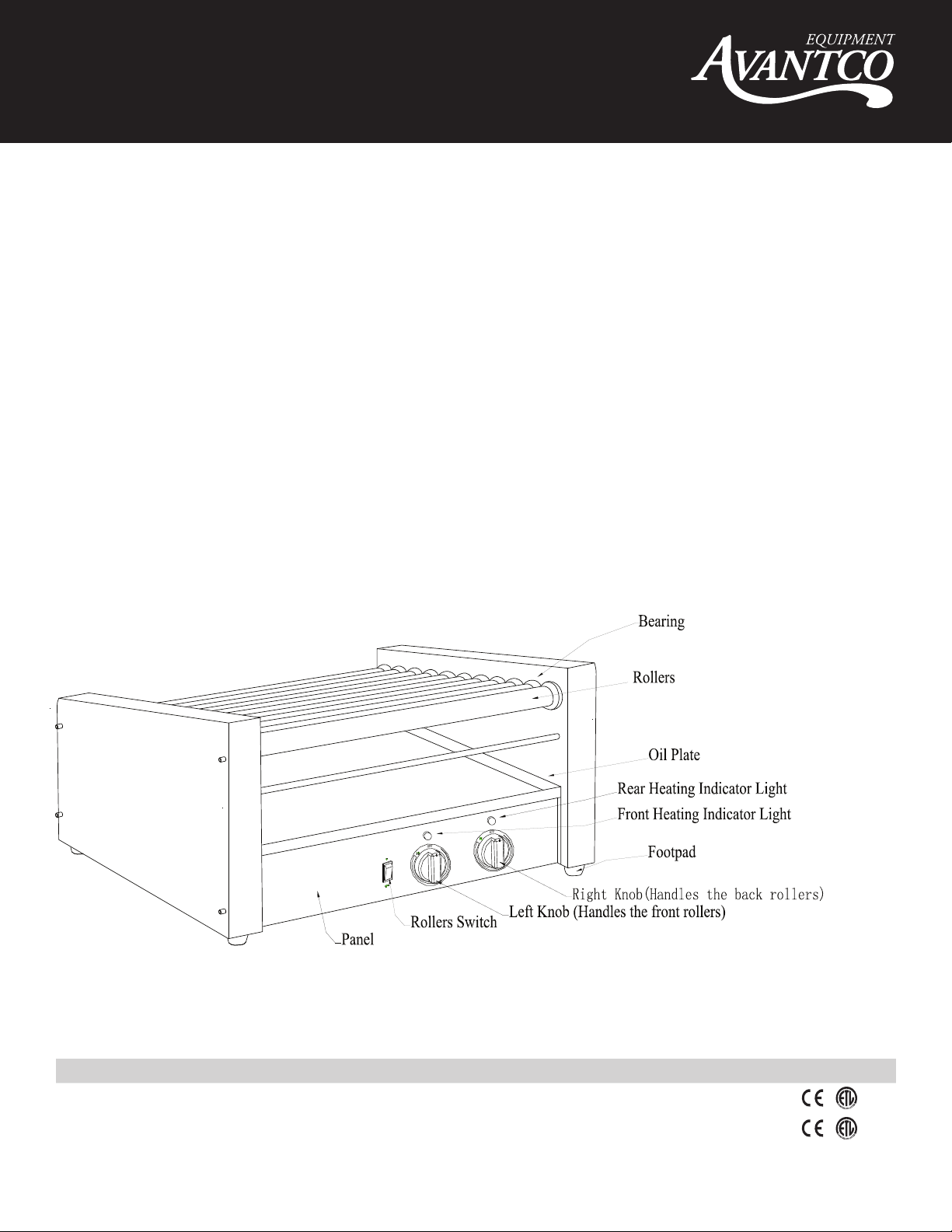

Parts Identification
Technical Specifications
Model Dimensions (Inches) Voltage (V) Power (W) Hot Dog Quantity Certification
177RG1830RC
177RG1850RC
227⁄8" x 181⁄4" x 8 3⁄4"
3411⁄16" x 18 5⁄16" x 11"
120V
120V
910W
1,460W
30
50

User Manual
www.AvantcoEquipment.com 3
Important Safeguards
1. Thoroughly read this instruction manual prior to first use.
2. Do not submerge unit and/or cord in water or any other liquids. Failure to heed this warning may result in electric
shock, unit damage, and/or bodily injury.
3. Close supervision is suggested when unit is in use, especially when children are present.
4. Check to ensure unit is in off position and unplugged when not in use or prior to cleaning. Allow grill to cool
completely before cleaning.
5. Do not operate if the machine suffers serious damage or malfunctions. Contact dealer for repair or adjustment.
6. It is recommended that you use only manufacturer issued parts and accessories with this unit. Using unapproved
parts may result in damage or injury. This will also void the warranty.
7. Do not use outdoors.
8. Do not let cord hang over the edge of table or counter. Do not let it touch any hot surfaces.
9. Do not place appliance on or near gas or electric burners or heated ovens.
10. Securely insert plug into outlet. When unplugging, be sure to remove plug only. Never pull by the power cord.
Installation
1. To avoid equipment or electrical damage, make certain that the nameplate voltage is the same as the outlet voltage.
2. Electrical and grounding connections must be in compliance with the applicable portions of the electrical code.
3. Prior to first use, it is recommended that you clean the rollers of the machine with a soft cloth.
Operation Guide
1. Evenly place unfrozen hot dogs on the rollers.
2. The left knob controls the front rollers and the right knob controls the back rollers. Both rows may be used for
operation during high-volume use.
3. Turn the roller switch on the control plate to “ON”. This switch controls the rotation of the rollers.
4. Turn the knob to the desired heat level. After 40 minutes of heating the hot dogs, turn the temperature control knob
on low to continuously keep warm.
5. The heating duration depends on the hot dogs' quality. Please adjust as needed or required. Average heating
duration is 40 minutes. This may vary.

User Manual
4 www.AvantcoEquipment.com
Cleaning Instructions
1. To avoid electric shock or scalding, unplug the power cord and allow the unit to cool before cleaning.
2. Do not submerge the hot dog grill in water or directly apply liquids to clean unit.
3. When cleaning the rollers, wipe from the end of the rollers to the center. This will reduce grease and particles
from getting into the bearings. Proper cleaning may extend the life of the unit and extend the period between
routine maintenances.
4. For product with high fat or sugar content, clean the rollers every 3-4 hours.
5. Remove the hot dogs from the rollers when cleaning. Do not touch the heated rollers directly as this may result in
burning or scalding.
6. Do not clean rollers with abrasive cleaners or scouring pads because this may damage the rollers surface and the
particles may get into the bearing.
Suggestions
1. Hot dogs must be fully unfrozen.
2. Do not leave hot dogs on the grill too long to ensure the best results. If warming for more than four hours, the hot
dogs may become thick and hard.
Attack tough grease, oil, and carbon with this ready to use carbonizer
and degreaser. Its unique formula is designed to clean ovens, grills,
hoods and a wide variety of other surfaces.

User Manual
www.AvantcoEquipment.com 5
Circuit Diagram
5
Circuit Diagram
RG-05：：
RG-07:
RG-09:
RG1830

User Manual
6 www.AvantcoEquipment.com
3
Solid Solution Graph
No. Name Specification Qty. (PCS)
01 Bolt M4 x 8,Galvanized 6
02 Bolt M5 x 16,stainless steel 6
03 Foot Rubber 6
04 Glass cotton Glass cotton 2
05 Housing Stainless steel 1
06 Round head screw M4 x 8,Stainless steel 4
07 Side board Stainless steel 1
08 Insulated plate 2
09 Heating element supporter Aluminum Plated 1
10 Heating element supporter Aluminum Plated 1
11 Coil Plastic 1
12 Power cord with plug 16#cord, NEMA 5-15 PLUG 1
13 Tube φ38x6.2
RG-05:10pcs;
RG-07:14pcs;
RG-09:18pcs

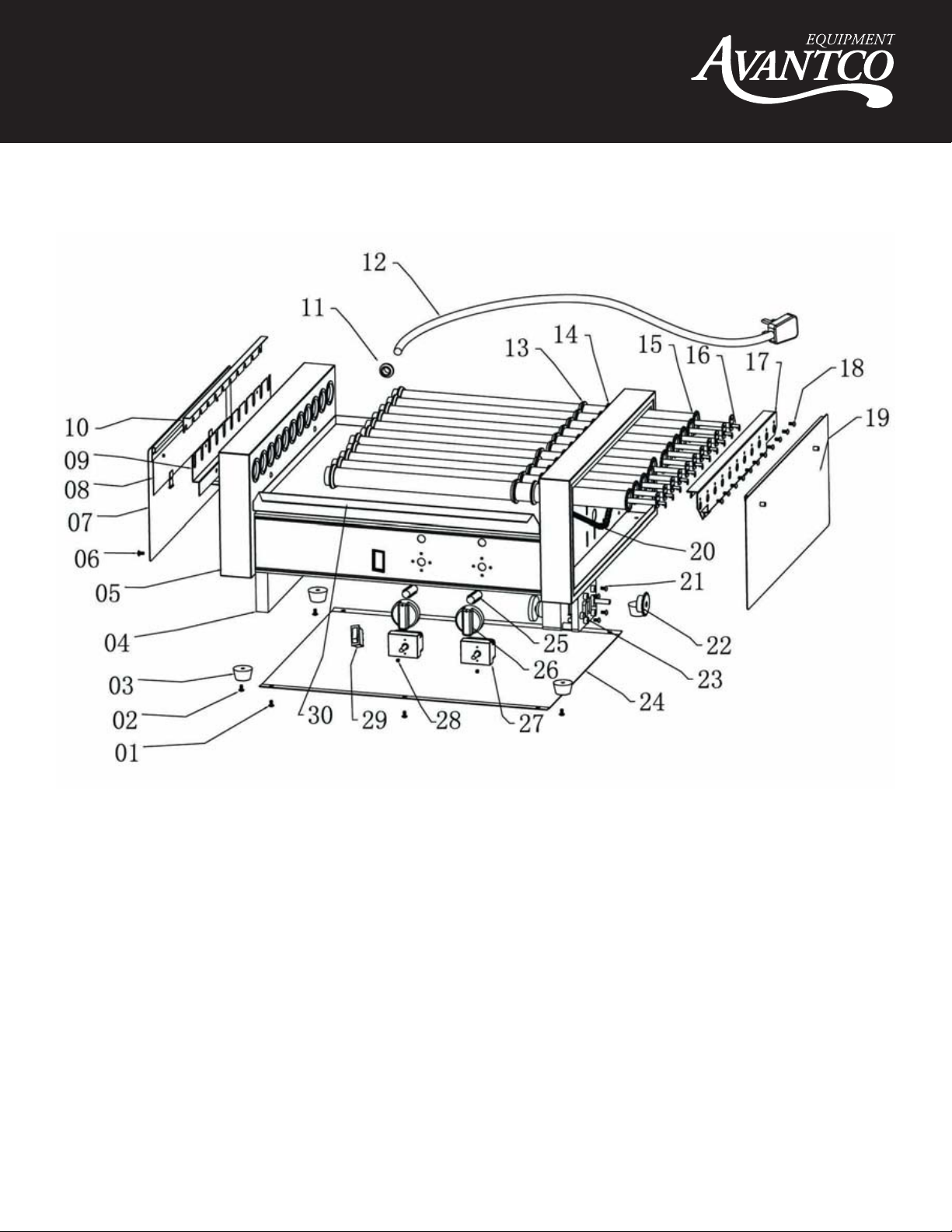

Parts Diagram

User Manual
www.AvantcoEquipment.com 7
Parts List
No. Name Specification Qty. (PCS)
1 Bolt M4 x 8,Galvanized 6
2 Bolt M5 x 16,stainless steel 6
3 Foot Rubber 6
4 Glass cotton Glass cotton 2
5Housing Stainless steel 1
6Round head screw M4 x 8,Stainless steel 4
7 Side board Stainless steel 1
8Insulated plate 2
9Heating element supporter Aluminum Plated 1
10 Heating element supporter Aluminum Plated 1
11 Coil Plastic 1
12 Power cord with plug 16#cord, NEMA 5-15 PLUG 1
13 Tube 11/2"x 1/4"18
14 Tube pin 11/2"x 1/8"18
15 Tube with wheel 11/8"x 19 3/4"9
16 Heating element 120V 80W 9
17 Heating element fixer Stainless steel 1
18 Bolt M4 x 8,Galvanized 9
19 Side board Stainless steel 1
20 Chain 3.2mm a 1
21 Bolt M4 x 8,Galvanized 4
22 Motor wheel 1
23 Motor 120V,5.6round/min 1
24 Mesh supporter Plastic 8
25 Indication light 16A,250V(yellow) 2
26 Switch 41 2
27 Thermostat EGO 2
28 Bolt M4 x 6, Galvanized 4
29 On/off 1
30 Oil Pot 1

User Manual
8 www.AvantcoEquipment.com
Equipment Limited Warranty
To Make a Warranty Claim:
For Warranty Inquiries contact the locaon where you purchased the product:
• WebstaurantStore.com: Contact [e-mail]. Please have your order number ready.
• The Restaurant Store: If you purchased this unit from your local store, please contact your store directly.
• TheRestaurantStore.com: Online purchases, call 717-392-7261. Please have your order number ready.
Failure to contact the designated locaon prior to obtaining equipment service may void your warranty.
Avantco makes no other warranes, express or implied, statutory or otherwise, and HEREBY DISCLAIMS ALL IMPLIED
WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR A
PARTICULAR PURPOSE.
This Limited Warranty does not cover:
• Equipment sold or used outside the Connental United States
• Use of unltered water (if applicable)
• Avantco has the sole discreon on wearable parts not covered under warranty
• Equipment not purchased directly from an authorized dealer
• Equipment used for residenal or other non-commercial purposes
• Equipment that has been altered, modied, or repaired by anyone other than an authorized service agency
• Equipment where the serial number plate has been removed or altered.
• Damage or failure due to improper installaon, improper ulity connecon or supply, and issues resulng from
improper venlaon or airow.
• Defects and damage due to improper maintenance, wear and tear, misuse, abuse, vandalism, or Act of God.
Any acon for breach of this warranty must be commenced within 1 year of the date on which the breach occurred.
No modicaon of this warranty, or waiver of its terms, shall be eecve unless approved in a wring signed by the
pares. The laws of the Commonwealth of Pennsylvania shall govern this warranty and the pares’ rights and dues
under it. Avantco shall not under any circumstances be liable for incidental or consequenal damages of any kind,
including but not limited to loss of prots.
