Avantco CH100 User manual

English
Wood chipper CH100
Operator’s Manual
2017-

2
CH100
WARNING SYMBOLS IN THIS MANUAL
• imminent danger which could cause serious personal injury or death
• danger which could cause personal injury
• conditions or misuse that could damage equipment or machinery
• reminders, such as for performing checks or carrying out maintenance or repair
procedures
INTRODUCTION
This manual includes the information and maintenance instructions required for operating the machine in
the optimal manner.
Although you have experience in using this kind of machinery, read the operation and maintenance
instructions carefully since they include information enabling ecient and safe operation. Regular
maintenance is the best way to guarantee the ecient and economical performance of the machine.
Each and every operator must read, understand, and follow all safety instructions
and procedures.
CUSTOMER FEEDBACK
We are happy to receive your opinions and suggestions for improvements by mail, fax or e-mail. All imple-
mented suggestions for improvements will be rewarded.
WARNING!
!
CAUTION!
!
!
DANGER!
CAUTION!
!
PRODUCT WARRANTY
Avant Tecno Oy provides a 12-months warranty on CH100.

3
CH100
Manufacturer:
Farmi Forest Corporation
Ahmolantie 6, FIN-74510 IISALMI, Finland
Person authorized to compile the technical documentation:
Name: Matti Berg
Address: Ahmolantie 6, FIN-74510 IISALMI, Finland
Commercial name:
Farmi
Commercial name:
Farmi wood chipper with attachable Farmi feed hopper
Machine type:
Wood chipper: FARMI 100
Available feed hoppers for manual feed: F100
Machine series number:
Herewith, we declare that the machine brought into circulation conforms with the
pertinent requirements of the Machinery Directive 2006/42/EC and the EMC Directi-
ve (directive relating to electromagnetic compatibility) 2004/108/EC.
The following harmonized standards have been applied for the conceptional design
of the machine:
SFS-EN ISO 12100-1/2, SFS-EN ISO 13857, SFS-EN 13525, SFS-EN ISO 4254-1
The following additional standards and specications have been applied for the
conceptional design of the machine:
SFS ISO 730-1, SFS ISO 2332
Iisalmi 26.2.2015
(Place) (date)
Juha Halivuori
EC DECLARATION OF CONFORMITY
Translation of original Declaration of Conformity

4
CH100
When ordering spare parts, please indicate machines type from the machine plate, spare parts order number,
description and quantity required.
TABLE OF CONTENTS
GENERAL SAFETY INSTRUCTIONS 5
GENERAL SAFETY INSTRUCTIONS FOR THE CHIPPER 8

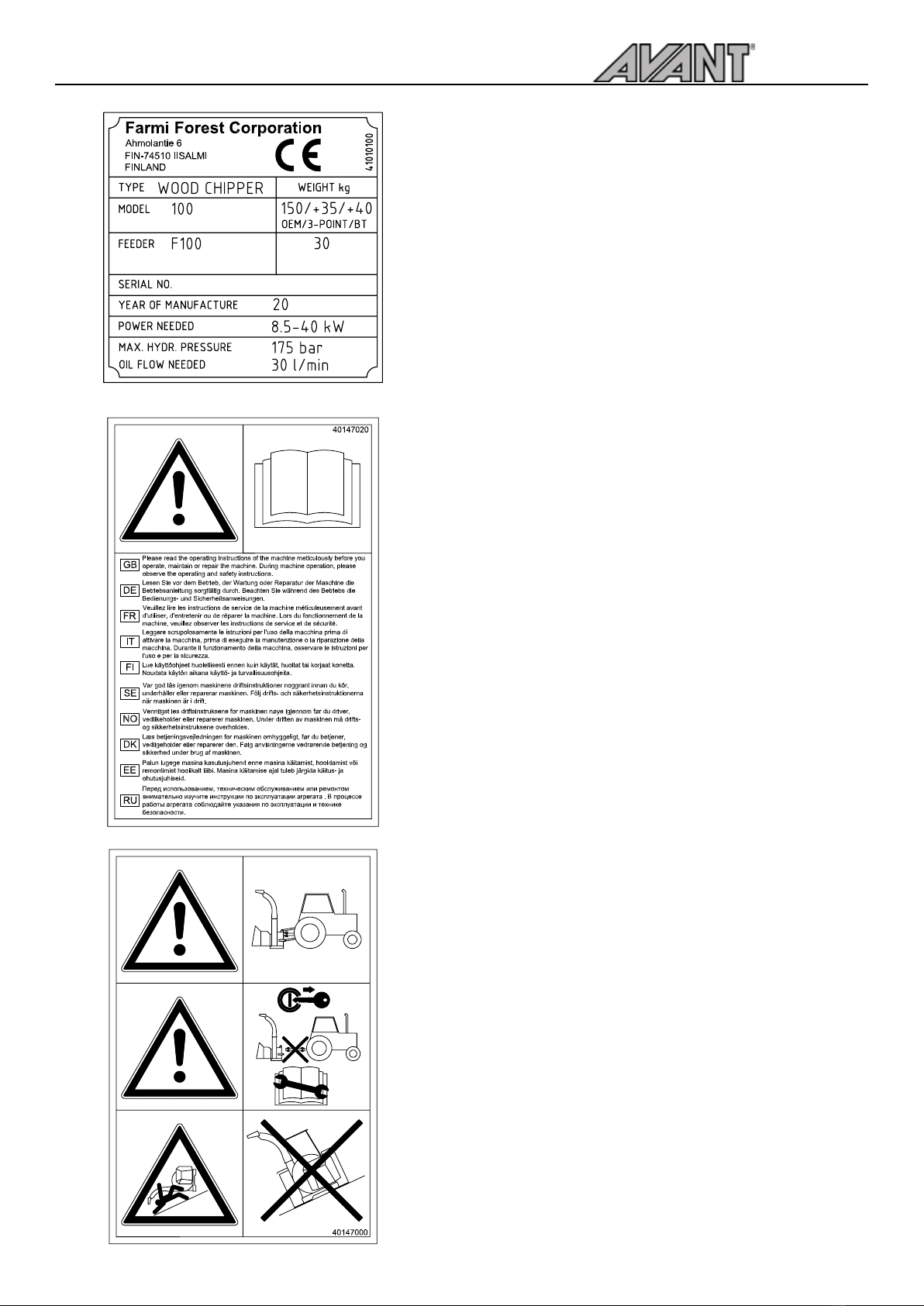

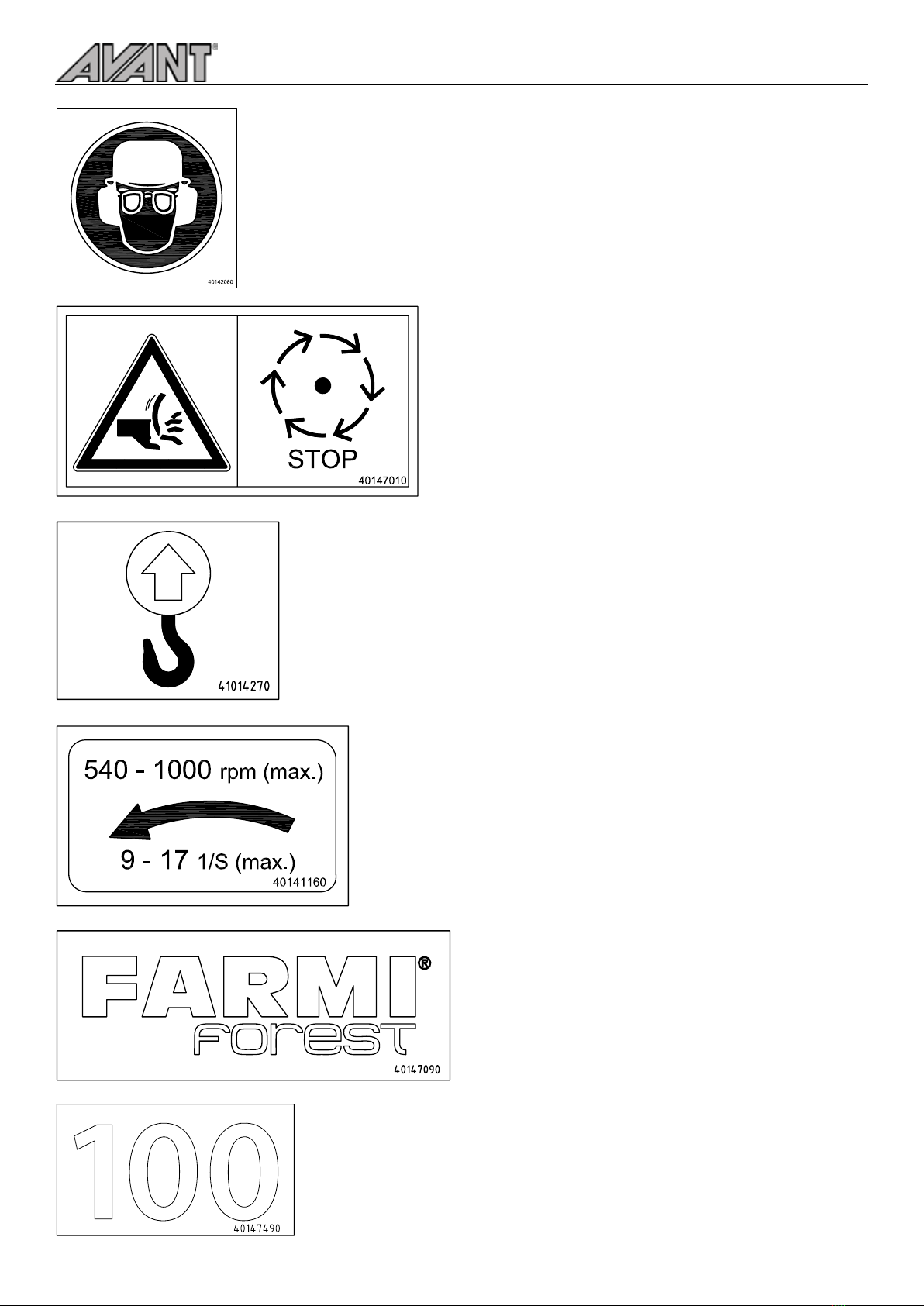

STICKERS AND PLATES 9

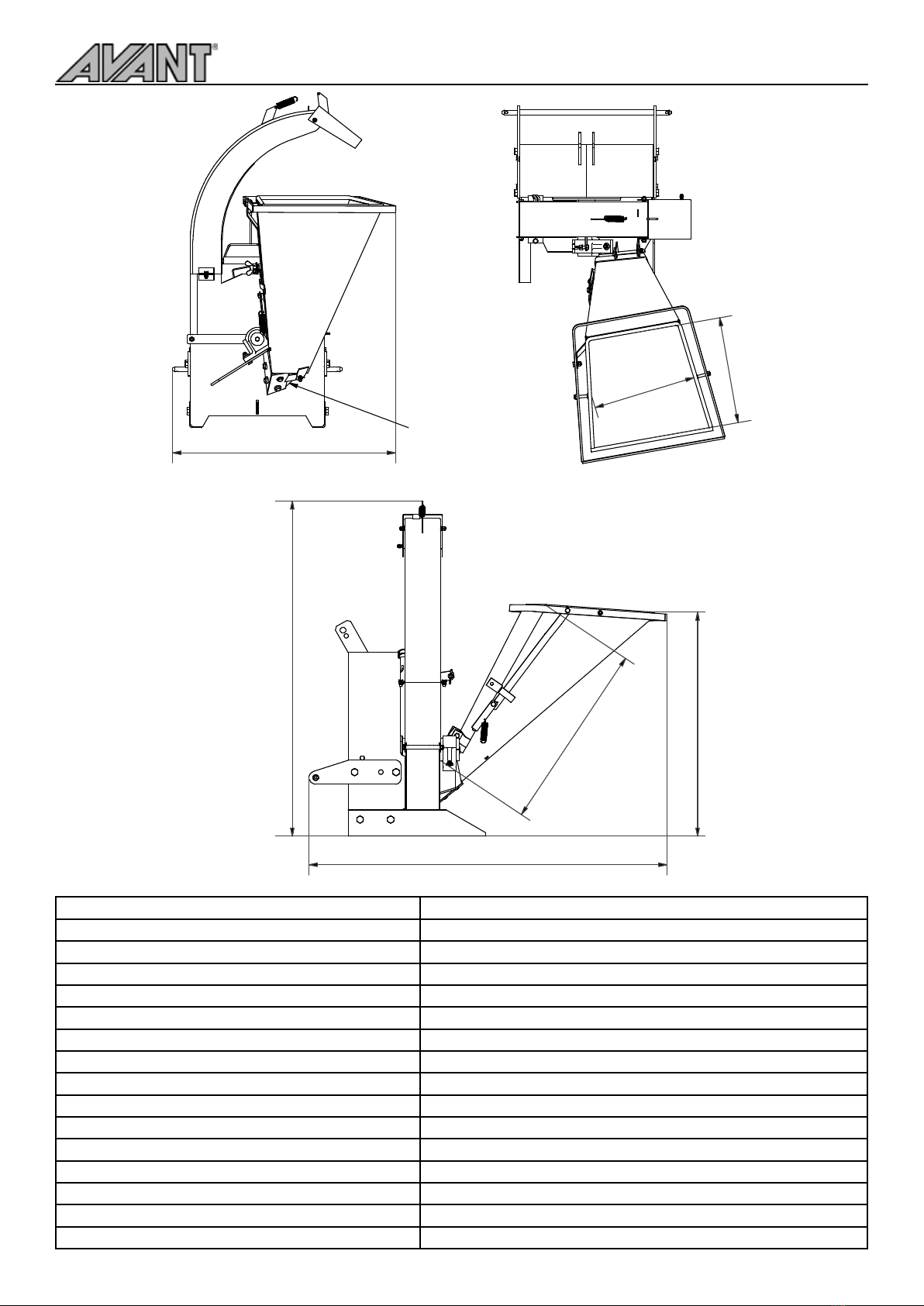

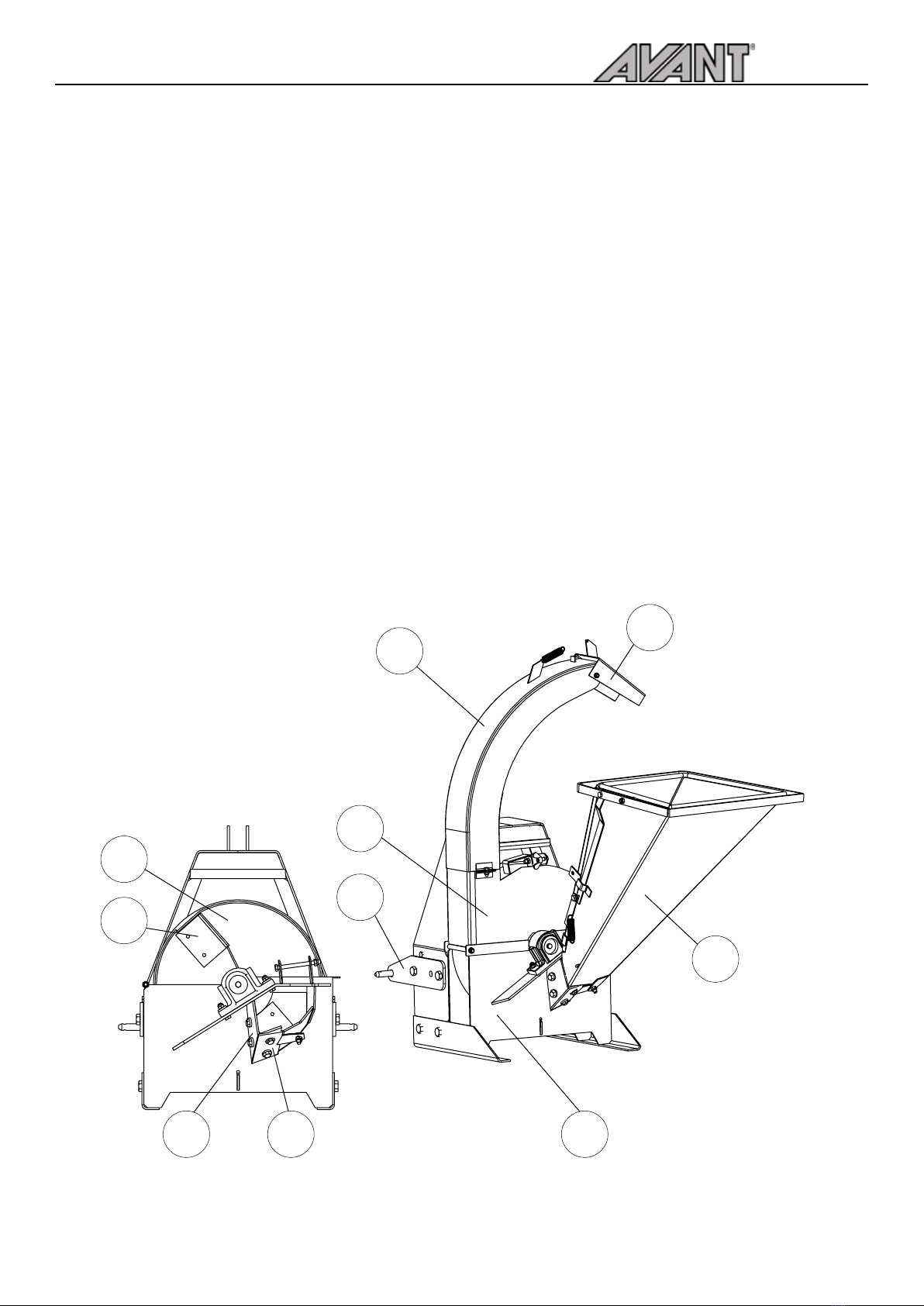

CH100 - GENERAL DESCRIPTION AND INTENDED USE 12
MOUNTING 14
LIFTING 14

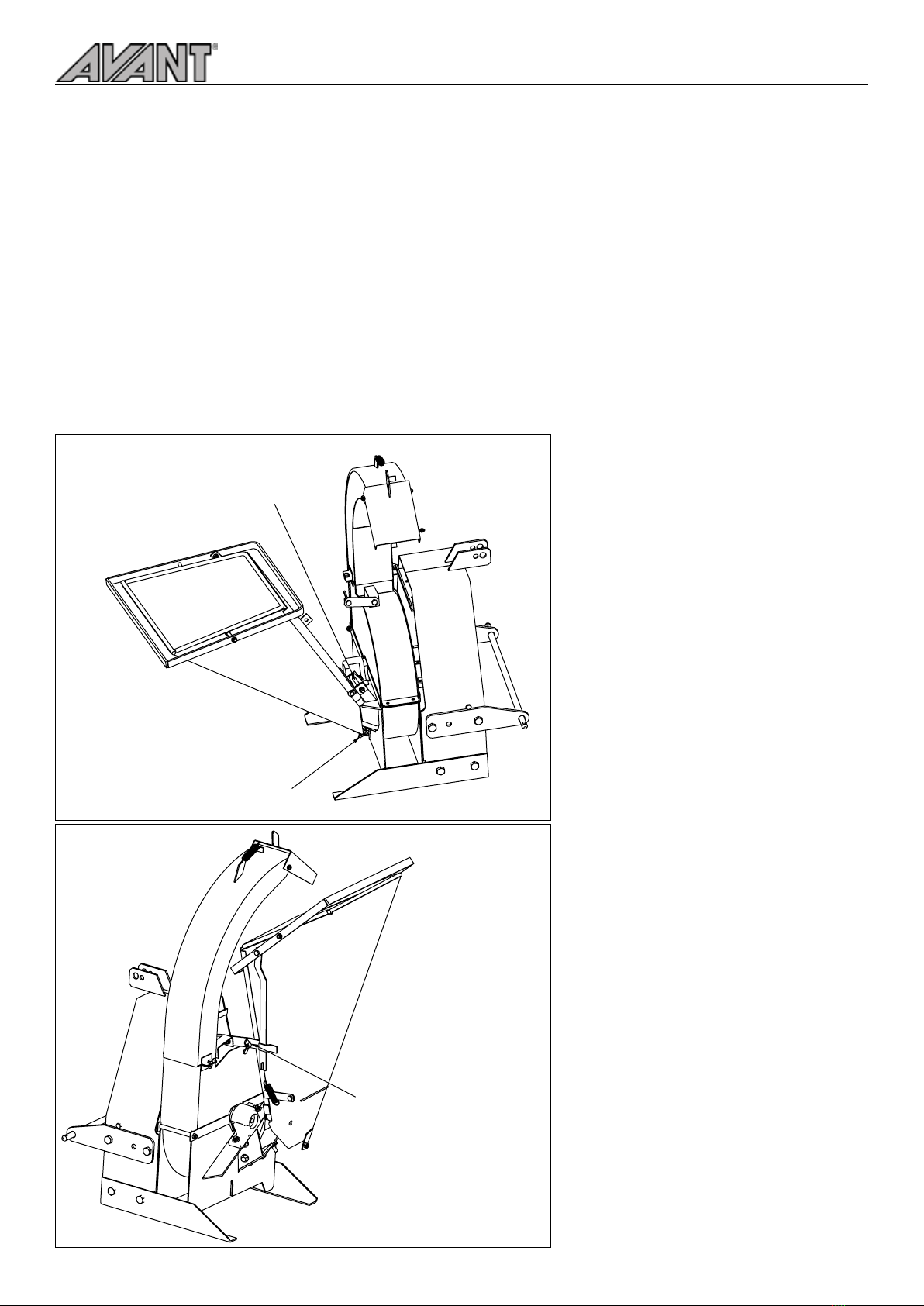

ASSEMBLY INSTRUCTIONS 15
MOUNTING OF THE CHIPPER AND PRE-OPERATION INSPECTIONS 16

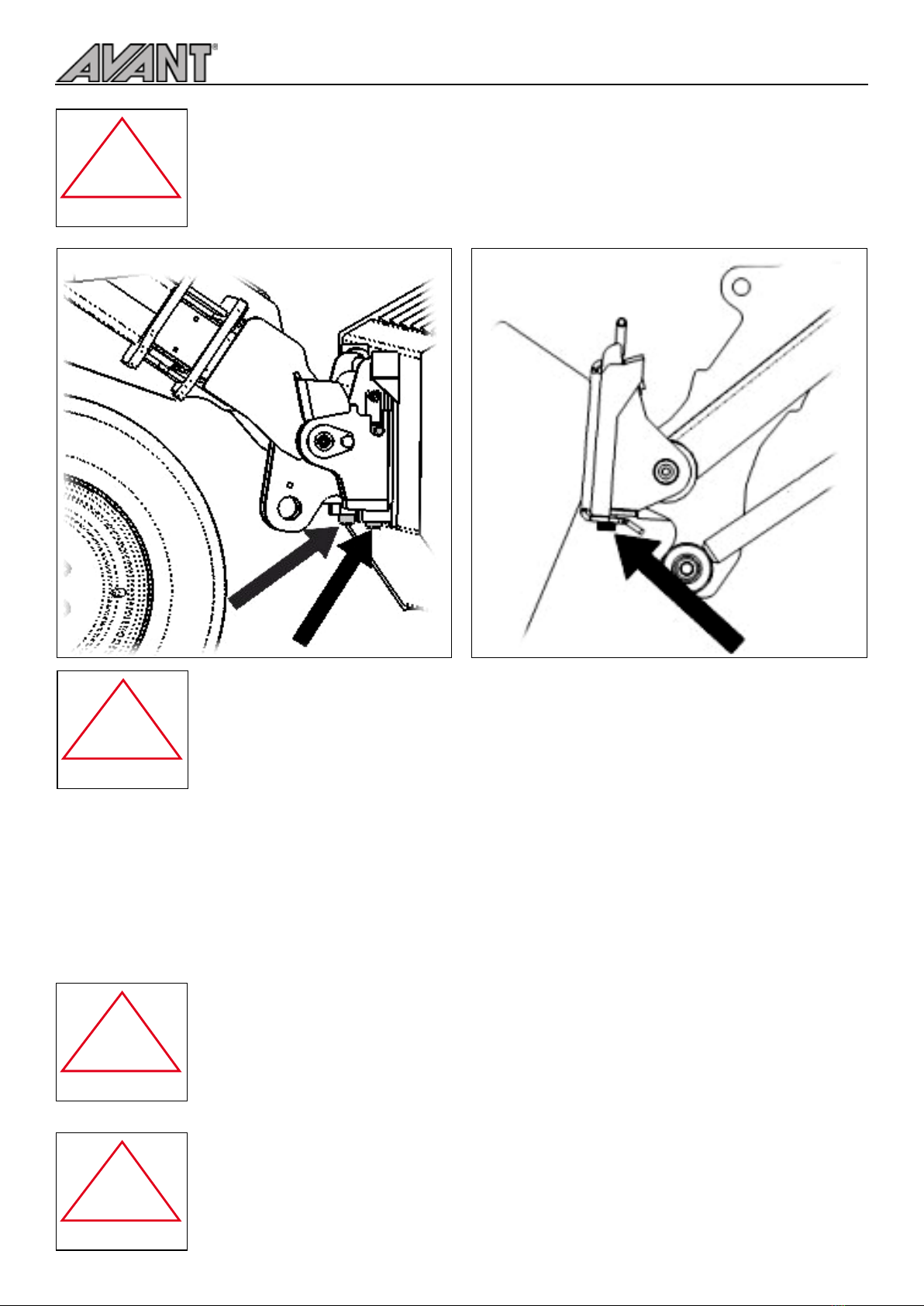

MOUNTING OF THE CHIPPER TO AVANT LOADER 17

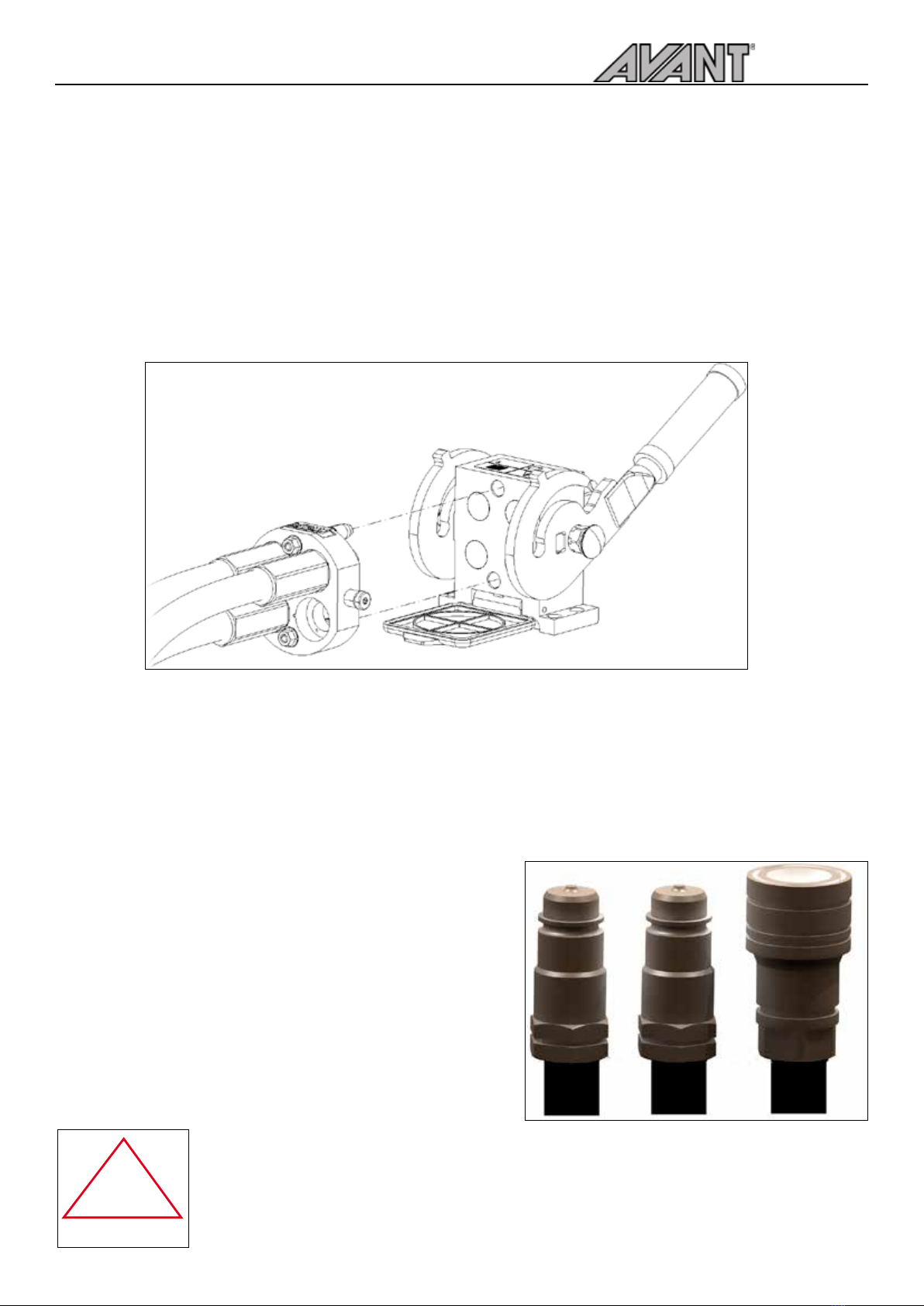

CONNECTING AN DISCONNECTING HYDRAULIC HOSES
STARTING THE CHIPPER 22
CHIPPING 23
OPERATION OF CHIPPER AND FEED UNIT 23
EMPTYING THE CHIPPER AFTER USE 24
SWIVELING THE FEED HOPPER TO THE TRANSPORT POSITION 24
STORAGE OF THE CHIPPER 24
MAINTENANCE 24
REPLACING THE BEARING 25
ADJUSTING THE BEARING CLEARANCE 26
KNIFE AND ANVIL MAINTENANCE 29
CH100 CHIPPER 34
DISC, COMPLETE 36
CH100 BEARINGS 37
BELT DRIVE FARMI 100F i=2,0 38
DISCHARGE CHUTE 40
HYDRAULIC MOTOR AND HOSES, OPTIONAL EQUIPMENT 41
CH100 HYDRAULIC OPERATION, OPTIONAL EQUIPMENT 42
PRODUCT REGISTRATION FORM 46

5
CH100
GENERAL SAFETY INSTRUCTIONS
These safety instructions are meant for the owners
of Avant equipment, as well as those who operate,
service or repair it.
The instructions help with:
• using the machine safely, appropriately and
eectively
• identifying, avoiding, and preventing potentially
dangerous situations
The manufacturer supplies an instruction manual,
which must always be available at the place of
operation of the machine. Each user must read the
safety, maintenance and operating instructions
before operating the machine, and comply with these
instructions at all times.
Ensure that every operator of
the machine is familiar with
the content of the instruction
manual and situation-specic
safety instructions, and has been
suitably trained before operating
the machine.
The machine complies with technical requirements
and applicable safety regulations. However, incorrect
use, maintenance or repair of the machine may cause
risks.
In addition to the instruction manual, remember to
comply with regulations of the local occupational
health and safety authorities, and with your country’s
laws and decrees.
The manufacturer is not liable for damages caused
by:
• incorrect, negligent or inappropriate use of the
product.
• non-original spare parts.
• normal wear and tear.
• misuse caused by an untrained person’s improper
actions.
• alterations made without the manufacturer’s
permission.
Written authorization must
be requested from the
manufacturer for any alterations
to the machine.
STARTING
• Familiarize yourself thoroughly with the use,
operation and controls of the machine and its
equipment before starting.
• Familiarize yourself with the capacities and
limitations of the machine and its equipment.
• Do not use the machine unless you are completely
familiar with its operation.
• Be aware of the machine’s danger zones.
• During operation, prevent bystanders from
entering the danger zone.
• Ensure that each operator has the necessary safety
equipment, such as a helmet, safety goggles, work
safety boots and suitable protective clothing.
• Never wear loose clothing around moving parts.
Protect long hair!
• Ensure that work is carried out according to the
stipulations of applicable occupational health and
safety legislation.
• Before starting up or using the machine, ensure
that it cannot cause a risk to other people or
property.
• Perform a safety check on the machine before
every use. If you observe any faults or deciencies,
repair the machine immediately.
• Before operating the machine, ensure that there
are no foreign articles in it.
• Place the machine on a hard, level surface for
operation. In the winter avoid working in slippery
areas
• Before mounting and using the machine, check
the PTO drive shaft for correct condition and
attachment.
• Never use a faulty or decient machine.
CAUTION!
!
CAUTION!
!

6
CH100
TRANSPORT
• Before driving with the machine, ensure the safe
mounting of the machine. Make sure that the
journals are seating correctly and that the pins
are tight. Check the tension of the lower link
stabilizers.
• Before driving with the machine, make sure that
the required lamps and reectors as well as the
slow moving vehicle sign are attached correctly.
Moreover, the lamps should be checked for correct
functioning.
• Before driving with the attached machine, make
sure that the hydraulic unit of the machine is
depressurized (unless otherwise instructed in the
operating instructions).
• When driving on public roads, always observe the
valid trac regulations. The travel speed must be
adapted to the specic conditions.
• When driving, please take into consideration the
additional mass resulting from the machine’s
weight and their eect to the manouvreability
and braking capability of the loader.
• Please note that the machine rear sways when
turning.
• Pay attention to the machine’s height near bridges
or other height restricting objects.
• When backing o, the machine may obstruct the
rear view. Exercise extreme caution. If necessary,
ask a agman to help you; he can indicate the
required distances.
• It is prohibited for other people to ride on the
machine.
OPERATION
Many occupational accidents
take place in abnormal
circumstances. Therefore it is
important to take into account
all the possible circumstances
that may arise during operation
of the machine.
• Depending on the machine’s type, it will have
diverse safety devices and protectors. These are
meant to protect the machine and its operator,
and they must never be removed or altered. Never
start up or use the machine without all the safety
devices and protectors in place.
• Never insert any body part into the machine with
the engine running.
• If any faults arise that may jeopardize occupational
safety, turn o the machine.
• During operation, the machine’s operator is
responsible for safety in the whole work area.
Work may not be carried out in the presence of
any factors that jeopardize occupational safety.
• Exercise extreme caution when hitching /
unhitching the machine from a tractor/trailer.
The machine’s operator must
have constant, unobstructed
visibility of the work area. If this
is not possible, the operator
must work with an assistant.
• Look out for moving parts when the machine is in
operation.
• Secure the machine against unauthorized and
accidental operation (e.g. moving when parked)
whenever it is left unattended.
• Never leave the machine running unattended.
• Avoid causing fast, stroke-like loading.
• Never exceed the given operating values.
• All safety and warning signs on and in the machine
must be legible and intact.
• The machine may not be operated by persons
who are unwell or under the inuence of drugs or
alcohol.
MAINTENANCE
• The machine may only be serviced and repaired
by professionals.
• Electrical and hydraulic faults may only be repaired
by authorized professionals.
• In cases requiring welding, contact the
manufacturer.
• Turn o the tractor engine and disconnect
the universal joint before beginning service or
maintenance actions.
• Before any maintenance work, turn the main
power switch of the tractor to OFF.
• Ensure that there is no pressure in the hydraulic
system.
• Take out the key from the tractor’s ignition for the
duration of the servicing or maintenance. Check
that the power is o from the machine you are
working on.
!
DANGER!
CAUTION!
!

7
CH100
• When servicing the machine, place it on a level
surface and ensure that it cannot be moved.
• Observe the service intervals and annual safety
inspections.
• All spare parts and equipment must fulll
the manufacturer’s requirements. This can be
guaranteed by using original parts.
• Put all safety devices back into place immediately
once servicing or maintenance is complete.
When lifting the machine,
check that the lifting/hoisting
equipment is in perfect working
order. Check the weight of the
machine before lifting it.
Choose lifting trajectories so that
they do not cause any danger.
Many countries have specic legislation on lifting,
hoisting cables and hoists. Always comply with local
safety regulations.
OILS AND LUBRICATION
• Always use the oil types recommended by the
manufacturer. Other types of oil may cause faults or
improper operation of the equipment, which could
lead to serious damage to people or property.
• Never mix dierent liquids or oils.
• Always follow the manufacturer’s lubrication
instructions.
• Use control equipment carefully until the
hydraulic oil has had time to reach its operating
temperature.
SAFETY INSTRUCTIONS FOR HYDRAULIC CIRCUITS
1. Work on hydraulic equipment may only be carried
out by professional hydraulic engineers.
2. Be cautious when using the equipment in cold
conditions.
3. Check the machine for leaks.
Do not use the machine if there is a leak from any
system. Check all hydraulic hoses – particularly
those which are bent during use – and replace any
that are in poor condition or have leaks. Ensure
that all joins are tight and that the lines are not
damaged. Check the hose sheathing for damage.
Check that all protective caps and ller caps are
closed properly.
4. Check that all hose connectors, lengths and
qualities comply with applicable requirements.
When replacing or repairing hoses, use original
parts or hoses and connectors recommended
by the manufacturer. Check particularly that the
pressure classes of the hoses and connectors are
suitable to the operating pressure levels.
5. Check that all safety devices such as pressure
relief valves, etc., are in place and work
properly. Familiarize yourself with their use.
Safety systems may never be bypassed.
6. Check the main hydraulic parts daily, and
always after a fault. Replace any damaged parts
immediately.
7. If a component is damaged,
clean it before repairing it.
Do not use solvents when cleaning parts.
8. Do not attempt to carry out repairs that you are
not fully familiar with.
9. Never carry out repairs of the hydraulic circuit
when the system is pressurized. When pressurized,
the oil spray can penetrate the skin and cause
mortal danger.
10. Never work below a device or component that is
only being held up by hydraulics. Use separate
supports when carrying our maintenance or
repairs. Do not disconnect cylinders or their valves
until the machine is well supported.
11. Most hydraulic oils do not evaporate easily.
Risk factors include hot oil, spills and oil mist
(pressurized).
12. If oil gets into your eyes, rinse with plenty of water
and contact a doctor.
13. Avoid prolonged or repeated contact with your
skin.
14. If sprays or contact with the skin cannot be avoided,
use protective gloves, goggles and clothing as
necessary. Do not use oily clothing.
15. Avoid discharging hydraulic oil into the
environment, as it can pollute waterways and the
groundwater. If biodegradable oil is to be used,
please contact the manufacturer beforehand and
have the suitability of your equipment for the
operation with biodegradable oil conrmed by
him before such oil is used.
16. Store the oil in sealed containers provided by the
manufacturer. Try to transfer the oil directly from
its container into the tank.
17. If the oil must be passed through other containers,
ensure that they are completely clean. Caps,
funnels, sieves and lling holes must also be clean.
18. Never store oil outdoors, as water could condense
in it.
19. Always dispose of oil in a suitable container, never
into the environment!
CAUTION!
!

8
CH100
GENERAL SAFETY INSTRUCTIONS FOR THE CHIPPER
• Please make sure any machine operator has the
required personal protective equipment: safety
helmet, protective goggles, cut resistant safety
boots and required protective clothing.
• The chipper must not be used without being
mounted to a tractor. It is prohibited to mount the
chipper to another power source.
• It is not permitted to operate the chipper without
feed unit or feed hopper.
• Indoor operation of the chipper is prohibited.
• Always keep a safe distance to the discharge posi-
tion of the chips.
• Detach the chipper from the tractor before perfor-
ming any maintenance or repair works.
• Do not remove, lock, disable or modify in any ot-
her way the stop lever of the feed unit.
• The feed hopper or the feed unit must not be
mounted at a higher or lower position as this
would impede the stop lever function.
• Note that the loader boom can be lowered or
tilted even if the engine has been shut down. Ne-
ver allow anyone to get under the raised load or
the loader boom.
• Always lower the attachment on the ground befo-
re leaving the driver's seat.
• Check the general condition of the attachment
and the loader, and check for possible hydraulic
oil leaks. The attachment must not be used, if the-
re is a fault in the hydraulic system of the loader
or the attachment. Keeping the equipment clean
reduces the likelihood of blockages.
• Always transport the attachment as low and close
to the ground as possible. Note the eect of heavy
load at the front of the loader to the stability and
handling of the loader.
• Choose a level and well lit working site, which can
carry the load of the equipment and the logs.
• The operating area must be even and it must not
be slippery. Clear the area from any obstacles that
could cause a tripping hazard.
• Operate the log cutter/splitter in daylight or out-
door area with good articial light.
• Ensure that the loader and the attachment are
used in a safe and intended manner.
• Smoking near the operating area is prohibited.
• Do not allow children to operate the equipment.
!
DANGER!
The noise level at the operator’s
area may exceed 70 dB(A). Wear
hearing protection!
CAUTION!
!

9
CH100
STICKERS AND PLATES
These plates and stickers must be found on the chipper. Replace missing plates or stickers immediately.

10
CH100
1. Machine plate CH100 (41010100)
2. CAUTION!
Please read the instruction manuals of the machine
meticulously before you operate, maintain or repair the
machine. During machine operation, please observe the
operating and safety instructions. (40147020)
3. (40147000)
CAUTION!
Before operation, mount the chipper to the quick cou-
pling plate of the loader.
CAUTION!
Before maintenance and repair, please turn o the
loader and disconnect the hydraulic couplings.
CAUTION!
Before detaching the chipper from the loader, it must be
placed on a level surface.

11
CH100
4. Wear personal protective equipment. (40142080).
5. Cutting hazard! (40147010)
6. Lifting point sticker (41014270).
7. SPEED sticker (40141160).
Recommended speed range.
The rated speed must not be exceeded
8. FARMI Forest sticker (40147090)
9. Sticker “100” (40147490)

12
CH100
1
10
9
8
7
65
4
3
2
CH100F - GENERAL DESCRIPTION AND INTENDED
USE
CH100 is a single-disk chipper with two knives used
for chipping wood with a diameter of up to 100 mm
(chip size 12 mm). In addition, it is used to clear the
embankments of roads and hiking trails as well as in
gardening and landscaping.
A loader with a performance of 7.5 to 30 kW will su-
ce as power source.
This chipper model is hydraulically driven and can be
used with the following Avant loader models:
220
225
225LPG
420
R20
520
525LPG
R28
528
630
R35
635
640
745
750
755i
760i
MAIN COMPONENTS OF THE CH100
1. UPPER CHAMBER
2. LOWER CHAMBER
3. CUTTING DISK
4. KNIFE
5. VERTICAL KNIFE
6. HORIZONTAL KNIFE
7. Puhallusputki
8. DISCHARGE PIPE LID
9. DRAWBAR
10. FEED HOPPER
Fig. 1. Main components

13
CH100
472
4
87
1018 100x130
1637
1026
859
1534
DIMENSIONS CH100
TECHNICAL DATA Chipper CH100
Type disc chipper
Output 0,5-2 m3/h
Chip length 12 mm
Max. wood diameter 100 mm
Tehon tarve 7,5-30 kW
PTO rpm (if PTO driven model) 540 tai 1000 rpm
Number of knives 2 pcs
Power source Avant loader
Mounting Avant quick coupling
Chipper weight 193 kg / 210 kg
Disc diameter 550 mm
Terälaikan paino 46 kg
Discharge pipe turning to two sides
Feeder drop spout
Noise emission 104,2 dB (A)

14
CH100
ASSEMBLY INSTRUCTIONS
LIFTING
Lifting points for each machine
are marked with hook symbols.
Lift only using the proper type of lifting device and
ensure that it has an appropriate lifting capacity.
Check the lifting slings, cables, and chains regularly.
Ensure that you know the weight of the load to be
lifted and never exceed the lifting capacity stated by
the manufacturer of the lifting device.
Select the transport routes for lifting so that the load
is not transported over people or a location where
people might be.
WARNING!
!

15
CH100
M12X120
M12 DIN985
M12X30
M12 DIN985
M12X30
M12 DIN 315
Fig. 4a. Installation of the feed chute /
Transport position
See g 4. Installation of the feed
chute / Chipping position
ASSEMBLY INSTRUCTIONS
1. Attach the feed hopper to the chipper using
M12x120 and M12x30 hexagon head bolts and
lock nuts. Lock the feed hopper in its operating
position. Fig. 1.
2. Mount the discharge pipe to the chipper using
two M10 bolts.
3. Mount the chipper to the quick coupling plate of
the loader.
Screw
Buttery nut
screw
Screw
Lock nut
Lock nut

16
CH100
MOUNTING OF THE CHIPPER AND PRE-OPERATION
INSPECTIONS
1. For mounting or dismounting the chipper, always
turn o the loader and apply the parking brake
before entering the area between chipper and
loader.
2. Make sure all protective and safety devices of the
chipper are installed. Never remove any protective
device during operation.
3. Before operation, please make sure there are no
foreign objects in the feed hopper.
4. Before operation, please make sure there are no
foreign objects in the chipper. Rotate the shaft to
make sure that the cutting disk can rotate freely
5. Make sure that the water drainage holes on the
lower chamber are open and that the disk is not
frozen up.
6. During operation, the chipper must stand on level
and hard ground.
7. Direct the discharge pipe so that the thrown out
chips do not pose a risk to the operator of the
chipper or to or anyone else. Always keep a safe
distance to the discharge position of the chips.

17
CH100
MOUNTING THE CHIPPER ON AVANT LOADER
Coupling the attachment to the loader is quick and easy, but it must be done carefully. The attachment is xed
to the loader boom by using the quick attach plate and the counterpart on the attachment. I If the attachment
is not locked to the loader, it may detach from the loader and cause hazardous situations. In the worst case, the
attachment may slide onto the driver along a raised boom. For this reason, the attachment must not be raised
over one metre under any circumstance if it has not been locked.To prevent hazardous situations, always follow
the attachment coupling instructions provided in the following pages. Also remember the safety instructions
and additional infromation shown in the operator’s manual of the loader. The attachment is mounted to the
loader as follows:
Make sure that an unlocked attachment will not move or fall over. Mount the
attachment only on level surface.
WARNING!
!
1. Step:
• Lift the quick attach plate locking pin / locking pins up and turn them backwards into the slot so that they
are locked in the upper position.
• If your loader is equipped with a hydraulic attachment locking system, see additional instructions about
the use of the locking system from the relevant manuals.
• Ensure that the hydraulic hoses or electric cables are not in the way during installation
200-700 series
loaders:
Old 200 series
loaders:

18
CH100
2. Step:
• Turn the quick attach plate hydraulically to an obliquely forward position.
• Drive the loader onto the attachment. If your loader is equipped with a telescopic boom, you can utilise
this. Align the upper pins of the loader’s quick coupling plate so that they are under the corresponding
brackets of the attachment.
200-700 series
loaders:
Old 200 series
loaders:
3. Step:
• Lift the boom slightly – pull the boom control lever backward to raise the attachment o the ground.
• Turn the boom control lever left to turn the bottom section of the quick attach plate onto the attachment.
• Lock the locking pins manually or lock the hydraulic locking.
• Always check the locking of pin / pins.
200-700 series
loaders:
Old 200 series
loaders:

19
CH100
CONNECTING AN DISCONNECTING HYDRAULIC HOSES
On 200-700 series loaders hydraulic hoses are connected using the multiconnector system. If you want to chan-
ge the type of the hydraulic couplings, contact your Avant dealer or service point for instructions or installation
services. On old 200-series loaders only conventional quick couplings are available.
Never connect or disconnect quick couplings or other hydraulic components while the
system is under pressure or if the control lever of the auxiliary hydraulics control lever
is locked on. Connecting or disconnecting the hydraulic couplings while the system
is pressurized may lead to unintended movements of the attachment, or ejection of
highpressure uid, which can cause serious injuries or burns. Follow safe stopping pro-
cedure before disconnecting the hydraulic hoses.
Keep the ttings as clean as possible; use the protective caps for the quick couplings on
both the attachment and the loader. Dirt, ice, etc. may make using the ttings signi-
cantly more dicult. Never leave the hoses hanging on the ground; place them on the
holder on the attachment.
An attachment that has not been completely locked to the loader may fall on the boom
or operator, or under the loader during driving, and cause serious injuries or loss of
control of the loader. Before moving or lifting the attachment, make sure that the
locking pins are in the lower position and come through the fasteners on both sides.
Never move or lift an attachment that has not been locked.
WARNING!
!
200-700 series
loaders:
Old 200 series
loaders:
Excessive tilting or lifting of an unlocked attachment increases the risk of tipping the
attachment over. Do not use the automatic locking of the locking pins when the at-
tachment is lifted more than one meter from the ground. If the locking pins do not
return to the normal position when tilting, do not tilt or raise the attachment any more.
Lower the attachment on the ground and secure the locking manually.
WARNING!
!
WARNING!
!
CAUTION!
!

20
CH100
CONNECTING THE MULTICONNECTOR SYSTEM:
Alignthepinsoftheattachmentconnectorwithcorrespondingholesoftheloaderconnector.Themulticonnector
will not connect if the attachment connector is upside down. Connect and lock the multiconnector by turning
the lever towards the loader.
The lever should move easily all the way to its locking position. If the lever does not slide smoothly, check the
alignment and position of the connector and clean the connectors. Also shut down the loader and release the
residual hydraulic pressure. To disconnect the multi connector system switch o the auxiliary hydraulics of the
loader and unlock the multiconnector. To unlock the multiconnector, push and hold the unlock button on the
side of the multiconnector, then turn the lever to disconnect the connector.
USING CONVENTIONAL QUICK COUPLINGS
(alternative couplings for some loader models):
Before connecting or disconnecting the standard quick couplings, the residual pressure must be released as
shown below. The conventional quick couplings will not connect, if there is pressure in the hydraulic system.
To connect and disconnect the standard couplings, move the
collar at the end of the female tting. The hoses should be
connected so that the tting equipped with a coloured cap
is connected to the corresponding tting of the loader Note
that the protective caps on the loader and the attachment
can be fastened to each other during operation to reduce the
accumulation of dirt. When disconnecting the standard quick
couplings a small amount of oil may drip from the couplings.
Wear protective gloves and have some cloth at hand to keep
the equipment clean.
Make sure that all three quick coupling ttings are properly connected, otherwise the
hydraulic motor of the attachment may get damaged.
CAUTION!
!
