Timberwolf TW 230HB User manual

C190-0304 - Rev 1.0 EN
TW 230HB (Petrol) Wood Chipper
INSTRUCTION MANUAL
(Original Instructions)

Published on: 06/11/2020
Document ID: C190-0304 - Revision 1.0
Contact address
Timberwolf Ltd
Entec House
Tomo Industrial Estate
Stowmarket
Suffolk
IP14 5AY
Website
.
English timberwolf-uk.com
French timberwolf.fr
German timberwolf-hacksler.de
Dutch timberwolf-houtversnipperaar.nl
Australian timberwolfchippers.com.au
Copyright
Copyright © 2020 Timberwolf All Rights Reserved.
Contains information owned by Timberwolf and/or its affiliates. Do not copy, store, transmit or disclose to
any third party without prior written permission from Timberwolf.
Other product and company names may be trademarks or registered trademarks of other companies, and
are the property of their owners. They are used only for explanation, without intent to infringe.

C190-0304 - Rev 1.0 EN 1/61
Contents
1 Introduction 5
1.1 Thank you for choosing Timberwolf 5
1.2 Important Health and Safety Information 5
1.3 Warning or Caution Symbols 6
1.4 Hazardous Materials 6
1.5 Purpose 6
2 Product Details 7
2.1 Specification 7
2.2 Location of Parts 8
2.2.1 Parts Locator 1 8
2.2.2 Parts Locator 2 9
2.2.3 Parts Locator 3 10
2.3 Tool Box 10
2.4 Safety Decals 11
2.5 Instruction Decals 12

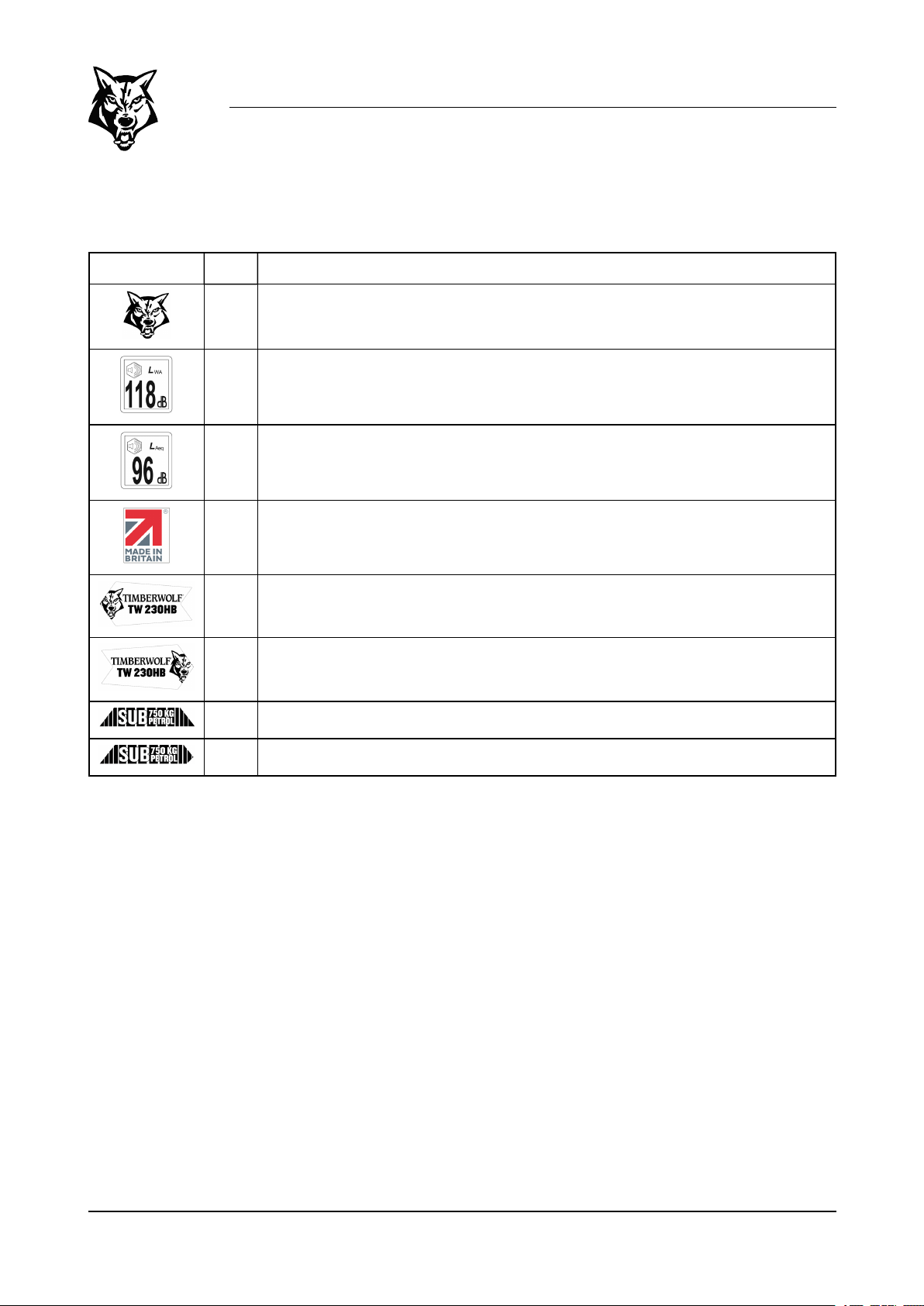

2.6 Model Decals 14

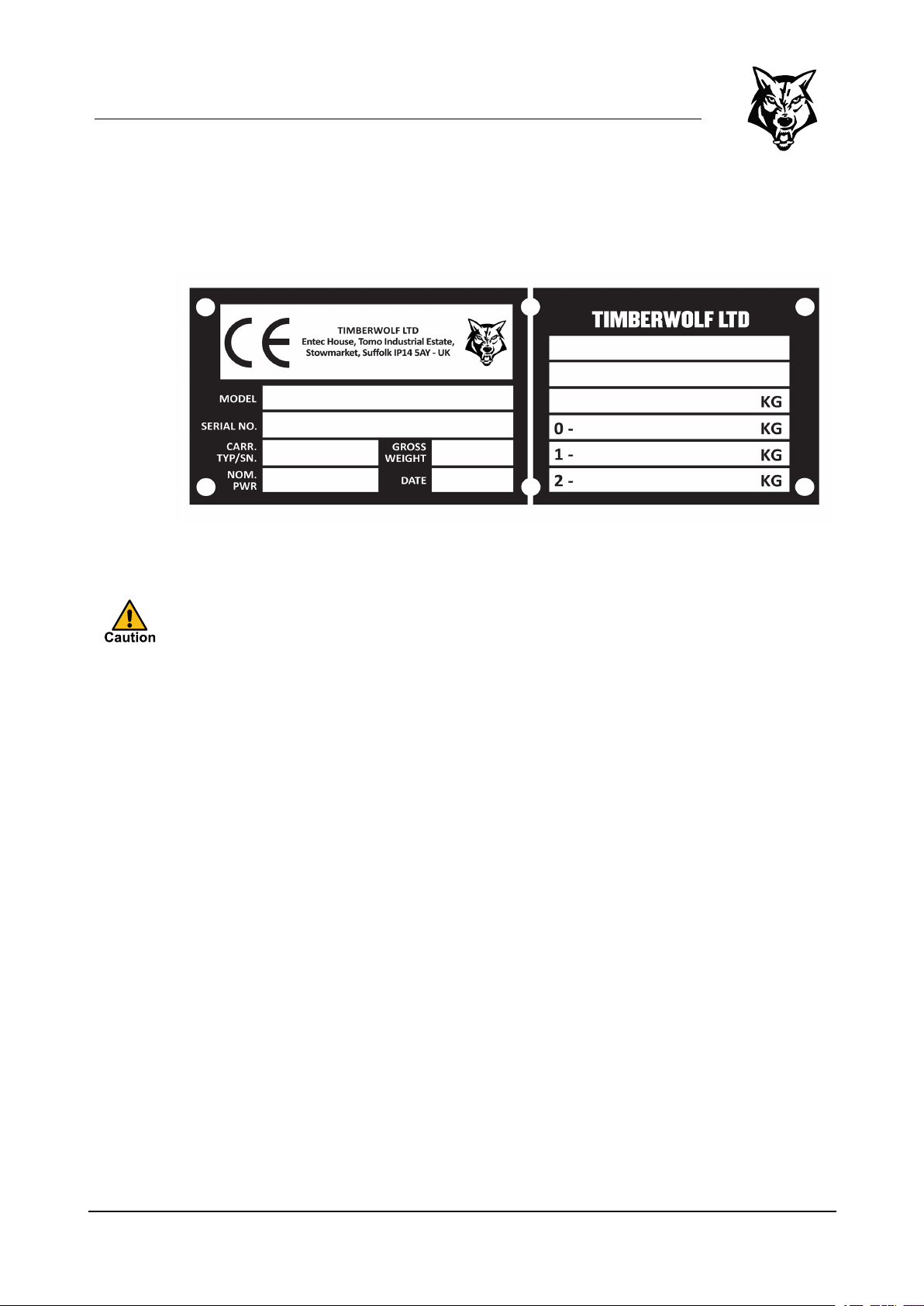

2.7 Identification Plate 15
2.8 Guards 15
3 Safety Notes and Warnings 17
3.1 Safety Notices 17

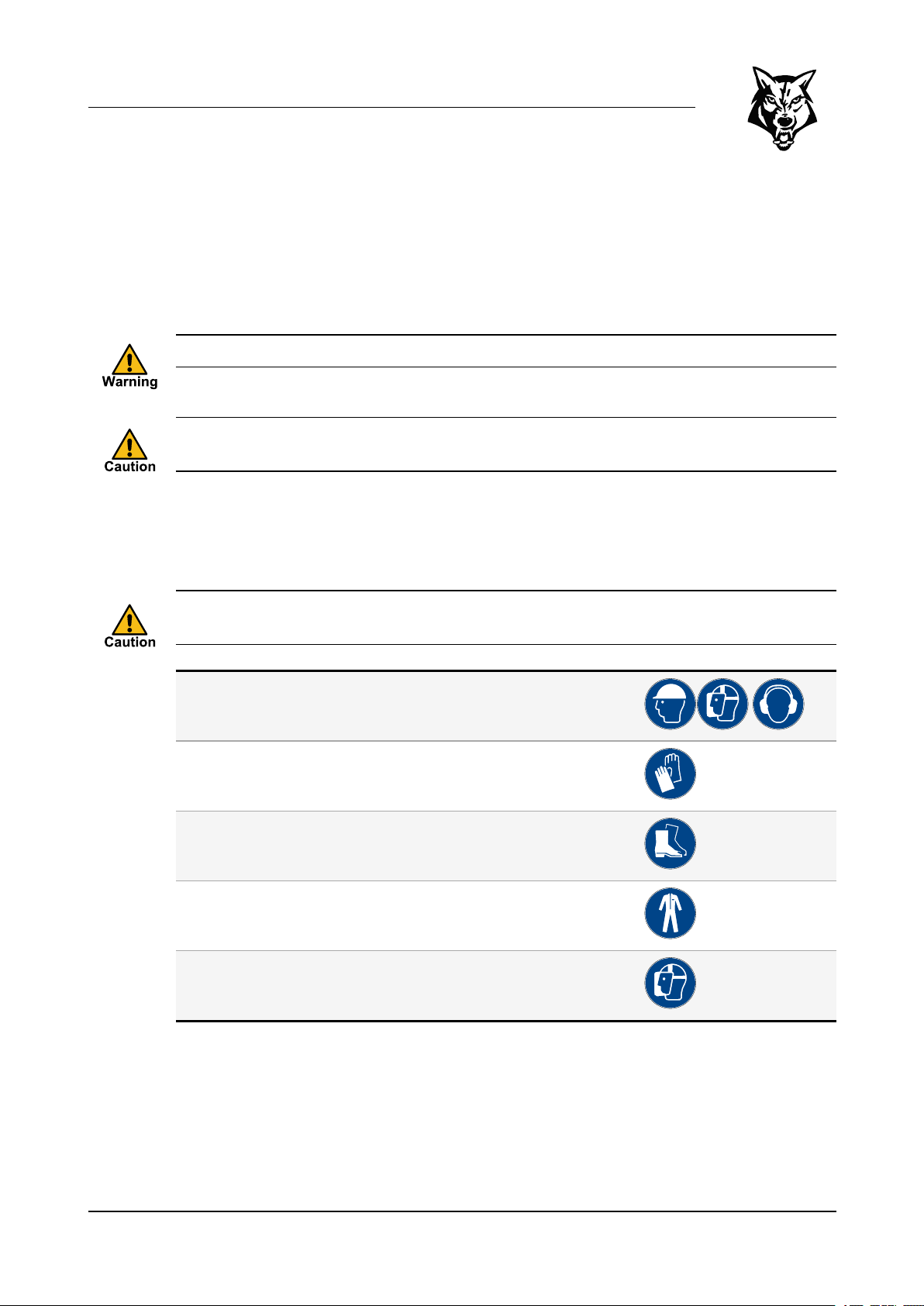

3.2 Operator's Personal Protective Equipment (PPE) 17
3.3 Basic Woodchipping Safety 18
3.4 Operating Safely - You MUST 19
3.5 Operating Safely - You MUSTNOT 19
3.6 Noise Emissions 20
4 Towing and Handling 21
4.1 Safe Transportation 21
4.2 Hitching to the Towing Vehicle 21
4.3 Unhitching from the Towing Vehicle 22
TW 230HB (Petrol)

4.4 Stabilising the Chipper 23
5 Operating Instructions 25
5.1 Manual Controls 25
5.2 No Stress Control 26
5.3 Emergency Stopping 26
5.4 Discharge Controls 27
5.5 Engine Controls 27
5.6 Checks Before Starting 28
5.7 Starting the Engine 28
5.8 Controlling the Engine Speed 29
5.9 In-feed Safety Test 29
5.10 Chipping 30
5.11 Working in Dusty Conditions 30
5.12 Stopping the Engine 30
5.13 Blockages 31
5.14 Blade Wear 31
5.15 Check Hydraulic Oil Level 32
5.16 Check Fuel Level and Refuel 32
5.17 Troubleshooting 33
6 Maintenance Instructions 35
6.1 Safe Maintenance 35
6.2 Routine Servicing 36
6.2.1 Daily Servicing 36
6.3 Spares 36
6.4 Engine Servicing 37
6.5 Safe Lifting of the Chipper 37
6.6 Battery Safety Information 38
6.7 Check and Replace Fasteners 40
6.8 Change Blades 41
6.9 Adjust Rotor Drive Belt Tension 43
6.10 Adjust Hydraulic Pump Drive Belt Tension 43
6.11 V-Belt Tensioning Procedure 44
2/61 C190-0304 - Rev 1.0 EN
TW 230HB (Petrol)

C190-0304 - Rev 1.0 EN 3/61
6.12 Change Hydraulic Oil and Filter 46
6.13 Check Hoses 46
6.14 Grease the Discharge Tube Mounting Flanges 47
6.15 Grease the Roller Box Slides 47
6.16 Grease the Roller Splines and Rotor Bearings 48
7 Electrical System 49
8 Hydraulic System 53
9 Storage 55
9.1 Preparing for Storage 55
9.2 Storage Conditions 55
9.3 3-Monthly Storage Checks 55
9.4 6-Monthly Storage Checks 55
9.5 12-Monthly Storage Checks 56
9.6 Recommissioning after Storage 56
10 Dismantling and Disposal 57
11 Declaration of Conformity 59
12 Notes 61
TW 230HB (Petrol)

4/61 C190-0304 - Rev 1.0 EN
TW 230HB (Petrol)
THIS PAGE INTENTIONALLY LEFT BLANK

C190-0304 - Rev 1.0 EN 5/61
1 Introduction
1.1 Thank you for choosing Timberwolf
Timberwolf wood chippers are designed to give safe and dependable service if operated in
accordance with the instructions.
This manual should be considered an important part of the machine and should
remain with it if the machine is resold.
This manual covers the operation and maintenance of the Timberwolf TW 230HB and the
optional Timberwolf Safety Plus Kit. All information in this manual is based on the latest
product information available at the time of purchase.
All the information you need to operate the machine safely and effectively is contained
within this manual.
Ensure that all operators are properly trained for operating the TW 230HB, especially in
safe working practices.
Timberwolf's policy of regularly reviewing and improving our products may involve major or
minor changes to this TW 230HB or its accessories. Timberwolf reserves the right to make
changes at any time without notice and without incurring any obligation.
Due to improvements in design and performance during production, there may be, in some
cases, minor discrepancies between the actual TW 230HB and the text in this manual.
All TW 230HB chippers have a full pre-delivery inspection before leaving the factory and
are ready to use.
1.2 Important Health and Safety Information
Before using your new chipper, please take time to read this manual. Failure to do so could
result in:
• personal injury.
• equipment damage.
• damage to property.
• 3rd party injuries.
TW 230HB (Petrol)

1.3 Warning or Caution Symbols
Be aware of these symbols and where shown, carefully follow the instructions.
These symbols indicate important safety messages in this manual. When you see these
symbols, be alert to the possibility of injury to yourself or others and carefully read the
message that follows.
Always follow safe operating and maintenance practices.
1.4 Hazardous Materials
The following hazardous materials are present within the TW 230HB:
• Engine oil • Battery acid • Petrol
• Grease • Hydraulic oil • Copper Ease
• Loctite
MATERIAL SAFETY DATA SHEETS FOR THESE HAZARDOUS MATERIALS ARE
AVAILABLE ON REQUEST. REFER TO THESE FOR FIRST AID AND FIRE
PROTECTION MEASURES.
Always follow recommended procedures for safe handling, removal and disposal of
hazardous materials. Safety precautions should be taken when handling hazardous
materials. The use of oil-resistant gloves and safety glasses is recommended. Avoid direct
contact with the substance. Store in a cool, well ventilated area. Avoid sources of ignition,
strong oxidising agents and strong acids. Ensure hazardous spillages do not flow into the
ground or drainage system. Ensure potential environmental damage is controlled safely,
according to local laws.
1.5 Purpose
The TW 230HB is designed to chip solid wood material up to 160 mm (6 inches) in diameter
and is capable of chipping over 5 tonnes of brushwood per hour.
6/61 C190-0304 - Rev 1.0 EN
TW 230HB (Petrol) 1 Introduction

C190-0304 - Rev 1.0 EN 7/61
2 Product Details
This chapter contains the specifications of the TW 230HB.
It shows the locations of the main components of the chipper, lists all the decals used on the
machine, and describes the purpose of the various guarding assemblies.
2.1 Specification
The specifications of the TW 230HB are shown in Table 1.
Overall Height 2213 mm
Height with Discharge Tube Removed 1358 mm
Overall Length 3646 mm
Length with Feed Tray Folded 3108 mm
Width 1520 mm
Overall Weight 710 Kg
Engine Type Vanguard EFI V-Twin
Maximum Power 27.6 kW (37 hp)
Cooling Method Air cooled
Starting Method Electric
Roller feed Twin hydraulic motors
Maximum Material Diameter 160 mm (6 inches)
Fuel Capacity 18 litres
Hydraulic Oil Capacity 15 litres
Maximum Material Processing Capacity 5 tonnes/hr
Fuel Type Petrol
Table 1 - Specifications
TW 230HB (Petrol)

2.2 Location of Parts
2.2.1 Parts Locator 1
1 Roller box guard 13 Reflector (both sides)
2 Lifting eye 14 Control box (both sides)
3 Air intake 15 Feed tray
4 Engine bay side panels 16 Safety bar
5 Jockey wheel height adjuster 17 In-feed funnel
6 Tow head 18 Push stick (Timberwolf Safety Plus Kit)
7 Exhaust 19 Emergency stop (Timberwolf Safety Plus Kit)
8 Rotor housing blade access hatch 20 Discharge tube clamp
9 Rotor housing 21 Manual canister
10 Reflectors (both sides) 22 Discharge tube
11 Hydraulic motor guard 23 Discharge bucket
12 Light board
8/61 C190-0304 - Rev 1.0 EN
TW 230HB (Petrol) 2 Product Details

C190-0304 - Rev 1.0 EN 9/61
2.2.2 Parts Locator 2
1 Flexible air intake pipe 7 Oil filter
2 Rain cap 8 Rotor drive belts
3 Electric panel 9 Fuel tank
4 Air filter 10 Prop stand
5 Chip screen 11 Hydraulic tank
6 Engine 12 Hydraulic filter
2 Product Details TW 230HB (Petrol)

2.2.3 Parts Locator 3
1 Control panel 9 Drive pulley
2 Top slide 10 Belt tensioning pulley
3 Battery 11 Rotor pulley
4 Directional control valve 12 Rotor
5 Greasing point 13 Fan section (x4)
6 Cutting blade (x2) 14 Trigger wheel
7 Hydraulic pump 15 Trigger wheel sensor
8 Hydraulic pump pulley
2.3 Tool Box
The TW 230HB is supplied with a tool box which contains:
• Combination spanner (17mm/19mm) • Access cover keys (x2)
• Rotor locking tool • Ignition keys (x2)
• Copper Ease • Keyring
10/61 C190-0304 - Rev 1.0 EN
TW 230HB (Petrol) 2 Product Details

C190-0304 - Rev 1.0 EN 11/61

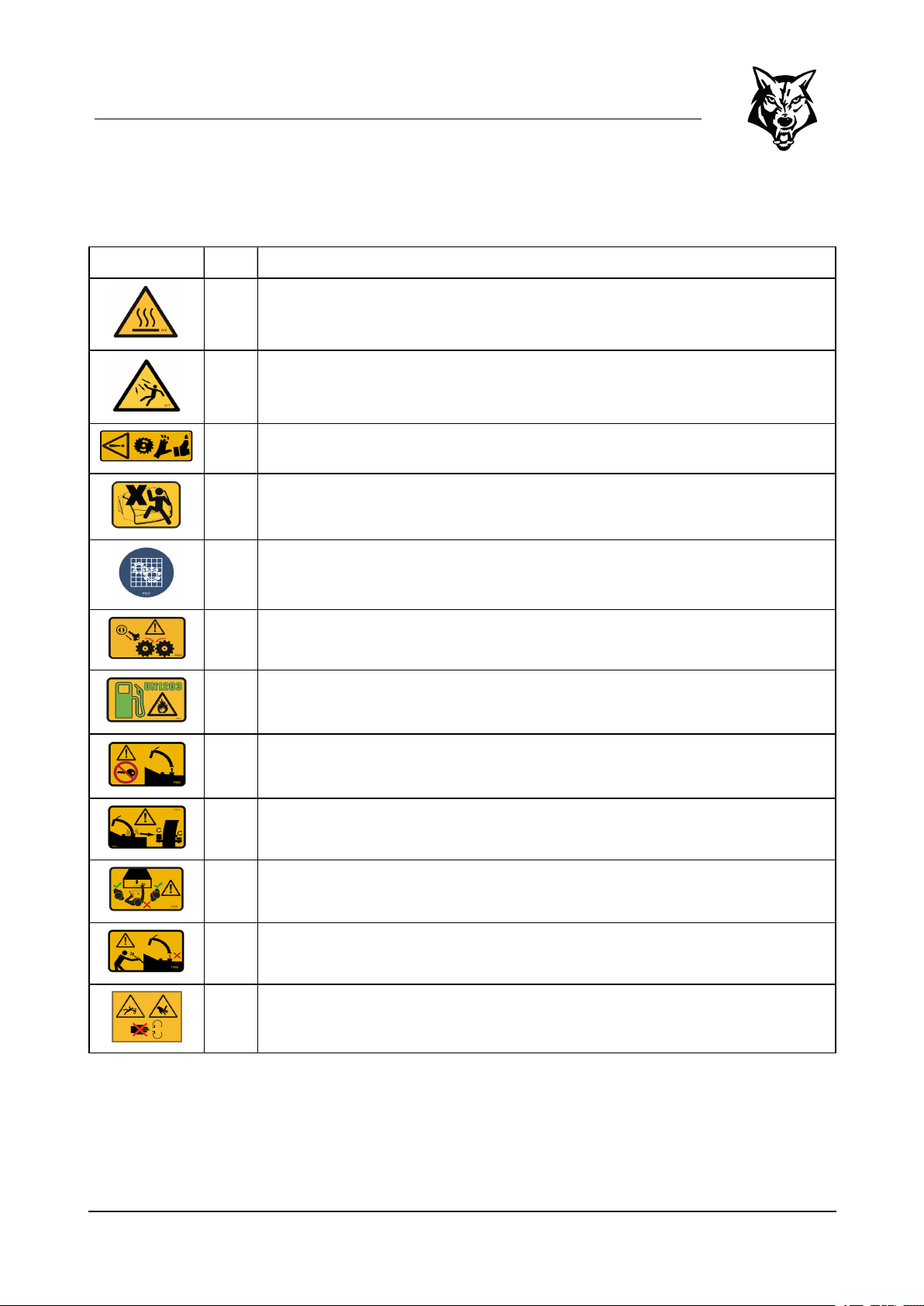

2.4 Safety Decals
Pt No Description
616 WARNING - Hot exhaust.
617 WARNING - High velocity discharge. Keep clear.
4099 DANGER - Rotating blades. Keep hands and feet out.
C192-
0102 DANGER - Do not climb into the feed funnel (Timberwolf Safety Plus Kit).
P637 DANGER - Do not operate without this cover in place.
P650 DANGER - Autofeed system fitted. Rollers may turn without warning. When the engine is
switched off the rollers will turn during the run down period.
P651 Fuel here. Risk of fire. Allow engine to cool for one minute before refuelling. Use
unleaded petrol only.
P653 DANGER - Rotating blades inside. Stop engine and remove key before removing
discharge unit.
P654 CAUTION - When transporting, discharge clamps may work loose. Check frequently.
P655 CAUTION - Avoid standing directly in front of feed funnel to reduce exposure to noise,
dust and risk from ejected material.
P656 DANGER - Do not use this machine without the discharge unit fitted. Failure to comply
may result in serious injury or damage.
P3611 DANGER - Rotating blades. Keep hands and feet out (Timberwolf Safety Plus Kit).
Table 2 - Safety Decal Descriptions
2 Product Details TW 230HB (Petrol)

2.5 Instruction Decals
Pt No Description
670 Personal Protective Equipment required. (Section 3.2 "
Operator's Personal Protective
Equipment (PPE) " on page 17.)
1258 WARNING - Failure to maintain brake adjustment will result in damper failure. No warranty
liability will be accepted on this item.
1399 Push safety bar to stop.
1661 Refer to the instruction manual for greasing and maintenance information.
1662
The instruction manual with this machine contains important operating, maintenance and
health and safety information. Failure to follow the information in this instruction manual
may lead to death or serious injury.
2800 Reverse feed.
2801 Forward feed.
2949
Lifting eye is designed to lift the machine's weight only. Do not use hoist on lifting eye. Use
correctly rated safety shackle only through lifting eye. Lifting eye to be inspected every 6
months and prior to each use. Do not use lifting eye if damaged.
3022 Clean under blades before refitting or turning. Failure to do so may result in blades coming
loose and damage being caused to the rotor housing.
18393 New drive belts need re-tensioning. When new belts are fitted check tension every 2-3
hours and adjust until tension remains constant.
P652 CAUTION -Do not put road sweepings in machine as grit will damage blades.
P691 Do not pull here.
P729 Throttle setting.
Table 3 - Instruction Decal Descriptions
12/61 C190-0304 - Rev 1.0 EN
TW 230HB (Petrol) 2 Product Details

C190-0304 - Rev 1.0 EN 13/61
Pt No Description
P1810 Relay decal: Forward latch.
P1811 Relay decal: Engine safety.
P1812 Torque blade bolts to 170 Nm (125 ft-lb).
C192-
0199 Engine control panel.
C192-
0232
WARNING - Do not engage starter motor for more than 5 seconds. Allow one minute
before attempting to start. Investigate reasons for failure to start. Excessive cranking will
result in starter motor failure. This will not be covered under warranty.
P1438 Lifting eye maximum weight.
2 Product Details TW 230HB (Petrol)

2.6 Model Decals
Pt No Description
1363 Timberwolf - Wolf head logo.
C192-
0100
Guaranteed Sound Power Level. (The maximum amount of acoustic energy emitted by
the machine.)
C192-
0101
Equivalent Continuous Sound Power Level. (The average amount of acoustic energy an
operator is subjected to during normal operations.)
C192-
0201 Made in Britain
C192-
0207 Timberwolf - Right side panel.
C192-
0208 Timberwolf - Left side panel.
C192-
0212 Weight below 750Kg - Petrol engine - Right side.
C192-
0217 Weight below 750Kg - Petrol engine - Left side.
Table 4 - Model Decal Descriptions
14/61 C190-0304 - Rev 1.0 EN
TW 230HB (Petrol) 2 Product Details

C190-0304 - Rev 1.0 EN 15/61
2.7 Identification Plate
The Timberwolf TW 230HB Identification Plate is mounted on the front outer face of the
right-hand chassis beam. It includes the unique machine Serial Number.
2.8 Guards
Ensure all the guards are correctly fitted during all operations. The guards may only be
removed for maintenance.
The TW 230HB has the following fixed guards for protection of the operator, chipper and
environment:
Roller Box Guard
• Protects the rotor housing from damage or foreign matter.
• Protects the operator from injuries from moving rollers or from ejected material
during operation.
Hydraulic Motor Guard
• Protects the hydraulic motors from damage.
• Protects the operator from injuries due to heat or movement of the motor.
Rotor Housing Blade Access
• Protects the operator from rotating parts (e.g. cutting blades).
• The interlocking switch prevents the engine from running when the hatch is
opened, to stop the chipper from rotating.
Engine Bay Side Panels
• Protect the operator from moving parts (e.g. belts and pulleys), hot surfaces and
engine fluids.
• Protect the chipper from ingress of environmental debris.
2 Product Details TW 230HB (Petrol)

16/61 C190-0304 - Rev 1.0 EN
TW 230HB (Petrol)
THIS PAGE INTENTIONALLY LEFT BLANK

C190-0304 - Rev 1.0 EN 17/61
3 Safety Notes and Warnings
3.1 Safety Notices
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in moderate injury or
damage the machine.
3.2 Operator's Personal Protective Equipment (PPE)
DO NOT wear rings, bracelets, watches, jewellery, loose-fitting clothing or any other items
that could be caught in the material and draw you into the chipper.
Chainsaw safety helmet (EN 397) fitted with mesh visor (EN 1731)
and ear defenders (EN 352).
Work gloves with elasticated wrist.
Steel toe cap safety boots (EN 345-1).
Close-fitting heavy-duty non-snag clothing. High-visibility clothing
(EN 471) if risk assessment identifies the need.
Face mask if appropriate.
TW 230HB (Petrol)

3.3 Basic Woodchipping Safety
It is the responsibility of the machine operator to carry out a full site Risk Assessment
before starting work. This Risk Assessment should consider the following points:
MAINTAIN A SAFETY EXCLUSION ZONE around the chipper of at least 10 metres for
the general public or employees without adequate protection. Use hazard tape to identify
this working area and keep it clear from debris build up. Chips should be ejected away from
any area the general public have access to.
HAZARDOUS MATERIAL - Some species of trees and bushes are poisonous. The
chipping action can produce vapour, spray and dust that can irritate the skin. This may lead
to respiratory problems or even cause serious poisoning. Check the material to be chipped
before you start. Avoid confined spaces and use respiratory protection where necessary.
BE AWARE when the chipper is processing material that is an awkward shape. The
material can move from side to side in the funnel with great force. If the material extends
beyond the funnel, it may push you to one side. Badly twisted material should be trimmed
before being chipped to avoid thrashing in the feed funnel.
BE AWARE that the chipper can eject chips out of the feed funnel with considerable force.
Always wear full head and face protection.
ALWAYS work on the side of the machine furthest from any local danger (e.g. not road
side).
NEVER leave the chipper unattended when running. Machines must be supervised at all
times when in use.
In the event of an accident, stop the machine, remove the key and call the emergency
services immediately.
18/61 C190-0304 - Rev 1.0 EN
TW 230HB (Petrol) 3 Safety Notes and Warnings
