Avantco 189WVAC28HC User manual

Vertical Open Air Merchandisers
- 1 -
User Manual
189BVAC28HC, 189WVAC28HC, 189BVAC36HC,
189WVAC36HC, 189BVAC46HC, 189WVAC46HC,
Please read the manual thoroughly prior to equipment set-up,
operation, and maintenance.
01/2023

- 2 -
User Manual
Warning
DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY
TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING.
PELIGRO - RIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA
SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. NO PINCHAR LA TUBERÍA
REFRIGERANTE.
DANGER – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONFIER LES
RÉPARATIONS À UN TECHNICIEN SPÉCIALISÉ. NE PAS PERFORER LA TUBULURE CONTENANT LE
FRIGORIGENE.
CAUTION – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. CONSULT REPAIR
MANUAL/OWNER’S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY
PRECAUTIONS MUST BE FOLLOWED.
ATENCION - RIESGO DE INCENDIO O EXPLOSIÓN. REFRIGERANTE INFLAMABLE UTILIZADO. CONSULTE
EL MANUAL DE REPARACIÓN / GUÍA DEL PROPIETARIO ANTES DE INTENTAR DAR SERVICIO A ESTE
PRODUCTO. DEBEN CUMPLIR CON TODAS LAS PRECAUCIONES DE SEGURIDAD.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONSULTER LE
MANUEL DU PROPRIÉTAIRE/GUIDE DE RÉPARATION AVANT DE TENTER UNE RÉPARATION. TOUTES LE
MESURES DE SÉCURITÉ DOIVENT ÊTRE RESPECTÉES.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO PUNCTURE OF REFRIGERANT TUBING; FOLLOW
HANDLING INSTRUCTIONS CAREFULLY. FLAMMABLE REFRIGERANT USED.
ATENCION - RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A LA PERFORACION DE LA TUBERÍA
REFRIGERANTE; SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO. REFRIGERANTE
INFLAMABLE UTILIZADO.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LA TUBULURE CONTENTANT LE FRIGORIGÈNE
EST PERFORÉE; SUIVRE LES INSTRUCTIONS DE MANUTENTION AVEC SOIN. LE FRIGORIGÈNE EST
INFLAMMABLE.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO FLAMMABLE REFRIGERANT USED. FOLLOW
HANDLING INSTRUCTIONS CAREFULLY IN COMPLIANCE WITH LOCAL GOVERNMENT REGULATIONS.
ATENCIÓN – RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A REFRIGERANTE INFLAMABLE UTILIZADO.
SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO CONFORME A LAS REGLAS DE LA
MUNICIPALIDAD.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LE FRIGORIGÈNE EST INFLAMMABLE. SUIVRE
LES INSTRUCTIONS DE MANUTENTION AVEC SOIN CONFORMÉMENT AUX RÈGLEMENTATION
GOUVERNEMENTALE LOCAUX.

- 3 -
User Manual
Installation
Please read this manual thoroughly prior to equipment set-up, operation, and maintenance.
This unit is intended for use in a temperature-controlled environment less than 75ºF and
55% relative humidity. Malfunction due to improper conditions is not covered under warranty.
Important!!! Please Read Before Installation
• If the unit has recently been transported on its side, please let the unit stand upright for a
minimum of 24 hours before plugging it in.
• Make sure the unit has reached the desired temperature before loading the unit with products.
This unit is meant for keeping cold products cold, not chilling warm products.
• Make sure all accessories are installed (shelves, shelf clips, etc.) before plugging in the unit.
• Do not attempt to remove or repair any component of the unit. Consult an authorized service
technician for servicing / repair.
• Do not stand inside the unit.
• Please read through this manual in its entirety.
• This refrigerator is designed to perform in a temperature-controlled environment less than 75°F
and 55% relative humidity. The unit should be located away from doors, air ducts, and fans that
could disrupt airow and negatively impact performance.
Cabinet Location Guides
• Install the unit on a strong and leveled surface.
- If the surface is uneven, the unit may be noisy.
- The unit may malfunction if the surface is uneven.
• Install the unit in an indoor, well-ventilated area away from doors, air ducts, and fans.
- For best performance, maintain 6” of clearance on the back of the unit at all times.
- Do not use outdoors. For indoor use only.
- Avoid direct sunlight.
• Avoid installation in a high-humidity and / or dusty area.
- High humidity can cause the unit to rust and may decrease efciency.
- Dust collected on the condenser coil may cause unit to malfunction.
- Malfunction due to high ambient temperatures, humidity, or improperly maintained
condenser coil will void the warranty.
• Select a location away from heat and moisture-generating equipment.
- High ambient temperatures may cause the compressor to malfunction.
- Malfunction due to high ambient temperatures and humidity will void the warranty.

- 4 -
User Manual
Electrical
• Please ensure that the required voltage is being supplied at all times.
• The unit should be plugged into a grounded and properly-sized electrical outlet with appropriate
over-current protection. Please refer to the electrical requirements on the unit’s nameplate.
• The unit should have its own dedicated outlet.
• Do not use extension cords.
• Ensure the unit is not resting on or against the electrical cord.
• If the unit is not in use for a long period of time, please unplug the unit from the outlet.
• To avoid shock and re hazards, do not plug in or unplug the unit with wet hands.
• After unplugging the unit, wait at least 10 minutes before plugging it back in. Failure to do so could
cause damage to the compressor.
Adjusting the Temperature
Your new refrigerator or freezer is already factory-set to run at optimum temperatures for food
safety and should require no adjustments.
Refrigerators are set to cycle between a minimum temperature of 33°F and a maximum temperature
of 40°F.
Adjusting the temperature changes the minimum temperature your unit will run at. Your unit will not
run constantly at this setting. To change it, follow these instructions:
Digital Control Units
• Hold “SET” for 1 sec. The display will ash the current minimum temperature.
• Use the arrow buttons to adjust the minimum temperature you want it to run at.
• Press “SET” again to save your settings
Always remember to calculate the differential if you change the minimum temperature setting. The
cabinet temperature will uctuate up to +4 degrees over your set minimum temperature as the
compressor runs and shuts off. Setting the temperature too high will result in unsafe maximum
temperatures and possible health code violations.

- 5 -
User Manual
set
mute

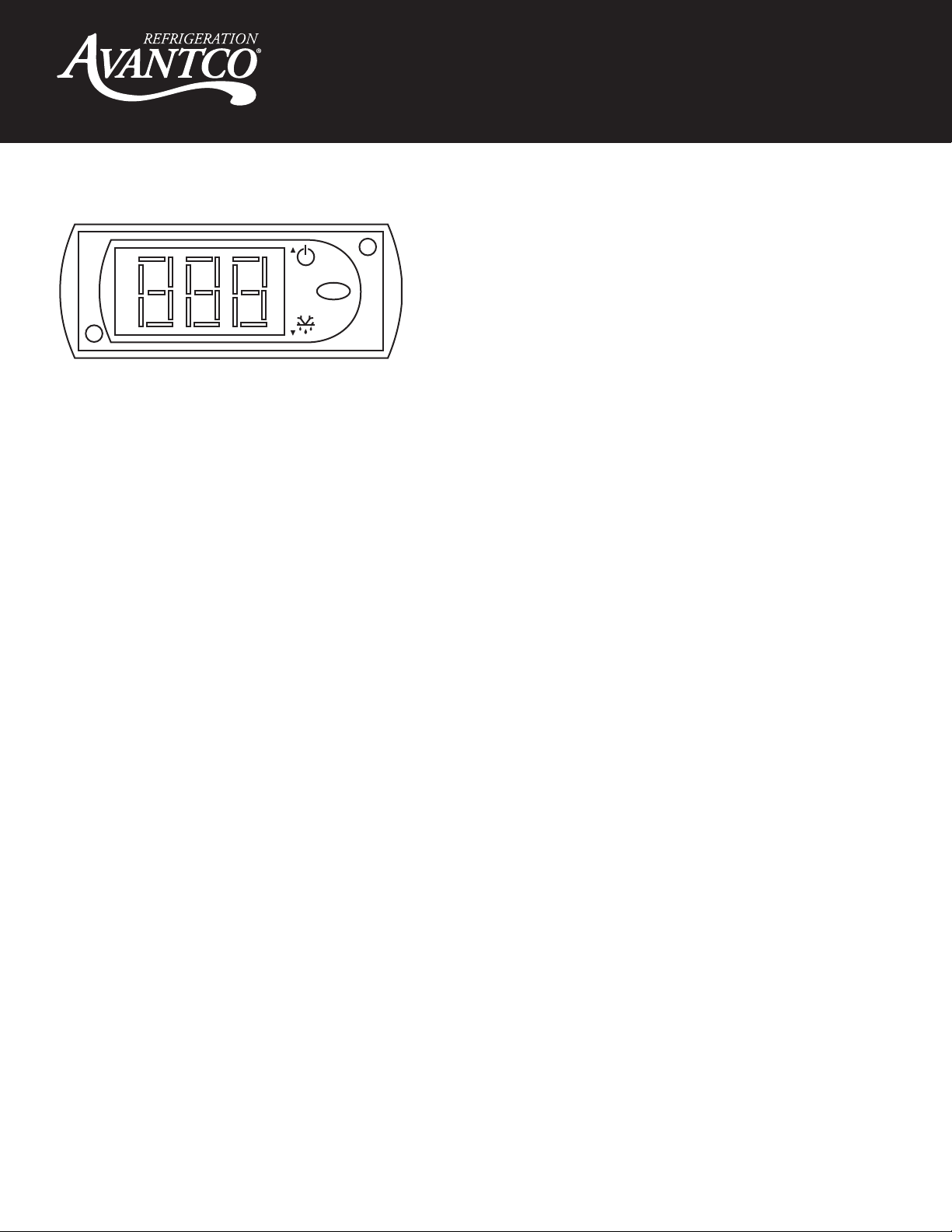

Refrigerator Control
Running a Manual Defrost Cycle
This unit is pre-programmed to run automatic defrost cycles at preset intervals. However, if you
would like to run a manual defrost cycle at any time, please follow the steps below:
Refrigerators: Press the defrost button (snowake symbol and down arrow) for approximately 3
seconds. Repeat to stop the defrost cycle.
Defrost System
Refrigerator coils are kept below the freezing point (32 degrees Fahrenheit). During compressor
down-time, the evaporator fan continues to circulate air through the evaporator coil. This air
circulation raises the coil temperature above the freezing point, melting any accumulated frost.
Run-off water is drained into the evaporator pan and evaporated. Freezer coils are defrosted
electrically. Automatic defrost timers automatically initiate at pre-set intervals and for a
pre-determined duration.
• If a drainage pipe is available, lower the condensation drainage pipe and connect to a drain or
condensate pump. Verify the pipe is unobstructed and it is lower than the water receiver indicated
by the line on the sticker.
• If no drain is available, the condensation drainage pipe can be hung up. The excess water will be
evaporated with the condensate evaporator pan. Note that the use of this option will increase the
energy consumption of the unit.
• WARNING: High humidity environments can cause increased amounts of condensation that can
overow the evaporator pan. Connecting the drainage pipe to a nearby drain is necessary for
environments exceeding 55% relative humidity.

- 6 -
User Manual
Operation/Maintenance
NOTE: We strongly recommend that any servicing be performed by an authorized service technician.
Loading Product
• Do not block the air duct / fan at the top of the unit. Maintain a minimum of 4” of clearance
between products and the fan at all times. Do not block return air ow in the front of the unit.
• Ensure all shelves are sitting level and properly secured before loading products.
• Do not store ammable and explosive gas or liquids inside the unit.
Cleaning the Condensor Coil
• For efcient operation, keep the condenser surface free of dust, dirt, and lint.
• We recommend cleaning the condenser coil at least once per month.
• Clean the condenser with a commercial condenser coil cleaner, available from any kitchen
equipment retailer.
Cleaning the Fan Blades and Motor
• If necessary, clean the fan blades and motor with a soft cloth.
• If it is necessary to wash the fan blades, cover the fan motor to prevent moisture damage.
Cleaning the Interior of Unit
• When cleaning the cabinet interior, use a solvent of warm water and mild soap.
• Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the interior nish.
• Periodically remove the shelves and shelf brackets from the unit, and clean them with a mild soap
and warm water.

- 7 -
User Manual
Trouble Shooting
The Unit is Making Noise Under the Bottom Shelf
Fan blade is broken. Replace fan blade.
The Unit is not Cooling
Unit is turned off. Turn unit on.
Defrost cycle is running. End defrost cycle.
Refrigerant leaking. Contact a licensed service technician.
High Cabinet Temperature Caused by Weak Air Flow
Evaporator coil is frosted over. Run a manual defrost cycle.
Fan is damaged. Replace the fan.
The set point on the controller is too high. Set the controller to a lower temperature. The set temperature is
the lowest temperature the refrigerator will reach.
Air flow is blocked by product. Rearrange or remove product to allow for complete air flow.
High Cabinet Temperature with Normal Air Flow
Refrigerant leaking. Contact a licensed service technician.
The set point on the controller is too high. Set the controller to a lower temperature. The set temperature
is the lowest temperature the refrigerator will reach.
Expansion valve failed. Contact a licensed service technician.
The air curtain is being disturbed by strong air flow. Make sure the cabinet is located away from doors, windows,
and other air vents.
High ambient temperature or humidity. This refrigerator is designed to perform in temperature-
controlled environment up to 75°F and 55% relative humidity.
Cabinet Temperature is Fluctuating
Condenser coil is dirty. Clean the condensor coil.
Unit has improper air flow. Make sure the unit has at least 6" of clearance on the back
and that the front vents are not obstructed.
Expansion valve blocked or failed. Contact a licensed service technician.
Temperature controller failed. Contact a licensed service technician.
Unit is Leaking Water
Condensate evaporator is overflowing Use condensate drainage pipe to drain excess water to
nearby drain or pump.
High relative humidity This refrigerator is designed to perform in temperature-
controlled environment up to 75°F and 55% relative humidity.
Drainage tube is clogged Verify the drainage tube is clear and unobstructed.
Temperature controller failed. Contact a licensed service technician.
Condensate evaporator has failed Contact a licensed service technician.
