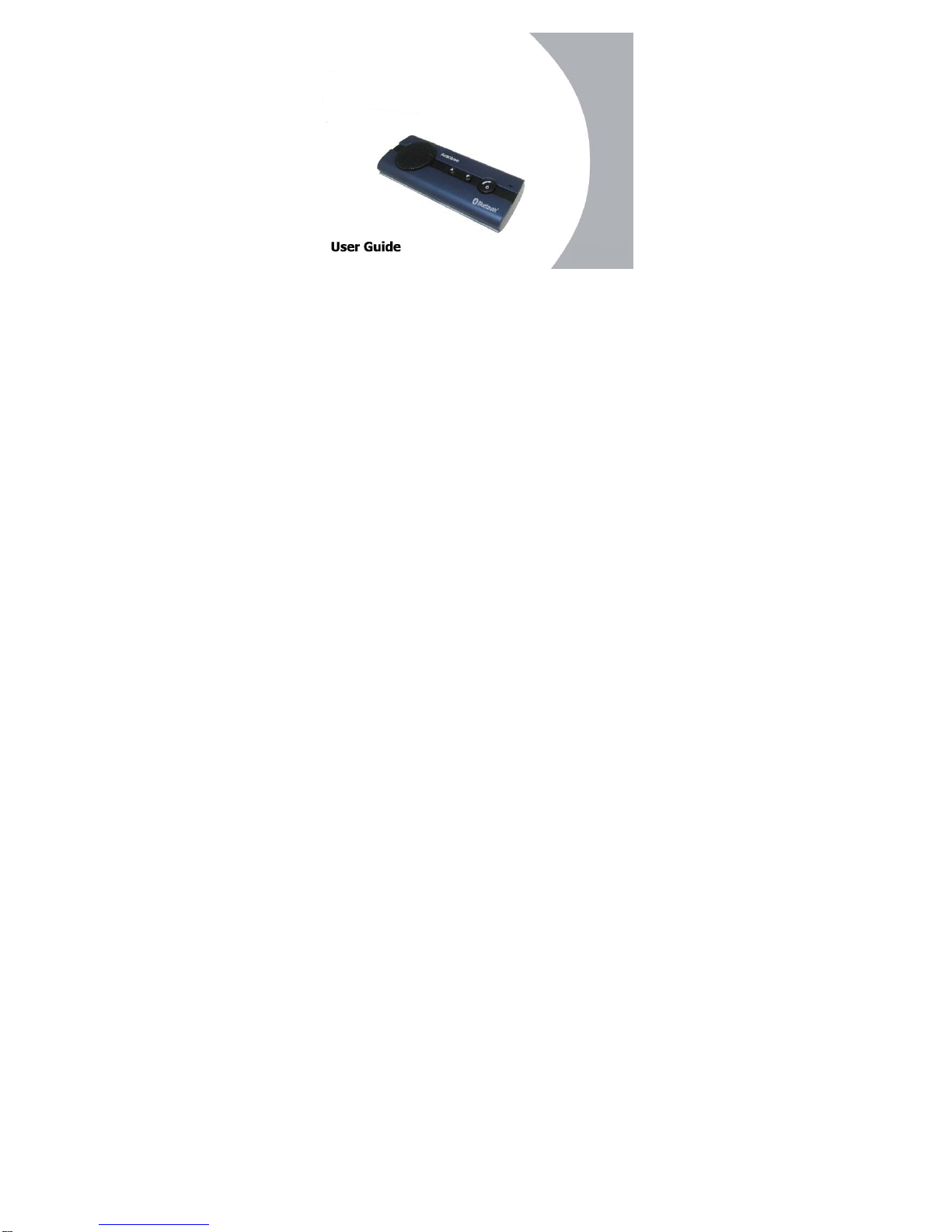

Avantree BTCK-10B User manual

Bluetooth Hands-Free Speaker Phone
Custom Accessories
23685

1. Product Description
This versatile Bluetooth speakerphone is specially designed for the user to enjoy
convenient and free wireless communication. Can be used on the desktop like a
conference speakerphone or in-car like a hands-free car kit. Advanced built-in
microphone with D.S.P. solution for Echo Cancellation & Noise Suppression gives you
impeccable full duplex sound quality.

2. Product Overview
(1) Speaker (4) Charging Socket (5-pin USB) (7) Volume Increase (V+)
(2) Microphone (5) Mute Button (8) Volume Decrease (V-)
(3) LED (6) MFB Button (Multi-Function Button)

What’s in the box -
zSpeakerphone
zUSB charging cable
zUSB Car charger
zManual
zSun visor clip
zRechargeable Lithium Battery
zWarranty card
3. Charging
1) First time, please charge the device for more than 3 hours to make sure the
speakerphone is fully charged and the battery reach its full capacity.
a. Charging in car- user can charge the unit in car by using a car charger.
b. Charging at home- user can charge the unit by using a USB cable via
2) Afterwards, each charge cycle may take up to 3 hours.
3) LED will indicate red in charging and off when charging is complete.
4) If you have not used the item for a few month, it may take 15-30 minutes LED to
red when charging.

5) We suggest to fully charge the item for at least one time in two months.
Note: To prolong durability of battery, it is recommended to charge the speakerphone
whenever low battery is encountered (when the battery becomes low, LED will flash
red every 3 seconds).
4. Pairing / Connecting
It is important to pair the speakerphone with your Bluetooth Mobile phone for the first
time use.
Pairing procedure:
A. Ensure the speakerphone is off.
B. Once turned on the speakerphone, if not detected any connection, it will
automatically go to pairing mode, also you can put it go to pairing mode by
pressing and holding the “MFB” button until LED blink blue and red alternatively.
C. Search the device from your phone.
D. Once found “ Avantree BTCK-10B ’’, follow the steps and enter pin code 0000 to

pair.
E. Connect the speakerphone to the device.
F. Speakerphone is ready for use now.
Once paired and connected, the speakerphone will be automatically connected to the
device whenever you turn the speakerphone on again, provided the device is in range.
We find most problems are caused by improper pairing between the
speakerphone and the Bluetooth device. Please follow the online instructions
step-by-step.
5. Basic Operations
Turn on / off
Turn On: From OFF, press and hold the “MFB” for around 4 seconds until the
indicator LED flashes Blue.
Turn Off: From ON, press and hold the “MFB” for around 4 seconds until the
indicator LED flashes Red.

Note: 1. Once the unit is on, the LED indicator will flash blue every 10 seconds.
2. When losing connection, the speakerphone will automatically switch itself off
after 30 minutes.
Answer a call: Press “MFB” button once.
End a call: Press “MFB” button once.
Reject a call: Press and hold the “MFB” button for 2 seconds to reject the call.
Voice Dial: Press the “MFB” button once and say the name of the person you wish to
call.
Re-dialing: Under standby mode, short press the “MFB” button twice for last number
redialing.
Adjust the volume: During a call, press the “V+” or “V-” button.
Mute & Un-mute
Mute: During a call, short press the “MUTE” button to mute the speakerphone. The
LED will show red during mute mode.
Un-mute: Short press the “MUTE” button during mute mode to unmute the
speakerphone
Transfer calls

Speakerphone to Mobile Phone: During a call, press both “V+” and “V-” buttons, the
call will be routed to your mobile phone.
Mobile Phone to Speakerphone: Press both "V+" and "V-" buttons to route the call
to speakerphone.
6. Advance Features
6.1 Pairing with two mobile phone
a) From off, turn on the speakerphone, it will automatically enter pairing mode if not
detect any connection, pair with the first phone.
b) Turn off the speakerphone and turn off Bluetooth function of the first phone, then
turn on the speakerphone and automatically enter into pairing mode, pair with the
second phone.
c) Power off the speakerphone again, and turn on the Bluetooth of the first phone.
Then turn on the speakerphone, it will automatically connect with last 2 paired
phones.

6.2 Answer the second call during a call (3 way call or two link function)
When receiving a second call, press ”MFB” button twice to hold the first call on line
and answer the second call.
6.3 Reject the second call during a call (3 way call or two link function)
When receiving a second call, press and hold the “MFB” button for 3 seconds to
reject the second call.
6.4 Switch between 2 phone calls (3 way call or two link function)
When having 2 calls on the line, press the “MFB” button twice to switch between
these 2 phone calls
When having 2 calls on the line, short press the “MFB” button once to end the
current call and stay with the other call.
7. Product Specification
zBluetooth compliance: Bluetooth V2.1+EDR
zOperating frequency band: 2.4GHz ~ 2.48GHz unlicensed ISM band
zOutput power: Class 2, up to 10 meters

zSupport profiles: HSP and HFP Profiles
zSupport multiple Paired Device: Memorize paired data of 8 Bluetooth phones
zStand-by time: Up to 980 hours/ 40 days
zTalk time: Up to 10-12 hours
zBattery charging Time: About 3 hours
zCharger voltage: DC5.0V, 500mA
zBattery: 650mA, BL-5B (Rechargeable Lithium-Ion Battery)
The talk and standby times may vary when used with different mobile phones or other
compatible Bluetooth devices, usage settings, usage styles and environments.
8. Safety Information
zTo avoid any damage or malfunction of the device do not drop device from high
places.
zKeep device away form humidity, water and any other liquid. If the device is exposed
to water, moisture or other liquid, do not operate it to avoid any electrical shock,
explosion and damage to the device or yourself.
zDo not place or keep this device near any heat source, such as, direct sunlight,
radiators, stoves or other apparatus which produces heat. It may cause explosion,

degrade the performance and/or reduce battery life.
zDo not modify, repair or disassemble device at discretion (especially battery: It may
cause an explosion). Doing this will avoid the warranty.
zDo not place heavy objects on the device.
zUse only supplied and approved charger.
zReplacement or service must be done by qualified service center or manufacturer.
zUnplug this device when unused for long periods of time or during lightning storms.
CAUTION: ELECTRIC SHOCK HAZARD
The battery used in this device may present a risk of fire or chemical burn if mistreated.

9. WEEE Symbol information
This product should not be disposed with other household wastes at the end of its
working life. To prevent possible harm to the environment or human from uncontrolled
waste disposed, please separate the battery from the unit before disposal.
Household users should contact either the retailer where they purchased this product or
their local government office, for details of where and how they can take this item for
safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. Before the battery is removed, this product should not be mixed with
other commercial wastes for disposal.

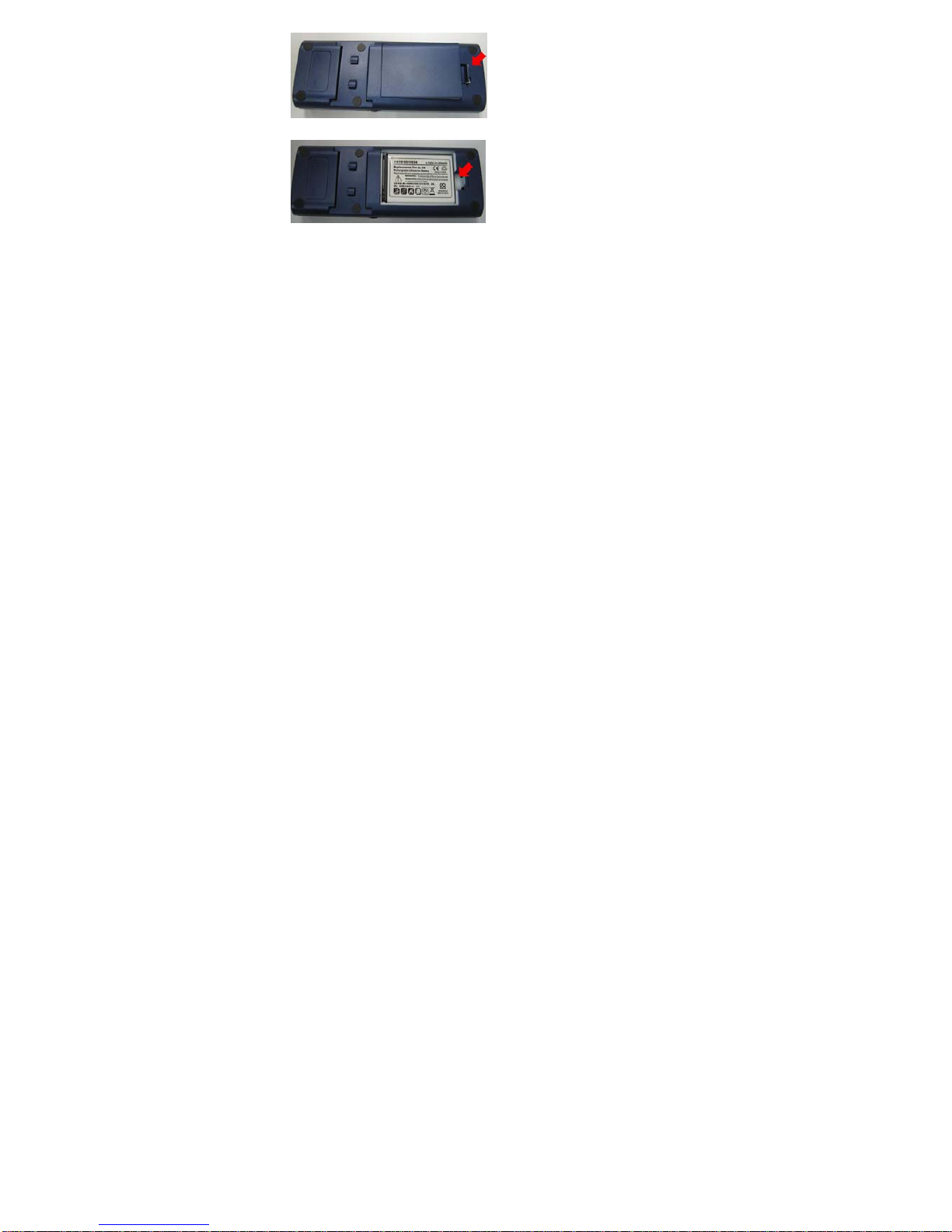

How to remove the battery from the Unit
1) Open the battery compartment cover of the unit back.

2) Carefully take out the battery.

10. Declaration of Conformity
FCC Information and Copyright
This equipment has been tested and found to comply with the limits for a Class B digital
device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential
installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in
accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular
installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the
equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
FCC RF warning statement: the device has been evaluated to meet general RF
exposure requirement , The device can be used in portable exposure condition without
restriction.
10.3. EU

This product is CE certified according to the provision of the R&TTE Directive (99/5/EC).
Declare that this product is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
10.4. Trademark Statement
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.
Avantree is a trademark owned by Avantronics limited.
11. Warranty
Please refer to the warranty card included in the pack.

Technical Support & Product Tutorial
More information about this product and other Avantree Bluetooth Products,
including video user guides, product tutorials and online technical support,
please refer to www.Avantree.com ‘Product Tutorial’ page and ‘Download’
page.
Due to the nature of the products, there might be some software changes
without notice. Please always refer to the Avantree website for the latest
information.
Z-PKMN-CK10B-0000v5.2
