Installation Guide
P117F(R)
STACKABLE ETHERNET SWITCH WITH ATM
UPLINK

Preface
P117F(R) Stackable Switch Installation Guide 1
Important Information
SAFETY PRECAUTIONS
CAUTION – TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE
1. All servicing should be undertaken ONLY by qualified personnel. The parts inside the unit
CANNOT be serviced or repaired by the end user. Please call your service representative
for assistance.
2. Do NOT plug in, turn on or attempt to operate a damaged unit.
3. Ensure that the chassis ventilation slots in the unit are NOT BLOCKED.
4. Replace a “blown” fuse only with the same type and rating as is marked on the safety label
adjacent to the power inlet housing the fuse.
5. DO NOT operate the unit in a location where the maximum ambient temperature exceeds
50ºC.
6. Be sure to unplug the power supply cord from the wall socket BEFORE attempting to
remove and/or check the main power fuse.
PRECAUTIONS DE SECURITÉ
AVERTISSEMENT – POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE ET D’INCENDIE
1. Tout entretien doit être fait UNIQUEMENT par un personnel de service qualifié. Aucun
élément ne peut être réparé par un particulier.
2. NE PAS brancher, allumer ou essayer de faire fonctionner une unité sur laquelle un doute
existe quant à son bon fonctionnement.
3. S’assurer que les ouvertures d’aération du châssis dans l’appareil NE SONT PAS
OBSTRUEES..
4. Remplacer un fusible défaillant UNIQUEMENT par un modèle du même type suivant les
recommandations indiquées sur l’étiquette de securité posée dans le logement du fusible.
5. NE PAS faire fonctionner l’appareil dans un endroit où la temperature dépasse les 50ºC.
6. S’assurer de débrancher l’alimentation électrique AVANT toute manipulation sur le fusible
principal.
SICHERHEITSVORKEHRUNG
ACHTUNG – ZUR VERHINDERUNG DES RISIKOS VON ELEKTRISCHEM SCHLAG UND FEUER
1. Die Geräte enthalten keine Bauteile, die außerhalb des Avaya Servicezentrums gewartet
oder repariert werden können. Die Wartung darf NUR von qualifiziertem, technischem
Personal durchgeführt werden.
2. NIEMALS ein beschädigtes Gerät einschalten, oder versuchen es zu bedienen.
3. Vergewissern Sie sich, dass die Chassis Ventilationsöffnungen des Gerätes NICHT
BLOCKIERT sind.

Preface Safety Instructions
4. Austauschen einer durchgebrannten Sicherung NUR mit der gleichen Sorte und
Belastbarkeit wie sie auf der Sicherheitsaufschrift markiert ist. Die Aufschrift befindet sich
neben der Stromzufuhr wo sich auch der Sicherungskasten befindet.
5. Bedienen Sie das Gerät NICHT an einer Stelle an der die Umgebungstemperatur 50ºC
übersteigt.
6. Ziehen Sie das Netzkabel raus, BEVOR Sie versuchen die Hauptsicherung zu kontrollieren
oder auszutauschen.
2 P117F(R) Stackable Switch Installation Guide

Chapter 1
Overview
This guide is divided into four main sections:
• Overview: A general description of the features of the Avaya Stackable Switch
and P117FR (jointly referred to as the P117F(R)).
• Installation: Instructions for getting the P117F(R) Stackable Switch and P110
stack up and running.
• Software Download: Step-by-step guide to downloading a new software
version to the P117F(R) Stackable Switch on-board agent
• Appendix: Pin Assignments for the console RJ45 connector.
Description
The P117F(R) is part of the P110 Switching System family of switches. The P110
family is composed of high-performance switches which may be used singly or
stacked in any combination to make up a multi-protocol, non-blocking, scalable
switch.
The P117F has 16 Ethernet (10BASE-T) ports and one 155 Mbps ATM port.
The P117FR has an additional ATM port for redundancy. The 10 Mbps ports are
typically used for workgroup connectivity, while the ATM port(s) can be used as
an uplink to an ATM backbone.
The P117F(R) can operate standalone or as part of a stack. A stack can be made up
of any combination of two, three or four P110 switches, and up to 32,000 MAC
addresses per stack are supported. A stack requires a P110 NMA to link the
switches. The units are physically linked using the P110 Exoplane, which makes
up a multi-gigabit, non-blocking backplane.
The P117F(R) can use Avaya automatic fairness mechanism on the Ethernet ports
to ensure that all ports gain fair access to the P110 Exoplane even at very high
network utilization. Congestion management works both on full and half duplex
ports, and ensures no packet loss should the buffers become saturated during peak
load conditions. A backup power supply (P110 BUPS) can be used for increased
fault tolerance.
P110 switches are fully manageable using MSNM, the Avaya SNMP-based
management system (or CajunView), and may be monitored using the SMON
Manager Switch Monitoring Application.
P117F(R) Stackable Switch Installation Guide 3

Chapter 1 Description
4P117F(R) Stackable Switch Installation Guide

Chapter 2
Installation
Setting the DIP switches
First, set the DIP switches. The position of the switches depends on the application.
The drawing below shows the default positions of the DIP switches on the rear
panel of the P110 switch.

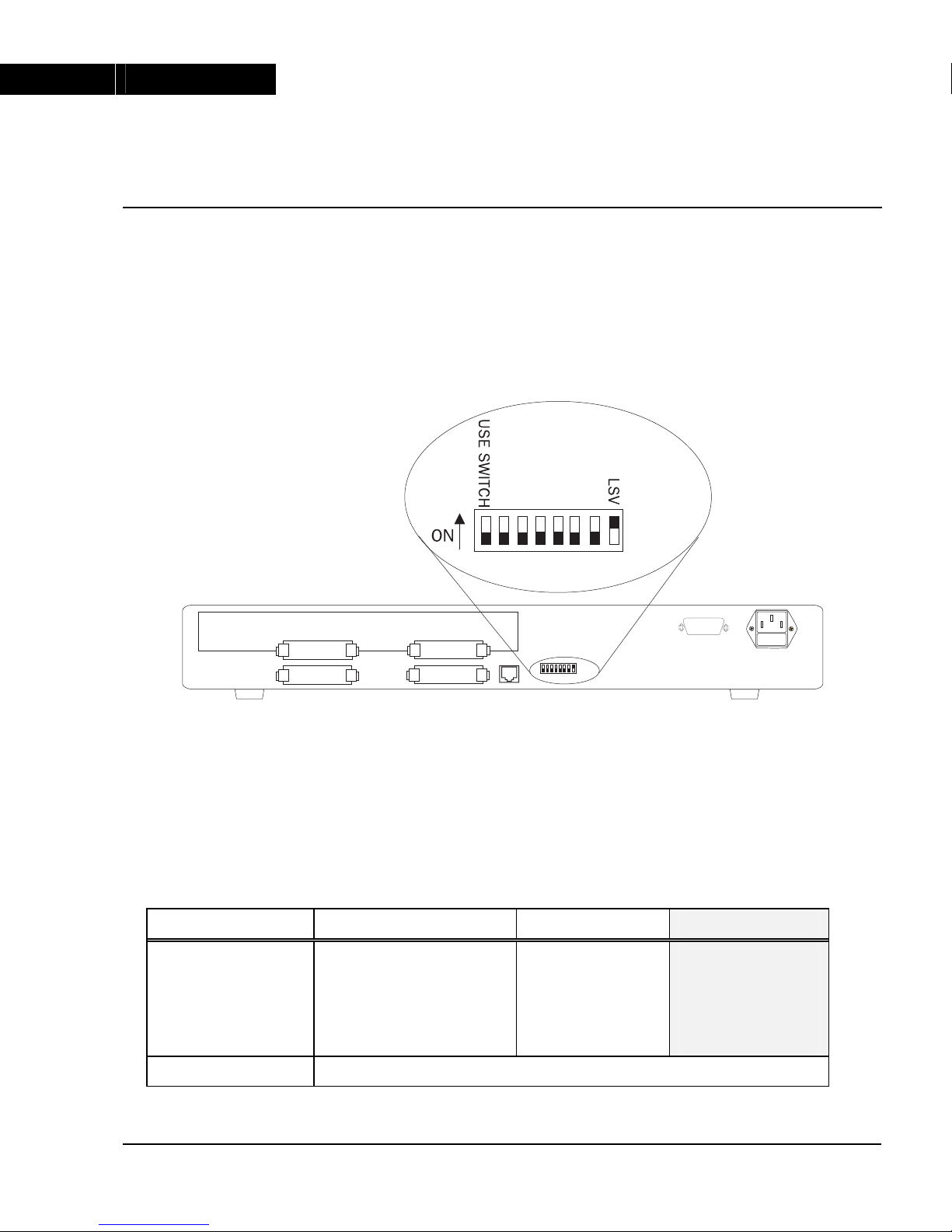

Figure 1 The P117F(R) Stackable Switch Rear Panel Showing the
DIP Switches in their Default Positions
• LSV – Last SW Version: The on-board agent of the P117F(R) can use either the
latest downloaded software or a “Basic” version. The Basic version is factory
loaded.
 Ensure the Use Switch is set to the OFF position.
Once you have set the DIP switch, you may proceed with the physical installation
of the switch.
Table 1 DIP Switches on the P117F(R) Stackable Switch
Switch Function OFF ON (Default)
LSV Last SW Version Use the “Basic”
software
version. This is
known as
Bank A
Use the latest
downloaded
agent software.
This is known
as Bank B
USE SWITCH Not applicable, for future use only
P117F(R) Stackable Switch Installation Guide 5

Chapter 2 Installation
Installing the P117F(R) Stackable Switch
The procedure for getting the P117F(R) Stackable Switch up and running depends
on whether the switch is to operate in standalone or as part of a stack.
Standalone Operation - Plug ‘n’ Play
Getting the P110 switch working is quick and easy:
1. Connect the power cable to the switch,
2. Connect the cables to the front panel ports,
The switch is now fully operational.
To ensure proper ventilation, ensure that the P110 NMA slot is closed.
Keep the P110 Exoplane cables that came with the P110 switch in a safe place. You
will need them when you add another switch to the P110 stack.
The P117F(R) contains an on-board agent. The Software Download section on page
13 explains when you need to upgrade the on-board software to a higher version.
Stacking Operation
Before beginning to operate with the P117F(R) you need to allocate it an IP
address. Please refer to Agent Access Address on page 22.
To make the P117F(R) work as part of a stack the P110 NMA with the correct
software version is required. See the P117F(R) Stackable Switch Release Notes for
the required version. Also the on-board agent must have the same agent version
number as the P110 NMA.
To check what software version you have, see the agent configuration window in
CajunView (on UNIX) or MSNM or CajunView Manager (on Windows), or see the
setup main menu of the P110 NMA.
1. Turn off the main power to the stack, by individually switching off each
switch.
2. Place the P110 NMA in the top switch of the stack if it is not already there.
3. If the P110 NMA and P117F(R) on-board agent contain the latest software
version, go to step 4.
If the P110 NMA does not contain the latest software version, you have to
perform software download of the latest version. The software is on the
diskette that came with the P117F(R). Download is performed via the Software
Update Manager in MSNM or in CajunView or via TFTP using a terminal –
details can be found in the P110 NMA Installation Guide. (The download
procedure itself is the same as that described in Software Download on
page 18 of this document).
If the P117F(R) on-board agent does not contain the latest version, perform the
download as described in Software Download to the On-Board Agent on
page 13.
6P117F(R) Stackable Switch Installation Guide

Chapter 2 Installation
4. Place the P117F(R) or other P110 switches in the stack. The P110 NMA must be
in the top switch of the stack.
To ensure proper ventilation, ensure that all empty P110 NMA slots in the
stack are closed.
5. Connect P110 switches using the supplied P110 Exoplane cables, as shown in
Figure 2. A switch connects to its upper neighbor through two Exoplane
cables, and to its lower neighbor through another two Exoplane cables. Make
sure you securely fasten the cables to the connectors.
Cabling Requirements:
• For correct operation, the P110 Exoplane must be fully connected, with all
units powered up. In a stack configuration, the P110 NMA must be installed
and connected to the P110 Exoplane.
Failure to observe this requirement will cause the P110 units to block all traffic
on attached stations and segments.
• When using the P114T or P114F in the stack, make sure all switches in the
stack are connected using P110 Exoplane cables (part number 108362203, with
white connectors and marked C/S:B) of the type supplied with the new P110
switch. Extra cables can be ordered from your local Avaya representative.

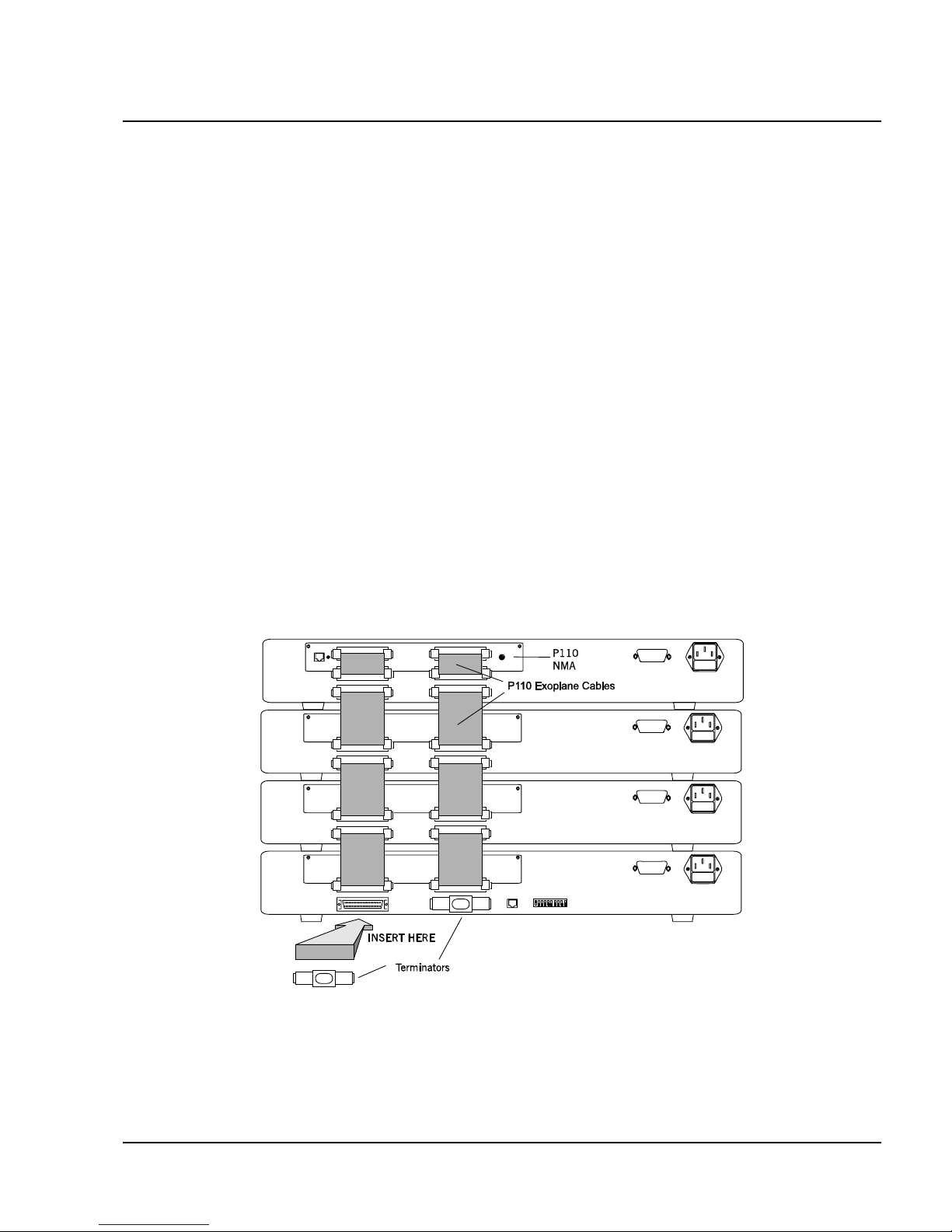

Figure 2 Rear view of a P110 stack, showing how the switches are linked via the P110
Exoplane cables. A P110 NMA resides in the uppermost switch.
6. Two terminators are supplied with the P110 NMA. Insert the two terminators
into the lowest two connectors at the bottom of the stack, as shown in Figure 2.
7. Turn on the mains power to the stack, by individually switching on each
switch.
8. Connect the cables to the front panel ports.
P117F(R) Stackable Switch Installation Guide 7

Chapter 2 Installation
 The P110 NMA and the on-board agent in all P110 switches (e.g., P117F(R) and
P113F) must have the same version number.
8P117F(R) Stackable Switch Installation Guide

Chapter 2 Installation
Rack Mounting
P110 switches slot into a standard 19-inch rack. If the switches are to be rack
mounted, first place them in the rack, then connect the P110 Exoplane, as follows:
1. Snap open the ends of the front panel to reveal the fixing holes.
2. Slot the switch into the rack. Insert the switches into the rack so that the
switches in a logical stack lie directly on top of each other. Ensure that the P110
screw holes are aligned with the rack hole positions exactly as shown in Figure
3Stacking them in this way will allow the switches to be easily connected
using the Exoplane cables.
3. Secure the switch in the rack using the screws. Use one screw on each side. Do
not overtighten the screws to avoid damaging the plastic.

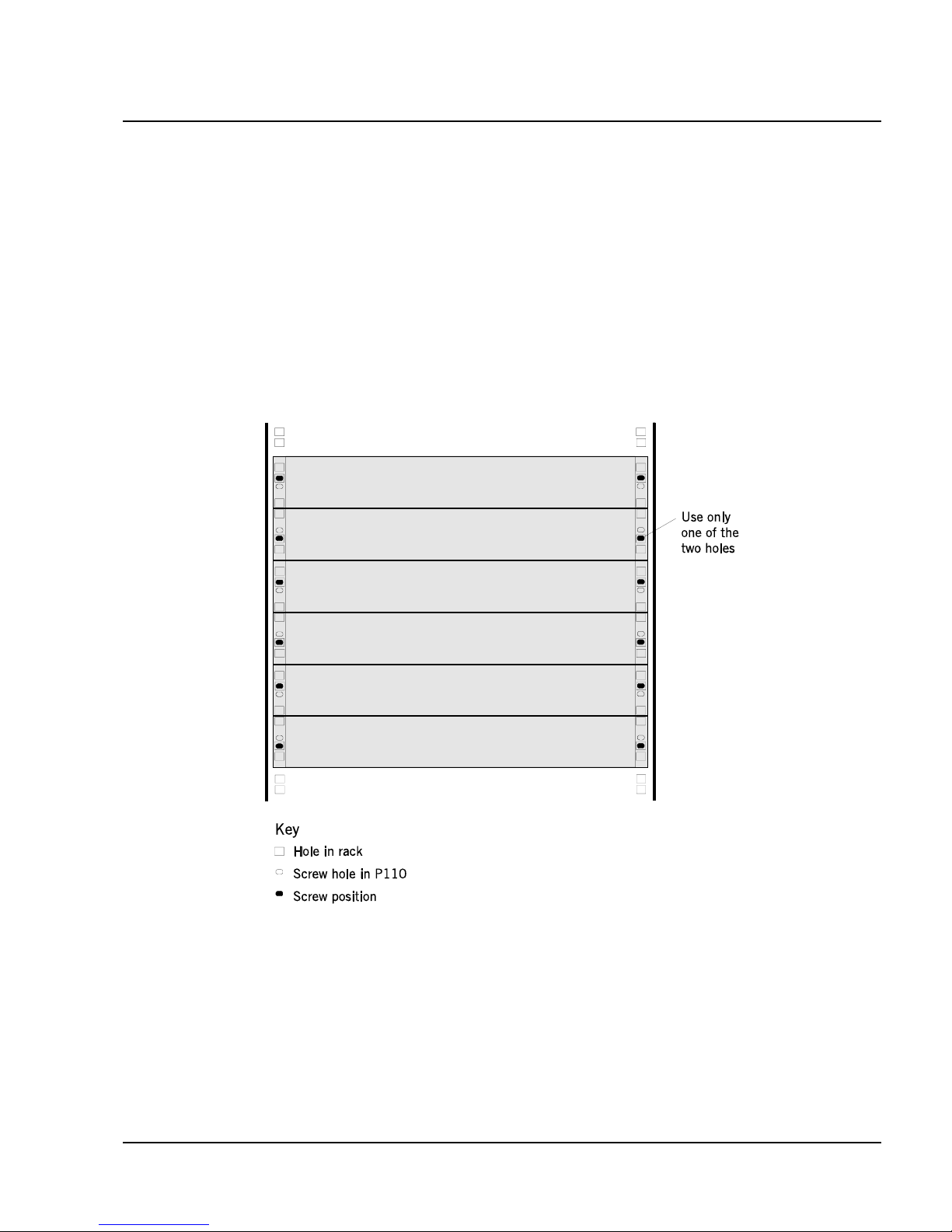

Figure 3 P110 rack mounting arrangement
4. Connect the P110 Exoplane cables, as described above, and as illustrated in
Figure 2.
5. Snap closed the hinged ends of the front panel.
P117F(R) Stackable Switch Installation Guide 9

Chapter 2 Installation
Diagnostics

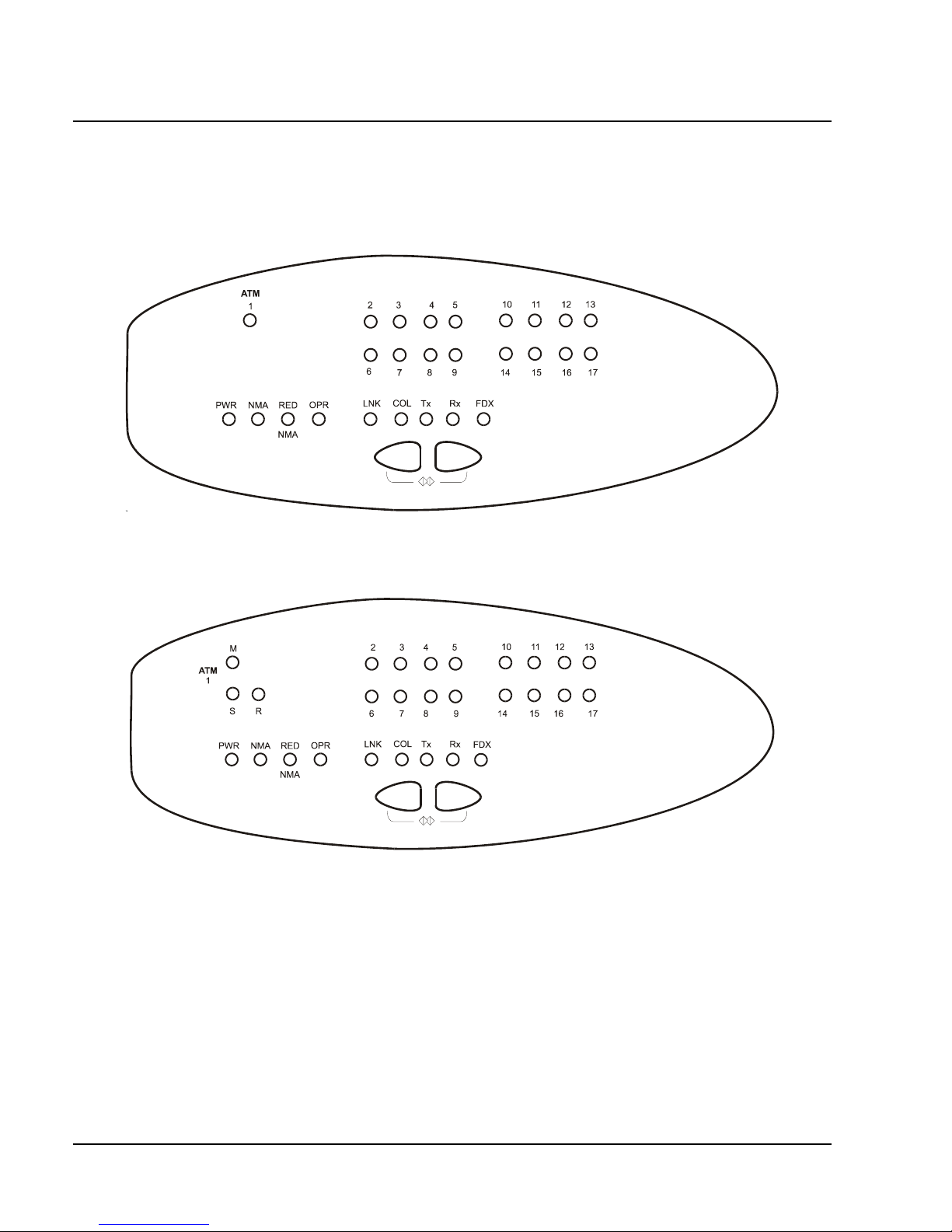

Tables 2 and 3 explain the meaning of the P117F diagnostic LED indicators.
Figure 4 The P117F Front Panel LEDs and Buttons
Figure 5 The P117FR Front Panel LEDs and Buttons
10 P117F(R) Stackable Switch Installation Guide

Chapter 2 Installation
Table 2 Meaning of the P117F Front Panel Buttons
Button Function Meaning
Select The buttons determine what function will be displayed by the 17 Port
LEDs (the top two rows of LEDs).
The five Function LEDs (above the Select buttons) show which
function is currently displayed by the Port LEDs. The Port LEDs can
display either Link, Collision, Transmit, Receive or Full Duplex.
If, for example, the Link (LNK) LED is lit, then LEDs 1 to 17 will
display the Link status of every port.
(For P117FR ATM port LEDs, see also Table 4).
Press left or ri
g
ht button to to
gg
le the Port LED dis
p
la
y
between functi
o
Reset Press and hold both buttons simultaneously for two seconds to reset
the entire P110 stack. In a Reset, all LED indicators turn on. Pressing
Reset does not affect configuration settings.
Table 3 Meaning of the P117F(R) Stackable Switch front panel LEDs
LED Indicator Function Status Meaning
PWR Power OFF
ON
Blink
Mains power not connected
Mains power connected
Working on back-up power supply
NMA Agent OFF
ON
No agent in this module
This module contains an active agent
RED NMA Reserved for future use
OPR CPU
Operation
OFF
Blink
CPU is OK
CPU is faulty
Function LED Port LED (1 to 17)
LNK Link status OFF
ON
Blink once
Blink
twice
Port Disabled
Port is enabled and link is OK
Link Test Fail
Partition (Ethernet only)
COL Collision OFF
ON
No Collision (ATM is always OFF)
Collision occurred on line (Ethernet
only)
Tx Transmit to
line
OFF
ON No activity
Data transmitted
Rx Receive
from line
OFF
ON No activity
Data Received
FDX Half/Full OFF Half duplex connection to port
P117F(R) Stackable Switch Installation Guide 11

Chapter 2 Installation
LED Indicator Function Status Meaning
duplex
ON
(Ethernet only)
Full duplex connection to port
(ATM is always ON)
Table 4 Meaning of the additional P117FR front panel LEDs
LED
Indicator
Function Status Meaning
M
S
Master port
(Upper ATM
connector)
Secondary port
(Lower ATM
connector)
Port LEDs
for the
ATM ports
These Port LEDs indicate status
according to the functional LEDs (see
Table 3)
R Redundancy status OFF
ON
Blink
Redundancy is disabled. Upper port
active
Redundancy is enabled. Upper port
active
Redundancy is enabled, and secondary
port (Lower ATM connector) is active
12 P117F(R) Stackable Switch Installation Guide

Chapter 3
Software Download to the On-Board Agent
The P117F(R) contains an on-board agent. This agent does not use the same
software as the P110 NMA.
When you receive the P117F(R), its on-board agent comes pre-loaded with fully
functional software. New software is made available at regular intervals. You
should make sure that all P110 units contain the latest available software.
Software download to the P117F(R) is performed via a console terminal connected
to the serial port on the rear panel of the P117F(R) or via SNMP using a CajunView
or MSNM network management station. Instructions can be found in the
appropriate documentation.
The following sections explain how to download software to the P117F(R) via a
console terminal.
When working in a stack (2, 3 or 4 P110 switches), a P110 NMA should be inserted
into the topmost switch of the stack and the appropriate software version
downloaded separately to it. The software is on the diskette that came with the
P117F(R).
For instructions on how to download software to the P110 NMA, see the P110 NMA
Installation Guide (the download procedure itself is the same as that described
below).
 You must first update the P110 NMA before you add the P117F(R) to the stack.
Connecting the Console Terminal
Software download to a P117F(R) Stackable Switch can be performed via a console
terminal connected to the serial port labeled Console on the P117F(R).
To connect the P117F(R) to a console terminal:
1. Turn on the VT52 or VT100 terminal (or PC in terminal emulator mode) and
set its communication parameters to:
Baud Rate: 9600 bps
Start Bit: 1
Data Bits: 8
Stop Bit: 1
Parity: none
Refer to your console terminal’s user manual for instructions on how to set
these parameters.
2. Insert the RJ-45 cable into the Console port of the P117F(R) (cable pinouts can
be found in the Appendix to this guide).
3. Insert the other end of the cable into the terminal’s RS-232 port.
4. Press Enter to verify that the cabling process was successful.
P117F(R) Stackable Switch Installation Guide 13

Chapter 3 Configuration
Software Download Summary
Below is a procedure checklist for successfully configuring a P117F(R) for SNMP
management. Instructions for each item in the list can be found in the pertinent
sections of this guide.
 If necessary, enter an IP address for the P117F(R), and reset the switch.
 If you’re using routers, set up a default gateway.
 Perform software download.
 Set SNMP Community
Setup Menus
Setup Main Menu
A series of menus guides you through the configuration process. After the switch
enters setup mode, the first screen of the setup session is automatically displayed.
It shows the current configuration of the agent.
 Underlined spaces in the example screens represent variables.
Description of Agent Parameters
S/W Version: ____ Slot #: ____
HUB Type: Cajun P110
Trap Community Name: _________
Read/Write Communities:
1. _______________ 2. ______________ 3. ___________
4. _______________ 5. ______________
Interfaces Physical Address IP Address Netmask
InBand Interface: 00:40:0d:00:00:05 000.000.000.000 000.000.000.000 (0x00000000)
>> Enter 0 to return to the previous menu or <CR> to continue:
14 P117F(R) Stackable Switch Installation Guide

Chapter 3 Configuration
Press Enter to view the Setup Main Menu.
Notes:
• The following Setup Main Menu is correct for a stand-alone P117F(R) module
without an NMA agent card inserted.
• An NMA module is required in a stack configuration. In this case options 5
and 6 are set via the P110 NMA setup menus and options 8 through 15 are
renumbered 6 to 12.
• The “ATM Redundancy” option appears only in the P117FR. The numbering
of the menu items will change accordingly.
Setup Main Menu
Cajun P117F S/W Version: ____ Slot #: ____
0. Return to Agent Description screen
-------------------------------------
1. Reset the Module
2. Software Download ...
3. Agent Access Addresses ...
4. IP Routes ...
5. SNMP Community ...
6. Permanent Managers ...
7. Module Advanced Configuration ...
8. (5.) UNI Version ...
9. (6.) ATM Physical Media ...
10. (7.) ILMI/ATM Address ...
11. (8.) LECS ATM address ...
12. (9.) ELAN configuration ...
13. (10.) ATM Redundancy...
14. (11.) Set ATM port parameters to their default values
15. (12.) Set Ethernet Ports’ parameters to their default values
>>>Enter your choice:
P117F(R) Stackable Switch Installation Guide 15

Chapter 3 Configuration
How to Navigate through the Setup menus
• All Setup menus conform to the following display conventions:
This symbol Means
... This item has a sub-menu
[ ] This item has a sub-menu to insert parameter values
1, 2, 3,
etc.
Denotes a sequence number. To select an item from any menu,
type its sequence number
• Setup sub-menus display the following standard functions:
This function Means
Return to
Previous
Menu
Go back one menu level
List List the current values for the selected parameter
Save the
Session
Save and store changes to the selected parameter, and activate
changes.
When saving the session, the changes become active (no need
for reset), and stored in the non-volatile memory.
Reset the
Agent
This is needed when assigning an IP address and ATM
parameters to the Agent. In other cases, the Agent will activate
new parameter values, when the user chooses the "Save the
Session" option.
• If you forget to save changes or reset the agent when necessary, the following
warnings will remind you to do so before exiting the relevant sub-menu of the
Setup session:
This WARNING Means
No save since last
change. Save? y/[n]:
Type <y> to save parameter changes. If you
type <n> all changes will be lost.
* IP address was changed.
Reset the agent!!!
Agent must be reset in order to activate IP
changes. Reset may be done after each change
or at the end of the entire Setup session.
16 P117F(R) Stackable Switch Installation Guide

Chapter 3 Configuration
Parameter configuration
The following sections provide step-by-step instructions for configuring each
parameter.
 In many module configuration menus, the following parameters are displayed:
• Display Current Version shows the active configuration.
• Display Configured Version shows the new configuration which will
take effect after a reset has been made.
• Display Default Version shows the system default configuration.
<CR> — Refresh The Screen
Type Enter to clear the screen and re-display the current displayed Menu with the
updated parameters.
1 — Reset the Module
If you have changed certain parameters of the P117F(R), the P110 NMA or other
switches in the stack, you must reset the agent before you exit the Setup session.
The following lists the resets you must initiate and the resets performed
automatically by the agent.
Resets the user must initiate Resets performed automatically
by the agent
After setting ATM port
parameters to their default
values
The first time you set VLANs
Change in the “Use switch”
or any other DIP switch of
any other switch
Set Ethernet ports’ parameters to
their default values
After changing the LSV DIP
Switch position
Resetting does not affect any other parameters. You will be asked to confirm the
reset before it is executed.
Reset the Agent. *Confirm?* y/[n]:
P117F(R) Stackable Switch Installation Guide 17

Chapter 3 Configuration
2 — Software Download
General
When you receive the P117F(R), its on-board agent comes pre-loaded with fully
functional software. New software is made available at regular intervals. You
should make sure that all P110 units contain the latest available software.
The P110 on-board agent software is stored in flash memory and can be upgraded
via software download using the TFTP protocol.
In the P110 on-board agent, the flash memory contains two independent software
versions: the "Basic" and the "Application" version. The Application version is the
one that the P117F(R) will use in normal operation. If the Application version is
found to be faulty, the Basic version will be used instead if a failure occurs during
download.
Caution: Download the Basic version only when the new Application version is
working correctly. This will ensure that if there is a problem with the application
version, the agent will be able to switch to a valid Basic version.
18 P117F(R) Stackable Switch Installation Guide
