AVE RegCom-Pro User manual

RR
RR
Ree
ee
egCom-PrgCom-Pr
gCom-PrgCom-Pr
gCom-Proo
oo
o
POS / CASH REGISTER
INTERFACE
Operation Manual
April 2010

2
RegCom-Pro
Copyright C AVE Thailand Co., Ltd. 2000-2009
AVE Multiview UK
Endeavor House 3rd Floor
Coppers End Rd.,Stansted,
Essex, CM24 1SJ, UK
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.multiview.net
AVE Thailand Co., Ltd.
147 Soi On-Nut 44
Sukhumvit 77 Rd., Suan Luang
Bangkok 10250,Thailand
Tel: [phone]
Fax: [phone]
Email: [email protected]
http://www.ave.co.th (Thai)
http://www.avethailand.com (English)
AVE Multiview USA
2501 Central Parkway C-1
Houston, Texas, 77092
Tel: [phone]
Fax: [phone]
Email: [email protected]
http://www.americanvideoequipment.com
TO PREVENT ELECTRIC SHOCK, DO NOT REMOVE THE
COVER. DO NOT EXPOSE THE EQUIPMENT TO RAIN OR
MOISTURE. NO USER SERVICEABLE PARTS ARE INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
CAUTION!
RISK OF ELECTRICAL SHOCK!
DO NOT OPEN!
WARNING!
THISEQUIPMENTGENERATES, USES,ANDCANRADIATERADIOFRE-
QUENCY ENERGY AND IF NOT INSTALLED AND USED IN ACCOR-
DANCE WITH THE INSTRUCTION MANUAL MAY CAUSE INTERFER-
ENCE TO RADIO COMMUNICATIONS. IT HAS BEEN TESTED AND
FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A COMPUTING
DEVICE PURSUANT TO SUBPART J OF PART 15 OF FCC RULES,
WHICH ARE DESIGNED TO PROVIDE REASONABLE PROTECTION
AGAINST SUCH INTERFERENCE WHEN OPERATED IN A COMMER-
CIAL ENVIROMENT. OPERATION OF THIS EQUIPMENT IN A RESI-
DENTIALAREAIS LIKELYTO CAUSE INTERFERENCE IN WHICH CASE
THE USER AT HIS/HER OWN EXPENSE WILL BE REQUIRED TO TAKE
WHATEVER MEASURES MAY BE REQUIRED TO CORRECT THE IN-
TERFERENCE.
AVE Europe LTD
123 Millennium Business Park
Ballycoolin, Dublin 15, Ireland
Tel:[phone] Fax: [phone] Email; [email protected] Website: www.ave-europe.eu

3
CONTENTS
1. Introduction .........................................................................................................................................................8
1.1 VSI / VSI+ / VSI-Pro / RegCom-Pro Backward Compatibility ......................................................................8
2. Features & Specifications ....................................................................................................................................9
2.1 Features ................................................................................................................................................9
2.2 Specifications ........................................................................................................................................10
3. Connections .......................................................................................................................................................11
3.1 LED Indicators ...............................................................................................................................11
3.2 RS-232 Serial Input...............................................................................................................................12
3.3 ConnectionDiagramforRegCom-ProProgramming ................................................................................................14
4. Programming ....................................................................................................................................................15
4.1 Getting Started ....................................................................................................................................15
4.2 RegCom-Pro Programming ...................................................................................................................15
4.3 Register Selection ...............................................................................................................................16
TCP/IP ............................................................................................................................................17
Generic ..........................................................................................................................................18
Addressable VSI (VSI-ADD) ...................................................................................................18
ANSI Commands ..................................................................................................................18
Registers A - Z ..................................................................................................................18 - 29
4.4 Time/Date Display .......................................................................................................................................30
Set Time/Date ..............................................................................................................................31
4.5 Text Display .........................................................................................................................................31
Output Characters per Line ..................................................................................................................31
4.6 Communication ...................................................................................................................................32
Register Settings ........................................................................................................................33
Interface Type ...............................................................................................................33
RX Baudrate ..................................................................................................................33
TX Baudrate ..................................................................................................................33
TX Protocol ..................................................................................................................34
Parity ................................................................................................................................34
Data Bits ................................................................................................................................34
Hardware Handshaking ...........................................................................................................34
Software Handshaking ....................................................................................................34
Auto Linefeed ..................................................................................................................35
Network Settings ........................................................................................................................35
Type ..................................................................................................................................35
Address ............................................................................................................................36
Protocol ..........................................................................................................................36
Baud Rate .......................................................................................................................36
4.7 Exception Report .................................................................................................................................37
Overview.................................................................................................................................................................................37
Exception History ..........................................................................................................................39
DVRSelection.............................................................................................................................................................41
Set Exceptions ................................................................................................................................42
Exception String ....................................................................................................................44
Range and Operator ................................................................................................................................45
Output ................................................................................................................................47
Time Stamping .............................................................................................................................47
Duplicate Line ..............................................................................................................................48
Scroll Matching .........................................................................................................................48
4.8 Alarm Output .......................................................................................................................................49
RegCom-Pro POS/Cash RegisterInterface

4
Alarm No .......................................................................................................................................50
Alarm Trigger ...............................................................................................................................50
Normal State .................................................................................................................................51
Alarm Duration .............................................................................................................................51
Triggered Text ...............................................................................................................................51
RTS Triggered Text Delay .......................................................................................................52
Set Triggered Text ..................................................................................................................52
4.9 Test / Demo Mode ................................................................................................................................53
Register Demo ..............................................................................................................................53
4.10 RegCom-ProRemoteProgram Downloading ..........................................................................................................55
4.11 RegCom-ProFirmware Download...................................................................................................................................59
Firmware Update Utility .......................................................................................................................... 59
CONTENTS
TABLES
Table 1 : Pin-Outof the DB-9 Female Connector on the RegCom-ProRS-232 .............................................................................12
Table 2 : RS-232 DB-9 Pin-Out vsRegCom-Pro DB-9 Pin-Out .........................................................................................................12
Table 3 : Pin-Out of the DB-9 Female Connector on the RegCom-Pro RS-422 / RS-485 ............................................................13
Table 4 :ANSI DriverCommands ............................................................................................................................................................70
Table 5 :RegCom-ProMaster DB-9 Pin-Out ........................................................................................................................................75
Table 6 : HydraDB-9 Pin-Out ....................................................................................................................................................................75
Table 7 : RJ-45Pin-Out ..............................................................................................................................................................................75
Table 8 :RS-485Network DataCableWiring .......................................................................................................................................76
Table 9 :Hydra RS-232 Parameters .........................................................................................................................................................76
Table 10: NetworkParameters ..................................................................................................................................................................76
Table 11 :Hydra/ Regcom DipswitchSettings ......................................................................................................................................76
RegCom-Pro POS/ CashRegister Interface

5
APPENDICES
Appendix A: ProblemSolving Guide.........................................................................................................................................................62
Appendix B: HardAlarm Output................................................................................................................................................................65
Appendix C: DVRText InputConnections...............................................................................................................................................66
Appendix D: UTPConnections...................................................................................................................................................................67
Appendix E: P2RS Parallelto Serial Converter.....................................................................................................................................68
Appendix F :USB toRS-232 Converte......................................................................................................................................................69
Appendix H: ECRInterface Cards.............................................................................................................................................................70
Appendix I : ANSIDriverCommnads........................................................................................................................................................70
Appendix J : RS-232to RS-485 Converter..............................................................................................................................................71
Appendix K :TCIP232Adapter...................................................................................................................................................................72
Appendix L :RegCom-Pro Networking ..................................................................................................................................................73
Appendix M: Network Communicationand Configuration ................................................................................................................74
Hydra/Regcom.................................................................................................................................................................76
MasterProtocol (VSI-ADD)............................................................................................................................................77
VnetworkerConnections ..............................................................................................................................................78
VnetworkerPC Application...........................................................................................................................................79
Appendix N :RegCom-Pro JumperSettings............................................................................................................................................82
Appendix O :RegCom-Pro CaseAssembly/ Disassembly.................................................................................................................83
Appendix P :AL-16 AlarmRelay ExpanisonDevice..............................................................................................................................85
Appendix Q :POS/CCTVApplications.....................................................................................................................................................85
Appendix R : Warranty..................................................................................................................................................................................86
Appendix S :Master Resetto FactoryDefaults......................................................................................................................................87
FIGURES
CONTENTS
RegCom-Pro POS/ CashRegister Interface

6
CONTENTS
RegCom-Pro POS/ CashRegister Interface

7
CONTENTS
RegCom-Pro POS/ CashRegister Interface

8
The RegCom-Pro is the latest in the evolution of the popular VSI line of POS / Cash Register Interfaces from
AVE.TheRegCom-Pro,now withlarger memoryspacecan holdALLtheAVEInterfacesin oneunit withfull remotePC
orDVRprogrammingforselection andsetups andonsite firmwareupdating. Builtin RS-232,RS-485, Passiveandthe
newOpto-Isolated selection, gives completeisolationfromthe POS/Cash Register fromtheinterfaceand DVR. Internal
40Mhz operation allows for combiningtheNetworkingfunctions of the Hydra, Regcom,Networkeror Vnetworker within
oneconvenientunitwithlooping RJ45s for a seem-less solution for multiple till configurations.
TheRegCom-Prohas all the powerful features of the VSI-Pro Max without the builtinvideooverlaycapability.
Whetherused witha cashregisterproviding realtimedataonan RS-232portor tappingoff aserialprinter orpole
display, the RegCom-Pro is a valuable tool in loss prevention. When used in conjunction withAVE’s extensive line of
adapters this device can connect to any POS (Point of Sale) / ECR (Electronic Cash Register) or peripheral on the
markettoday.Nowavailablethe TCPIP232Adapter forinterfacingtoEthernet LAN networks to capturecommonprinter
data or monitor any single register transactions.
The RegCom-Pro can be used to trigger switchers, time lapse VCRs, DVRs, remote transmission devices or
other alarming devices via the 2 hardwired open collector alarm outputs.
TheRegCom-Pro also hasanadditional RS-232/RS-485 output thatcansend the formatedASCIItextto a DVR
whichcan store thedataas an electronicfilein addition toinsertedin the actual videoimage.This additional RS-485port
supportsfullnetworking of up to 16 RegCom-Pro without any external devices.
The Exception Processor of the RegCom-Pro provides the intelligence to bring questionable or exceptional
transactions to view for the user. This allows the user to quickly and easily review employee transactions to identify
fraudandtheft transactions at the cash register. When usedwithacompatibleDVR, the RegCom-Pro can command or
becommanded bytheDVR toautomaticallysearch tothetransaction inquestionfor instantreviewof therecordedvideo.
Withthenew “Scroll Matching” feature, users can easily set and erase scrollingadvertisingmessagesfromthe
customer display but always record the valid transactions.
TheRegCom-Proisfully networkablewith our“Networker”, “Vnetworker”,“Hydra”and“Regcom”lineofproducts.
These device connect to the VSI-Pro or ECR Interfaces or Adapters directly and communicate back via an RS-485
networkto the central location.PCWindows-basedsoftware can also beusedas the controller ofthisnetwork and store
transactionfilesfor up to 16 cash registers for remote viewingordownloadingtoproduce reports for management.

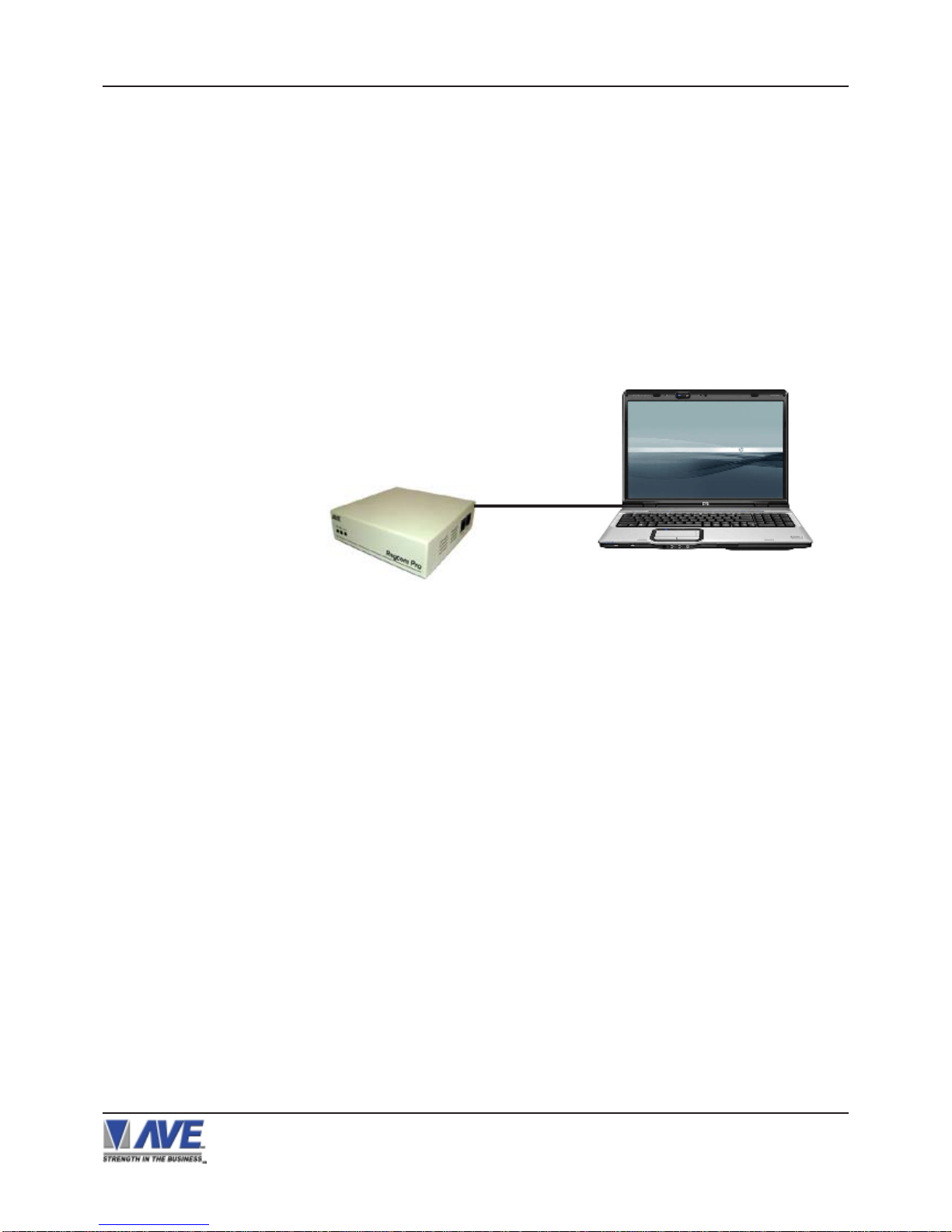

The RegCom-Pro is fully remotely downloadable, uploadable or programmable by our PC VSI Programmable
software.This utilizes a direct connection via RS-232fromalaptop to the VSI-Pro. Complete RegCom-Pro settingscan
besaved on the laptopanduploadedto the RegCom-Pro atwill.This is mainly used fordealermaintanence or for single
stationuserprogrammingor when cameras or monitors are not easily available.
Firmware is also downloadable in the field with our Firmware Utility so new updates and features can be
easily passed to customers without changing EPROMs or opening the unit.
1.1 VSI / VSI+ / VSI-Pro / RegCom-Pro Backward Compatibility
Since 1990 various versions of the VSI have been on the market solving cash register retail problems. Several special
version are available to interface to other RS-232 devices like scales, coin counters, PLCC, gambling machines and ATMs along
with countless other generic RS-232 devices. The first VSI, Version 9 had no exception processing until the release of Version 10.
However these versions had the ability to output the data so are compatible with the Regcom line of networking adapters. As
features increased we moved to the VSI+ Version 11, which had the first powerful set of exception processing and printing
functions. This version also had hardware handshaking capability which allows it to be fully operational with the Networker and
Regcom line. The introduction of the VSI-Pro Version 12 added on-screen selection of various model registers for ease of instal-
lation and supported many characters sizes for multiple units to display data on one camera view. This version also supports the
Networker and Regcom products. The VSI-Pro Version 13.XX has improved features and additional registers and the Version
13.00 supports North America cash registers and Version 13.24 supports UK and European models. All Version 13.XX VSI-Pro
support the Networker and Regcom products. All Version 13.XX can be upgraded to the latest Ver. 13 release. This release adds
PC Programming capability, Firmware update externally and Vnetworker support along with Networker and Regcom compatibility.
The RegCom-Pro is the latest in the development line and includes all register of Ver. 13.XX in one convenient unit along with
built in Hydra, Regcom, Networker and Vnetworker hardware and software.
Contact the AVE factory for additional details on upgrading and networking with any DVR or learn about the advanced
features when integrated with the AVE line of text insertion and search DVRs locally or remotely.
1. INTRODUCTION
RegCom-Pro POS / Cash RegisterInterface

9
2.1 FEATURES
............400 Register Selections Selectable
............User Selectable Full Duplex Bi-Directional POS / Cash Register Communications
RS-232C
RS-232C Optically Isolated
RS-485 Full Duplex, RS-422 Half Duplex
Passive Tap (Hi-Z)
............RS-232C or RS-485 Output of all data or exceptions to printers, computers, modems and DVRs
............DualRJ45 Connectors for easy RS-485 Networking with StandardCAT5 Cabling
............Built In Hydra, Regcom, Networker and Vnetworker Hardware and Protocol
............Diagnostic LEDs for Power, POS Communication & Network Communication
............PowerInput Surge and Lightning Suppression with External GroundingLug
............40 Mhz Processing with 128K Program and 128K SRAM Memory for High Performance Processing
............ProgrammableTime-Stamp andTrigger Text and Exception Output
............Time/DateSearching with Compatible DVR
............Time/Date Syncing of Compatible DVR from POS T/D
............UniversalTime/Date Format ,Automatic Daylight SavingsAdjustment and Register T/D Locking
............800 Lines of Exception History Buffer
............16 Triggered Text associated with 16 virtual alarms
............2 Built-in Programmable HardAlarm Outputs
............Alarm Input for drawer open, safe open, etc. with programmable time delay
............Large Data Buffers for input/output to accommodate newer and faster registers
............Powerful Data FilteringAlgorithms likeTruncating, Scroll Matching, Space Filtering, Duplicate Line Filtering
............Easy PC based Programming Software
............Auto Baud Rate Detection
............24 Field Programmable Exceptions with Numeric Range
............AlarmTriggerText Output of Events or Control of PTZ or other equipment
............Built-in Test and Diagnostic Modes
............Built-in Cash Register Demos
............Dual or Single Channel Data Captured either to the Memory or to the Serial Port
............LocalFirmwareDownloadable
............Local / Remote Programming via PC Software or Compatible DVR
............Compatible withAVEAL-16 External Relay Interface adapter for additional HardAlarm Outputs
2. FEATURES & SPECIFICATIONS
RegCom-Pro POS / Cash RegisterInterface

10
2.2 SPECIFICATIONS
Power(DC Coax 2.1mmx5.5mm)9-12VDC170mA 18V MOV Surge Suppression
Battery Backup NiMH 1 yearwith 24 hourcharge
Register Serial Port Bi-Directional RS-232C RS-232 Opto RS-485 / RS-422 PassiveHi-Z
(DB9 Female) RXD - Pin 2 RXD - Pin 2 A- Pin 4 RXD - Pin 2
TXD - Pin 3 GND - Pin 5 B - Pin 6 TXD - Pin 3
GND - Pin 5 Jumper s 14&18 GND - Pin 5 GND - Pin 5
Baud Rate AUTO, 1200, 2400, 4800, 9600, 19.2K, 28.8K, 38.4K, 57.6K, 115.2K
Word Length 7 or 8
Parity ODD, EVEN, NONE
Stop Bits 1
RTS / CTS Handshaking ON or OFF (3.3K Pull Up Jumper Selectable)
DTR / DSR 3.3K Pull Up (3.3K Pull Up Jumper Selectable)
Data Buffer 128K bytes
Data/Network Port (RJ45 X2 in Parallel) RS-232 or RS-485 TXD Only or RS-485 Bi-Directional (Jumper 4 & 11)
Baud Rate 1200-115.2K, 8 bits, No Parity, 1 stop Bit
Alarm Outputs Pin 1 & 9 Open Collector 12VDC @ 20mA (Jumpers 18 & 6)
Alarm Input Pin 7 (RTS) Closure to Ground, 12 VDC Max
Real Time Clock 12 or 24 Hr with Auto Daylight Savings Time Programmable
Date Format MM/DD/YY, DD/MM/YY, YY/MM/DD Julian Calendar
Line Processing Compress, Truncate, Space Compress, Left Justify, Scroll Matching
DVR Support MVDR2000, 3000, 4000, 5000, DMS-3001, DVR-3011, DVR-3021
Watchdog Timer Hardware and Software Local / Remote Programming via PC Software
Local Firmware Downloading History Buffer Downloadable / Searchable
40 Mhz Processor Operation
Temperature Rating 0 - 50 degrees Celsius
32 - 122 degrees Fahrenheit
Humidity Non-Condensing 85% RH
Weight 0.68 Kg or 1.5 lbs
Metal Enclosure Beige 130L x 127W x 38H (mm)
5.12L x 5W x 1.5H (in)
Maximum Size with Connectors 145L x 127W x 43H (mm)
5.7L x 5W x 1.7H (in)
Packed in White Box with Manual 1.02 Kg or 2.26 lbs
340L x 190W x 85H (mm)
13.4L x 86.2W x 3.35H (in)
2. FEATURES & SPECIFICATIONS
RegCom-Pro POS / Cash RegisterInterface
TheRegCom-Pro usesa9-12VDC @300[mA]UL/CSA powersupplywhich mustbeplugged intothePower inputonthe
RegCom-Pro’sReal Panel.

11
Figure 3: RegCom-Pro DB9 Rear Connections
3. CONNECTIONS
Figure 2: RegCom-Pro RJ45 Network Connections
Figure 1: RegCom-Pro Front Indicator LEDs
3.1 LED Indicators
Power Green Signifies power is supplied to the unit
NetworkLED Green This LED flasheswheneverdata is
sentorreceivedon the Network Port
RegisterData Red ThisLED flashes whenever datais
receivedfrom the cash register
RegCom-Pro POS / Cash RegisterInterface

12
3.2 RS-232 SERIAL INPUT
TheRegCom-Pro acceptsserialdata viatheDB-9 Femaleconnector located onthe rearofRegCom-Pro. Thisconnector
is similar to “AT” type computer RS232 serial ports and the pin out is identical.Table 1 shows the standard pin out for
RegCom-ProRS-232femaleconnector.OntheotherhandTable 2comparestheRegCom-ProRS-232withstandard“AT”
computer’s RS-232connector.
Table 2: RS-232 DB-9 Pin-Out vs RegCom-Pro DB-9 Pin-Out
Table 1: Pin-Out of the DB-9 Female Connector on the RegCom-Pro
1 Alarm Out 1 From RegCom-Pro Open Collector Transisitor
2 Receive Data To RegCom-Pro Data from Cash Register
3 Transmit Data From RegCom-Pro Data to Cash Register
4 DTR From RegCom-Pro Remain High or RS-485 Input (+)(A)
5 Ground ------------------- Signal / Power Gnd or Isolated RS-232 Input Gnd
6 DSR From RegCom-Pro Remain High or RS-485 Input (-)(B)
7 RTS To RegCom-Pro Alarm Input or Hardware Handshaking
8 CTS From RegCom-Pro DVR RS-232 Output or Hardware Handshaking
9 Alarm Out 2 From RegCom-Pro Open Collector Transistor or Signal / Power Gnd
Pin # Label Direction Function
1 CD (Carrier Detect ) Alarm Out 1
2 RXD ( Recieve Data ) RXD
3 TXD ( Transmit Data ) TXD
4 DTR ( Data Terminal Ready ) Aways True
5 SG ( Signal Control ) GND
6 DSR ( Data Set Ready ) Aways True
7 RTS ( Request to Send ) RTS ( Option)
8 CTS ( Clear to Send ) CTS ( Option)
9 RI ( Ring Indicator ) Alarm Out 2
PIN # SIGNAL NAME ( RS232 ) RegCom-Pro
3. CONNECTIONS
RegCom-Pro POS / Cash RegisterInterface

13
Figure 4: RegCom-Pro Connections
Table 3 : Pin-Out of the DB-9 Female Connector on the VSI-Pro RS-422 / RS-485
1 Alarm Out 1 Open Collector Transisitor
2 No Function No Function
3 TXD RS-232 From RegCom-Pro (Option)
4 RS-485 (+) A Data From or To RegCom-Pro
5 Ground
6 RS-485 (-) B Data From or To RegCom-Pro
7 RTS ( Alarm In ) ToRegCom-Pro
8 CTS From RegCom-Pro
9 Alarm Out 2 Open Collector Transistor
PIN # FUNCTION DIRECTION
Note: When the RS-485 port is set for Bi-Directional RS-485 the TXD port has no function. When the RS-
485 port is set for recieve data only then the TXD port can be used for an RS-232 output.
3. CONNECTIONS
RegCom-Pro POS / Cash RegisterInterface
Networking to additional
RegCom-Pro, Regcom,
Networker, Vnetworker or
PC Software Application
RegCom-Pro
WALLTRANSFORMER
9-12VDC 300mA
RS-232 or
RS-485
Direct or
ECR
Interface CASH REGISTER
RS-485

14
RS-232 DB9F Shielding
The shield of the DB9 RS-232 connector also connects to chassis ground. Therefore this shield should not be
connected to any signal ground of any RS-232 signal or power signal. If for some reason the source or destination
deviceshave internal connectionsfromsignal ground to theshieldthen the shieldshouldnot be connected onRegCom-
Proend tomaintainsignal ground andearthground isolation.Propershielding of RS-232signalswill extendthelength of
wiring especially at high data rates and eliminate noise being coupled into the either a source or destination device by
surroundingEMIor RFI generated by other equipment within theinstallation.
3. CONNECTIONS
RegCom-Pro POS / Cash RegisterInterface
3.3 CONNECTION DIAGRAM FOR REGCOM-PRO PROGRAMMING
Theconnection diagram between computerand RegCom-Profor Programming or Configurationshowin Figure 5:
Figure 5: Connection diagram of RegCom-Pro and Computer
RS-232
RegCom-Pro

15
Figure 6 : RegCom-Pro Program Main Page
4.1 GETTING STARTED
Install software, Click Setup.exe for the RegCom-Pro Program. After installation is complete, run the program. The
followingwindow will beloaded.
RegCom-Pro POS / Cash RegisterInterface
4.2 REGCOM-PRO PROGRAMMING
Select“REMOTE” Tab,Thefollowingpagewillappear:
Clickon“SetComport”.IftheRegCom-Pro is in the “Baudrate Detection” Mode then you can set any baud rate and the
RegCom-Prowill self configure.Howeverif theRegCom-Prois already settoa baud rateyoumust selecttheexact baud
rate and communication configuration in the RegCom-Pro for connection to occur. If the unit does not display “Con-
nected”then you haveeitherentered thewrongbaud rate orcommunicationsettings or acableproblem ortheRegCom-
Pronot powered.
Onceconnectedthen click “Remote” and will display “Accessed” or will go backto“NoAccess” if the baudrateorcable
connection is not proper and will also go back to “Not Connected” so you can reset the communication settings.
Figure 7 : Remote Page
4. PROGRAMMING

16
4. PROGRAMMING
RegCom-Pro POS / Cash RegisterInterface
4.3 REGISTER SELECTION
To select a specific register, Select “REGISTER SELECT” Tab and select specific register from drop down menu. The
REGISTER SELECT menu will bring up a sub-menu. REGISTER SELECT automatically formats the RegCom-Pro to
matchyour register’scommunication settings. However,ifyou need tochangethese settings, youcandoso through the
COMMUNICATIONmenu described laterinthis manual.
Figure 8 :RegCom-Pro and Computer Can Establish Communication
Once you have “Access” then you can do any function on this menu screen. “Upload” data which reads the current
settingsoftheRegCom-Pro intothePC.“Download” which sends the PC settings to the RegCom-Pro. “Set Time” can
set a new time or PC sync time to the RegCom-Pro. “Load History” reads the History File of Exceptions from the
RegCom-Pro and saves as a text file on the PC.
Note: Ifthecableisdisconnected,RegCom-Pro powered down, PC program closed, the PC and/or the RegCom-Pro
has a 30 second timeout and will reset itself for normal operation.
Wheneveryou selecta register in this menu, certain programmingfeatures arereset tothe
defaultsettings.Always settheregister selectionfirst,get thedataon-screen, thenproceed
with additional programming.

17
TCP/IP
Select “REGISTER SELECT” Tab and select TCP/IP
fromdrop-down lists.TheTCP/IPmenu willappear:
Figure 10: REGISTER SELECT Menu
Figure 11: TCPIP Sub-Menu
Select“REGISTERSELECT”Taband selectTCP/IP
from drop-down lists and then set IP address to the
same as the IP address you wish to monitor.
EXAMPLE: If the IP address is 192.168.0.76, set the
address on the TCPIP 232 Adapter using this
menu.
RefertoAppendixIforadditionalinformationonthe
TCPIP232Adapterorthemanualincludedwiththe
adapter.
NOTE:TheTCPIP232Adaptercanbeprogrammed by
this method or by using a standard PC with a serial
cable along with theAVE IP setting software. Refer to
theTCIP232AdpaterManualfordoingthis.
Once you have set the IP address of the TCPIP232
Adapter you will be in the “Generic” display mode.
You may select another register driver to format this
display. When you do this the VSI-Pro loads the
default register baudrate as if a direct connection to
the register so make sure you set the proper
baudrate as described below.
The TCPIP232 Adpater communicates with the VSI-
Pro via RS-232 at a baudrate of 19.2K. Therefore
when you select this menu option the baudrate of the
VSI-Pro is changed to this rate so communication for
downloading the configuration can occur. When
using the TCPIP232 adpater with other register
drivers or data dump mode make sure you change
theRXDbaudrate to 19.2K so the RegCom-Prowill
communicate.
TCP/IP Limitations
The TCPIP232 Adapter can monitor any Ethernet
LAN either 10MBs or 100MB/s. However the actual
long term throughput of the adpater is limited to
5MB/s. This is more than enough for network printers
for cash receipts, bar code scanners or single cash
registers that operate in a “Live Mode”. Live Mode
means the register transmitts the data on the net-
work line by line or at the end of each transaction.
Some cash registers have large local built in memo-
ries for thousands of items and then only batch
multiple transactions on the network at any given
time or controlled by the server. Cash Registers
utilizing this kind of batch processing are not suitable
for security monitoring. Other devices that output
large amounts of data will overrun the buffers of
eithertheTCPIP232Adapteror RegCom-Pro anddata
will be lost and would not be suitable for security
monitoringanyway.
TheRegCom-Pro has a set ofpowerfuldata dump
modes that compatible with the TCPIP232 Adpater. If
large data packets need filtering or special formats
are required contact the factory.
Select“REGISTERSELECT”Tab and select “Generic”
for general register.In this mode is simply no filtering
of the input data and will display any printable
characterin the RS-232 terminal,example DVR. If you
are not sure of what you are connecting to this is the
first selection so you will see everything and then later
choose the options you want to better filter the display
to your liking.
RegCom-Pro POS / Cash RegisterInterface
Figure 9: REGISTER SELECT Menu
4. PROGRAMMING

18
4. PROGRAMMING
Figure 13: ADDRESSABLE VSI menu
ADS
Select “REGISTER SELECT” Tab then select “ADS” in
drop-down menu.The ADS menu will appear:
Figure 15: ADS Menu
DISPLAY
Choices:JOURNAL,RECEIPT
ADDRESSABLE VSI (VSI-ADD)
Select“REGISTERSELECT”Tabthen select“ADDRES-
SABLE VSI” in drop-down menu.The ADDRESSABLE
VSI menu will appear: BLEEP
Select“REGISTERSELECT”Tab then select “BLEEP”
in drop-down menu.The BLEEP menu will appear:
Figure 17: BLEEP menu
ANSI
Select “REGISTER SELECT” Tab then select “ANSI” in
drop-down menu.No menu will appear:
Figure 18: CASIO menu
CASIO
Select“REGISTERSELECT”Tab then select CASIO in
drop-downmenu.The CASIO menu willappear:
GENERIC
Select“REGISTERSELECT”Tabthenselect“GENERIC”
indrop-downmenu.Nomenuwillapprearandmerelysets
theRegCom-Pro to “Generic”mode.
RegCom-Pro POS / Cash RegisterInterface
SETADDRESS
Choices: ANY, 1, 2, 3,..., 253, 254, 255
AD4323
Select“REGISTERSELECT”Tab then select “AD4323”
indrop-downmenu.Nomenuwillapprearandmerelysets
theRegCom-Pro to “AD4323”mode.
Figure 14: ADS Menu
Figure 12: GENERIC menu
This selects an ANSI driver for the RegCom-Pro. In this
mode standard ANSI terminal commands sent to the
RegCom-Pro will control the display of the data on the
monitor. See Appendix for a detailed command set sup-
ported.
Figure 16: ANSI menu

19
RegCom-Pro POS / Cash RegisterInterface
Figure 25: CLARITY EPOS menu
Figure 21: CASIO TK-T500 sub-menu
MODE
Choices:TAPPING, EMULATING
Figure 19: CASIO TE4000 sub-menu
MODE
Choices:TAPPING, EMULATING
Figure 20: CASIO TE4500 sub-menu
MODE
Choices:TAPPING, EMULATING
Figure 23: CASIO TE2200 sub-menu
MODE
Choices:TAPPING, EMULATING
Figure 24: CASIO TE2200 sub-menu
Select ”TPIF PRINTER ADAPTER” no sub-menu will
apprearand merely setstheRegCom-Pro to supportthe
special protocol of this model.
CASIOTE2200
Select“REGISTERSELECT”Tab then select CASIO in
drop-down menu and then select TE2200.The CASIO
TE2200sub-menu will appear.
Select“RS-232PORT”thensub-menuwillappear:
CASIOTE4000
Select“REGISTER SELECT”Tabthen select CASIO in
drop-down menu and then select TE4000.The CASIO
TE4000sub-menu will appear:
CASIOTE4500
Select“REGISTERSELECT”Tab then select CASIO in
drop-down menu and then select TE4500.The CASIO
TE4500sub-menu will appear:
CASIOTK-T500
Select“REGISTERSELECT”Tab then select CASIO in
drop-down menu and then select TK-T500.The CASIO
TK-T500sub-menu will appear:
SETTERM NO
Choices:ALL,1,2,3,...,255
Figure 22: CASIO TE3000 sub-menu
MODE
Choices:TAPPING, EMULATING
CASIOTE3000
Select“RegisterSelect”Tab then select CASIO in drop-
downmenuandthenselectTE3000.The CASIOTE3000
sub-menuwill appear:
CLARITYEPOS
Select“REGISTERSELECT”Tab then select CLARITY
EPOS in drop-down menu.The CLARITY EPOS menu
willappear:
4. PROGRAMMING

20
4. PROGRAMMING
Figure 26: DELTA SONO 3.1 menu
Figure 28: EDACOM menu
EDACOM
Select“REGISTERSELECT”Tabthenselect“EDACOM”
indrop-down menu.The EDACOM menu will appear:
RegCom-Pro POS / Cash RegisterInterface
DELTASONO 3.1
Select “REGISTER SELECT” Tab then select “DELTA
SONO3.1” in drop-down menu.The DELTASONO3.1
menuwill appear:
DRESSERWAYNE
Select “REGISTER SELECT” Tab then select
“DRESSERWAYNE”indrop-downmenu.TheDRESSER
WAYNEmenu and sub-menu will appear:
Figure 27:DRESSER WAYNE menu
EPSONGENERIC
Select“REGISTERSELECT”Tab then select “EPSON
GENERIC”in drop-down menu.TheEPSONGENERIC
menuwillappear:
Figure 29: EPSON GENERIC Menu
FUJITSU9920
Select“REGISTERSELECT”Tabthenselect“FUJITSU”
indrop-down menu.The FUJITSUmenuwill appear:
Figure 30: FUJITZU 9920 Menu
Select“9920” and then select set display in drop-down
menu.Choices: Journal, Receipt
Select”G2220” nosubmenuwillapprearandmerelysets
the RegCom-Pro to support the special protocol of this
model.
