avenli SPA3 User manual

SPA3
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás • Benutzerhandbuch

The product user guide contains product features, how to use, and the operating
procedure. Read the user manual carefully to get the best experience and avoid
unnecessary damage. Keep this manual for future reference. If you have any questions
or comments about the device, please contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7,
www.alza.cz

Warning
READ ALL INSTRUCTIONS AND SAFETY WARNINGS IN THIS MANUAL
Failure to follow the warnings and instructions in this manual may result in serious
injury, drowning or electric shock.
The safety of your children is left on your hand! The risk is the highest for children aged
below 5. Be high alert all the time.
Always comply with the following instructions:
•The children should be under close and constant supervision;
•Designate one security responsible;
•Always designate a responsible person to mange pool and pool area;
•Adult supervision should always be relevant to the number of people using the pool;
•Wet the nape, chest and legs before entering the water;
•Learn the safety gestures and especially the specifics to children;
•Prohibit diving and jumping;
•Prohibit running, splashing games around the pool;
•Do not let an unattended child who does not swim use the pool with no life-jackets
on;
•Do not leave any players around and in the basin unattended;
•Always keep the water treatment products out of reach of all children.
If incident occurs remove the injured person or child from the pool and pool area
Contact emergency services for advice and guidance on how to treat injured person or
child

Important safety instructions
For your own safety and that of your product, make sure to following the safety
precautions below. Failure to follow the instruction may result in serious injury, property
damage or death. Improper installation or operation will void the warranty.
Read, understand and follow all instructions:
DANGER
•Risk of accidental drowning:
- Extreme caution must be exercised to prevent unauthorized access by children.
- Inspect the spa cover regularly for leak, premature wear and tear, damage or
signs of deterioration. Never use a worn or damaged cover: it will not provide the
level of protection required to prevent unsupervised access to the spa by a child.
- Always lock the spa cover after each use.
•Risk of injury:
- The suction fittings in this spa are sized to match the specific water flow created
by the pump.
- Never operate the spa if the suction fittings are broken or missing. Never replace
a suction fitting with an incompatible one.
- If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
•Risk of Electric Shock:
- Do not permit any electrical appliances, such as a light, telephone, radio or
television within 1.5m (5 feet) of a spa tub.
- Do not use the spa when it is raining, thundering or lightning.
WARNING
•To reduce the risk of electric shock, do not use an extension cord, timers, plug
adapters or converter plugs to connect the unit to electric supply; provide a properly
located outlet.
•The spa electrical appliance should be supplied through a residual current device
(RCD) having a rated residual operating current not exceeding 10mA.
•Parts containing live parts, except parts supplied with safety extra-low voltage not
exceeding 12V, must be inaccessible to occupants in the spa.
•Parts incorporating electrical components, except remote control devices, must be
located or fixed so that they cannot fall into the spa.
•Residential electrical connection box must be located safely with a distance of at
least 2m away from the spa.
•Electric installation should fulfill the local requirement or standards.
•This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
•To reduce the risk or injury, do not permit children use this product unless they are
closely supervised all times.
•To reduce the risk of child drowning, supervise children all times. Attach and lock spa
cover after each use.
•Make sure the floor is capable of supporting the expected load (≥ 500kg/m²).
•Adequate draining system must be provided around the spa to deal with overflow
water.
•To avoid damage do not leave the appliance empty for an extended period.
•To avoid damage to the pump, the spa must never be operated unless the spa is
filled with water.
•Immediately leave spa if uncomfortable or sleepy.
•To reduce the risk of injury:
•Lower water temperatures are recommended for young children and when spa
use exceeds 10 minutes. To avoid the possibility of hyperthermia (heat stress)
occurring it is recommended that the average temperature of spa-pool water
should not exceed 40°C (104°F).
•Since excessive water temperatures have a high potential for causing fetal
damage during the early months of pregnancy, pregnant or possibly pregnant
women should limit spa water temperatures to 38°C (100°F).
•Before entering a spa or hot tub the user should measure the water temperature
with an accurate thermometer since the tolerance of water temperature
regulating devices varies.
•The use of alcohol, drugs or medication before or during spa use may lead to
unconsciousness with the possibility or drowning.
•The use of alcohol, drugs, or medication can greatly increase the risk of fatal
hyperthermia in spas. The causes and symptoms of hyperthermia may be
described as follows: Hyperthermia occurs when the internal temperature of
body reaches a level several degrees above the normal body temperature 37°C
(98.6°F). The symptoms of hyperthermia include an increase in the internal
temperature of body, dizziness, lethargy, drowsiness, and fainting. The effect of
hyperthermia include failure to perceive heat; failure to recognize the need to
exit spa; unawareness of impending hazard; fatal damage in pregnant women;
physical inability to exit the spa; and unconsciousness resulting in the danger of
drowning.
•Obese persons or persons with a history of heart disease, low or high blood
pressure, circulatory system problem, or diabetes should consult a physician
before using a spa.
•Persons using medication should consult a physician before using a spa since
some medication may induce drowsiness while other medication may affect
heart rate, blood pressure and circulation.

•Check with doctor before use if pregnant, diabetic, in poor health, or under
medical care.
•People with infectious disease should not use a spa or hot tub.
•To avoid injury exercise care when entering or existing the spa or hot tub.
•Water temperature in excess of 40°C (104°F) may be injurious to your health.
•Never use a spa or hot tub alone or allow others to use the spa alone.
•Do not use a spa or hot tub immediately following strenuous exercise.
•Do not put the spa under 4°C (39°F) environment in order to avoid freezing if
there is still water in the pool.
•Do not turn on the spa when the water is frozen.
•Never pour water with a temperature higher than 40°C (104°F) into the spa
directly.
•Always unplug this product from the electrical outlet before removing, cleaning,
servicing, or making any adjustment to the product.
•Never jump or dive into a spa or any shallow body of water.
•Do not bury the electrical cord. Locate the cord where it will not be damaged by
lawn mowers, hedge trimmers and other equipment.
•Do not attempt to plug in or unplug this product while standing in water or when
your hands are wet.
•Do not use the spa if damaged in delivery and/or malfunctioning in any way.
•Keep all pets away from the spa to avoid any damage.
•Do not add bath oil or bath salt to the spa water.
•Do not leave an empty pool outside.
•To prevent resetting of the thermal cut out, this appliance must not be supplied
through an external switching device, such as a timer, or connected to a circuit
that is regularly switched on and off by the utility.
•The wired controller shall be properly stored at the side pocket when not used, to
protect the controller from falling or other factors.
•Spa heat in conjunction with alcohol, drugs, or medication can cause
unconsciousness.
•Exit immediately if uncomfortable, dizzy, or sleepy. Spa heat can cause
hyperthermia and unconsciousness.
•Avoid putting the head under water at all times.
•Avoid swallowing spa water.

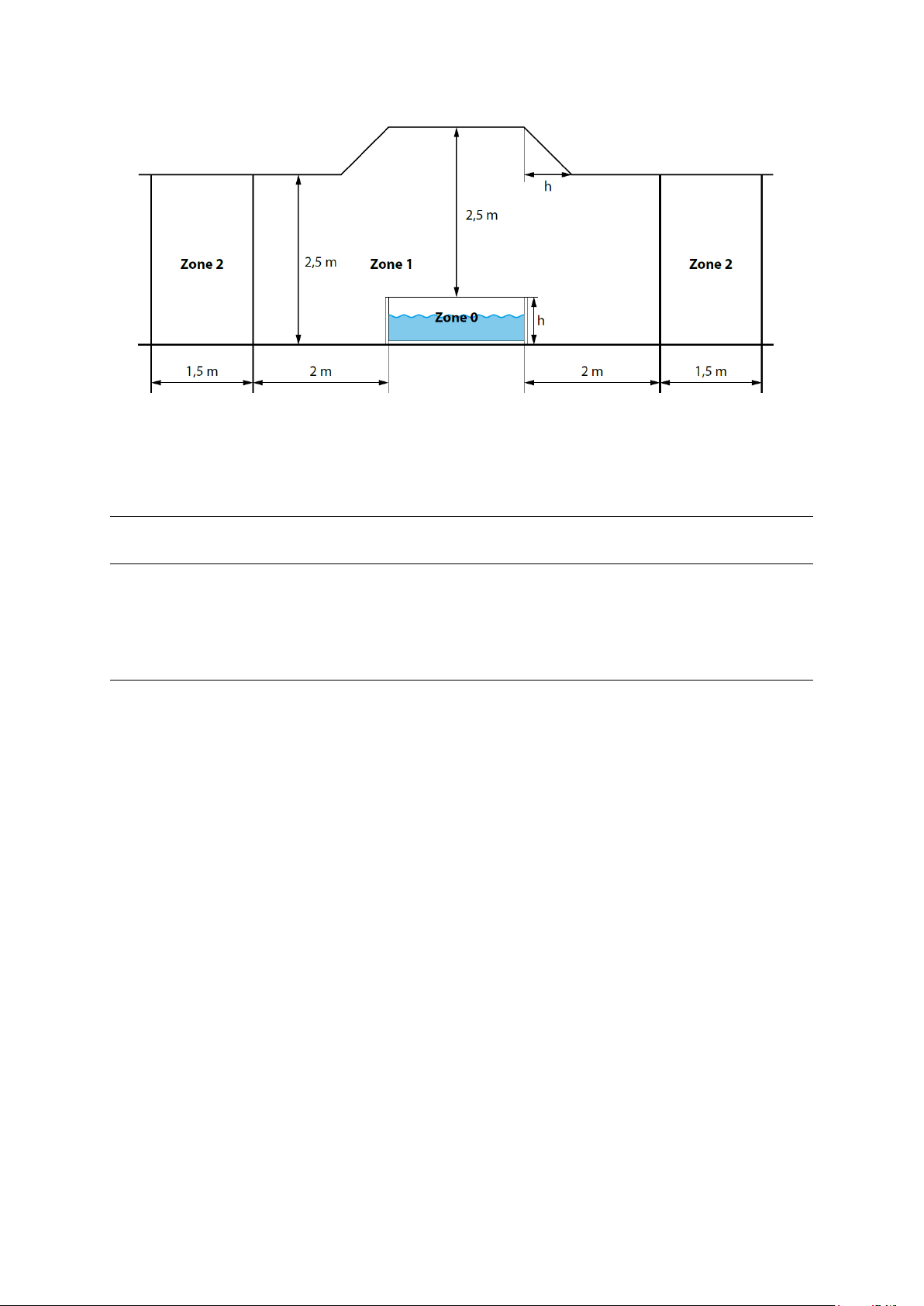

Warning: Water protection levels of appliance at different product zones are different
see the following scheme. (Installation regulations comply to IEC 60364-7-702)
The hot tub’s electrical connections must be installed in the electrical safety zones
labelled 1, 2 or outside all safety zones. The measured zones are limited by walls and
fixed partitions.

NOTE-The measured zone dimensions are limited by walls and fixed partitions.
Zones
Description of the zones
Zone 0
Zone 0 is the interion of the basin including any recesses in their walls or
floors.
Zone 1 Zone 1 is limited by
•Zone 0
•A vertical plane 2m from the rim of the basin.
•The floor or the surface expected th be occupied by persons
•
The horizontal plane 2.5m above the floor or the surface
Zone 2
Zone 2 is limited by
•A vertical plane external th zone 1 and parallel plane 1.5m from the
former.
•
By the floor or surface intended to be occupied by persons.

Specifications
Model 17665XX
Capacity
5 persons
Dimension (outer) Ø 172 × 70 cm
(Ø 67.7″ × 27.6″)
Dimension (inner)
Ø 152 × 70 cm
(Ø 60″ × 27.6″)
Water level Max
40 cm
Water capacity
940 L (248 gal)
Power supply
220-240 V,50 Hz,1540W
Max heat temperature
40°C
Test certificate
CE / UKCA
Heating efficiency
Ambient temperature: 20°C
1.5 - 2.5°C/h

Package list
Installation
WARNING: Spa installed on inadequately level surfaces are subject to leaking. forming
irregularities or collapses. which can result in properly damage or serious injury for
those in or around the spa area!
CAUTION: Please choose your set-up area carefully as lawn and other desirable
vegetation underneath the ground cloth (if applicable) will die. Furthermore, try to avoid
setting the ground cloth in areas prone to aggressive plant and weed species, as they
may grow through the ground cloth.
Site selection
WARNING: Before proceeding to installation your spa, please make sure that the future
location meets the following conditions:
Liner
Pump unit
Top cover
Ground cloth
RCD plug
Wrench
Inflating hose
Pump unit connectors
Caps
Repair kit
Filter cartridge
Filtration cartridge support

•A level place in order to avoid any defect, hernia or leakage.
•Wide enough to support the pool and its pump unit.
•Able to support more than 500 kg/m².
•Sheltered from the sun and bad weather.
•Clean and free from sharp objects.
•Devoid of aggressive vegetation on the ground.
Failure to comply with these rules may result in property damage or personal injury.
RCD test
WARNING: The RCD plug must be tested before each use..
Do not use if RCD test fails and see chapter - Troubleshooting
Grounding
You are recommended to use the services of a qualified electrician to ensure that the
spa is electrically grounded by using a copper conductor of at least 2.5 mm² cross
section.
A place with an awning
Clean the place
A level place
1. Insert the plug
into the power
outlet.
2. Press the
«RESET» button, the
indicator light turns
red.
3. Press the «TEST»
button, the
indicator light
turns off.
4. Press the «RESET»
button,
the indicator
light turns red. The
RCD works properly.

Assembling
1) Unfold the inflatable
spa over the base
protector.
2) Before inflating, assemble
connecting tube into SPA
pool
3) Inspect spring inside
valve in the upspring
status
4) Connect the inflation
hose to the pump on the
socket.
5) Insert the inflation hose
into the inflatable spa.
6) Connect the pump unit
then press the button to
inflate the spa.
7) Wait 60 seconds for
SPA shaping
8) Complete inflating and
remove the inflate tube
9) Insure valve tightened
by tools.
10) Screw the cap firmly in
place.
11) Connect the unit pump
to the pool using the 3
connectors to screw. Ensure
the icons on the pump and
the pool match up.
12) Cartridge location as
shown.

13) Put the filter cartridge
in the
support then screw it
onto the lower
suction inside the basin.
14) Ensure that the drain
caps are properly closed
before before filling the spa.
15) Smooth wrinkles out of
the bottom of the spa,
then fill the spa to the
level indicated. Your spa is
ready.
Usage
Control panel
Functions
Once powered-up, the LED displays the current water temperature automatically.
The temperature units selector changes the temperature units from Celsius
degrees to Fahrenheit degrees.
Press the temperature adjustment buttons, then the screen will flash. When it is
flashing, you can set the desired temperature. The value will increase or
decrease 1 degree at once. The temperature could be set between 30°C to 40°C
(86°F to 104°F).
Filtration
LED Display
Temperature
Increase Button
Heat Button
Massage Button
Lock Button
Temprerature
units indicator
Temprerature
units selector
Temprerature
Decrease Button

To lock or unlock the control panel, press the Lock button and hold 3 seconds.
Lock the control panel when you are away to prevent other people come to
change your settings.
Press the massage button to activate the bubble massage system, the green
indicator light turns on. It can be turned off by pressing it again.
Note:
- The massage system will stop automatically after 30 minutes of operation.
Re-activate the massage function by pressing the massage button again.
- When filter button is on, pressing bubble button will exchange filter mode
into massage mode: filter indicator light will turn off and massage
indicator light turn on. If press the bubble button again, the massage
mode will be changed back to filter mode.
Press the filter button to activate the water filtration. The green indicator light
will turn on when the filtration system is activated.
Note:
- If massage function is on, the filtration can’t be activated.
Press the heating button to activate water heating and filtering system at the
same time. The green indicator light of filter and red indicator light of heating
will turn on at same time.
The pump does not stop heating until the current water temperature reaches the set
temperature; and the heating system will restart after the current water temperature
drops 2°C below the set temperature automatically.
Maximum heating temperature: 40°C (104°F)
Important:
After 150 cumulative hours of filtration operations, an audible alarm will sound and the
LCD display will show the characters CHG, followed by FIL, to remind you to change or
clean the filter. You can hold the filtering button 5 seconds to turn off the buzzing. The
filtering system will turn off, you can press the button to active the filtering system
again.
Note:
- With the heating system staring, the filtration system will start working together.
- After turning off the heating system, the filtration system will still work.
- If the massage function is active, the filtration and heating functions can not be
activated

Pool cover and security
After each use, the control panel must be locked and the pool must be coated with its
top cover and it must be attached to the base protector with the safety buckles.
Each safety buckles has a lock system ; closed buckle, the latch in up position locks the
buckle, the latch in down position unlocks the buckle.
The top cover keeps the heat from the water and secures the pool.
Maintenance
Water maintenance
WARNING: A bad pool water quality can harm your health.
Depending on the frequency and conditions of use:
- The filter cartridge should be regularly cleaned (150 hours max.).
- The filter cartridge should be replaced every 1 to 2 month.
- The pool water should be changed every 15 to 30 days.
Use a water test kit to control the parameters of the water before using the spa, or at
least once a week.
Use disinfection products for the spa. The treatment products should be used with
caution and it is imperative to refer to their instructions.
Damage resulting from improper use of treatment products is not covered by warranty
(overdose, shock treatment, ...).
1. Water balance
The water balance (pH) must be maintained between 7 and 7.4.
2. Water Sanitation
To sanitize the pool water, we suggest using an active oxygen-
based treatment or bromine placed in a floating dispenser.
(Dispenser sold separately).

Cleaning and replacing filter cartridge
Dirty filter cartridge may contaminate the pool water and cause damage to the heating
function.
1. Unscrew the filter case by turning it counter-clockwise. Take out the filter cartridge
from the case.
2. Rinse off the filter cartridge with a garden hose. If the filter cartridge remains dirty
and discoloured, the filter cartridge should be replaced.
3. Put back the cleaned filter cartridge into his case and screw it to the pool.
Disinfection
Water Sanitation:
To sanitize the pool water, we suggest using an active oxygen-based treatment or
bromine placed in a floating dispenser. (Dispenser sold separately)
If water is heavily polluted you should not use pool.
Clean pool with with specialist UV lighting equipment.
Seek professional advice and guidance before doing this.
Attention:
Detergent residues and dissolved solids from bathing suits and chemicals may build up
on the spa walls, Use soap and water to clean the walls and rinse thoroughly with a
garden hose using a direct powerful waterspray.
Drainage and storage
Drainage
•Check the stopper on the bottom of the pool and the drain cap.
•Unscrew the drain cap.
•Remove the stopper on the bottom of the pool. Completely drain all water from the
spa pool.
Once empty, the pool can be cleaned with soap and water.

Storage
•Press the bubbling button to blow out the water inside the jet holes. Unplug the
pump, remove the filter cartridge from the inner wall of the pool.
•Use a towel to wipe off the pool, dry 24 hours.
•Push the valves to deflate the pool.
•Fold the pool.
It is recommended that store the SPA in its original package in a warm dry place.
Repair kit
Little holes or puncture can be repaired with the repair kit included and glue reserved to
pool liner.
•Find the leak.
•Thoroughly clean the area surrounding the leak.
•Cut a piece of repair material in round shape, which should be larger than the
damaged area.
•Apply adhesive to the underneath side of the patch and around the area to be
repaired.
•Put the patch on the damaged area and press down firmly. Allow 12 hours for repair
to dry. After patch has dried, apply glue around the edges for a complete seal (dry 4
hours).
Trouble shooting
If air valve damages or leaks, please replace valve according to the steps followed.
Directly press down
spring inside valve to
deflate.
Use tools to
unscrew air valve
spindle.
Replace a new air
valve spindle.
Tighten the air valve
by tools.

Troubleshooting
Here are some useful tips to help you to diagnose and rectify common sources of
trouble.
Problem
Cause
Solution
Control panel
screen does
not operate
Check power source
Power failure
Reset the RCD plug / Check if the
wiring system is adapted to the
power of the pump unit.
Call for service if it does not reset
SPA pump
does not heat
properly
Temperature set is too low
Set to a higher temperature
Filter Cartridge is dirty
Clean or Replace the cartridge (see
chapter - Cleaning)
Too low water level
Fill water to minimum water level
Heating element defective
Call for service
Bubble
massage
system does
not work
Pump is overheating
Cut off the power and wait until the
pump has cooled.
Auto shut-down feature
(30min) is activated
Press the bubble button to
reactivate
Malfunction of the pump unit
Call for service if it does not reset
Water
filtration does
not work
Filter Cartridge is dirty
Clean or Replace the cartridge (see
chapter - Cleaning)
Inlet and outlet blocked
Clean the inlet and outlet
Air inside the pump
Fill water to minimum water level
Malfunction of the pump unit
Call for service if it does not reset
Pump leakage
Adaptor seal improperly
Replace the seal in the right position
Water leakage from pump
body
Check the pump body, call for
service
Spa pool
leakage
Spa pool is torn or punctured
Use provided repair kit (see chapter
– Repair kit)
Water is not
clean
Insufficient filtering time
Increase the filtering time
Filter Cartridge is dirty
Clean or Replace the cartridge (see
chapter - Cleaning)
Pool filled water quality
Change the pool water completely
Improper water treatment
Refer to the chemical
manufacturer’s instructions
CHG FIL
After 150 cumulative hours of filtration operations, an audible alarm
will sound and the LCD display will show the characters CHG,
followed by FIL, to remind you to change or clean the filter. You can
hold the filtering button 5 seconds to turn off the buzzing. The
filtering system will turn off, you can press the button to active the
filtering system again.

Error code
If the screen displays an error code “Ex”, please refer to the table below.
Code
Situation
Problem
Causes
Solutions
E1
Not
heating
properly.
Wrong
temperature
control sensor.
Temperature
control sensor
short circuit or
open circuit.
Contact service center
E3
Not
heating
properly.
High water
temperature
indicator.
1. The filled
water is over
45°C (113°F)
2. The filter
cartridge was
put on the
wrong suction
fitting (higher
suction fitting).
1. Cut off the power, make
sure the pool water is
between 2°C~44°C
(36°F~111°F). If this does
not solve the problem,
refer to the box below.
2. Put the filter cartridge
on the lower suction
fitting.
E4
All
functions
do not
work,
buzzing
warn.
Low water
temperature
indicator.
The pool water is
lower than 2°C
(36°F).
•
Cut off the power, make
sure the pool. water is
between 2°C~44°C
(36°F~111°F)
•If this does not solve the
problem, refer to the
box below
E5
All
functions
do not
work,
buzzing
warn.
High water
temperature
indicator.
The filled water is
over 50°C (122°F)
•
Cut off the power, turn
to qualified electrician to
reset the thermal cutout
described in next
paragraph.
•If this does not solve the
problem, refer to the
box below
E6
Not
heating
and
filtering
properly.
Buzzing
warns.
Water pressure
is not big
enough to
activate
heating.
•Inlet or outlet
on inner wall
are blocked.
•Filter cartridge
is too dirty.
•Pool water
does not reach
minimum
water level.
•Do not release
air from pump
•Clean inlet and outlet
•Clean or replace filer
cartridge
•Add water to reach
water level
•Do air release as
outlined again
•If this does not solve the
problem, refer to the
box below

E3, E4, E5, E6 error code
Cut off electricity for 5 minutes and reconnect.
If error code is still displayed on the control Box, please do the following instructions
•Check that the water line is between the high and low limits.
•Clean or replace the filter cartridge.
•Unscrew and clean the 2 nozzles (Entry and exit of water) inside the spa and remove
wastes if necessary (Neaf, hairs, fur, skin...)
•Check that the propeller of the filter pump does not contain foreign matter.
Cut the spa again electrically for 5 minutes and re-connect it, if the error code is still
displayed on the control box please contact the Service Center.
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you
need repair or other services during the warranty period, contact the product seller
directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for
which the claimed claim may not be recognized:
•Using the product for any purpose other than that for which the product is intended
or failing to follow the instructions for maintenance, operation and service of the
product.
•Damage to the product by a natural disaster, the intervention of an unauthorized
person or mechanically through the fault of the buyer (e.g. during transport, cleaning
by inappropriate means, etc.).
•Natural wear and aging of consumables or components during use (such as
batteries, etc.).
•Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,
electrostatic discharge voltage (including lightning), faulty supply or input voltage and
inappropriate polarity of this voltage, chemical processes such as used power
supplies, etc.
•If anyone has made modifications, modifications, alterations to the design or
adaptation to change or extend the functions of the product compared to the
purchased design or use of non-original components.

EU Declaration of Conformity
Identification data of the manufacturer's / importer's authorized representative:
Importer: Alza.cz a.s.
Registered office: Jankovcova 1522/53, Holešovice, 170 00 Prague 7
IČO: 27082440
Subject of the declaration:
Title: SPA
Model / Type: 17665XX
The above product has been tested in accordance with the standard(s) used to
demonstrate compliance with the essential requirements laid down in the
Directive(s):
Directive No. (EU) 2014/53/EU
Directive No. (EU) 2011/65/EU as amended 2015/863/EU
Prague, 26.06.2021
