AVI-AV ANI-9005 User manual

ATSC
Comp atibl e
ANI-9005
Instruction Manual
www.ani-av.com
OMNI-DIRECTIONAL WITH AMPLIFIER
INTRODUCTION:
This is a specially designed new concept antenna for digital indoor, outdoor analogue, and terrestrial HDTV broadcasting
reception. It is the best solution for home reception and digital portable TV reception. Complete accessories are included for
wall or pole mounting. With the anti-UV and water proof housing, it can be used both indoor and outdoor.
Technical Specifications:
Frequency Range: VHF 54-230MHz; UHF 470-862MHz; FM 88-107MHz
Receiving range: FM VHF UHF
Antenna Gain: 32dB
Max. Output Level: 100dBµV
Impedance: 75Ω
Power Supply: DC12V/50mA

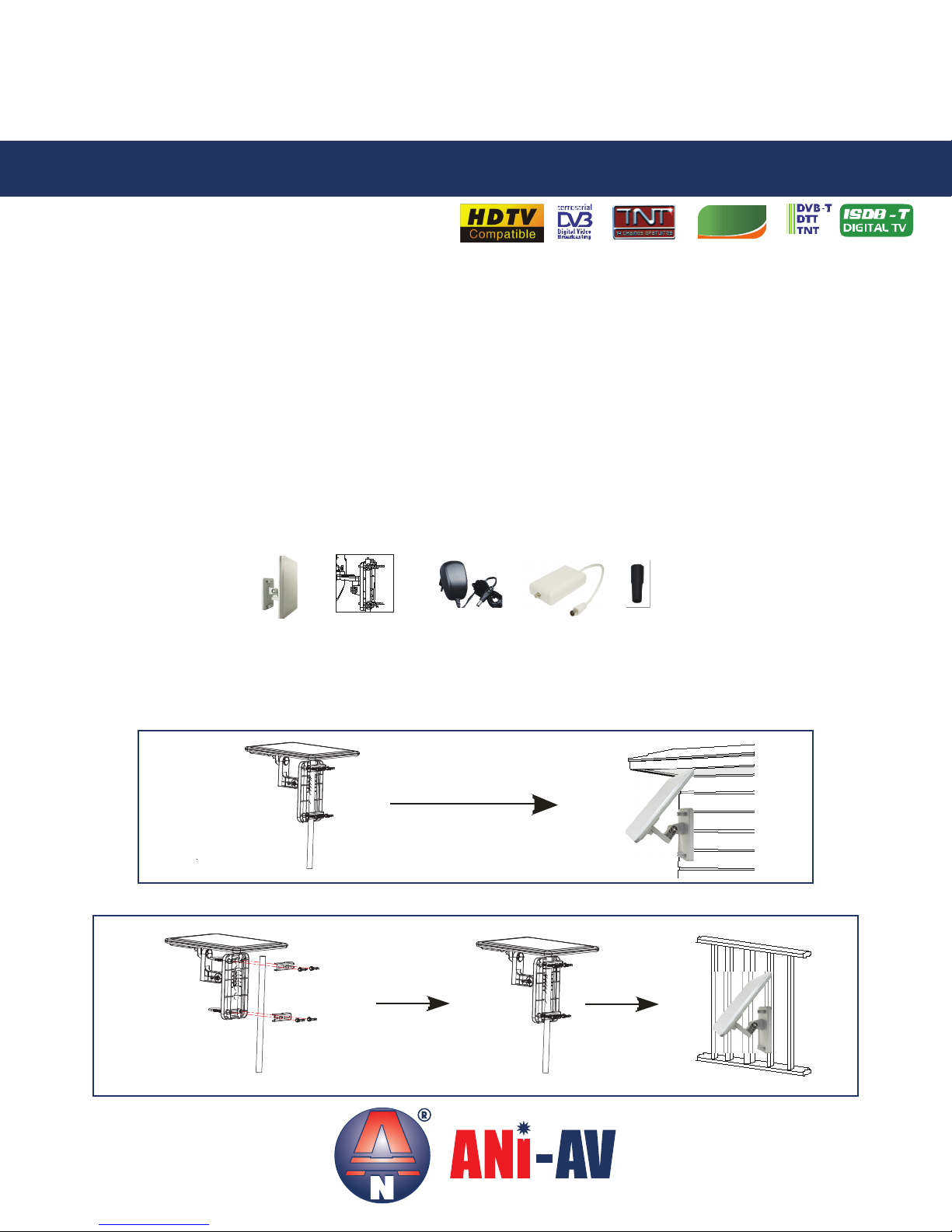

Included in Package:
1. Antenna main unit
2. Mounting accessories 1. 2. 3. 4. 5.
3. AC/DC power adaptor
4. DC power inserter
5. Waterproof Coax Boot
Mounting the Antenna:
This antenna can be used both indoor and outdoor, with the included mounting accessories,it can be mounted on the wall or
a pole.
(Fig.1) use the screws and wall mounting accessories to fix the antenna on the wall
(Fig.2) Using the mounting accessories to fix the antenna on the balcony.
APR 2013 PAGE 1 of 5
DIGITAL INDOOR/OUTDOOR TV ANTENNA
FIG. 1
FIG. 2
Initial position.
Initial position.

ATSC
Comp ati bl e
(Fig.3) use the pole mounting accessories to fix the antenna on the pole.
(Fig. 4) Available for mobile use
(Fig. 5) If the signal strength is low, the antenna can be adjusted to a 45° angle and still maintain 360° signal reception.
(Fig.6) Connect the “F” male connector of the coaxial cable to the “F” female connector of the antenna,
and side the water-proof cap to the end of the connected “F” connector.
APR 2013 PAGE 2 of 5
ANI-9005
Instruction Manual
OMNI-DIRECTIONAL WITH AMPLIFIER
DIGITAL INDOOR/OUTDOOR TV ANTENNA
FIG. 3
FIG. 4
F-type connector
liking bolt
Coxial-cable
Water-pro kit Water-proof cap
FIG. 6
Initial position.
Initial position.
FIG. 5
Initial position.

ATSC
Comp ati bl e
FIG. 8
FIG. 7
Contiguous Cable
Contiguous Cable
Installation:

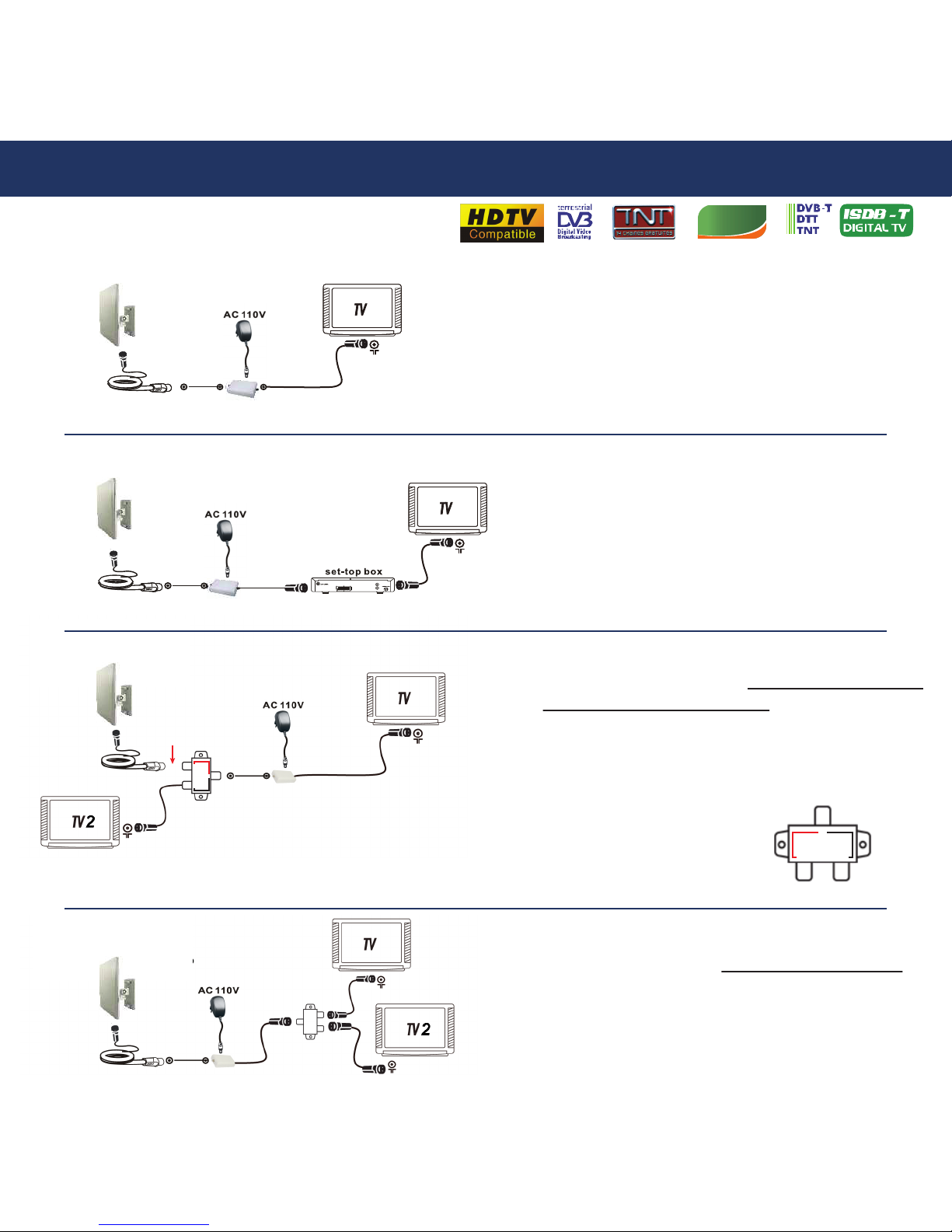

Please take following (Fig.7), (Fig.8), (Fig. 9) and (Fig.10) installation instruction for the reference.
Note:After the antenna mounting and installation is finished, please adjust the antenna in the best position that can get clear
TV picture, then fix the antenna,organize the coaxial cable for safety,
APR 2013 PAGE 3 of 5
Installation 1:
Directly connected to TV (Fig.7)
Installation 2:
Connected Through set-top-box (Fig.8)
Installation 3:
When using a Splitter located between the
antenna and Power Inserter, it must be a Power
Passing type. A Power Passing splitter is
generally indicated with red lettering “Power
Passing” or “DC Pass” (Fig.9)
Example of a
“Power Passing Splitter”
Installation 4:
When using a Splitter located on the TV Port of
the Power Inserter, any typical splitter can be
used. It does NOT have to be power passing.
(Fig.10)
Contiguous Cable
IN
DC PASS
OUTOUT
Contiguous
Cable
Must connect to a
Power Passing Port
FIG. 9
FIG. 10
ANI-9005
Instruction Manual
OMNI-DIRECTIONAL WITH AMPLIFIER
DIGITAL INDOOR/OUTDOOR TV ANTENNA

Important Safety Instructions:
1. Read Instructions - All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners as they may cause hazards.
6. Attachments - Do not use attachments that are not recommended by the product manufacturer as they may cause hazards.
7. Water and Moisture - Do not use this product near water - for example, near a bathtub, wash bowl, kitchen sink or laundry tub; a wet basement;
or near a swimming pool; and the like.
8. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child
or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with
the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by
the manufacturer.
9. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart
combination to overturn.
10. Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from
overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa,
rug, or similar surface. This product should not be placed in a built-in installation such as bookcase or rack unless proper ventilation is provided or
the manufacturer's instructions have been adhered to.
11. Power Sources - This product should be operated only from the type of power source indicated on the cable. If you are not sure of the type of
power supplied to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other
sources, refer to the operating instructions.
12. Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only one way. This is a safety feature. Contact your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.
12a. Alternative Warnings - If this product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin, the plug will only
fit into a grounding-type outlet. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug
should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
16. Power-Lines - An outside antenna system should not be located in the vicinity of overhead power lines, other electric light or power circuits,
where it can fall into such power lines or circuits. When installing an outside system, extreme care should be take to keep from touching such power
lines or circuits as contact with them may be fatal.
APR 2013 PAGE 4 of 5
13. Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, paying particular attention to cords at
plugs, convenience receptacles, and the point where they exit from the product.

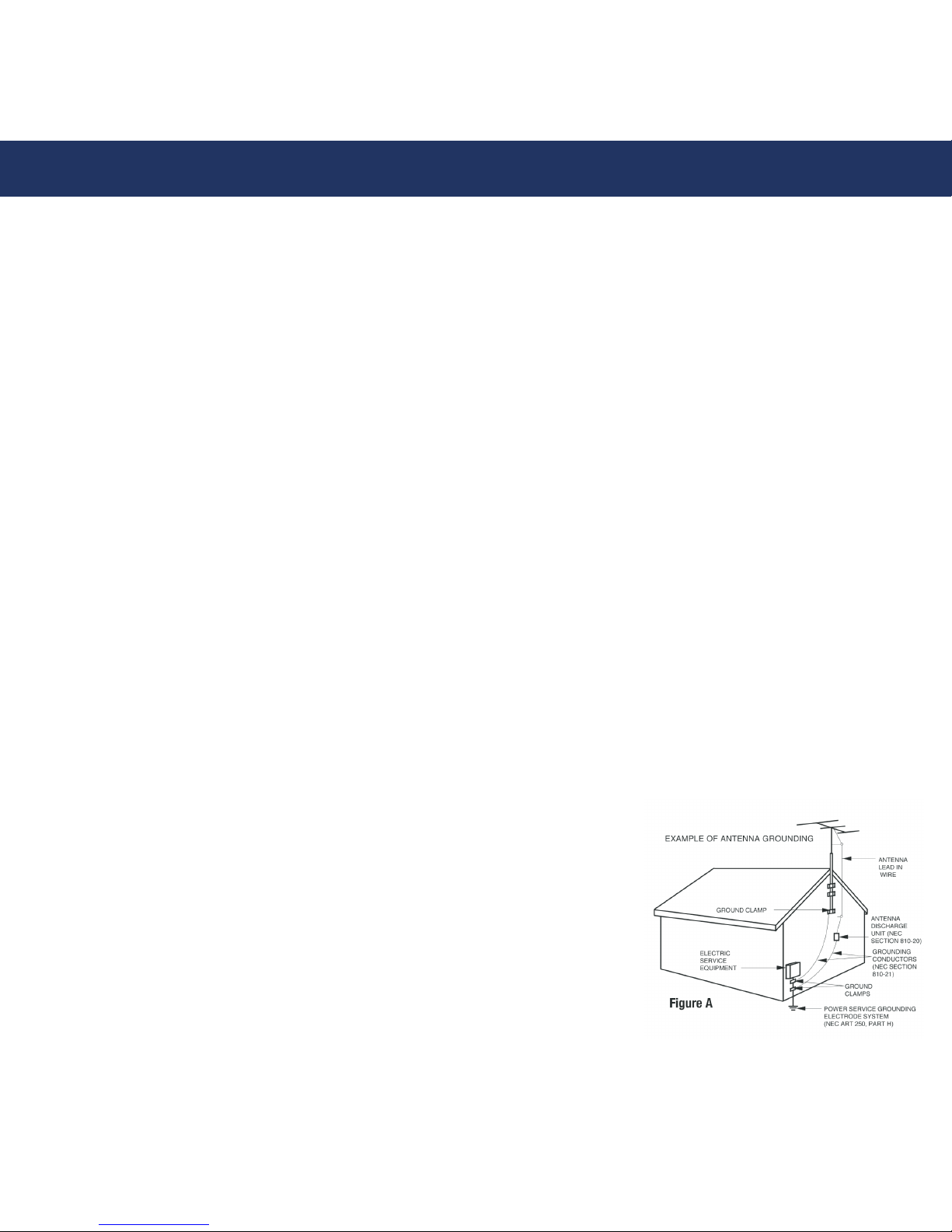

14. Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the product,
be sure the antenna or cable system is grounded so as to provided some protection against voltage
surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70,
provided information with regard to proper grounding of the mast and supporting structure, grounding
conductors, location of antenna-discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode. See Figure A.
15. Lightning - For added protection for this product during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage to the product due to lightning and power-line
surges.
Instruction Manual
ANI-9005
OMNI-DIRECTIONAL WITH AMPLIFIER
DIGITAL INDOOR/OUTDOOR TV ANTENNA

Instruction Manual
Operation Instruction:
Important Safety Instructions:
17. Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
18. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
19. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
20. Damage Requires Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following
conditions:
a. When the power-supply cord or plug is damaged,
b. If liquid has been spilled, or objects have fallen into the product,
c. If the product has been exposed to rain or water,
d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating
instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician
to restore the product to its normal operation,
e. If the product has been dropped or damaged in any way, and
f. When the product exhibits a distinct change in performance - this indicates a need for service.
21. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original part. Unauthorized substitutes may result in fire, electric shock or other hazards.
22. Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that
the product is in proper operating condition.
23. Wall or Pole Mounting - The product should be mounted to a wall or pole only as recommended by the manufacturer.
24. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers)
that produce heat.
NOTE TO CAT5 SYSTEM INSTALLERS:
THIS REMINDER IS PROVIDED TO CALL THE CATV SYSTEM INSTALLER'S ATTENTION TO ARTICLE 820 - 40 OF THE NEC THAT
PROVIDES GUIDELINES FOR PROPER GROUNDING AND, IN PARTICULAR SPECIFIES THAT THE CABLE GROUND SHALL BE
CONNECTED TO THE GROUNDING SYSTEM OF THE BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY AS PRACTICAL.
APR 2013 PAGE 5 of 5
ANI-9005
OMNI-DIRECTIONAL WITH AMPLIFIER
DIGITAL INDOOR/OUTDOOR TV ANTENNA
Note: For the best reception, please check the following conditions:
1. Keep the antenna away from the sources of interference; such as big power consumption
devices, like air conditioners, elevators, hair dryers and microwave ovens, etc.
2. Place the antenna near windows when using the antenna in an indoor environment.
3. Install the antenna as high as possible; in digital terrestrial reception,if there are some
obstructions between antenna and transmission tower, it will cause a temporary signal loss.
360 OMNI DIRECTION TV SIGNAL reception
