Avid Power ACRW106 User manual

2
GENERAL SAFETY RULES
Work Place
Keep the workplace clean and bright. Chaos and dark places can
cause an accident.
Do not operate electric tools in explosive atmospheres, in the
presence of explosive liquids, gases or dust. The spark
generated by the power tool ignites dust or gas.
To operate the power tools when children and bystanders are not
at the scene. Distraction will make you relax to control power
tool.
Electrical safety
Avoid contact with the ground surface, such as pipes, heat sinks
and refrigerators. If your body is grounded, increase the risk of
electric shock.
Do not expose the power tool to rain or moisture. Water entering
the power tool will increase the risk of electric shock.
Personal safety
Be alert, pay attention to the operation and stay awake when
operating the power tool. Do not operate the power tool with
fatigue, medication, alcohol, or therapeutic response.
Disenchantment during operation of the power tool can result in
serious personal injury.
Use safety devices. Always wear goggles. Safety devices, such
as dust masks under suitable conditions, non-slip safety shoes,
helmets, hearing protection and other devices can reduce
personal injury.
Remove all adjustment keys or wrenches before the power tool is
switched on. A wrench or key left on a rotating part of a power tool
can cause personal injury.
Do not stretch your hands too long. Always pay attention to the
foot and body balance. So that in the case of accidents can be a
good control of power tools.
Dress properly. Do not wear loose clothing or wear jewelry. Keep
your hair, clothes and sleeves away from moving parts. Loose
clothing, ornaments or long hair may be involved in moving
parts.

3
GENERAL SAFETY RULES
If provided with the chip removal device, dust collection device
connected to the device, make sure they are connected and
used properly. The use of these devices reduces the risk of
debris.
Power tools use and precautions
Do not abuse the power tool, use the appropriate power tool
according to the application. Choosing the right design power tool
will make your work more efficient and safer.
If the switch can not be switched on or off, the power tool can not
be used. Power tools that can not be controlled by switches are
dangerous and must be repaired.
Store the idle power tools out of the range of children and do not
operate the power tools with those who are not familiar with the
power tools or who do not understand them. Power tools are
dangerous in the hands of untrained users.
Maintenance of power tools. Check the mounting deviation or
stuck of the moving parts, damage to the parts and other
conditions that affect the operation of the electric tool. If
damaged, the power tool must be repaired before use. Many
accidents are caused by poorly maintained power tools.
Keep the cutting tool sharp and clean. A well-maintained tool with
a sharp cutting edge is not easy to jam and easy to control.
Use power tools, accessories, and tool heads, etc., depending on
the operating instructions and the specific type of power
required to use the power tool, taking into account the operating
conditions and the operations performed. Using power tools as
those that do not comply with the requirements may result in a
dangerous situation.
Repair
Send your power tool to a professional service technician and use
the same spare parts for replacement. This will ensure the safety
of the repaired power tool.
Using a month after a service, usually do not use or store,
please check the battery pack for electric, electric storage can
prolong the service life of the machine.

4

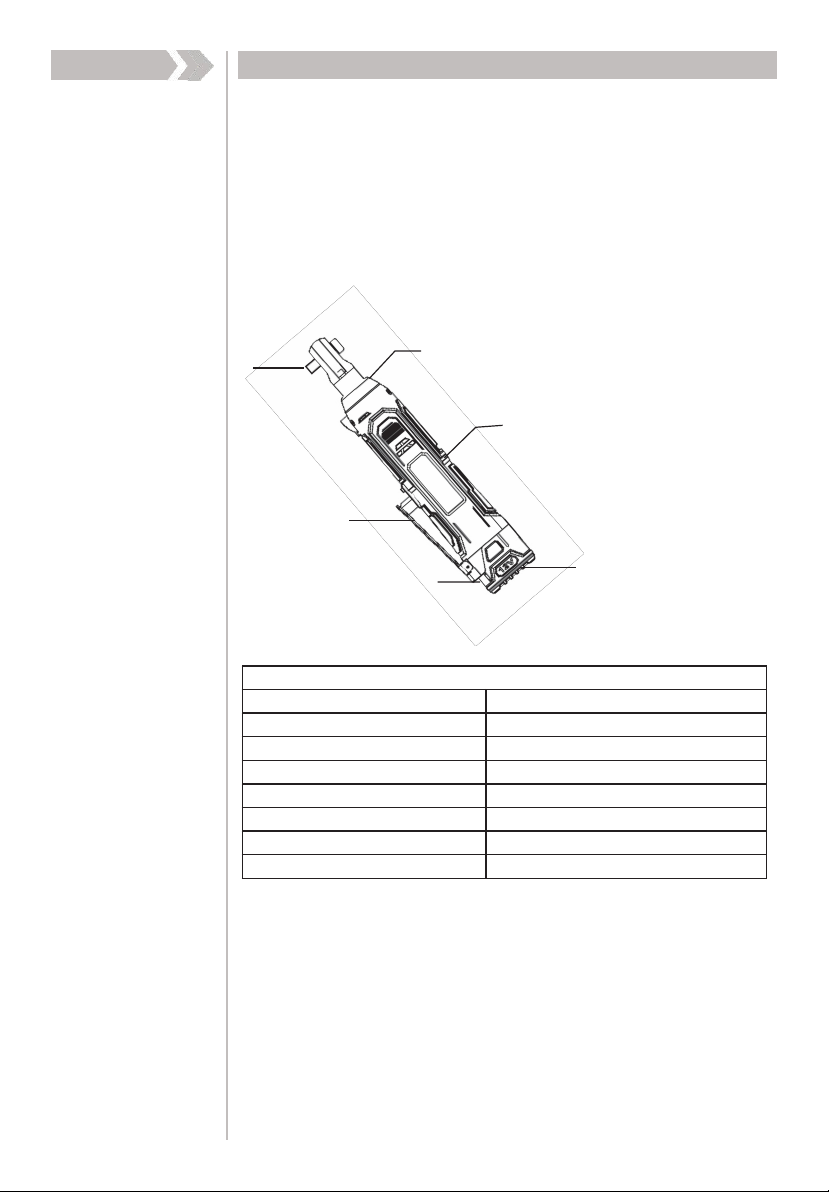

PRODUCT INTRODUCTION
1. 3/8” output shaft
2. Ratchet head component
3. Left/right Housing
4. Paddle switch
5. Battery
6. Battery button
5
Basic Specification
Item No
ratchet wrench
Rated Voltage
12V
No Load Speed
0-300rpm
Output shaft
3/8"
Motor
RS540
MAX Max Torque
50N.m (37ft-lbs)
Battery Capacity
2000MAH
Charger
2400MA
2
1
3
4
6

5

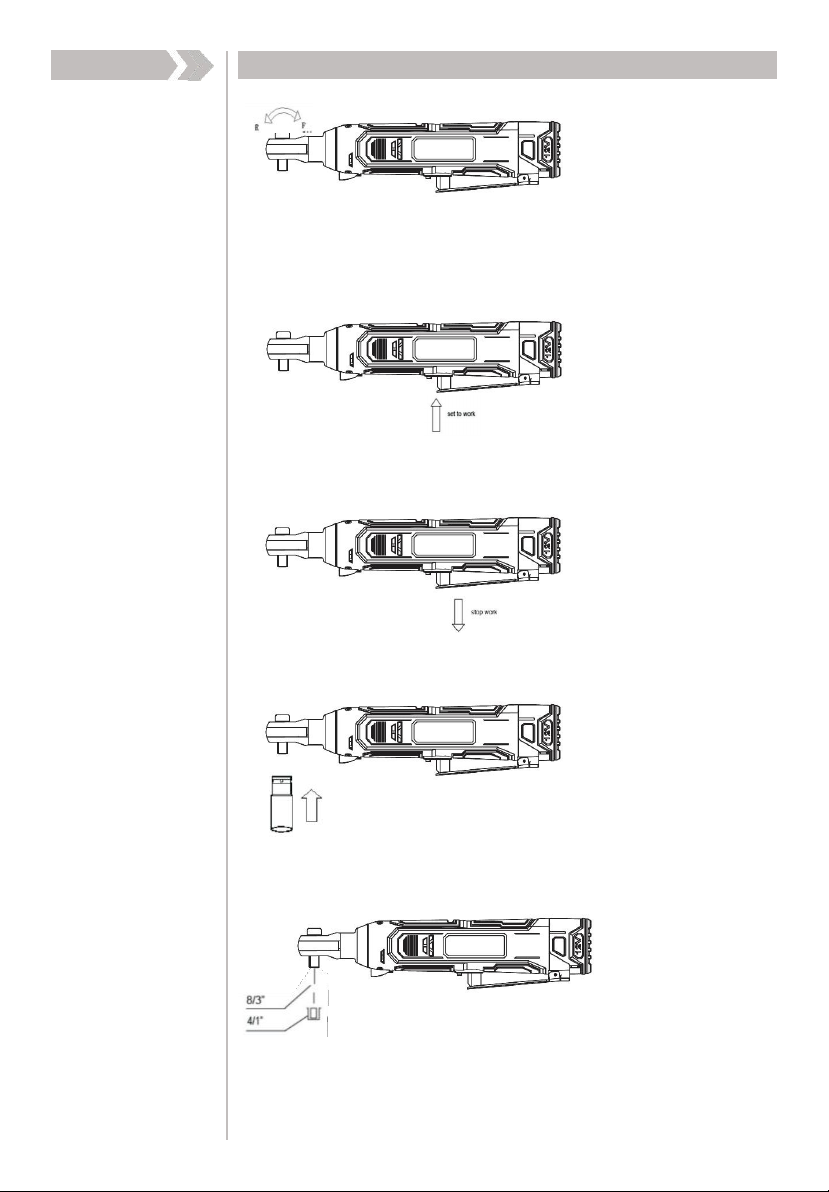

OPERATION INSTRUCTIONS
1. Adjusting the knob of ratchet head, Turning R to make it forward,
thus tightening bolt; Turning F to make it reverse, thus taking off
bolt.
2.When Pressing the paddle switch, the ratchet wrench start to on
work.
2. When loosening the paddle switch, the machine stop work.
3. Installing the sleeve: Inserting the sleeve according to the
direction.
5. Remove the output shaft's spring, output shaft, 3/8, 3/8 and 1/4
can be swap.

6

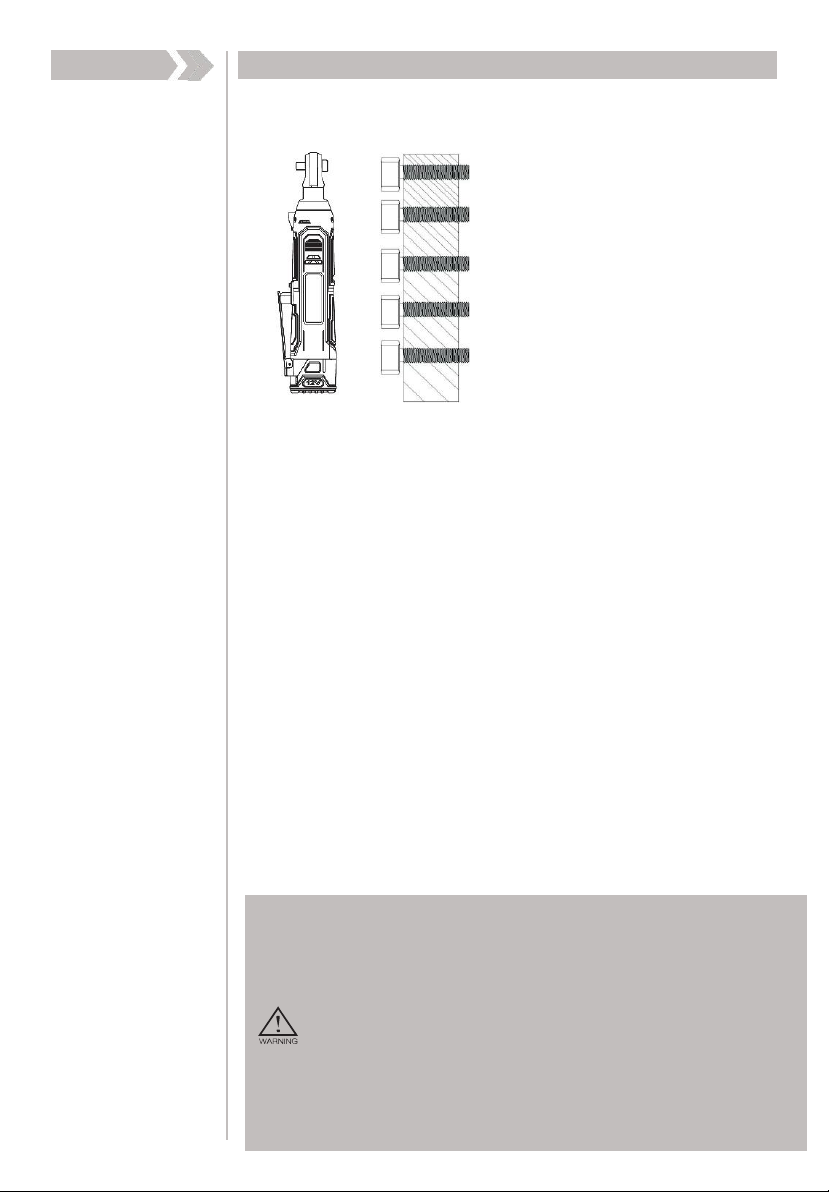

This ratchet wrench can only be used as auxiliary tool
precession nut and exit nut, when screw diameter is too
large or screw is very tight, can't turn the nut as a torque
rod hard, (when using a ratchet wrench screw nut in place,
will need to use manual wrench tightening nut or break
loose, do not remove or lock by violence. Not operation
according to this, the company shall not be liable for the
product quality problem when the Ratchet head is damaged)
OPERATION INSTRUCTIONS
It also can be external 3/8 conversion head.
Important safety precautions for battery packs
Before using the battery pack, please carefully read the relevant
instructions and (1) the charger (2) the battery pack and (3) the
warning mark on the product that requires the use of the battery.
Do not disassemble the battery pack
If the working time is significantly shorter, you should
immediately stop the operation. Otherwise it will cause
overheating, or even explode.
If the electrolyte splashed into his eyes, immediately rinse with
water and seek medical treatment otherwise it may lead to
blindness.
Do not make the battery pack for a long time short circuit. (1) Do
not allow any conductor to come into contact with the battery
terminals. (2) Do not put the battery pack with nails. Coins and
other metal objects stored in the same container. (3) Do not let the

7
OPERATION INSTRUCTIONS
battery pack water or rain. Battery short circuit can lead to current
increases, overheating, burning or even breakdown.
Tools and battery packs shall not be stored where the temperature
is likely to reach or exceed 50°C(122.F).
Even if the battery pack has been severely damaged or completely
depleted, and can not be burned. The battery pack will explode in
the fire.
Pay attention to the battery pack do not fall, vibration, collision
battery, when the hammer and so on.
Keep the maximum battery life expectation!
To charge the battery pack before it is fully discharged. When the
machine is found to be insufficient, be sure to stop the machine
and charge the battery pack. Do not charge the battery pack again.
Excessive charging will shorten battery life.
To the indoor temperature of 10°C -40°C (50.F-104.F) under the
conditions of the battery pack. Charge the battery pack in the hot
state before charging to recharge.
Charging instructions
Charging, indicating that the red light is always on. (When the
battery pack is used up, plug the charger, turn on the green light,
indicating overheating protection, then wait for the battery pack to
cool before charging.
Full of electricity, indicating that the green light is always bright.
In the charging process, (such as the indicator light does not shine,
flashing lights and other abnormalities, please do not intermittent
charge, immediately sent to professional personnel for
maintenance.

8
COMPONENT LIST
No.
Name
Qty.
1
spring#23
1
2
spin knob
1
3
Shaft
1
4
ratchet ring
1
5
pin
2
6
big washer
1
7
ratchet pin
1
8
ratchet
1
9
small spring
1
10
gear box
1
11
nut φ11x9
1
12
bearing φ17xφ12.7x14mm
1
13
orbital shaft
1
14
star frame
1
15
star gear
3
16
motor gear
1
17
inside circle
1
18
pin
1
19
screw M3x10
4
20
screw M3x8
2
21
motor seat
1
22
motor
1
23
led light
1
24
left housing
1
25
power indicator
1
26
power cover
1
27
light frame
1
28
self-lock button
1
29
switch
1
30
pin
1
31
switch button
1
32
right housing
1
33
screw ST3x14
5
34
pin of U type
1
35
battery clip assembly
1
36
battery pack
1

9

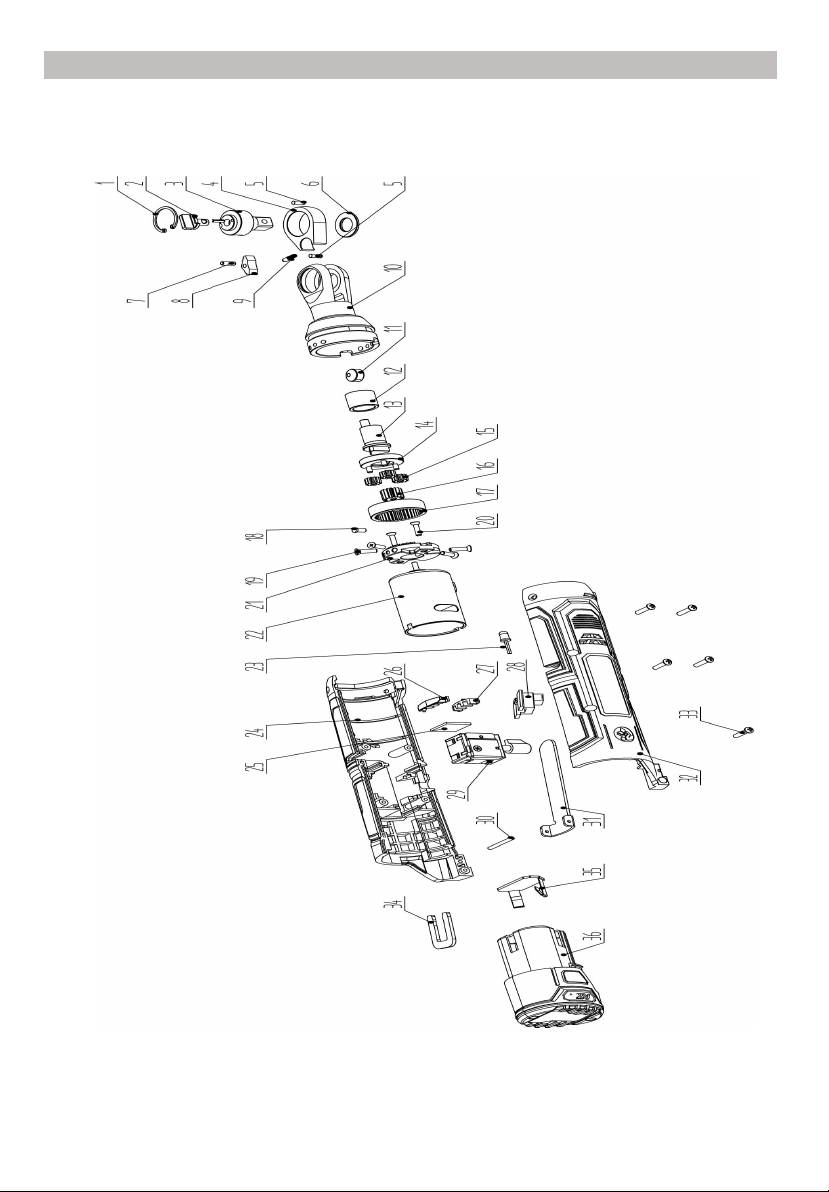

EXPLODED VIEW
