Avital AviStart 6500 User manual

AviStart 6500 Installation Manual

AviStart 6500 Installation Manual
Table of Contents
Important Information...........................1
Recommended Installation Tools....................1
Recommended Procedures.......................1
Main Wiring Diagrams .........................2
Pin Connectors.............................5
Installation Procedures...........................7
Control Unit...............................7
RangeMaster™ Super Heterodyne Receiver Module...........7
Wireloom ................................7
LED Indicator..............................8
Valet Switch...............................8
Zone
2
™ Impact Sensor.........................8
Additional Sensor Input.........................8
Alarm Armed Signal (-) Output.....................8
Brake Lights (Mandatory)........................9
Parking Lights..............................9
Reverse Light..............................9
Interior Light Illumination.......................10
Channel 2 Accessory Output (Trunk Release)..............10
Channel 6 Accessory Output......................10
Channel 9 Accessory Output......................10
Remote Start Armed Signal (-) Output.................10
Factory Alarm Disarm (-) Output....................11
Accessory Remote Start (-) Input....................11
Trunk Switch..............................11
Ignition Switch Connections......................11
Remote Engine Start Neutral Safety Switch Bulletin ..........13
Door Lock/Unlock...........................16
Door Lock Diagrams..........................16
Tach Wire (RPM Monitoring)......................20
Hood Switch (Mandatory) .......................20
Siren..................................21
Power and Ground Connections....................21
Mandatory RPM Programming.....................22
Programmable Features..........................23
Programming Table for System Features................24
Programming Table for Remote Controls................25

Important Information
Recommended Installation Tools
Voltmeter
Wire Strippers
Electric Drill & Bits
Phillips Screwdriver
Convoluted Tubing *
Solder Gun *
Wire Crimpers
Shrink Tube or Electrical Tape* Optional
Recommended Procedures
1.Test all circuits with a voltmeter.
2.Make all wiring connections with the supplied solderless crimp
connectors. DO NOT twist wires or use scotch-lok connectors.
3.Route the small and large RED, RED/WHITE and BLACKwires from the
control unit directly to the battery.
4.Keep extensions as short as possible. Use same gauge wires for short
extensions and larger gauge wires for longer extensions.
5.Before installing, discuss the placement of the LED indicator and valet
switch with the vehicle owner.
6.DO NOT disconnect the battery cables. Make all connections by
removing the bolts from the cable clamps without detaching the clamp.
7.Turn off dome light or remove dome light fuse to prevent battery drain.
This device complies with Part 15 of the FCC rules. Any changes or modifications
made to the system without the express approval of Avital Technologies, Inc.
could void the user’s authority to operate this equipment.
1
AviStart 6500 Installation Manual

2
AviStart 6500 Installation Manual

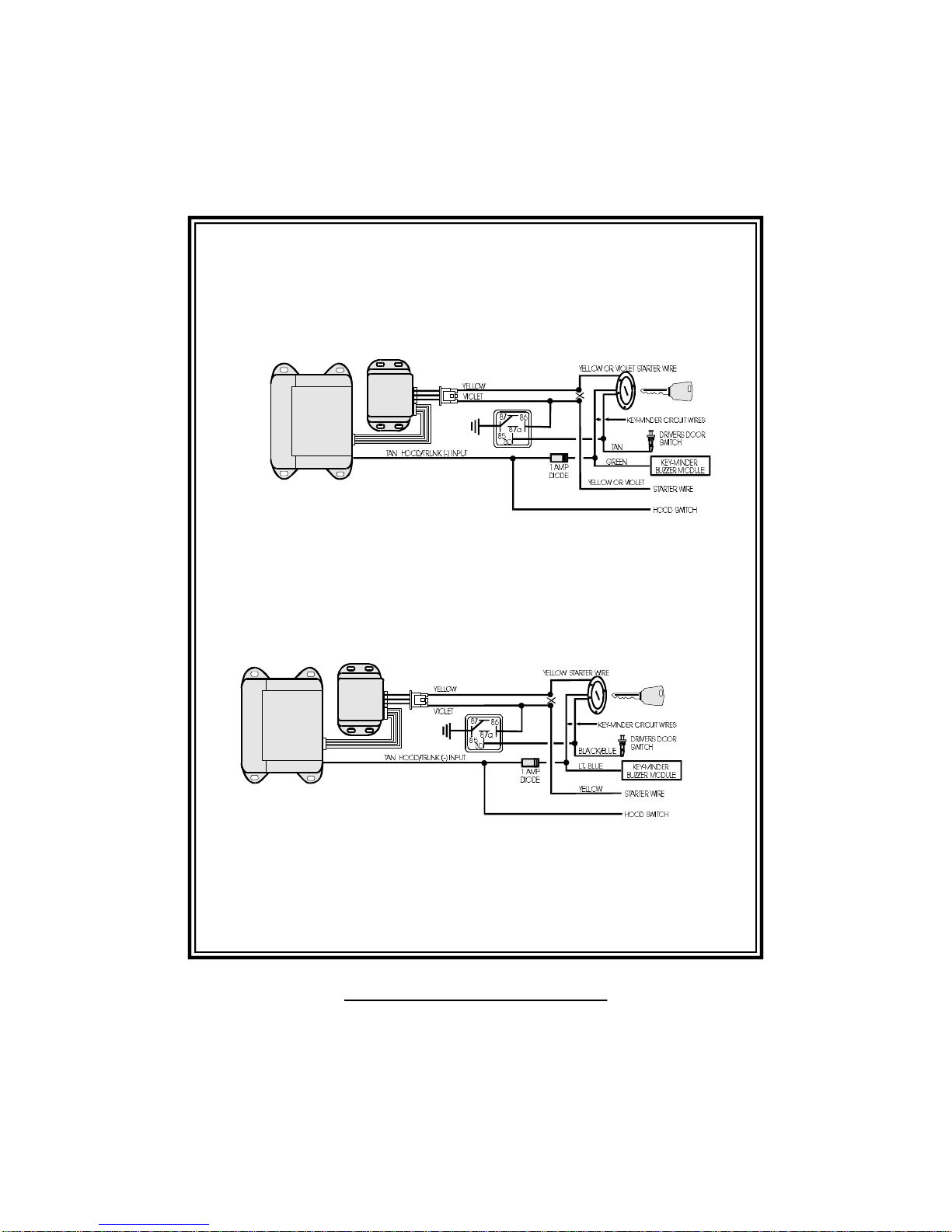

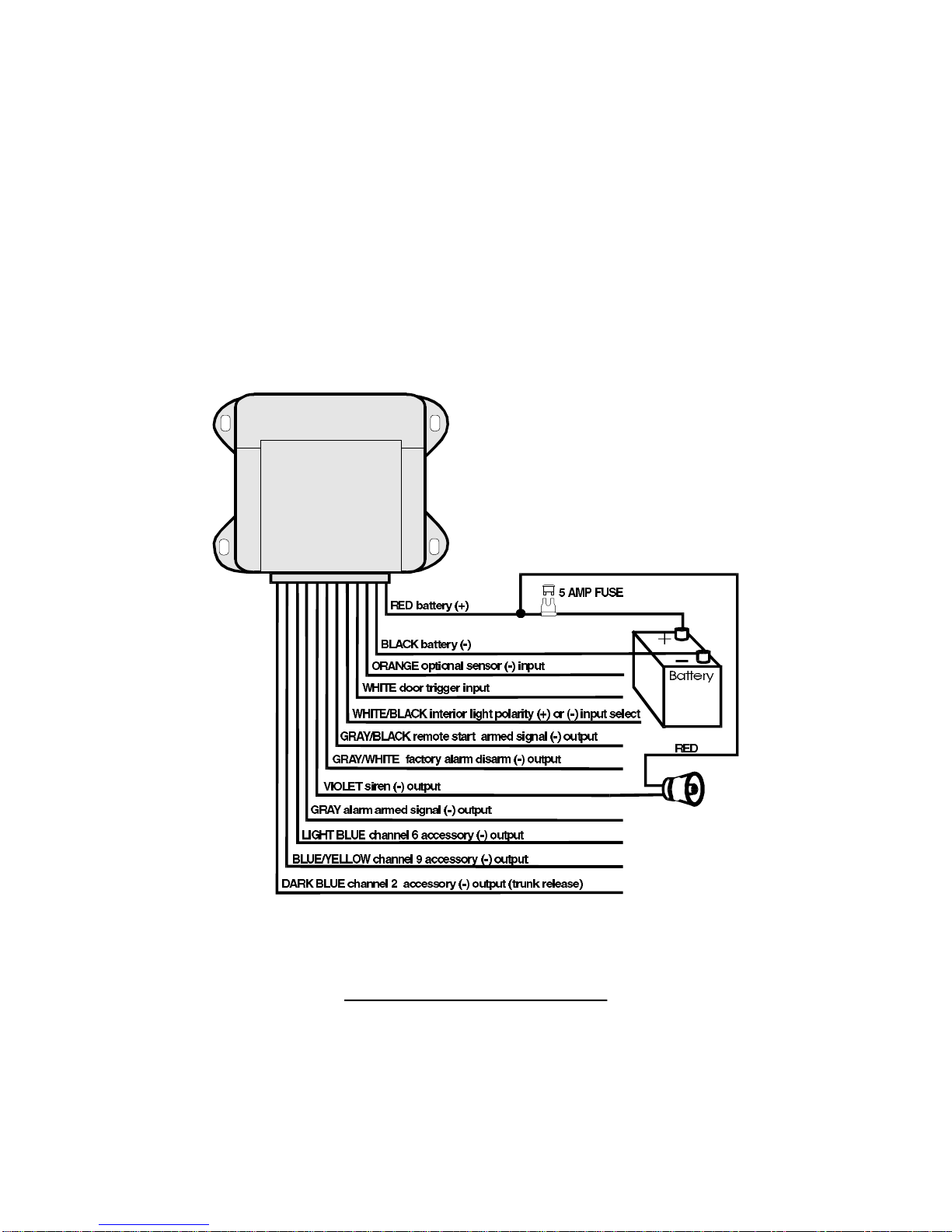

Main Wiring Diagram - 16 Pin

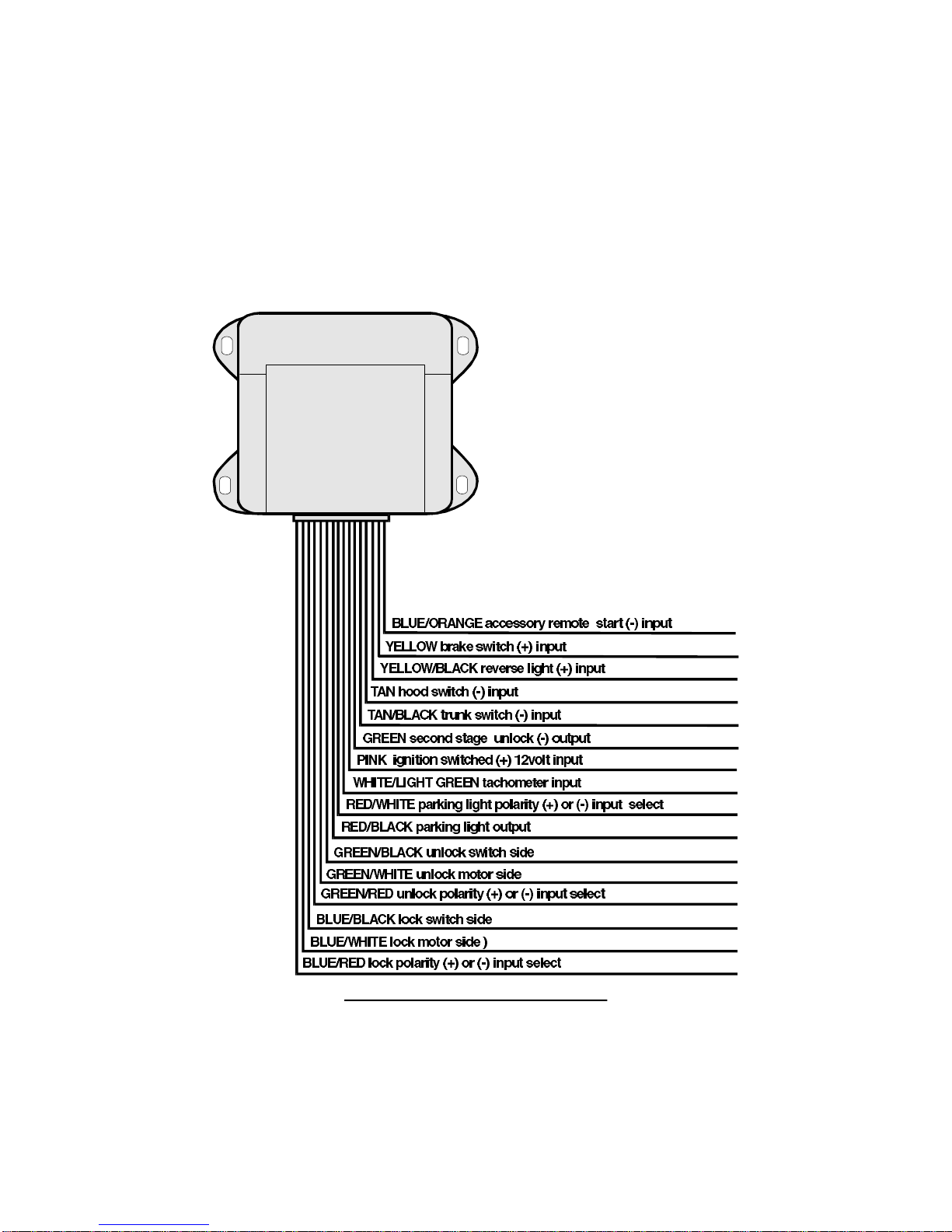

Main Wiring Diagram - 12 Pin
3
AviStart 6500 Installation Manual
