AVIVA AirVaccine015+ User manual

1

2
FEATURES
Powerful disinfection
The AirVaccine 015+ is a reliable, natural, safe way of producing hydroxyl radicals. This
means the AirVaccine 015+ is able to continuously reproduce nature's method of killing
airborne infections, from organisms such as bacteria, viruses and fungi, within the confines
of a hospital ward, office or home. It also destroys the pollutants on the surface of the cloth
or furniture.
24 hours operation
The AirVaccine015+ operates continuously: to provide the maximum benefits the unit
should be, for example, midway along a wall and allowed to run 24 hours per day even if the
space it is safeguarding is unoccupied. The AirVaccine015+ switches itself off if the refill
cartridge is exhausted: all that is required is to replace the cartridge with a new one and
switch the machine back on. A warning buzzer sounds as the time for replacement of the
refill cartridge approaches. All you have to do is replace the refill cartridge once in every two
months. Power consumption is 2.4 watt, and noise level is maximum 35dB.
Large space coverage
The AirVaccine015+ is designed for use in any room or enclosed space, from rooms as small
as 10 sq meters to an area as large as 100 sq meters. A busy area, with considerable traffic
from room to room, will benefit from it as much as a quiet area with few people passing
through.
Proven technology
The AirVaccine015+ adopts the UK military/defense designed technology, which is chosen to
protect secondary infection in hospitals among advanced countries.
Safe technology
Independent safety analysis and trials show that the hydroxyl radical and the refill cartridge,
in the maximum volumes that the AirVaccine015+ is able under any circumstances to
produce, pose no hazard to people or animals. The output of the AirVaccine015+ is carefully
designed to provide an atmosphere that is as safe and as healthy as that found by the
seaside on a sunny day, or on a mountain surrounded by wild flowers or pine trees.
The helpful bacteria we need for our digestive system are called anaerobes: they exist in
places without oxygen. Harmful infectious bacteria and viruses float through the air we
breathe; they need oxygen to survive and it is these organisms that the hydroxyl radical
produced by AirVaccine015+ kills.

3

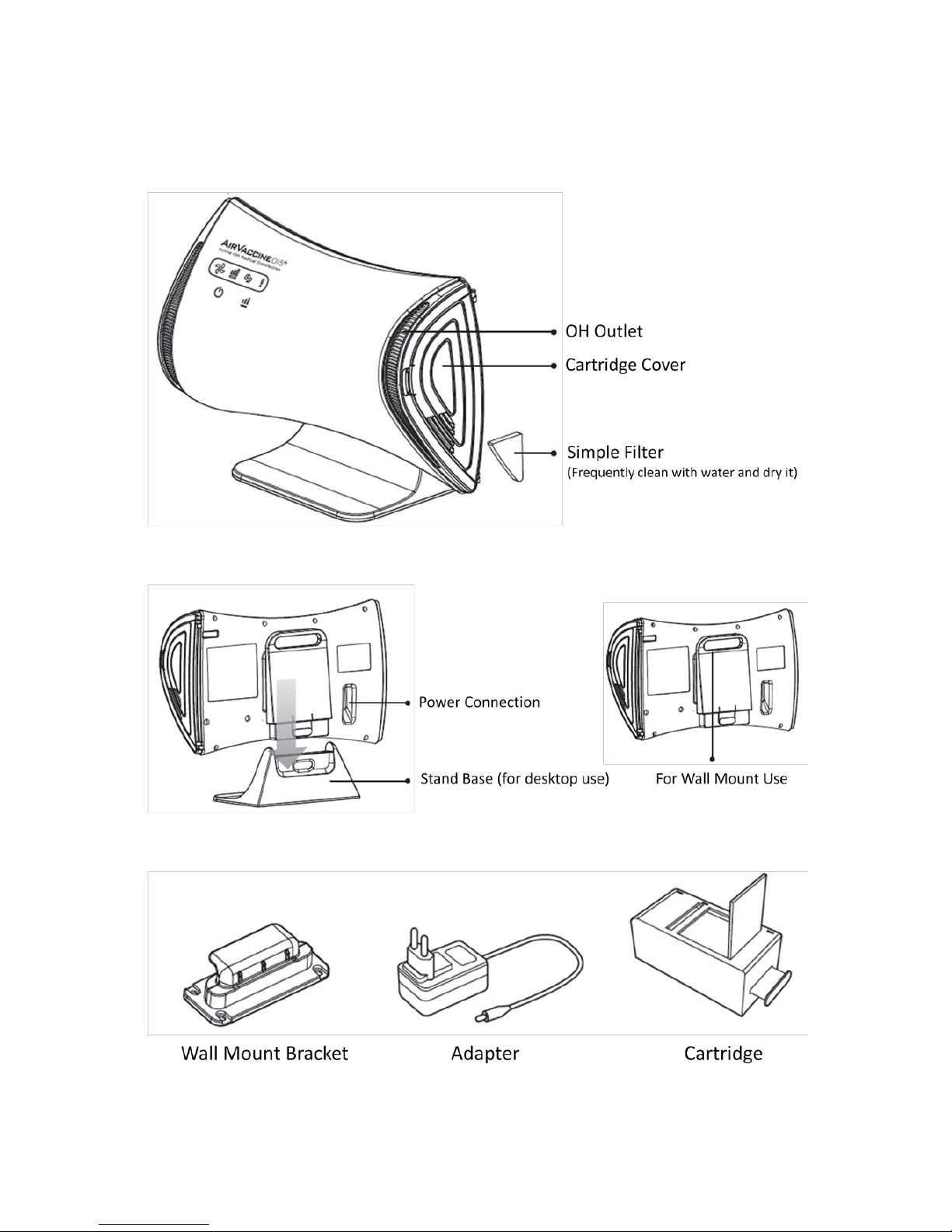

PARTS NAME

4
OPERATION / INDICATION PART
Operation Part
HOW TO OPERATE
Indication Part
To start operation

5
1. Connect the power adapter to power connection hole.
2. You get the beep, and all 4 indicators blink once. (If no blinking, check the power again.)
3. Press the power button, then the power indicator lights and the product starts operating.
4. When the cartridge is not or improperly installed, you get the beep and the cartridge
alarm blinks in red. The product is not operating.
To select power level
When the power button is pressed, you get the strong level indicator lighting (green). When
you press the level button, it changes in order of night (dark white) - weak (white) - middle
(orange) - strong (green).
HOW TO USE / CHANGE CARTRIDGE
To prepare to use the cartridge
1. Open the upper cover of the cartridge, and remove the label on top of the solution
container.
2. Close the upper cover.
To install / change the cartridge
1. Open the cartridge cover and insert the cartridge deep inside the main body.

6
2. When the cartridge is properly installed, you get the beep, and the red cartridge alarm
indicator is turned off. The product stays in off mode.
3. Press the power button, then the product starts normal operation.
To install / change the cartridge
1. If the cartridge change indicator blinks in blue, you need to change the cartridge. If you do
not change the cartridge, the blue indicator stops blinking, and the product stops operating.
2.
Install new cartridge and press level button
for 3 seconds
When you get beep and the cartridge change indicator turns off, the re-set is completed.
To dispose the cartridge
1. Do not disassemble the used cartridge or use it for other purpose. It is ABS resin and can
be recycled. Dispose it according to the local recycling rule.
2. If there is waste solution inside the container, dilute it with large amounts of water and
dispose it or return to the seller.

7
HOW TO INSTALL WALL MOUNTING
1. Fix the wall mount bracket on the desired place of the wall with the enclosed plastic
screws.
2. Remove the stand base and connect to the wall mount bracket.

8
TROUBLE SHOOTING
The AirVaccine015+ may operate abnormally not because of the product malfunction but
because of minor causes or the fact that the user is not familiar with the product use. In
such a case, problems can be solved easily even without the help from the service center
just by checking the following. If the problem still persists after you check the following,
contact the service center.
Symptoms
Check
Yes
No
Indication part is off
and the product is
not operating.
Is the power cord
properly connected?
Contact the service
center
Connect the power
cord to an electric
outlet for 220 V –
240 V~ 50 Hz/60 Hz.
Cartridge
alarm is blinking.
Is the cartridge fallen
out?
Insert the cartridge
deep inside the body.
Contact the service
center
The product is
shaking.
Is the product
installed on a slope
uneven surface?
Install the product on
a smooth and even
surface.
Contact the service
center
The deodorizing gets
very weak.
Is the cartridge
change time over?
Change the
cartridge.
Contact the service
center
When other
functional problems
are detected
Did you clean the
simple filter?
Check the symptoms,
unplug the product,
and then request
service or ask
service center.
Wash and dry the
simple filter.
Contact the service
center

9
SPECIFICATION
Product specification
Air Disinfection System
Model
AirVaccine015+
Rated Voltage
220 V / 60 Hz
Power consumption
2.4 Watt
Safety feature
Power is shut down when the cartridge is
not properly installed
Installation place
Indoor use
Operational area
10m2 ~ 120m2
Size
345 mm (Width) x 136 mm (Length) x 241
mm (Height)
Weight
1.42 Kg
