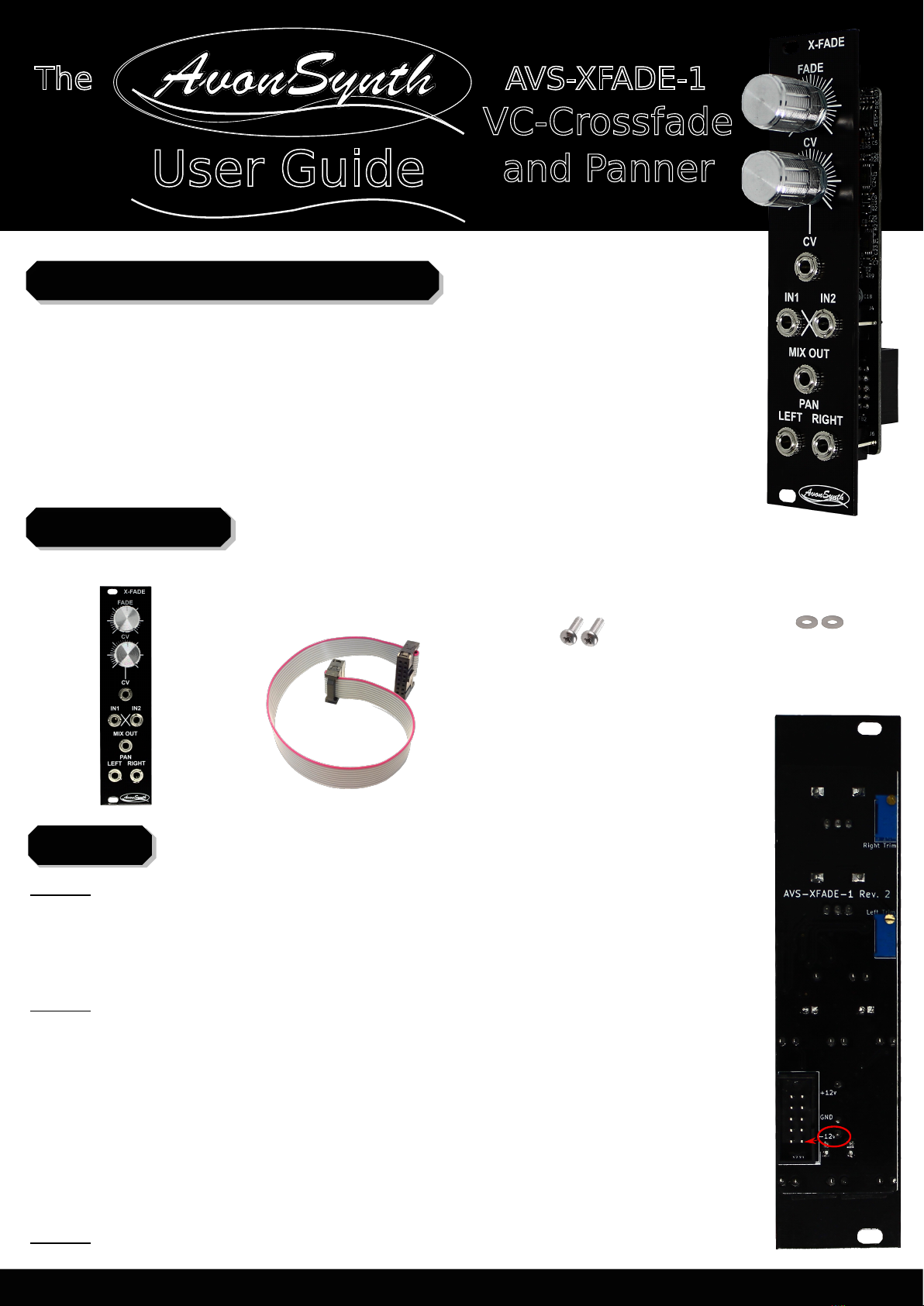

AvonSynth X-FADE User manual

The AVS-XFADE-1
VC-Crossfade
and Panner
User Guide
Thank you for purchasing from AvonSynth
Congratulations on your purchase of a brand new AvonSynth AVS-XFADE-1
VC-Crossfade & Panner module. We trust that it will both serve and inspire
you as you create beautiful music with it for years to come.
In order to get the most out of your module, please ensure that you read
this User Guide in its entirety so that you fully understand all of its
functionality, and that you follow all necessary safety directions during use.
Included in the Box
Page 1 of 3
1 x VC-X-fade Module 1 x 10 pin to 16 pin
flat-cable power cord
2 x M3 Mounting Screws 2 x Nylon Washers
Installation
Step 1: Power your system off. Place the module in your Eurorack-compatible
rack in any convenient position. Affix the module to your rails using the
included mounting screws and nylon washers. Neglecting to use these
washers may result in unnecessary marking of the unit.
Step 2: Triple check the polarity of the power connector before connecting
the power cord to your power supply. Ensure that the -12v line marked on the
back of the module connects to the same end of the flat-cable that also
connects to the -12v line on your power supply. While AvonSynth
modules use shrouded connectors that make this process safer and more
reliable, some systems do not conform to this polarity standard, so careful
checking is always necessary. Connecting the module with incorrect polarity
can result in irreversable damage done to the module which cannot be
covered by warranty.
Step 3: Power up your system and start patching!
www.AvonSynth.com
2 x Nylon Washers
Step 1: Power your system off. Place the module in your Eurorack-compatible
rack in any convenient position. Affix the module to your rails using the
included mounting screws and nylon washers. Neglecting to use these
washers may result in unnecessary marking of the unit.
Step 2: Triple check the polarity of the power connector before connecting
the power cord to your power supply. Ensure that the -12v line marked on the
back of the module connects to the same end of the flat-cable that also
connects to the -12v line on your power supply. While AvonSynth
modules use shrouded connectors that make this process safer and more
reliable, some systems do not conform to this polarity standard, so careful
checking is always necessary. Connecting the module with incorrect polarity
can result in irreversable damage done to the module which cannot be
covered by warranty.
Step 3: Power up your system and start patching!

The
User Guide
Features & Specifications
Fully Analogue voltage controlled crossfade module
6 HP wide (30mm), 20mm deep
Fade knob which provides a smooth transition between the two inputs
Current consumption: +12V 16ma, -12V 18ma
CV control of the fade position, with included attenuator
Additionally functions as a VC left-right panner module when only input 1 is inserted
AVS-XFADE-1
VC-Crossfade
and Panner
Description of Functionality
Page 2 of 3
When only input 1 has signal present
the cross-fader turns into a VC panner.
As the Fade knob is turned to the left
(or CV moves negative) input 1's signal
is louder in the left output and quieter
in the right output. As Fade is turned right
(or CV moves positive), input 1's signal is
quieter in the left output and louder in the right.
Controls the mix of the two inputs from
left (Input 1) to right (Input 2). The position
of this knob is then the starting point that
the CV input modulates from.
Negative CVs input here push the
cross-fader toward the left (input 1), and
positive CVs push the cross-fader toward
the right (input 2). The CV knob
attenuates the level of the CV input.
Fade Position Control
CV Input and Attenuator
Mix Output
Outputs a combination of input 1 and 2
the mix of which is dictated by the
position of the Fade knob and the
CV present at the CV input.
www.AvonSynth.com
Left
Right
Centre
Fade knob position
Input 1 (example)
Input 2 (example)
X-Fade Behaviour
(or CV)
Mix Output
Pan Left Output
Pan Right Output
Left / Right Pan Outputs

The
User Guide
AVS-XFADE-1
VC-Crossfade
and Panner
Warranty & Support
Page 3 of 3www.AvonSynth.com
Safety Precautions
Please use this module in accordance with the following safety guidelines in order to
maximize the life of the module and ensure warranty from AvonSynth.
This product is covered by AvonSynth's warranty for one year from the manufacturing date.
Within this timeframe, any manufacturing defect will be repaired or replaced by AvonSynth.
Damage caused to the product due to not following the safety precautions above,
unauthorized modification of the hardware, or misuse such as subjecting the unit to reverse
or excessive voltages will void this warranty.
If you have any concerns about your AvonSynth hardware, please get in touch via
[e-mail] to discuss any issues. We will do our best to assist you in getting your
hardware operating correctly, and if necessary, we will provide an RMA (Return Merchandise
Authorization) to send back the unit for inspection. Any postal costs incurred in this process
will be the responsibility of the customer. Please do not send back merchandise before
receiving this authorization.
o
o
Keep water and other conductive liquids and materials away from this module.
It is not water proof, or even water resistant. Exposure to these can cause
short-circuits that can render the equipment unusable.
Be sure to keep this equipment in an environment with an ambient
temperature above -20 C and below +50 C. Excessively hot or cold
temperatures can be damaging to the electronic circuits used.
Modules with exposed circuit-boards are delicate. Take the utmost care when
handling and transporting this equipment, making sure not to subject it to
excessive forces. Ensure that the module is installed correctly while being
transported and that the original packing materials are used when sending
the module anywhere by post.
