Avpro edge Ac-da12-auhd-gen2 User manual

pg. 1

AVProEdge ~ 2222 E 52nd Street N. Sioux Falls, SD 57104 ~ 1.877.886.5112 ~ +1.605.274.6055 ~

User Manual

AC-DA12-AUHD-GEN2

A full 4K60 4:4:4 (Up to 18GBPS)

Distribution Amplifier with advanced EDID

management

AC-DA12-AUHD-GEN2

NEW TO GEN2

AC-DA12-AUHD

Introduction

The AC-DA12-AUHD is an 18GBPS, full bandwidth HDMI2.0a

(HDR) with HDCP2.2 two-way HDMI splitter. Functionally,

distributes the input HDMI signal to four identical HDMI outputs.

These four outputs are synchronized.

AC-DA12-AUHD has the ability of pre-emphasis and equalization.

Multiple cascaded AC-DA12-AUHD achieves long distance transmission

of HDMI signal of more than 15 meters even in 4K (HDR) resolution.

The outstanding and proprietary clock jitter cleaner enable this splitter

to out preform the competition when in cascading mode no matter the

signal is 4K or 1080P.

AC-DA12-AUHD offers solutions for usage as a component of digital

HDMI distributions and entertainment systems also UHDTV/4K retail

and general show sites. Use in conjunction with UHDTV, UHD

Projector, STB, UHD-BD, UHD Media Player and in environment

where noise, space and security are concerns. Fits perfectly in data

center control rooms, information distribution premises, conference

and presentation rooms, school educational facilities and corporate

training environments.

pg. 2

AVProEdge ~ 2222 E 52nd Street N. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~

support@avproedge.com

pg. 3

AVProEdge ~ 2222 E 52nd Street N. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~

Contents)

HDMI Splitter .................................................................. 2

Product Overview ............................................................ 4

Features ......................................................................... 4

Package Contents ............................................................. 6

Connections and Operations ............................................ 6

Specifications .................................................................. 7

Panel Descriptions ...........................................................8-9

Typical Application ............................................................6

Control/ISP/Commands.................................................. ..12-13

Product Service ...............................................................14

Mail-In Service ................................................................ 14

Warranty .........................................................................15

Warranty Limits And Exclusions ........................................... 15

AC-DA12-AUHD

EDID Management..........................................................10-11

Cascade Mode.................................................................. 11

Scaler Settings.................................................................12

Maintenance ................................................................... 14

Full 4K 60 (4:4:4) HDMI Splitter & Distribution Amplifier

■Product Overview (Model Number: AC-DA12-AUHD)

■Features

lEasy to Use: Install in seconds, no need for setting.

lDistribution: One HDMI input, two identical HDMI outputs.

lSupports up to 18GBPS with resolutions of 4K60(YUV444), 4K30, 1080p,

1080i, 720p and other standard Video formats, PAL and NTSC.

lCustomer can configure EDID function to enable the best compatibility.

lSupports HDCP2.2

l4k-->1080P Downscaler

lHDMI 2.0(a) w/ HDR.

lMounting ears are included for easy fixation on wall, furniture or ceiling.

?Notice

AVProEdge reserves the right to make changes in the hardware,

packaging and any accompanying documentation without prior written

notice.

pg. 4

AVProEdge ~2222 E 52nd Street Ne. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~

support@avproedge.com

AC-DA12-AUHD

pg. 5

AVProEdge ~2222 E 52nd Street Ne. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~

support@avproedge.com

Warning

To reduce the risk of fire, electric shock or product damage:

1. Do not expose this apparatus to

rain, moisture, dripping or

splashing and that no objects

filled with liquids, such as vases,

shall be placed on the apparatus.

6. Clean this apparatus

only with dry cloth.

2. Do not install or place this unit

in a bookcase, built-in cabinet or

in another confined space.

Ensure the unit is well ventilated.

3. To preve nt risk of elec t ric

shock or fire hazard due to

overheating, do not obstruct

the unit’s ventilation openings

with newspapers, tablecloths,

curtains, and similar items.

4. Do not install near any heat

sources such as radiators, heat

registers, stoves, or other

apparatus (including amplifiers)

that produce heat.

5. Do not place sources of naked

flames, such as lighted candles,

on the unit.

7. Unplug this apparatus

during lightning storms or

when unused for long

periods of time.

8. Protect the power cord

from being walked on or

pinched particularly at

plugs.

9. Only use attachments

/ accessories specified

by the manufacturer.

10. Refer all servicing to

qualified service

personnel.

AC-DA12-AUHD)

pg. 6

AVProEdge ~2222 E 52nd Street Ne. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~

support@avproedge.com

Package Contents

Main unit. P/N: AC-DA12-AUHD

5VDC Power Supply.

Operating Instructions. (Digital @ www.avproedge.com)

Mounting Ears

■

Connections and Operations

1) Connect the HDMI input source into AC-DA12-AUHD

2) Connect the HDMI output equipment (Displays) into AC-DA12-AUHD

3) Insert the DC side of 5v power supply into AC-DA12-AUHD and then

connect the AC side of the Power supply into the wall outlet.

4) Plugging in the unit automatically powers up the device.

&NOTE: Insert / Extract cables gently.

AC-DA12-AUHD

pg. 7

AVProEdge ~2222 E 52nd Street Ne. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~

support@avproedge.com

■

Specifications

Operating Temperature Range -5 to +35°C (-41 to +95 °F)

Operating Humidity Range 5 to 90 % RH (no condensation)

Video Amplifier Bandwidth Up to 18.0 GBPS

Input Video Signal 0.5-1.0 volts p-p

Input DDC Signal 5 volts p-p (TTL)

HDCP version HDCP2.2 /HDCP1.4

Maximum Format Support 4K60Hz 4:4:4 / 8K24Hz 4:2:0

Other Video Formats

Supported

VESA: 640x480, 800x600, 1024x768,

1280x1024, 1600x1200, 1920x1200 DTV/

HDTV:

480i/576i/480p/576p/720p/1080i/1080p /

4K

Output Video HDMI 2.0, HDCP 2.2, HDR Compatible

Power Consumption 6 Watts (max.)

Power Supply 5V DC/2A

Dimensions 150mm (W) x 81mm (H) x 25mm (D)

Mass 0.5 KGS

AC-DA12-AUHD

pg. 8

AVProEdge ~2222 E 52nd Street Ne. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~

support@avproedge.com

■

Panel Descriptions

Front Panel

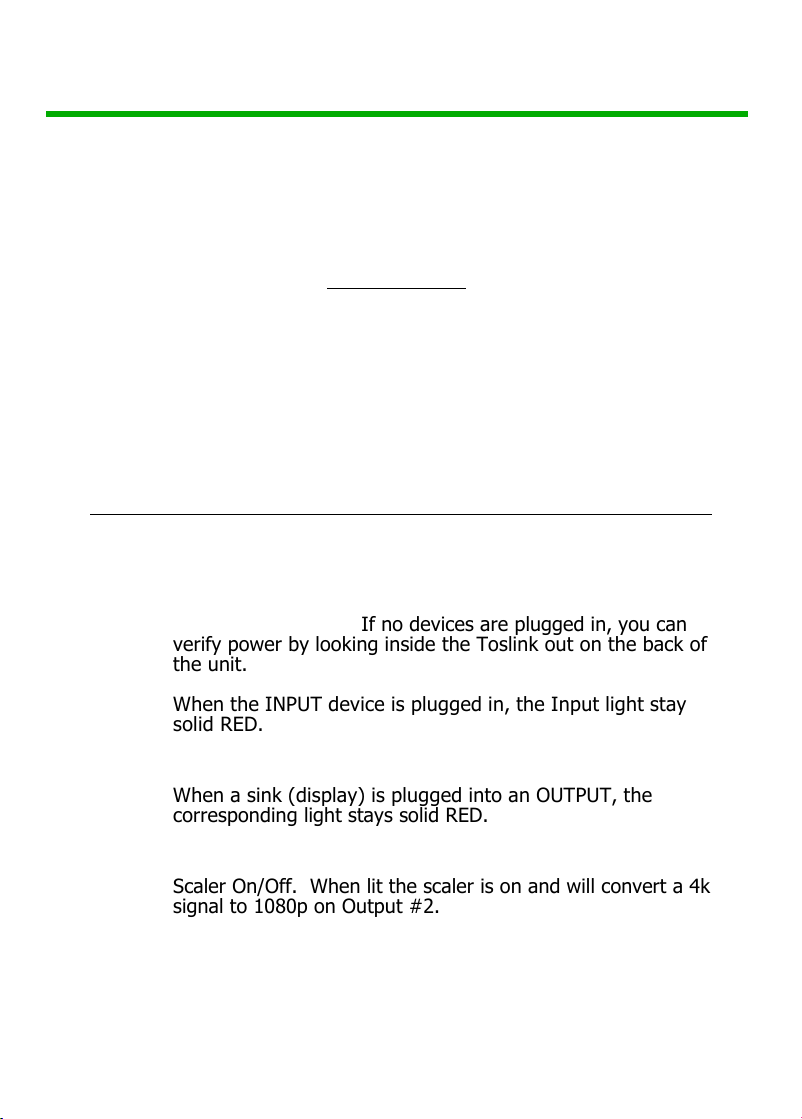

Activity Display (Front):

a) When Power is applied all lights flash RED and the machine

begins to function. If no devices are plugged in, you can

verify power by looking inside the Toslink out on the back of

the unit.

b) When the INPUT device is plugged in, the Input light stay

solid RED.

c) When a sink (display) is plugged into an OUTPUT, the

corresponding light stays solid RED.

d) Scaler On/Off. When lit the scaler is on and will convert a 4k

signal to 1080p on Output #2.

AC-DA12-AUHD

pg. 9

AVProEdge ~2222 E 52nd Street Ne. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~

support@avproedge.com

Back Panel

·Power input.

·HDMI input.

·HDMI outputs (x2)

·Optical Toslink Out

Device Top Cover

Device cover is labeled for Scaler Settings.

And for easy HDMI port recognition especially useful when

Mounting Ears are used for fixation.

&NOTE: DIP Switch EDID setting index on next page.

AC-DA12-AUHD

pg. 10

AVProEdge ~ 2222 E 52nd Street N. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~

support@avproedge.com

EDID Settings: The 5 DIP switches are located on the side of the device,

and each switch has two settings, 0 & 1 (UP=0, DOWN=1). The default

mode is “00000” which is all up, in this mode the device copies the EDID

from the sink (display) plugged into OUTPUT 1. Custom EDID setting

below.

EDID DIP Settings:

00000: EDID COPY (See NOTE 1)

00001: 1080P_2CH(PCM)

00010: 1080P_6CH

00011: 1080P_8CH

00100: 1080P_3D_2CH(PCM)

00101: 1080P_3D_6CH

00110: 1080P_3D_8CH

00111: 4K30Hz_3D_2CH(PCM)

01000: 4K30Hz_3D_6CH

01001: 4K30Hz_3D_8CH

01010: 4K60Hz(Y420)_3D_2CH(PCM)

01011: 4K60Hz(Y420)_3D_6CH

01100: 4K60Hz(Y420)_3D_8CH

11001: 4K60Hz(Y420)_3D_2CH(PCM)_HDR

11010: 4K60Hz(Y420)_3D_6CH_HDR

11011: 4K60Hz(Y420)_3D_8CH_HDR

01101: 4K60Hz_3D_2CH(PCM)

01110: 4K60Hz_3D_6CH

01111: 4K60Hz_3D_8CH

10000: 1080P_2CH(PCM)_HDR

10001: 1080P_6CH_HDR

10010: 1080P_8CH_HDR

10011: 1080P_3D_2CH(PCM)_HDR

10100: 1080P_3D_6CH_HDR

10101: 1080P_3D_8CH_HDR

10110: 4K30Hz_3D_2CH(PCM)_HDR

10111: 4K30Hz_3D_6CH_HDR

11000: 4K30Hz_3D_8CH_HDR

11100: 4K60Hz_3D_2CH(PCM)_HDR

11101: 4K60Hz_3D_6CH_HDR

11110: 4K60Hz_3D_8CH_HDR

11111: Cascading Mode (See NOTE 2)

AC-DA12-AUHD

pg. 11

AVProEdge ~ 2222 E 52nd Street N. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~

support@avproedge.com

EDID Setting (Notes):

Note1: EDID Copy mode: EDID will be copied from sink on OUTPUT

1. The AC-DA12-AUHD is set this way by default for maximum

“Plug & Play” Compatibility. If you change sink (Display) plugged

into OUTPUT 1, please follow the steps below if you wish to use the

new sink’s EDID.

1. Start with power off

2. Set DIP to ‘00000’ (all up).

3. Power on the unit

4. Power on the source device and connect the HDMI input

port.

Note2: Cascading mode (Ideal for larger installations) Cascade

mode does not react to the EDID from the sink device. It

sends the signal that you put in, out. This is ideal for linking

multiple units together. The method below is an ideal way to

use this function effectively.

AC-DA12-AUHD

To use cascading mode:

1. Start with power off

2. Fix an EDID on the FIRST unit in the series from the

list above (4K60, 4K30, 1080P, etc…)

3. Set the DIP on all subsequent units to “11111” (all

down).

4. Connect the source device

5. Power up the system

AC-DA12-AUHD

pg. 12

AVProEdge ~ 2222 E 52nd Street Ne. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~

support@avproedge.com

To use Scaler:

1. Press the SCALER Button to toggle on/off

2. Red LED On, then the scaler is on.

3. Scaler On - Downscales 4k to 1080p on output #2

4. Scaler light Off - No Scaling

CTRL/ISP

1. Micro USB Port for firmware and control.

2. Command list on Page 13.

For CTRL, use a Micro to USB cable and set the serial

communications to: 57600,n,8,1 (baud: 57600, no parity, 8

data bits and 1 stop bit) with no handshaking.

AC-DA12-AUHD

pg. 13

AVProEdge ~ 2222 E 52nd Street N ~ Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~

support@avproedge.com

•Use the power supplies provided. If an alternate supply is required,

check voltage, polarity and that it has sufficient power to supply the

device it is connected to.

•Do not operate these products outside the specified temperature

and humidity range given in the above specifications.

•Ensure there is adequate ventilation to allow this product to operate

efficiently.

•Repair of the equipment should only be carried out by qualified

professionals as these products contain sensitive components that

may be damaged by any mistreatment.

•Only use this product in a dry environment. Do not allow any liquids

or harmful chemicals to come into contact with these products.

•Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner

or benzene to clean this unit.

Maintenance

To ensure reliable operation of this product as well as protecting the

safety of any person using or handling this device while powered, please

observe the following instructions.

pg. 14

AVProEdge ~ 2222 E 52nd Street N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com

•The DC power supply cord or AC adaptor has been damaged

•Objects or liquids have gotten into the unit

•The unit has been exposed to rain

•The unit does not operate normally or exhibits a marked change in

performance

•The unit has been dropped or the housing damaged

Damage Requiring Service

The unit should be serviced by qualified service personnel if:

Support

Should you experience any problems while using this product, first, refer to the

Troubleshooting section of this manual before contacting Technical Support.

When calling, the following information should be provided:

pg. 15

AVProEdge ~ 2222 E 52nd Street N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com

•Product name and model number

•Product serial number

•Details of the issue and any conditions under which the issue is

occurring

Warranty

If your product does not work properly because of a defect in materials or

workmanship, AVProEdge (referred to as “the warrantor”) will, for the length

of the period indicated as below, (Parts/Labor (10) Years), which starts with

the date of original purchase (“Limited Warranty period”), at its option either

(a) repair your product with new or refurbished parts, or (b) replace it with a

new or a refurbished product. The decision to repair or replace will be made

by the warrantor. During the “Labor” Limited Warranty period there will be no

charge for labor. During the “Parts” warranty period, there will be no charge

for parts. You must mail-in your product during the warranty period. This

Limited Warranty is extended only to the original purchaser and only covers

product purchased as new. A purchase receipt or other proof of original

purchase date is required for Limited Warranty service.

This warranty extends to products purchased directly from AVPro or an

authorized dealer. AVPro is not liable to honor this warranty if the product has

been used in any application other than that for which it was intended, has

been subjected to misuse, accidental damage, modification or improper

installation procedures, unauthorized repairs or is outside of the warranty

period. Please direct any questions or issues you may have to your local dealer

before contacting AVPro.

_____________________________________________

pg. 16

AVProEdge ~ 2222 E 52nd Street N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com

_____________________________________________

pg. 17

AVProEdge ~ 2222 E 52nd Street N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com

AVProEdge

3518 N Casco Avenue ~ Sioux Falls, SD 57104

1-877-886-5112 ~ 605-274-6055

support@avproedge.com

Thank you for choosing AVProEdge!

Please contact us with any questions. We are happy

to be of service!

pg. 18

AVProEdge ~ 2222 E 52nd Street N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com

AVPro Edge AC-DA12-AUHD-GEN2 User manual

Popular Cables And Connectors manuals by other brands
