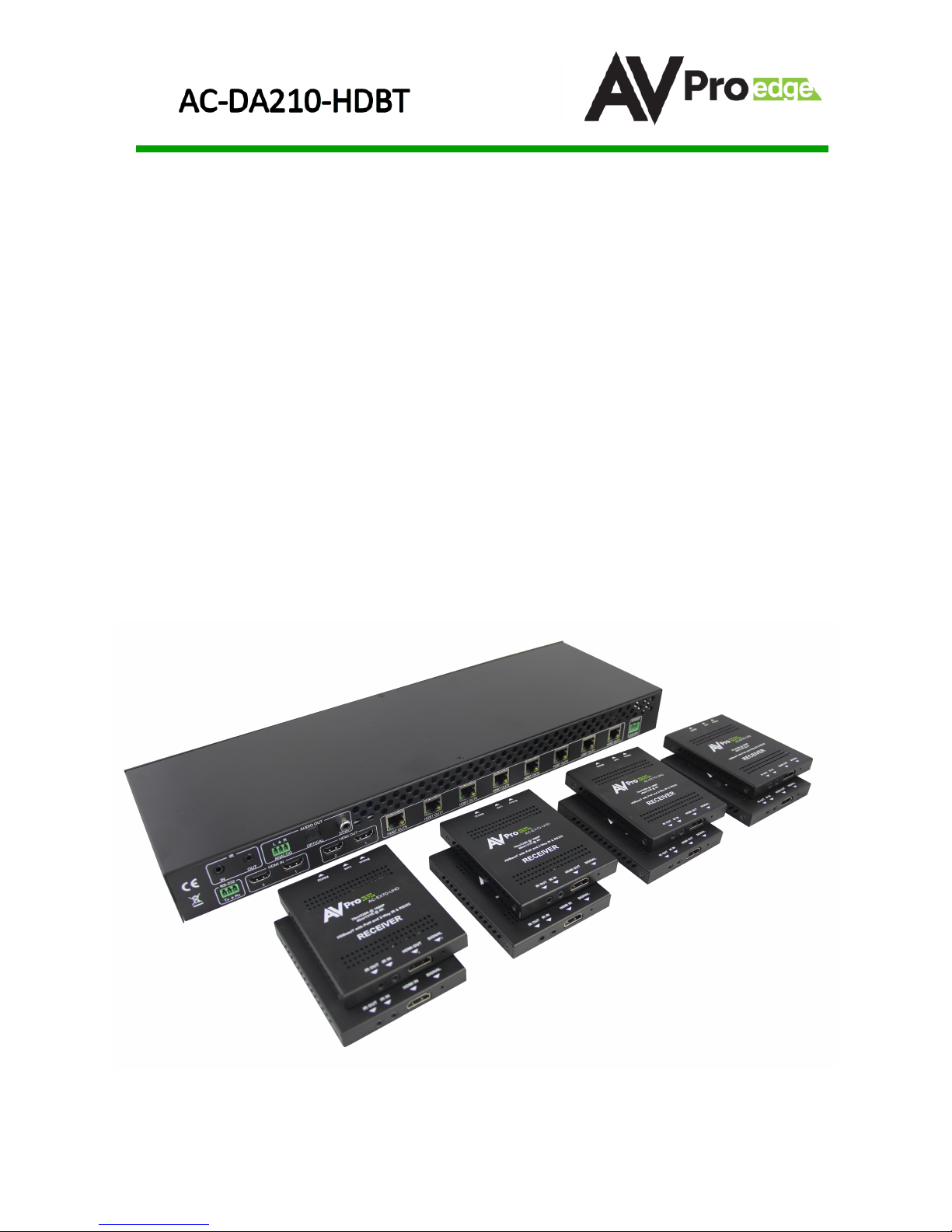

AVPro Edge AC-DA210-HDBT User manual

©AVProEdge | 2222 E 52nd Street N Sioux Falls, SD 57104 1.877.886.5112 | +1.605.274.6055
1
AC-DA210-HDBT
HDBaseT 2-8-2 splitter with Audio De-Embedding, EDID
Management, and switchable inputs.
Operation Manual

©AVProEdge | 2222 E 52nd Street N Sioux Falls, SD 57104 1.877.886.5112 | +1.605.274.6055
2
Revision History
VERSION NO.
DATE DD/MM/YY
SUMMARY OF CHANGES
RDV1
08/10/16
Preliminary Release
RDV2
Prior market Launch
RDV3
Final Version v1.0
Content
1. Introduction-----------------------------------------------------3
2. Product overview---------------------------------------------3
3. Application------------------------------------------------------4
4. Features ----------------------------------------------------------5
5. Specification----------------------------------------------------5
6. Package Contents--------------------------------------------6
7. EDID Management--------------------------------------------6
8. Operation Controls and Functions----------------------6-7
9. Audio---------------------------------------------------------------8
10. IR Routing------------------------------------------------------8
11. RS-232 Control------------------------------------------------9
12. Maintenance, Service, Cleaning and Warranty--10-11
13. Contact information ---------------------------------------12

©AVProEdge | 2222 E 52nd Street N Sioux Falls, SD 57104 1.877.886.5112 | +1.605.274.6055
3
1. Introduction
The AC-DA210-HDBT is a 2 HDMI in, 8 HDBaseT out + 2 HDMI local output
switch splitter. This switch splitter allows any source (Blu-ray, UHD Blu-ray,
satellite receiver, game consoles, PCs, etc...) to be shown on any of the
connected displays.
IR input is routed to all of the HDBaseT output for controlling remote TV set. IR signal
from HDBaseT can control Switch splitter to switch the source or control the source
device from the IR out. RS232 signal also routed to all HDBaseT device.
Two local HDMI output can be used to output to local monitor or cascade
more AC-DA210-HDBT to set up big system.
There are 3 audio outputs for different requirements in field of application.
They are analog L/R, Toslink and coaxial S/PDIF.
2. Product overview

©AVProEdge | 2222 E 52nd Street N Sioux Falls, SD 57104 1.877.886.5112 | +1.605.274.6055
4

©AVProEdge | 2222 E 52nd Street N Sioux Falls, SD 57104 1.877.886.5112 | +1.605.274.6055
5
3. Features
• Advanced Equalization and amplification of outputs for smooth
switching
• 2 HDMI inputs, In2 supports HDCP2.2.
• Advanced EDIDManagement
• Support HDMI 2.0 4K60 4:2:0
• IR, RS-232 Control Options
• Digital Toslink Out
• L/R Analog Out
• Digital S/PDIF Out
• Good little clear circuit ensure the cascading capability
4. Specifications
Product
AC-DA210-HDBT
Input port
Two HDMI input
Out port
8 HDBaseT output + 2 HDMI output
HDMI Version
HDMI2.0(4K60YUV422)/DVI
HDCP
In1 HDCP1.x, In2 HDCP2.2/1.x
Video Bandwidth
Up to 9.0GHz(3.0GHz per channel)
Color Depth
24bits,30bits,36 bits,48bits
Audio de-embedded
Analog L/R, Toslink optical, Coaxial S/PDIF
EDID
11 embedded EDID,3 user EDID or Copy from
any out port
POH
Controlable 48V POH
Power Consumption
(max.)
26 Watts (not include about 5 Watts for every
HDBT receiver)
Housing
Metal
Dimension (mm)
438mmx138mmx43.6mm
Weight (g)
2.11 Kg

©AVProEdge | 2222 E 52nd Street N Sioux Falls, SD 57104 1.877.886.5112 | +1.605.274.6055
6
5. Package contents:
1. Main unit: AC-DA210-HDBT
2. 48V2A power supply for powering AC-DA210-HDBT
6. Operation controls:
Switching:
The AC-DA210-HDBT can be switched from the front panel by pressing the “Input”
button. This switches back and forth from Input 1 and Input 2
EDID management:
1. Pressing and holding the button for more than 3 seconds will enter an EDID
management mode.
2. When in EDID management mode the HDMI out LED’s 1&2 will be flickering.
3. HDBT out LED’s 1 through 5 are used to identify the EDID setting.
4. Press the button to cycle through the available EDID’s
5. Press and hold for 3 seconds again to set the selected EDID
a) If all LED’s light up it is successful, and press the button once more to return to
normal operating mode.
b) If all LED’s are flickering, the setting failed. Press the button to resume normal
operating mode and try again.
6. The table below (Page 7) shows the different EDID options.

©AVProEdge | 2222 E 52nd Street N Sioux Falls, SD 57104 1.877.886.5112 | +1.605.274.6055
7

©AVProEdge | 2222 E 52nd Street N Sioux Falls, SD 57104 1.877.886.5112 | +1.605.274.6055
8
Audio:
The extracted audio is always active by default, you may simply plug into any/all of
the ports (Toslink, SPDIF, 2CH) and the audio will be output based on the active source.
Additional audio commands can be sent by RS-232.
IR Routing:
IR can be routed in three ways
1. To the remote (HDBaseT Receiver) end by inserting an IR Receiving Eye
into the IR In port on the AC-DA210-HDBT.
2. Back out of the IR Out port on the AC-DA210-HDBT by placing an IR
Receiving Eye in the AC-EX70-UHD Receiver’s IR In port
3. Directly from a control system using a cable as designed below.

©AVProEdge | 2222 E 52nd Street N Sioux Falls, SD 57104 1.877.886.5112 | +1.605.274.6055
9
RS-232 Control:
You may also control or configure the AC-DA210-HDBT with RS232.
RS232 setting:
Baudrate: 57600 Parity: None DataBit: 8 StopBit: 1

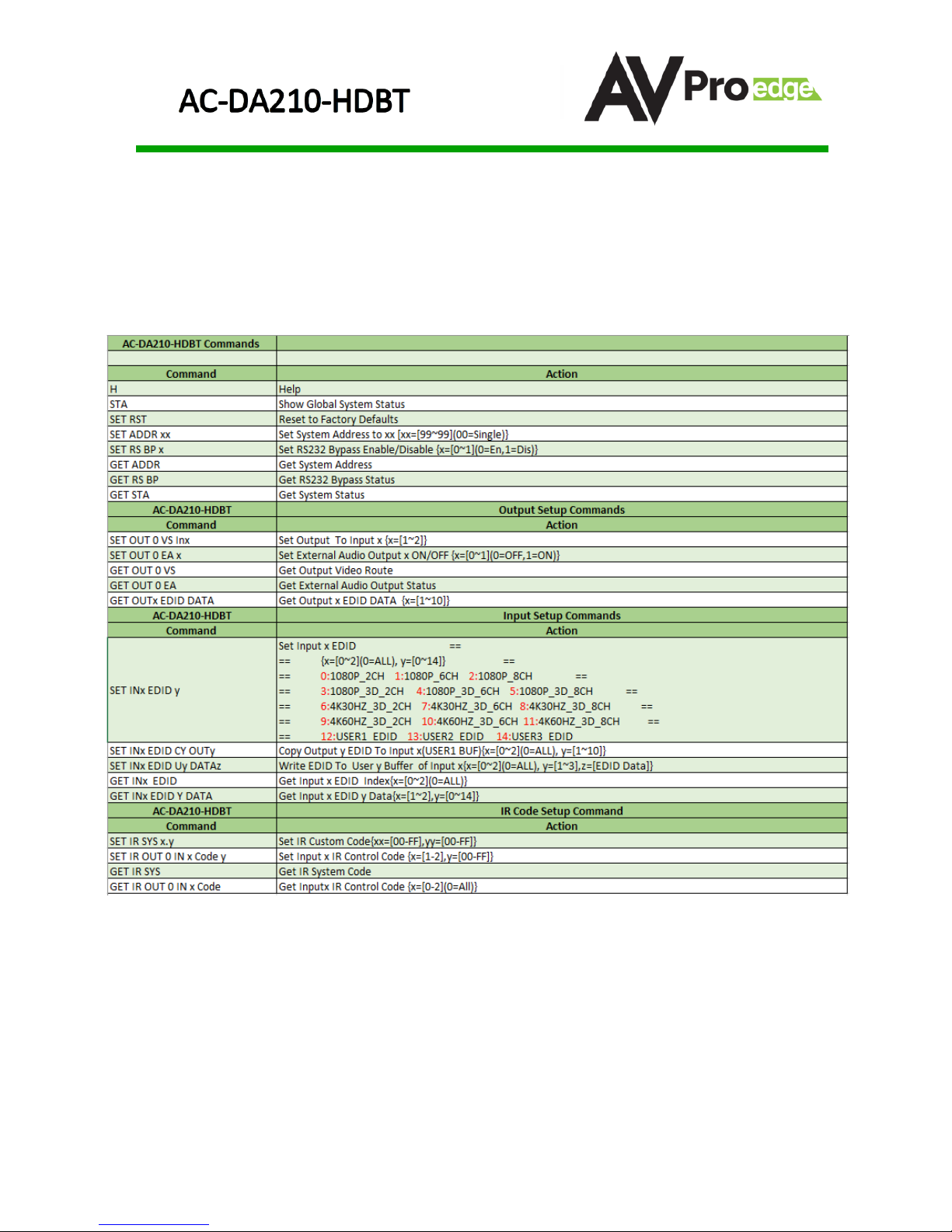

The available commands are as follows:

•Use the power supplies provided. If an alternate supply is required, check
voltage, polarity and that it has sufficient power to supply the device it is
connected to.
•Do not operate these products outside the specified temperature and
humidity range given in the above specifications.
•Ensure there is adequate ventilation to allow this product to operate
efficiently.
•Repair of the equipment should only be carried out by qualified
professionals as these products contain sensitive components that may be
damaged by any mistreatment.
•Only use this product in a dry environment. Do not allow any liquids or
harmful chemicals to come into contact with these products.
•Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or
benzene to clean this unit.
Maintenance & Support
To ensure reliable operation of this product as well as protecting the safety
of any person using or handling this device while powered, please observe
the following instructions.
•The DC power supply cord or AC adaptor has been damaged
•Objects or liquids have gotten into the unit
•The unit has been exposed to rain
•The unit does not operate normally or exhibits a marked change in
performance
•The unit has been dropped or the housing damaged
Damage Requiring Service
The unit should be serviced by qualified service personnel if:
©AVProEdge | 2222 E 52nd Street N Sioux Falls, SD 57104 1.877.886.5112 | +1.605.274.6055
10

©AVProEdge | 2222 E 52nd Street N Sioux Falls, SD 57104 1.877.886.5112 | +1.605.274.6055
11
Support
Should you experience any problems while using this product, first, refer to the
Troubleshooting section of this manual before contacting Technical Support. When
calling, the following information should be provided:
•Product name and model number
•Product serial number
•Details of the issue and any conditions under which the issue is occurring
Warranty
If your product does not work properly because of a defect in materials or
workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the
period indicated as below, (Parts/Labor (10) Years), which starts with the date of
original purchase (“Limited Warranty period”), at its option either (a) repair your
product with new or refurbished parts, or (b) replace it with a new or a refurbished
product. The decision to repair or replace will be made by the warrantor. During the
“Labor” Limited Warranty period there will be no charge for labor. During the “Parts”
warranty period, there will be no charge for parts. You must mail-in your product
during the warranty period. This Limited Warranty is extended only to the original
purchaser and only covers product purchased as new. A purchase receipt or other
proof of original purchase date is required for Limited Warranty service.
This warranty extends to products purchased directly from AVPro or an authorized
dealer. AVPro is not liable to honor this warranty if the product has been used in any
application other than that for which it was intended, has been subjected to misuse,
accidental damage, modification or improper installation procedures, unauthorized
repairs or is outside of the warranty period. Please direct any questions or issues you
may have to your local dealer before contacting AVPro.

AVProEdge
2222 E 52nd Street N ~ Sioux Falls, SD 57104
1-877-886-5112 ~ 605-274-6055
[e-mail]
Thank you for choosing AVProEdge!
Please contact us with any questions.
We are happy to be of service!
