AVProConnect AC-MX88-AUHD-GEN2 User manual

AC-MX88/44-AUHD
pg. 1
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
User Manual
AC-MX88-AUHD-GEN2
&
AC-MX44-AUHD
18 Gbps True 4K60 4:4:4 8 x 8 HDMI Matrix w/
Dual Audio De-Embedding, Scaling &
Delay.

AC-MX88/44-AUHD
pg. 2
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
The AC-MX88/44-AUHD is a true 4K60 4:4:4 8x8/4x4 HDMI matrix switch. Supporting HDMI 2.0, HDCP 2.2, HDR and
up to 18 Gbps bandwidth. This switch allows any source (Blu-ray, UHD Blu-ray, satellite receiver, game consoles,
PCs, etc...) to be shown on any of the connected displays.
Audio Delay is “On-Board” so lip-sync issues are able to be managed before they become a problem. Also, with built-in scalers
there is no need to forfeit 4K signals just because there are a couple of older displays. Additionally, full EDID
management allows maximum flexibility with today's wide mixture of sources and displays.
This matrix equalizes and amplifies the output to ensure that HDMI signals can be transmitted through long HDMI
cables without loss of quality. For long runs, stretch your distance further with the AC-EX70-UHD or AC-EX40-444
HDMI Extenders.
This is an ideal solution for digital entertainment centers, HDTV retail, show sites, data centers,
schools, conference and training centers and more!
Features:
• Advanced equalization and amplification
of outputs for smooth switching
• 1080p > 4K & 4K > 1080p Up /Down
Scalers on each output
• Advanced EDID Management
• HDMI 2.0
• 4K60 4:4:4 Support
• Full HDR Support
• HDCP 2.2
• IR, RS-232 and LAN Control Options
• Digital Toslink Out
• Balanced Analog Out
• Audio Delay for Digital & Analog Out
• Extracted Audio Matrixing
Easy to use:
 Install in seconds
 Feature rich
 Powerful EDID management
 Front Panel Control
 IR Remote
 IR & RS-232 Control
 LAN Control
In The Box:
• AC-MX88-AUHD-GEN2/AC-
MX44-AUHD Matrix Switch
• IR Remote Control
• IR Extension Cable
• 12V/4A Locking Power Supply
• RS-232 Control Cable
• Instruction Manual
Quick Installation:
1. Connect the HDMI input sources (Blu-ray, Set Top Box, etc...) to the AC-MX88-AUHD-GEN2/AC-MX44-
AUHD.
2. Connect the HDMI output devices (AVR, Display, Distribution Amplifier, Extender) to the AC-MX88-
AUHD-GEN2/AC-MX44-AUHD.
3. Power on the sources.
4. Connect the power supply into the AC-MX88-AUHD-GEN2/AC-MX44-AUHD.
5. Turn on output devices/displays.
6. Use the front panel controls, supplied IR remote or free PC software to control the switch.

AC-MX88/44-AUHD
pg. 3
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
Device Overview:
•Definition - Matrix switches provide the ability to route any input to any output or to multiple outputs at any time.
Depending on the model, a matrix switch can route HD, UHD or AUHD content in this manner. Additionally, since
most venues have both, audio zones and video zones, the requirement to breakout or strip off the audio is often
necessary and has become almost a standard feature on most matrix switches.
•Control – Matrix switches are generally controlled via a third-party controller (like Control 4, RTI, Crestron, etc...).
Many integrators want ready-made drivers for their control system in order to make programming and
deployment easier.
•Matrix Switches are widely used in both, Commercial and Residential Applications.

AC-MX88/44-AUHD
pg. 4
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]

AC-MX88/44-AUHD
Full List of Quick Commands From Front Panel:
NOTE: A factory reset may be performed by pressing and holding 4 buttons together for 10 seconds. Press and hold:
•HD-->4K (Scaler Settings)
•4K-->HD (Scaler Settings)
•MUTE (Audio Delay Settings)
•BYPASS (Audio Delay Settings)
pg. 5
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]

AC-MX88/44-AUHD
pg. 6
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
Front Panel Control
Switching:
The AC-MX88-AUHD-GEN2/AC-MX44-AUHD can be switched from the front panel by selecting the OUTPUT
button first and then selecting the INPUT button:
1. Press the button (1 through 8) on the bottom row that corresponds with the OUTPUT (Display, or Sink
Device) you would like to send to a source.
2. Once pressed, the switch will illuminate the OUTPUT button that you have selected, along with the
INPUT row (as pictured), indicating that it is ready for you to select the INPUT.
3. Select the desired INPUT.
Figure 1 –Switching with the front panel controls. NOTE: Select the OUTPUT and then the INPUT.
Scaler Control:
The AC-MX88-AUHD-GEN2/AC-MX44-AUHD has scalers built into every output. The scalers are set on
the OUTPUT side of the switch and each can have separate settings. Control the scaler in four ways:
• HD-4K (Scales 1080P to 2160P)
• 4K-HD (Scales 2160P to 1080P)
• AUTO (Automatically detects capabilities of attached display)
• BYPASS (There will be no scaling set)
*NOTE: There is additional control when using the web interface. Also, with LAN control, you
can set HDBT-C mode, which reduces 10-18Gbps content to 9Gbps for legacy infrastructures.
This mode maintains 4K resolution, but removes HDR.

AC-MX88/44-AUHD
pg. 7
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
Audio Binding Setup:
The AC-MX88/44-AUHD can be configured to extract audio in 3 ways:
•Bind to OUTPUT (Default)
•Bind to INPUT
•Matrix
To Set:
1. Press and hold (3 sec) BYPASS from the audio settings (top right of
machine).
2. Toggle selection by pressing the "UP" and "DOWN" buttons, which are now
lit up.
3. Once a desired selection is found, quick press the BYPASS button again.
Audio Matrix Control:
Once in "Matrix" mode for audio, the extracted audio routing on the AC-MX88-AUHD-GEN2/AC-MX44-
AUHD can be controlled from the front panel:
To Control:
1. Press and hold (3 sec) BYPASS button from the audio settings (top right of machine).
2. Make sure the screen says "Matrix" and quick press the BYPASS button again in order
to enter the AUDIO MATRIX.
3. Press the desired extracted audio OUTPUT.
4. Press the INPUT for the desired audio source.
5. Quick press BYPASS button again to exit audio matrix .

AC-MX88/44-AUHD
pg. 8
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
Audio Delay Control:

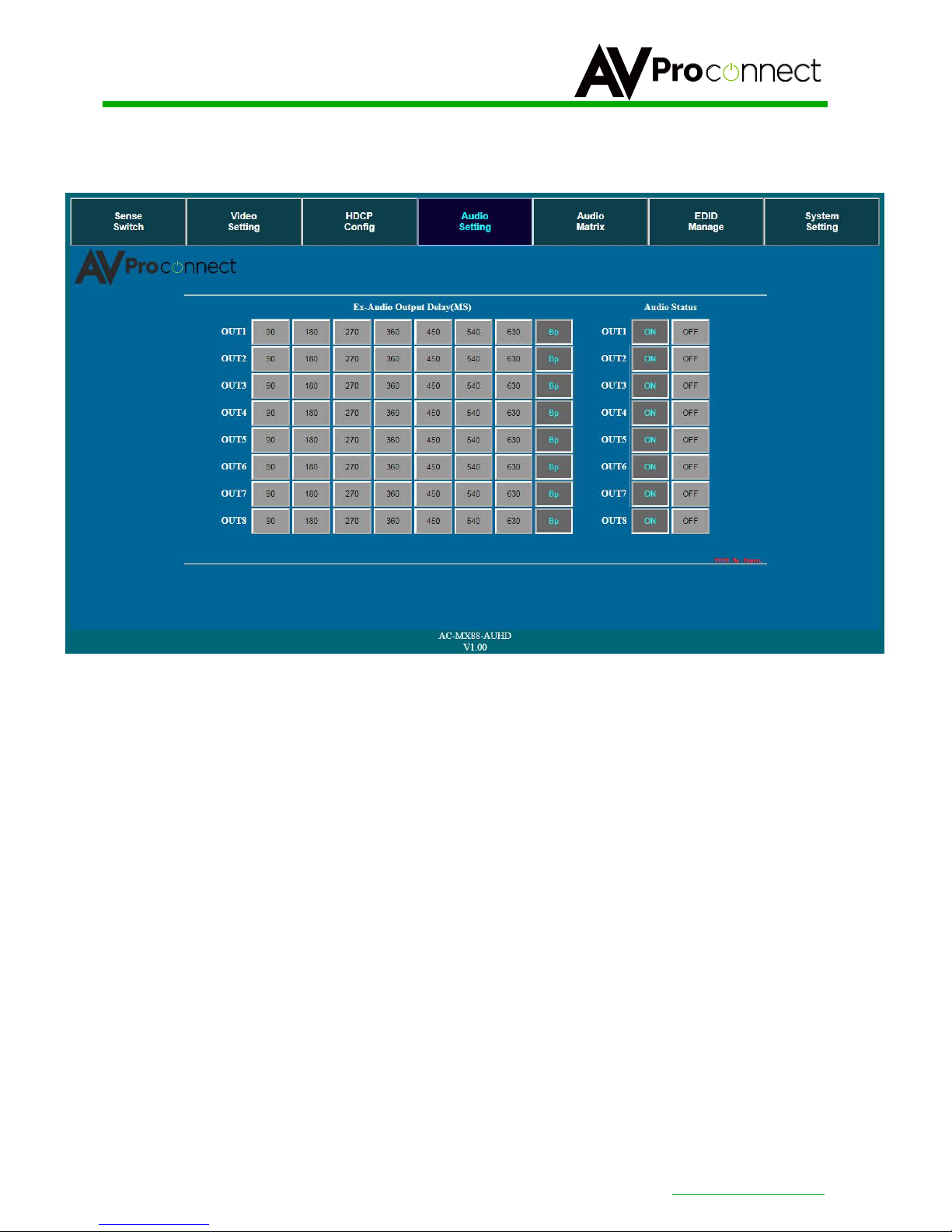

The AC-MX88/44-AUHD has an Audio Delay feature built-in. Audio Delay is set on the extracted audio
OUTPUT (Digital and Analog) of the switch and each can have separate settings. The Audio Delay has
4 controls:
• UP (Increase Delay)
• Down (Decrease Delay)
• MUTE (The audio will be muted)
• BYPASS (There will be no delay set)
*Delay settings are in increments of 90 milliseconds. Settings are: 90MS, 180MS, 270MS, 360MS,
450MS, 540MS or 630MS.
Control this feature from the front panel:
1. Press and hold the OUTPUT number for which you want to delay the audio.
2. The available options will light up (as pictured).
3. Press UP, DOWN, MUTE or BYPASS to control the delay.
4. The current setting will be indicated on the LCD screen.
Audio Output Logic and Cable Prep:
You can extract audio from toslink or balance 2CH Audio. Audio outputs are an un-decoded output. This
means that what goes in, is what goes out.
2CH Balanced Audio Port - Supports 2CH PCM audio only, which is ideal for 2 Channel systems and zoned
audio systems.
Toslink Audio Port - Supports PCM, LPCM (up to 7CH), Dolby Digital, Dolby Digital Plus, DTS, DTS-HD, DTS
Master Audio, which is ideal for multi-channel audio systems and older AVR's that do not support 18Gbps.
Need to down-mix for combination, uncompressed and 2CH systems? Check out the AC-ADM-AUHD and
AC-ADM-COTO.
You can use balanced analog outputs in a balanced system, but you can also prep a cable as shown below to
convert to a traditional 2CH unbalanced (L/R) system. You can also purchase pre-made cables (AC-
CABLE-5PIN-2CH) at www.avproconnect.com.

AC-MX88/44-AUHD
pg. 9
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
•Invalid/incorrect EDID coming from display. When Cascade Mode is ON, EDID is managed at
the switch and down stream EDID will be completely ignored.
•If you have a display or projector that has difficulty changing between resolution or in and
out of HDR, Cascade Mode can stabilize the project.
•Any flashing and instability from devices in the system when running one or more outputs
into additional peripherals before the display
Since sync time will increase slightly, we recommend you ONLY use cascade mode if you have
exhausted all other troubleshooting options.
To toggle Cascade Mode press and hold (3 seconds) INPUT 1 and INPUT 2 at the same time. When
Cas
cade Mode is enabled you will see this:
Audio Wiring Diagram:
Cascade Mode:
Cascade Mode ignores hot plug all together. This is designed to make connections smoother when
connecting into many repeater devices like AVRs, DA's, Splitters, etc. Cascade mode can also be use to
help solve common issues. It is a good thing to try if you are having sync issues. Some of the issues
resolved by Cascade Mode:

AC-MX88/44-AUHD
pg. 10
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
EDID Management:
This matrix has 29 factory defined EDID settings. It also has 3 user defined EDID memories. The user EDID
memories are independent to each input and can be set differently. The user defined EDID can be uploaded using
the free PC Control software or RS-232. In addition, you can choose to read the EDID from the desired output and
the captured EDID will automatically store and overwrite the EDID in "USER EDID 1" and will be applied to the
selected source.
By default, the matrix is set to a 1080P EDID, this is to maximize plug and play capability. When using 4K sources,
you will want to define a 4K EDID on each input (or read from the display).
To Change the EDID setting:
1. Press and hold (for 3 seconds) the INPUT you want to change.
2. The “UP” and “DOWN” button’s will illuminate (
as pictured below), and the LCD will show the
active EDID.
3. Toggle through the EDID options by pressing up or down repeatedly.
4. Press the “INPUT” you had selected in order to apply the EDID (this will still be illuminated).
These are the pre-defined EDID settings that you can toggle through:
0.
1080P_2CH
1. 1080P_6CH
2. 1080P_8CH
3. 1080P_3D_2CH
4. 1080P_3D_6CH
5. 1080P_3D_8CH
6. 4K30HZ_3D_2CH
7. 4K30HZ_3D_6CH
8. 4K30HZ_3D_8CH
9. 4K60HzY420_3D_2CH
10. 4K60HzY420_3D_6CH
11. 4K60HzY420_3D_8CH
12. 4K60HZ_3D_2CH
13. 4K60HZ_3D_6CH
14. 4K60HZ_3D_8CH
15. 1080P_2CH_HDR
16. 1080P_6CH_HDR
17. 1080P_8CH_HDR
18. 1080P_3D_2CH_HDR
19. 1080P_3D_6CH_HDR
20. 1080P_3D_8CH_HDR
21. 4K30HZ_3D_2CH_HDR
22. 4K30HZ_3D_6CH_HDR
23. 4K30HZ_3D_8CH_HDR
24. 4K60HzY420_3D_2CH_HDR
25. 4K60HzY420_3D_6CH_HDR
26. 4K60HzY420_3D_8CH_HDR
27. 4K60HZ_3D_2CH_HDR
28. 4K60HZ_3D_6CH_HDR
29. 4K60HZ_3D_8CH_HDR
30. User EDID 1
31. User EDID 2
32. User EDID 3
*You may also copy EDID from any output and apply to any input, simply select “Copy EDID from Output x” (x=1-8).
This will copy the EDID from the display attached and store it into “User EDID 1” and apply it to the input you have
selected.

AC-MX88/44-AUHD
pg. 11
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
Display IP Data:
In order to see the current IP settings, press and hold (for 3 seconds) INPUT 3 and INPUT 4 buttons simultaneously.
This screen will change every 3 seconds showing additional settings (host, net mask, router IP). NOTE: This screen
always starts with the current IP address of the matrix:
In order to toggle DHCP on and off, press and hold (for 3 seconds) the INPUT 1 and INPUT 4 buttons
simultaneously.
In order to prevent potential IP problems, most IP settings have to be managed in the Free PC Software or by
using RS-232 commands.
NOTE: The default IP address is 192.168.001.239 (as pictured above).
Quick Network Connect to Web Interface:
Use the following steps to quickly and immediately connect to the matrix switch:
1. Connect the LAN port into an active router port.
2. On most networks you can simply type the Default IP address into any web browser. The Default IP Address is
192.168.1.239.
If you are on a closed network or non-standard, the following may work better when using DHCP:
1. Use an Ethernet cable to connect the LAN port on the switch to an unused, active port on the router.
2. Enable DHCP by pressing the INPUT 1 and INPUT 4 buttons simultaneously for 3 seconds.
3. Wait 5 seconds, then press and hold (for 3 seconds) the INPUT 3 and INPUT 4 buttons simultaneously. The
display will show the assigned IP address.
4. Input the IP Address into any web browser.
Setting a Static IP:
•Once connected, you can use the web interface to set a static IP address.
•A static IP can also be set by using the RS-232 software or a direct command (see RS-232 below for more
information).

AC-MX88/44-AUHD
pg. 12
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
Web Interface: Switching
Use this page to switch between inputs and outputs from
the web interface.

AC-MX88/44-AUHD
pg. 13
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
Web Interface: Video Setting
Video Scaler Modes:
With the video scaler mode, you can scale each HDMI output independently
•BP = Bypass - Scaler is disabled (Default)
•2K = 4K --> 2K - If incoming signal is 4K, it will be downscaled to 1080P or 1900x1200 depending on the input format.
•4K = 2K --> 4K - If the incoming signal is 1080P it will be upscaled to 4K.
•HDBT = HDBaseT Compatibility Mode - If incoming 4K signal is above 9Gbps, it can be compressed to fit through
legacy (non-18G) infrastructures. 4K resolution will still come through, but HDR will not.
•AUTO = Auto detect - Scaler will be set based on the connected display's EDID (ie, if the EDID is 1080P the scaler will
be set to 2K).
•W = Weak - Minimum level of enhancement
•M = Medium - Medium level of enhancement
•S = Strong - Strongest setting for image enhancement
•OFF = None - Feature disabled
Output Signal Generator:
The Output Signal Generator will output an internally stored 1080p color bar test
pattern (see the image on the right) to test infrastructure. It can be turned on and
off for each output, but remember to turn it off to resume normal functionality.
Image Enhancement:
The Image Enhancement feature will add extra sharpness to edges in the image. This effect may be desirable for presentations in
corporate or classroom environments. NOTE: Image Enhancement only works when upscaling from 2k to 4k.

AC-MX88/44-AUHD
pg. 14
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
Web Interface: Audio Settings
EX-Audio Delay:
This setting allows the user to change the audio delay to overcome lip-sync issues when using audio separate from HDMI. The
user can choose from the above options in milliseconds. Bp = Bypass or No Delay. Delay can be different per audio output
port.
Audio Status:
This allows the user to turn ON and OFF the extracted audio output. When this is set to OFF the audio is muted from the
extracted port.

AC-MX88/44-AUHD
Web Interface: Audio Matrix
Audio Matrix:
This allows the user to route the audio in a matrix fashion for the extracted audio ports.
NOTE: The Audio Matrix Function only works if "MATRIX" is selected on the right (See next explanation).
Ex-Audio Matrix Mode:
This allows the user to set a binded audio setting or set the extracted audio to Matrix. The options are:
Bind to Input - The extracted audio port is always fixed to a specific input. For example, when a source is plugged into
INPUT 1, OUTPUT 1 will always have the audio signal from INPUT 1. This will happen regardless of which input is
selected for OUTPUT 1.
Bind to Output (Default) - The extracted audio always follows the corresponding HDMI output. For example, in this
mode AUDIO OUT 1 and HDMI OUT 1 are the same (Switched Together).
Matrix - You can set to "Matrix" and it will allow routing of the audio as a separate, stand-alone "Matrix". This allows
use of the "Audio Matrix" buttons pictured above.
pg. 15
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]

AC-MX88/44-AUHD
Web Interface: EDID Manage
EDID Manage:
Using the built-in EDID manager, a multitude of EDID's can be set for each input, and each input can
be assigned a different EDID. This should be used to optimize sources or to manage infrastructure.
The EDID options are:
0.
1080P_2CH
1. 1080P_6CH
2. 1080P_8CH
3. 1080P_3D_2CH
4. 1080P_3D_6CH
5. 1080P_3D_8CH
6. 4K30HZ_3D_2CH
7. 4K30HZ_3D_6CH
8. 4K30HZ_3D_8CH
9. 4K60HzY420_3D_2CH
10. 4K60HzY420_3D_6CH
11. 4K60HzY420_3D_8CH
12. 4K60HZ_3D_2CH
13. 4K60HZ_3D_6CH
14. 4K60HZ_3D_8CH
15. 1080P_2CH_HDR
16. 1080P_6CH_HDR
17. 1080P_8CH_HDR
18. 1080P_3D_2CH_HDR
19. 1080P_3D_6CH_HDR
20. 1080P_3D_8CH_HDR
21. 4K30HZ_3D_2CH_HDR
22. 4K30HZ_3D_6CH_HDR
23. 4K30HZ_3D_8CH_HDR
24. 4K60HzY420_3D_2CH_HDR
25. 4K60HzY420_3D_6CH_HDR
26. 4K60HzY420_3D_8CH_HDR
27. 4K60HZ_3D_2CH_HDR
28. 4K60HZ_3D_6CH_HDR
29. 4K60HZ_3D_8CH_HDR
30. User EDID 1
31. User EDID 2
32. User EDID 3
*You can copy the EDID from any output and apply it to any input. Select "Copy EDID from Output x" (x=1-8). This
will copy the EDID from the display and apply it to the selected input. This new EDID will be stored as "USER EDID
1".
pg. 16
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]

AC-MX88/44-AUHD
Web Interface: System Settings
IP Settings:
Set network settings such as:
• Static IP
• Subnet Mask
• Router IP
• TCP Port
• Enable DHCP
Port Alias Settings:
Rename inputs and outputs for easy management. Each custom name is limited to eight (8)
characters.
pg. 17
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]

AC-MX88/44-AUHD
pg. 18
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
IR Control:
For IR Control there is an IR Window on the front face of the device. The supplied IR Extension Cable can also
provide a different receiver position. If needed, plug the IR Extension Cable into the IR Extension Socket on the
back of the matrix and place the receiver in a more convenient location.
Figure 3 ~ AC-MX88-AUHD IR Controls Figure 4 ~ IR Extension Cable
IR Remote Control:
When routing HDMI, the matrix can be controlled
by using the IR remote supplied with the product.
The labels on the left are the OUTPUT numbers.
The left arrow button decrements to the next input
port, and the right arrow increments to the next
input port.
Figure 2 ~ AC-MX88- AUHD -GEN2
IR Remote

AC-MX88/44-AUHD
pg. 19
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
RS-232 Commands:
The AC-MX88/44-AUHD can be controlled with RS-232 commands. Some configurations can only be completed
by using these commands. We recommend using MyUART software (free of charge) as it is very easy to use in
order to send commands to the machine.
The same commands can be sent to the matrix using Ethernet as IP commands.
The serial port settings should be set to: 57600,n,8,1 (baud: 57600, no parity, 8 data bits and 1 stop bit) with no
handshaking.
Please add a return (Enter key) after each command when using direct commands.
The unified command list (ASCII) is listed below.

AC-MX88/44-AUHD
pg. 20
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ [email protected]
RS-232 Wiring Diagram:
