AVS SAVC3780B User manual

Thank you for choosing AVS. Before beginning installation, please check all parts are included and undamaged. AV
Supply Group (AVS) intends to make this manual accurate and complete. However, AVS makes no claim that the
information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contin-
gency on connection with the installation or use of this product. The information contained in this document is
subject to change without notice or obligation of any kind. AVS makes no representation of warranty, expressed or
implied, regarding the information contained herein, AVS assumes no responsibility for accuracy, completeness or
suciency of the information contained in this document.
For any parts enquiries, please contact AV Supply Group as below:
New Zealand P 64 9 274 9172
E [e-mail]
Australia P 61 3 9071 4585
E [e-mail]
SAVC3780B

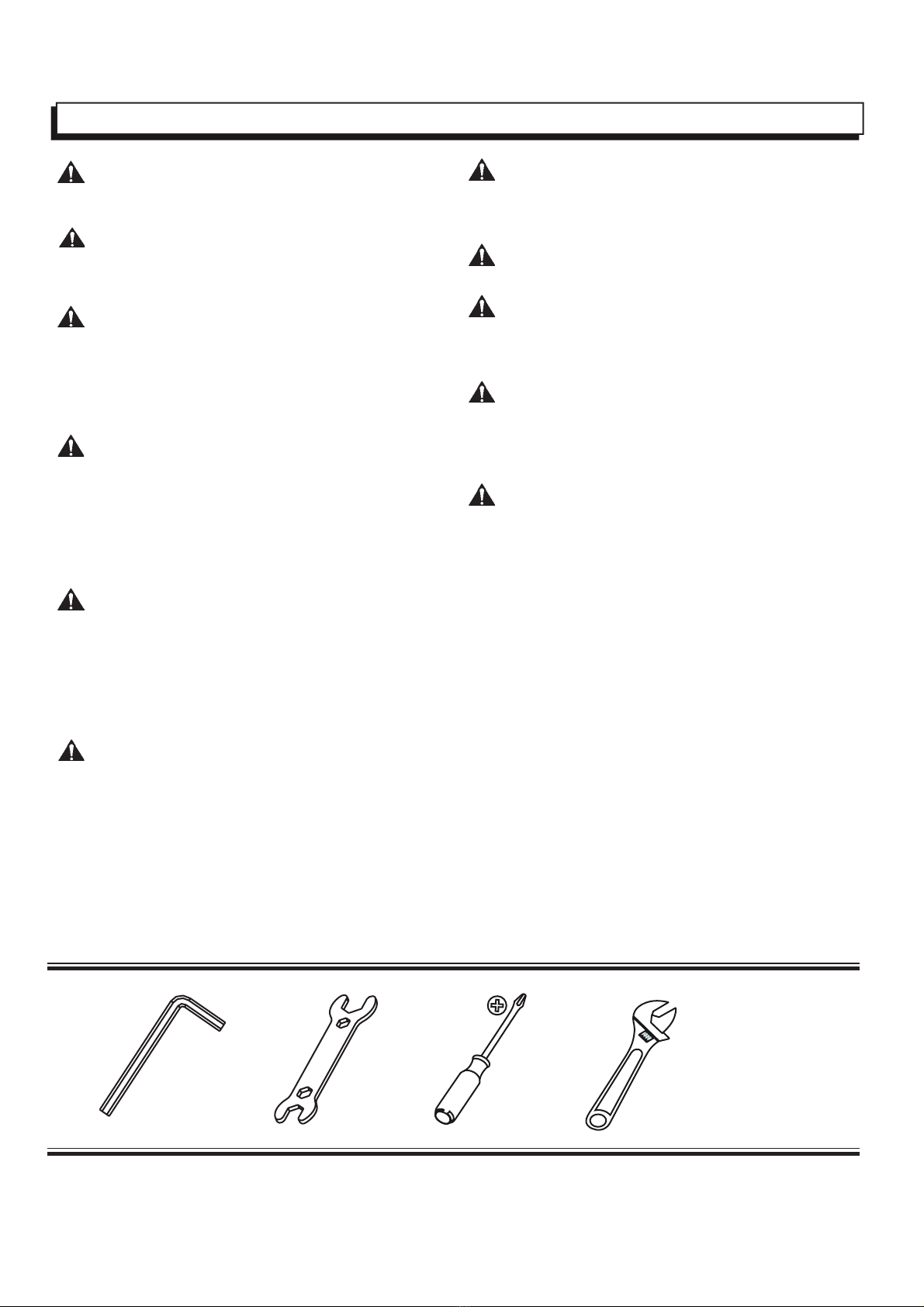

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Tools
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION:A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all components are
properly assembled and installed using the instructions
provided.
WARNING: Failure to provide adequate structural strength
for this component can result in serious personal injury or
damage to equipment! It is the installer’s responsibility to
make sure the structure to which this component is attached
can support five times the combined weight of all equipment.
Reinforce the structure as required before installing the
component.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components attached to the SAVC3780B up to (and
including)the display does not exceed 187 lbs (80 kg). Use
with heavier televisions may result in instability causing tip
over resulting in death or serious injury!
WARNING: Never operate this mounting system if it is
damaged. Return the mounting system to a service center for
examination and repair.
WARNING: Do not use this product outdoors.
WARNING: RISK OF INJURY TO PERSONS! Do not
place video equipment such as televisions or computer
monitors on cart legs.
WARNING: RISK OF SERIOUS INJURY OR DEATH!
Placing a remote control or toy on the cart may encourage a
child to climb onto the cart causing the cart to tip over onto
the child. DO NOT place remote controls or toys on the cart!
WARNING: RISK OF SERIOUS INJURY OR DEATH!
Relocating audio and/or video equipment to the cart may
result in the cart collapsing or overturning onto a child. DO
NOT relocate audio and/or video equipment to the cart!
NOTE: The SAVC3780B cart has no user serviceable parts.
NOTE: The SAVC3780B cart can support screen sizes up to
a maximum of 80" wide.
--SAVE THESE INSTRUCTIONS--
NOTE: Due to continuous product improvement, images shown
in this manual may vary from actual product.
WARNING: Use this mounting system only for its intended
use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
2

(d)
(c) (g)
(d)
(h)
(i)
(b)
(b)
(a)
I
H
G
3
erawdraHdnastraPdeilppuS
A
B
E
F
J
D
C

4
(e) M6 x 14 with inner face
screw (x4)
(a) M8 x 65 Hex screw (x4)
(h) M8 x 40 inner hex
screw (x2)
(b) M8 Washer (x10) (c) M6 Washer (x6) (d) M6 x 16 Philips screw (x22)
(j) 6 x 6 Allen Key (x1) (k) Wrench (x1)
(g) M5 x 8 Countersink
screw (x4)
(f) M8 x 20 with interface
screw (x4)
erawdraHdnastraPdeilppuS
J Cable Management Clip (x3)I Camera Baseplate
E Lockable Castor (x4)
A Base B Frame
C Shelf Support (x4)
D Shelf Tray (x2)
F Back Plate G TV Mount Arm (x2) H Adjustable Camera
Support Rail
(i) Nut (x4)

5
Dimensions
420
700

6
1 Install Casters to the Base
2 Install Frame to the Base
E
A
B
(b)
(h)

7
3 Install TV Mount to the Frame in Desired Location
(g)
(d)
(c)
(a)
(b)
(i)
H
I
G
F
There are three heights you can adjust the
TV via installing on dierent two sets of
screw holes. Please see below:
The height from the centre of the TV to the oor
1
2
3

8
4Install Camera Shelf in Desired Location
(g)
I
H
(d)
5Install Shelf Support Rail
(d)
1
2
1
2
Choose which position is desired for
shelves. Multiple locations are available
on the front and back of TV cart. Put the
shelf support into desired location.
Attach the front and back trays.

9
6Install TV to the TV Mounts
Check the TV’s installation hole, and use
the appropriate parts (f) or (e) to install
the TV to the mount arm.
(e)
(f)
1
Flip the TV and hang it on the backplate.
CAUTION: Make sure the screws are tightened once TV
is in position to secure the TV.
2
!

10
7Cable Management
J

11
8Optional Accessories
B. PC Holder
A. Rack Mount Kit
L Holder x 1 R Holder x 1 (d) x 4
(d) x 4
PC Holder x1 (c) x 2
Wing Nut x 2
