AVS AIREX36 User manual
Premium Infrared Repeater System Kit
User Manual
Danger Electric
Shock Risk
Keep Dry
Keep Away
from Heat
Please read the following safety precautions carefully before you unpack and install this
equipment.
CAUTION: Do not use this product for any purpose not explicitly specified by AVS.
Improper installation may cause property damage or personal injury. If you do not understand
these directions, or have doubts about the safety of the installation, contact AVS Customer
Service or call a qualified contractor. AVS is not responsible for damage or injury caused by
incorrect mounting, assembly, or use.
1.Do not expose the unit to rain, moisture or any other dripping liquids. And keep it away
from any wet locations such as fishing tanks, vases.
2.Do not install the unit close to fire or any other heat sources.
3.Keep the unit in dry and ventilated area. Do not install in bookcase, cabinet or any other
confined space.
4.Stop using the unit during thunder or lightening storms.
5.Avoid the power cable being stepped on or pinched. Position the unit carefully to avoid
damage or accident.
6.Clean the unit only with dry cloth.
7.Only use accessories specified by the manufacturer.
8.Unplug the equipment when unused for a long period of time.
9.Do not try to open any non-serviceable parts. Contact your authorized servicing center
and personnel.
WARNING! This product contains small items that could be a choking hazard if swallowed.
Keep these items away from young children!
AV Supply Group (AVS) intend to make this manual accurate and complete. However,
AVS makes no claim that the information contained herein covers all details, conditions,
or variations. Nor does it provide for every possible contingency in connection with the
installation or use of this product. The information contained in this document is subject to
change without notice or obligation of any kind. AVS makes no representation of warranty,
expressed or implied, regarding the information contained herein. AVS assumes no
responsibility for accuracy, completeness or sufficiency of the information contained in
this document.
DUAL IR EMITTER
Sourse Equipment
Sourse Equipment
Shelf
Shelf
Infrared transparent
housing
Self-adhesive
3.5mm mono plug
+
-
Sourse Equipment
side view
Shelf
Shelf
B. Attach emitter at inside of shelf
1. Attach emitter on above or below of the
IR sensor.
2. Less reliable activated.
A. Standard installation
1. IR emitter attached directly to IR sensor
window.
2. More reliable activated.
C. Cabinet with door installation
1. Attach emitter on door,round shape facing
the IR sensor.
2. Less reliable activated.
SAFETY PRECAUTIONS
INTRODUCTION
IR Block x1 IR Receiver x1
IR Emitter x3 Power Supply x1
(12VDC,200mA)
This Premium IR Repeater System Kit allows you to control A/V
equipment with your existing IR remote controller, such as amplifier, cable
box, stereo receiver, Satellite TV receiver, CD player, DVD player, Blu-ray
player, Etc.
Features
1.Allows IR remote control of up to 12 Devices even behind closed cabinet
doors.
2.Use your existing remote control.
3.Only one small IR receiver needs be visible on or near the TV to control all
devices
4.IR Receiver input jack.1/8’’（3.5mm).
5.12VDC powered(Can be USB powered with optional USB cable).
6.IR Confirmation LED.
7.Power LED.
8.Status Confirmation LED.
9.Quick Mount.
Specifications
The IR-1136 Includes: 1xDistribution Block,1xSurface Mount Receiver,
3xIR Emitter, 1x12VDC, 200ma power supply，2xMounting Screws.
6 Ports.1/8’’(3.5mm) mono IR Emitter outputs
1 Detachable,4-conductor,IR Receiver In connector
2 1/8’’(3.5mm Stereo Jack) IR Receiver Input
Dimensions:IR Receiver L-2.7’’ x W-.46’’ x H-.48’’
Dimensions:Distribution Block -4.29’’w x 2.20’’ x 1’’d
Block Weight :7 oz.
Features
1. CFL friendly-allows installations in areas with compact fluorescent lighting.
Works in most lighting environments.
2. Blue IR confirmation LED.
3. Wide band IR receives IR from many types of remotes.
4. Self-adhesive tape for quick and easy fixing on any flat surface.
5. 3 meters cable with 3.5mm stereo mini-plug.
COMPACT TYPE IR BLOCK DUAL BAND MINI STICK INFRARED RECEIVER
Specifications
Receive Frequency Range...........................................36 KHz to 58 KHz
Transmit Frequencies...................................................38 KHz & 56 KHz
Range...............................................................................100ft. @ 38KHz
......................................................................................... 20ft. @ 56KHz
Power................................................................................12VDC,200mA
Dimensions.........................................................
L -2.7”x W-.46” x H-.48”
Cord Length.................................................................................10ft(3m)
Connector Type...............................................1/8”(3.5mm)TRS mini plug
Weight.................................................................................................20g

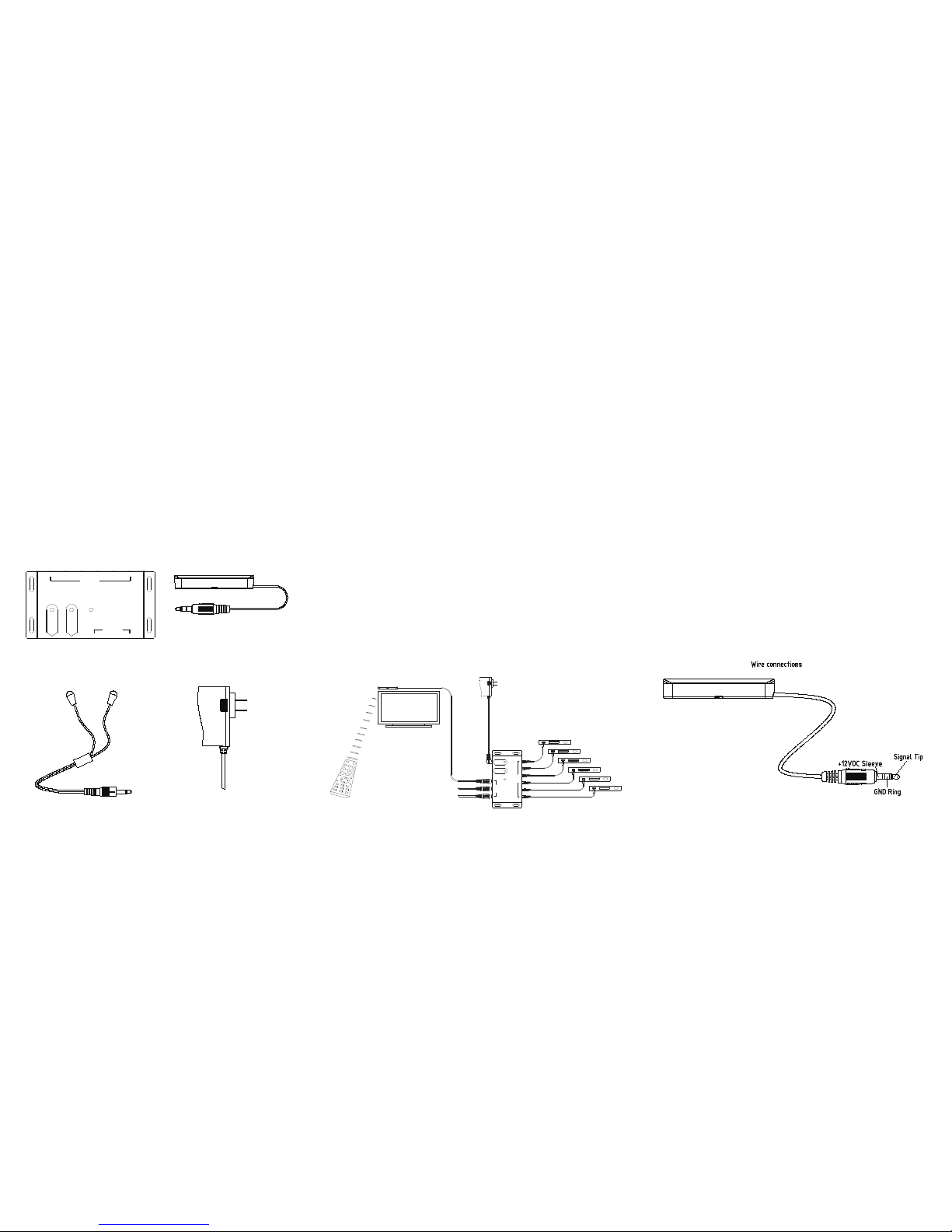

Package Contents
DC POWER LED
DC 12V
USB POWER LED
USB 5V
12345 6
IR EMITTER
1 2 3
IR RECEIVER
IR status LED
To AC Outlet
Infrared Connecting Block
Source Equipment
Source Equipment
Source Equipment
Source Equipment
Source Equipment
Source Equipment
L=1.8M
L=3 M
Mini Stick Infrared Receiver
30M
L=3M
DCPOWER LED
DC12V
USBPOWER LED
USB5V
12345 6
IREMITTER
1 2 3
IRRECEIVER
IRstatus LED
Mini Stick Infrared Receiver
Mini Stick Infrared Receiver
