Avsl Qtx UMBRA-1200 User manual

UMBRA-1200
Low Mist Generator
Item ref: 160.480UK
User Manual
Version 1.0
Version 1.0
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty

160.480UK User Manual

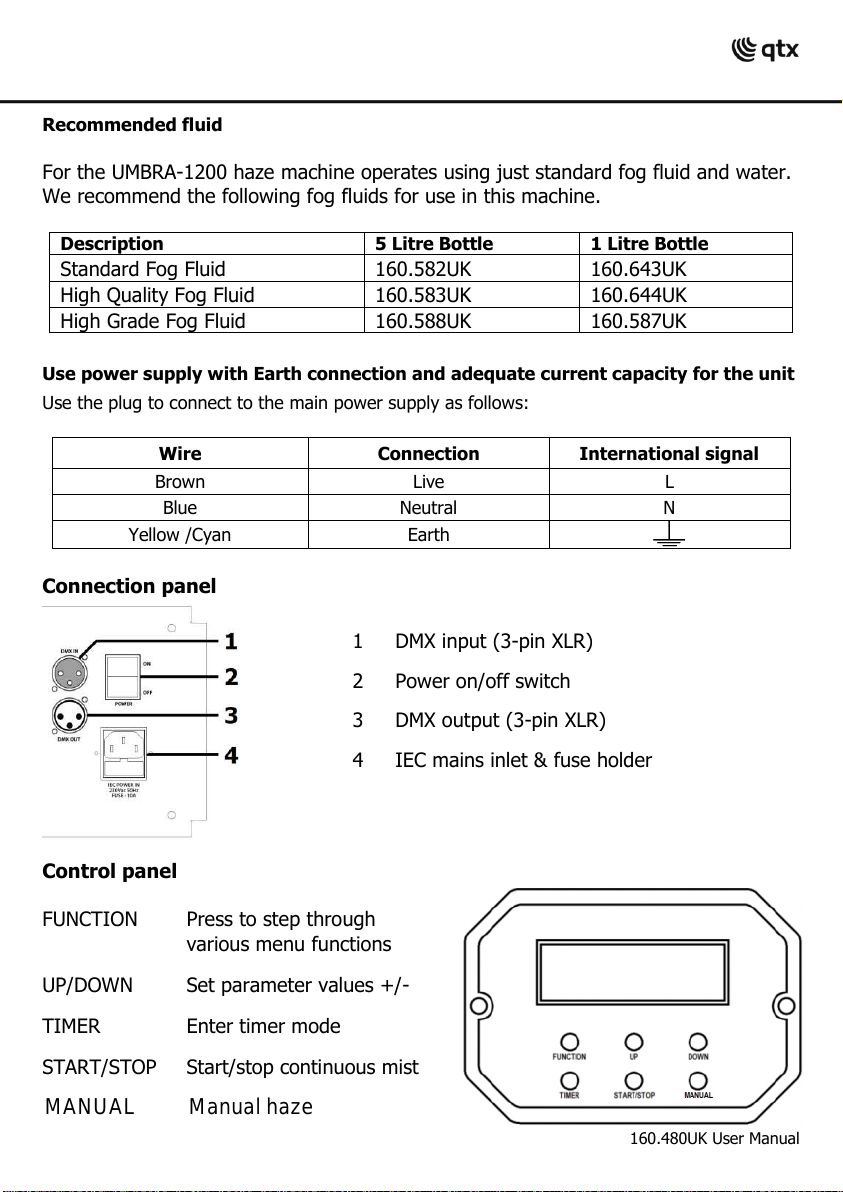

Recommended fluid
For the UMBRA-1200 haze machine operates using just standard fog fluid and water.
We recommend the following fog fluids for use in this machine.
Description
5 Litre Bottle
1 Litre Bottle
Standard Fog Fluid
160.582UK
160.643UK
High Quality Fog Fluid
160.583UK
160.644UK
High Grade Fog Fluid
160.588UK
160.587UK
Use power supply with Earth connection and adequate current capacity for the unit
Use the plug to connect to the main power supply as follows:
Wire
Connection
International signal
Brown
Live
L
Blue
Neutral
N
Yellow /Cyan
Earth
Connection panel
Control panel
FUNCTION Press to step through
various menu functions
UP/DOWN Set parameter values +/-
TIMER Enter timer mode
START/STOP Start/stop continuous mist
SPEED Set fan speed
1
DMX input (3-pin XLR)
2
Power on/off switch
3
DMX output (3-pin XLR)
4
IEC mains inlet & fuse holder
MANUAL Manual haze

160.480UK User Manual

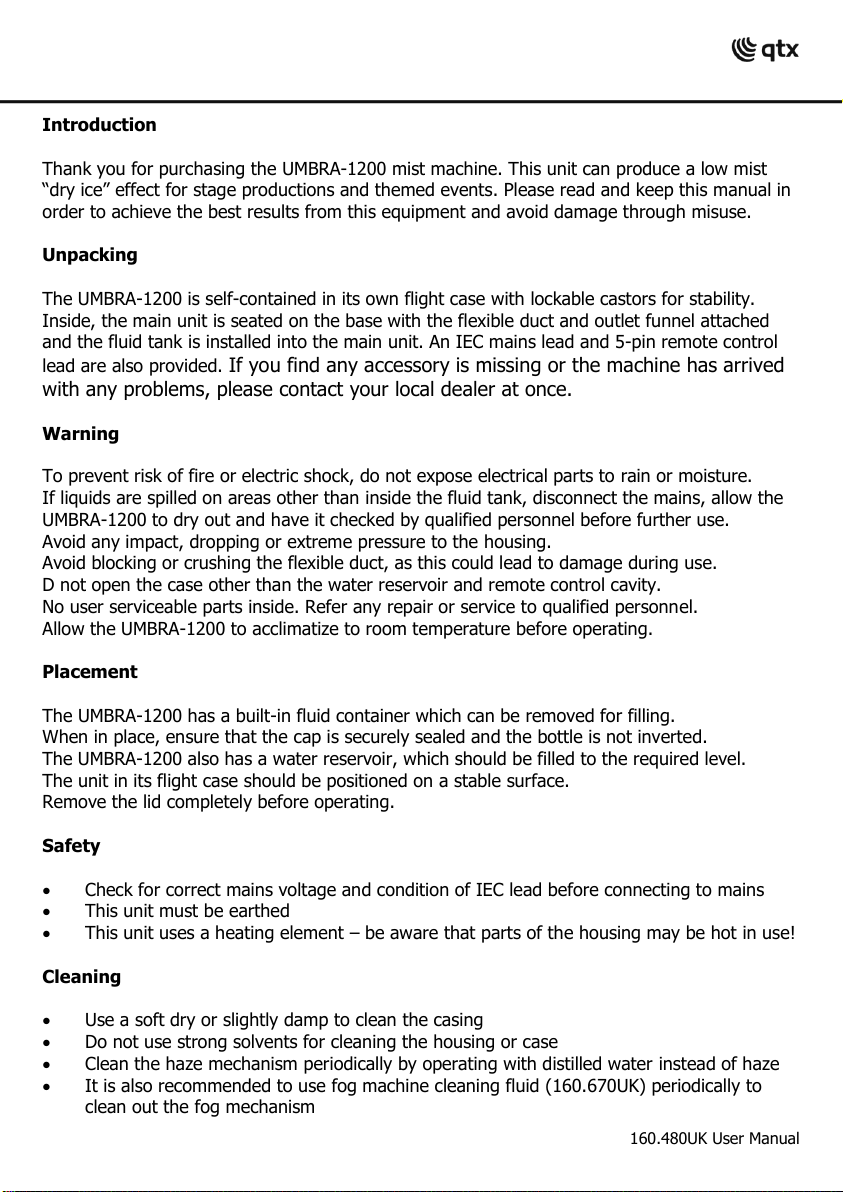

Introduction
Thank you for purchasing the UMBRA-1200 mist machine. This unit can produce a low mist
“dry ice” effect for stage productions and themed events. Please read and keep this manual in
order to achieve the best results from this equipment and avoid damage through misuse.
Unpacking
The UMBRA-1200 is self-contained in its own flight case with lockable castors for stability.
Inside, the main unit is seated on the base with the flexible duct and outlet funnel attached
and the fluid tank is installed into the main unit. An IEC mains lead and 5-pin remote control
lead are also provided. If you find any accessory is missing or the machine has arrived
with any problems, please contact your local dealer at once.
Warning
To prevent risk of fire or electric shock, do not expose electrical parts to rain or moisture.
If liquids are spilled on areas other than inside the fluid tank, disconnect the mains, allow the
UMBRA-1200 to dry out and have it checked by qualified personnel before further use.
Avoid any impact, dropping or extreme pressure to the housing.
Avoid blocking or crushing the flexible duct, as this could lead to damage during use.
D not open the case other than the water reservoir and remote control cavity.
No user serviceable parts inside. Refer any repair or service to qualified personnel.
Allow the UMBRA-1200 to acclimatize to room temperature before operating.
Placement
The UMBRA-1200 has a built-in fluid container which can be removed for filling.
When in place, ensure that the cap is securely sealed and the bottle is not inverted.
The UMBRA-1200 also has a water reservoir, which should be filled to the required level.
The unit in its flight case should be positioned on a stable surface.
Remove the lid completely before operating.
Safety
•Check for correct mains voltage and condition of IEC lead before connecting to mains
•This unit must be earthed
•This unit uses a heating element –be aware that parts of the housing may be hot in use!
Cleaning
•Use a soft dry or slightly damp to clean the casing
•Do not use strong solvents for cleaning the housing or case
•Clean the haze mechanism periodically by operating with distilled water instead of haze
•It is also recommended to use fog machine cleaning fluid (160.670UK) periodically to
clean out the fog mechanism

160.480UK User Manual
Setting up
The UMBRA-1200 is fitted into its own flight case, which is fitted with castors.
Roll the unit where it is needed to be operated and secure into position by pressing
down the lever on the lockable castors.
Unfasten the 4 butterfly catches on the case and completely remove the lid.
The UMBRA-1200 has a funnel and a flexible duct, which should be placed on the
floor and aimed at the area where the low-lying mist is to be produced.
Unscrew the cap of the fluid tank and fill with fog fluid (the bottle may be removed
to help avoid spilling fluid onto other parts of the housing during filling).
Replace the bottle and cap securely and push the feed tube down to the bottom of
the bottle to ensure a consistent flow of fluid when the machine is being operated.
At the front of the housing is a hinged lid which can be release by undoing 2 clips
either side of the flexible outlet duct. Open the lid using the handle on top and fill
with normal tap water to the Recommended Fill Level as indicated on the window at
the side of the housing. Too much or too little will result in poor performance.
If DMX512 is to be used for control, connect the DMX signal from the controller to
the DMX Input XLR connector (1). Any further DMX controlled units may be
connected via the DMX Output XLR connector (3)
The 6-button control panel and display governs settings and standalone operation.
This panel can be used in situ or removed and used as a remote controller.
To remove the panel, unfasten the 2 hand screws on each side of the panel and
carefully pull the control panel away from the housing. Inside, there is a fixed
connector which is normally plugged into the rear of the control unit, but this must
now be linked using the 5-pin control lead supplied with the UMBRA-1200.
Once connected, the control panel will operate in the same way as if mounted into
the housing. These connections should be made before powering up.
When replacing the control panel into the housing, carefully align the rear connector
with the mating connector inside the control panel cavity.
Connect the UMBRA-1200 power using the mains lead provided to the IEC inlet (4)
When all connections are in place, switch on the mains power (2)

160.480UK User Manual
Operation
Before mist can be produced, the UMBRA-1200 needs to heat up, for 3 to 5 minutes.
If the display shows “Warming”, the heater is pre-heating.
If the display shows “Ready to Fog”, it is at the required temperature for operation.
Settings and standalone operation are entered on the control panel as follows.
Display (FUNC)
Setting (UP/DOWN)
Description
Man Vol
1% - 100% (percent)
Mist Volume in Manual operation
Interval Set
1s - 900s (seconds)
Interval between output on timer
Duration Set
1s - 200s (seconds)
Duration of output on Timer
Volume OUT
1% - 100% (percent)
Mist Volume in Timer operation
Wind Set
1% - 100% (percent)
Mist blowing fan speed
DMX512 Add
001-512
Set the DMX start address
To produce mist on demand, press the START/STOP button for continuous mist
output and press again to stop. The Man Vol and Wind Set settings will affect the
amount and rate of output.
To initiate a timed output, using FUNC and UP/DOWN buttons, set the required
Duration (mist output) and Interval (no mist output) times and then press TIMER to
initiate the timer (time countdown will show in the display)
Press TIMER again to stop the timer operation.
The Volume OUT and Wind Set settings will affect the amount and rate of output.
To operate remotely via DMX, use FUNCTION and UP/DOWN buttons to set the DMX
start address and then operate across 3 DMX channels as described below
(Note: If a DMX signal is being received, this will override Manual or Timer modes)
After use, switch off the mist output and wait until no more mist is produced.
Unplug from the mains supply and allow the unit to cool down.
Remove and empty the fog fluid tank and empty the water reservoir via a tap near the
bottom.
Stow away or replace the control panel if removed from the housing.
Replace the funnel and flexible duct before fitting the lids and moving the UMBRA-1200
DMX channel
Value
Function
Channel 1 (start address)
000-255
Mist output volume 0% - 100%
Channel 2 (start address + 1)
000-255
Fan speed 0% - 100%

160.480UK User Manual
Specifications
Power supply
220-240Vac, 50Hz (IEC)
Power consumption
1200W
Fuse
F8AL
Connection
DMX in & out (3-pin XLR), RF receiver (5-pin DIN)
DMX channels
2
Remote frequency
433MHz
Warm up time
3-5 minutes
Fluid capacity
0.8 litre (fog fluid)
Fog output
9000 cu ft (255m³) /min
Dimensions
590 x 510 x 410mm (in flight case)
Weight
25kg (in flight case)
Troubleshooting
Warning: Hot components! ... Switch off and allow to cool before touching the unit.
No backlight on
control panel display
(or fan not working)
Check 5-pin lead connection between control panel & main unit
Check mains voltage is correct and socket is switched on
Check IEC lead is OK and connected properly
Check mains fuse in IEC connector and fuse in plug top
If fuse blowing repeatedly, refer to qualified service personnel
Control panel display
is on but no fog/mist
output on manual or
continuous mode
Check fluid level in tank and water level in reservoir
If fluid level is OK and pump working, the lines may be blocked
Check that output is not set to minimum on the control panel
If blocked, clean with fog machine cleaner & distilled water
Check that if DMX mode is selected, the DMX channel is correct
In DMX mode, check that fog/mist output is not set to minimum
Check that flexible duct is not blocked or obstructed
Disposal: The “Crossed Wheelie Bin” symbol on the product means that the product is classed as Electrical or
Electronic equipment and should not be disposed with other household or commercial waste at the end of its
useful life. The goods must be disposed of according to your local council guidelines
Errors and omissions excepted.
Copyright© 2018. AVSL Group Ltd
