Awoco SP-06 User manual

Range Hood
OWNER'S MANUAL
In-Line Split Blower Unit
Test Run
Before
Installation
Optional Control UnitOptional Awoco Split Hood Unit
Ver. RH-SP-BLW-2020A

3
Table of Contents
Important Safety Instructions 4
How to Test Run 5
Step 1a. If the Awoco Split Hood Unit or the Control Unit is purchased 5
Step 1b. If the Awoco Split Hood Unit or the Control Unit is NOT purchased 6
Step 1c. Connect the Blower Unit to the Control Panel on the Existing Range Hood 7
Step 2 7
Installation 8
Installing the Blower Unit 8
Control Unit Buttons & Functions 9
Troubleshooting 10
Warranty 11

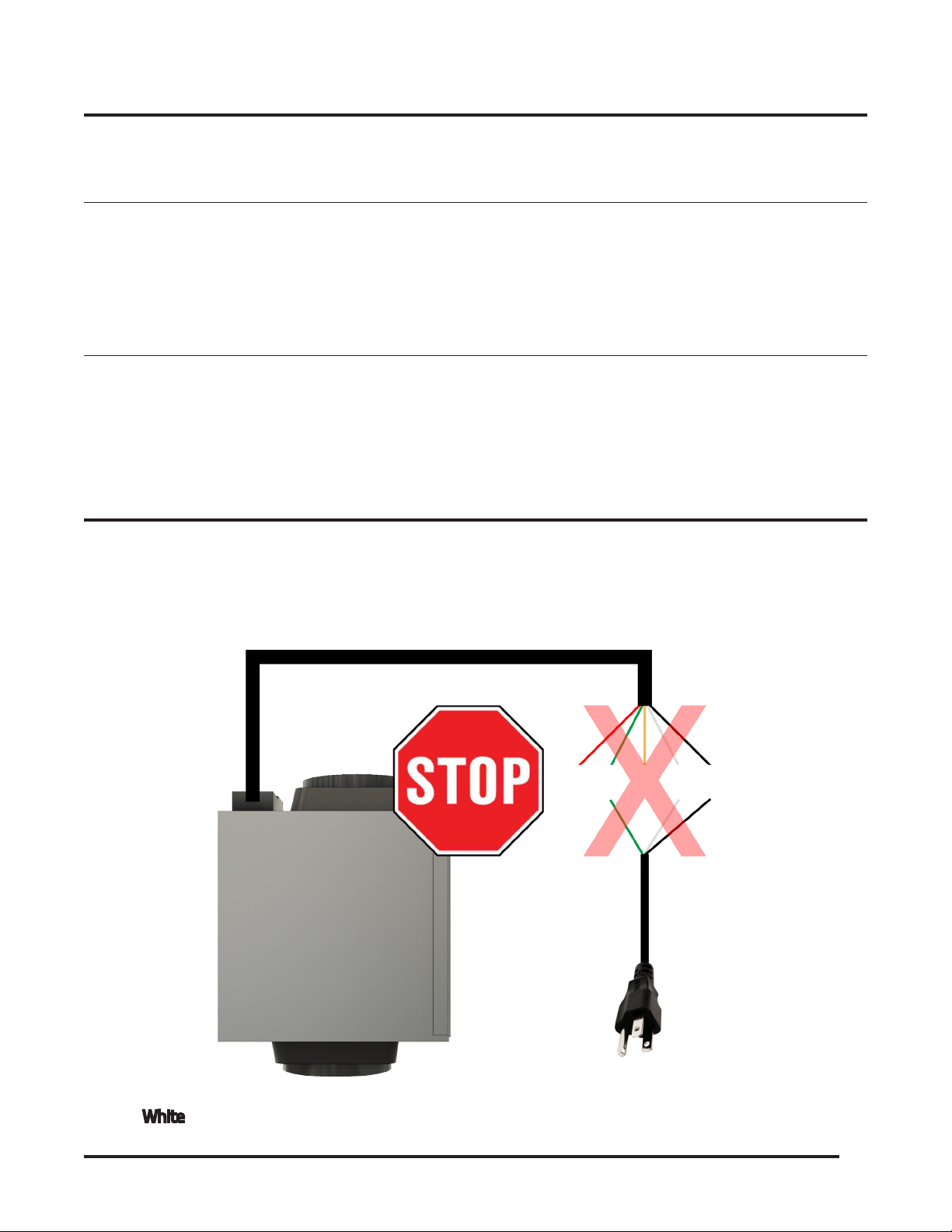

Caution
DO NOT connect the Power Cord's Black, White and Green wires directly to Blower Unit's Black, White and
Green wires. Incorrect wire connections will cause damage to the motor, which is NOT COVERED in the
warranty.
• The Green - Speed 2 wire from the Blower Unit IS NOT aGround wire.
• The White - Speed Q wire from the Blower Unit IS NOT aNeutral wire.
• The Black - Neutral wire from the Blower Unit IS NOT aHot wire.
Speed
3Speed
2
Speed
1Speed
Q
Neutral
NeutralGround Hot

4
IMPORTANT SAFETY INSTRUCTIONS
Please read all instructions carefully before proceeding
further to prevent the risk of fire, electric shock, personal
injury or damage to the Blower Unit. This manual
provides a general insight on the installation and may
not include solutions for all possible issues that may
occur.
Important: Read and save these instructions.
Installer: Please leave these instructions with the
owner.
Owner: Please keep these instructions for future
reference.
In case of this manual destroyed or lost, please visit
https://www.awoco.com and download a digital version.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PERSONAL INJURY, PLEASE READ THE FOLLOWING
CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL,
OPERATE OR MAINTAIN THE BLOWER UNIT:
• Always disconnect, lock and tag the power source
before installing or servicing the Blower Unit. Failure
to do so may result in fire, shock or serious injury.
• Installation and eletrical wiring must be done
by qualified technician(s) in accordance with all
applicable codes and standards, including fire-rated
construction.
• When cutting or drilling into walls or ceilings, please
be careful not to damage any eletrical wirings and
other hidden utilities.
• Verify and ensure the rated voltage and frequency
of the Blower Unit is in compliance with the nearby
power source.
• Always unplug the Blower Unit from the power
source before cleaning it.
• Use the Blower Unit only as directed in this manual.
Do not use it to vent hazardous or explosive
materials or vapors.
• Clean the Blower Unit regularly to prevent it become
blocked or clogged. Good air flow is essential for the
Blower Unit to work propoerly.
• Do not install, repair or replace any parts of the
Blower Unit or Hood Unit unless you are instructed
to do so by the manufacturer.
• Do not tamper with or modify the PCB.
• This Blower Unit requires a duct to vent the air
outside. Do not vent the air into spaces within walls,
ceiliings, attics, crawl spaces or garages.
• The recommended installation height for the Hood
Unit is 24" minimum and 30" maximum above the
cooking surface to the bottom of the Hood Unit.
Note
• For SP-06 model: This model has a built-in
damper. Additional damper is
not needed.
• For SP-08 model: Damper is not included in this
model. Please purchase it
should you prefer to have one.
• Optional Control Unit:
Read and Save These Instructions

5
How to Test Run
Steps to Test Run Before Installing

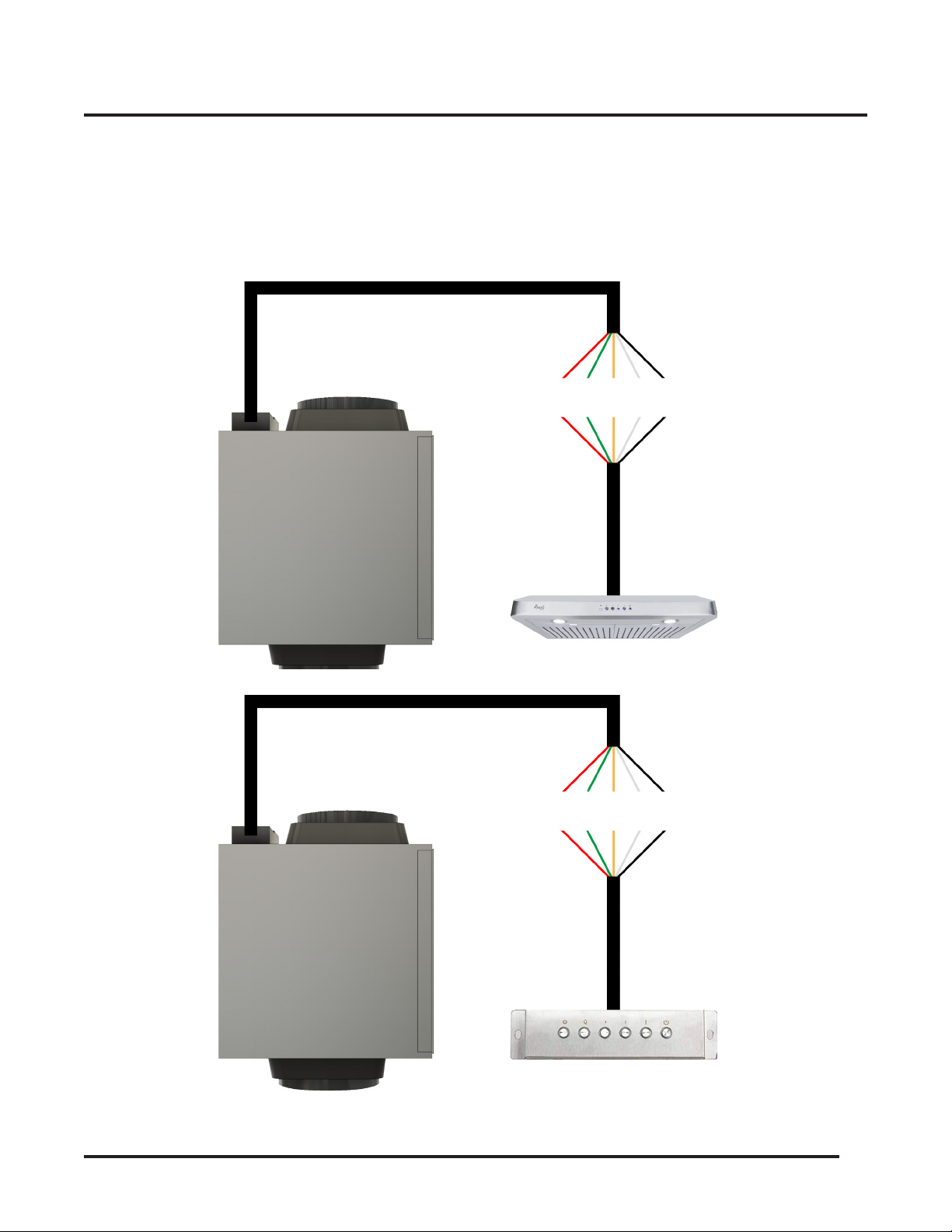

1. 1a. This Blower Unit works best with an Awoco Split Hood Unit or a Control Unit. (The Awoco Split Hood Unit or
the Control Unit must be purchased separately.)

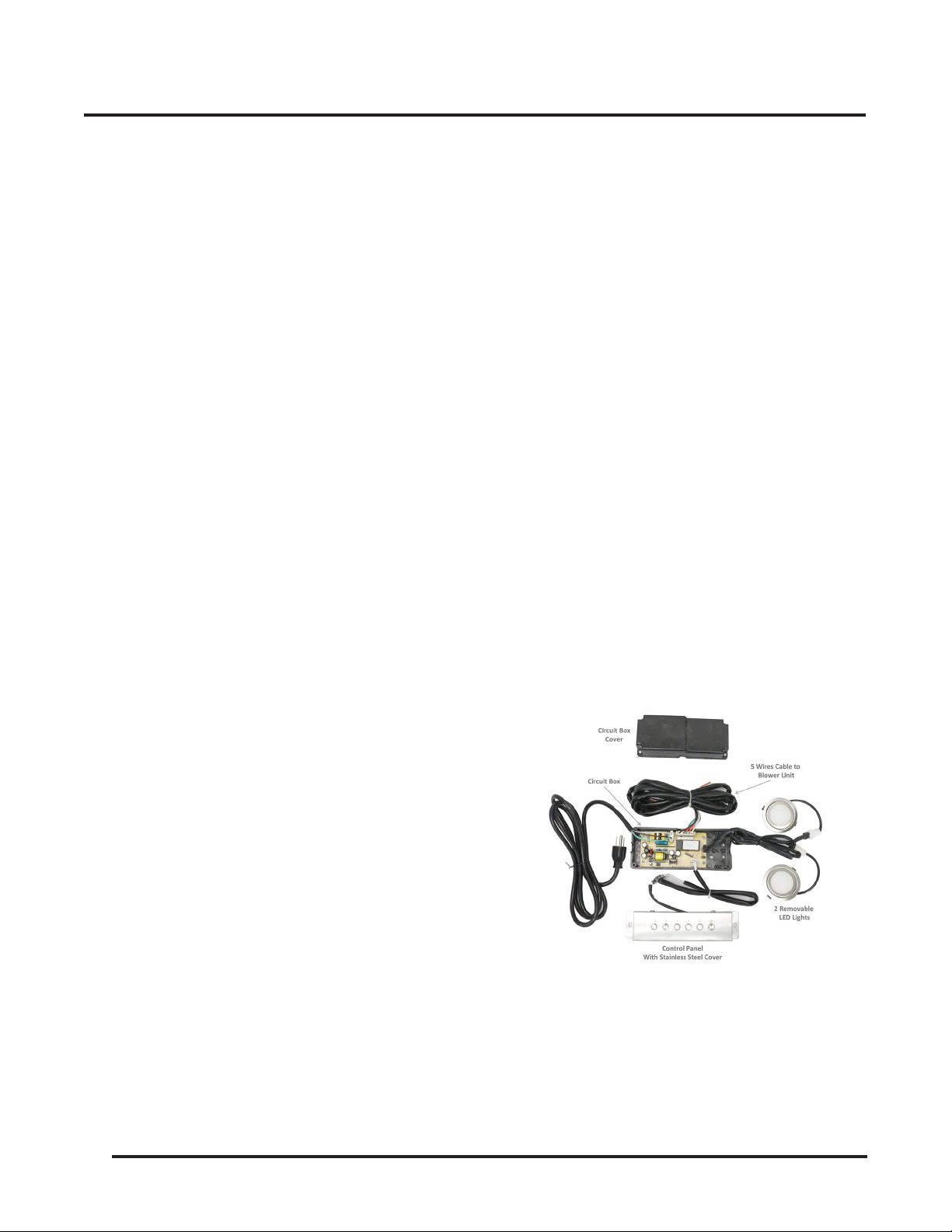

• To connect the Blower Unit to an Awoco Split Hood Unit or a Control Unit, follow the diagram shown below to
connect the wires from the Blower Unit to the Awoco Split Hood Unit or the Control Unit:
Speed
3
Speed
2
Speed
1
Speed
QNeutral
Connecting the Blower Unit to an Awoco Split Hood Unit or a Control Unit
Speed
3
Speed
2
Speed
1
Speed
QNeutral

6
How to Test Run (Continued)
1b. If the Awoco Split Hood Unit or the Control Unit is NOT purchased
• Connect the wires from the Blower Unit with the wires from the Power Cord as shown below:
Note
• This is a 1-speed connection. Switching between different speeds will not be possible. If you prefer to run the Blower
Unit at different speeds, please purchase and install a Control Unit.
• The Green Wire from the Power Cord should connect to the Chassis Screw on the Blower Unit.
• The White wire from the Power Cord should connect to the Black Wire from the Blower Unit.
• Make sure to connect the wires correctly according to the diagram and table above. Failure to do so will result in a
burnt motor which is NOT covered in the warranty.
Wires from the
Blower Unit
Wires from the
Power Cord
Red - Speed 3
Black
- Hot
Connect to either 1 of 4 speeds
Green - Speed 2
Orange - Speed 1
White
- Speed Q
Black - Neutral
White
- Neutral
Chassis Screw Green - Ground
Speed
3Speed
2
Speed
1Speed
Q
Neutral
Ground
Hot
Neutral
Connect to Chassis Screw

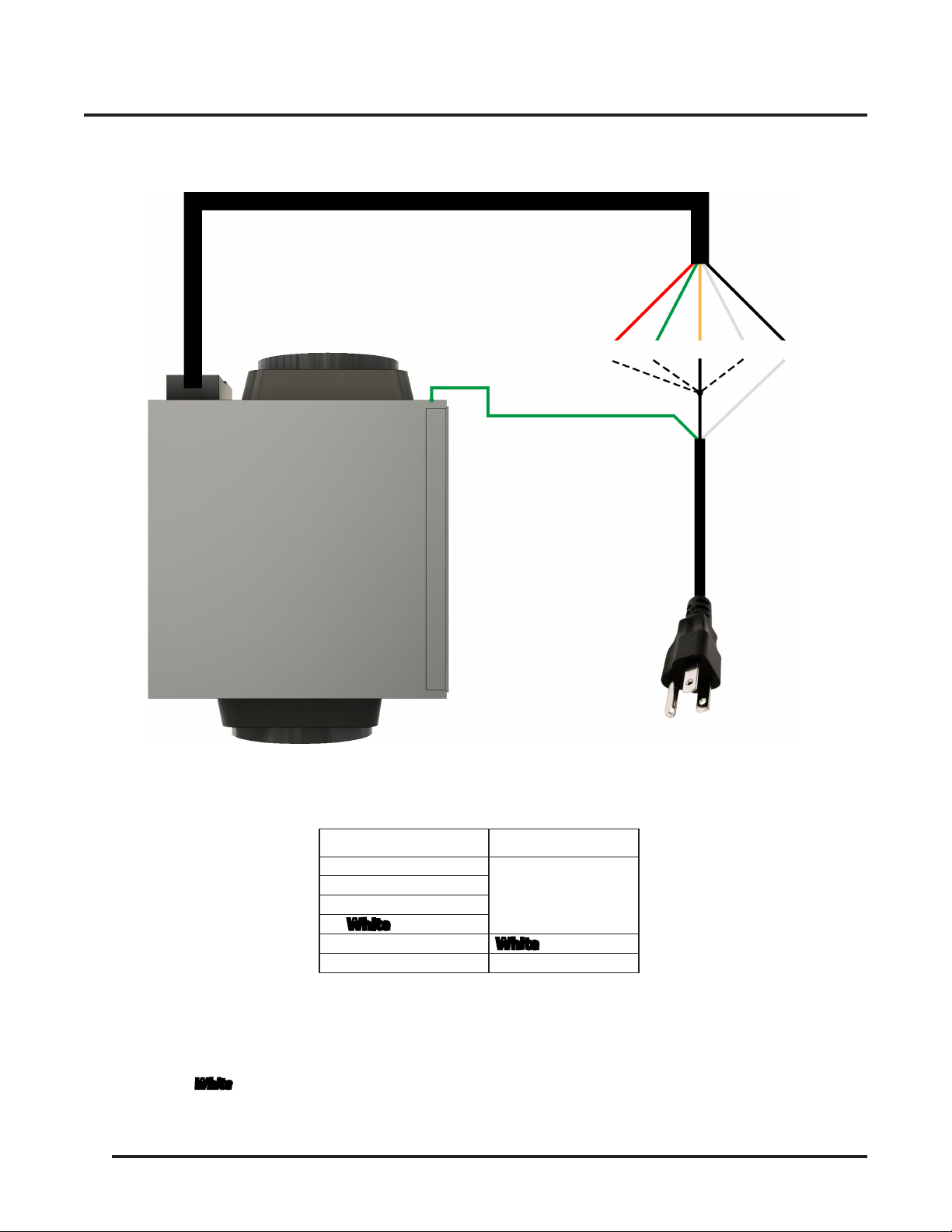

Connecting the Blower Unit directly to a Power Cord
Wire Connection Table

7
How to Test Run (Continued)
1c. Connect the Blower Unit to the Control Panel on the Existing Range Hood from other brands
• Identify the Neutral wire and the Speed wires from your existing Range Hood. Please note that your Range
Hood might be 3 speeds or 2 speeds only.
• Refer to the Wire Connection Table in Step 1b for wire connections. Connect the Neutral wire and Speed wires
accordingly.
• Due to the speeds of the Blower Unit NOT varied by voltage or frequency, this Blower Unit is NOT
compatible with the existing control panels that vary the voltage or frequency.
Caution
Before connecting the Blower Unit to the existing control panel, make sure to correctly identify the Neutral wire
and the Speed wires from the control panel. Failure to do so will result in a burnt motor which is NOT covered in
the warranty.
2. Connect the Power Cord to a 120V power source and varify the functionality of each button to check if it's working
properly. Refer to Page 9 for functional details.
Note
DO NOT install the Blower Unit if it's defective. Contact the seller immediately.

8
INSTALLATION
Installing the Blower Unit
• Install the Blower Unit onto steady lumbers in the
attic.
• Connect the duct work from the Hood Unit to the
bottom vent opening of the Blower Unit and seal
the connection.
• Connect the duct work from the Roof/Wall Cap to
the top vent opening of the Blower Unit and seal
the connection.
• Connect the wires:
• If you have purchased the Awoco Split Hood
Unit or the Control Unit
• Refer to Step 1a in Page 5 to connect the
wires. Install the Control Unit on the wall or
other suitable places.
• If you didn't purchase the Awoco Split Hood
Unit or the Control Unit and want to set the
Blower Unit at 1 speed only
• Refer to Step 1b in Page 6 to connect the
wires.
• If you want to use your existing range hood
control panel to control the Blower Unit
• Refer to Step 1c in Page 7 to connect the
wires.
• Insulate the connected wires and any unused wires.
• Plug in the Power Cords and test run again to
confirm all buttons are working properly. Refer to
Page 10 for troubleshooting.
Connection
Box
Vent out to the
Roof/Wall
Vent in from the
Hood Unit
Vent in from the Hood Unit
Vent out to the Roof/Wall
Blower Unit Installed Vertically
Blower Unit Installed Horizontally
Note: If mounting the 6" Blower Unit
horizontally, please remove the built-in
damper rst, then install an air damper
at the roof/wall vent out.

9
Control Unit Buttons & Functions
• Light
• Press the Light button once and the lamps will
turn on.
• Press the Light button again and the lamps will
turn off.
• The Light button operates independently from
the Power button. It works even when the
range hood is not turned on.
• Always turn off the Lights before powering off
the range hood.
• Power
• Press the Power button once and the Awoco
Split Hood Unit or the Control Unit will be
activated in standby mode, then press one
of the Speed buttons to set the speed of the
Blower Unit.
• Press the Power button again will activate the
Delayed Auto Shutoff function.
• Press the Power button the 3rd time will
shutoff the range hood immediately.
Delayed Auto Shutoff Function
• When the hood is operating in any speed, press
the Power button once will activate the Delayed
Auto Shutoff function. The range hood will
shutoff automatically in 3 minutes.
• While the Delayed Auto Shutoff function is
activated, press the Power button again and
the hood will shutoff immediately.
• Speed Control
Note
The Power button must be pressed once before
any speed mode can be selected.
• There are 4 speed modes you can choose
from: Quiet, Low Speed, Medium Speed and
High Speed.
• Pressing any of the speed buttons will set
the Blower Unit to the speed the button
designates.
Button Mode
QQuiet - Generate less noise, perfect
for light cookings.
I Low Speed
II Medium Speed
III High Speed
WARNING
Read all instrutions and warnings in the Range Hood User
Manual before using the hood.
• DO NOT use the hood when there are no safety
grills and filters.
• NEVER dispose cigarette ashes, ignitable
substances, or any foreign objects into blowers.
• NEVER leave the cooking appliances unattended.
When frying, the oil in the pan can easily overheat
and catch on fire. The risk of self-combustion is
higher when the oil has been used several times.
• NEVER cook on “open” flames under the range
hood. Check deep-fryers during use: Superheated
oil may be flammable.
Control Unit Buttons & Functions (Continued)

10
Before Calling for Service
Issue Possible Cause / Solution
The Blower Unit doesn't turn on
• Check if all wires are connected correctly, refer to Step 1 for
detail connection.
• Check if the Blower Unit has power using the voltage meter
to measure the neutral wire (Black wire in the Blower Unit)
and one of the speed wire.
• Directly connect the power cord to the blower to check if the
motor is failed, refer to Step1b for connection.
The buttons on the Awoco Split
Hood Unit or the Control Unit
don't work
• Check if all wires are connected correctly according to the
color on the wires.
• Check if the Awoco Split Hood Unit or the Control Unit is
plugged in.
• Check if the Blower Unit has power using the voltage meter
to measure the neutral wire (Black wire in the Blower Unit)
and one of the speed wire.
• If the Awoco Split Hood Unit or the Control Unit has no
power to the Blower Unit, contact Awoco to get circuit board
and button panel replacements.
The LED light is off from the
Awoco Split Hood Unit or the
Control Unit
• If one of the LED light is off, contact Awoco to get a LED bulb
replacement.
• If both of the LED lights are off, there might be a circuit
board failure on the 12V power supply. Contact Awoco to get
circuit board and LED bulb replacements.
The blower or fan seems weak
• Check that the duct size used is at least 6” for 6" Blower and
8" for 8" Blower. Range hood WILL NOT function efficiently
with insufficient duct size.
• Check if the duct is clogged or the damper (half-circular
flapper) is not installed correctly or opening properly.
The hood is not venting out
properly
• Make sure the distance between the stove top and the
bottom of the hood is within recommended 24” and 30” in
distance. *Due to different ceiling height configurations, the
recommended height may not be applicable.
• Reduce the number of elbows and length of duct work.
Check if all joints are properly connected, taped and sealed.
• Make sure the power is on high speed for heavy cooking.
Troubleshooting

11
This product is warranted for a limited period of ONE
YEAR Parts, begins from the date of purchase.
This limited warranty is applied to the original retail
purchaser and valid only for products purchased for
home use in the continental United States of America.
This limited warranty is non-transferable and does not
extend to the subsequent owners of this product.
Any applicable implied warranties, including the
warranty of merchantability, are limited in duration to a
period of express warranty as provided herein beginning
with the date of original purchase at retail and, no
warranties, whether express or implied, shall apply to
this product thereafter.
In the event of the product fail to work properly due to
a defect in manufacturing materials or workmanship
under normal home use, during the warranty period
mentioned above, subject to the conditions and
limitations set forth below, Awoco will, at our options,
either repair or replace any part of our products
proven defective by reason of improper materials or
workmanship:
• Proof of original retail purchase is required to
receive warranty service within the limited warranty
period.
• Repair parts or replacement products will be
provided by Awoco, free of charge, on an exchange
basis, and will be either new or reconditioned.
• The consumer is responsible for all shipping costs.
This Limited Warranty Does Not Cover:
• Consumable parts such as light bulbs, stainless
steel baffle filters.
• The natural wear of finish, and wear due to improper
maintenance, use of corrosive and abrasive cleaning
products, pads, and oven cleaner products.
• Chips, dents or cracks on the product caused by
transportation and handling.
• Damage of product caused by accidents, pests and
vermin, lightning, wind, fire, floods or acts of God.
• Damage of product caused by unauthorized
modification or alteration, or if it is used for other
than the intended purpose, or any water leakage
where the unit was not installed properly.
• Damage of product caused by incorrect electrical
wiring, commercial or inductrial use, or use of any
cleaning products not recommended in this manual.
• Damage of product due to product misuse, abuse,
improper installation, unauthorized repair or
maintenance.
• Any loss of properties or any costs associated with
removing, servicing, installing, or determining the
source of problems with our products.
To Receive Warranty Service:
• Contact the seller or distributor from which you
purchase the product. Please confirm the terms
of your dealer’s or distributor’s policies prior to
contacting. Or contact us directly.
• Provide the product identification information, such
as model number and lot number, and proof of
original purchase.
• Decribe the issue you are experiencing in detail.
Product Support and Additional Information:
If you need assistance using your product or you would
like to start the warranty service:
• Contact us at 1-888-412-3428, between 9 AM and
5 PM, Monday - Friday, Pacific Time.
Or
• Contact us at https://www.awoco.com/contact-us.
Warranty

Website: www.awoco.com Customer Support: 1-888-412-3428
