AX MECOOL DELUXE KM9PRO User manual

1
Android TV, Google, Youtube, Prime Video
USER MANUAL

2
HDMI CABLE POWER SUPPLY
AX MECOOL KM9PRO USER MANUAL VOICE REMOTE
Android TV, Google, Youtube, Prime Video
BEDIENUNGSANLEITUNG

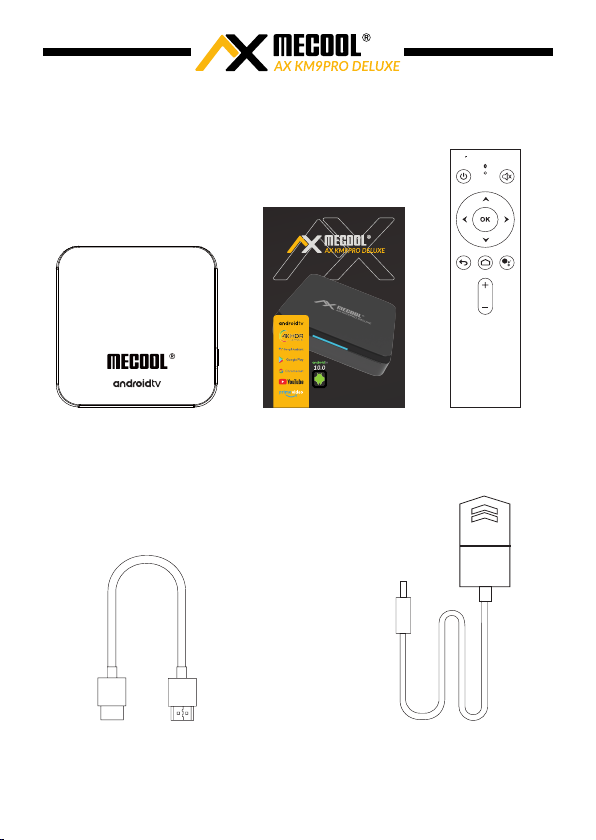

ACCESSORIES

3

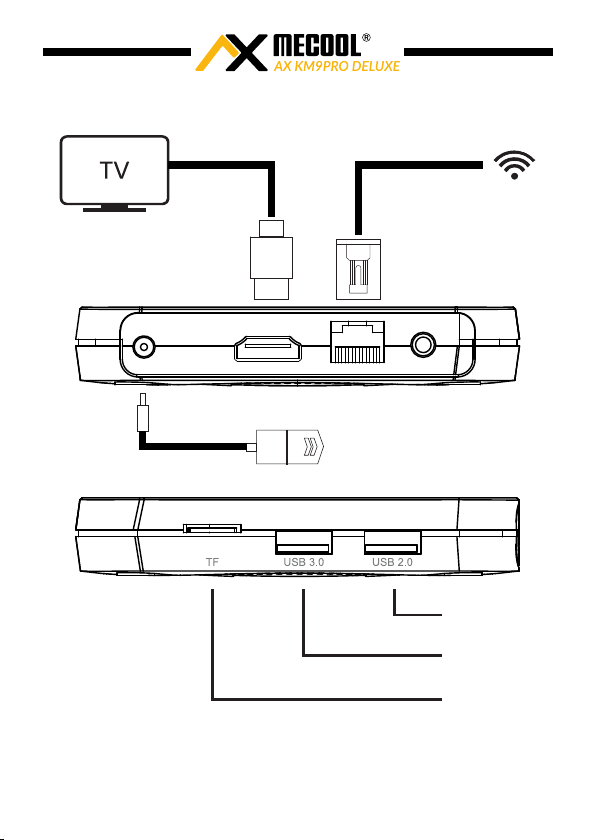

CONNECTION
USB 3.0
TF
USB 2.0
HDMI CABLE TO TV
NETWORK CABLE
TO ROUTER
POWER SUPPLY
DC IN HDMI LAN AV
You can connect an external hard drive for media playback or various
input devices (e.g. mouse, keyboard, etc.) to the USB ports. You can
insert a memory card at the TF input.

4
VOICE REMOTE
1
2
3
4
5
6
7
POWER (on/off)
Mute
Navigate to UP
Navigate to LEFT
Navigate to RIGHT
Navigate to DOWN
Button to CONFIRM
8
9
10
11
12
13
14
Return
Voice Control
Show Start menu
Volume up
Volume Down
Microphone
LED Indicator

5
FIRST INSTALLATION
During the initial installation, you will be guided through the standard
settings. The first thing to do is to pair the remote control with the device.
To do this, press and hold the volume button „ - “ and simultaneously press
the OK button until the LED lamp flash.
If the connection is successful, you will now be taken to the next language
setting menu. Use the ▲ ▼ buttons on your remote control to navigate to
your desired language e.g. English (United Kingdom) and confirm your
selection with the OK button.
TV long press the [Volume-] and [OK] until the led
blink
LED
20 cm
MECOOL smart device
Searching Connecting Success
Now the next menu is for quickly set up your TV with your Android phone.
You can selecte between „Continue“ or „Skip“. Navigate with the buttons
▲▼ to „Continue“ and press the OK button. Follow the instructions:
1. On your Android Phone open the pre-installed app „Google“
2. Type or say „OK Google, set up my device“
3. Tap KM9PRO on the list

6
Next, configure your internet connection. If you have not connected a
network cable, the device searches for all available WiFi networks. Use
the ▲ ▼ buttons on your remote control to navigate to your WiFi
network and confirm your selection with the OK button. Next, enter your
WiFi password using the navigation buttons ▲▼◄► on your remote
control. To do this, navigate to the letters / numbers / characters and
confirm them with the OK button. When you have completely entered
your WLAN password, navigate to the symbol and confirm this by
pressing the OK button. The connection to your WiFi network is now
established.
* requires an existing Google account (registration at www.google.com)
Email or phone
Sign in
Use your Google Account
Forgot email?
To make the most of your the TV and the device, you must now login to
your Google account*. To do this, press the OK button for "Sign In". Now
choose between the registration options "Use phone or computer" or
"Use remote control" by pressing the navigation buttons ▲▼ and
confirm your selection with the OK button. In the example, select "Use
remote control":
Next, enter your Google email* or telephone number* using the navigation
buttons ▲▼◄►. To do this, navigate to the letters / numbers / characters
and confirm them with the OK button. When you have completely entered
your Google E-Mail or telephone number, navigate to the symbol and
confirm the selection with the OK button.

7
Now choose whether you want to allow Google access to your location. To
do this, use the ▲▼ buttons on your remote control to navigate between
"Yes" and "No". Confirm your selection by pressing OK.
Now choose whether you want to allow Google to help improve Android.
To do this, use the ▲▼ buttons on your remote control to navigate
between "Yes" and "No". Confirm your selection by pressing OK.
You will now see the Google voice control assistant. Confirm „Continue“
by pressing the OK button. Confirm the next menu „A few things that you
should know" by pressing the OK button for Continue.
Now decide whether you want to „Get personal results“. To do this, use
the ▲▼ buttons on your remote control to navigate between "Turn on"
and "No, thanks". Confirm your selection by pressing the OK button.
Now decide whether you want to get the most out of the „Google
Assistant“. To do this, use the ▲▼ buttons on your remote control to
navigate between "Yes" and "No". Confirm your selection by pressing the
OK button.
Now decide whether you want to „Install additional apps“ from the
Google Play Store. Navigate to the specified apps with the navigation
buttons ▲▼◄► and „activate“ or „deactivate“ them by pressing the
OK button. When you have made your selection, use the ▲▼◄►
buttons to navigate to „Continue“ and press the OK button.
You have now made the standard settings. The device now shows you
some functions. Select one page further by pressing the OK button. The
device is now ready for operation and starts with the start menu.
Now enter your Google password using the navigation buttons ▲▼◄►
on your remote control. To do this, navigate to the letters / numbers /
characters and confirm them with the OK button. When you have entered
your Google password completely, navigate to the symbol and
confirm the selection with the OK button. Now accept the „Terms of
Service“ by pressing the OK button.

8
SETTINGS
THE START MENU
To make settings, navigate in the start menu with the navigation buttons
▲▼◄► to the cogwheel at the top right. Pressing the OK button opens
the settings menu. You can make all settings here, such as:
Network & Internet
Accounts & Sign-In
Apps
Device Preferences
Remotes & Accessories
Advance Settings
Manage the Network, Proxy, IP, ...
Manage Google-Accounts
Manage the Apps
Date, Time, Language, Sound, Stornage, ...
Manage the devices (Keymoard, Mouse, ...)
Display, HDMI CEC, Audio, Picture, etc.)
Settings

9
VOICE COMMANDS
UPDATE FIRMWARE / SOFTWARE
The device uses the Google Android TV system. Log in via your Googel
account to use the function. By holding the button , you can give
voice commands or ask questions.
Examples:
Hold down the button and say:
• „How is the wather tomorrow in London?“
• „Tell me a joke“
• „Open YouTube“.
• „How high is the Mount Everest“?
• „Start prime video“.
• „How many residents has London“?
To download the current firmware or operating software, navigate to the
menu settings. Use the ▲▼ buttons to navigate to the menu „Device
Preferences“. Confirm this by pressing the OK button. Use the ▲▼
buttons to navigate to the menu item „About“. Confirm this by pressing
the OK button. Use the ▲▼ buttons to navigate to the menu item
„UPDATE“. Confirm this by pressing the OK button. Use the ▲▼ buttons
to navigate to the menu item „OTA Update“. Confirm this by pressing the
OK button.
Important: NEVER turn off the device during an UPDATE. Do not
download third party software! For manual installation, contact
the manufacturer or your seller.

10
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from •
that to which the receiver is connected •
Consult the dealer or an experienced radio/TV technician for help. •
Caution:
Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions;
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including
interference that may cause undesired operation. (2)
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20 cm between the
radiator &your body
FCC WARNING

11
TROUBLESHOOTING
Problem Lösung
No TV signal - Make sure that the LED lights up blue after switching
on the device. If the LED on the device is red, press the
power button.
- Make sure that the cable connection to the TV is correct
- Make sure that you have selected the correct TV input
source on the TV (see your TV instructions)
No WiFi connections - Make sure that you have activated WLAN in the
settings under Networks & Internet.
- Restart the device
- If the device is connected with a LAN cable, the
WLAN connection is automatically disconnected.
- Try another network (e.g. hotspot) If necessary, set
up a separate WLAN network with your mobile
phone for test purposes.
Unable to use voice funktion
The Remote does not
respond sometimes
The Product does not
boot the system
- Make sure that the remote control is connected in
the settings under Remote controls & accessories.
- If necessary, replace the batteries in the remote control.
- Make sure you are connected to the Internet.
Start a YouTube video to try it out.
- If necessary, replace the batteries in the remote control.
- Make sure that the maximum distance between the
device and the remote control is 6m
- Make sure that the remote control is connected in
the settings under Remote controls & accessories.
- Contact your seller or manufacturer
Picture OK, but no sound
An APK file cannot be
installed or is not
recognized
- Make sure that the mute button is not active
- Adjust the volume louder (volume +)
- When playing various video formats, check whether
they are supported by the device.
- Check the cable connection to your TV set
- Make sure it is an original file from GOOGLE PLAY
STORE. Third-party files are not supported.
- This product is a Google ATV system and does not
support mobile versions of an APK.

12
Android TV is a trademark of Google LLC
The manufacturer,
AX TECHNOLOGY Sp. z o.o. Sp.k. ul. Szczecińska 1W ; 72-003 Dobra, Poland,
hereby declares that the equipment complies with the essential
requirements and other relevant provisions. The complete declaration of
conformity can be requested from the manufacturer at any time.
This device is called the conformity of the EU directives and
the legal recognition of their conformity. Conformity with
the guidelines is confirmed by the CE mark.
DECLARATION OF CONFORMITY
CE MARK
Android TV
The actual appearance of the product may differ from the photograph of
the instructions and on the packaging. All information is provided without
warranty. Printing errors, mistakes and changes reserved.
We expressly reserve the right to make technical changes or changes in
operation that serve to improve the device or that increase the safety
standard - even without a separate announcement.
In the event of a technical defect, never try to repair the device yourself.
Opening the device voids the guarantee or warranty and there is a risk of
receiving an electric shock (even if the device is de-energized). If you have
any problems with the device, please contact the manufacturer or your
seller.
