Axas E4HD User manual

User Manual

1
User Manual
DVB-S2 DIGITAL RECEIVER
I. Before installation
(A) PRECAUTION!!!
(B) Packaging Contents
(C) Product Descriptions
(D) Conditional Access
(E) Remote Control
(F) Main Features
(G) Technical Data
II. Installation of the Receiver
1. Connecting satellite cables
2. Connecting the TV (and VCR)
III. First Time Installation (using Wizard)
Step1. Video Input Selection
Step2. Video Mode Selection
Step3. Language Selection
Step4. Configuring Satellite Connection
Step5. Check The Internet Connection
Step6. Configuring Tuner A
IV. Basic Operations
1. Program Information (Infobar)
2. Channel List (Channel Selection Menu)
3. Electronic program Guide (Event View)
4. Plug-ins
V. Network Setup
1. Service Searching
A. Tuner Configuration
B. Automatic Scan of Services
C. Manual Scan of Services
2. Factory Reset
Contents
3
5
6
8
9
11
12
13
14
15
15
16
16
17
17
19
20
22
24
27
27
27
28
30

2
User Manual
DVB-S2 DIGITAL RECEIVER
User Manual
German manual
VI. Copyright – GNU GPL
VII. Troubleshooting
VIII. Glossary
31
50
66
68

3
User Manual
DVB-S2 DIGITAL RECEIVER
(A) PRECAUTION!!!
The receiver has been designed and manufactured in compliance with EU consumer
safety requirement (CE). Please read the following safety precautions carefully.
1. Connecting Power
• This product operate only in the range of AC 100V ~240V and 50Hz/60Hz. Please check first your
power supply to see if it fits this range.
• Please be noted that you need to disconnect from the mains before you start any maintenance or installation
procedures.
• Make sure that the power cord is placed in a position where it is easy to unplug it from the mains
in an emergency.
2. Overloading
• Do not overload a wall outlet, extension cord or adapter as this may cause electrical fire or shock.
3. Liquid
• This product is not water-proof and should not be exposed to dripping, splashing, or any type of liquid.
• No objects filled with liquid such as base shall be placed on the product.
• Please do not clean the product with wet cloth, which may cause a short circuit.
• No wet objects should be placed near the product.
4. Ventilation
• Allow a sufficient space between the product and other objects to make sure air ventilation of the product.
• Do not block the top or rear of the product with an object, which will close the ventilation holes and
lead to a high temperature of the system. This may cause a failure of the product.
• Do not stack other electronic devices on top of the product.
• Do not insert any kind of pointed objects like screw, gimlet, etc. into the ventilation holes of the product.
5. Connecting the Satellite Cable
• Disconnect the power of the product before you connect the satellite cable to the product.
Otherwise, it may cause
6. Grounding
• The LNB must be earthed to the system earth for the satellite dish.
7. Location
• Place the product indoor.
• Do not expose the product to rain, sun or lightening.
• Do not place the product near any heat appliances as a radiator.
• Ensure that there is more than 10cm distance from any electrical devices and wall.

4
User Manual
DVB-S2 DIGITAL RECEIVER
User Manual
8. Lightening, Storm or Not In Use
• Unplug the product and disconnect the antenna cable during a thunderstorm or lightning, especially
when left unattended and unused for a long period of time. This will prevent possible damages from
power surges or lightening.
9. Replacement of Parts
• Unauthorized part replacements, especially by one who is not a qualified technician may result in damage
to the product.
• Ensure that when part replacements are necessary qualified technicians perform the task using the
components specified by the manufacturer.
10. Hard Disk Drive ( In case of using external USB HDD)
• Do not move the product or turn the power off suddenly while the Hard Disk Drive (HDD) is still running.
• The company shall not be liable for any corruption of data on the HDD caused by careless use or misuse
of users.
11. Battery
• There is danger of explosion if batteries are incorrectly replaced.
• Replace batteries only with the same or equivalent type.
◎ “WEEE” Symbol instructions.
This product should not be disposed with other house hold wastes at the end of its working life.
Please separate this from other types of wastes and recycle it responsibly to promote the sustainable
reuse of material resources. This will help prevent harm to the environment or human health form
uncontrolled waste disposal.

5
User Manual
DVB-S2 DIGITAL RECEIVER
(B) Packaging Contents
Please check all package contents before using your product.
• Receiver
• Remote Control
• HDMI Cable
• User Manual
• DC Power Adator
• Battery
• RCA Cable

6
User Manual
DVB-S2 DIGITAL RECEIVER
User Manual
(C) Product Descriptions
▣Front Panel
F1: Button (Power On/Off)
F1

7
User Manual
DVB-S2 DIGITAL RECEIVER
▣Rear Panel
R1: LNB IN
Connect the IF cable from your LNB on your dish to this connector.
R2: COMPONENT
Connects to RCA cable.
R3: Video/Audio output
Connects to TV using RCA cable.(composite YPbPr).
R4: S/PDIF
Connects to a digital audio system using S/PDIF cable.
R5: On/Off Switch
Powers on/off.
R6: HDMI
Connects to TV using a HDMI cable for both audio and video signals.
R7: LAN
Connects the PC or another set top box of the receiver.
R8: USB
Connects the USB Memory Stick or external HDD.
COMPONENT VIDEO/
AUDIO
ON/OFF
LNB IN
13/18V, 22KHZ
Max 400mA
HDMI LAN USB x 2S/PDIF
DC 12V,3A
R1 R4
R3R2 R6 R7
R9R5 R8

8
User Manual
DVB-S2 DIGITAL RECEIVER
User Manual
R9: Power
Adaptor to this connector.
(D) Conditional Access
Amongst the channels that are scanned via the receiver, some channel can be properly tuned on
only with the corresponding Smartcard. The receiver provides one Smartcard Reader slot and users
need to purchase those Smartcards that are required for viewing such subscription based services.
Insertion of Smartcard
① Insert Smartcard as in the following instruction.
② Make sure that the Smartcard remains inserted while viewing.

9
User Manual
DVB-S2 DIGITAL RECEIVER

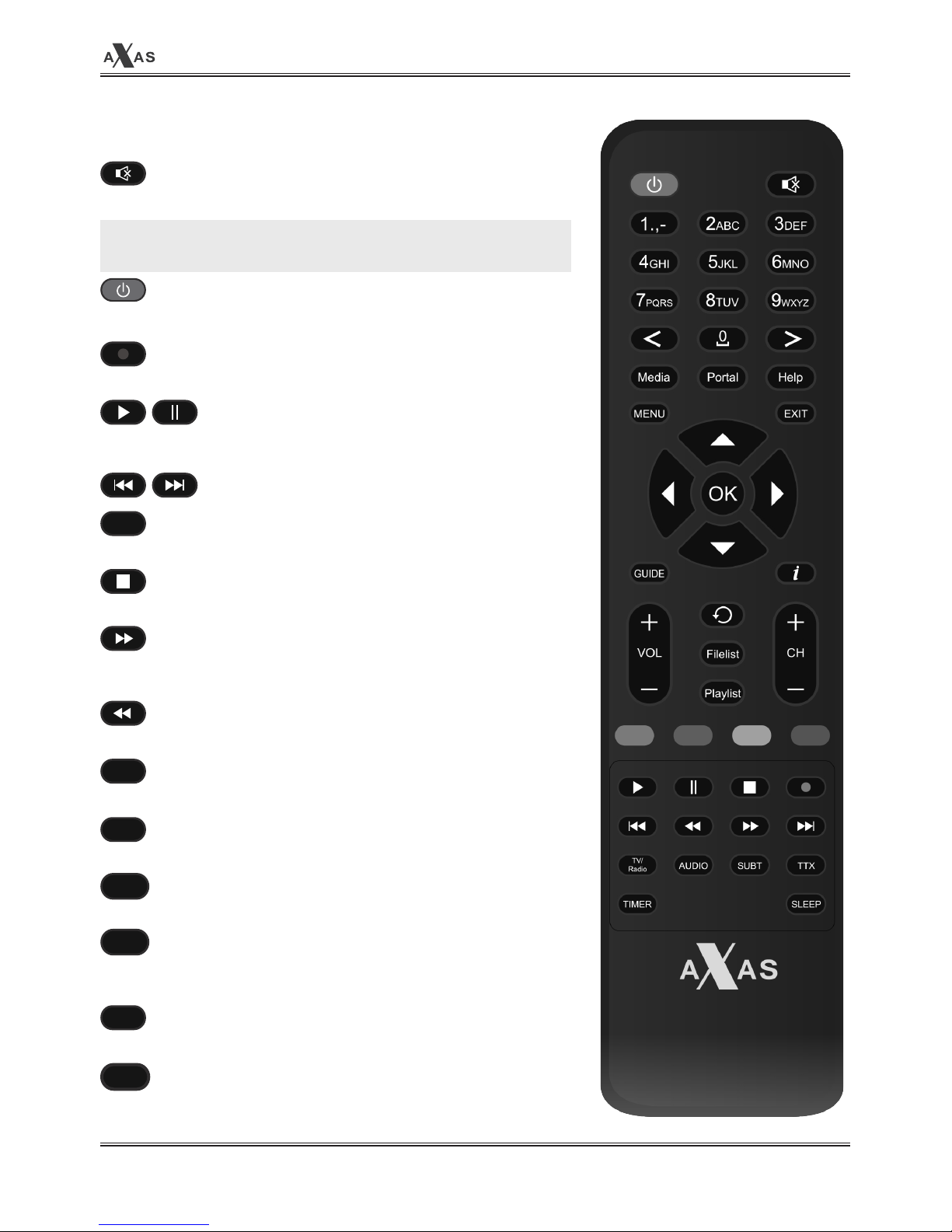

(E) Remote Control
. MUTE
Silences the audio temporarily.
NOTE: when Teletext is activated, mute key is also used
when toggling between the Teletext page and the lice mode.
. Power
To switch receiver to ON or to STANDBY
. Recording
Displays instantly the recording menu.
. Play/ Pause
Plays the selected file (e.g. recording) at the normal speed.
Pause the live program or recording play.
. Previous, Next
. Timer
Sets sleep timer.
. Stop
Stops playing of a recording and goes to the live mode.
. Fast Forward
Fast Forward at up to 128 times faster than the normal speed
(x2 / 4 / 8 / 16 / 32 / 64 / 128).
. Fast Forward
Pause the live program or recording play.
. Subtitle
Displays the subtitle of the current channel if the channel provides subtitle.
. TV/ Radio
Displays the TV/Radio Channel list
. Audio
Displays the audio track option to choose (e.g. ACS, Stereo).
. TTX
Displays the teletext information of current channel, if the channel
provides teletext data.
. SLEEP
Go to Power Timers.
. GUIDE
Go to Power Timers.
TIMER
SUBT
TV/
Radio
AUDIO
TTX
SLEEP
GUIDE
