2N LiftIP
®
Communicator for lifts
User Manual
Version: 2.6.0
The 2N TELEKOMUNIKACE a.s. is a Czech manufacturer and supplier of
telecommunications equipment.
The product family developed by 2N TELEKOMUNIKACE a.s. includes GSM gateways,
private branch exchanges (PBX), and door and lift communicators. 2N
TELEKOMUNIKACE a.s. has been ranked among the Czech top companies for years
and represented a symbol of stability and prosperity on the telecommunications
market for almost two decades. At present, we export our products into over 120
countries worldwide and have exclusive distributors on all continents.
2N is a registered trademark of 2N TELEKOMUNIKACE a.s. Any product and/or other
®
names mentioned herein are registered trademarks and/or trademarks or brands
protected by law.
2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find
information and to answer your questions about 2N products and services. On www.
faq.2n.cz you can find information regarding products adjustment and instructions for
optimum use and procedures „What to do if...".
2N TELEKOMUNIKACE a.s. hereby declares that the 2N product complies with all
basic requirements and other relevant provisions of the 1999/5/EC directive. For the
full wording of the Declaration of Conformity see the CD-ROM (if enclosed) or our
website at www.2n.cz.
The 2N TELEKOMUNIKACE a.s. is the holder of the ISO 9001:2009 certificate. All
development, production and distribution processes of the company are managed by
this standard and guarantee a high quality, technical level and professional aspect of
all our products.
2N TELEKOMUNIKACE a.s., www.2n.cz 3/117
Content:
1. Product Introduction
1.1 Product Description
1.2 Components and Associated Products
1.3 Upgrade
1.4 Terms and Symbols
2. Description and Installation
2.1 Product Description
2.2 Before You Start
2.3 Mounting
2.4 Connection
2.5 Description of LEDs, Terminals, Jumpers and Connectors
2.6 System Voice Menu
2.7 Voice Alarm Station
2.8 IO Extender
3. Configuration
3.1 LiftIP Programming
3.2 Programming Function Survey
3.3 IP Camera Configuration
4. Function and Use
4.1 Function Description
4.2 Control Centre Instructions
4.3 Call Confirmation Types
4.4 Audio Unit Audio Test
4.5 ALARM Button Test
4.6 Rescue Process Activation/End
4.7 CPC and P100 Protocols
2N TELEKOMUNIKACE a.s., www.2n.cz 5/117
1. Product Introduction
In this section, we introduce the product, outline its application options 2N Lift1IP
®
and highlight the advantages following from its use.
Here is what you can find in this section:
1.1 Product Description
1.2 Components and Associated Products
1.3 Upgrade
1.4 Terms and Symbols
Caution
This product, its installation and configuration are not intended for
persons with physical, sensory or mental disabilities or persons with
limited experience and skills unless expert supervision or relevant
instructions are provided to them by a person responsible for their
safety.
2N TELEKOMUNIKACE a.s., www.2n.cz 6/117
1.1 Product Description
Basic Features
2N LiftIP
® is primarily designed for sites where a LAN is available.
2N LiftIP
® is a Speakerphone on principle. This means that a microphone and a
speaker built-in behind the lift button panel are used for bidirectional
communication.
Connect to your LAN using an RJ-45 connector. Feed 2N LiftIP
®2N LiftIP
®
either from an external 10–30 V DC / 0.5 A power supply or directly from the
LAN if equipped with PoE 802.3af supporting elements.
2N LiftIP
® can only be used for making calls to pre-programmed numbers and
cannot be misused for “calling at someone else's account".
Connection of an almost unlimited count of communicators is a great advantage.
Advantages of Use:
Basic announcement set playing
Optimum acoustic properties
Adjustable speaker volume via audio unit buttons (during a call)
Recording of up to 8-minute long announcements (10 user messages)
Recording of user digits in a language other than that of the voice menu
Check call function once in 3 days (programmable)
Function indication – two LEDs meeting the applicable lift regulations
Easy control and configuration – voice menu
Setting option via the Service Tool application
Automatic redialling of up to six numbers
Protection against unintentional/useless startup (CANCEL)
Call control from control centre
No additional power supply requirement if PoE is used
Easy installation into any lift button panel
Powerful indication options – illuminated pictograms (including bulbs)
DTMF via RFC-2833 or in-band
2N TELEKOMUNIKACE a.s., www.2n.cz 7/117
1.2 Components and Associated Products
Basic Unit – Universal Design
These units are installed behind the lift panel, which is prepared for installation in
advance.
Part No., Name Description
920640
2N LiftIP
® – Cabin audio unit
EN basic module
automatic dialling of up to 6 numbers
920640XE
2N LiftIP
® – Cabin audio unit,
cable version
920640 + LED, microphone and speaker connected
with cables
2N TELEKOMUNIKACE a.s., www.2n.cz 8/117
Extending Modules – External
2N LiftIP I/O Extender
®
Part No., Name Popis
920623E
2N LiftIP I/O
®
Extender
The IO extender helps you extend with 1 input and 2 2N LiftIP
®
outputs.

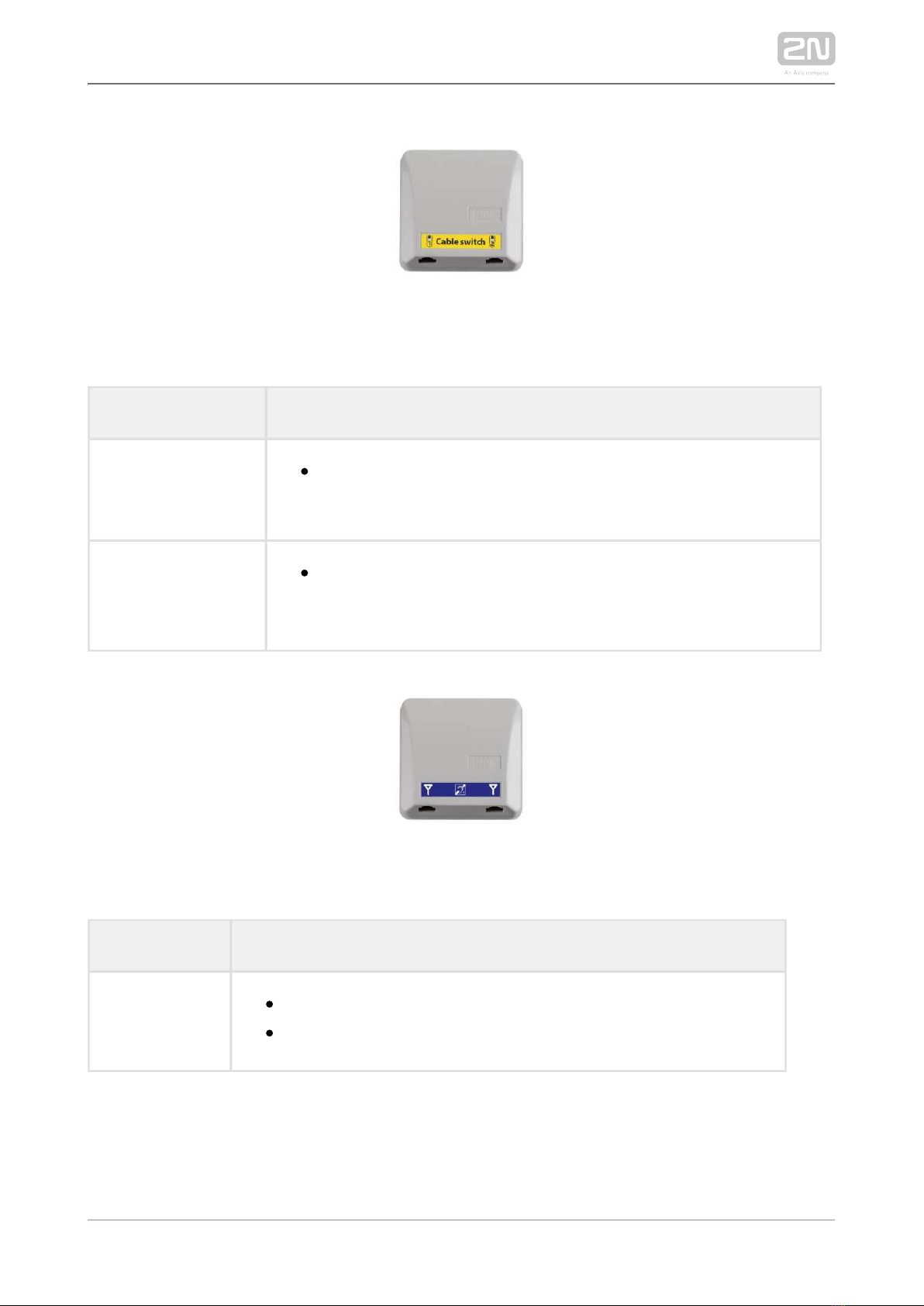

2N Voice Alarm Station – Audio Unit
2N TELEKOMUNIKACE a.s., www.2n.cz 9/117
2N Voice Alarm Station – Switch
Part No., Name Description
913660E
2N Voice Alarm
Station – Audio Unit
Audio unit to be installed on the cabin roof and under the cabin
913661E
2N Voice Alarm
Station – Switch
Audio unit – Lift 1 interconnecting switch
Induction loop
Part No., Name Description
919621E
Induction loop
Provides lift communication to deaf people
4m antenna for a good cabin signal, included in the package
2N TELEKOMUNIKACE a.s., www.2n.cz 10/117
Associated 2N Products
918xxx 2N ® Lift8 system:
Up to 8 lift connectivity
Cabin, shaft and machine room audio units
In-built backup rechargeable battery
Easy control and configuration – voice menu
Check call function
Lift blocking option during connection error
Internal communication – Triphony
Configuration via phone or PC (USB/Internet)
USB interface
User message recording option
Local control option (InterCom)
Fireman function
2N TELEKOMUNIKACE a.s., www.2n.cz 11/117

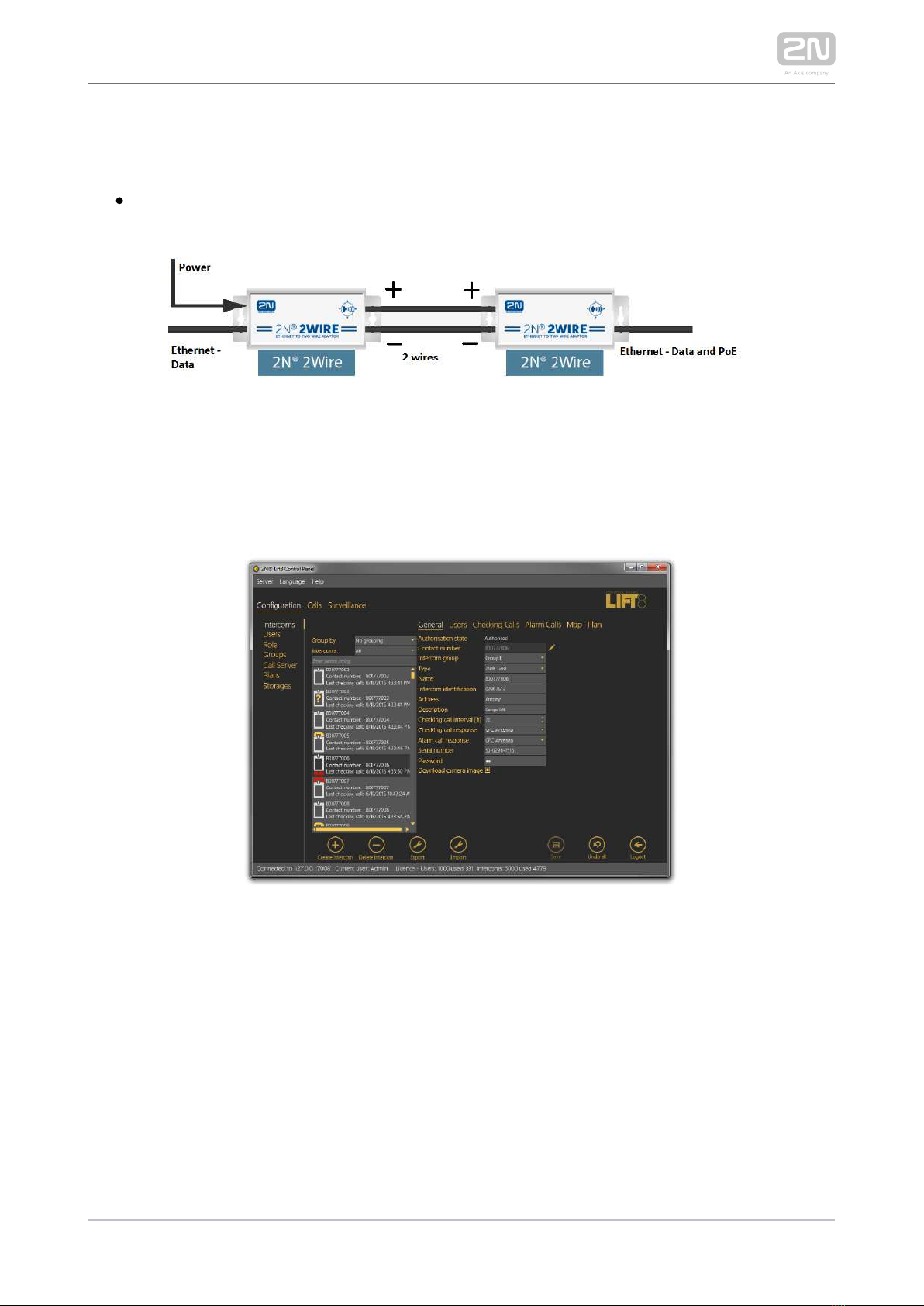

9159014 – 2N ® 2Wire
Analogue 2-wire cables can be used for IP intercom connection including PoE
supply.
Cooperating 2N ® Applications
918700E 2N ® Lift8 Control Panel
2N Lift8 Control Panel
®
The application is designed for management of users, lifts and 2N Control Panel
®
rights.
2N TELEKOMUNIKACE a.s., www.2n.cz 12/117

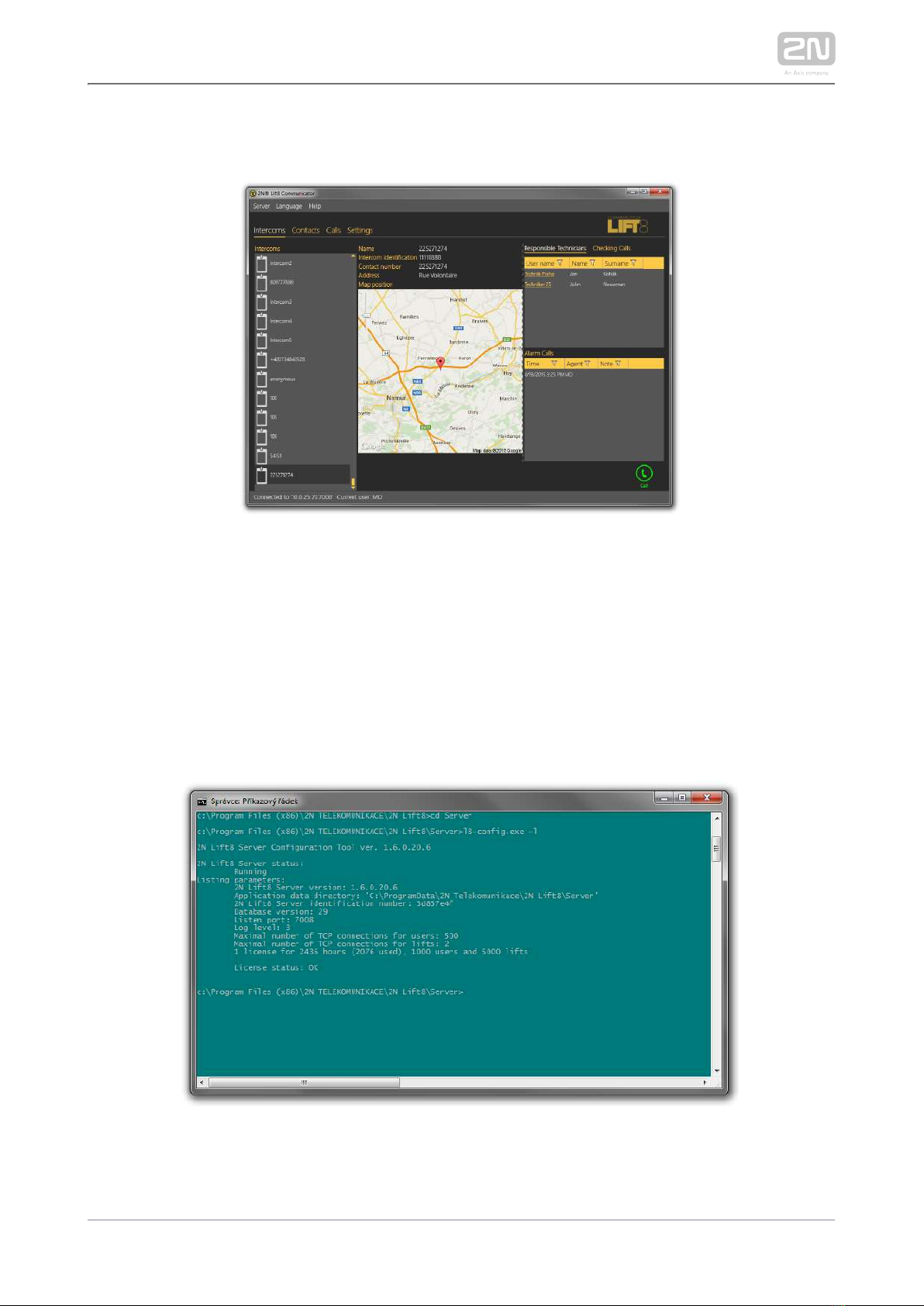

918700E 2N ® Lift8 Communicator
2N Lift8 Communicator
®
The is designed for receiving alarm calls by the control 2N Lift8
®Communicator
centre.
918700E 2N ® Lift8 Server
2N Lift8 Server
®
2N TELEKOMUNIKACE a.s., www.2n.cz 13/117
The application processes check calls and mediates communication 2N Lift8 Server
®
between the Central Units and PC applications.
2N TELEKOMUNIKACE a.s., www.2n.cz 14/117
1.3 Upgrade
The manufacturer reserves the right to modify the product in order to improve its
qualities.
Manual
version
Description of changes
1.0 First product/manual version
2.3 Direct SIP (calling without Proxy server)
Events (jammed button, rescue end, audio error)
2.4
IP camera and video call support (H.264)
Protocol logs (SIP, RTSP)
IO extender
Voice Alarm Station
2.5 LiftIP restart via Service Tool
Audio unit audio test change
New parameter 987 (LED signalling according to EN81-28)
New parameter 810 (Checking call timeout)
New parameter 811 (Manual checking call activation)
New parameter 990 (Enable operational calls at events)
New parameter 963 (Minimum button pressing time to trigger forced/test
alarm)
2N TELEKOMUNIKACE a.s., www.2n.cz 15/117
Caution
The manufacturer keeps upgrading the software according to the
customers‘ needs. The latest firmware version for the 2N software
®LiftIP
and the User Manual are available at .www.2n.cz
Refer to the Service Tool section for the firmware upgrade 2N LiftIP
®
details.
2N TELEKOMUNIKACE a.s., www.2n.cz 16/117
1.4 Terms and Symbols
The following symbols and pictograms are used in the manual:
Safety
Always abide by this information to prevent persons from injury.
Warning
Always abide by this information to prevent damage to the device.
Caution
Important information for system functionality.
Tip
Useful information for quick and efficient functionality.
Note
Routines or advice for efficient use of the device.
2N TELEKOMUNIKACE a.s., www.2n.cz 17/117
2. Description and Installation
In this section, we describe the product and its installation.2N LiftIP
®
Here is what you can find in this section:
2.1 Product Description
2.2 Before You Start
2.3 Mounting
2.4 Connection
2.5 Description of LEDs, Terminals, Jumpers and Connectors
2.6 System Voice Menu
2.7 Voice Alarm Station
2.8 IO Extender
2N TELEKOMUNIKACE a.s., www.2n.cz 18/117
2.1 Product Description
is a Speakerphone on principle. It is equipped with a microphone, speaker 2N LiftIP
®
and RJ-45 Ethernet port. Moreover, it contains power supply terminals, ALARM
button, illuminated pictograms (device states according to standard requirements)
and CANCEL input (optional cabin door opening signal).
Operation
Activate the ALARM button. The pictogram starts shining immediately; the Wait
pictogram starts shining when communication has been Connection established
established.
Universal Design
The electronics board is located between the mounting panel and the instruction-
printed cover (see the figure). The total dimensions are 65 (W) × 130 (H) × 24 (D) mm.
The speaker and microphone are mounted on the panel. The slide-on terminals
included in the delivery are connected to the left. The small connectors in the lower
part are intended for induction loops (for deaf people) and LED indicators. Illuminated
pictograms/icons (even with bulbs) can easily be connected to the device. The
pictograms and the ALARM button are not included in the delivery as they are lift
design elements.
2N LiftIP
®
2N TELEKOMUNIKACE a.s., www.2n.cz 19/117
2.2 Before You Start
Product Completeness Check – Universal Design
Check before installation whether the product package includes the following:
motherboard,
4 terminals (line, ALARM, CANCEL, pictograms) slid to the left,
6 jumpers (2 x 3) inserted on the jumper link for ALARM and CANCEL setting,
speaker and microphone (plus an additional cable microphone if required by the
client),
Brief manual (printed) and Warranty card,
Download the Service Tool from .www.2n.cz
2N ® LiftIP Installation Conditions
2N LiftIP
® is not intended for outdoor applications.
The product is connected to the LAN.
The covering against mechanical damage, water, dust and other influences must
be provided by the installing company if necessary.
The communicator mounting surface must be perfectly flat, for details see
Section .2.3 Mounting
Tip
The green Ethernet port LED starts flashing on LiftIP to indicate that the
LAN and power supply/PoE have been connected.
Once connected, LiftIP gets the IP address from the DHCP server.
The Service Tool is equipped with a scan function that finds the LiftIP
products in the LAN.
Universal Design
Make sure that the lift panel is ready for mounting.2N LiftIP
®
2N TELEKOMUNIKACE a.s., www.2n.cz 20/117
2.3 Mounting
Safety Precautions
Caution
Make sure that the position, appearance and marking of the
communicator controls (ALARM button, e.g.) are in accordance with the
applicable lift standards.
Before You Start
Installation Conditions
Make sure that the lift panel is ready for installation, including speaker
perforation.
Make sure that the panel includes the required elements:
ALARM button;
illuminated pictogram ;Request received
illuminated pictogram .Connection established
Make sure that the positions of these pictograms are in accordance with the
applicable regulations.
Make sure that there is a free space of 65 (W) x 130 (H) x 25 (D) mm at least
behind the panel.
2N ® LiftIP Position
2N®LiftIP can be mounted in any position as required. The optimum position for
is approximately on the level of an adult‘s mouth. Install on a 2N LiftIP
®2N LiftIP
®
place where any contact of the operating personnel with the device is eliminated
(refer to Safety Precautions).
Caution
Installing electronics without the mounting panel is not recommended as
the panel is used as electric insulation and the manufacturer cannot
guarantee safety if the panel is not used.
Other manuals for 2N Access Unit
4
Table of contents
Other Axis Cell Phone manuals
