Axminster PROFESSIONAL AP340E User manual

AP340E 3HP
Dust Extractor
AT: 20/08/2021
BOOK VERSION: 03
Code 107634
Original Instructions

Index of Contents
2
EU Declaration of Conformity
EU Declaration of Conformity 02
What’s Included 03-04-05-06
General Instruction for 230V Machines 06
Specific Safety for Dust Extractors 07
Specification 07

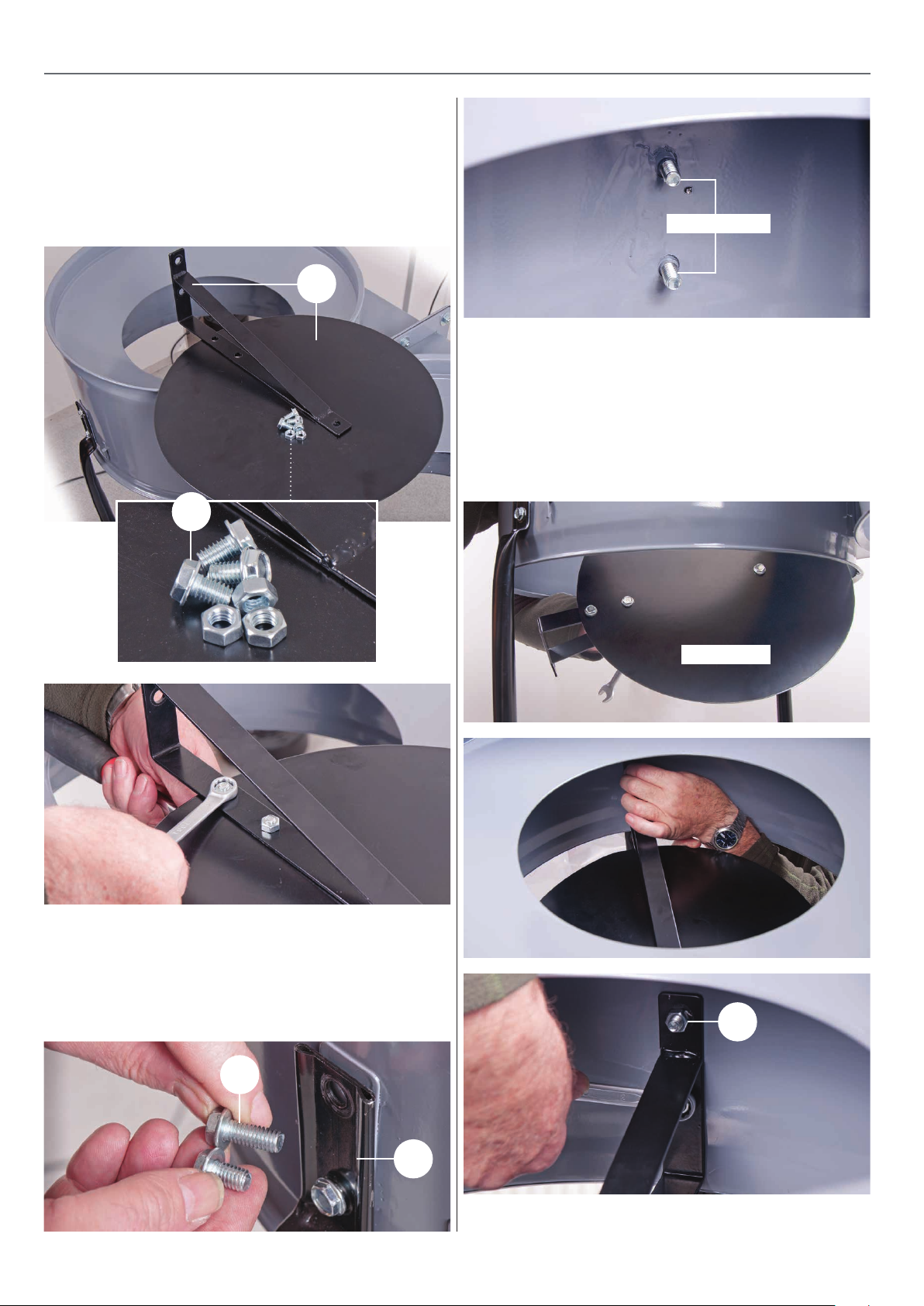

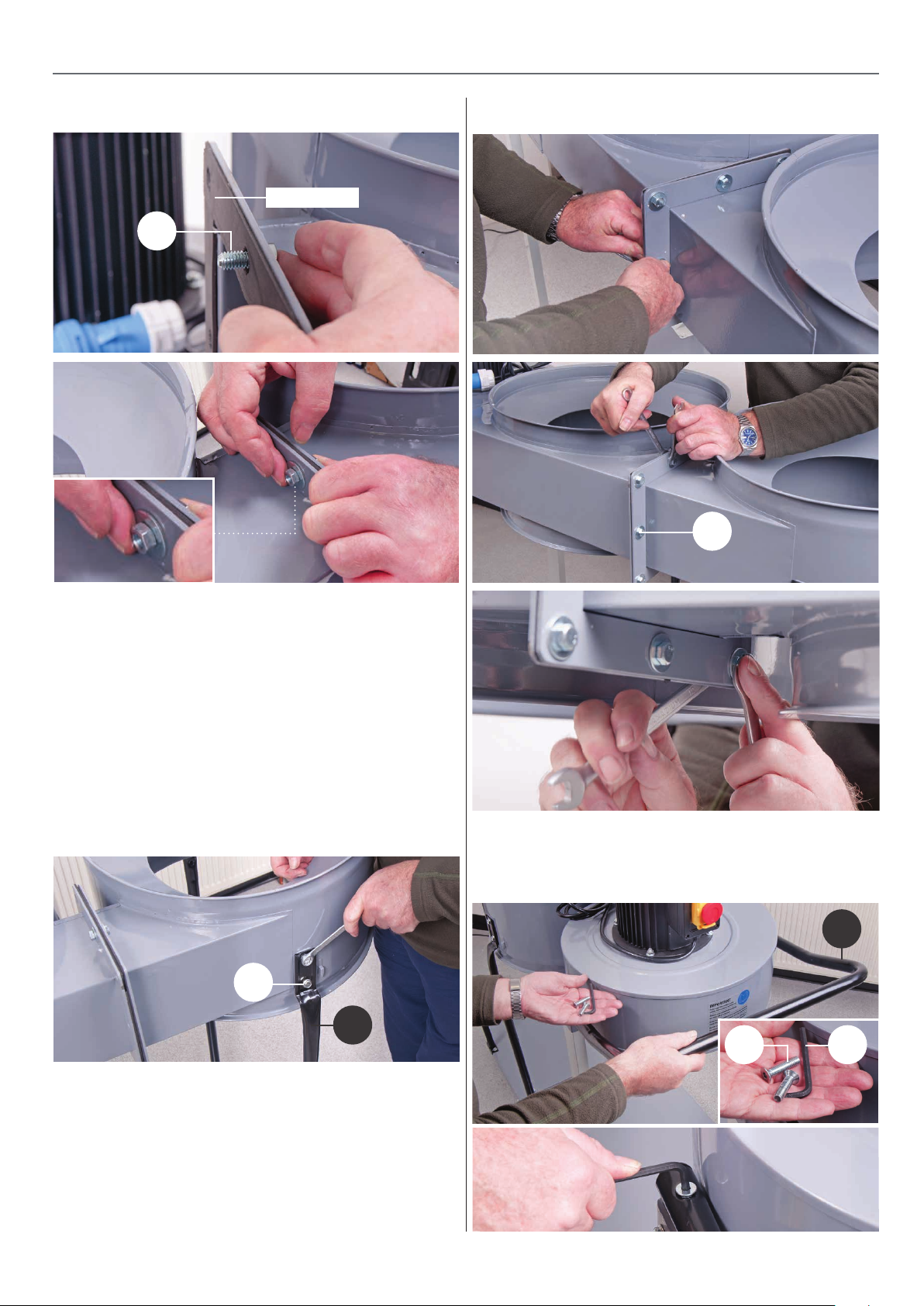

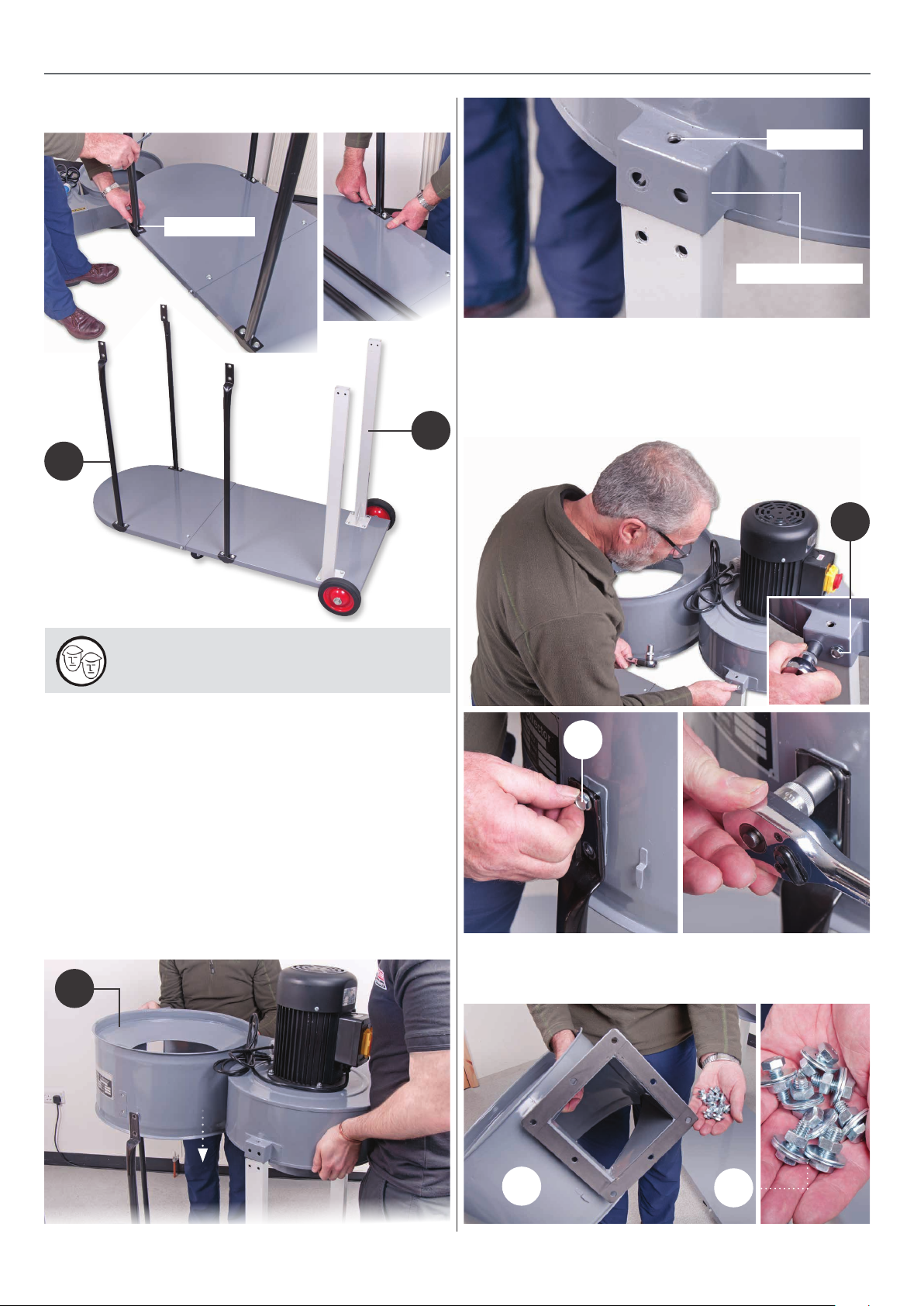

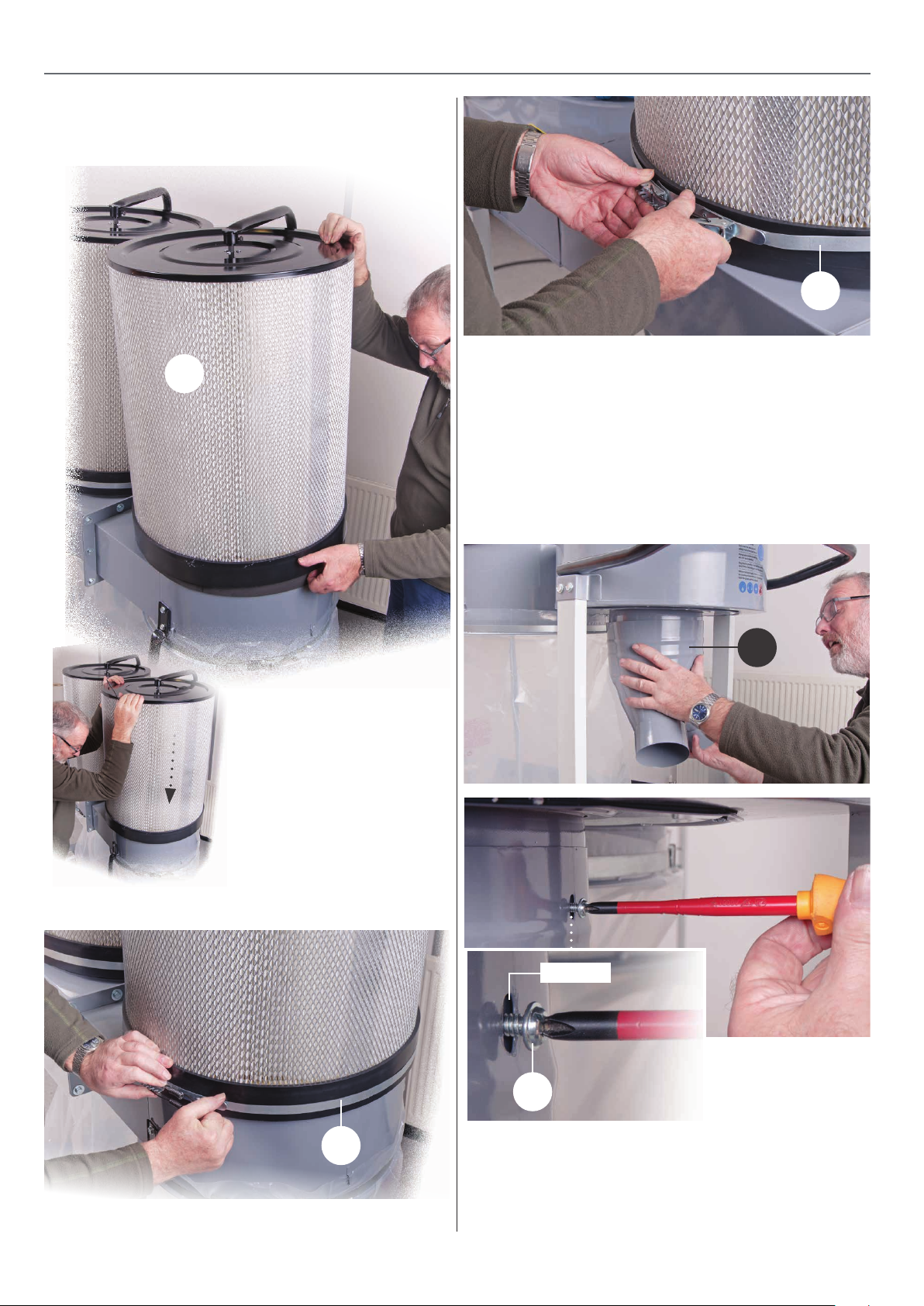

Assembly 08-09-10-11-12-13-14
Illustration and Parts Description 15-16-17
Operating Instruction 18-19

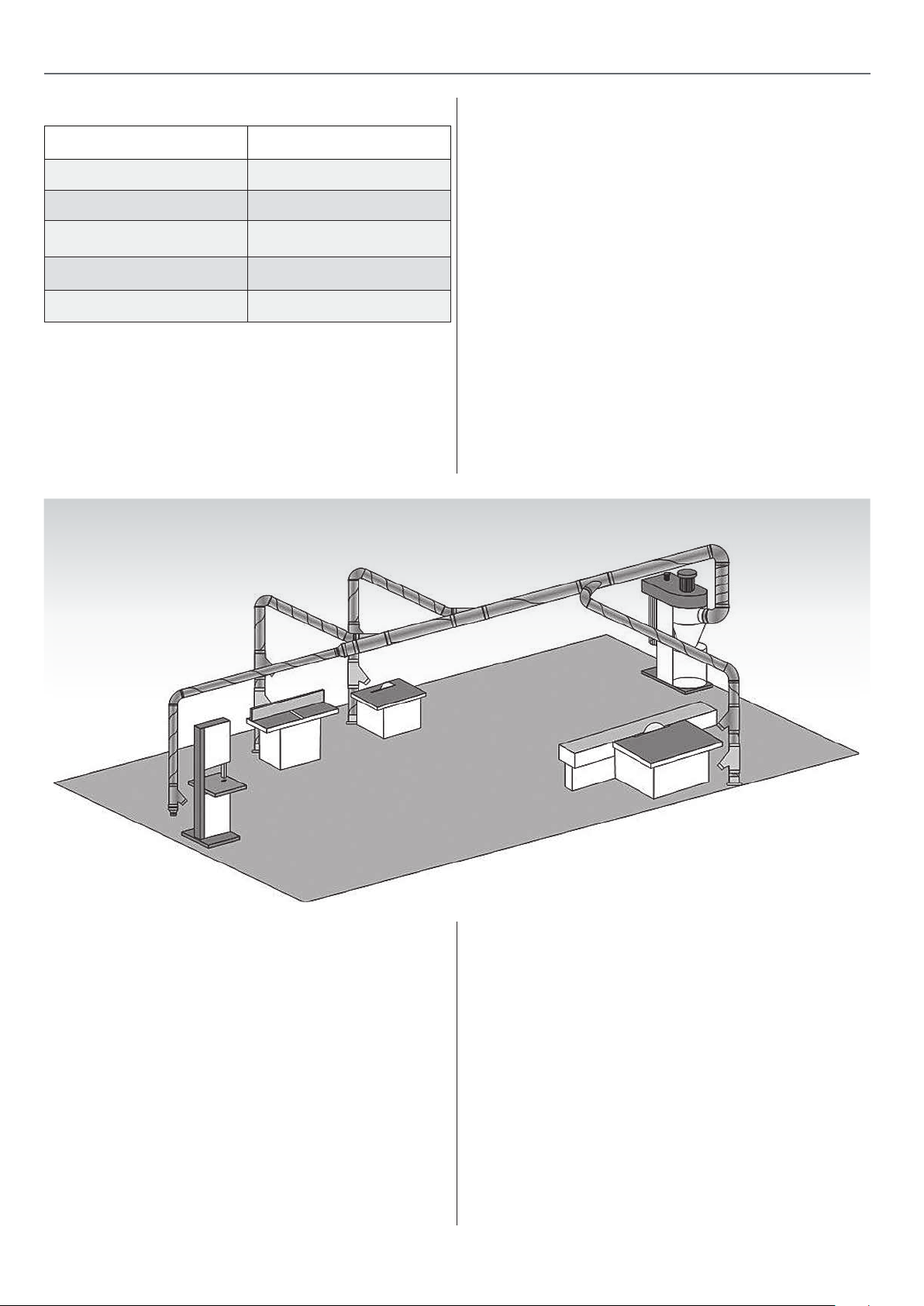

Ducting System 20
Maintenance 21
Weekly LEV System Maintenance Log 22-23
LEVTesting 24
Extraction Accessories 24
Exploded Diagrams/Parts Lists 25-26
Wiring Diagram 27
The symbols below advise the correct safety procedures when using this machine.
Fully read manual
and safety instructions
before use
Eye protection
should be worn
Ear protection
should be worn
HAZARD
Dust mask
should be worn
Cert No: CT-90HCK
AxminsterTool Centre Ltd
Axminster Devon
EX13 5PH UK
axminstertools.com
Type Dust Extractor
Model AP340E and conforms to the machinery example for which the
ECType-Examination Certificate No 1002-CI-32016/META-2016002-A1
has been issued by META INTERNATIONAL CO., LTD
at:No.117,In.400.sec.3,Yatan td.,Daya Dist.,Taichung City 428,Taiwan
and complies with the relevant essential health and safety requirements.
2006/42/EC
2014/35/EU
EN ISO 12100:2010
EN 60204-1:2006+A1:2009+AC:2010
declares that the machinery described:-
This machine complies with the following directives:
EU Declaration of Conformity
Signed
Andrew Parkhouse
Operations Director Date: 03/05/2016

What’s Included
3
Quantity Item Part Model Number
AP340E
1 Rectangular Base (Part A) 1
1 Rectangular Base (Part B) 2
3 Tube Support Handle 3
2 Upright Supports 4
2 Dust Deflector with Bracket 5
1 Inlet Manifold 6
1 Tube Handle 7
2 Wheels 8
2 Filter Bag Retaining Belts 9
4 CastorWheels 10
2 Filter Dust Bags 11
1 Collector Assembly 12
1 Extractor Assembly 13
2 Filter Cartridge 14
2 Shaker Paddle Operating Handles 15
2 Filter Assembly Retaining Belts 16
2 Foam Seal Bands 17
1 Instruction Manual

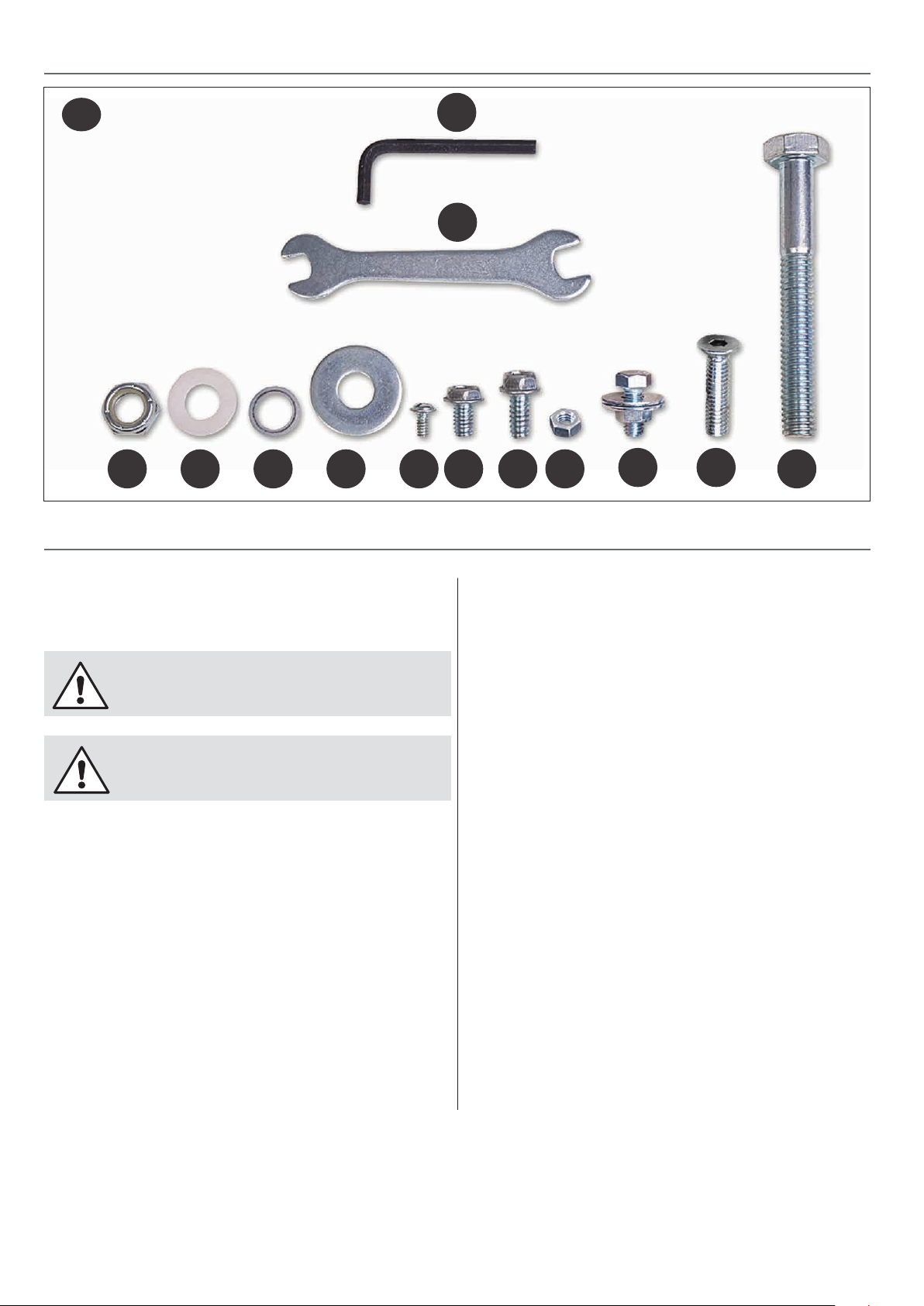

2 Bags Containing: 18
1 5mm Hex Key a
1 10-12mm Spanner b
2 1/2" Locking Nuts c
2 NylonWashers d
2 ThinWashers e
2 LargerWasher f
1 Small Phillips Screw g
30 5/16" UNC Hex Bolts (Short) h
4 5/16" UNC Hex Bolts (Long) i
4 5/16" UNC Nuts j
8 5/16" UNC Hex Bolts,
LargeWashers & Nuts k
2 UNC Hex Countersink Screws l
2 1/2" Large Hex Bolt m
Extactor FixingsExtactor Parts
NOTE: Please read the Instruction Manual prior to using
your new machine. As well as the operating procedures
for your new machine, there are numerous hints and tips
to help you to use the machine safely and to maintain
its efficiency and prolong its life. There is also a detailed
description of the parts of your Extractor, which will enable
you to become familiar with terminology we will use in this
manual. Keep this Instruction Manual readily accessible for
any others who may also be required to use the machine.
1
3 4
2

What’s Included
4
5
7 6
8
9
11 18
10

What’s Included
5
12
14
13
15
16
17
Continues Over....
