Axon Synapse HCS100 Quick start guide

Committed.
HCS100-120
Solid state drive based HD, SD SDI JPEG200 compressed
clip store/player with optional bug inserter
Installation, Operation and Upgrade manual

Hercules 28
NL-5126 RK Gilze
The Netherlands
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
Web: www.axon.tv
TECHNICAL MANUAL
HCS100
HCS120

1
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRICAL SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE
● ALWAYS disconnect your entire system from the AC mains before cleaning any component. The product
frame (SFR18, SFR08 or SFR04) must be terminated with three-conductor AC mains power cord that
includes an earth ground connection. To prevent shock hazard, all three connections must always be used.
● NEVER use flammable or combustible chemicals for cleaning components.
● NEVER operate this product if any cover is removed.
● NEVER wet the inside of this product with any liquid.
● NEVER pour or spill liquids directly onto this unit.
● NEVER block airflow through ventilation slots.
● NEVER bypass any fuse.
● NEVER replace any fuse with a value or type other than those specified.
● NEVER attempt to repair this product. If a problem occurs, contact your local Axon distributor.
● NEVER expose this product to extremely high or low temperatures.
● NEVER operate this product in an explosive atmosphere.
Warranty: Axon warrants their products according to the warranty policy as described in the general terms.
That means that Axon Digital Design BV can only warrant the products as long as the serial numbers are not
removed.
Copyright © 2001 –2017 AXON Digital Design B.V.
Date created: 06-03-2017
Date last revised: 06-03-2017
Axon, the Axon logo and Synapse are trademarks of Axon Digital Design B.V.
This product complies with the requirements of the product family standards for audio, video, audio-visual
entertainment lighting control apparatus for professional use as mentioned below.
EN60950
EN55103-1: 1996
EN55103-2: 1996
Safety
Emission
Immunity
Axon Digital Design
HCS100/120
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
This device complies with part 15 of the FCC Rules
Operation is subject to the following two conditions:
(1) This device may cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.

2
Table of Contents
Introduction to Synapse 5
An Introduction to Synapse 5
Local Control Panel 5
Remote Control Capabilities 5
Unpacking and Placement 6
Unpacking 6
Placing the card 6
(Re)placing Solid State Disk 6
Axon approved disks 7
A Quick Start 8
When powering-up 8
Changing settings and parameters 8
Front Panel Control 8
Example of changing parameters using front panel control 9
Axon Cortex Software 10
Menu Structure Example 10
The HCS Card 11
Introduction 11
Features 11
Applications 11

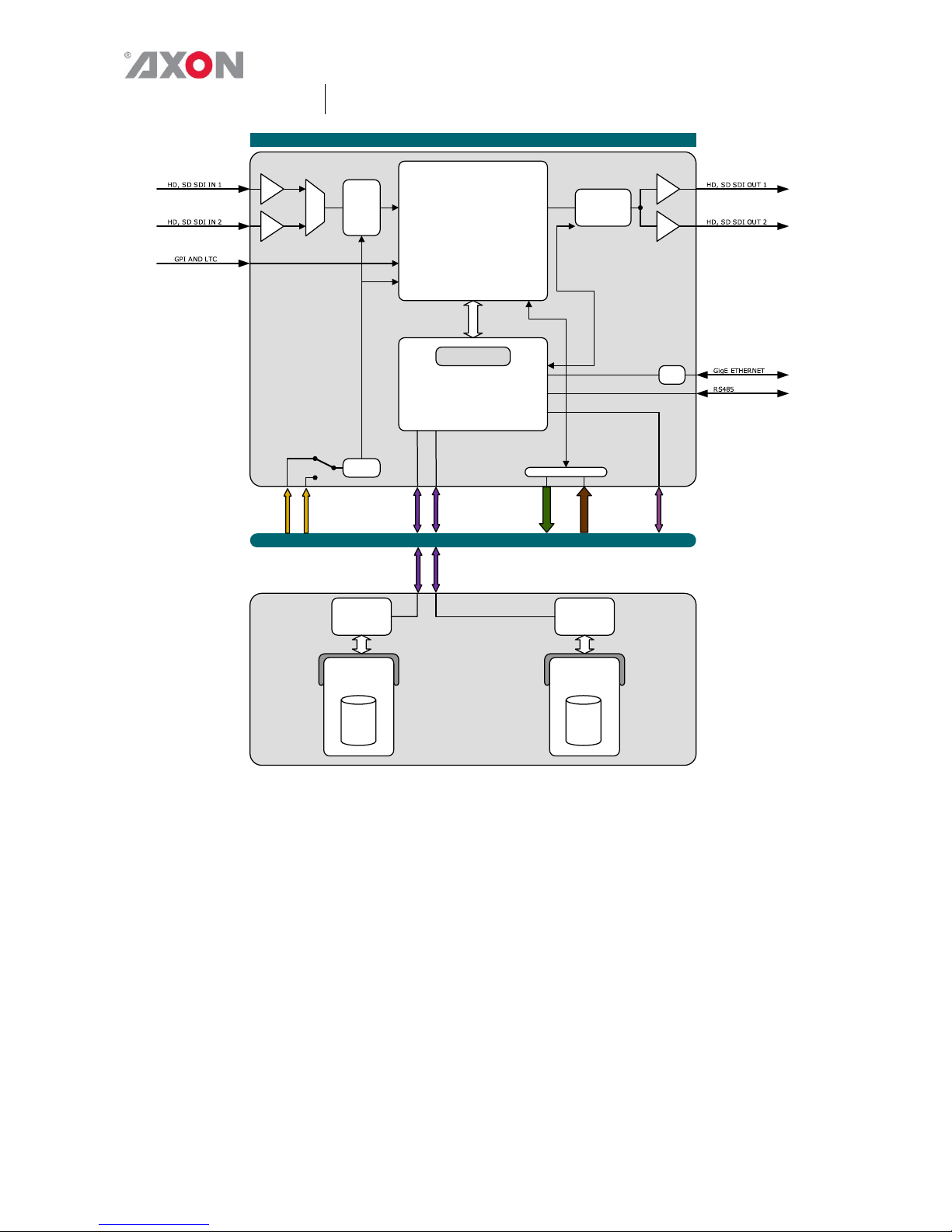

Block schematic 12
Settings Menu 13
Introduction 13
Disk-Protect 13
Out-Frmt 13
H-delay 13
V-delay 13
Compression 13
Include ANC 13
Input_Loss 14
RunIn-Frames 14
RunOut-Frames 14
Lock-Mode 14
Ref-Type 14
Output1-enable 14
Output1-Overlay 14
Output1-Clip 15
Output1-Next 15
Output2-enable 15
Output2-Overlay 15
Num-Clips 15
Record-Clip 16
Erase-Clip 16
Clip 16
#Clip-Name 16
#Clip-Length 16
#Clip-Begin ~ #Clip-End 16
#Clip-Protect 16
Monitor-Temp 16
Monitor-Disks 16
LogoA1_Act 17
LogoA1_edit 17
#LogoA1-Name 17
#LogoA1-Origin 17
#LogoA1-XPos 17
#LogoA1-YPos 17
#LogoA1-Width 17
#LogoA1-Height 17
#LogoA1-Fade-In 18
#LogoA1-Fade-Out 18
LogoA2_Act 18
LogoA2_edit 18
#LogoA2-Name 18
#LogoA2-Origin 18
#LogoA2-XPos 18
#LogoA2-YPos 18
#LogoA2-Width 18
#LogoA2-Height 19

3
#LogoA2-Fade-In 19
#LogoA2-Fade-Out 19
IP_Conf0 19
mIP0 19
mNM0 19
mGW0 19
NetwPrefix0 19
Status Menu 20
Introduction 20
sInp1 20
sInp2 20
Buffer-Size 20
Clip-Size 20
Output1-Pos 20
Output1-Clipname 20
Output2-Pos 20
Output2-Clipname 21
Ref 21
Lock-Det 21
Disk1_Status 21
Disk1_Model 21
Disk1_Serial 21
Disk1_Size 21
Disk1_AvgRead 21
Disk1_AvgWrite 21
Disk2_Status 22
Disk2_Model 22
Disk2_Serial 22
Disk2_Size 22
Disk2_AvgRead 22
Disk2_AvgWrite 22
CPU_Env_Temp 22
CPU_Core_Temp 22
FPGA_Env_Temp 22
FPGA_Core_Temp 22
FPGA_Fan 22
IP_Addr0 22
IP0 22
MAC0 23
NM0 23
GW0 23
Events Menu 24
Introduction 24
What is the Goal of an event? 24
Events 24
Announcements 24
What information is available in an event? 24
The Message String 24
The Tag 24
Defining Tags 25
The Priority 25
The Address 25
LED Indication 26
Introduction 26
Error LED 26
Input_1 LED 26
Input_2 LED 26
ANC Data LED 26
Reference LED 26
Data Error LED 26
Connection LED 26
Error LED 26
Connector Panels 27
Uploading logos using cortex 28
Introduction 28
NOTE 28
Uploading files 28

4
Uploading logos using WebDav or FTP. 30
Introduction 30
WebDAV 30
FTP 30
Uploading files using Windows XP 30
Reprogramming HCSxxx modules 34
Before you start 34
Functionality explanation 34
Choosing .spf files 34
Requirements 34
Using Cortex help files 34
Precautions 35
Backup your settings 35
At your own risk 35
Setting up card 36
Testing 38
GNU Public License version 2 39
Contacting Axon costumer support 42

5
1
Introduction to Synapse
An Introduction to
Synapse
Synapse is a modular system designed for the broadcast industry.
High density, intuitive operation and high quality processing are
key features of this system. Synapse offers a full range of converters
and processing modules. Please visit the AXON Digital Design
Website at www.axon.tv to obtain the latest information on our new
products and updates.
Local Control
Panel
The local control panel gives access to all adjustable parameters and
provides status information for any of the cards in the Synapse
frame, including the Synapse rack controller. The local control
panel is also used to back-up and restore card settings. Please refer
to the rack controler manuals for a detailed description of the local
control panel, the way to set-up remote control over IP and for
frame related settings and status information.
Remote Control
Capabilities
The remote control options are explained in the rack controller
manual. The method of connection to a computer using Ethernet is
also described in the ERC/ERS/RRC/RRS manual.
!
CHECK-OUT: “AXON CORTEX” SOFTWARE WILL
INCREASE SYSTEM FLEXIBILITY OF ONE OR
MORE SYNAPSE FRAMES
Although not required to use Cortex with a Synapse frame, you are
strongly advised to use a remote personal computer or laptop PC
with Axon Cortex installed, as this increases the ease of use and
understanding of the modules.

6
2
Unpacking and Placement
Unpacking
The Axon Synapse card must be unpacked in an anti-static
environment. Care must be taken NOT to touch components on the
card –always handle the card carefully by the edges. The card must
be stored and shipped in anti-static packaging. Ensuring that these
precautions are followed will prevent premature failure from
components mounted on the board.
Placing the card
The Synapse card can be placed vertically in an SFR18 frame or
horizontally in an SFR08 frame. We advice not to use the HCS in
an SFR04!
Locate the two guide slots to be used, slide in the mounted circuit
board, and push it firmly to locate the connectors.
The HCS100 and HCS120 consist out of two cards, the processing
card and the card containing the SSD’s. The cards have to be placed
next to each other with the SSD card one slot number lower than
the processing card. This means in an SFR18 the SSD card has to be
inserted one slot on the left hand side of the processing card. In an
SFR08 do not try to insert the processing card in slot 5 and the SSD
in slot 4. This will not work!
Correct insertion of card is essential as a card that is not located
properly may show valid indicators, but does not function correctly.
NOTE: On power up all LED’s will light for a few seconds, this is
the time it takes to initialise the card.
(Re)placing Solid
State Disk
The Solid state disks have to be manually (re)placed. To do this,
synapse card which contains the SSD’s will have to be pulled out of
the frame. This will cause output downtime!
After reseating the card, the buffer will be cleared and the
recording starts from the beginning!
SSD1 is the disk closest to the card grip. SSD2 is the disk closest to
the card connector, clearly indicated on the PCB itself. Use a small
Philips screwdriver to unscrew the 4 screws of the disk that requires
replacement. Carefully slide the disk out of the SATA connectors.
Take the new disk and gently slide it into the SATA connectors.

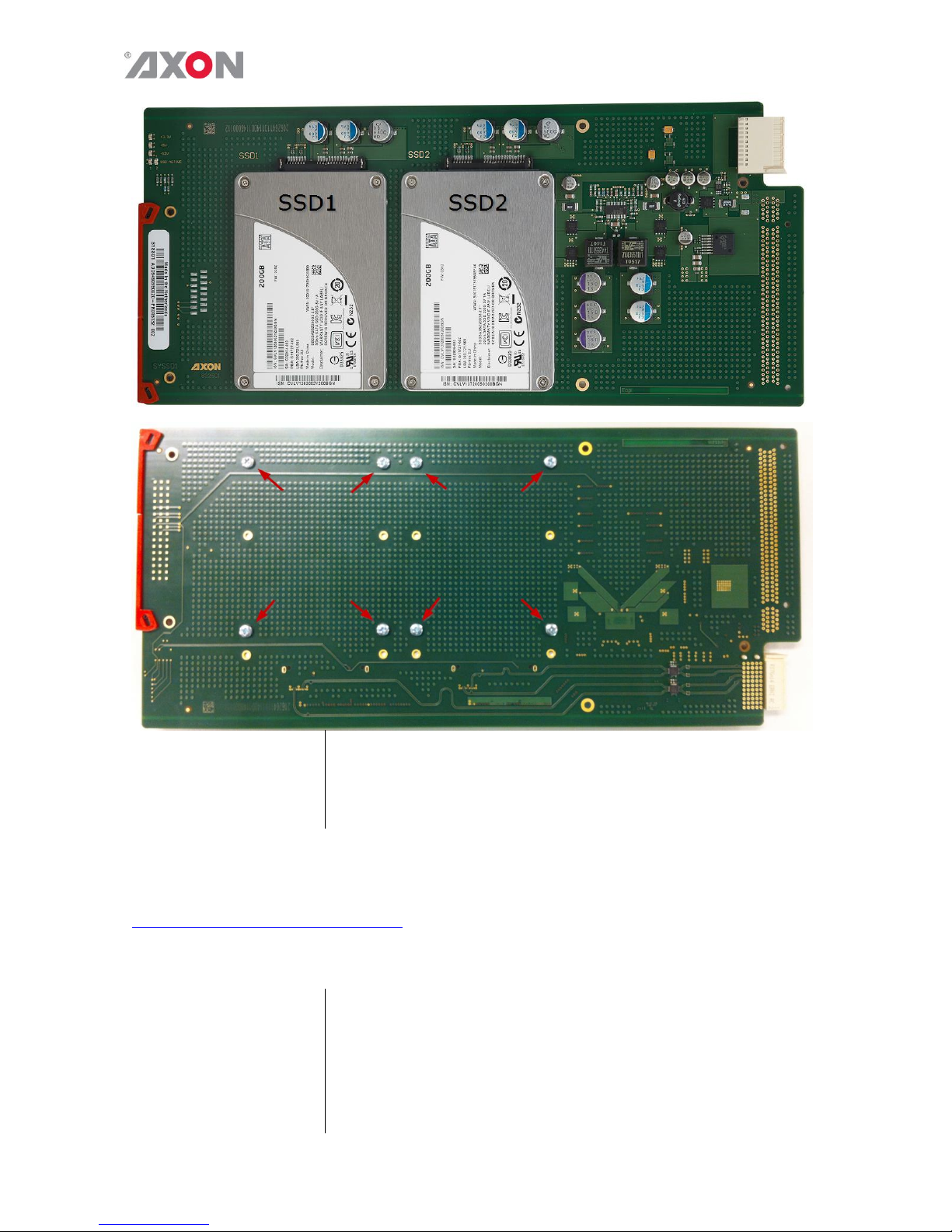

When the disk is in place, screw the disk steadfast onto the board
with the 4 screws (M3*5CK). Below pictures (next page) shows the
position of the disks and the screws of each SSD on the bottom side
of the card.

7
Axon approved
disks
Please only use Axon tested and approved disks. These can be
ordered at Axon or you can buy them yourself. The Approved disks
are:
Intel SSD S3700 100 GB SSDSC2BA100G301 (1,5h delay); Axon art. Nr: MIC0000000001
Intel SSD S3700 200 GB SSDSC2BA200G301 (3h delay) ; Axon art. Nr: MIC0000000002
Intel SSD S3700 400 GB SSDSC2BA400G301 (6h delay) ; Axon art. Nr: MIC0000000003
http://ark.intel.com/nl/search?q=s3700

8
3
A Quick Start
When powering-
up
On powering up the Synapse frame, the card set will use basic data
and default initialisation settings. All LED’s will light during this
process. After initialisation, several LED’s will remain lit – the
exact number and configuration is dependent upon the number of
inputs connected and the status of the inputs.
Changing settings
and parameters
The front panel controls or the Axon Cortex can be used to change
settings. An overview of the settings can be found in chapter 5, 6
and 7 of this manual.
Front Panel
Control

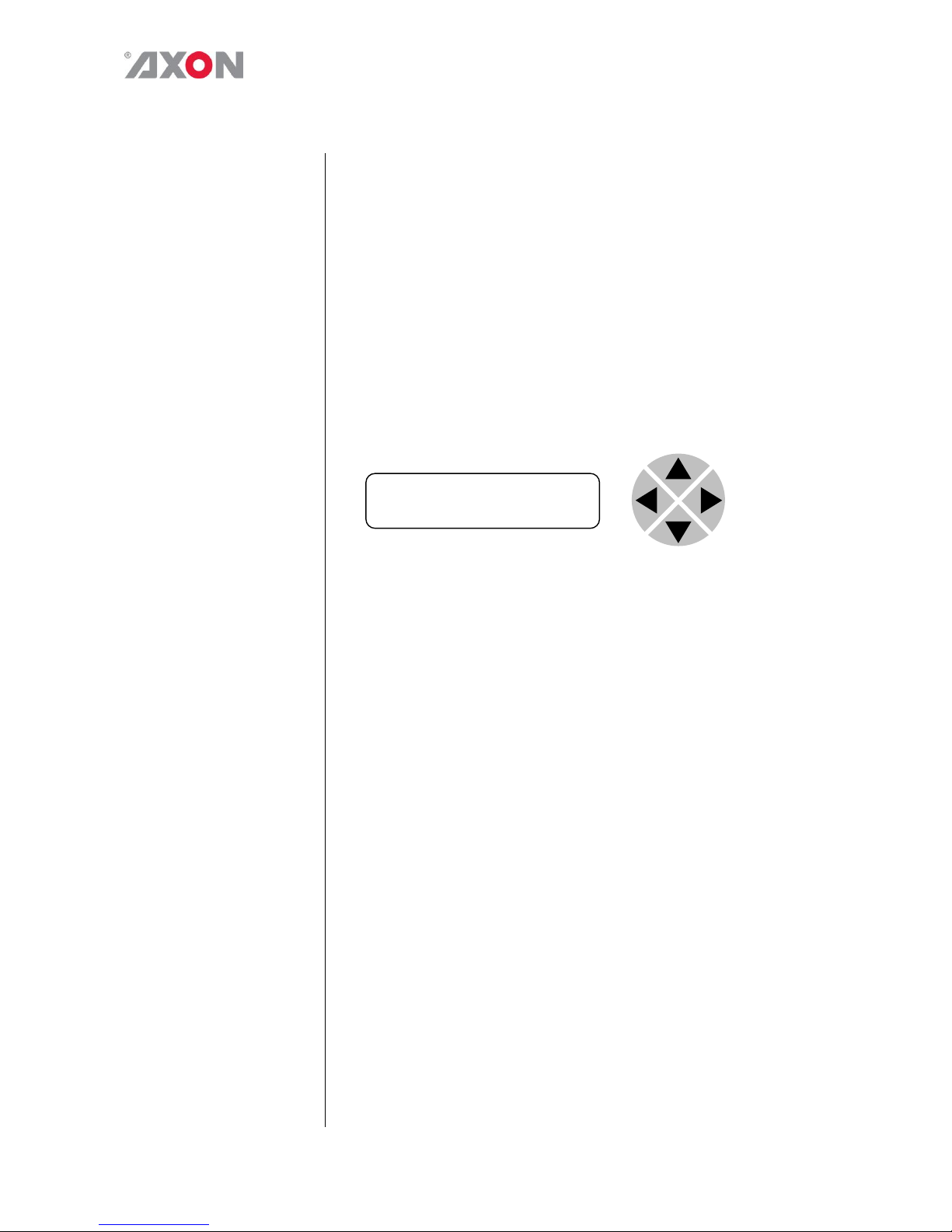

Front Panel Display and Cursor
Settings are displayed and changed as follows;
Use the cursor ‘arrows’ on the front panel to select the menu and
parameter to be displayed and/or changed.
Press ►
To go forward through the menu structure.
Press ◄
To go back through the menu structure.
Press ▲
To move up within a menu or increase the value of
a parameter.
Press ▼
To move down through a menu or decrease the
value of a parameter.
NOTE: Whilst editing a setting, pressing ► twice will reset the
value to its default.
[No Alarms]

9
Example of
changing
parameters using
front panel control
With the display as shown below
Pressing the ► selects the SFS10 in frame slot 01.
The display changes to indicate that the SFS10 has been selected. In
this example the Settings menu item is indicated.
Pressing the ► selects the menu item shown, in this example
Settings.
(Pressing ▲ or ▼ will change to a different menu eg Status,
Events).
The display changes to indicate that the SFS10 Settings menu
item SDI-Format has been selected and shows that it current
setting is Auto.
Pressing the ► selects the settings item shown, in this example
SDI-Format.
(Pressing ▲ or ▼ will change to a different setting, eg Mode,
H-Delay).
The display changes to indicate that the SFS10 Edit Setting
menu item SDI-Format has been selected.
To edit the setting of the menu item press ▲ or ▼.
All menu items can be monitored and/or changed in this way.
Changing a setting has an immediate effect.
RRC18 [Select Card]
>S01=SFS10
SFS10 [Select Menu]
>Settings
SFS10 [Settings]
>SDI-Format=Auto
SFS10 Edit Setting]
SDI-Format>Auto

10
Axon Cortex
Software
Axon Cortex can be used to change the settings of Synapse modules
from a PC, either locally or remotely. The software enables
communication based on TCP/IP between the Setup PC and
Synapse frames/modules.
Each Synapse frame is addressed through its rack controller’s
unique IP address, giving access to each module, its menus and
adjustment items. Axon Cortex has access to data contained within
the Synapse module and displays it on a GUI. The software has an
intuitive structure following that of the module that it is controlling.
For operation of Axon Cortex, please refer to the Cortex help files.
Menu Structure
Example
Slot
Module
Item
Parameter
Setting
▲
▲
S02
Identity
▲
▲
S01
SFS10
►
Set-
tings
►
Standard_dig
►
Auto
▼
▼
▼
▼
S00
RRC18
Status
Mode
625
▼
▼
▼
Events
Ref-Input
525
▼
H-Delay
▼
▼
NOTE: Further information about Front Panel Control and Axon
Cortex can be obtained from the ERC, ERS, RRC and RRS
operational manuals and the Cortex help files.

11
4
The HCS Card
Introduction
The HCS100 is a clip store and player unit for SDI uncompressed
baseband video. It can store and delay SD and HD SDI video. It can
store and play up to 6 hours of SDI material depending on the size
of disks, bitrates and ANC data. The HCS100 uses high quality
JPEG2000 compression to ensure visual lossless transparency. SD
video can be stored and delayed as raw data. The HCS100 is
capable of recording 32 files. The length of the files is depending of
the storage size and bitrate.
The HCS120 adds a bug inserter for channel ident applications but
also as an emergency overlay with its full frame capability
The use of SSD disks makes this unit extremely reliable and it will
provide low maintenance.1)
The recording length is depending on the used size of the SSD disks
giving increased capacity at low cost in upcoming years.
Compared to competitive server based solutions the HCS100 can be
considered as very GREEN. The power consumption of this dual
slot device is approximately 40W. This is a 10 fold saving of a
comparable server based unit that draws > 350W average saving a
significant amount of money due to the low operating power and
accompanying air conditioning.
MTBF of disks is dependent on storage capacity and brand (type).
Twice the storage than needed means theoretical twice the lifecycle
as this is coupled to the amount of write cycles, not read cycles.
Features
Line sync on input
Capable of recording video up to 6 hours depending on bitrates,
ANC data and disk space
Compression (HD or SD) or raw relay (SD only) divides over 32
files.
JPG2000 compression for HD and SD video formats
Selectable bitrates up to 150 Mb/s
Bug inserter or emergency overlay (HCS120)
RAW ANC data storage and playback
HANC, VANC or both
Compatible with:
270 Mbit/s (SMPTE 259M) 50 and 59.94Hz
1485 Mbit/s (SMPTE 292M) 50 and 59.94Hz
Full control and status monitoring through the front panel of the
SFR04/SFR08/SFR18
frame and the Ethernet port (ACP)
can be controlled with 3rd party jog controller on USB
Thumbnail generation
File system able to accept files from or send to other devices
Applications
Preset based Clipserver

12
Block schematic
HCS100-HCS120
INTERNAL SYNAPSE BUS
RACK
CONTROLLER
REFERENCE
INPUTS
1 2
PLL
VIDEO FORMATTING
JPEG2000 ENCODING/DECODING
ANC HANDLING
EQ
SYSTEM ON CHIP
POWER PC ΜC
EQ
4x PCIe
MAG
QUAD SPEED
MULTIPLEXING
AUDIO BUS
32CHOUT 32CHIN
TO ADD-ON
FROM ADD-ON
TDM MUX/DE-MUX
LINUX OS
2x eSATA
1 2
2x eSATA
2
1
SYNAPSE MODULE
LEFT OF MAIN CARD
(SLOT X-1)
eSATA DRIVEReSATA DRIVER
SSD 1 SSD 2
JPG2000
OR RAW
DATA
JPG2000
OR RAW
DATA
BUG INSERTER
HCS120 ONLY
LINE
SYNC

13
5
Settings Menu
Introduction
The settings menu displays the current state of each HCS setting and
allows you to change or adjust it. Settings can be changed using the front
panel of the Synapse frame (SFR18 or SFR08) or with Cortex. Also the
Synapse or Cortex control panels can be used. Please refer to chapter 3
for information on the Synapse front panel control and Cortex.
Note: All items preceded with a #-sign are part of the presets.
Disk-Protect
When set to On, the Num-Clip, Out-Frmt, Compression and
Include-Anc are set to read-only, because changing one of these
setting will result in erasing the disks. Default this is set to On.
Out-Frmt
With Out-Frmt you can set what the output should be. This setting is
only used for the delay options. This will not up/down/cross convert your
input signal. Possible settings are:
1080i60
1080i50
720p60
720p50
SD525
SD625
Note: Can only be changed when Disk-Protect is set to Off.
Changing this setting will result in erasing the disks!
H-delay
Here you set the H delay offset of the output timing with respect to the
chosen reference in pixels. Range varies with the selected standard. For
example 0..1919 pixels in 1080i50.
V-delay
Here you set the V delay offset of the output timing with respect to the
chosen reference in lines. Range varies with the selected standard. For
example 0..1124 lines in 1080i50.
Compression
Here you set the bitrate of the JPEG2000 compression. Range is 150Mbps
to 25Mbps in steps of 25Mbps.
Note: Can only be changed when Disk-Protect is set to Off.
Changing this setting will result in erasing the disks!
Include ANC
Here you set which part of the ANC data is recorded and therefore
transparent on the output. You can choose None, H_only, V_only or
H_and_V. Note this uses diskspace and shortens the maximum delay.
Note: Can only be changed when Disk-Protect is set to Off.
Changing this setting will result in erasing the disks!

14
Input_Loss
Here you set what should be recorded when the input is lost.. You can
choose the output during this period to be a colorbar, black, grey
or green. You can also choose Panic1to Panic4which are full
screen stills inserted by the logo inserter. Default is black.
RunIn-Frames
Here you set what should be on the output during run-in (the time
between input and the start of the delayed output). You can choose the
output during this period to be a colorbar, black, grey, green or a
freeze of the first frame to be played. Default is Freeze.
RunOut-Frames
Here you set what should be on the output during run-out (The time after
all the Record-Run content has been played). You can choose the
output during this period to be a colorbar, black, grey or green.
Default is Colorbar.
Lock-Mode
Lock-Mode determines to what source the card is locked. This setting is
fixed to reference input 1 (Ref1).
Ref-Type
Sets the type of incoming reference. This setting is fixed to Bi-Level.
Output1-enable
Defines the output 1 mode. Can also be set to Pause (which will pause
the output on the current frame), Loop (the current Output1-Clip is
looped continuously), Edit (shows the current #Clip-Begin or
#Clip-End frame when these are being edited in the preset), On
(Played the clip selected by setting Output1-Clip) or Off (disables
output 1).
Output1-Overlay
The HCS has on screen display which can show different kinds of
information as overlay over video output 1. For the HCS120 you can set a
logo as overlay on output 1.
These are the possible overlays:
HW-status: showing CPU Environment temp, CPU core temp,
FPGA Environment temp, FPGA Core temp and FPGA fan speed.
Disk-Status: showing overall SSD status (tested mean the
disk is tested Axon approved, untested means the disk is not tested
and thus not approved by Axon), SSD model, SSD serial number,
SSD size (in GB), Average reading bitrate and average writing
bitrate.
Logo-InserterA: Overlay the logo(s) which is set with the
Logo-inserterA settings (HCS120 only).
Off: Disables the overlay function.

15
Output1-Clip
With this setting you select which clip should be played back. Can be one
of the 32 possible clips.
Output1-Next
With this setting you select which clip of the 32 possible clips, should be
played back next after the current clip, selected with Output1-Clip, is
finished. When the clip set with Output1-Clip is finished, it is updated
automatically with the clip set with Ouput1-Next.
Note:
-When the clips set with Output1-Clip and Ouptut1-Next differ
from eachother, and Output1-Enable is set to On or Loop,
Output1-Clip will be updated and played with Output1-Next when
the current clip is finished.
-When the settings Output1-Clip and Output1-Next are the same
and Output1-Enable is not set to Loop, the output will stop after
the current clip is finished.
-When the settings Otput1-Clip and Output1-Next are the same and
Output1-Enable is set to Loop, the current clip will be
continuously played.
Output2-enable
Sets output 2. Can be set to be the same as output1 (Delay1) or output1
without overlay.
Output2-Overlay
The HCS has on screen display which can show different kinds of
information as overlay over video output 2. For the HCS120 you can set a
logo as overlay on output 2.
These are the possible overlays:
HW-status: showing CPU Environment temp, CPU core temp,
FPGA Environment temp, FPGA Core temp and FPGA fan speed.
Disk-Status: showing overall SSD status (tested mean the
disk is tested Axon approved, untested means the disk is not tested
and thus not approved by Axon), SSD model, SSD serial number,
SSD size (in GB), Average reading bitrate and average writing
bitrate.
Logo-InserterA: Overlay the logo(s) which is set with the
Logo-inserterA settings (HCS120 only).
Off: Disables the overlay function.
Num-Clips
Sets the number of clips you want to record. Disk space is divided equally
by this number so that each clip can have the same maximum length. Can
be set to 1, 2, 4, 8, 16 or 32. Default is 32.
Note: Can only be changed when Disk-Protect is set to Off.
Changing this setting will result in erasing the disks!

16
Record-Clip
With this setting you start recording the selected clip. This will always
overwrite the recording which are currently done under this clip number.
When the chosen clip number is protected (with setting #Clip-
Protect of the corresponding clip number) it will automatically go back
to Off and not overwrite the currently stored recording.
Note: when you start recording a clip, the setting Disk-Protect is
automatically switched on, so the Num-Clip, Out-Frmt,
Compression and Include-Anc are set to read-only.
Erase-Clip
With this setting you erase the selected clip. When the chosen clip number
is protected (with setting #Clip-Protect of the corresponding clip
number) it will automatically go back to Off and not overwrite the
currently stored recording.
Clip
This is the preset master for the Clip setting preceded with a ‘#’
#Clip-Name
With this setting you can name your clip. Can be 16 characters long.
#Clip-Length
This is a read-only setting which indicates the length of the clip.
#Clip-Begin ~
#Clip-End
With the #Clip-Begin and #Clip-End you can trim the clip to start
and stop at precise frames. When Output1-Enable is set to Edit,
changing this value will show the frame on the output.
#Clip-Protect
When this is enabled for a certain clip, it cannot be erased or overwritten
with setting Clip-Erase and Clip-record.
Note: It does not protect when the entire disks are erased when changing
Num-Clip, Out-Frmt, Compression or Include-Anc while
Disk-Protect is set to off.
Monitor-Temp
With this setting you can change the way the temperature is measured.
Can be set to On (constantly monitor the temperatures and update the
temperature status items), Once (measure the temperatures and update
the temp status items once, after which this setting returns of off) or Off
(don’t update the temp statuses).
Monitor-Disks
With this setting you can change the way the disks are checked. Can be
set to On (constantly monitors the statuses of the disks and updates the
disk status items), Once (check the disk status and update the disk status
items once, after which this setting returns to off) or Off (don’t update
the disk statuses).

17
LOGO-INSERTER
LogoA1_Act
(HCS120 only)
With this active preset it is possible to select presets of logo A1 for the
processed output (8 preset available). These presets will have an instant
effect on the output. If the menu item is preceded by ‘#LogoA1-’, it is
possible to add this setting to a preset. The presets are stored in memory.
It is also possible to change factory presets. Changing these presets has
direct effect on the processed output.
LogoA1_edit
(HCS120 only)
With the edit preset item it is possible to create your own presets for logo
A1 without the applied changes having any instant effect on the processed
output. There are 8 possible offline adjustable presets. You can freely
change the selected edit preset, without the active preset being set to
another setting. It will have no immediate effect on the processed output,
until LogoA1_act is changed to the setting you adjusted with
LogoA1_edit.
#LogoA1-Name
(HCS120 only)
This setting displays the first 16 characters of the filename for the current
LogoA1_edit logo. This is a read only item.
If no logo is shown, one of the following messages are shown:
No file: There is no file to be displayed,
Unknown file format: File format isn’t recognized/suitable
VRAM, Out of Mem: Video RAM is out of memory. Nevertheless,
files are being stored on the flash disk.
Error: file corruption: Uploaded file is corrupt and will be
renamed to <filename.extension>.error
#LogoA1-Origin
(HCS120 only)
With this setting you can change the #LogoA1-XPos and #LogoA1-
YPos settings to default to Top-Left, Top-Right, Bottom-Left,
Bottom-Right or Center positions. Default is Top-Left.
#LogoA1-XPos
(HCS120 only)
This setting sets the horizontal position of logo A1. Can be ranging from
-2047px till 2048 pixels. Default is pixel 0.
#LogoA1-YPos
(HCS120 only)
This setting sets the vertical position of logo A1. Can be ranging from
-2047px till 2048 pixels. Default is pixel 0.
#LogoA1-Width
(HCS120 only)
This menu item indicates the width of the image currently in use by logo
A1. This is a read only item.
#LogoA1-Height
(HCS120 only)
This menu item indicates the height of the image currently in use by logo
A1. This is a read only item.

18
#LogoA1-Fade-In
(HCS120 only)
This item sets the fade-in time of logo A1 in frames, ranging from 0 to
200 frames. 0 frames is default.
#LogoA1-Fade-Out
(HCS120 only)
This item sets the fade-out time of logo A1 in frames, ranging from 0 to
200 frames. 0 frames is default.
LogoA2_Act
(HCS120 only)
With this active preset it is possible to select presets of logo A2 for the
processed output (8 preset available). These presets will have an instant
effect on the output. If the menu item is preceded by ‘#LogoA2-’, it is
possible to add this setting to a preset. The presets are stored in memory.
It is also possible to change factory presets. Changing these presets has
direct effect on the processed output.
LogoA2_edit
(HCS120 only)
With the edit preset item it is possible to create your own presets for logo
A2 without the applied changes having any instant effect on the processed
output. There are 8 possible offline adjustable presets. You can freely
change the selected edit preset, without the active preset being set to
another setting. It will have no immediate effect on the processed output,
until LogoA2_act is changed to the setting you adjusted with
LogoA2_edit.
#LogoA2-Name
(HCS120only)
This setting displays the first 16 characters of the filename for the current
LogoA2_edit logo. This is a read only item.
If no logo is shown, one of the following messages are shown:
No file: There is no file to be displayed,
Unknown file format: File format isn’t recognized/suitable
VRAM, Out of Mem: Video RAM is out of memory. Nevertheless,
files are being stored on the flash disk.
Error: file corruption: Uploaded file is corrupt and will be
renamed to <filename.extension>.error
#LogoA2-Origin
(HCS120 only)
With this setting you can change the #LogoA2-XPos and #LogoA2-
YPos settings to default to Top-Left, Top-Right, Bottom-Left,
Bottom-Right or Center positions. Default is Top-Left.
#LogoA2-XPos
(HCS120 only)
This setting sets the horizontal position of logo A2. Can be ranging from
-2047px till 2048 pixels. Default is pixel 0.
#LogoA2-YPos
(HCS120 only)
This setting sets the vertical position of logo A2. Can be ranging from
-2047px till 2048 pixels. Default is pixel 0.
#LogoA2-Width
(HCS120 only)
This menu item indicates the width of the image currently in use by logo
A2. This is a read only item.
