USER MANUAL
AYM-07

This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure they are away from the appliance.
DISPOSAL: Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment is necessary.
R410A(R32/125: 50/50): 1975

Content
Operation Notices
Operation environment...........................................................................................1
Safety warning........................................................................................................1
Part's Name............................................................................................................2
Operation Guide
Operation introduction for control panel .................................................................3
Buttons on remote controller ..................................................................................5
Introduction for icons on display screen .................................................................5
Introduction for buttons on remote controller..........................................................6
Function introduction for combination buttons........................................................8
Operation guide......................................................................................................8
Replacement of batteries in remote controller........................................................9
Maintenance

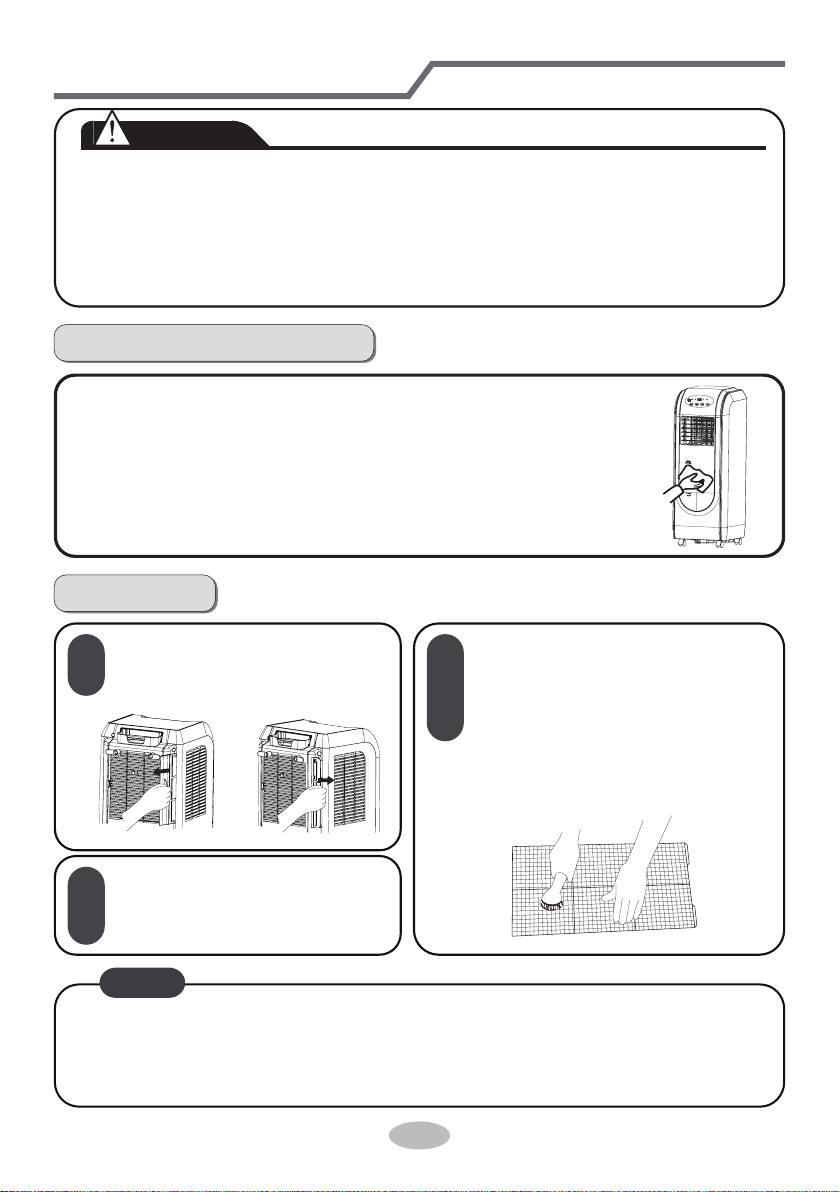

Clean and Maintenance........................................................................................10
Malfunction
Malfunction analysis .............................................................................................12
Installation Notice
Installation Precaution ..........................................................................................15
Preparation before installation..............................................................................16
Installation
Install drainage pipe .............................................................................................17
Installation and disassembly of heat discharge pipe ............................................18
Operation test.......................................................................................................21
Attached sheet
Drainage way........................................................................................................21
Electric schematic diagram...................................................................................22
Technical specification..........................................................................................23
Used refrigerant....................................................................................................24
Service support, contact.......................................................................................25

1
● The air conditioner must be operated with in the temperature range:16°C ~ 35°C
● The appliance is for indoor use only.
● The appliance must be positioned so that the plug is accessible.
● Reserved space around the air conditioner should be 12″(30cm) at least.
● Do not operate the air conditioner at humid environment.
● Please keep air inlet and air outlet clean, no obstacles.
● During operation, close doors and windows to improve
cooling effect.
● Please put the air conditioner at smooth and flat ground
for operation to avoid noise and vibration.
● This air conditioner is equipped with castors. Castors
should slide at smooth and flat ground.
● Prohibit inclining or turn over the air conditioner. If there’s
abnormity, please disconnect powerimmediately and
contact dealer.
● Avoid direct sunshine.
30cm 30cm
30cm
Operation environment
● Before operation, please confirm whether power specification complies with that on
nameplate.
● Before cleaning or maintaining the air conditioner, please turn off air conditioner and
pull out the power plug.
● Make sure the power cord hasn’t been pressed by hard objects.
● Do not pull or drag the power cord to pull out the power plug or move the air conditioner.
● Do not insert or pull out the power plug with wet hands.
● Please use the grounded power. Make sure the gounding is reliable.
● If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
● If abnormal condition occurs (e.g. burned smell), please disconnect power at once and
then contact local dealer.
● When nobody is taking care of the unit, please turn it off and remove the power plug or
disconnect power.
● Do not splash or pour water on air conditioner. Otherwise, it may cause short circuit or
damage to air conditioner.
● If use drainage hose, nearby temperature can’t lower than 0°C. Otherwise, it will cause
water leakage to air conditioner.
● Prohibit operating heating equipment around the air conditioner.
● Far away from fire source, inflammable and explosive objects.
● Children and disabled people are not allowed to use the dehumidifier without supervi-
sion.
● Keep children from playing or climbing on the air conditioner.
● Do not put or hang dripping objects above the air conditioner.
● Do not repair or disassemble the air conditioner by yourself.
● Prohibit inserting any objects into the air conditioner.
Safety warning

2

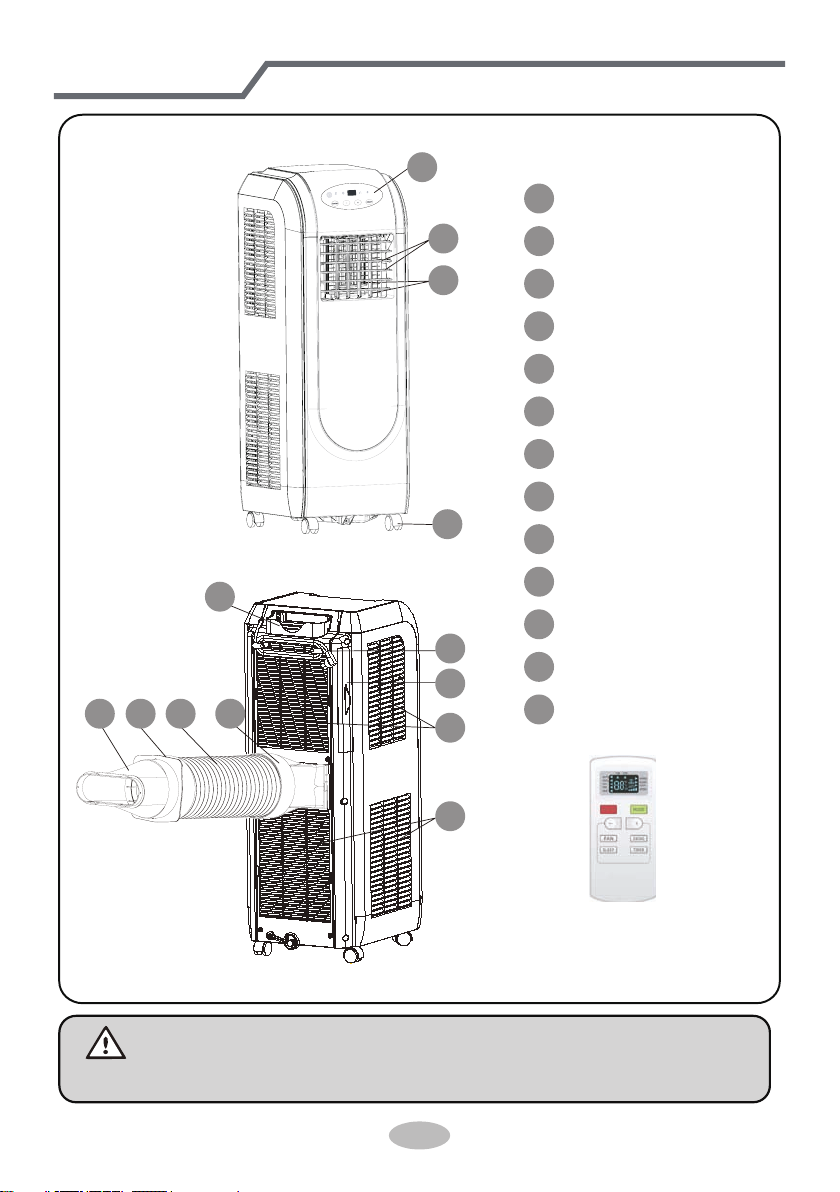

Part's Name
Heat-removal pipe and other installation accessories can't be discarded.
Note:
1
2
3
4
5
1213 11 10
9
6
7
8
Remote controller
1Controller panel
2Guide louver
3Swing louver
4Wheel
5Remote controller box
6Power cord
7Filters
8Upper air inlet grille
9Lower air inlet grille
10 Joint A
11 Heat removal pipe
12 Joint B
13 Joint C

3
Operation introduction for control panel
Name of control panel
ON/OFF buttonMODE button + / - button
fan mode indicator
dry mode indicatorcool mode indicatorsignal receiving window
dual-8 nixie tubewater full indicator
Operation of control panel
Note:
● After putting through the power, the air conditioner will give out a sound. After
that, you can operate the air conditioner by the control panel.
● Under ON status, after each pressing of the button on control panel, the air
conditioner will give out a sound. Meanwhile, corresponding indicator on control
panelwill be bright.
● Under OFF status, dual-8 nixie tube on control panel won’t display.
Under ON status, dual-8 nixie tube on control panel will display set temperature
under cooling mode, while it won’t display under other modes.
Press this button can turn on or turn off the air conditioner.
Under cooling mode, press “+” or “-” button to increase or decrease set temperature
1°C(°F). Set temperature is range is 16°C(61°F)~30°C(86°F). Under auto, drying
or fan mode, this button is invalid.
ON/OFF button
+ / - button
1
2

4
Press this button and the mode will circulate according to below sequence:
COOL→DRY→FAN
when it twinkling, that means the water in the tank is full, we should drain off the
water.
COOL: Under this mode, cooling mode indicator is bright. Dual-8 nix syalpsidebutei
set temperature. Temperature setting range is 16
°C ~30 °C .
DRY: Under this mode, drying mode indicator is bright. Dual-8 nixie tube won’t be
display.
FAN: Under this mode, the air conditioner only blow fan. Fan indicator is bright.
Dual-8 nixie tube won’t be display.
MODE button
water full indicator
3
4
Operation introduction for control panel
Note:
When the water in chassis is full, the unit will stop operation and the buzzer will
give out eight “beep-beep” sounds for warning. In this case, water full indicator is
blinking (off for 3s and blink for 8 times) and dual-8 nixie tube is displaying “H8”.

5
Buttons on remote controller
Introduction for icons on display screen
21
3
4 5
6 7
1
3
5
2
4
6
7
ON/OFF button
MODE button
+/- button
FAN button
SWING button
SLEEP button
TIMER button
Timer on Timer off
Sending signal
swing operation
sleep operation
lock
set speed
Set timeSet temperature
heat operation
fan operation
dry operation
cool operation
auto operation

6
Introduction for buttons on remote controller
Note:
● When power is connected(stand by condition), you can operate the air conditioner
through the remote controller.
● When unit is on, each time you press the button on remote controller, the sending
signal icon " " on the display of remote controller will blink once. If the air con-
ditioner gives out a beep sound, it means the signal has been sent.
● When unit is off, set temperature will be displayed on the remote controller (If the
light of indoor unit display is turned on, the corresponding icon will be displayed);
When unit is on, it will display the icon of the on-going function.
Press this button to turn unit on/off.
ON/OFF button
1
Pressing this button once can select your required mode circularly as below (the
corresponding icon " " will be lit up after the mode is selected):
● When selecting auto mode, air conditioner will operate automatically according to
ambient temperature. Set temperature can't be adjusted and won't be displayed
either. Press FAN button to adjust fan speed.
● When selecting cool mode, air conditioner will operate under cool mode. Then
press + or - button to adjust set temperature. Press FAN button to adjust fan speed.
● When selecting dry mode, air conditioner will operate at low fan speed under dry
mode. In dry mode, fan speed can't be adjusted.
● When selecting fan mode, air conditioner will operate in fan mode only. Then
press FAN button to adjust fan speed.
● When selecting heat mode, air conditioner will operate under heat mode. Then
press + or - button to adjust set temperature. Press FAN button to adjust fan speed.
(Cooling only unit can’t receive heating mode signal. If set HEAT mode by remote
controller, press ON/OFF button can’t turn on the air conditioner.)
AUTO COOL DRY FAN HEAT
MODE button
2
● Pressing + or - button once will increase or decrease set temperature by 1°F(°C).
Hold + or - button for 2s, set temperature on remote controller will change quickly.
Release the button after your required set temperature is reached.
● When setting Timer On or Timer Off , press + or - button to adjust the time.(See
TIMER Button for setting details)
+ / - button
3

7
Introduction for buttons on remote controller
Press this button to turn on up&down air swing.
SWING button (not applicable for this model)
5
Under Cool, Heat mode, press this button to turn on Sleep function. Press this button
to cancel Sleep function. Under Fan, Dry and Auto mode, this function is unavailable.
SLEEP button
6
● When unit is on, press this button to set Timer Off. T-OFF and H icon will be
blinking. Within 5s, press + or - button to adjust the time for Timer Off. Pressing
+ or - button once will increase or decrease the time by 0.5h or 1h. Hold + or -
button for 2s, time will change quickly. Release the button after your required
set time is reached. Then press TIMER button to conrm it. T-OFF and H icon
will stop blinking.
● When unit is off, press this button to set Timer On. T-ON and H icon will be
blinking. Within 5s, press + or - button to adjust the time for Timer On. Pressing
+ or - button once will increase or decrease the time by 0.5h or 1h. Hold + or -
button for 2s, time will change quickly. Release the button after your required
set time is reached. Then press TIMER button to conrm it. T-ON and H icon
will stop blinking.
● Cancel Timer On/Off: If Timer function is set up, press TIMER button once to
review the remaining time. Within 5s, press TIMER button again to cancel this
function.
TIMER button
7
Note:
● Under Auto speed, air conditioner will select proper fan speed automatically acc-
ording to ambient temperature.
● Fan speed can't be adjusted under Dry mode.
FAN button
4
Pressing this button can select fan speed circularly as: AUTO, SPEED 1 ( ),
SPEED 2 ( ), SPEED 3 ( ), SPEED 4 ( ) (unavailable in this air conditioner.
Speed 4 is the same with speed 3.).
AUTO
SPEED 1 (equals to low fan speed)
SPEED 3 (equals to high fan speed) SPEED 4
SPEED 2 (equals to medium fan speed)

8
Introduction for buttons on remote controller
Note:
● Range of time setting is: 0.5~24h
● If time changes within 10h, the set time will be increased or decreased by 0.5h;
If time changes from 10h to 24h, the set time will be increased or decreased
by 1h.
● The interval between two motions can't exceed 5s, otherwise the remote con-
troller will exit setting status.
Function introduction for combination buttons
Press “+” and “-” buttons simultaneously can turn on or turn off child lock function.
When child lock function is started up, LOCK indicator on remote controller is ON.
If you operate the remote controller, remote controller won’t send signal.
Child lock function
Temperature display switchover function
Under OFF status, press “-” button and “MODE”button simultaneously can switch
between °C and °F.
Operation guide
1.After putting through the power, press "ON/OFF" button on remote controller to
turn on the air conditioner.
2. Press "MODE" button to select your required mode: AUTO, COOL, DRY, FAN,
HEAT.
3. Press "+" or "-" button to set your required temperature. (Temperature can’t be
adjusted under auto mode).
4. Press "FAN" button to set your required fan speed: auto, low, medium and high
speed.

9
Replacement of batteries in remote controller
Note:
● During operation, point the remote control signal sender at the receiving
window on indoor unit.
● The distance between signal sender and receiving window should be no more
than 8m, and there should be no obstacles between them.
● Signal may be interfered easily in the room where there is uorescent lamp
or wireless telephone; remote controller should be close to indoor unit during
operation.
● Replace new batteries of the same model when replacement is required.
● When you don’t use remote controller for a long time, please take out the
batteries.
● If the display on remote controller is fuzzy or there’s no display, please
replace batteries.
reinstall
remove
battery
cover of battery box
1. Press the back side of remote controller on the
spot marked with " ", and then push out the
cover of battery box along the arrow direction.
2. Replace two No.7 (AAA 1.5V) dry batteries and
make sure the positions of + and- polar are
correct.
3. Reinstall the cover of battery box.

10
Clean and Maintenance
Warning:
● Before cleaning the air conditioner, please turn off the unit and disconnect
power. Otherwise, it may cause electric shock.
● Do not wash air conditioner with water. Otherwise, it may cause electric
shock.
● Do not use volatile liquid (such as thinner or gas) to clean the air conditioner.
Otherwise, it may damage the appearance of air conditioner.
Clean outer case:
If there's dust on the surface of outer case, please use soft towel
to wipe it. If the outer case is very dirty (such as grease), please
use neutral abluent to wipe it.
Clean outer case and grille
Clean grille: Use cleaner or soft brush to clean it.
Clean lter
Note:
① ②
1
3
2
Remove the lter
Install lter
Clean lter
Use cleaner or water to clean the
lter. If the lter is very dirty (such
as grease), use warm water 40°C
(104°F) melted with neutral
abluent to clean it and then put at
shady place to dry it.
After the ler is cleaned and
dried, reinstall it well.
● The lter should be cleaned about once every three months. If there's much
dust in the operation environment, you can increase clean frequency.
● Do not dry the lter with re or hair drier. Otherwise, it may be deformed or
catch re.

11
Clean and Maintenance
Clean heat-removal pipe
Remove the heat-removal pipe from air conditioner, clean and dry it , and then
reinstall it. (For the method of installation and removal method, please refer to the
instruction for "Installation and disassembly of heat discharge pipe").
Checking before use-season
1. Check whether air inlets and air outlets are blocked.
2. Check whether plug and socket are in good condition.
3. Check whether lter is clean.
4. Check whether batteries is installed in remote controller.
5. Check whether joint, window bracket and heat-removal pipe are installed tightly.
6. Check whether heat-removal pipe is damaged.
Checking after use-season
1. Disconnect power supply.
2. Clean lter and outer case.
3. Remove dust and sundries on the air conditioner.
4.
Eliminate accumulated water in chassis (refer to the section of "Drainage way"
for details).
5. Check whether window bracket is damaged or not. If yes, please contact dealer.
Long-time storage
If you don't use the air conditioner for a long time, please maintain it by following
steps for good performance:
● Make sure there's no accumulated water in chassis and the heat-removal pipe is
disassembled.
● Pull out the plug and wrap the power cord.
● Clean the air conditioner and pack it well to prevent dust.
Notice for recovery
● Many packing materials are recyclable materials. Please deal with them through
local recycle bin.
● If you want to throw away the air conditioner, please contact local division or
consultant service center for the correct disposal method.

12
Malfunction analysis
Please check below items before asking for maintenance. If the malfunction still
can’t be eliminated, please contact local dealer or qualied professionals.
Phenomenon Troubleshooting Solution
Air conditioner
can't operate
Air conditioner
can't receive
signal from
remote contr-
oller or remote
controller is
not sensible.
Poor cooling
(heating)
● Power failure?
● Whether the unit is interfered
seriously (such as static pres-
sure, unstable voltage)?
● Whether remote controller is
within the receiving range?
● Whether it's blocked by obst-
acles?
● Is sensitivity of remote contr-
oller low?
● Whether there’s uorescence
lamp in the room?
● Is the power too low?
● Whether the air lter is too dirty?
● Whether the set temperature is
proper?
● Whether door and window are
closed?
● Is plug loose?
● Whether the air switch is trip-
ped off or fuse is burnt?
● Is there's malfunction for the
circuit?
● Whether the unit is restarted up
after stopping immediately?
● Wait after power recovery.
● Please pull out the plug. Ins-
ert the plug after about 3min,
and then turn on the unit.
● The receiving range of remote
controller is 8m. Do not exce-
ed this range.
● Remove the obstacles.
● Check the batteries of remote
controller. If the power is low,
please replace the batteries.
● Move the remote controller
close to air conditioner.
● Turn off the uorescence lamp
and try it again.
● Wait after voltage is resumed.
● Clean the air lter.
● Adjust the temperature.
● Close door and window.
● Reinsert the plug.
● Ask professional person to
replace air switch or fuse.
● Ask professional person to
replace circuit.
● Wait for 3min, and then turn
on the unit again.

13
Phenomenon Troubleshooting Solution
Set tempera-
ture can't be
adjusted.
● Whether the unit operates un-
der auto mode?
● Whether the required temper-
ature exceeds the temperature
setting range?
● Temperature can't be adjus-
ted under auto mode.
● Temperature emperature set-
ting range: 16°C-30°C .
Malfunction analysis
● Whether air outlet or air inlet is
blocked?
● Under heating mode, whether
indoor temperature is reached
to set temperature?
● Whether heating mode is sta-
rted up just now?
● Whether evaporator is defros-
ted? (observe it by pulling out
the lter)
● Eliminate the obstacles.
● Indoor unit will stop blowing
fan after reachingto set
temperature.
● In order to prevent cold air,
air conditioner will delay for a
while to be started up, which
is the normal phenomenon.
● It's the normal phenomenon.
Air conditioner is defrosting.
After defrosting is nished, it
will resume operation.
No fan blowed
out from air
conditioner
There's off
avour
● There’s off-avour source in
the room, such as furniture,
cigarette etc.
● Eliminate the off-avour
source.
● Clean the lter.
There's abnor-
mal sound du-
ring operation
● Whether the unit is interfered
by thunder, radio, etc?
● Disconnect power, put thro-
ugh the power again, and
then turn on the unit again.
You can heard
water-owing
sound
● Whether the unit is turned on
or turned off just now?
● There’s owing sound of ref-
rigerant inside the air condit-
ioner, which is the normal
phenomenon.
You can heard
the sound of
"PAPA"
● Whether the unit is turned on
or turned off just now?
● Heat expansion or shrinkage
for the panel due to change
of temperature, which cause
friction sound.

14
Malfunction analysis
Malfunction code
Warning
● If there're below phenomenons, please turn off the air conditioner and discon-
nect the power immediately, and then contact dealer immediately.
● Do not repair or ret the air conditioner by yourself.
● If operate the air conditioner under abnormal condition, it may cause malfunc-
tion, electric shock or re hazard.
→ Power cord is overheating or damaged.
→ Abnormal sound during operation.
→ Off-avor.
→ Water leakage
Error code
E5
H8
F1
F2
F0
H3
Low-pressure overcurrent prote-
Chassis is full of water.
Malfunction of ambient
temperature sensor.
Malfunction of evaporator
temperature sensor.
Disconnect power, and then turn
on the unit again after 10min. If
"E5" still exits, please contact
professional person to maintain
the unit.
1. Pour out the water inside chassis.
2.If "H8" still exits, please contact
Please contact previsional person
Please contact previsional person
to deal with it.
to deal with it.
professional person to maintain
the unit.
ction.
1.Refrigerant is leaking.
2.System is blocked.
1. Re-energize the unit after turning off
and pulling out the plug for30min;
2. If there's still malfunction,
pleasecontact after-sales service.
1. Ambient operation condition is bad.
2. The evaporator and condenser are
blocked with filth.
3. The system is abnormal.
1.Check if the unit is under high-temperature
and high-humidity environment; if ambient
temperature is too high, power off the unit and
then energize it for operation after the ambient
temperature drops to 35℃ below.
2. Check if the evaporator and condenser are
blocked by some objects; if yes, take away the
objects, power off the unit and then energize
it for operation.
3. If the malfunction still occur, please
contact our after-sales service center.

15
Installation Precaution
Warning:
● Observe all governing codes and ordinances.
● Do not use damaged or non-standard power cord.
● Be caution during installation and maintenance. Prohibit incorrect operation
to prevent electric shock, casualty and other accidents.
Selection of Installation Location
Requirements Forelectric Connection
Basic requirement
Installing the unit in the following places may cause malfunction. If it is unavoidable, please
consult the local dealer:
objects spread in the air.
2. The place with high-frequency devices (such as welding machine, medical equipment).
3. The place near coast area.
4. The place with oil or fumes in the air.
5. The place with sulfureted gas.
6. Other places with special circumstances.
Requirement of air conditioner
1. Air inlet should be far away from obstacles and do not put any objects near air outlet.
Otherwise, it will affect the radiation of heat-removal pipe.
2. Select a location where the noise and outflow air emitted by the outddor unit will not affect
neighborood.
3. Please try your best to keep far away from fluorescent lamp.
4.The appliance shall not be installed in the laundry.
Safety precaution
1. Must follow the electric safety regulations when installing the unit.
2. According to the local safety regulations, use qualified power supply circuit.
3. For appliances with type Y attachment,the instructions shall contain the substance of
the following.If the supply cord is damaged,it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
4. Properly connect the live wire, neutral wire and grounding wire of power socket.
5. Be sure to cut off the power supply before proceeding any work related to electricity and
safety.
6. Do not put through the power before finishing installation.
7. The air conditioner is first class electric appliance. It must be properly grounding with
specialized grounding device by a professional. Please make sure it is always grounded
effectively, otherwise it may cause electric shock.
8. The yellow-green wire or green wire in air conditioner is grounding wire, which can't be
used for other purposes.
9. The grounding resistance should comply with national electric safety regulations.
10. The appliance shall be installed in accordance with national wiring regulations.

16
Preparation before installation
Note: check if the accessories are available before installation.
Accessory list
Tools needed for installation
unit joint A joint B joint C
heat discharge pipe
drainage pipe
cross screwdriver
gauge
straight screwdriver
scissors
saw
pencil
remote controller user's manual
battery (2)
(AAA 1.5V)
screw(1) pipe clip rubber plug pipe hoop (2)

17
Install drainage pipe
Note: Install drainage pipe before using, otherwise poor drainage will affect normal
operation of the unit.
1. Remove the rubber plug at drainage port.
2. Fix the drainage pipe clip on the right of rear side plate near drainage port with
a screw.
3. Put the drainage pipe into drainage port and screw it up, and then bind it with
pipe hoop.
4. Put the rubber plug into the other side of drainage pipe, x it with pipe hoop and
then x it in the drainage pipe clip.
rubber plug drainage port
drainage port
drainage port
drainage pipe clip
drainage pipe clip
screw
pipe hoop
pipe hoop
rubber plug
drainage pipe
