USER MANUAL
AYM-12P

Content
Operation Notices
Operation Environment............................................................................................3
The Refrigerant
........................................................................................................1
Safety Warning........................................................................................................2
Part's Name.............................................................................................................4
Operation Guide
Operation Introduction for Control Panel .................................................................5
Use for air conditioner .............................................................................................7
Using the remote control .........................................................................................8
Buttons on Remote Controller .................................................................................9
Introduction for Icons on Display Screen .................................................................9
Introduction for Buttons on Remote Controller.......................................................10
Function Introduction for Combination Buttons.....................................................14
Operation Guide....................................................................................................15

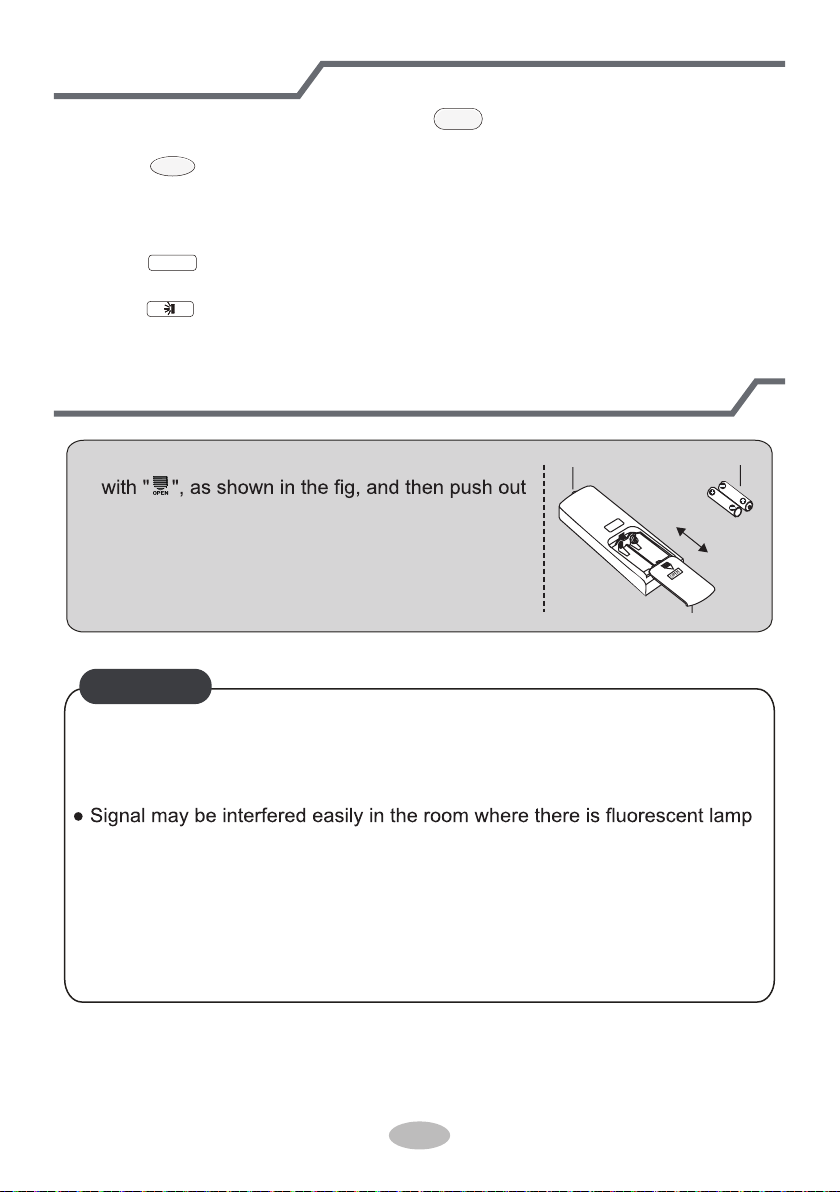

Replacement of Batteries in Remote Controller..................................................... 15
Maintenance
Clean and Maintenance.........................................................................................16
Malfunction
Malfunction analysis ..............................................................................................18
Installation Notice
Installation Precaution ...........................................................................................21
Preparation before Installation...............................................................................23
Installation
Removing Collected Water ...................................................................................25
Install Wire Hook ...................................................................................................24
Operation Test.......................................................................................................37
Installation and Disassembly of Heat Discharge Pipe ...........................................34
Attached Sheet
Electric Schematic Diagram...................................................................................38
This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from un-
controlled waste disposal, recycle it responsibly to promote the sustainable reuse of mate-
rial resources. To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this product for envi-
ronmental safe recycling.
R290: 3
Installation in a double-hung sash window(Optional)............................................28
Installation in a sliding sash window(Optional)......................................................31
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

Explanation of Symbols
Exception Clauses
Indicates a hazardous situation that, if not avoided, will
Manufacturer will bear no responsibilities when personal injury or
1.Damage the product due to improper use or misuse of the product;
2.Alter, change, maintain or use the product with other equipment without abiding
by the instruction manual of manufacturer;
product;
4.After verification, defects are due to improper operation during transportation of
regulations;
5.Operate, repair, maintain the unit without abiding by instruction manual or related
performance of parts and components that produced by other manufacturers;
6.After verification, the problem or dispute is caused by the quality specification or
majeure.
7.The damage is caused by natural calamities, bad using environment or force
3.After verification, the defect of product is directly caused by corrosive gas;
property loss is caused by the following reasons.
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.
Indicates important but not hazard-related information,
used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.
DANGER
WARNING
CAUTION
N OT IC E

The Refrigerant
WARNING
To realize the function of the air conditioner unit, a special refrigerant circulates in
the system. The used refrigerant is the fluoride R290, which is specially cleaned.
The refrigerant is flammable and inodorous. Furthermore, it can leads to explosion
under certain conditions.
Compared to common refrigerants, R290 is a nonpolluting refrigerant with no harm
to the ozonosphere. The influence upon the greenhouse effect is also lower. R290
has got very good thermodynamic features which lead to a really high energy
efficiency. The units therefore need a less filling.
Please refer to the nameplate for the charging quantity of R290.
Ducts connected to an appliance shall not contain an ignition source.
Appliance filled with flammable gas R290.
Before install and use the appliance, read the owner’s manual first.
Before install the appliance, read the installation manual first.
Before repair the appliance, read the service manual first.
Appliance filled with flammable gas R290.
Appliance shall be installed, operated and stored in a room with a floor area larger
The appliance shall be stored in a room without continuously operating ignition sources .
(for example: open flames, an operating gas appliance or an operating electric heater.)
The appliance shall be stored in a well-ventilated area where the room size corresponds
to the room area as specified for operation.
The appliance shall be stored so as to prevent mechanical damage from occurring.
Keep any required ventilation openings clear of obstruction.
Do not pierce or burn.
Be aware that refrigerants may not contain an odour.
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
Servicing shall be performed only as recommended by the manufacturer.
Should repair be necessary, contact your nearest authorized Service Centre.
Any repairs carried out by unqualified personnel may be dangerous.
Compliance with national gas regulations shall be observed.
Read specialist’s manual.
than 15 m .
2
1

2
Safety Warning
● Before operation, please confirm whether power specification
● Before cleaning or maintaining the air conditioner, please turn off
air conditioner and pull out the power plug.
complies with that on nameplate.
● Please use the grounded power. Make sure the gounding is reliable.
● Do not insert or pull out the power plug with wet hands.
disconnect power at once and then contact local dealer.
● If abnormal condition occurs (e.g. burned smell), please
● When nobody is taking care of the unit, please turn it off and
remove the power plug or di
● Do not through sundries into the air duct. If there are sundr
● Do not use an extension cord.
ies get
into the air duct, please contact the professionals to deal with it.
sconnect power.
● Do not splash or pour water on air conditioner. Otherwise, it may
cause short circuit or damage to air conditioner.
unit without supervision.
●
If drainage hose is used, ambient temperature can't be lower than
0.Otherwise, it will cause water leakage to air conditioner.
● Prohibit inserting any objects into the air conditioner.
● Do not repair or disassemble the air conditioner by yourself.
● Do not put or hang dripping objects above the air conditioner.
● Keep children from playing or climbing on the air conditioner.
● Children and disabled people are not allowed to use the
● Far away from fire source, inflammable and explosive objects.
● Prohibit operating heating equipment around the air conditioner.
● Prohibit operating the unit in the bathroom or laundry room.
● Make sure the power cord hasn’t been pressed by hard objects.
● Do not pull or drag the power cord to pull out the power plug or
move the air conditioner.
● This appliance can be used by children aged from 8 years and
above and persons with reduced physical,sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
nerdlihc yb edam eb ton llahs ecnanetniam resu dna gninaelC
without supervision.Children shall not play with the appliance.
in order to avoid a hazard.
● If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person

3
Operation Environment
● This air conditioner can only be used for family, not for
commercial industry.
● The appliance is for indoor use only.
● The air conditioner must be operated within the temperature range:
16°C ~ 35°C.
● The appliance must be positioned so that the plug is accessible.
● Reserved space around the air conditioner should be 12″(30cm)
at least.
● Do not operate the air conditioner at humid environment.
● During operation, close doors and windows to improve cooling effect.
● Please keep air inlet and air outlet clean, no obstacles.
to avoid noise and vibration.
● Please put the air conditioner at smooth and flat ground for operation
● This air conditioner is equipped with castors. Castors should slide
at smooth and flat ground.
● Prohibit inclining or turning over the air conditioner. If there’s abnor-
mity, please disconnect power immediately and contact dealer.
● Avoid direct sunshine.
30cm 30cm
30cm
Note:
Graphics in this manual are only for reference. Please refer to actual products
for specific details.

4
1Controller panel
2
Swing louver
3
Guide louver
4Castor
5
Plug of power cord
Wire-fixing hook
10 Heat discharge pipe
11 Joint B+C
12 Remote controller hook
6
Part's Name
Installation accessories can't be discarded.
NOTICE:
1
2
3
4
11 10 9
6
7
8
5
12
7Filter
8Air inlet
9Joint A
Remote controller
FAN
AUTO
OPER
AIR
HEALTH
FILTER
TURBO
ON/OFF
X-FAN
HOUR
HUMIDITY
ON/OFF
MODE
FAN
X-FAN
TURBO
TEMP TIMER
SLEEP LIGHT

Under cooling mode, press “+” or “-” button to increase or decrease set temperature by
1°C. Set temperature range is 16°C~30°C. Under auto, drying or fan mode, this
button is invalid. 5
Name of control panel
ON/OFF button
Mode button
+ / - button Dual-8 nixie tube
Fan mode indicator
Heat mode indicator
Cool&Heat Unit only
Cool mode indicator
Dry mode indicator
Timer button
Timer mode indicator
Fan speed indicator
Operation of control panel
NOTICE:
●After putting through the power, the air conditioner will give out a sound. After
that, you can operate the air conditioner by the control panel.
●Under ON status, after each pressing of the button on control panel, the air
conditioner will give out a sound. Meanwhile, corresponding indicator on control
panel will be bright.
●Under OFF status, dual-8 nixie tube on control panel won’t display.
Under ON status, dual-8 nixie tube on control panel will display set temperature
under cooling mode and Heating mode (Cool&Heat Unit only), while it won’t display
under other modes.
Pressing this button can turn on or turn off the air conditioner.
ON/OFF button
+ / - button
1
2
Operation Introduction for Control Panel
Sleep button
Sleep mode indicator
Fan button

6

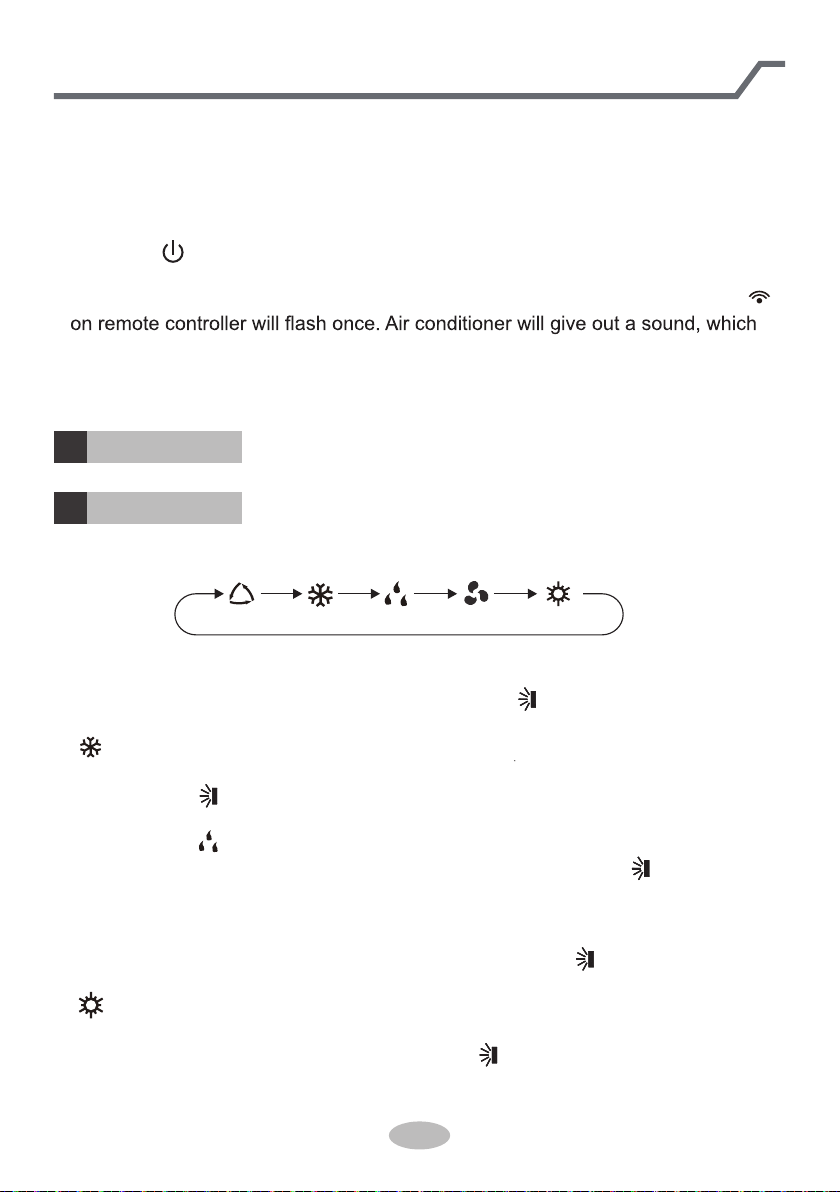

Press this button and the mode will circulate according to below sequence:
Cool→Dry→Fan→Heat Cool&Heat Unit only
Cool: Under this mode, cooling mode indicator is bright. Dual-8 nixie tube displays
set temperature. Temperature setting range is 16
°C ~30 °C .
Dry: Under this mode, drying mode indicator is bright. Dual-8 nixie tube won’t
display.
Fan: Under this mode, the air conditioner only blow fan. Fan indicator is bright.
Dual-8 nixie tube won’t displa
Heat Cool&Heat Unit only : Under this mode, heating mode indicator is bright.
Dual-8 nixie tube displays set temperature. Temperature
setting range is 16°C~30°C.
y.
Mode button
3
Operation Introduction for Control Panel
4Fan button
Press this button and the fan speed will circulate as “low speed→ medium speed →
high speed→ auto fan→ low speed”. Under drying mode, this button is invaild.
5Timer
Press timer button to enter into timer setting mode. Under this mode, press "
+ "
or "
-
" button to adjust the timer setting. Timer setting will increase or decrease
0.5 hour by pressing " " or " " button
+
-
within 10 hours, while timer setting will
increase or decrease 1 hour by pressing "+
-
" or " " button beyond 10 hours.
After timer setting is finished, the unit will display temperature if there’s no
operation for 5s. If timer function is started up, the upper indicator will keep the
display status. Others, it won’t be displayed. Under timer mode, press timer button
again to cancel timer mode.
6Sleep
Press sleep button to enter into sleep mode. If the controller operates at cooling
mode, after sleep mode is started up, preset temperature will increase by 1°C
within 1 hour ;preset temperature will increase by 2°C within 2 hours and then the
unit will operate at this temperature all the time;
Press sleep button to enter into sleep mode. If the controller operates at heating
mode, after sleep mode is started up, preset temperature will decrease by 1°C
within 1 hour ;preset temperature will decrease by 2°C within 2 hours and then the
unit will operate at this temperature all the time;
Sleep function is not available for fan mode, drying mode and auto mode. If sleep
function is started up, the upper indicator will keep the display status. Others, it
won’t be displayed.

7
Use for air conditioner
To change air flow direction
1. Up/down air flow direction
• Hold the horizental louvers as shown in the diagram and adjust the air flow
COOL or DRY mode with the fan speed set to Low for an extended period of
direnction.
time, Condensation may form on the louvers.
• Do not adjust the horizontal louvers to the lowest or the highest position in the
2. Left/right air flow direction Hold the vertical louver as shown in the diagram
and adjust the air flow direction.
DRY mode with the fan speed set to Low for an extended period of time.
Condensation may form on the louvers.
• Do not adjust the vertical louvers to the extreme left or right in the COOL or
CAUTION:

8

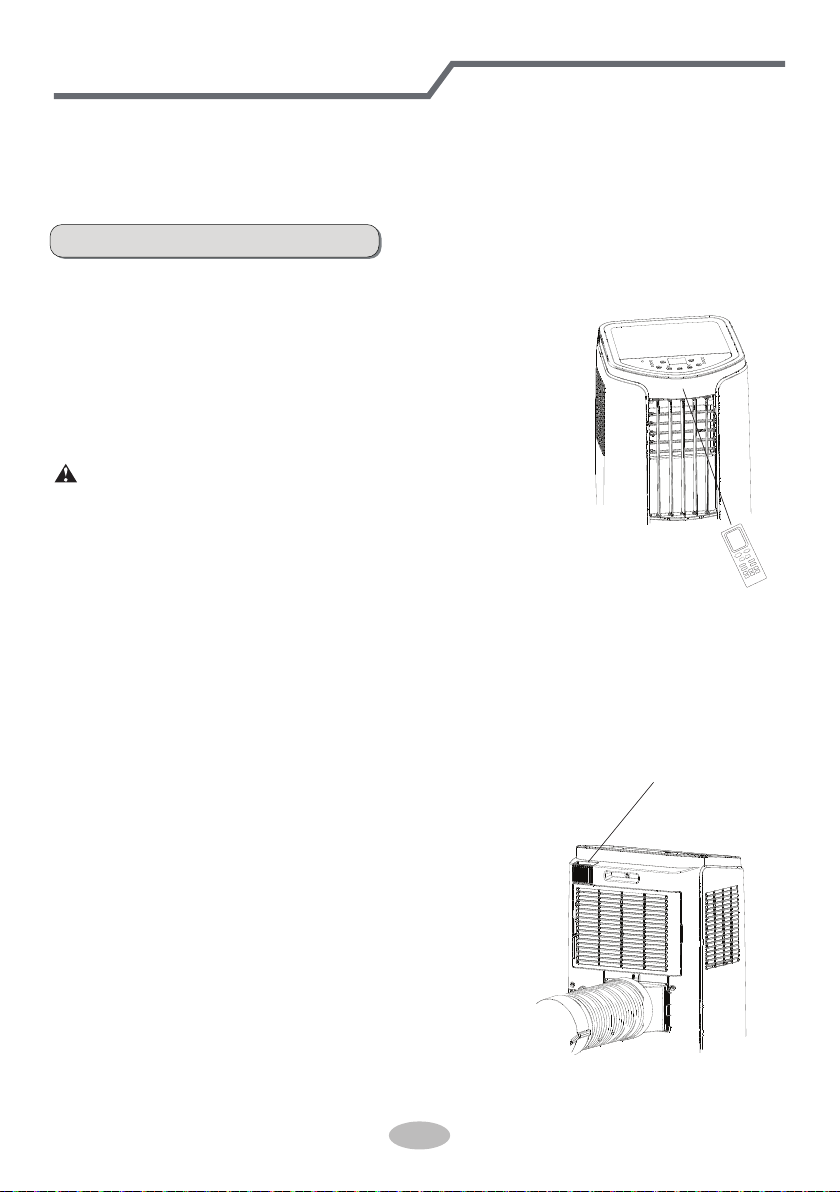

Using the remote control
How to use the remote control
Point the remote control toward the Signal receiver
This is a general use remote controller, it could be used for the air conditioners
with multifunction; For some function, which the model doesn't have, if press the
corresponding button on the remote controller that the unit will keep the original
running status.
and press the desired button. The unit generates
a beep when it receives the signal.
• Make sure nothing, such as curtains, blocks the
• The signal effective distance is 8m.
• Do not expose the receiver window to direct sunlight.
• Use of certain fluorescent lamp in the same room
• Do not leave the remote control in direct sunlight
signal receiver window.
This may adversely affect its operation.
may interfere with transmission of the signal.
or near a heater. Protect the remote control from
moisture and shock.
When attached, to remove the remote control from
the unit, lift the remote control up slightly and pull it
Remote control hook
out.
To prevent the remote control from being
misplaced, hook it to the unit when not in
use.
CAUTION:

9
Buttons on remote controller
Introduction for icons on display screen
FAN
AUTO
OPER
HEALTH
AIR
FILTER
TURBO
ON/OFF
X-FAN
HOUR
HUMIDITY
ON/OFF
MODE
FAN
X-FAN
TURBO
TEMP
TIMER
SLEEP LIGHT
2
5
6
10
13
12
11
9
8
3
4
7
1
1ON/OFF button
2MODE button
3+/- button
4FAN button
5button
8X-FAN button
(Note: X-FAN is same with BLOW)
9TEMP button
10 TIMER button
11 TURBO button
12 SLEEP button
13 LIGHT button
7HEALTH SAVE button
6button
FAN OPER
AUTO
HEALTH
AIR
FILTER
TURBO
ON/OFF
X-FAN
HOUR
HUMIDITY
Up & down swing
left & right swing
set time
TIMER ON/TIMER OFF
turbo mode
set temperature
X-fan
health mode
send signal
set fan speed
light
Temp. display type
:Set temp.
:Outdoor ambient temp.
:Indoor ambient temp.
Sleep mode
Child Lock
Heat mode
Fan mode
Dry mode
Cool mode
Auto mode
Operation mode
air mode

10
●After selecting auto mode, air conditioner will operate automatically according to
ambient temperature. Set temperature can’t be adjusted and also can’t be displa-
yed. Press " FAN " button can adjust fan speed. Press " " button can adjust swing angle.
● After selecting cool mode, air conditioner operates under cool mode. Cool indicator
" " on indoor unit is ON (This indicator is not available for some models) . You can
press "+" or "-" button to adjust set temperature.
Press
" FAN " button can adjust fan
●After selecting dry mode, air conditioner operates under dry mode at low speed.
Dry indicator
" " on indoor unit is ON (This indicator is not available for some
justed. Press
" " button to adjust
●After selecting fan mode, air conditioner operates only under fan mode, All mode
indicators on indoor unit is OFF. Operation indicator is ON.
(This indicator is not available for
● After selecting heat mode, air conditioner operates under heat mode. Heat indicator
" " on indoor unit is ON (This indicator is not available for some models) .
Press "FAN" button to adjust fan speed. Press " " button to adjust swing angle.
(Cooling only unit can’t receive the signal for heating mode.)
Introduction for buttons on remote controller
Note:
●After putting through power, air conditioner will give out a sound and operation
indicator " " is ON (red indicator, the colour is different for different models).
You can operate the air conditioner through the remote controller.
● At ON status, after each pressing button on remote controller, the signal icon " "
indicates the signal has been sent to air conditioner.
●At OFF status, display screen on remote controller displays set temperature.
At on status, display screen on remote controller displays the corresponding startup
function’s icon.
ON/OFF button
MODE button
1
2
Press this button to turn on the unit. Press this button again to turn off the unit.
Press this button can select your required operation mode.
AUTO COOL FANDRY HEAT
adjust fan speed. Press
" " button to adjust swing angle.
● This is a general use remote controller, it could be used for the air conditioners
with multifunction; For some function, which the model doesn't have, if press
the corresponding button on the remote controller that the unit will keep the
original running status.
" " g angle.niwstsujdanacnottub
speed. Press
models). Under dry mode, fan speed can’t be ad
swing angle.
some models). Press "FAN" button can
You can press "+" or "-" button to adjust set temperature.

11

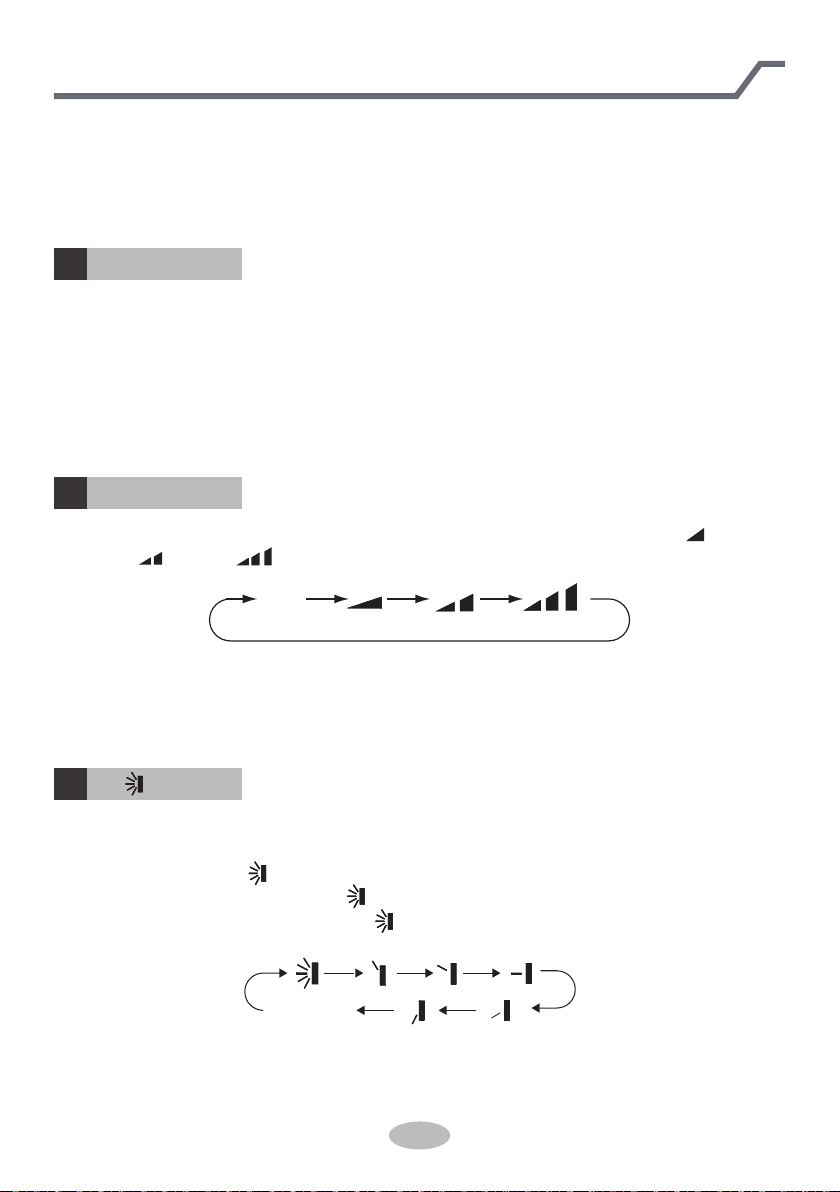

Introduction for buttons on remote controller
" + " or " - " button
3
●After each pressing of "+" or "-" button, it can increase or decrease set temper-
ature 1℃. Hold " + " or " - " button, 2s later, set temperature on remote controller
will change quickly. After reaching to your required time, loosen the button.
Temperature indicator on indoor unit will also change accordingly. (Temperature
can’t be adjusted under auto mode)
● Under TIMER ON, TIMER OFF or Clock setting, you can press "+"or "-" button to
adjust time. (Refer to TIMER button for details)
FAN button
4
Pressing this button can set fan speed circularly as: auto (AUTO), low( ),
medium( ), high( ).
Auto
Note:
● Under AUTO Speed,IDU fan motor will adjust the fan speed (high, medium or
low speed) according to ambient temperature.
● Fan speed under dry mode is low speed.
5
● Press this button to start or stop up & down swing function.The remote controller
defaults to simple swing condition.
● Press + button and button at the same time at unit OFF to switch between
simple swing and static swing; blinks for 2 seconds.
● In static swing condition, pressing button, the swing angle of up & down louver
changes as below:
● If the unit is turned off during swing operation,the louver will stop at present
position.
no display
(horizontal louvers stops
at current position)
button
Note:
For preventing cold wind, after starting up heating mode, indoor fan will blow fan
afterdelaying 1-5min. (Details time is decided by indoor ambient temperature)
Temperature setting range on remote controller: 16℃-30℃. Fan speed setting
range: auto, low speed, medium speed and high speed.

12
HEALTH SAVE button
7
HEALTH FUNCTION:
After pressing HEALTH button, remote controller will switch circularly as below:
"HEALTH"→"AIR"→"AIR HEALTH"→"no display"
● When selecting "HEALTH" by remote controller, HEALTH function will be started up.
● When selecting "AIR" by remote controller, AIR function will be started up.
● When selecting "AIT HEALTH", AIR and HEALTH function will be started up.
● When there’s no display on remote controller, AIR and HEALTH function will be
turned off.
●AIR function is applicable for some models.
●HEALTH function is applicable for some models.
Introduction for buttons on remote controller
Note:
When selecting " " with remote controller, it’s auto swing. Horizontal louver of air
conditioner will swing up&down automatically at the maximum angle.
When selecting " 、、、、
swing. Horizontal louver of air conditioner will stop at that position as shown by the
icon to swing.
● When selecting " " with remote controller, it’s auto swing. Horizontal louver of
air conditioner will swing left&right automatically at the maximum angle.
● When selecting "
、 、 、 、
"
position swing. Horizontal louver of air conditioner will stop at that position as
shown by the icon to swing.
● When selecting
Note: There is no this function for the units. If press this key, the main unit will
click, but it also runs under original status.
" " , it’s the circulating swing. Horizontal louver of
air conditioner will swing circularly according to the angle as shown by the icon.
(swing angle is displayed dynamically)
6button
no display
(horizontal louvers stops
at current position)
(swing angle is dis-
played dynamically)
● Press this button to start or stop left & right swing function. The remote controller
defaults to simple swing condition.
● Press + button and button at the same time at unit OFF to switch between
simple swing and static swing; blinks for 2 seconds.
● In static swing condition, pressing button, the swing angle of left & right louver
changes as below:
● If the unit is turned off during swing operation,the louver will stop at present
position.

13
Introduction for buttons on remote controller
TIMER button
10
●
At ON status, press this button once can set TIMER OFF. The character of HOUR
TIMER
ON. After each pressing of "+" or "-" button, time will increase or decrease half an
Note:
● Outdoor ambient temperature display may can’t be selected for some models.
When indoor unit receives " " signal, it displays indoor set temperature.
● Only for the model whose indoor unit has dual-8 display.
TEMP button
9
Press this button can see indoor set temperature, indoor ambient temperature or
outdoor ambient temperature on indoor unit’s display. Temperature is set circularly
by remote controller as below:
no display
● When selecting " " by remote controller or no display, temperature indicator on
indoor unit displays set temperature.
● When selecting " " by remote controller, temperature indicator on indoor unit
displays indoor ambient temperature.
● When selecting " " by remote controller, temperature indicator on indoor unit
displays outdoor ambient temperature.
SAVE function:
Under cool mode, press SAVE button and the unit will operate under SAVE mode.
Dual-8nixie tube on remote controller displays "SE". Air conditioner will operate at
auto speed. Set temperature can’t be adjusted. Press SAVE button again to exit
SAVE mode. Air conditioner turn back to original set speed and set temperature.
X-FAN button
8
After pressing this button under cooling or dry mode, remote controller displays the
character of "X-FAN" and X-FAN function is started up. Press this button again to
cancel X-FAN function. The character of "X-FAN" will disappear.
Note:
● After starting up X-FAN function, when turning off the unit, indoor fan will continue
to operate for a while at low speed to dry the residual water inside the indoor unit.
● When the unit operates under X-FAN mode, press "X-FAN" button can turn off
X-FAN function. Indoor fan stops operation immediately.

14
Function introduction for combination buttons
Introduction for buttons on remote controller
TURBO button
11
When pressing this button under cooling or heating mode, air conditioner will enter
into quick cooling or quick heating mode. The character of "TURBO" is displayed
on remote controller. Press this button again to exit turbo function and the character
of "TURBO" will be disappeared on remote controller.
SLEEP button
12
Press this button under cooling, heating mode can start up sleep function.
" " icon will be displayed on remote controller. Press this button again to cancel
sleep function. " "icon on remote controller will be displayed.
LIGHT button
13
Press this button can turn off the light for indoor unit’s display. " " icon on remote
controller will disappear. Press this button again to turn on the light for indoor unit’s
display. " " icon on remote controller will be displayed.
Child lock function
Switchover function for temperature display
Press "+" and "-" buttons simultaneously can turn on or turn off child lock function.
When child lock function is started up, " " icon will be displayed on remote
controller won’t send signal.
After turning off the unit by remote controller, press "-" button and "MODE" button
simultaneously to switch between ℃and °F .
Note:
● Time setting range: 0.5-24 hours.
● Time interval between two operations can’t exceed 5s. Otherwise, remote
controller will exit the setting status automatically.
hour. When holding "+" or "-" button, 2s later, the time will change quickly until to
Cancel TIMER OFF: Press "TIMER" button again under TIMER OFF status.
● At OFF status, press this button once can set TIMER ON. Please refer to TIMER
off for detailed operation.
Cancel TIMER ON: Press "TIMER" button again under TIMER ON status.

15
Operation guide
1. After putting through the power, press " " button on remote controller to
turn on the air conditioner.
2. Press " " button to select your required mode: AUTO, COOL, DRY, FAN,
HEAT.
3. Press "+" or "-" button to set your required temperature. (Temperature can’t be
adjusted under auto mode).
4. Press " " button to set your required fan speed: auto, low, medium and
high speed.
5. Press " " button to select fan blowing angle.
ON/OFF
MODE
FAN
Replacement of batteries in remote controller
1. Press the back side of remote controller marked
the cover of battery box along the arrow direction.
2. Replace two 7# (AAA 1.5V) dry batteries, and
make sure the position of "+" polar and "-" polar
are correct.
3. Reinstall the cover of battery box.
signal sender battery
Cover of battery box
remove
reinstall
● During operation, point the remote control signal sender at the receiving
window on indoor unit.
●The distance between signal sender and receiving window should be no
more than 8m, and there should be no obstacles between them.
or wireless telephone; remote controller should be close to indoor unit during
operation.
● Replace new batteries of the same model when replacement is required.
● When you don’t use remote controller for a long time, please take out the
batteries.
● If the display on remote controller is fuzzy or there’s no display, please
replace batteries.
NOTICE

16
Clean and Maintenance
WARNING:
● Before cleaning the air conditioner, please turn off the unit and disconnect
1. Remove the filter
2. Clean filter
3. Install filter
● The filter should be cleaned about once every three months. If there's much dust
NOTICE:
power. Otherwise, it may cause electric shock.
● Do not wash air conditioner with water. Otherwise, it may cause electric
shock.
● Do not use volatile liquid (such as thinner or gas) to clean the air conditioner.
Otherwise, it may damage the appearance of air conditioner.
Clean outer case:
If there's dust on the surface of outer case, please use soft towel
to wipe it. If the outer case is very dirty (such as grease), please
use neutral abluent to wipe it.
a. Press the clasp as shown in the fig, and then remove the filter 1;
Use cleaner or water to clean the filter. If the filter is very dirty (such as grease),
After the filer is cleaned and dried, reinstall it well.
in the operation environment, you can increase clean frequency.
● Do not dry the filter with fire or hair drier. Otherwise, it may be deformed or catch
fire.
use warm water 40℃ melted with neutral abluent to clean it and then put at shady
place to dry it.
b. Pull out the filter 2.
Clean outer case and grille
Clean grille: Use cleaner or soft brush to clean it.
filter 1
filter 2
clasp

Clean and Maintenance
Clean heat discharge pipe
Remove the heat discharge pipe from air conditioner, clean and dry it , and then
reinstall it. (For the method of installation and removal , please refer to the
instruction for "Installation and disassembly of heat discharge pipe").
Checking before use-season
1. Check whether air inlets and air outlets are blocked.
2. Check whether plug and socket are in good condition.
4. Check whether batteries are installed in remote controller.
5. Check whether joint, window bracket and heat discharge pipe are installed tightly.
6. Check whether heat discharge pipe is damaged.
Checking after use-season
1. Disconnect power supply.
3. Remove dust and sundries on the air conditioner.
4. Eliminate accumulated water in chassis (refer to the section of "Drainage way"
for details).
5. Check whether window bracket is damaged or not. If yes, please contact dealer.
Long-time storage
If you don't use the air conditioner for a long time, please maintain it by following
steps for good performance:
● Make sure there's no accumulated water in chassis and the heat discharge pipe is
disassembled.
● Pull out the plug and wrap the power cord.
● Clean the air conditioner and pack it well to prevent dust.
Notice for recovery
● Many packing materials are recyclable materials. Please deal with them through
local recycle bin.
● If you want to throw away the air conditioner, please contact local division or
consultant service center for the correct disposal method.
17
dust in the operation environment, you can increase clean frequency.
NOTICE
