Koolbreeze Climateasy 12NG User manual

Page 1
Climateasy 12NG
Portable Air Conditioner
3.5kW (12000 BTU hour)
Model Number P12NGP
Air Conditioning
Heating
Cooling
Dehumidifying
Remote control
3 Fan speeds
LED display panel
24 Hour timer

Page 2
IMPORTANT
Installer and Users please note:
These instructions should be read carefully and left with the
user of the product for future reference.
BEFORE USE
Inspect the product including its cable and plug for any signs of
damage. If the product is damaged, DO NOT use it, and
contact your supplier immediately. The appliance contains a
refrigerant gas, so must be kept upright at all times. After
unpacking wait hours for the refrigerant gas to stabilise
before use.
INSTALLATION
Stand the CLIMATEASY 12 on a firm, flat, level surface.
Connect the exhaust hose as follows: expand a small section
of the end, and screw into the indoor adapter; then slide the
indoor adapter into the slot at the back of the unit. Expand a
small section of the other end of the hose, and screw into the
fish-tail-shaped adapter.

Page 3
Slide the two-part window adapter to the correct length to fit the
window. Close the window as far as possible to keep the
window adapter in place. Clip the fish-tail shaped adapter into
the aperture in the window adapter.
Keep the hose as straight as possible, avoid dips where the
moisture from the exhaust air can condense and fill the tube
with water. Do not allow the hose to be crushed.

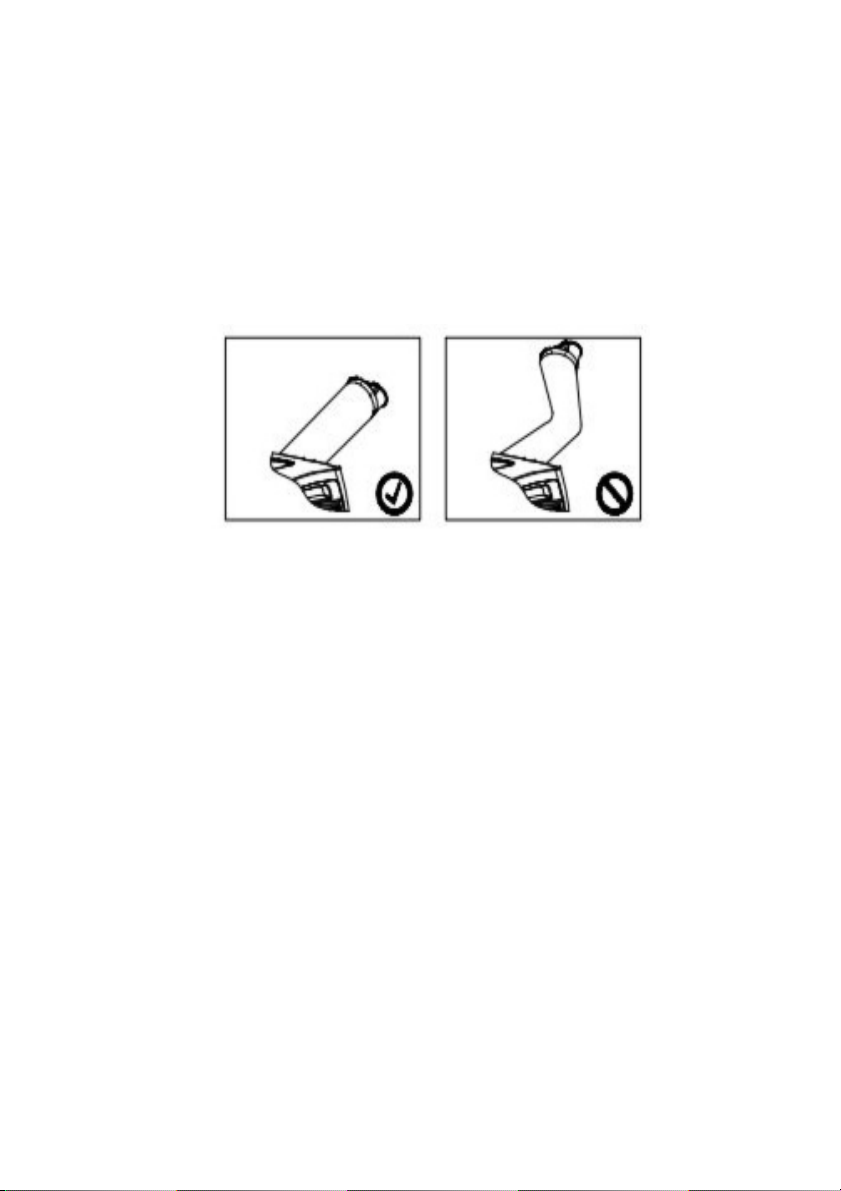

Correct Mounting Wrong bend of Exhaust
Incorrect Bending of the Exhaust can cause malfunction
The hose can be expanded up to 1.8 m long, but the shorter it
is the more efficiently the CLIMATEASY 12NG will operate. Do
not extend the hose, or replace with another type of hose.

Page 4
Remote Control
Fit two AAA batteries to the remote control, observing the
correct polarity.
Remove the battery if the remote control is not used for a
month or longer.
Do not attempt to recharge the supplied batteries.
Do not dispose of the batteries in a fire as they may explode.
GENERAL SAFETY REQUIREMENTS
Domestic wiring must be tested periodically by a qualified
electrician at least once every 10 years or at every change of
occupancy.
For office and retail premises, and buildings such as village
halls, the wiring must be inspected at least once every 5 years.
It is recommended that all building be fitted with smoke alarms
(it is mandatory for new buildings).

Page 5
PRODUCT SAFETY
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance
Place the appliance on a firm flat surface. Ensure that the it
is kept upright at all times
Ensure that there is at least 00mm (1') between the sides of
the appliance and any flammable materials
Ensure that there is at least 900mm ( ') from the top of the
appliance and any flammable materials.
Do not place on soft surfaces.
Do not cover.
Do not obstruct the air intakes and exhausts.
For indoor use only
Not suitable for use in boats, caravans or similar locations.
Do not use in bathrooms, or in wet locations.
Do not place the mains lead beneath a carpet or rug.
Do not use the appliance in locations where paint, petrol or
other flammable liquids are used or stored.
Always transport and store in an upright position.
Do not allow the appliance to fall over when there is water in
the bucket.
Must be vented outside the space being cooled or heated
PAT TESTING.
When used in an office environment, this product must be
safety-tested yearly by a qualified electrician (PAT Tested) in
order to comply with the Electricity at Work Regulations.
We recommend that it is PAT tested regularly when used in a
domestic environment.

Page 6

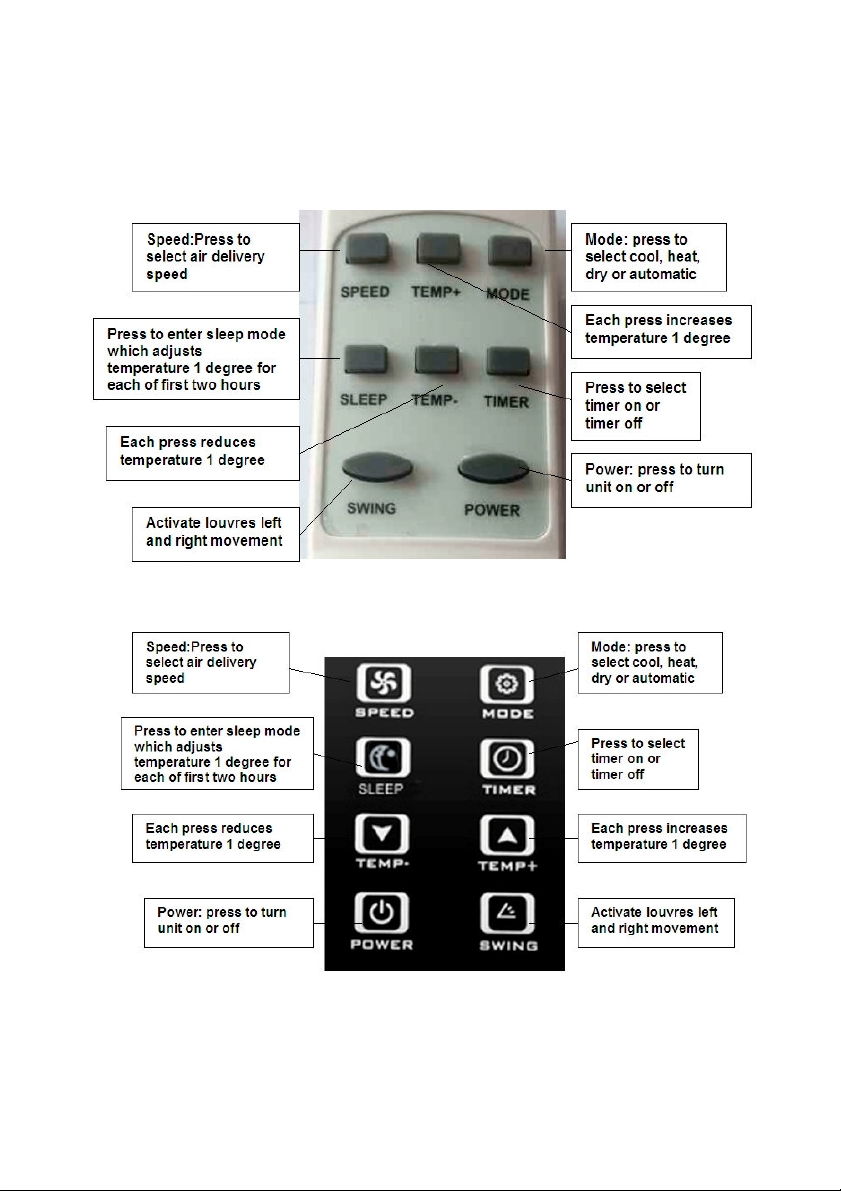

CONTROLS
REMOTE
DISPLAY

Page 7
OPERATION
Leave the appliance in an upright position for hours before
first use.
Plug the mains lead into a 1 Amp mains socket (unless
permanently installed)
If connecting via an extension lead, make sure that the lead is
rated at 1 Amps or more, and that it is fully unwound. Switch
the unit on at the mains socket.
ON OFF Button: Press the "ON/OFF" button to start the unit.
The Power indicator illuminates when the appliance is ON.
There will be a short delay (up to 3.5 minutes) before the
appliance starts to operate.
"MODE" Button: Select the mode by pressing the "MODE"
button. The available modes are:
Cooling mode: cools if the room temperature is above the
selected temperature. Then use the TEMP+ and TEMP-
buttons to select the desired room temperature. When the
temperature reaches the desired temperature, the compressor
will stop, and the fan will continue to run.
Dehumidifying mode: removes humidity, but does not effect
room temperature. The fan operates at its lowest speed. For
best results, do not use the exhaust tube, but fit a permanent
drainage pipe to the drain outlet as shown on page 9.
Fan mode: circulates the air, but does not affect room
temperature or humidity.
NOTE: If you change the fan speed, the speed will increase or
decrease as requested but there will be no discernable change
evident because of the type of fan fitted.
Heating mode: heats if the room temperature is
below the selected temperature. Then use the TEMP+
and TEMP- buttons to select the desired room temperature.

Page 8
When the temperature reaches the desired temperature, the
compressor will stop. Heating performance reduces if the
outdoor temperature falls below 7°C.

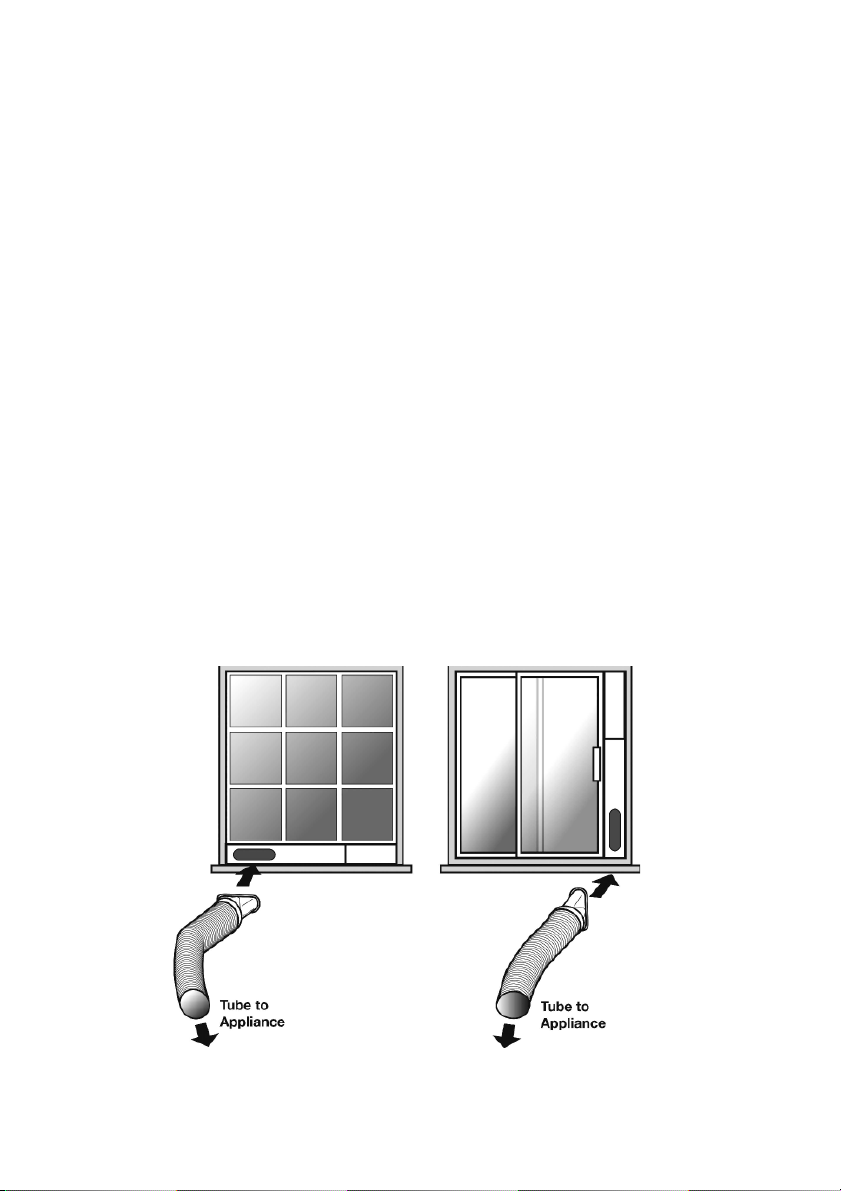

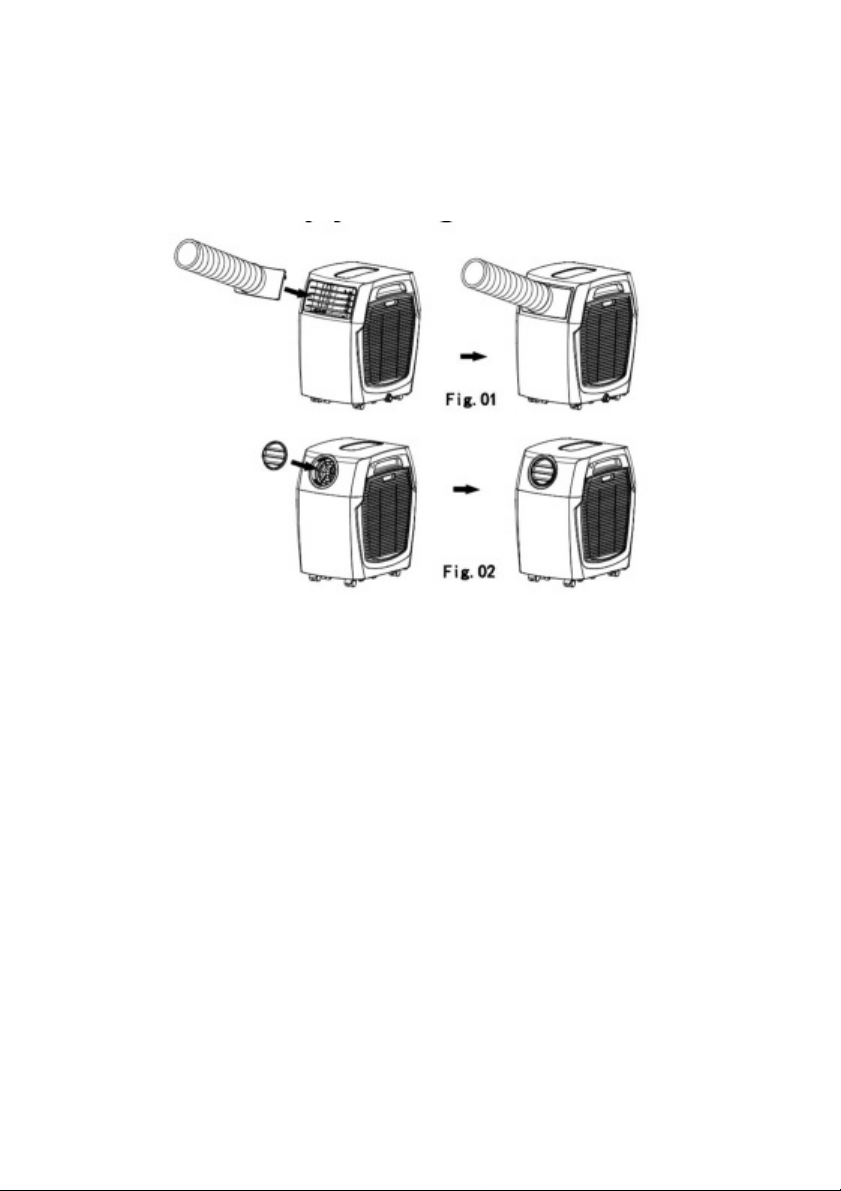

To set up Heat mode reverse the exhaust hose as follows:
"SPEED" Button: Set the fan speed using the fan speed
control.
In all modes except dehumidifying mode. The fan speed can
be low, medium or high. The fan speed is indicated by the
speed of the segments on the windmill symbol on the LED
display.
TEMP+ and TEMP- buttons:
Use the + and - buttons to select the desired room
temperature. The temperature can be set to any temperature
from 16 °C to 1 °C. Selecting a lower temperature whilst
heating, or a higher temperature whilst cooling will reduce
power consumption.

Page 9
SWING button: Press the "SWING" button to turn the
oscillation of the louvres on or off.
If the "WATER FULL" indicator lights, the condensate water
tank is full. The unit will stop and the E2 error code will
show. This should only happen very rarely, as most of the
water collected is evaporated and sent down the exhaust air
tube.
To empty the water, switch the unit off by pressing the ON/OFF
button, wait for three minutes, and then disconnect from the
mains supply. Place a drainage pan underneath the drain
outlet plug (an the bottom of the unit, at the back in the centre).
Withdraw the bung, and allow the water to drain into the
drainage pan. Replace the bung, and reconnect the unit to the
mains supply.
The water should be disposed of down a drain.

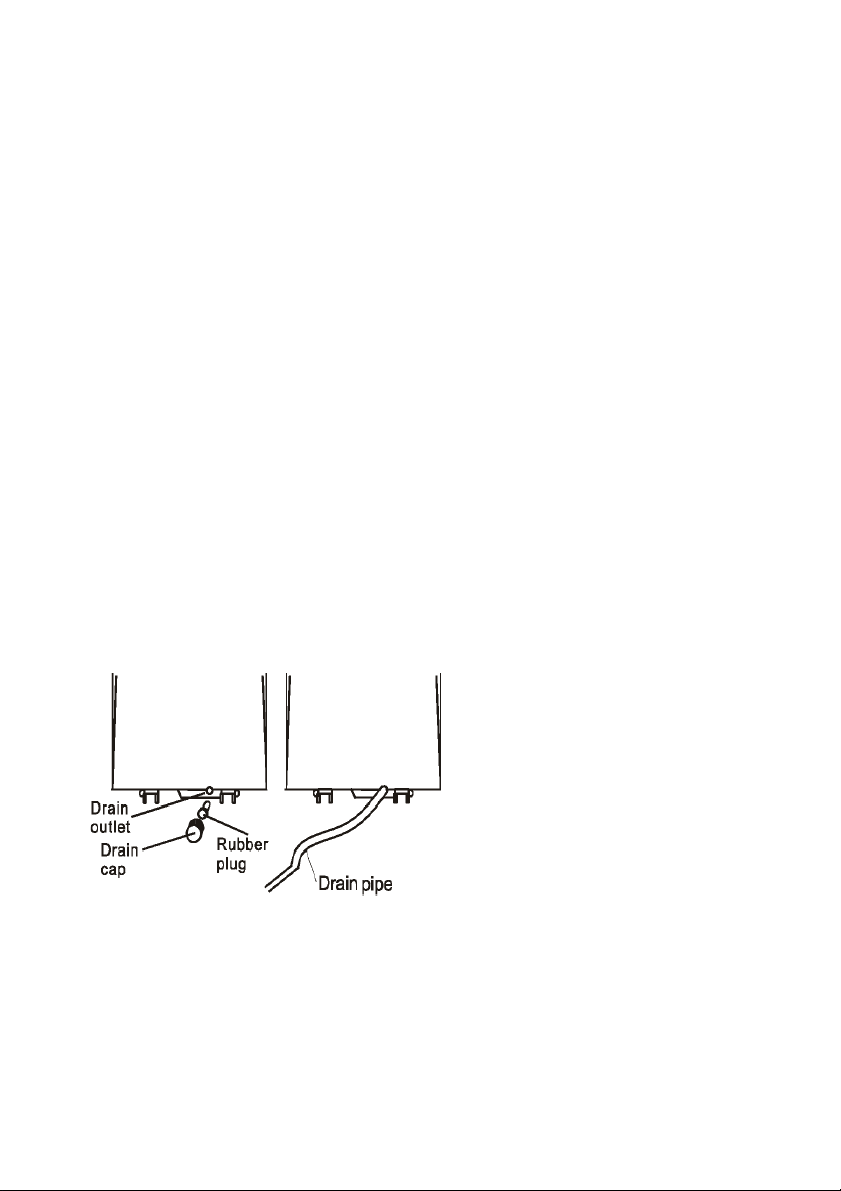

To avoid the need to empty the water, a permanent drain tube
may be fitted as shown: use a piece of 18mm diameter tube
(not supplied) and run the pipe to a drain, making sure that it
runs downhill all the way.
Unplug the CLIMATEASY 12NG from the mains when not in
use.

Page 10
USING THE TIMER
The timer can set the unit to run for a selected time (between 1
and 24 hours) and then turn OFF.
Or, it can set the unit to wait for a selected time (between and
24 hours) before turning ON.
To select timed turn-off press the timer button whilst the unit is
switched ON. Then adjust the time using the + and - buttons
for the number of hours' delay before switching off.
To select timed turn-on press the timer button whilst the unit is
switched OFF (connected to the mains supply but switch OFF
using the ON/OFF button). Then adjust the time using
the + and - buttons for the number of hours' delay before
switching on.
To cancel the timer, press the POWER button
SLEEP CONTROL FUNCTION
1. While in cooling mode, press the SLEEP key to set
the temperature. It increases1 after an hour and at ℃
most increases 2 after 2 hours.℃
2. Pressing the SLEEP key again cancels the setting
While in heating mode, press the SLEEP key to set
the temperature. It decreases 1 after an hour and at ℃
most decreases 2 after 2 hours.℃
L.E . D . D I S P L AY
The display indicates the current setting temperature or the
timer setting. When the set
temperature or the timer is adjusted, the new setting is shown
then the display returns the
current set temperature.
※ The display is also used to show error codes should a fault
occur, see ERROR CODES.

Page 11
USING THE REMOTE CONTROL
The heating, cooling, dehumidifying and fan modes are
selected in exactly the same way as using the control panel
on the main unit.
MAINTENANCE
Before cleaning, turn the appliance off, and disconnect from
the mains supply. The appliance may then be cleaned using a
damp cloth with a drop of washing-up liquid to remove any dust
or dirt from the case. Do no use stronger detergents or
solvents as these may damage the plastic.
Cleaning the filter:
The filter is located on the side panel of the appliance. Unclip
to remove, then remove dust and dirt using a vacuum cleaner.
The filter should be cleaned every two weeks to maintain
optimum performance.
Using a dry 1" (25mm) paint-brush, remove any dust from the
grilles.
If the mains lead is damaged, it must be replaced by the
manufacturer or an authorised service centre.

Page 12
FAULT-FINDING
If the CLIMATEASY 12NG is not operating, proceed as
follows:
Check that the mains plug is firmly in the socket, and that the
socket is switched ON.
When the unit is switched on there will be a delay of up to .5
minutes before it starts to operate.
Unit stops running:
Mains supply is disconnected or has failed
Target temperature has been reached.
Timer has been set.
Water tank is full (WATERFULL indicator will illuminate)
In cooling mode, no cool air is produced:
Room temperature is lower than set temperature
The unit is defrosting (this will take a few minutes, and
afterwards, it will resume operation)
Filter is blocked
Cooling is poor on hot days
Too much direct sunshine is heating the room
Windows or doors are open allowing hot air into the room
A lot of people in the room (each person contributes about
75W of heating)
Electrical equipment in the room producing heat
Heating is poor on cold days
The heat pump can only heat effectively when the outdoor
temperature is above 7 °C. The unit is not intended as a
primary means of heating premises.
Remote control does not work:
Check batteries are correctly installed, and are not exhausted.
Make sure that the remote control is pointed towards the main
unit when being used.

Page 13
FAULT CODES
E0: Open circuit or short circuit in room temperature sensor.
E2: water full. Empty the water tank
E4; Wrongly wired plug
END OF SEASON STORAGE.
Before putting the appliance into storage, empty all water from
the drain, and run the appliance on "fan only" mode fo a few
hours to dry the inside thoroughly. Clean the filter, unplug the
mains cable, and store the appliance in its origin box in an
upright position.
DISPOSAL AND RECYCLING
You must not dispose of this appliance with domestic
household waste.
Most local authorities have specific collection system for
appliances and disposal is free of charge to the end-user.
When replacing an existing appliance with a similar new
appliance your retailer may take the old appliance for disposal.
This air conditioner contains R410a refrigerant gas. At the end
of its life the disposal of this product must be in accordance
with local regulations.
For the purposes of EU regulation EN12102 this is a “local air
conditioner” and produces less than 65Dbl sound energy.

Page 14
TECHNICAL SPECIFICATION
Dimensions:
50×5 5×600 mm
Net Weight: 28 kg
Power supply: 2 0V ~
Power consumption (cooling): 1250W
Power consumption (heating): 1250 W
Heating capacity: 500 W
(12000 BTU/hour)
Cooling capacity: 500 W
(12000 BTU/hour)
Dehumidifying capacity: 28 litres/day
Working temperature (cooling): 16 - 2 °C
Working temperature (heating): 7 - 2 °C
Air flow: 420 m /h
Refrigerant: R410a (610 g)
SERVICE WARRANTY
Cottage Stores LLP guarantees the product free from defects in materials
and workmanship for a period of twelve months.
Should this unit be operated under conditions other than those
recommended, at voltages other than the voltage indicated on the unit, or
any attempts made to service or modify the unit, then the warranty will be
rendered void. Please Note: any attempt to extend the exhaust hose will
invalidate the warranty.
The product you buy may sometimes differ slightly from illustrations. This
warranty is in addition to, and does not affect, your statutory rights. If you
have any problems with this product, please in the first instance call the
retailer from whom you purchased it.
Koolbreeze Division
Cottage Stores LLP
7 Harris Drive
Rugby CV22 6DX
United Kingdom
