B-K lighting MICRO NITE PTR-MN-TR User manual

RELEASED
6-30-19
REFERENCE NUMBER
INS-2804-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
5/32” & 5/64” Allen Wrench
Waterproof Wire Connectors
Phillips Screwdriver
NEEDED
FOR
INSTALLATION:
By Others
PALM TREE RING MICRO NITE
Standard Installation
This set of instructions
works for:
Fixture as Specified Stainless Steel Tree Strap
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground
IMPORTANT LISTINGS AND CERTIFICATIONS
Warning High Voltage
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS
PTR-MN-TR
Micro Nite™
For integral fixture
configurations
360SL™ Knuckle
Tree Stand-Off
Splice Box
Low Voltage Cable Grip
Secondary Quick
Disconnect

RELEASED
6-30-19
REFERENCE NUMBER
INS-2804-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING
IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
Fixture Installation
1. Place tree ring fixture around tree.
Move fixture to desired height. Tighten
the entire assembly to the tree with
provided stand-offs.
2. Secure by hooking end of strap over two (2)
Phillips screws. Secure by tightening two (2)
Phillips screws with Phillips screwdriver.
PALM TREE RING MICRO NITE
Standard Installation
5. Bring line voltage cable from power line to main
splice box location. Loosencord grip on bottom
of splice box, feed linevoltage cable from power
line through, then tighten cord grip to secure.
4. Remove top of transformer housing by
removing (4) #8-32 set screws using 5/64” Allen
wrench.
Transformer housing will be marked for
primary.
WIRING DIAGRAM
6. Make watertight connections from primary
branch circuit to transformer with waterproof
wire connectors. (By Others). Fixtures are pre-
wired at factory on the secondary side. See
wiring diagram.
LINE
Fixture
COM
GROUND
Transformer
GROUND IN HOUSING
Factory
Wired
7. Replace top of transformer housing with (4)
#8-32 screws with 5/64” Allen wrench.
3. Connect secondary cable then twist to secure
in place.

RELEASED
6-30-19
REFERENCE NUMBER
INS-2802-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING
IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
PALM TREE RING MICRO NITE
Standard Installation

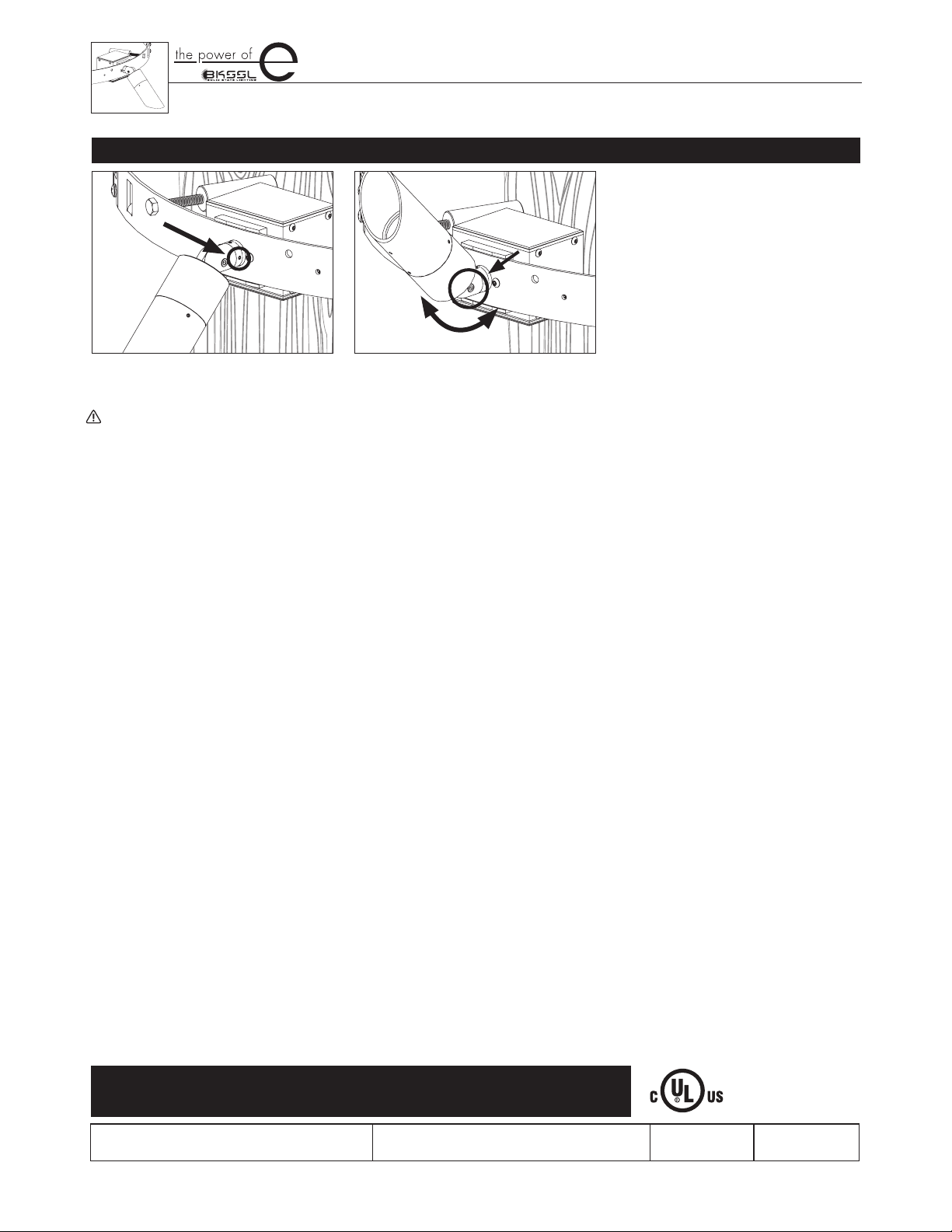

360SL™ Knuckle
2. Rotate fixture at base and aim fixture to desired
horizontal location.
3. Use 5/32” Allen wrench to loosen #10-
32 stainless steel black oxide socket head
cap screw at the knuckle for vertical aiming
purpose, then tighten screws.
1. Use 5/64” Allen wrench to slightly loosen two
(2) #8-32 stainless steel set screws on the stem
for 360° aiming purpose, then tighten screws.
Warning: Do not over tighten set screw.
Doing so will compromise O-ring seal and will
void warranty.

RELEASED
7-13-12
REFERENCE NUMBER
INS000002
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
5/64” allen wrench
Warning High Voltage Hot Surface
NEEDED
FOR
INSTALLATION:
By Others
LED BOARD/DRIVER/OPTICS
1 5/8” Body Size
Standard Installation/Replacement

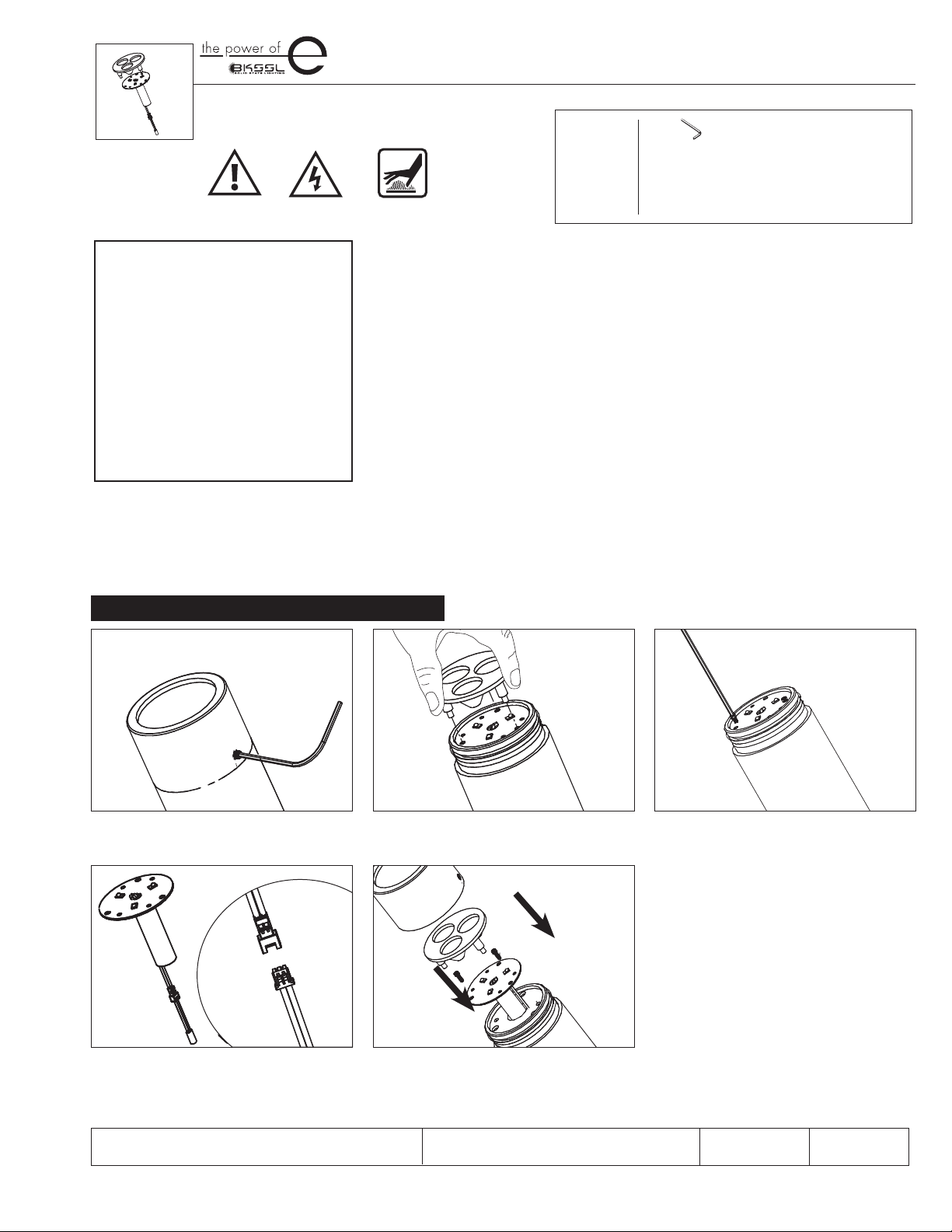

Re-placing LED Board/Driver and Optics
1. Use 5/64” Allen wrench to loosen #8-32 stainless set
screw and remove cap.
2. Space three fingers evenly around the optic and
gently rock optic to remove.
4. Disengage LED board and driver assembly. Replace
with new board and driver assembly.
5. Reverse install LED board and driver by carefully
wrapping 18 gauge wires around driver and
inserting into fixture body. Secure LED board in
place with stainless steel screws.
6. Snap optics in place. Place cap on fixture and
tighten set screw.
3. Use 5/64” Allen wrench to remove two (2) #2-56
socket head cap screws on LED board, grasp LED
board and gently pull up to expose quick disconnect.
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel must perform all servicing or relamping of
this product.
• Before wiring to power supply and during servicing or relamping,
turn off power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin may
damage the lamp and cause it to rupture.
• Replace lamp only with correct wattage and type of lamp
marked on fixture label.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
Lamp gets HOT quickly! Contact only switch/plug when
turning on.
Do not touch hot lens, guard, or enclosure (see diagram/
picture).
Keep lamp away from materials that may burn.
Do no touch the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
