B-TEC ST-01 User manual

Operating Manual for Paint-Sample Dryer ST-01
Paint-Sample
Dryer
ST-01

Declaration of Conformity According to DIN EN 45014
Manufacturer:
Herewith, we declare that the machines and marketed models described in the following conform in
conception and in design to the relevant fundamental safety and health requirements of the applicable
EU directives.
All of our manufactured or assembled parts conform to the listed regulations.
If you change the machine without our explicit agreement, this declaration will be herewith invalidated.
Product type: Paint-sample dryer
Type designation: ST-01
Serial-no.: Construction year: 2015
The following harmonizing standards have been used:
- Safety of machinery, equipment and facilities: DIN EN ISO 12100 : 2011
- General rules and safety requirements for pneumatic-systems: DIN EN ISO 4414
Special national norms are applied:
- Safety- and health signs at workplace: BGV A8
Technical Parameters:
Rated voltage:
120 V
Rated frequency:
60 Hz
Rated power input:
350 W
Protection class:
I
Degree of protection:
IPX0
Tested according to: EN 60335-1/A2:2006, EN60335-2-30/A2:2007, EN50366/A1:2006
This EC-Attestation of Conformity is issued on a voluntary basis according to the Low Voltage Directive
5006/95/EC relating to electrical equipment designed for use within certain voltage limits. It confirms
that the listed equipment complies with the principal protection requirements of directive.
Responsibility for technical documents: Hans-Joachim Bödrich, Michael Bellroth
Address: Refer to manufacturer’s address
Location/Date/Manufacturer’s signature. :
Function of the signer: Managing director
.................................................................................
B-TEC GmbH
Zunftweg 6-8
D-31303 Burgdorf / Ehlershausen
Hannover, 02.01.2015

Table of Contents
1. Important Information ............................................................................................................................. 1
1.1 Explanation of the Symbols................................................................................................................ 1
2. Technical Description of the Machine...................................................................................................... 2
2.1 Technical Parameters ......................................................................................................................... 2
3. Safety Regulations.................................................................................................................................... 3
3.1 Safety and Advisory Notes.................................................................................................................. 3
4. Installation................................................................................................................................................ 4
5. Operating Instructions.............................................................................................................................. 5
6. Care and Maintenance ............................................................................................................................. 6
6.1 Replacement of Emitter Lamp Tube................................................................................................... 6
7. Wiring Diagram......................................................................................................................................... 7

Page 1
1. Important Information
Thank you for purchasing this B-TEC Systems infrared paint curing unit ST-01. Please note, the unit has a
rating plate attached which includes the model and serial number. Should you ever need service or parts,
please provide that information when calling B-TEC Systems or your distributor.
This shortwave infrared paint sample dryer is specially made for drying automotive refinish coatings,
including waterborne. Its energy heats the coating by using both infrared, air movement, or both. Each bake
cycle only costs a few cents, making it highly efficient. The unit is built to last and its design offers the user
the fastest way of drying painted test cards, ready to match.
Read this document carefully before commissioning and keep it safe for future reference
B-TEC Systems devices and machines are only to be used for the purpose explicitly described below. Any
other use is in contrast with the regulations. The manufacturer cannot be held liable for damages resulting
from such non authorized use.
The intended use of this equipment is the drying of paint samples, including waterborne coatings utilizing
infrared and air movement. Improper use can endanger the health of the operator and of others, causing
damage to the dryer itself or to other materials and assets.
1.1 Explanation of the Symbols
Attention!
You will find this symbol whenever attention is drawn to situations in which danger to
life can arise due to or during incorrect or improper operation. Pay special attention to
these symbols and act carefully.
Notice!
You will find this symbol in the operating manual whenever your attention shall be
drawn to correct work procedures, economic ways of operation or when the machines
can be damaged by incorrect operation.

Page 2
2. Technical Description of the Machine
The machine "ST-01" is made for fast drying of paint-samples using infrared energy / heat and air
movement. The duration and intensity of drying can be adjusted. The drying-time can be set by the timer
and the temperature the infrared lamp produces can be determined by a heat controller. The speed of the
air can also be adjusted to the desired level. The compressed air and the infrared lamp can be used together
or separately.
2.1 Technical Parameters
Model:
ST-01
Operating pressure compressed-
air connection:
3-5 bar
Rated voltage:
120 V
Rated frequency:
60 Hz
Power of the emitter:
300 W
Timing range of the timer:
30 min
Weight:
6,1 kg
Size (W x H x D )
16” x 12” x 8” inches
Netzkabel
Lufteingang
Einschaltung Luft
Luftmengeneinstellung
Zeitschaltuhr
Temperatureinstellung Kartenhalter
Power cord
Air input
Air switch
Air adjustment knob
Timer
Temperature knob
Sample tray
- B-Tec Systems reserve the right to make technical changes without notice -

Page 3
3. Safety Regulations
B-TEC Systems machines are operationally safe with state of the art construction. Due to the nature of the
curing process, proper use of the equipment is necessary. With improper or unsafe use, there are parts that
cannot be protected without impairing operability and functionality. Improper use of the dryer can be
endanger the health of operator and of others and cause damage to the dryer itself or to other materials
and assets. B-TEC Systems is not liable for any damages resulting from improper or incorrect use.
3.1 Safety- and Advisory Notes
ST-01 Dryer is not explosion proof. Do not use it in a spray booth, mixing room or any volatile area.

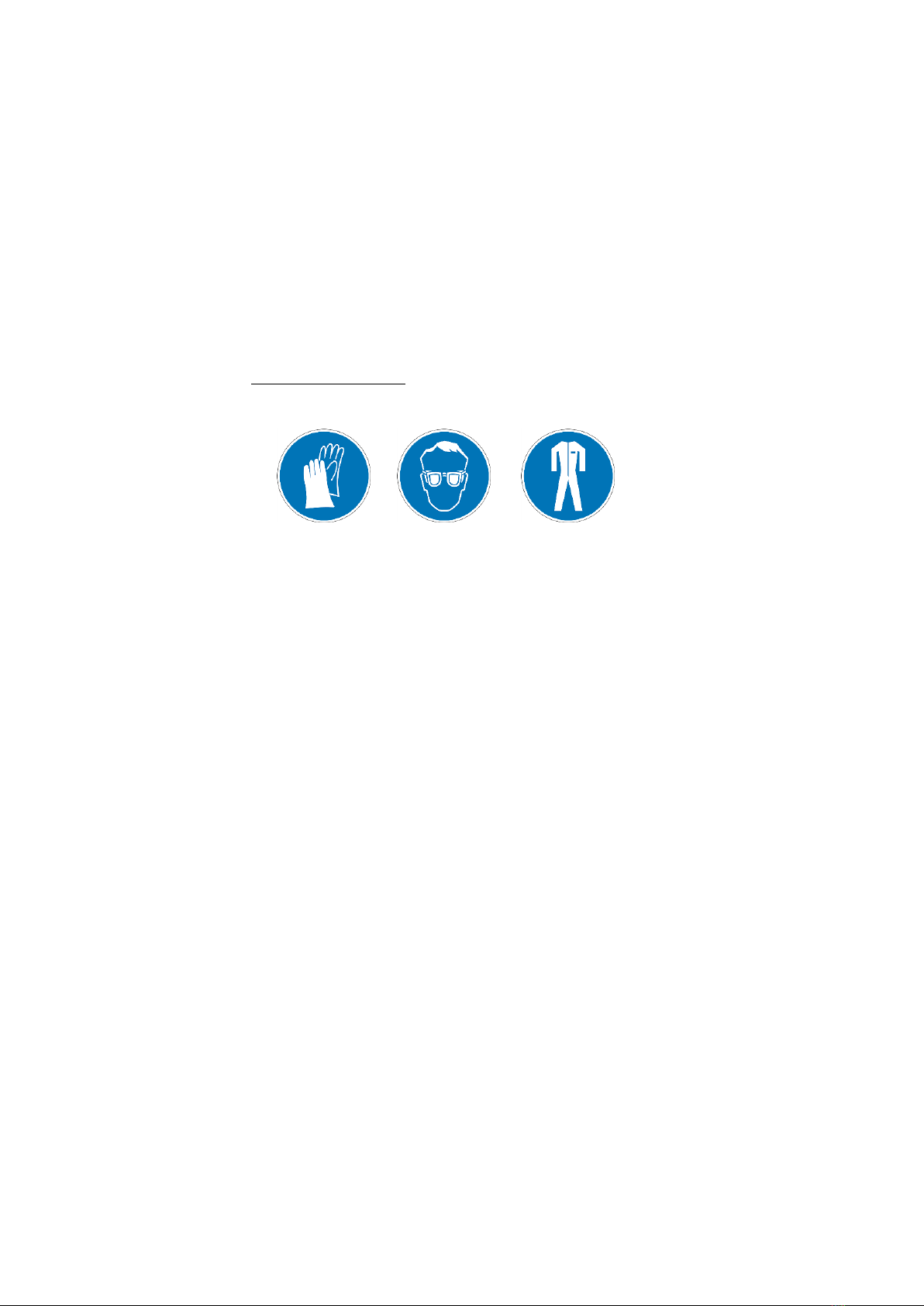

Ensure that all necessary protection is worn (gloves, eye protection, airway protection, whole body
protection).
Hands have to be washed thoroughly before eating or drinking
Do not use this equipment when it is wet or damp. Water coming into the unit may lead to electric
shock or damage to the equipment.
This equipment is not for outdoor use.
Do not cover the air vents, as overheating could occur
Do not mount the machine on a wooden or inflammable surface.
Make use of local safety and accident prevention regulations during the operation of the machine.
The machine must be grounded.
Keep the operating manual available, near to the machine.
If the power cable is damaged, please ask the manufacturer, service provider or specialist to replace
it to avoid injury and damage.
When not in use, ensure that the power is off and unit unplugged.

Page 4
4. Installation

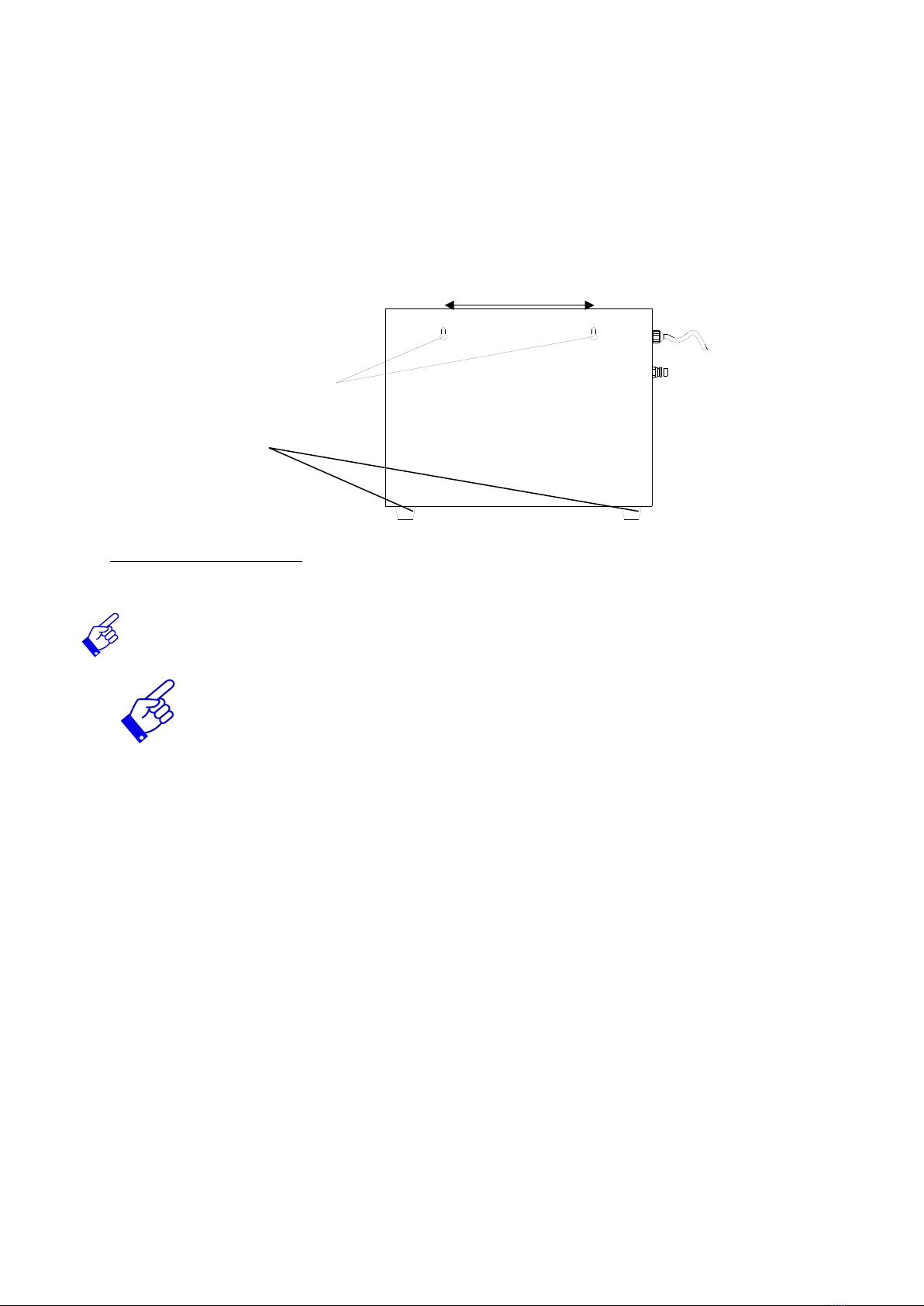

The unit can be used either wall mounted or on a suitable bench / flat surface. At the back of the ST-01,
there are two holes a distance of 10.2“ inches apart for a wall mounting. To avoid overheating and fire, do
not mount the unit on a wooden or flammable wall. If you don’t want it wall mounted, you can put the
machine on a suitable sturdy bench / table.
Compressed Air Connection
One compressed air connection has to be provided by the plant, depending on the machine:
Operating pressure max. : 5 bar ; 72.5 psi
Operating pressure min. : 3 bar ; 43.5 psi
A pressure-regulating valve has to be used if the compressed air connections do not
have the required operating pressures. Use only dry and oil-free air!!
After proper installation and connection to the compressed air supply, the ST-01 unit can be operated.
10.2“ inches
Feet
ts
Holes for
wall-mounted

Page 5
5. Operating Instructions
Drying Tray
A. Spray out your test card as normal, in the spray booth.
B. Place the test card in the drying tray
C. Set up your desired drying sequence
For waterborne base coat
1. Turn the temperature control to high
2. Turn on the air switch and adjust the air flow rate to max.
3. Set the timer at 2 minutes and your drying cycle will start. (You may find that the base coat has
matted out before the end of this cycle) The paint is being dried using both infrared and air.
When the drying cycle is completed, the unit will stop automatically and a bell / ping will sound.
For top coat (Clear or single stage)
1. Turn the temperature control to high
2. Set the timer for 3 minutes and the curing cycle will start. The sample is now being cured using only
infrared
When the drying cycle is completed, the unit will stop automatically and a bell / ping will sound.
Allow clear or top coat to cool before testing.
Optional: Turn temperature to zero. Turn air flow to max and run for 30 seconds to force cool the paint
sample.
Please follow the suggested procedure
Painting
Air switch
Air Flow adjustment
Timer
Temperature

Page 6
6. Care and Maintenance
Regular cleaning of emitters / tubes and reflector panel should be done by using a piece of soft cloth
or cotton with solvent. Do not start the emitter / tube until the solvent has evaporated, otherwise it
may lead to a fire / explosion.
For replacement emitters / tubes, contact your distributor or the B-TEC Systems service center.
6.1 Replacement of Emitter Lamp Tube
1. Disconnect both the electric and air supply from the unit.
2. Remove the screws on the side and back panels of the unit and remove the panels.
3. Remove the screws of the protective grill in front of the emitter and take out the protective grill.
4. Loosen the two leads of the emitter /tube and remove it.
5. Fit the new emitter / tube and connect the leads after checking you have the correct part.
6. Use a piece of soft cloth or cotton to clean the reflector panel and the emitter / tube with solvent.
7. Refit the protective grill.
8. Refit the panels.
Important: Wait 5 minutes before starting the unit to ensure that any solvent or solvent has evaporated
Before conducting care and maintenance, be sure that the unit is disconnected from
the electricity and air supply. Also ensure that the unit has cooled down.

Page 7
7. Wiring Diagram
----------------------------------------------------------------------------------------------
B-Tec Systems reserve the right to make technical changes without notice –
B-TEC USA, LLC [phone] www.bteccleaners.com
IR
Temperature
adjustment
SW1
0-30 Min
TIMER
300W
L
E
N
~230V
AIR IN OUT
YV
IN OUT
Air switch
Air knob
~120V
