BABY BOO BB80 User manual

4
Instruction manual
Manuel d'utilisation
Bedienungsanleitung Handboek
Manual de utilización
Manuale d'uso
BB80
Baby food maker

5
ENGLISH
Before using the appliance for the first time, please read the
instruction book carefully and keep it for future reference.
Pass it on if you pass on the appliance.
When using electrical appliances, basic safety precautions should always
be followed.

6
CONTROL PANEL
ABOUT YOUR BABY FOOD EXPRESS
Introducing solids into a baby’s diet is an important part of their growth
and development. However finding the time to prepare and cook
nutritious food during the daily routine can be diffcult. The Baby Food
Maker is here to help - it steams and purees ingredients in the one jug
to create fresh and healthy baby food in minutes.
When first introducing your baby to solid foods it is important that the food
is easy to digest and unlikely to cause an allergic reaction. It is also
important to always follow your doctor’s guidelines on when and how to
introduce your baby to new foods.
To start, ingredients should be steamed to very soft and pureed until they
are quite runny, and a smooth velvety consistency. Then over time coarser
textures can be introduced as your baby’s motor skills develop and they can
begin to chew.
It is also important to remember when feeding your baby that the
temperature of the food should always be served lukewarm or at room
temperature. Please remember to always test the temperature of the food
before serving it to your baby.
BEFORE FIRST USE
CAUTION: Handle the blade carefully.
•Carefully remove all contents from the box.
•Take extreme care when unpacking and handling the sharp blades.
•As some parts may be packed separately, check to ensure all items
have been unpacked before disposing of the packaging.

7
•Dismantle and clean all parts as instructed in the "CARE AND
CLEANING" section of this manual.
•There is a clear protective film on the control panel which can be
removed if desired.
•Select a level, dry countertop wherethe applianceis to be used, allowing
air space on all sides to provide proper ventilation and a safe distance
from hot surfaces of the appliance.
•To prevent damage from steam and heat, ensure the appliance is not
placed directly under cupboards when in use.
•Ensure the appliance is always disconnected from the wall power outlet
when not in use.

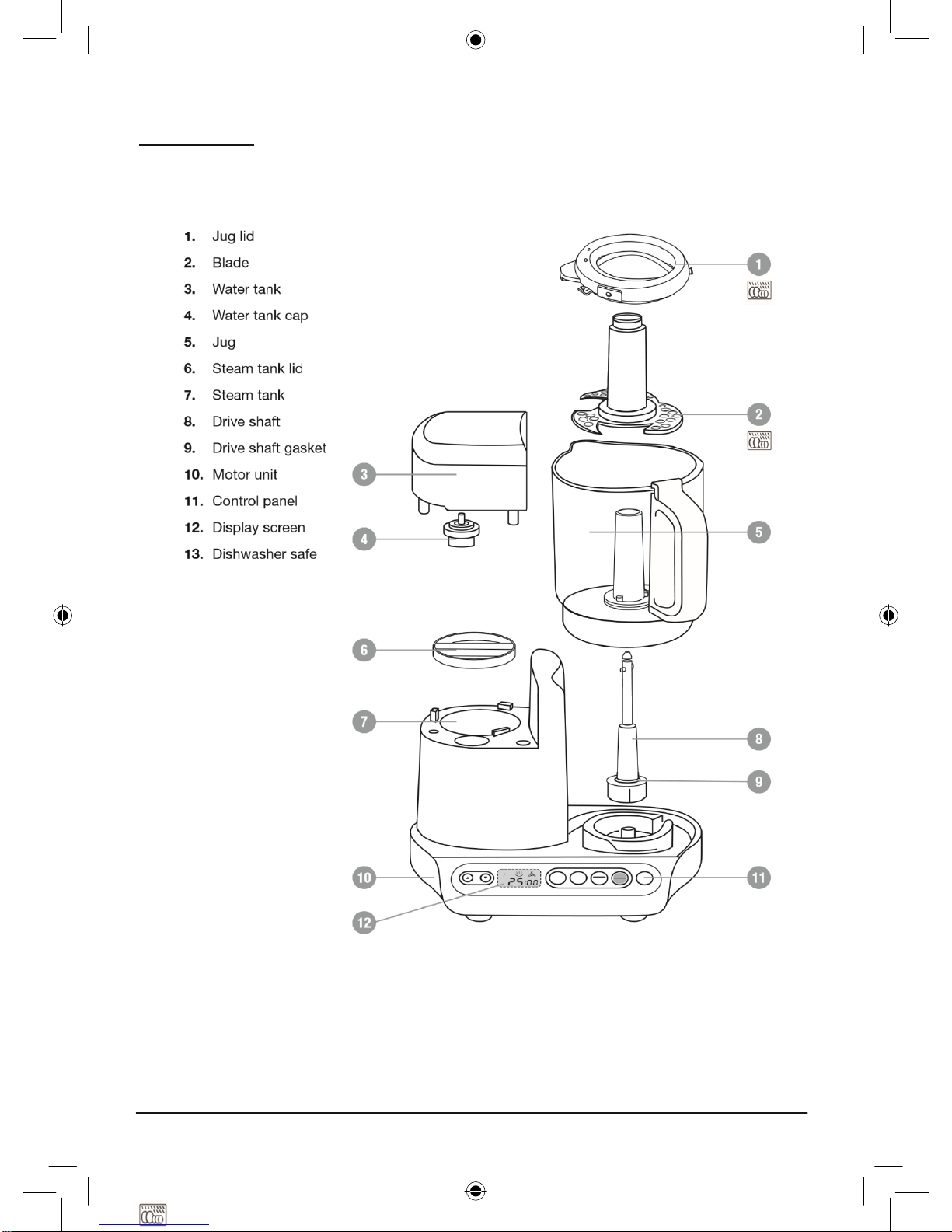

ASSEMBLING THE BABY FOOD EXPRESS
THE JUG
1. With the jug lid removed, sit the jug upside down on a flat bench or table.
2. Ensure the drive shaft gasket is in place over the drive shaft and is
securely sitting at the base of the drive shaft. This will prevent leaking.
3. Insert the drive shaft into the base of the jug and rotate counterclockwise
while pushing down to lock into place.
IMPORTANT: Always make sure the drive shaft and drive shaft gasket
are properly inserted and locked into the jug before steaming or
blending. Use of the appliance without the drive shaft and gasket will
result in leaking and cause damage to the jug and motor unit.
4. Turn the jug the right way up and place it onto the motor unit with the
handle directly facing the front over the STOP button. Once seated
securely on the motor unit, rotate counterclockwise until you hear it lock
fully into place.
CAUTION: DO NOT handle by the blade. The blade attachment is very
sharp. Use caution when handling and storing.
5. Holding the plastic centre of the blade carefully place the blade into the
centre of the jug over the drive shaft and push it to the bottom of the jug.
6. Add desired ingredients to the jug. Refer to the Quantity and Ingredient
Measurement Recommendations table on page 11.
7. Place the jug lid onto the jug with the spout cover of the lid at the back
of the jug.

8
8. Close the jug lid by turning it counter-clockwise (follow the directional
arrow towards the to lock the lid), ensuring the safety interlock on the
jug lid is fully inserted into the motor unit and the tab on the lid is locked
into the handle of the jug.
IMPORTANT: The appliance will not operate unless the safety
interlock on the lid is activated and the jug is correctly locked into
place.
SAFETY SWITCH FUNCTION
The Baby Food Express has a safety switch function. If the jug lid is opened
or the jug is removed from the motor unit during operation, the appliance
will automatically shut off.
THE WATER TANK
1. Remove the water tank by lifting it straight up off the motor unit.
2. Turn it upside down, unscrew the water tank cap clockwise and pull up
to open.
3. Fill the water tank with water andreplace the capby aligning the notches
on the cap with the gaps in the tank opening. Rotate it in a clockwise
direction to lock it in place.
4. Ensure the steam tank lid on the motor unit is locked in place and then
return the water tank onto the motor unit and firmly push down in place.
NOTE: If there is not enough water in the water tank during operation
the appliance will beep repeatedly.
OVERHEATING PROTECTION
The Baby Food Express has overheating protection. If the steam
chamber/water tank runs dry during operation, the heating power will shut
off and the appliance will beep repeatedly. Add water to the water tank to
resume operation.
IMPORTANT:
•It is recommended that the water tank is filled when the appliance is
cold.

9
•After use, allow the appliance time to cool before removing the water
tank as there will still be steam and heat within the water tank and steam
tank.
HOW TO OPERATE THE BABY FOOD EXPRESS
USING MANUAL CONTROLS
The manual functions can be used if the pre-programmed menu functions
and timings do not suit your required cooking preferences or ingredients.
MANUAL STEAM + PUREE
Using this function will steam ingredients for the selected time, then
automatically blend for 30 seconds after steaming.
1. Connect the plug to the wall power outlet and switch the power on.
2. Press “STEAM+PUREE” repeatedly until the desired steaming time is
selected and displayed on the display screen. With each press of the
button the time will increase in 5 minute increments up to a maximum of
30 minutes. Alternatively, use the “▲▼” buttons to adjust the time in 1
minute increments.
3. Press the “START” button to begin the steam cycle.
IMPORTANT: Be sure to keep clear of the steam outlet on top of the
jug lid at all times as the escaping steam will be extremely hot and can
scald.
NOTE: Press the STOP button at any time to stop the current function.
4. Once the steam cycle is complete, the puree cycle will automatically run
for 30 seconds and then the appliance will shut off.
CAUTION: Excess water may build up in the jug during cooking, empty
excess water from jug before blending foods by pressing the “STOP”
button before the steaming time gets to “0:00”. Excess water may be
ejected from the lid during blending.
5. If a smoother consistency is required, press and hold the “PULSE”
button to blend until the ingredients are the desired consistency. You will
need to press a function to re-commence blending.

10
CAUTION: Do not run the puree function for longer than 1 minute. After
1 minute, rest the motor for at least 2 minutes to allow the motor to
cool down.
NOTE: A menu must be displayed on the display screen for pulse to
activate. Press any function button (STEAM, STEAM+PUREE or ▲▼ )
and then press PULSE.
NOTE: When holding down the “PULSE” button the time on the display
screen will count down for 30 seconds, and then the appliance will
then return to standby mode.
6. Wearing an oven mitt, hold the lid handle and turn the lid clockwise to
unlock. Lift and tilt it so it opens away from you, to avoid steam coming
towards you.
CAUTION: Be careful when opening the lid as there may still be steam
built up in the jug. CAUTION: Be sure the blade has completely
stopped spinning before removing jug lid.
7. To remove the jug from the motor unit, holding the handle rotate it
clockwise and lift up. CAUTION: Do not touch the glass jug as it will
be hot after steaming, only hold the jug by the handle.
MANUAL STEAM
Use this function to steam only, without the automatic puree cycle.
1. Connect the plug to the wall power outlet and switch the power on.
2. Press “STEAM” repeatedly until the desired steaming time is selected
and displayed on the display screen. With each press of the button the
time will increase in 5 minute increments up to a maximum of 30
minutes. Alternatively, use the ▲▼ buttons to adjust the time in 1 minute
increments.
3. Press “START” button to begin the steam cycle. Once the steam cycle
is complete, the appliance will beep then shut off.
4. If required you can now blend ingredients, press and hold the “PULSE”
button until the ingredients are the desired consistency. You will need to
press a function to re-commence blending.

11
CAUTION: Excess water may build up in the jug during cooking, empty
excess water from jug before blending foods. Excess water may be
ejected from the lid during blending.
CAUTION: Do not run the motor for longer than 1 minute. After 1
minute, rest the motor for at least 2 minutes to allow the motor to cool
down.
NOTE: A menu must be displayed on the display screen for pulse to
activate. Press any function button (STEAM, STEAM+PUREE or ▲▼ )
and then press PULSE.
NOTE: When holding down the “PULSE” button the time on the display
screen will count down for 30 seconds, and then the appliance will
then return to standby mode.
8. Wearing an oven mitt, hold the lid handle and turn the lid clockwise to
unlock. Lift and tilt it so it opens away from you, to avoid steam coming
towards you.
CAUTION: Be careful when opening the lid as there may still be steam
built up in the jug.
CAUTION: Be sure the blade has completely stopped spinning before
removing jug lid.
9. To remove the jug from the motor unit, holding the handle rotate it
clockwise and lift up. CAUTION: Do not touch the glass jug as it will
be hot after steaming, only hold the jug by the handle.
MANUAL PULSE (BLEND)
Use this function to blend ingredients to a preferred consistency.
1. Connect the plug to the wall power outlet and switch the power on.
2. Make sure jug lid is locked onto the jug. Press any function button
(STEAM,
STEAM+PUREE or ▲▼ ) to take the appliance out of standby mode,
then press “PULSE” button until desired consistency is achieved.
CAUTION: Excess water may build up in the jug during cooking, empty
excess water from jug before blending foods. Excess water may be
ejected from the lid during blending.

12
CAUTION: Do not run the puree function for longer than 1 minute. After
1 minute, rest the motor for at least 2 minutes to allow the motor to
cool down.
NOTE: When holding down the “PULSE” button the time on the screen
will count down for 30 seconds, and then the appliance will return to
standby mode.
3. Wearing an oven mitt, hold the lid handle and turn the lid clockwise to
unlock. Lift and tilt it so it opens away from you, to avoid steam coming
towards you.
CAUTION: Be careful when opening the lid as there may still be steam
built up in the jug.
CAUTION: Be sure the blade has completely stopped spinning before
removing jug lid.
4. To remove the jug from the motor unit, holding the handle rotate it
clockwise and lift up. CAUTION: Do not touch the glass for the jug as
it will be hot after steaming, only hold the jug by the handle.
USING THE PRE-PROGRAMMED SETTINGS Pre-programmed
Baby Foods Settings:
The Baby Food Express is pre-programmed with specific settings to get the
best cooking result for different foods. The pre-programmed settings and
times are as follows;
INGREDIENT
SET TIME
(minutes)
Apples
20:00
Broccoli
20:00
Carrots
25:00
Chicken
25:00
Potato
20:00
Pumpkin
20:00

13
1. Connect the plug to the wall power outlet and switch the power on.
2. Press the “MENU ▲▼”buttons to scroll through ten different ingredients
with preprogrammed times (see table above).
3. When the desired ingredient is displayed on the display screen press
the preferred function: ”STEAM” or ”STEAM+PUREE” once.
4. Press “START” and the steam cycle will commence.
IMPORTANT: Be sure to keep clear of the steam outlet on top of the
jug lid at all times as the escaping steam will be extremely hot and can
scald.
5. If “STEAM+PUREE” was selected, once the steam cycle is complete the
puree cycle will automatically run for 30 seconds and then the appliance
will shut off. If using the “STEAM” function only, once the steam cycle is
complete, the appliance will beep then shut off.
CAUTION: Excess water may build up in the jug during cooking, empty
excess water from jug before blending foods by pressing the “STOP”
button before the steaming time gets to “0:00”. Excess water may be
ejected from the lid during blending.
6. If a smoother consistency is required, press and hold the “PULSE”
button to blend until the ingredients are the desired consistency. You will
need to press a function to re-commence blending.
CAUTION: Do not PULSE for longer than 1 minute. After 1 minute, rest
the motor for at least 2 minutes to allow the motor to cool down.
NOTE: A menu must be displayed on the display screen for pulse to
activate. Press any function button (STEAM, STEAM+PUREE or ▲▼ )
and then press PULSE.
NOTE: When holding down the “PULSE” button the time on the display
screen will count down for 30 seconds, and then the appliance will
then return to standby mode.
7. Wearing an oven mitt, hold the lid handle and turn the lid clockwise to
unlock. Lift and tilt it so it opens away from you, to avoid steam coming
towards you.
CAUTION: Be careful when opening the lid as there may still be steam
built up in the jug.

14
CAUTION: Be sure the blade has completely stopped spinning before
removing jug lid.
8. To remove the jug from the motor unit, holding the handle rotate it
clockwise and lift up. CAUTION: Do not touch the glass for the jug as
it will be hot after steaming, only hold the jug by the handle.
IMPORTANT TIPS FOR USE
•Wash fruits and vegetables thoroughly before cooking. Choose ripe fruit
and remove peel, pits, seeds and cores.
•Cut ingredients to approximately 1-2cm pieces before placing in the jug.
Smaller pieces of food steam more evenly and blend more consistently,
ensuring a smooth texture.
•Potato will become gluey if blended for too long so it is best to pulse
blend after the steam and blend cycle. This will allow you to monitor the
consistency.
•You can blend banana or avocado or other mashable fruit in the Baby
Food Express. You will need to press a function button, then just pulse
to mash to the desired consistency.
•Root vegetables are great to steam and blend together. Ensure you cut
them up to the same size to ensure they steam consistently and to avoid
lumps.
•Pour off excess liquid after steaming if you want a thicker consistency
before blending.
•Always check that meat is thoroughly cooked to a safe internal
temperature. Chicken should be cooked to an internal temperature of
75°C, beef to 77°C and fish to 65°C. It is recommended that you test
cooked meat with a reliable meat thermometer to be sure when foods
are safely cooked.
QUANTITY AND INGREDIENT MEASUREMENT RECOMMENDATIONS
Refer to the following chart for recommended quantity and ingredient
measurements when using the Baby Food Maker.

15
FOOD TYPE
RECOMMENDED
QUANTITY
BEST PREPARATION
APPLE
300g or 2 small
apples
peel, core and dice into 2cm
pieces
BROCCOLI
200g
wash & slice into 2cm pieces
CARROT
300g or 2 medium
peel & dice into 2cm pieces
carrots
CAULIFLOWER
200g
wash & slice into 2cm pieces
CHICKEN
300g or 2 small
fillets
boneless breast fillets, cut into
1cm pieces
CORN KERNELS
150g
must be ripe or use canned
CORN ON COB
250g or 2 small
corn cobs
cut into thirds and steam only
FISH
300g fillet
must be boneless, cut into 1cm
slices.
NECTARINE
250g or 2 small
nectarines
must be ripe, peel, pit and dice
into 2cm pieces
PEACH
250g or 1 large
peach
must be ripe, peel, pit and dice
into 2cm pieces
PEAR
300g or 2 small
pears
must be ripe, peel, core and dice
into 2cm pieces
PEAS (PODDED)
150g (fresh or
frozen)
rinse first
PEAS
(SNOWPEAS
WHOLE)
150g
top and tail before steaming
POTATO
200-300g
peel & dice into 2cm pieces
PUMPKIN
200g
peeled & diced to 2cm pieces

16
STRING BEANS
150g
top and tail before steaming
SWEET POTATO
200-300g
peel & dice into 2cm pieces
ZUCCHINI
300g or 2 large
zucchini
slice into 1cm rings
IMPORTANT: It is not recommended to fill the jug more than half way
with raw ingredients.
CAUTION: Always monitor cooking liquid levels prior to blending -
excess cooking liquid could be ejected from the lid when blending.
SUGGESTED FLAVOUR COMBINATIONS FOR THE BABY FOOD
EXPRESS
Broccoli &
Cauliflower puree
Wash broccoli and cauliflower florets well. Slice
into 2cm pieces and press the BROCCOLI
setting, STEAM & PUREE. If you want a thicker
puree, pour off some of the cooking liquid before
it reaches the PUREE cycle.
Carrot Apple Puree
Wash, peel and dice 2 medium carrots into 1cm
pieces. STEAM for 10 minutes. Wash, peel and
core 1 apple and dice into 2 cm pieces. Add the
apple to the carrots and steam for a further 8
minutes. Pour off some of the cooking liquid if
you want a thicker puree. Blend using PULSE
for 30 seconds, check the consistency and blend
again if required.
Triple the Veg
Wash, peel and dice 1 potato and 2 carrots and
steam for 12 minutes.
Pour off the cooking liquid and add 1 cup of
washed and diced broccoli. STEAM for a further
8 minutes and blend using PULSE for 30
seconds, check the consistency and blend again
if required.

17
Chicken* & Pumpkin
Rinse 1 single boneless chicken breast and dice
into 2cm pieces. Wash, peel and dice the
pumpkin into 2cm pieces. Select the CHICKEN
setting, STEAM+PUREE. If you want a thicker
puree, pour off some of the cooking liquid before
it reaches the PUREE cycle.
* Always check that meat is thoroughly cooked to a safe internal
temperature. Chicken should be cooked to an internal temperature of 75°C,
beef to 77°C and fish to 65°C. It is recommended that you test
cooked meat with a reliable meat thermometer to be sure when foods are
safely cooked.
CARE AND CLEANING QUICK
CLEAN:
1. After each use, simply half fill the jug with warm water and add a drop
or two of dishwashing liquid, fit the lid onto the jug and run the motor
using the “PULSE” button for 30 seconds. The blender uses its own
power to clean both the jug and the blade system.
2. Rinse and allow to thoroughly dry.
FOR MORE THOROUGH CLEANING:
1. Before cleaning, switch off and disconnect from the wall power outlet.
2. Remove the jug from the motor unit.
3. Carefully lift the blade out of the jug by the plastic centre. CAUTION:
Blades are sharp, handle carefully.
4. Rinse the jug with water.
5. With the lid removed, sit the jug upside down on a flat bench or table.
6. If the jug is assembled, disassemble it using the following instructions.
7. Remove thedrive shaftfrom the baseof thejug by turning the drive shaft
clockwise and lifting it out.
8. Rinse the drive shaft with warm water and wipe clean. Be sure not to
misplace the driveshaft gasket while cleaning. Rinse and air dry.

18
IMPORTANT: Do not place the drive shaft or drive shaft gasket in the
dishwasher.
9. Wash the jug in warm soapy water.
IMPORTANT: Do not place the jug in the dishwasher.
10. Dishwasher safe parts are labelled on page 4 with a symbol.
11. Wash the lid and blade in warm soapy water. Alternatively, these parts
can be washed in the dishwasher. Place on the top rack only.
CAUTION: Be sure the drive shaft is removed from the jug when
washing.
12. The water tank will be hot immediately after use. Allow it to cool before
lifting it off the motor unit. Empty the water tank after each use and allow
it to dry before storing it back on the motor unit.
13. To clean the water tank, fill it with warm soapy water, replace the cap
and shake vigorously. Empty soapy water and rinse thoroughly before
next use.
14. To clean the steam tank, remove steam tank lid by rotating it
counterclockwise and lift it up. Wipe the steam tank with a damp cloth
after each use. Replace the steam tank lid by aligning the notches on
the steam tank lid to the left of the tab openings and rotate clockwise to
close.
15. Rinse all parts well and allow them to dry before storing.
IMPORTANT:
•Do not place jug parts in boiling liquids or pour boiling liquids into the
jug.
•Do not immerse the motor unit in liquid. Wipe with damp cloth and dry
thoroughly.
•Remove stubborn spots by rubbing with a damp cloth and nonabrasive
cleaner.
NOTE: If liquids spill onto the motor unit, immediately switch off and
disconnect from the wall power outlet, wipe with a damp cloth and dry
thoroughly. • Do not use rough scouring pads or cleansers on parts
or finish.

19
TROUBLESHOOTING
Condition
Possible Cause
Possible Remedy
Machine will not start.
Safety interlock on jug lid is
not fully inserted into base.
Make sure Jug Lid is
turned counterclockwise
as far as possible and
safety interlock on jug lid
is fully inserted into base.
Water/Steam Tank is dry.
(Appliance will beep
repeatedly to indicate that
the Steam Tank is dry)
Add water to Water Tank.

20
Machine stops during
operation
Steam Tank is dry.
(Machine will beep
repeatedly to indicate that
the Steam Tank is Dry)
Add water to Water Tank.
Safety interlock on jug lid
has been disengaged from
base.
Make sure the Jug Lid is
turned counterclockwise as
far as possible and safety
interlock on jug lid is fully
inserted into base.
Final puree consistency
isn’t smooth to my
preference
Raw food isn’t diced finely
enough before placing into
the jug.
Dice food into smaller
pieces, approximately 1-
2cm, before placing into
the jug.
Low water content of raw
food.
Add additional water,
formula, breast milk or
other liquid after steaming
and blend for longer.
Food not blended for long
enough
Use the PULSE button to
blend food for longer.
More steaming may be
required
Use the manual Steam
function to cook for longer.
Food is too watery
after it is blended
Water from steam as well
as water content in food is
excessive.
Before blending, stop the
steaming process and
remove excess water.
Leaking under unit
Drive shaft gasket may not
be in place.
Check the drive shaft
gasket is correctly in place
over the drive shaft in the
jug.
Leaking near water
tank
Steam tank lid and water
tank cap may not be in
place.
Check the steam tank lid
and water tank cap are
correctly in place.

21
IMPORTANT SAFEGUARDS
When using this appliance, basic safety precautions should always be
followed, including the following:
Read all instructions before, and follow whilst using this appliance.
1. To protect against electric shock DO NOT immerse the cord, plug or
motor unit in water or any other liquid.
2. Do not use in the bathroom or near any source of water.
3. Do not use outdoors.
4. This product is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the product by a person responsible for their safety.
5. Take care to avoid personal injury when handling the sharp blade
assembly. Install and remove by handling the top of the plastic column.
6. Leave a clear space of a least 75mm (3 inches) around the appliance
when in use.
7. To prevent damage from steam and heat, ensure the appliance is not
placed directly under cupboards when in use.
8. The appliance emits steam during operation and external accessible
surfaces become very hot. Do not touch hot surfaces. We recommend
the use of an oven mitt or tea-towel when using this appliance.
9. Extreme caution must be used when moving the hot jug or removing the
jug lid from the hot jug. Use an oven mitt or tea-towel to avoid possible
burns.
10. Always switch off and disconnect the appliance from the wall power
outlet before assembling, disassembling or cleaning.
11. Always switch off and disconnect the appliance from the wall power
outlet when not in use. 12. To disconnect, stop all operations by pressing
the ‘STOP’ button. Switch off the wall power outlet, then grasp the plug
and pull the plug from the wall outlet. Never pull by the cord.

22
13. Do not operate any appliance with a damaged cord or plug or after the
appliance has malfunctioned, or has been dropped or damaged in any
manner. Contact customer service for replacement, examination, repair
or adjustment.
14. There are no user serviceable parts. If the power cord is damaged, it
must be replaced by the manufacturer or similarly qualified person in
order to avoid a hazard.
15. Cutting blades are very sharp. Handle the blade assembly with extreme
care and caution when emptying the jug and during cleaning.
16. Before switching on, ensure the glass jug has been assembled correctly
and has been seated onto the motor unit with the jug lid attached. The
motor will only operate if the jug and jug lid have been properly installed
onto the motor unit.
17. The appliance is not to be operated with an empty jug.
18. Allow boiling liquids to cool before you pour them into a cold glass jug.
Pouring boiling liquids into a cold glass jug could cause the jug to crack.
19. Wait until the blades come to a complete stop before removing the jug
lid from the jug, and before removing the jug from the motor unit.
20. Switch off and unplug the appliance before changing accessories or
touching parts that move whilst in use.
21. Do not use on an inclined plane or unstable surface.
22. Do not run the motor for longer than 1 minute. After 1 minute, rest the
motor for at least 2 minutes to allow the motor to cool down.
23. Keep the appliance and the power cord away from the edges of benches
and countertops.
24. Do not place the appliance on or near any heat sources.
25. Do not use appliance for other than intended purpose. Misuse of the
appliance may cause injury.
26. This appliance is not a toy. Children should be supervised to ensure they
do not play with this appliance.
27. This appliance is not intended to be operated by means of an external
timer or separate remote control system.

23
28. For added safety, electrical appliances should be connected to a power
outlet that is protected by a residual current device (RCD), also often
referred to as a ‘Safety Switch’. Your switchboard may already
incorporate an RCD. If unsure, call an electrician for verification and
fitting if necessary.
SAVE THESE INSTRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY
ENVIRONMENT CAUTION
Do not dispose of this product as it has with other household products.
There is a separation of this waste product into communities, you will
need to inform your local authorities about the places where you can
return this product. In fact, electrical and electronic products contain
hazardous substances that have harmful effects on the environment or
human health and should be recycled. The symbol here indicates that
electrical and electronic equipment should be chosen carefully, a
wheeled waste container is marked with a cross.
Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin, 77290 Mitry-Mory, France
Table of contents
Languages:
