BaByliss for MEN 7448DGU User manual

Model 7448DGU
COPPER GIFT SET
17_7448DGU_IB.indd 1 4/10/17 10:25 AM

COPPER GIFT SET

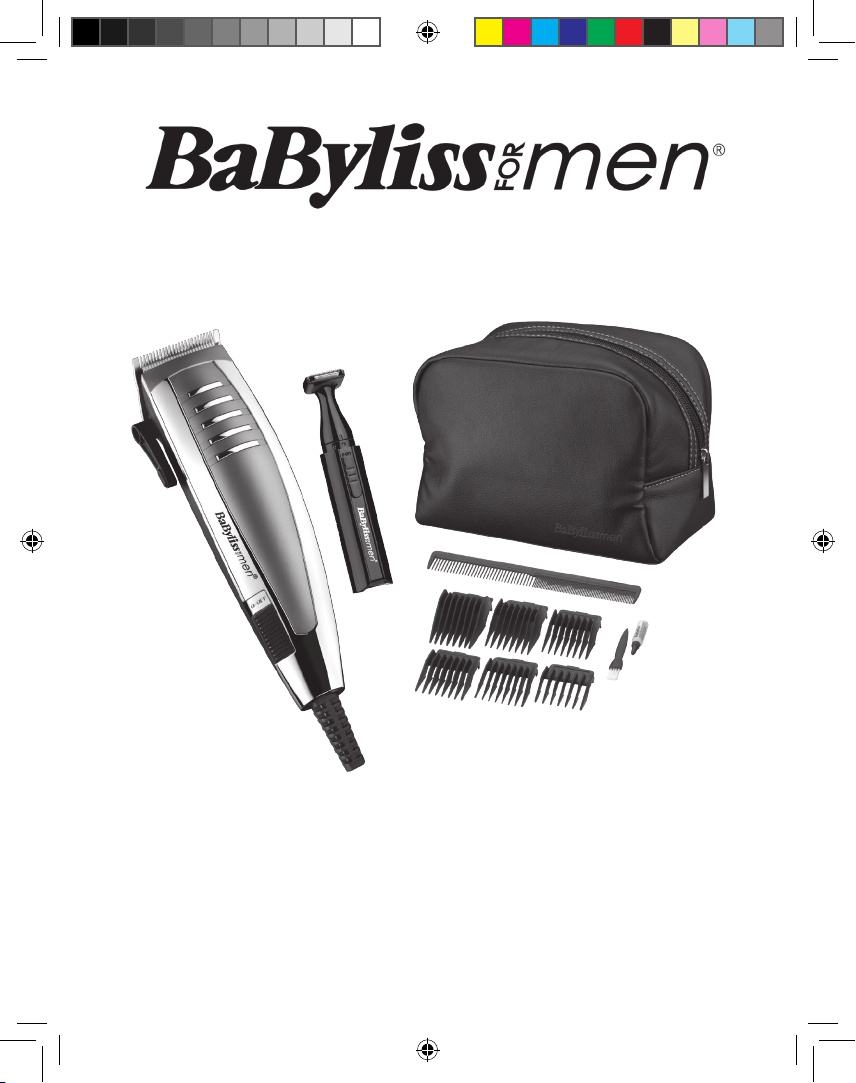

The BaByliss for Men Hair Clipper Gift Set includes all the tools and
accessories to give a stylish and professional looking haircut at home.
The mains operated clipper delivers continuous high power during
use, while the super sharp stainless steel blades give a precise and
smooth cut. The gift set includes 6 comb guides for grades 1, 2, 3,
4, 6 and 8 for a variety of lengths and different styles and a separates
battery operated trimmer for shaping and edging the sideburns and
hair line. A travel bag completes the set for convenient storage and
easy transport.
FEATURES
• Mains operated clipper for continuous high power during use
• Super sharp stainless steel blades
• 5 position taper control for ne cut adjustment
• Includes a separate battery operated trimmer for neckline and
sideburns
• 6 Comb guides - grades 1, 2, 3, 4, 6 and 8
• Barbers Comb
• Cleaning brush
• Oil
• Travel bag
• 3 Year guarantee
17_7448DGU_IB.indd 2 4/10/17 10:25 AM

SAFETY CAUTIONS
• This appliance should only be used as described within
this instruction book. Please retain for reference.
IMPORTANT CHILD SAFETY
WARNING!Polythenebags overthe productor packaging
may be dangerous. To avoid danger of suffocation, keep
away from babies and children. These bags are not toys.
IMPORTANT SAFETY
• Do not immerse the appliance in water or other
liquids.
• Always inspect the appliance before use for
noticeable signs of damage. Do not use if damaged
or if the appliance has been dropped. In the event of
damage contact the Conair Customer Care Centre
(refer to ‘UK Guarantee’ section for further information).
• Only use the attachments supplied with this appliance.
• Do not leave the appliance unattended when switched
on.
• Do not place the appliance on any surface whilst in
operation.
• Special care is required when using the appliance close
to the ears, eyes and face.
• Don’t use the appliance if the cord is damaged. If the
cord is damaged, please send it the Conair Customer
Care Centre (refer to ‘UK Guarantee’ section for further
information.)
17_7448DGU_IB.indd 3 4/10/17 10:25 AM

• Before use check that the voltage of the electrical supply
corresponds to the voltage indicated on the appliance.
• Maximum continuous operating time is 20 minutes,
allow to cool for 10 minutes before proceeding.
• Special care is required when using the appliance close
to the ears, eyes, neck and face.
• This appliance should not be used by adults or children
whose lack of experience, product knowledge or disability
might cause a hazard, unless they have been correctly
instructed and are adequately supervised.
• Children should always be supervised to ensure that they
do not play with this product.
• Always switch off and unplug the appliance when
changing cutting guides, when cleaning or when not
in use.
• Allow appliance to cool before storing away.
• After use, do not coil the cord around the clipper as
this may cause damage. Instead coil loosely by the
side of the appliance.
• This product complies fully with all appropriate EU
and UK Legislation and the Standards relevant to this
type and class of appliance. We are an ISO9001:2015
certied company that continually evaluates our Quality
Management System performance. If you have any
queries regarding product safety and compliance, please
contact the Conair Customer Care Line (refer to “UK After
Sales Service” section).
17_7448DGU_IB.indd 4 4/10/17 10:25 AM

MAINS OPERATED CLIPPER
INSTRUCTIONS FOR USE
Oiling Instructions
IMPORTANT! It is highly recommended before each use to oil the
blades with the oil provided. This ensures optimum cutting performance.
For the rst use you will need to use the oil supplied with the product,
unscrew the cap and cut off the very end of the plastic tube with a
pair of scissors to release the oil. To oil the blades ensure the unit is
switched on. Gently squeeze the oil tube and apply 2 drops of oil onto
the blades. Leave the unit on for a further few seconds to allow the oil
to thoroughly spread the length of the blades. Switch off the unit and
remove any excess oil by gently dabbing with a cloth.
Comb Guides
This appliance is supplied with 6 comb guides.
Cutting Length Grade
3mm #1
6mm #2
9.5mm #3
13mm #4
19mm #6
25mm #8
• To attach a comb guide, ensure the appliance is switched off. Slide
the cutting blades of the clipper under the slot in the rear of the teeth
of the comb guide and snap the clip on the bottom of the guide over
the bottom edge of the xed clipper blade.
• To remove the comb guide, ensure the appliance is switched off. Push
the tab on the rear of the comb guide away from the head and lift off.
17_7448DGU_IB.indd 5 4/10/17 10:25 AM

• The 5-position lever enables ne cut adjustment for precision clipping.
• To increase the cutting length, push the lever down.
• To reduce the cutting length, push the lever up.
Preparation for Use
• Always inspect the appliance before use to ensure the clipper blades
are free from hair, debris etc.
• For best performance, use on clean, dry hair that has been combed
until tangle-free.
NOTE: The appliance should not be used for longer than 20 minutes
of continuous use.
Clipping
For an all over even cut:
• Attach a comb guide as required - your clipper is supplied with 6
comb guides (grades 1, 2, 3, 4, 6, 8). Each comb guide is labelled.
• Switch the clipper on and the blades will start to move.
• Starting at the nape of the neck, hold the clipper with the teeth of the
clipper pointing upwards, ensuring that the comb guide is resting at
against the head.
• Slowly move the clipper upwards and outwards through the hair
towards your crown, against the direction of the hair growth. The
comb guide will help to lift the hair and the blades will cut the hair at
the desired length.
• Once the desired length is achieved at the back of the hair, start
clipping the top and sides.
• Hold the clipper to the front of your hair with the teeth pointing
towards the back of your head and move the clipper towards your
crown. Repeat is necessary, moving in rows from the front and the
sides of your head to the back.
• You should achieve an even length cut all over your head.
For a shorter back and sides, with length on the top:
• Attach the longer comb guide as required for the top of your hair
- your clipper is supplied with 6 comb guides (grades 1, 2, 3, 4, 6, 8).
17_7448DGU_IB.indd 6 4/10/17 10:25 AM

Each comb guide is labelled.
• Switch the clipper on and the blades will start to move.
• Hold the clipper to the front of your hair with the teeth pointing
towards the back of your head and move the clipper towards your
crown. Repeat as necessary, moving in rows from the front and the
sides of your head to the back.
• If you wish to take the back and sides of your hair to a shorter length,
switch off the appliance and attach a shorter comb guide.
• Starting at the nape of the neck, with the comb guide at against
the head, move the clipper upwards and outwards over the area you
want to take shorter.
• Repeat on the sides of the hair, starting with the teeth of the clipper
pointing upwards and comb guide at against the area above the ear,
again moving the clipper upwards and outwards.
Outlining:
• To tidy up the edges around your cut e.g. neckline and sideburns,
detach the comb guides.
• Hold the appliance upside down, so the front of the clipper is facing
towards your head.
• Hold the clipper straight on your sideburns or neckline and move the
clipper downwards. This will give you a clean, smooth nish.
17_7448DGU_IB.indd 7 4/10/17 10:25 AM

CLEANING & MAINTENANCE
For easy cleaning, the blades on your BaByliss For Men clipper are
removable. Regular cleaning will maintain their high performance level.
To clean proceed as follows:
• Switch the appliance off and unplug at the mains supply.
• Remove any comb guides. Rinse the comb guide under running
water and dry thoroughly before storage or use.
• Remove the blades carefully noting which way round they are tted.
This will help with re-assembling.
• Remove the two screws from the large xed blade and detach this
blade.
• Now brush away the hair and other debris from the interior of the
cutting head and blades.
• Re-assembly is simply the reverse of the above instructions.
• Finally, before fully tightening the two screws in the large blade, to
avoid injury ensure that the blades are correctly aligned. With the
taper control lever fully forward, the tips of the small blade must be
parallel with and 1mm below the tips of the large blade. Also check
that the extreme left hand tooth of the small blade is inside the large
blade. (Failure to do so could cause injury).
• Carefully tighten the two screws in the big blade, taking care not to
disturb the above correct position of the blades.
NOTE: Do not attempt to repair or replace the blades. In the event that
the blades become blunt or damaged, contact the Conair Customer
Care Line (refer to UK «After Sales Service» section for further
information).
17_7448DGU_IB.indd 8 4/10/17 10:25 AM

PRECISION TRIMMER
The Precision Trimmer can be used for tidying sideburns and neckline.
Preparation For Use
• Prior to initial use, test the trimmer on a small area of arm or leg hair.
If any signs of allergic reaction or sensitivity occur, discontinue use.
Do not use on very sensitive or irritated skin.
• Always inspect the appliance before use for noticeable signs of
damage. Do not use if damaged.
• Ensure the trimmer head is free from hair and debris (refer to Cleaning
& Maintenance section for further information).
Changing the Battery
The trimmer requires 1 x AA battery (1.5V). To insert or replace the
battery, hold the trimmer upside down with the back facing you,
placing both thumbs in the grooves on the top of the unit, rmly push
up to remove the casing. Insert the battery as indicated on the inside of
the battery compartment. Replace the casing by sliding it back into the
main trimmer until it clicks into place. If the appliance remains unused
for a while or if the battery has run down, remove it from the appliance.
Changing Trimmer Heads
• Your trimmer is supplied with one removeable cutting head.
• Make sure the trimmer is turned ‘OFF’.
• To remove the trimming head, turn the head anti-clockwise until the
‘I’ mark aligns with the ‘ ’ mark, then lift the head gently. (Fig. 1).
Fig. 1
17_7448DGU_IB.indd 9 4/10/17 10:25 AM

• To reassemble the head onto the body, align the ‘I’ mark on the
head with the ‘ ’ mark on the body and then turn clockwise until
the ‘I’ mark aligns with the ‘circle’ mark on the body (Fig. 2).
Fig. 2
PRECISION TRIMMER
The precision trimmer is ideal for trimming the neckline and sideburns.
It can also be used to maintain a beard or moustache.
TRIMMING - Neckline
• Switch the appliance on.
• Hold the trimmer with the teeth of the trimmer pointing upwards, yet
at against the skin.
• Move the trimmer upward and outward through the hair, against the
direction of hair growth.
• The trimmer will work most efciently when cutting through hair at its
own speed. Never force the trimmer.
• Never switch the appliance off whilst in the hair.
TRIMMING - Sideburns
• Use the comb to comb hairs in the direction of growth.
• Always trim your sideburns from the top down.
TRIMMING - Beards
Outlining
• After having combed through your beard in the direction of growth,
outline the desired shape, starting under your jawline.
• Work backwards on each side of your face towards your ears.
• Dene the upper outline of your beard across your cheeks, past your
sideburns and towards your hairline.
17_7448DGU_IB.indd 10 4/10/17 10:25 AM

OUTLINING - Moustache
• Use the comb to comb hairs in the direction of growth.
• Use the blades only to dene the outline of the bottom of your
moustache.
SAFE DISPOSAL
To minimise hazards to health and the environment at the end of
this product’s life, laws dealing with Waste Electrical and Electronic
Equipment (WEEE) and The Waste Battery Directive require you to
dispose of this product at a suitable collection facility where it will be
sent for appropriate recycling. Please contact your local authorities for
more details on recycling and safe disposal of these in your area.
UK GUARANTEE
This BaByliss For Men appliance is guaranteed for consumer use for
3 years.
This guarantee covers defects under normal use from date of purchase
and ceases to be valid in the event of alteration or repair by unauthorised
persons. If the appliance does not perform satisfactorily due to defects
in materials or manufacture, it will be repaired or replaced through
Conair UK After Sales Service. The Conair Group Ltd reserves the right
to amend terms and specications without prior notice.
This guarantee in no way affects your statutory rights.
UK AFTER SALES SERVICE
For further advice on using the appliance, contact the Conair Customer
Care Line on 0370 5 133191 (09:00 to 17:00 Monday to Friday) or email
your enquiry to [e-mail].
If you should need to return your appliance to us please send it to the
following address:
17_7448DGU_IB.indd 11 4/10/17 10:25 AM

Customer Care Centre,
Conair Logistics
Unit 4
Revolution Park
Buckshaw Avenue
Buckshaw Village
Chorley
PR7 7DW
Please enclose your name and address, together with a copy of proof
of purchase and details of the fault.
UK WIRING INSTRUCTIONS
The wires in the mains lead are coloured in accordance with the
following code:
• BLUE = NEUTRAL
• BROWN = LIVE
As the colours of the wire in the mains lead of this appliance may not
correspond with the colour marking identifying the terminals on your
plug, proceed as follows:
The wire which is coloured BLUE must be connected to the terminal
which is marked with the letter N
The wire which is coloured BROWN must be connected to the terminal
which is marked with the letter L
Neither the BLUE nor BROWN wires should be connected to the
terminal which is marked with the letter E or the symbol
This appliance is supplied tted with a BS1363 mains plug and a
BS1362 3A fuse. If this plug is removed from the appliance please
ensure it is disposed of safely as a disconnected plug is dangerous if
reconnected to the mains. If any other type of plug is used, a 3A fuse
must be tted. IB-17/098
17_7448DGU_IB.indd 12 4/10/17 10:25 AM
