Bacharach Halogen Monitor User manual

Halogen Monitor
“Bagless” Portable Area Gas Monitor (PAGM) with
Infrared Sensor for Halogen Gases (Refrigerants)
Instruction 3015-5466
Operation & Maintenance
Rev. 6 – January 2013
Product Leadership • Training • Service • Reliability
Patent 6,590,690

Halogen Monitor (Bagless PAGM)
2 Instruction 3015-5466 (Rev 6)
WARRANTY
Bacharach, Inc. warrants to Buyer that at the time of delivery this Product will be free from defects in material and manufacture
and will conform substantially to Bacharach Inc.'s applicable specifications. Bacharach's liability and Buyer's remedy under this
warranty are limited to the repair or replacement, at Bacharach's option, of this Product or parts thereof returned to Seller at the
factory of manufacture and shown to Bacharach Inc.'s reasonable satisfaction to have been defective; provided that written
notice of the defect shall have been given by Buyer to Bacharach Inc. within two (2) years after the date of delivery of this
Product by Bacharach, Inc.
Bacharach, Inc. warrants to Buyer that it will convey good title to this Product. Bacharach's liability and Buyer's remedy under
this warranty of title are limited to the removal of any title defects or, at the election of Bacharach, to the replacement of this
Product or parts thereof that are defective in title.
The warranty set forth in paragraph 1 does not apply to parts the Operating Instructions designate as having a limited shelf-life or
as being expended in normal use (e.g., filters).
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND ARE GIVEN AND ACCEPTED IN LIEU OF (I) ANY AND ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANT-
ABILITY AND FITNESS FOR A PARTICULAR PURPOSE: AND (II) ANY OBLIGATION, LIABILITY, RIGHT, CLAIM OR
REMEDY IN CONTRACT OR TORT, WHETHER OR NOT ARISING FROM BACHARACH'S NEGLIGENCE, ACTUAL OR
IMPLIED. The remedies of the Buyer shall be limited to those provided herein to the exclusion of any and all other remedies
including, without limitation incidental or consequential damages. No agreement varying or extending the foregoing warranties,
remedies or this limitation will be binding upon Bacharach, Inc. unless in writing, signed by a duly authorized officer of
Bacharach.
Patent 6,590,690
Register your Warranty by Visiting
www.mybacharach.com
NOTICE
Product improvements and enhancements are continuous; therefore the specifications and information
contained in this document may change without notice.
Bacharach, Inc. shall not be liable for errors contained herein or for incidental or consequential damages
in connection with the furnishing, performance, or use of this material.
No part of this document may be photocopied, reproduced, or translated to another language without the
prior written consent of Bacharach, Inc.
Copyright © 2005-2013, Bacharach, Inc., all rights reserved.
BACHARACH®is a registered trademark of Bacharach, Inc. All other trademarks, trade names,
service marks and logos referenced herein belong to their respective owners.

Halogen Monitor (Bagless PAGM)
Instruction 3015-5466 (Rev 6) 3
TABLE OF CONTENTS
1INTRODUCTION .................................................................................................................................................. 5
1.1 How to Use This Manual ...................................................................................................................................5
1.2 Warning Statements .........................................................................................................................................5
1.3 Caution Statements...........................................................................................................................................5
1.4 Hazard Symbols on Monitor..............................................................................................................................5
1.5 Safety Precautions ............................................................................................................................................6
1.5.1 Explosive Atmosphere ..........................................................................................................................6
1.5.2 Misuse and Modifications to Monitor..................................................................................................6
1.5.3 Altitude Limit ........................................................................................................................................6
1.5.4 Cleaning ................................................................................................................................................6
1.6 Features and Capabilities ..................................................................................................................................6
1.7 Unpacking and Initial Checks ............................................................................................................................7
1.8 Functional Overview .........................................................................................................................................7
2SPECIFICATIONS ................................................................................................................................................. 8
3OPERATION ........................................................................................................................................................ 9
3.1 Front Panel Display and Controls......................................................................................................................9
3.2Connecting the Zero Air Filter Assembly...........................................................................................................9
3.3Zero Air Filter Service Life ...............................................................................................................................10
3.4Connecting Gas-Sample, Exhaust and Purge Lines .........................................................................................11
3.4.1 Overview.............................................................................................................................................11
3.4.2 Connecting the Gas-Sample Line or Probe (model 3015-5420) .........................................................11
3.4.3 Connecting the Gas-Sample Probe 3015-5694...................................................................................11
3.4.4 Connecting the Exhaust Line ..............................................................................................................11
3.4.5 Connecting Zero Air Inlet to an External Purge Line (Optional) .........................................................12
3.5Gas Detector Operation ..................................................................................................................................12
3.6Battery Charging and Using.............................................................................................................................13
3.6.1 Charging the Battery...........................................................................................................................13
3.6.2 Using the Battery ................................................................................................................................13
3.7Display Screens ...............................................................................................................................................13
3.7.1 Initial Power ON..................................................................................................................................13
3.7.2 Data Display Screen ............................................................................................................................13
3.7.3 Function Screens ................................................................................................................................14
3.8Working with System Faults............................................................................................................................17
3.8.1 Functional Overview...........................................................................................................................17
3.8.2 Clearing / Silencing a Fault Alarm .......................................................................................................17
3.8.3 Viewing the Faults Log........................................................................................................................17
3.8.4 Fault Codes .........................................................................................................................................18
3.9Working with the Gas Alarm (Area Monitoring) .............................................................................................18
3.9.1 Gas-Alarm Light ..................................................................................................................................18
3.9.2 Silencing a Gas Alarm .........................................................................................................................18
3.10Working with the Gas Alarm (Leak Detector Option) .....................................................................................19
3.10.1 Gas-Alarm Light Plus Audio Feedback ................................................................................................19
3.11Clearing the PPM & Faults Data ......................................................................................................................19
3.12Working with the DIAGNOS Function .............................................................................................................19
3.12.1 Overview.............................................................................................................................................19
3.12.2 Keypad Functions................................................................................................................................19
3.12.3 First Diagnostic Screen .......................................................................................................................19
3.12.4 Second Diagnostic Screen...................................................................................................................20

Halogen Monitor (Bagless PAGM)
4 Instruction 3015-5466 (Rev 6)
3.13Working with the P-CHK Function...................................................................................................................21
3.13.1 Overview.............................................................................................................................................21
3.13.2 Keypad Functions................................................................................................................................21
3.13.3 Screen Display.....................................................................................................................................21
3.14Print/Plot Logged Gas Levels...........................................................................................................................21
3.15Downloading Stored Data to a Personal Computer........................................................................................22
3.16Importing Saved Data Into a Spreadsheet ......................................................................................................24
4MAINTENANCE ................................................................................................................................................. 25
4.1 Disassembly.....................................................................................................................................................25
4.2 Internal Particulate / Hydrophobic Filter Replacement ..................................................................................26
4.3 Updating Firmware .........................................................................................................................................27
4.4 Probe Filter Replacement ...............................................................................................................................27
5PARTS AND SERVICE ......................................................................................................................................... 28
5.1 Replacement Parts & Optional Items..............................................................................................................28
5.2 Service Centers................................................................................................................................................28

Halogen Monitor (Bagless PAGM)
Instruction 3015-5466 (Rev 6) 5
1 Introduction
1.1 How to Use This Manual
This manual provides important information on how to operate and service Bacharach’s Refrigerant Monitor. To
assure operator safety and the proper use of the monitor, please read, understand, and follow the contents of this
manual.
If you have a working knowledge of gas monitors, you will find this manual useful as a reference tool. If you are
new to the use of gas monitors, you can educate yourself about the principles of gas detection and the proper
operation of this device by reading this manual thoroughly.
1.2 Warning Statements
The use of the word WARNING in this manual denotes a potential hazard associated with the use of this
equipment. It calls attention to a procedure, practice, or condition, or the like, which if not correctly performed or
adhered to, could result in personal injury or death.
1.3 Caution Statements
The use of the word CAUTION in this manual denotes a potential hazard associated with the use of this
equipment. It calls attention to a procedure, practice, condition, or the like, which if not correctly performed or
adhered to, could result in damage to the equipment.
1.4 Hazard Symbols on Monitor
The following symbol indicates the need to consult this operating instruction manual when opening the enclosure.
WARNING: A potential risk exists if the operating instructions are not followed.
The following symbol indicates the presence of electric shock hazards when the enclosure is opened.
WARNING: To avoid risk of injury from electric shock, do not open the enclosure when power is
applied.

Halogen Monitor (Bagless PAGM)
6 Instruction 3015-5466 (Rev 6)
1.5 Safety Precautions
1.5.1 Explosive Atmosphere
Do not operate this equipment in the presence of flammable liquids, vapors or aerosols. Operation of any electrical
equipment in such an environment constitutes a safety hazard.
HAZARDOUS AREA WARNING: This instrument has not been designed to be intrinsically safe for
use in areas classified as hazardous locations. For your safety, DO NOT use it in hazardous
(classified) locations.
COMBUSTIBLE/FLAMMABLE GAS WARNING: This is NOT a safety device. Some gases which this
instrument can detect may be combustible/flammable. When properly configured, this instrument
is designed to alarm at concentrations that are lower than the explosive limit of the gas. As such, it
is the buyer’s responsibility to initiate an immediate planned response to any gas leaks as soon as
they are detected. This equipment should NEVER be used to measure or sample gases at or above
their respective lower explosive limits.
1.5.2 Misuse and Modifications to Monitor
The protection provided by the monitor may be impaired if the monitor is used in amanner not specified by
these instructions. Changes or modifications to this monitor will void the warranty.
WARNING: A gas monitor is not to be used in any application that is beyond its intended purpose
or beyond the scope of its specifications. For details on appropriate use, refer to the general
description, application, and operation discussions in this manual. Before risking equipment
damage or personal injury, contact Bacharach if you are unsure of the validity of a particular gas
monitor application.
1.5.3 Altitude Limit
6,562 ft (2,000 m)
1.5.4 Cleaning
Clean the outside of the monitor’s case using a dry cloth — DO NOT use soap and water
1.6 Features and Capabilities
•Detects, measures, and displays the level of refrigerant gas in the area being monitored
•Measures all gases up to 10,000 ppm with asensitivity of 1ppm
•Automatically logs up to 200 gas readings that can be printed / plotted for analysis
•Eliminates false alarms with use of non-dispersive IR source and sample draw system
•Visual and audible gas alarm indictors that are turned ON when the detected gas level exceeds auser
defined trip-point
•Extensive self diagnostics, providing both visual and audible indications when afault occurs
•Battery powered, providing 8–12 hours of operation

Halogen Monitor (Bagless PAGM)
Instruction 3015-5466 (Rev 6) 7
1.7 Unpacking and Initial Checks
Your Refrigerant Monitor was carefully inspected at the factory before shipment, and packed so as to be highly
resistant to damage while in transport. When you receive the instrument, however, please unpack it promptly
and make avisual inspection to make sure that no damage has occurred during shipment. Also check that all
the following items have been received.
Item Part No.
Included with
Refrigerant Monitor
3015-5420
Included with
Refrigerant Monitor
3015-5696
External Filter Assembly (gas sample) 3015-5324 2 -
Soft Carrying Case with Shoulder Strap 3015-5700 1 1
Battery Pack and Charger Kit 3015-5739 1 1
Probe Assembly 3015-5694 - 1
Stainless Steel Tube 3015-5326 1 -
Instruction Manual 3015-5466 1 1
Elbow 3015-3234 1
Part of probe
3015-5694, above
Tubing 0003-6182 3 ft.
Coalescing Filter 3015-3071 -
Filter Assembly (zero air sample)
3015-5722 1 -
3015-5714 - 1
If damage was found, immediately file aclaim with the carrier. If an item is missing, please contact the Service
Department for assistance (refer to Service Centers on page 28).
1.8 Functional Overview
The Bacharach Refrigerant Monitor is designed to detect, measure, and display the concentration of refrigerant
gas in the area being monitored. To ensure accurate gas measurements, the monitor self-zeros every 4minutes
using an external supply of fresh air provided by activated carbon filtering.
During normal operation the Refrigerant Monitor displays both the current gas level and the peak gas level
detected on its front panel LCD. The monitor retains alog of previous readings that can be easily accessed at a
later time for analysis.
Front panel indicators and an audible alarm are provided to signal gas alarm and instrument fault conditions.
The audible alarm can temporarily be silenced by apush of abutton, but will reactivate if the gas level is still
above the alarm trip point after auser-defined time period has elapsed.
The Refrigerant Monitor requires only minor periodic maintenance such as the occasional replacement of filters.
The monitor incorporates active diagnostics that continuously check the system for proper operation. Afront
panel indicator is provided to alert an operator of system malfunctions, and fault codes are generated that
enable the operator to quickly identify the cause of the fault.

Halogen Monitor (Bagless PAGM)
8 Instruction 3015-5466 (Rev 6)
2 Specifications
Product Type........................... Portable refrigerant gas monitor
Gas Library:
CFC:R-11, R-12, R-113, R-114, R-502, HFP
HFC:R-404a (HP62), R-407a, R-407c (AC9000), R-134a, R-410a (AZ20), R-507 (AZ50),
R-508b (SUVA95), R236FA, R125, R245Fa, R422a, R422d, R427a, R424a, R426a,
R438a
HCFC:R-22, R-123, R-124, R-500, R-503, R-401a (MP39), R-402a (HP80), R-402b (HP81), R-408a,
R-409a, R-23, R21, R227
HALON: H1301, H2402, H1211
Other: FA188, FC72, N1230
Measuring Range..................... All gases 0to 10,000 ppm
Warm-Up Time........................5minutes
Detector Type ......................... Infrared, Non-Dispersive
Sensitivity................................ 1ppm
Accuracy ................................. ±1ppm ± 10% of reading from 0-1000 ppm
R11, R22 and R113 are ±10ppm ±15% of reading from 0-1000ppm
Response Time ........................ 90% of response within 5seconds; 100% in 7seconds
Temperature Drift ...................1.5 ppm per degree C between purge cycles
System Noise........................... Less than 40dB(A) at 10 ft (3m)
Operating Temp ...................... 32 to 122°F(0to 50°C)
Ambient Humidity ................... 5to 90% RH (non-condensing)
Altitude Limit .......................... 6,562 ft (2,000 m)
Power ..................................... DC power pack, provides 8–12 hours of operation
Power Consumption ................15 Watts
Front Panel 3Indicator lights:
ON: Green LED flashes during warm-up, and then glows steady
during normal operation.
FAULT: Yellow LED flashes when there is a system fault.
ALARM: Red LED flashes when the gas level is above its alarm setting.
Audible Alarm .........................Internal audible alarm programmable for any of the following conditions:
OFF, FAULT/ALARM, ALARM
Dimensions ............................. 9D x14.5L x5W inches (229 x368 x127 mm)
Weight .................................... Less than 9lbs (4kg) including battery
Valid Calibration Period
to Specifications ......................12 months
Warranty................................. 2years from date of shipment

Halogen Monitor (Bagless PAGM)
Instruction 3015-5466 (Rev 6) 9
3 Operation
3.1 Front Panel Display and Controls
3.2 Connecting the Zero Air Filter Assembly
A Zero Air Filter Assembly must be installed to properly use the Bacharach Refrigerant Portable Monitor. The
following steps should be taken to install the filter.
1. Unfasten the Velcro on the front of the monitor soft case.
2. Slide the zero air filter into the front pocket. Route the tubing through the hole in the back of the
pocket, along the side of the housing.
3. Insert the elbow connector extending from the Charcoal Filter Assembly into the Zero Air Inlet on
the monitor.
4. Refasten the Velcro.

Halogen Monitor (Bagless PAGM)
10 Instruction 3015-5466 (Rev 6)
To connect the elbow connector to the zero air
filter PTC fitting, firmly push the elbow into the
hole in the center of the connector until it seats in
the connector. Refer to the figures at the left.
To remove the elbow from a PTC connector, push
and hold the spring-loaded collar inwards, then
simultaneously withdraw the tubing/elbow. Refer
to the figures at the right.
3.3 Zero Air Filter Service Life
The monitor will periodically (up to 4minute intervals) draw clean air from an intake port on the side of the
chassis. The external zero air (charcoal) filter (P/N 3015-5722) must be connected to this purge port per Section
3.2 in order to scrub any ambient refrigerant present in the area of operation. When the filter is saturated and can
no longer absorb refrigerant, refrigerant can pass thru and create an offset on subsequent measurements, so
proper filter maintenance is important. The purge intake filter can operate continuously in a10 ppm ambient for
up to 10 hours before measurement accuracy will be affected. For higher ambient levels the run time is reduced
proportionally. To avoid measurement errors Bacharach recommends the following purge filter replacement
intervals.
Approximate Ambient Refrigerant Level Filter Replacement Interval
0 ppm 6 months
5 ppm 250 hrs
10 ppm 200 hrs
20 ppm 150 hrs
100 ppm 100 hrs
The refrigerant monitor can detect asaturated filter during operation by sampling clean (0 ppm) air after the unit
has been purged in the presence of ambient refrigerant. Afault will occur (0100) if refrigerant is detected on the
purge port.

Halogen Monitor (Bagless PAGM)
Instruction 3015-5466 (Rev 6) 11
3.4 Connecting Gas-Sample, Exhaust and Purge Lines
3.4.1 Overview
Asingle gas-sample line needs to be run from the Refrigerant Monitor to the area to be monitored. If desired,
an optional exhaust line can be installed to vent refrigerant gas away from the monitor.
3.4.2 Connecting the Gas-Sample Line or Probe (Model 3015-5420)
To connect the gas-sample line to the monitor, simply push the tubing onto the elbow connector and attach the
elbow to the Gas Sample Port on the front of the monitor as shown in the illustration below.
The gas-sample line can be up to 50 ft (15.2m)in length. All tubing bends should have aradius of no less than
5" to insure proper airflow. If kinks or obstructions occur in the line the monitor may not function properly.
NOTE: Every foot of tubing added to the sample probe increases the instrument response time by 1second.
For best performance use the tubing provided with the instrument when possible.
The end of this line should be placed near the potential leak source and positioned to reduce the possibility of
mists, aerosols, oil, water, dust, or other contaminates being drawn into the monitor.
An external filter (P/N3015-5324) should be attached to the end of this line. See figure on page 11 for details.
3.4.3 Connecting the Gas-Sample Probe 3015-5694
If refrigerant monitor 3015-5696 was ordered the probe assembly is provided pre-assembled. Simply connect
the elbow to the gas sample port. See figure on page 11 for details.
3.4.4 Connecting the Exhaust Line
The optional exhaust line carries the exhausted gas sample away from the monitor.The exhaust line can be up
to 50 ft (15.2m)in length. Ideally this line should terminate outdoors in alocation that is not exposed to the
elements.
Connecting the Gas Sample Line or Probe

Halogen Monitor (Bagless PAGM)
12 Instruction 3015-5466 (Rev 6)
Connect the exhaust line to the monitor by firmly pushing the tubing into the Exhaust Port’s push-to-connect
(PTC) fitting. See below. If the exhaust line terminates outside the building, position the tubing so that no water
or moisture can enter the line. Note that this line does not require atermination filter.
To connect the exhaust line to the exhaust port’s
PTC fitting, firmly push the appropriate tubing into
the hole in the center of the connector until it seats
in the connector. Refer to the figures at the left.
To remove tubing from a PTC connector, push and
hold the spring-loaded collar inwards, then
simultaneously withdraw the tubing. Refer to the
figures at the right.
3.4.5 Connecting Zero Air Inlet to an External Purge Line (Optional)
If using the charcoal filter assembly apurge line is not required.
The purge line provides the same function as the charcoal filter, supplying clean air (0 ppm target gas
concentration) into the monitor for the purpose of purging the monitor and setting its baseline reading.
The zero air inlet can be up to 50 ft (15.2m)in length. This line should terminate in an area known to contain
clean (0 ppm) air. To connect the purge line to the monitor, simply push the tubing into the Purge Air Inlet Port.
If the purge line terminates outside the building, position the tubing so that no water or moisture can enter the
line.
3.5 Gas Detector Operation
CAUTION: Operate the monitor in its horizontal position (handle facing upwards). Tilting the
monitor to a vertical position while in operation may cause inaccurate measurements to occur.
Turn ON the monitor as follows:
1. Lift up the shield located in front of the handle
2. Press the green power ON/OFF toggle switch.
3. Observe monitor’s firmware version is briefly displayed.
4. Observe the monitor starts counting down its warm-up period of
300 seconds (5 minutes).
Observe the following as the monitor makes gas measurements in the area being sampled:
•MEASURE indicates when the monitor is actively measuring the level of refrigerant gas at the sampling
point. The measurement cycle runs for 4minutes.
Alog of up to 200 previous measurements can be viewed using the PPM LOG function as described on
page 14.
•PURGE indicates when the monitor is resetting its infrared detector to abaseline of 0ppm. The purge
cycle runs for 10 seconds.
Work with gas alarms and system faults as follows:

Halogen Monitor (Bagless PAGM)
Instruction 3015-5466 (Rev 6) 13
ALARM (red) light turns ON if the detected gas level exceeds aprogrammed alarm point.
An audible alarm also sounds if the AUDALRM function is activated.Pressing the front panel
SILENCE button turns OFF the audible alarm, but the ALARM light will continue to flash for as long
as the detected gas level is above the alarm point. The audible alarm will reactivate if the gas-alarm
condition is not cleared within the time period set by the SILENCE function (refer to text starting on
page 14).
FAULT (yellow) light turns ON if a fault occurs (see Fault Code list on page 18). An audible alarm also
sounds if the AUDALRM function is activated. Pressing the front panel SILENCE button turns OFF the
audible alarm, but the FAULT light continues to flash for as long as the fault is present. The audible
alarm will reactivate if the fault condition is not cleared within the time period set by the SILENCE
function (refer to page 14). Both the FAULT light and audible alarm will automatically turn OFF after
the cause of the fault has been eliminated. A log of the last 30 fault events can be viewed using the
monitor’s FAULTS function (page 16).
3.6 Battery Charging and Using
3.6.1 Charging the Battery
The monitor is powered by a rechargeable battery pack located in a pouch on the side of the monitor’s soft
carrying case. The battery pack can be recharged at any time, regardless of the battery’s current charge state.
The AC adapter provided accepts voltage inputs of 100 to 240 VAC. Plug the adapter into the wall, then into the
battery. Disconnect the adapter when the battery is fully charged. A fully charged battery pack will power the
monitor for approximately 8-12 hours.
3.6.2 Using the Battery
The PAGM is designed for a 16VDC input. Following the instructions for the particular battery in use, set the
output voltage to 16V. Plug the battery into the instrument's battery input port and the instrument is ready for
use.
3.7 Display Screens
3.7.1 Initial Power ON
When the monitor is first powered ON, all front panel lights turn ON and asplash screen appears showing the
monitor’scurrent firmware revision level. After abrief moment the Warm Up screen is displayed along with the
front panel ON light (green) blinking.
The monitor requires 5minutes to warm up from acold start; after which, the ON light glows steady and the
Data Display screen appears.
3.7.2 Data Display Screen
During normal operation the Data Display screen shows when the monitor is performing the following functions:
ME ASURE indicates that the monitor is actively measuring the refrigerant gaslevel at the
samplepoint.To reset the peak valueto zero, press the
EN TER button.
PURG E is displayed when the monitor is resettingits infrared detector to abaseline ppmvalue
using fresh air that is being drawn in through the Purge Air Inlet Port. This purging process is
performedon an “as needed” basis, which is normally once every 6to 8minutes.
VERSION x.xx
WARM UP

Halogen Monitor (Bagless PAGM)
14 Instruction 3015-5466 (Rev 6)
PRES CHK is displayed when the monitor is performing an atmospheric pressure check, which is
done to ensure the accuracy of the gas measurement under varying atmospheric conditions. This
pressure check is performed every 30 minutes.
3.7.3 Function Screens
The Function screens are used to set up the monitor and display stored data.From the Data Display screen,
press both the Keypad Left and Right buttons at the same time to display the first Function Menu screen. Next,
use the Keypad buttons to move the arrow (>) until it points to the desired function, and then press the ENTER
button to select that function.
Once afunction has been selected, use the Keypad to scroll through the displayed data or to change a
parameter associated with that function. Press ENTER to save any newly entered parameters. Press the ESC
button to return to the previous screen without saving.
Note that if no buttons are pressed within 90 seconds after selecting afunction, the unit returns to the Data
Display screen.
PPM LOG
– Contains records of the last 200 measurements. Each record
shows the measurement’s date, time, and ppm level. Measurements are
logged at an interval determined by the LOG INT
function. After all 200
locations are filled the newest entries overwrite the oldest entries.
Use the Keypad Up and Down
buttons to change the record number by a
factor of 1. Use the Right and Left
buttons to change the record number by a
factor of 10. Press ESC to return to the previous screen.
The PPM Log can be cleared per the Section “Clearing the PPM & Faults Data”
on page 19.
ALARMS – Contains records of the last 30 alarm events
,
with the monitor
’
s
most recent alarm being shown when the Alarm screen is first displayed
.
After 30 events have been recorded, the newest record overwrites the
oldest. Each record displays either LEAK, SPILL, or EVAC including the date
and time the alarm occurred. Use any of the Keypad buttons to scroll
through the other alarm records. Press ESC to return to the previous screen
.
The ppm levels at which alarms occur are set using the LEAKLVL, SPILLLVL
,
and EVACLVL functions.
FAULTS –
Contains records of the last 30 fault events
.
The most recent
event is displayed when the Fault screen is first displayed. After 30 events
have been recorded, the newest record overwrites the oldest. Each record
lists an event’snumeric fault code (refer to Section 3.8) plus the date and
time at which the event occurred. Use any of the Keypad buttons to scroll
through the other fault events. Press ESC to return to the previous screen.
To the right, record #15 shows that aPurge Flow Fault (fault code <1000
>)
occurred on 07/11/2005 at 12:37 PM.
#15 <1000> @
07/11/05 12:37
#025 7PPM @
07/11/05 15:35
>P-CHK CUST
K2
>SILENCE
ZONETEMP
>LOG INT AUDALRM
LOOP CLOCK
>GASTYPE SPILLVL
LEAKLVL EVACLVL
>PPM LOG FAULTS
ALARMS DIAGNOS

Halogen Monitor (Bagless PAGM)
Instruction 3015-5466 (Rev 6) 15
DIAGNOS –
Enters the diagnostic function
.
Refer to Section 3.12
.
GAS TYPE
–
Displays refrigerant gas as the gas being monitored
.
No other
gas types are available for selection.
LEAKLVL/RANGE
–
Sets the Leak Alarm level
,
adjustable from 1 to 1999
ppm. Factory default is 500 ppm. The Leak Alarm level cannot be set higher
than either the Spill or Evacuate Alarm levels. Use the Keypad to set the
desired Leak Alarm level, and then press ENTER to save that level and return
to the previous screen.
When the LEAK DETECTOR option is set in AUDALRM the user menu will
display the word RANGE in place of the word LEAKLVL. Adjust the value to
correspond to the maximum concentration to be detected. The instrument
will beep and blink the ALARM light proportional to the gas concentration
present.
SPILLLVL –
Sets the Spill Alarm level
,
adjustable from no lower than the
Leak Alarm level to amaximum value of 1999 ppm, but not higher than the
Evacuate Alarm level. Factory default is 700 ppm. Use the Keypad to set
the desired Spill Alarm level, and then press ENTER to save that level and
return to the previous screen.
EVACLVL
–
Sets the Evacuate Alarm level
,
adjustable from no lower than
the Spill Alarm level to 1999 ppm. Factory default is 1000 ppm. Use the
Keypad to set the desired spill level alarm level, and then press ENTER to
save that level and return to the previous screen.
LOG INT –
Sets the interval at which measurements are logged to
memory from 1to 9999 minutes. Factory default is 1minute. The logged
measurements can be viewed using the PPM LOG function. Use the Keypad
to enter the desired value, and then press ENTER to save that value and
return to the previous screen.
LOOP
–
Adjusts the loop factor of the 4-20 mA current loop. Factory
default is 0.016 mA per ppm, which provides an output range of 0ppm
(4 mA) to 1,000 ppm (20 mA). Use the Keypad to set the desired loop
factor, and then press ENTER to save that value and return to the previous
screen.
To facilitate loop zero and span checking, note that when the LOOP function
is selected the loop output is set to 20 mA, and upon exiting this function
the loop output is set to 4mA.
AUDALRM
–
Allows the monitor
’
s internal audible alarm to be associated
with any function of the monitoring system. Factory default is OFF. Use the
Keypad to select the desired audible alarm function, and then press ENTER
to save that value and return to the previous screen.
Audible Alarm Settings: OFF, ANY ALARM, SYSTEM FAULT, LEAK ALARM
,
SPILL ALARM, EVAC ALARM, MONITOR STOPPED, LEAK DETECTOR.
NOTE: MONITOR STOPPED indicates there is acritical system fault, and the
monitor is no longer functioning correctly.
AUDIBLE ALARM IS
OFF
EDIT LOOP FACTOR
0.016 mA
LOG INTERVAL IS
0001 min
EDIT EVAC LEVEL
1000 PPM
EDIT SPILL LEVEL
700 PPM
EDIT LEAK LEVEL
500 PPM
SELECT GAS TYPE
REFRIGERANT

Halogen Monitor (Bagless PAGM)
16 Instruction 3015-5466 (Rev 6)
CLOCK –
Sets the monitor
’
s date and time
.
Use the Keypad to enter the
correct date and time, and then press ENTER to save those values and
return to the previous screen. Note that time is displayed in a24 hour
format, while the date is displayed as mm/dd/yy.
SILENCE –
Sets the length of time the internal audible alarm is turned
OFF when the front panel SILENCE button is pressed. The factory default is
30 seconds. If the cause of the gas-alarm has not been cleared at the end
of this time period, the internal audible alarm will reactivate. Use the
Keypad to enter the desired time period, and then press ENTER to save
that value and return to the previous screen.
SQUELCH - Sets a value of between 0
.
0 and 100 ppm that prevents the
display of measurements below that value. Factory default is 0ppm. For
example, if the squelch setting is set to 5ppm, then the monitor will not
display measurements that are below that value. Use the Keypad to enter
the desired value, and then press ENTER to save that value and return to
the previous screen.
ZONETEMP - Used to enter the temperature of the area being monitored
in °C, thus giving amore accurate ppm reading. The factory default is 25°C.
Use the
K eypad to enter the desired temperature, and then press ENT E R
to savethat valueand return to theprevious screen.
CAL - Used to change the monitor
’
s calibration factor
.
This function is to
be used ONLY with instructions fromaBacharachServiceCenter. Factory
default is 1.000.
P-CHK –
The Pressure Check function displays the current manifold
pressure and the stored ambient pressure in psia, along with the difference
between these two pressures and the current fault code. Refer to
Section 3.13.
14.07 * AMB14.05
-0.02dif <1000>
CALFACTOR
1.000
TEMP AT ZONE =
25 degC
SQUELCH BELOW
5 PPM
SILENCE TIMEOUT
0030 sec
SET DATE & TIME
07/11/05 15:30

Halogen Monitor (Bagless PAGM)
Instruction 3015-5466 (Rev 6) 17
3.8 Working with System Faults
3.8.1 Functional Overview
If asystem malfunction occurs (see Fault Code list,Page 18), the front panel FAULT light will flash and the audible
alarm, if activated (see AUDALRM function), will start beeping.
3.8.2 Clearing / Silencing a Fault Alarm
The FAULT light and audible alarm will automatically turn OFF after the cause of the fault has been eliminated.
Pressing the SILENCE button while afault condition still exists causes the internal audible alarm to turn OFF for a
period of time as set by the SILENCE function (refer to Function Screens on page 16). The front panel FAULT light
will continue to flash as areminder that afault condition still exists. At the end of the silence period if the cause
of the fault has not been corrected the audible-alarm circuit will reactivate.
3.8.3 Viewing the Faults Log
From the Data Display screen, press any of the Keypad buttons to display the first Function Menu screen. Next,
use the Keypad buttons to move the arrow (>) until it points to the FAULTS function, and then press the ENTER
button to display the Faults Log screen.
The Faults Log screen shows the monitor
’
s current fault status
.
If the fault
is still present when the FAULTS function is selected, then the current
cause of the fault is displayed along with the date and time it occurred. If
the cause of the fault has been cleared, then the Faults Log screen will
show <0000> along with the date and time the fault was cleared. Use the
Keypad buttons to scroll through the fault log. In the screens shown to the
left, record #03 shows that aSample Flow Fault (fault code <0800>)
occurred on 07/11/2005 at 08:17 AM, while record #04 shows that the fault
was cleared on 07/11/2005 at 9:00 AM.
The cause of the fault is identified by a numeric fault code
.
To convert the
fault code into atext description of the fault, first press the ENTER button
and then use the Keypad buttons to scroll through the display until the text
description of the fault appears. If the fault code is acombination of two or
more faults, then continue to use the Keypad buttons until all fault text
descriptions have been displayed. For example, the fault code <1800>
represents the combination of both aSample Flow <0800> and aPurge
Flow <1000> fault as shown to the left.
The Fault Log can be cleared as described under the heading Clearing the
PPM and Faults Data (Section 3.11).
FAULT CODE<1800>
13 PURGE FLOW
FAULT CODE<1800>
12 SAMPLE FLOW
#04 <0000> @
07/11/05 09:00
#03 <0800> @
07/11/05 08:17

Halogen Monitor (Bagless PAGM)
18 Instruction 3015-5466 (Rev 6)
3.8.4 Fault Codes
Fault codes are additive. For example, a fault code of <0003> indicates that both aBox Temperature Fault
<0001> and aBench Temperature Fault <0002> have occurred.
Code Type Description
<0001> Box Temperature
Fault
Enclosure temperature is outside normal range (or IR detector has failed).
Check that the monitor is not being subjected to extreme temperatures.
Use the DIAG function to check the Box Temperature.
<0002> Bench Temperature
Fault
Optical sensor is outside normal operating range (or IR detector has failed).
Check that the monitor is not being subjected to extreme temperatures.
<0004> Manifold Pressure
Fault
The manifold pressure is outside its normal operating range (or IR detector
has failed). Enter the DIAG function and record ALL data. Call the factory
with this information for further instructions.
<0080> Over Range Fault Monitor exposed to agas level that exceeded 65,000 ppm.
<0200> Gain Set Fault
The digipot autotune sequence has failed. This fault will only occur on first
boot up or after afirmware upgrade. Call the factory for further
instructions.
<0400> A/DFault Afault has occurred in the analog-to-digital circuitry. Contact the factory
with this information for further instructions.
<0800> Sample Flow Fault Check for a restriction in the gas-sample inlet or exhaust; ablocked internal
filter; or afailed pump.
<1000> Purge Flow Fault
Check for a restriction in the gas-sample exhaust; ablocked internal filter;
or afailed pump. Once the purge air stream has been restored, the
monitor will return to normal operation after it completes apurge cycle.

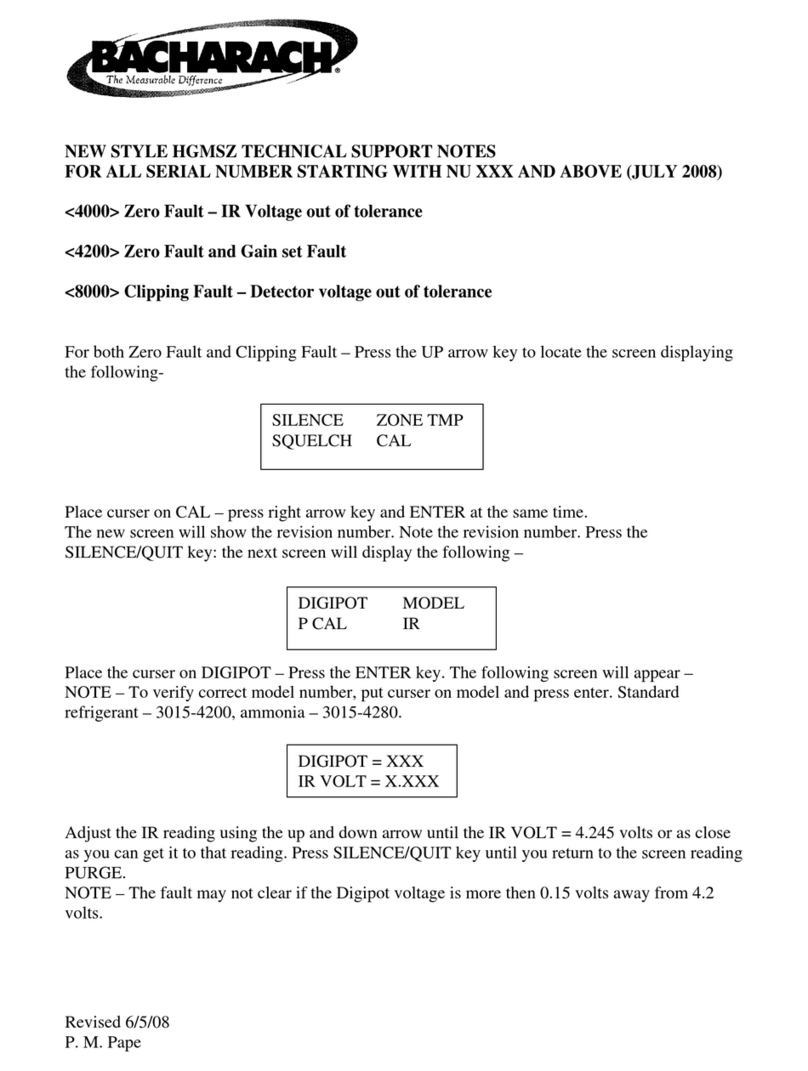

<4000> Zero Range Fault
The IR detector’soutput voltage is out of tolerance. Enter the DIAG function
and record all data. Call the factory with this information for further
instructions.
<8000> Clipping Fault
The detector voltage may be out of tolerance. Use the DIAG function to
check the IR detector voltage. Call the factory with this information for
further instructions.
3.9 Working with the Gas Alarm (Area Monitoring)
3.9.1 Gas-Alarm Light
If the detected gas level reaches the gas-alarm level as set by the ALRMLVL function, the front panel ALARM
(red) light will flash and the audible alarm, if activated (refer to AUDALRM function in the Function Screens
section on page 15), will start beeping. The ALARM light and audible alarm will automatically turn OFF once the
detected gas level drops below the gas-alarm level.
3.9.2 Silencing a Gas Alarm
Pressing the SILENCE button while the alarm circuit is activated causes the audible alarm to turn OFF for aperiod
of time as set by the SILENCE function. The front panel ALARM light will continue to flash as an indication that
an alarm condition still exists. At the end of the silence period if the detected gas level is still above the gas-
alarm level the audible alarm will reactivate.

Halogen Monitor (Bagless PAGM)
Instruction 3015-5466 (Rev 6) 19
3.10 Working with the Gas Alarm (Leak Detector Option)
3.10.1 Gas-Alarm Light Plus Audio Feedback
When the LEAK DETECTOR option is selected in the AUDALRM menu, the instrument provides a ticking sound via
the internal beeper and flashes the red ALARM LED at a rate proportional to the displayed reading. At 0 ppm the
rate is approximately 1 per second. The range over which the tick sound is scaled is set using the “RANGE” menu
(taking the place of the LEAKLVL menu option).
During a purge cycle the tic sound is suspended to let the operator know that the instrument is not sampling.
Purging typically completes in approximately four seconds.
If power is removed or the product turned off, “Leak Detector Mode” remains set.
It is not possible to silence the Gas Alarm when LEAK DETECTOR operation is selected.
3.11 Clearing the PPM & Faults Data
Up to 200 gas measurements and 30 fault events are stored by the monitor.
To clear stored data, first display the data to be cleared by selecting the PPM LOG or FAULTS function per
Section 3.7.3 on page 14.Next, press both the ENTER and Keypad Right buttons at the same time. Asingle, long
tone should be heard when the data has been successfully cleared.
3.12 Working with the DIAG Function
3.12.1 Overview
The DIAGfunction displays sensor data and status information useful to aservice technician for troubleshooting
various fault conditions. Explanations of the data shown in these screens are given below.
3.12.2 Keypad Functions
From the Data Display screen, press any one of the Keypad buttons to display the first Function Menu screen.
Next, use the Keypad buttons to move the arrow (>) until it is next to the DIAG function, and then press ENTER
to display the first of two Diagnostic screens.
Press the Keypad Up button to toggle between the First and Second Diagnostic screen.
3.12.3 First Diagnostic Screen
In the First Diagnostic screen, the user can toggle between displaying Sensor Voltage / Detector Temperature,
and Noise / Box Temperature by pressing the Keypad Right button.
4.20885v <0000>
29.05cD 14.58psi
Bench Voltage Fault Code
Detector Temperature °C
∗
Pressure Reading
0.00075n <0000>
35.40cB 14.59psi
Noise Fault Code
Box Temperature °C
∗
Pressure Reading

Halogen Monitor (Bagless PAGM)
20 Instruction 3015-5466 (Rev 6)
Screen Item Description
Sensor Voltage This is the current peak-to-peak output of the IR detector. In the absence of gas
this value can range from 3.90000V to 4.50000V.
Noise The Noise value is a 16 point running average of the noise portion of the IR
detector’s output. This reading is valuable mainly when gas is NOT present.
Detector Temperature This is the current detector temperature in °C.
Box Temperature This is the current internal enclosure temperature in °C.
Fault Code Current fault code. A value of <0000> indicates that no faults are being detected.
Pressure Reading This is the pressure as measured every purge cycle with the sample pump off and
the gas-sample inlet open. Its value is weather and altitude dependent and can
range from 10.0 to 15.5 PSIA.
Purge Valve Asterisk (∗) The purge valve can be opened and closed by pressing the Keypad Left button. An
asterisk appears on the display when the purge valve is open causing the monitor
to draw air from its purge-air port.
3.12.4 Second Diagnostic Screen
Screen Item Description
PPM Level Parts Per Million Level is the current detected gas level, and is the volume
concentration referenced to standard temperature and pressure.
Average Absorption Unit This is the optical absorbency. In the absence of gas the absorbency is
0.00000 au. When sampling gas, its value varies proportionally with the gas
concentration.
µMoles/Liter This is the absolute concentration in micro-moles per liter of gas.
Detector Voltage This is arunning average of the IR detector’ssensor voltage.
Purge Valve Asterisk (∗)The purge valve can be opened and closed by pressing the Keypad Left button.
An asterisk appears on the display when the purge valve is open causing the
monitor to draw air from its purge-air port.
0.1ppm 0.01
0.00004au 4.210v
PPM Level µMole/Liter
Avg. Absorption Unit
∗
Detector Voltage
