BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
09-22-2022
KEEP THIS MANUAL FOR FUTURE REFERENCE
ACTUAL FLOOR SIZE IS 120" x 90" (304,8 x 228,6 cm)
16572-A
STUDIO SHED 10' x 7'-6" (304,8 x 228,6 cm)
ASSEMBLY MANUAL

Be sure to check local building department and homeowners association for specic restrictions and/ or requirements before building.

Contact our Customer Service Team if engineered drawings are needed to pull local permits.

To ensure proper assembly you must build your shed on a level surface.
Recommended methods and materials to level your shed are listed on page 7.

Inventory all parts listed on pages 4-6.

You will need additional materials to complete your shed. See page 3 for required and optional materials and quantities.
***CONTACT OUR CUSTOMER SERVICE TEAM
IF ANY PARTS ARE MISSING OR DAMAGED***
- Order form and warranty at back of manual -
Call: 1-877-743-3400 email: [e-mail]
Two options for door trim.

4

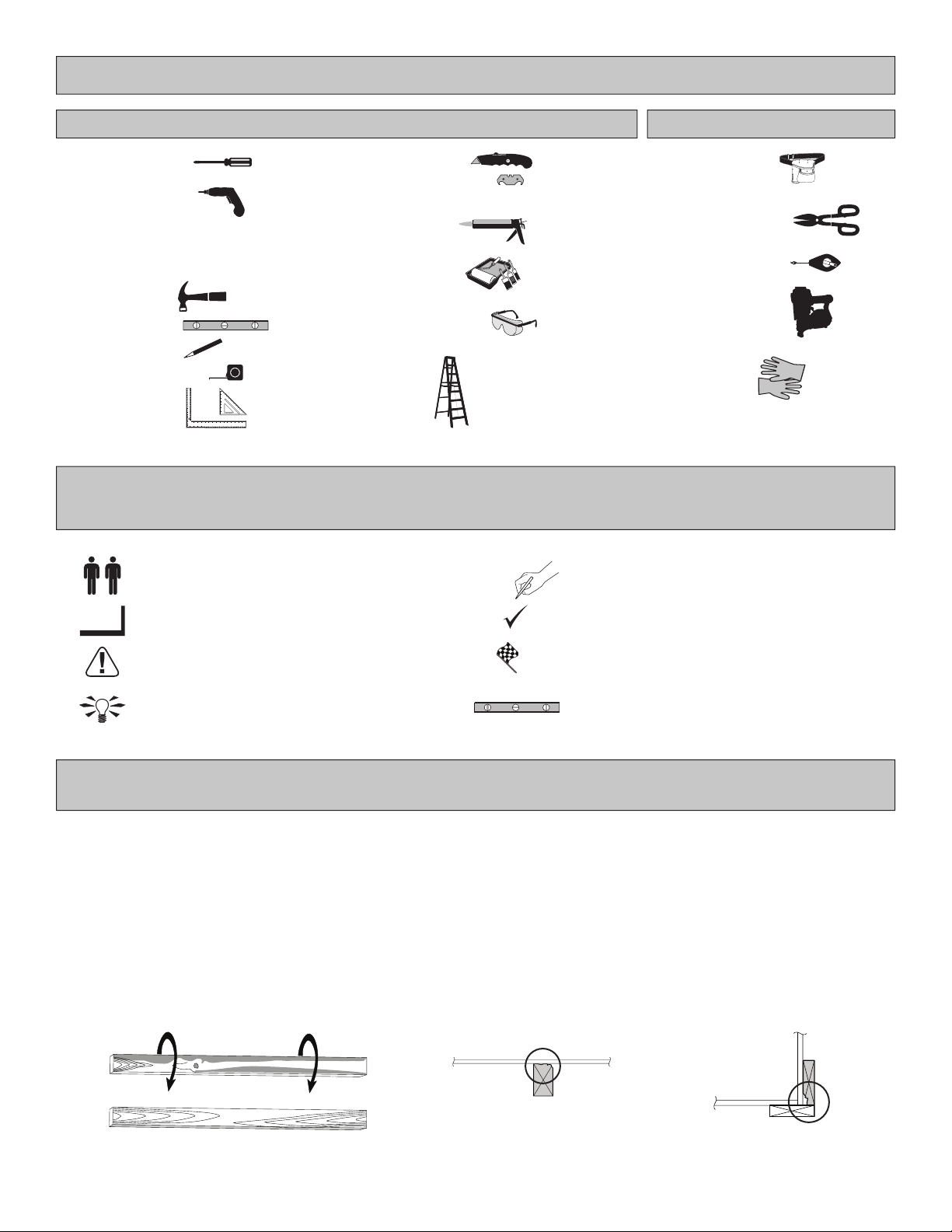

TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have  nished the assembly or installation.
= Level
❑Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑Phillips
Screwdriver
❑Drill / Driver
❑1/4" Drill Bit
❑3/8" Drill Bit
❑1/2" Drill Bit
❑#2 Philips Drive Bit
❑Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑Square or
❑Utility Knife
❑Shingle Blades
B C

5
COMPLETING YOUR SHED
You will need these additional materials:

FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
DRIP EDGE ..................... 50 Feet #15 ROOFING FELT
To cover 99 Sq. Ft. of roof area.
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS FOR
INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
3-TAB SHINGLES ............................ 4 Bundles
PAINT FOR SIDING .......................... 2 Gallons
Use 100% acrylic latex exterior paint. (2) coats recommended.
CAULK ................................................. 3 Tubes
Use acrylic latex exterior caulk that is paintable.

For shingles.
PAINT FOR TRIM .............................1 Quart
Use 100% acrylic latex exterior paint.
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
IMPORTANT! The included oor has been designed for general use. Depending on your specic use you may want to construct a
heavy duty oor frame by adding additional oor joists (shown below). Below is a list of additional materials (not included):
x2
x8
2 x 4 x 87" (5 x 10 x 221 cm) Treated Lumber
ea. 3" (7,6 cm) Hot Dipped Galvanized Nails

For roong felt.
CAULK ................................................. 1 Tube
For windows use acrylic latex exterior caulk that is paintable.
• This shed kit includes a complete wood oor system.
• This shed kit does not include ANY leveling materials.
•

Optional 12" (30,1 cm) spacing.
• Standard spacing is 16" (40,7 cm).


Nominal Board Size Actual Size
1 x 4.................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3................3/4" x 2-1/2" (3,8 x 6,3 cm)

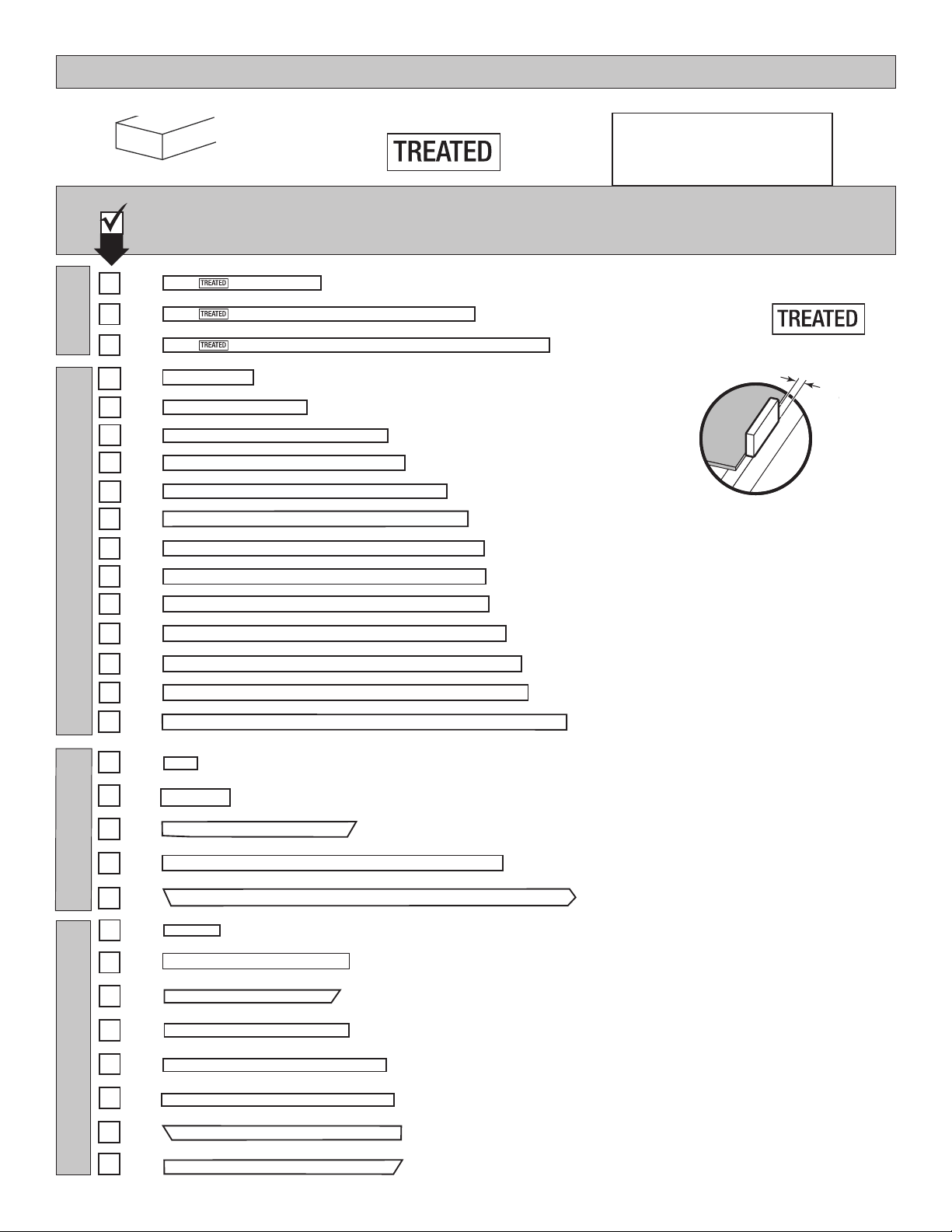

PARTS IDENTIFICATION AND SIZES
RS RS
Part identication
letters are stamped on some parts.
Check these locations for
part stamp.
Treated lumber is stamped:
All treated lumber
is stamped:
WALLS
x4 2 x 4 x 86" (5,1 x 10,2 x 218,4 cm)
BLA
x2 2 x 4 x 79-1/8" (5,1 x 10,2 x 201,3 cm)
BJA
x2 2 x 4 x 74-1/4" (5,1 x 10,2 x 188,6 cm)
BNA
x2 2 x 4 x 72-5/8" (5,1 x 10,2 x 184,5 cm)
BFA
x3 2 x 4 x 72" (5,1 x 10,2 x 91,4 cm)
TM
x2 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM
PARTS LIST

We suggest sorting parts by the category they are listed in.
RAFTERS
x2 1 x 3 x 72" (2,5 x 7,6 x 182,8 cm)
x1 1 x 3 x 5" (2,5 x 7,6 x 12,7 cm)
TRIM
x2 19/32 x 3-1/2 x 48" (1,5 x 8,8 x 121,9 cm)
x1 19/32 x 3-1/2 x 52 - 3/8" (1,5 x 8,8 x 133 cm)
x2 2 x 3 x 33-1/8" (5,1 x 7,6 x 84,1 cm)
x1
x4 19/32 x 2 - 1/2 x 9" (1,5 x 6,3 x 22,9 cm)
x9 2 x 3 x 10-1/2" (5,1 x 7,6 x 26,7 cm)
x2 1 x 3 x 33 - 1/8" (2,5 x 7,6 x 84,1 cm)
BPA
x1 19/32 x 3-1/2 x 35-1/4" (1,5 x 8,8 x 89,5 cm)
BYA
x6
x3
x2
x2
2 x 4 x 64" (5,1 x 10,2 x 162,5 cm)
2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
2 x 4 x 28" (5,1 x 10,2 x 71,1 cm)
2 x 4 x 45 - 5/8" (5,1 x 10,2 x 115,8 cm)
UX
SP
RR
BUA
BQA
FS
EY
x2 2 x 4 x 85-1/2" (5,1 x 10,2 x 217,2 cm)
BKA
2 x 4 x 16 - 1/2" (5,1 x 10,2 x 41,9 cm)
x4
3/4"
(1,9 cm)
RD
BMA
GAA
BRA
HJ
x9 2 x 4 x 93-3/16" (1,5 x 10,2 x 236,7 cm)
BOA
2 x 3 x 35-1/4" (5,1 x 7,6 x 89,5 cm)

x1 19/32 x 3 - 1/2 x 59 - 1/4" (1,5 x 8,8 x 150,4 cm)
BXR
x1 19/32 x 3 - 1/2 x 59 - 1/4" (1,5 x 8,8 x 150,4 cm)
BXL
x1 UN 2 x 4 x 94-1/2" (5,1 x 10,2 x 240 cm)
6
FLOOR
x2
2 x 4 x 87" (5,1 x 10,2 x 220,9 cm)
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
x9
2 x 4 x 72" (5,1 x 10,2 x 182,8 cm)

SOFFIT
DOOR
PARTS LIST continued...
x2
TRIM
CORNER/FREIZE TRIM
OY 2 x 3 x 72" (5,1 x 7,6 x 182,8 cm)
19/32 x 3-1/2 x 96" (1,5 x 8,8 x 243,8 cm)
19/32 x 3-1/2 x 80" (1,5 x 8,8 x 203,2 cm)
19/32 x 2-1/2 x 91" (1,5 x 6,3 x 231,1 cm)
x1
x1
x2
BTA
BSA

x1 PT 2 x 3 x 96" (5,1 x 7,6 x 243,8 cm)
35-3/4 x 10-3/8 x 3/8" (90,8 x 26,3 x 1 cm)
x1
95-3/8 x 10-3/8 x 3/8" (242,2 x 26,3 x 1 cm)
x1
95-1/2 x 5-1/4 x 3/8" (242,5 x 13,3 x 1 cm)
x2
19/32 x 2-1/2 x 26-5/8" (1,5 x 6,3 x 67,6 cm)
x8 AH
x2 OO 69" Door Stiffener (175,2 cm)
x1 3/8 x 2 x 25-3/8" (0,9 x 5,1 x 64,4 cm)
x2 3/8 x 2 x 68-3/4" (0,9 x 5,1 x 174,6 cm)
x1 3/8 x 2 x 69-1/4" (0,9 x 5,1 x 175,8 cm)
x1 3/8 x 2 x 69-1/4" (0,9 x 5,1 x 175,8 cm)
x2 3/8 x 2 x 91-1/4" (0,9 x 5,1 x 231,7 cm)
x1 3/8 x 2 x 93-1/4" (0,9 x 5,1 x 236,8 cm)
x1 3/8 x 2 x 93-1/4" (0,9 x 5,1 x 236,8 cm)
x1 3/8 x 2 x 96" (0,9 x 5,1 x 243,8 cm)
EHT
x1
19/32" x 3-1/2" x 11-3/8"
(1,5 x 8,9 x 28,9 cm)
7
PANEL PARTS LIST
ROOF PANELS
FLOOR
NOTE: Panel parts are not stamped.


7/16 x 11-7/8 x 96"
(1,1 x 30,2 x 243,8 cm)
x1
7/16 x 11-7/8 x 35-7/8"
(1,1 x 30,2 x 91,1 cm)
x1
7/16 x 35-7/8 x 96"
(1,1 x 91,1 x 243,8 cm)
x1
7/16 x 48 x 96"
(1,1 x 121,9 x 243,8 cm)
x2
5/8 x 23-7/8 x 90"
(1,5 x 60,6 x 228,6 cm)
x1
5/8 x 42 x 96"
(1,5 x 106,6 x 243,8 cm)
x1
5/8 x 48 x 96"
(1,5 x 121,9 x 243,8 cm)
x1

x2
3/8 x 11-7/8 x 96"
(1 x 30,1 x 243,8 cm)

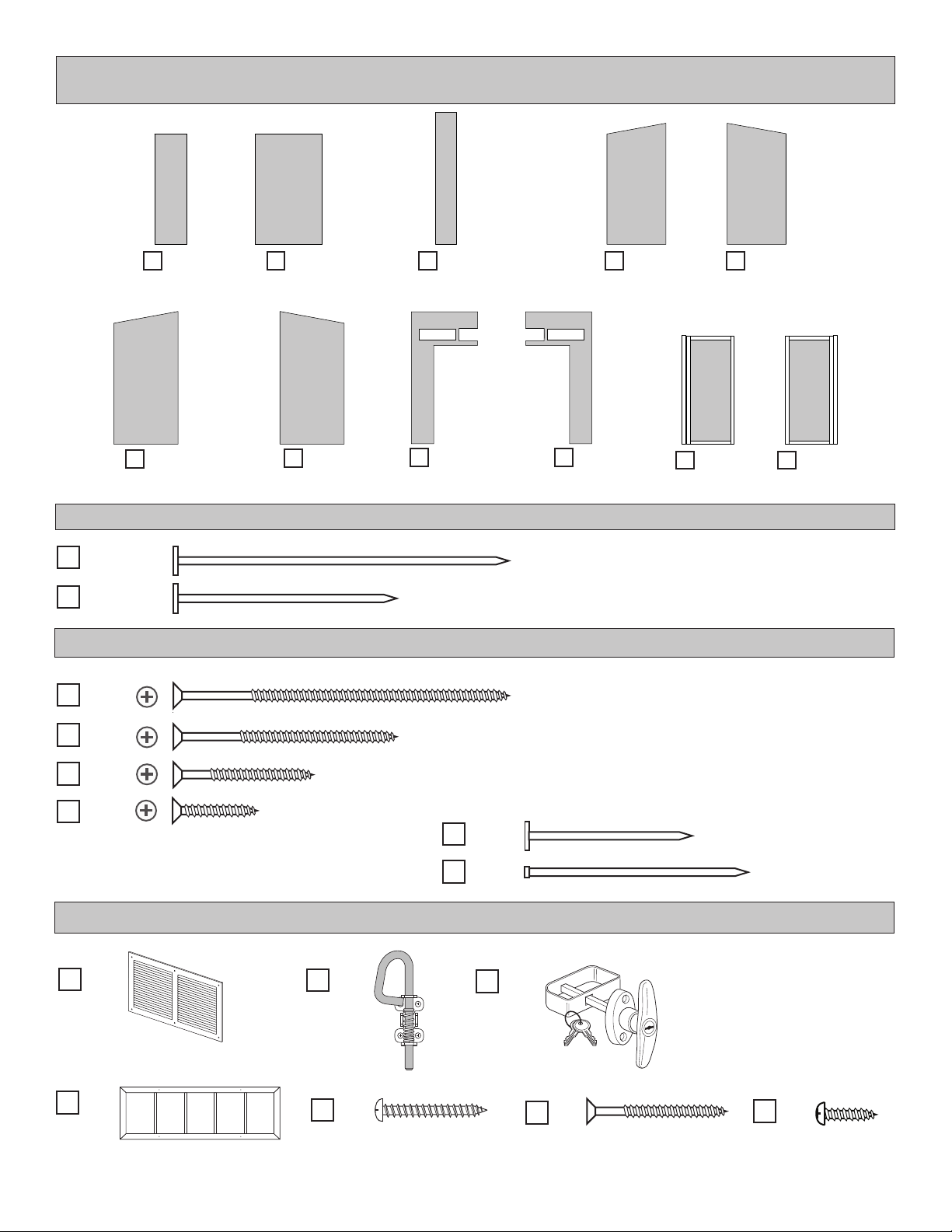

WALL PANEL & DOORS PARTS LIST
x1
LEFT DOOR
x1
RIGHT DOOR
x2 BOXES
x3 BOXES
x210
x180
NAIL BOXES
VENT, DOOR HARDWARE, AND WINDOW
FASTENER/HARDWARE BAG
x2
3/8 x 48 x 72"
(1 x 113,3 x 121,9 cm)
x1
3/8 x 42 x 83-1/8"
(1 x 106,6x 211,1 cm)
x1
3/8 x 48 x 96"
(1 x 121,9x 243,8 cm)
x1
3/8 x 48 x 96"
(1 x 121,9x 243,8 cm)
x1
3/8 x 42 x 83-1/8"
(1 x 106,6x 211,1 cm)
x1
3/8 x 23-7/8 x 72"
(1 x 60,6 x 182,9 cm)
x1
3/8 x 48 x 96"
(1 x 121,9x 243,8 cm)
x1
3/8 x 48 x 96"
(1 x 121,9x 243,8 cm)
8
2" (5,1 cm)
3" (7,6 cm)
x75
x56
x88
x2 1-1/4" (3,2 cm)
3/4" (1,9 cm)
2" (5,0 cm)
3" (7,6 cm)
2" (5,1 cm)
1-1/2" (3,8 cm)
x1
x2
x8
x3
x2
8 x 16"
(20,3 x 35,6 cm)
1/2" (1,2 cm)
x12
1" (2,5 cm)
x2
1-1/2" (3,8 cm)
NOTE:
If you are using a nail gun, nails
may be used where screws are
shown for quicker assembly.
Length of nail must match screw length.
9 X 27" (22,8 x 68,5 cm)

9
DOOR

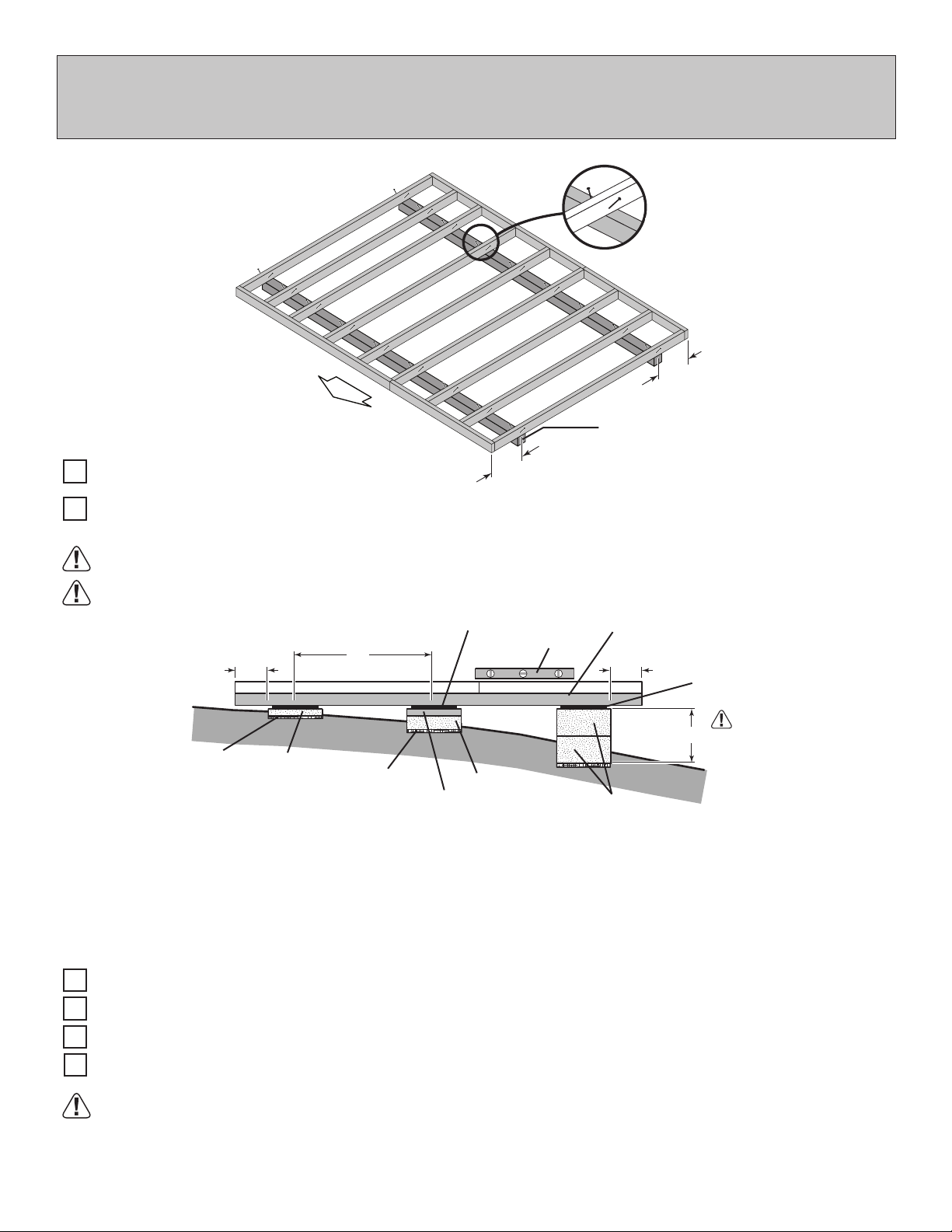

FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS
Measurements to

• 3" Screws angled into 4x4.
• (2) at each point frame
•and 4x4 touch.
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber. Never use
shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.

• If you are building your shed on a concrete foundation see the following page.
CONCRETE
MATERIAL REQUIRED
x2 4 x 4 x 10' (10 x 10 x 304,8 cm)Treated Lumber

(3" Screws shown as one option.) Minimum (40) 3" screws / exterior grade.




Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
12"
(30,5 cm)
12"
(30,5 cm)

10

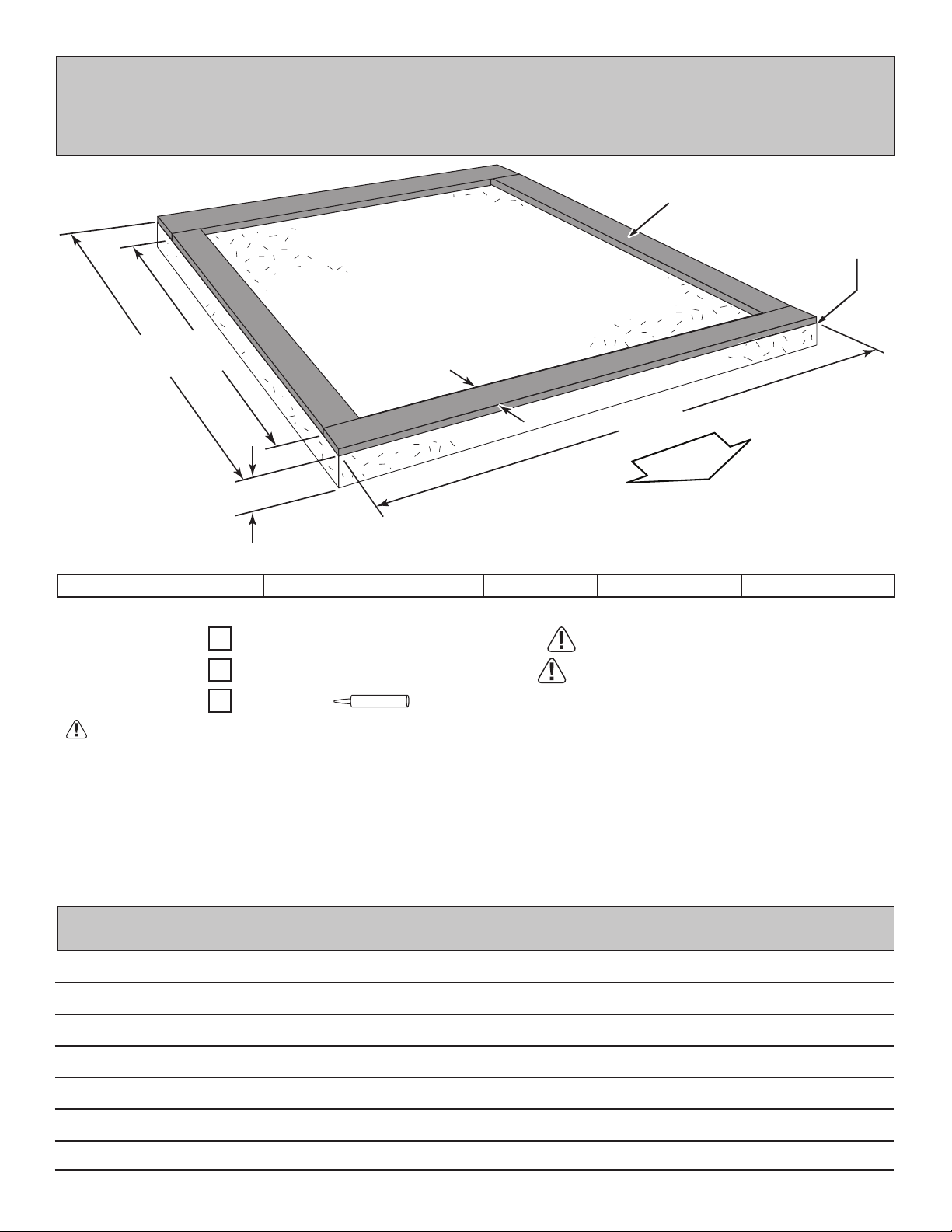

CONCRETE FOUNDATION
Your kit contains all materials to construct a wooden oor. If you choose to install your kit
on a concrete slab refer to the diagram below.
• A treated 2 x 4 (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete. Hint: Use treated lumber in your kit or

• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4 (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors .
• Check local code for concrete foundation requirements.
NOTES
Allow new concrete slabs to cure for at least seven (7) days.
2 x 4 x 10'-0" (5,1 x 10,2 x 304,8 cm)
2 x 4 x 7'-6" (5,1 x 10,2 x 229,6 cm)
Caulk
Requires:
x2
x2
x1
MUST be treated lumber.
MUST be treated lumber.

 
 
AActual Size B C
A
B
C
4"
(10,2 cm)
3-1/2"
(8,9 cm)
DOOR
Treated Sill Plate
Caulk between sill
plate and concrete.

11
DOOR
3" (7,6 cm)
x9
x2
x40
2 x 4 x 87" (5,1 x 10,2 x 221 cm)
2 x 4 x 72" (5,1 x 10,2 x 182,9 cm)
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
PARTS REQUIRED:
Center
on marks
DOOR

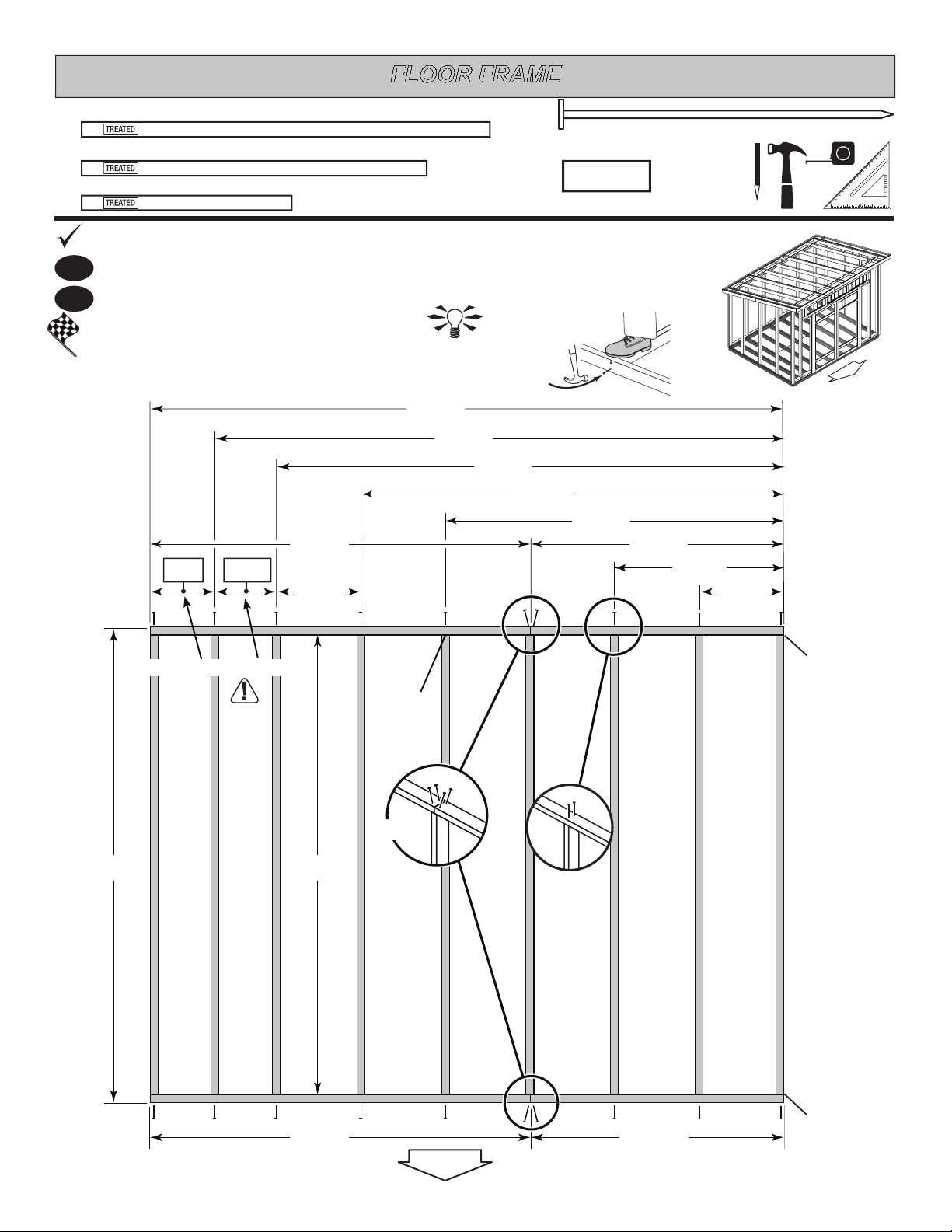

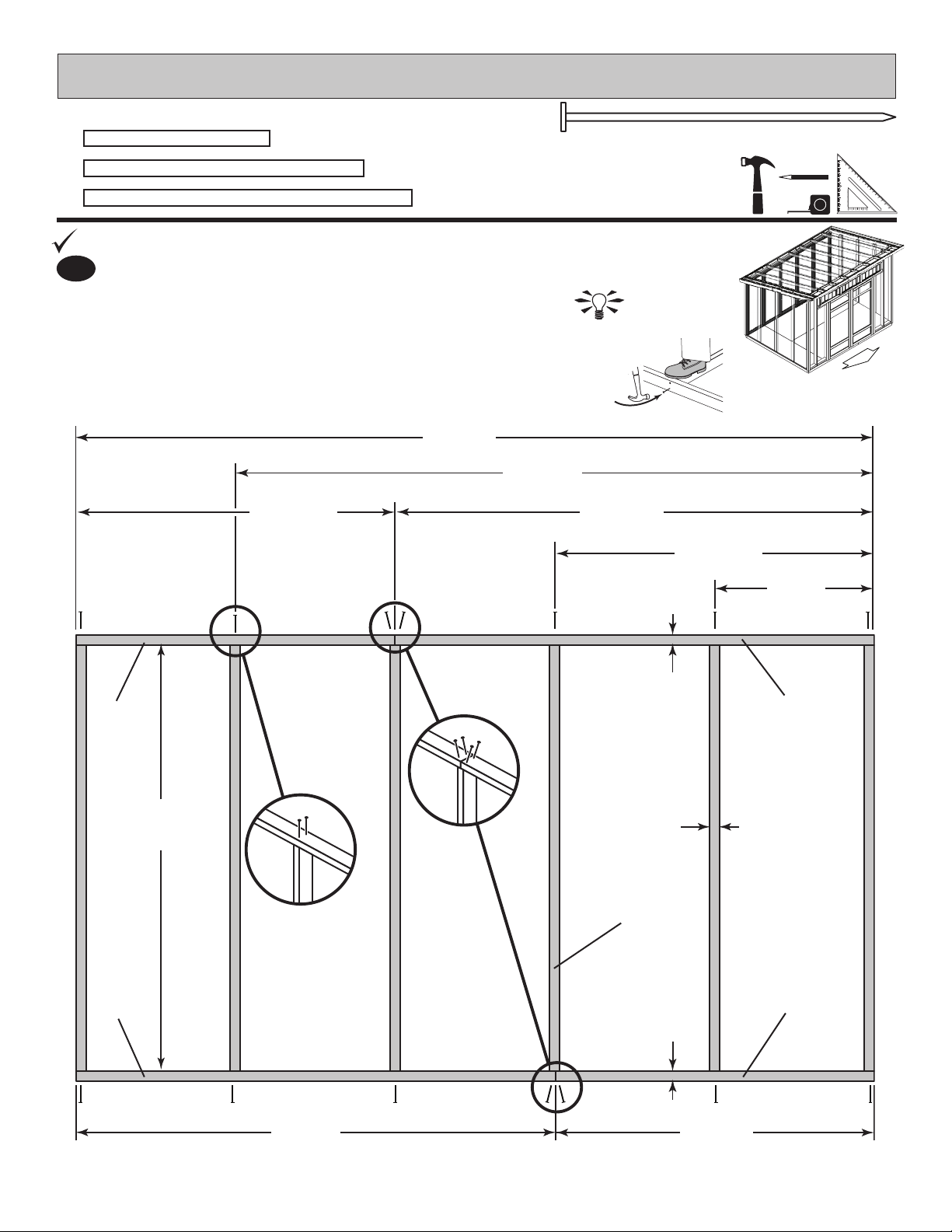

FLOOR FRAME
Flush
Flush
Look for
Stamp
TREATED
HINT:


2
1
Secure with (2) 3" nails at each mark.
Arrange parts as shown on  at surface. Measure and mark.
BEGIN
You have  nished your  oor frame.
Proceed to level and square frame.
FINISH
Note this measurement
SEAM
48"
(121,9 cm)
32"
(81,3 cm)
16"
(40,6 cm)
16"
(40,6 cm)
48"
(121,9 cm)
64"
(162,6 cm)
80"
(203,2 cm)
90"
(228,6 cm)
87"
(221 cm)
96"
(243,8 cm)
107-5/8"
(273,4 cm)
120"
(304,8 cm)
72"
(182,9 cm)
72"
(182,9 cm)
12-1/4"
(31 cm)
11-5/8"
(29,5 cm)

12
DOOR
FINISH

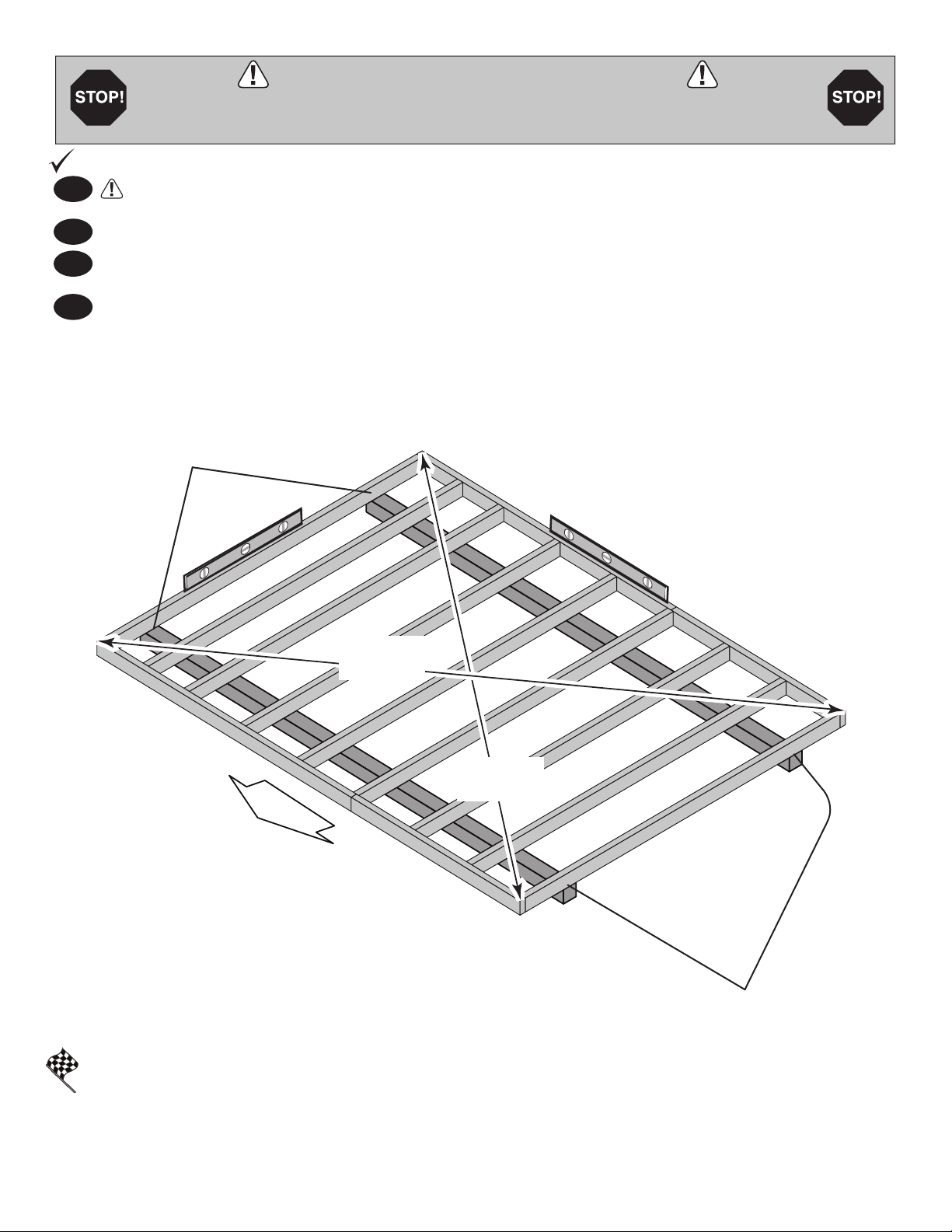

LEVEL AND SQUARE FLOOR FRAME
Before attaching  oor decking, it is important to level and square the  oor frame.
A level and square  oor frame is required to correctly construct your shed.
BEGIN
2
3
4
1
Use level and check the frame is level before applying  oor panels.
Check for frame squareness by measuring diagonally across corners. If the measurements are the same,
the frame is square. The diagonal measurement will be approximately 150" (381 cm).
When the frame is level and square, secure one side of frame to the 4x4 runners using one fastener at ends of
each runner. Move to the opposite end of the frame. Secure the frame to 4x4 runners with one fastener at ends of
each runner. Ensure the frame remains square .
After the  oor frame is level and square, fasten the frame to the 4x4 runners at each connection to the 4x4 runners.
See page 7 for the preferred  oor leveling method.
First, secure
at ends with

Second, secure
at ends with

150"
(381 cm)
150"
(381 cm)


13
48"
(121,9 cm)
120"
(304,8 cm)
6"
(15,2 cm)
12"
(30,5 cm)
DOOR

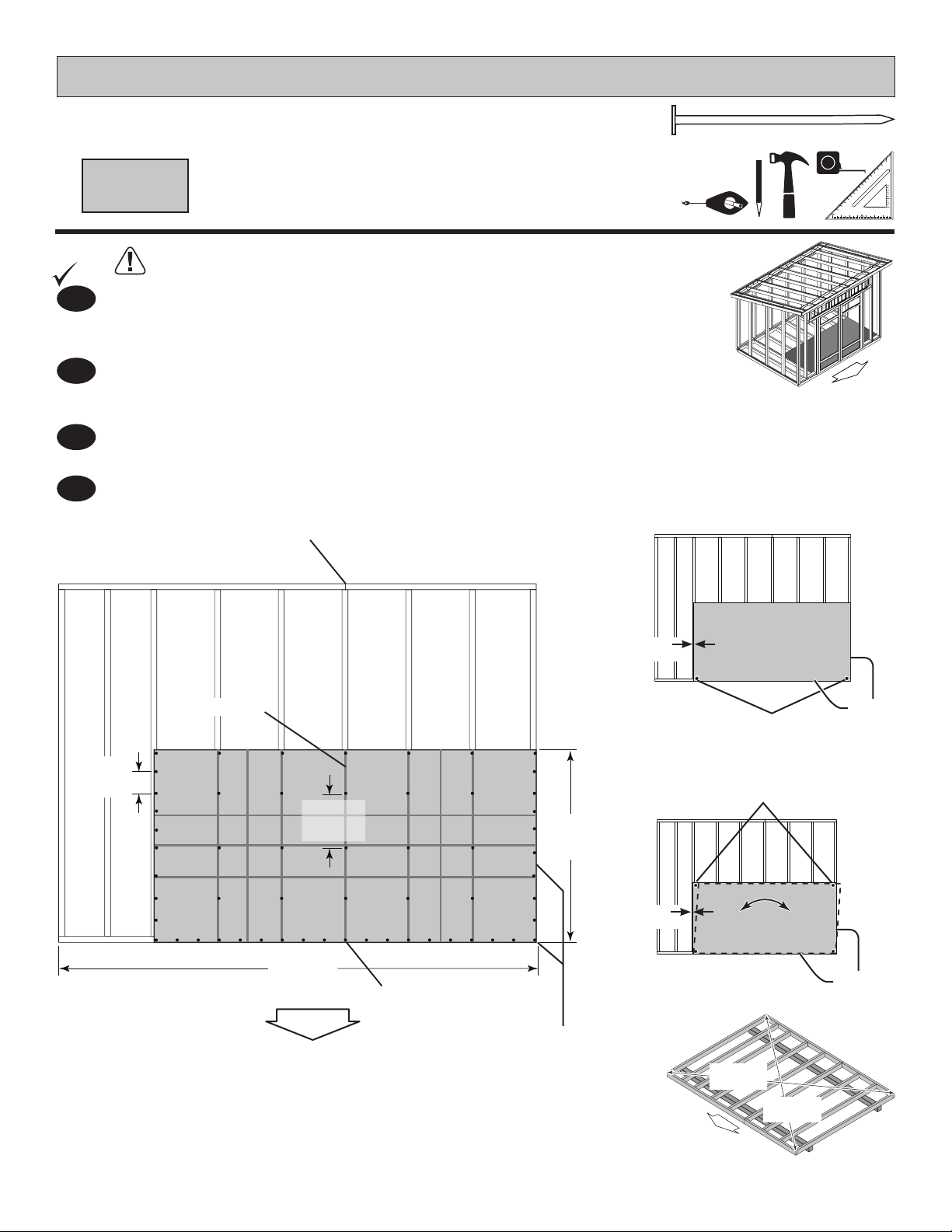

Move to the opposite side. Using the long edge of the panel as a lever, move the
panel side-to-side until the top corner is ush to the oor frame .
Secure panel with (2) 2" nails in the corners.
2
BEGIN
1
3
4Continue securing the panel with 2" nails spaced 6" apart on edges and 12" apart inside panel.
Use a chalk line or use pre-painted grid lines to nail into joists under panel.
Ensure your oor frame is square by installing one panel
and squaring frame.


Check the oor frame is square by measuring diagonally across the frame corners. If the measurements are the
same your oor frame is square. The measurement will be approximately 150" (381 cm) .
PARTS REQUIRED:
x1
x50
5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
Grid lines up
Seam
Seam
2" (5,1 cm)
Flush
Flush
Flush


3/4"
(1,9 cm)
3/4"
(1,9 cm)
DOOR
150"
(381 cm)
150"
(381 cm)
Install the 48" x 96" panel with the rough side up (painted-grid lines side) with the 48"
edge and corner ush to the oor frame .
Secure panel with (2) 2" nails in the corners.


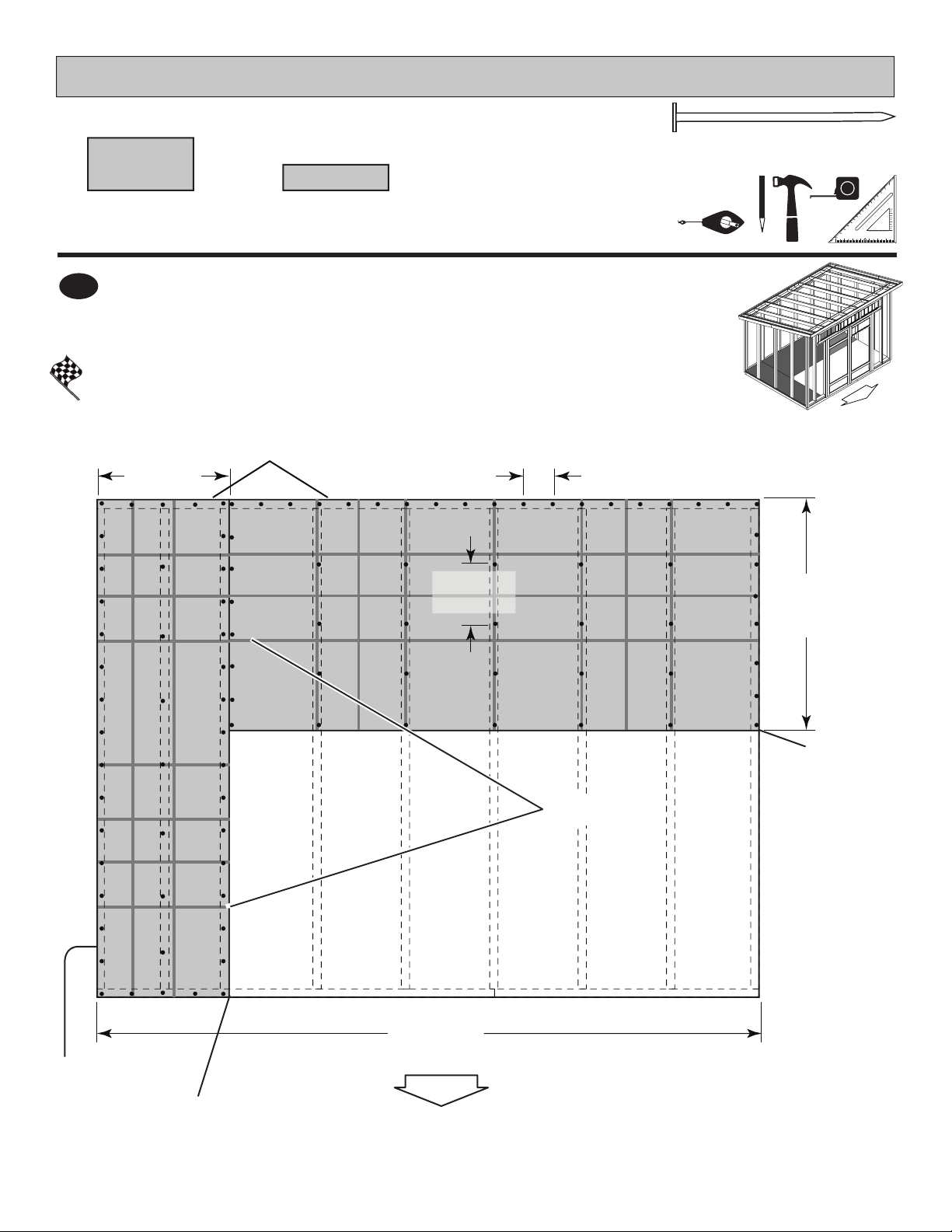

FLOOR PANELS
DOOR

14
42"
(106,7 cm)
120"
(304,8 cm)
6"
(15,2 cm)
23-7/8"
(60,6 cm)
12"
(30,5 cm)
DOOR
PARTS REQUIRED:
FINISH
Your  oor panels are now installed.
Continue installing panels with rough side up (painted grid lines).
Use grid lines on panel during installation.
Secure with 2" nails spaced 6" apart on edges, and 12" apart inside panels.
5
x1 x1
x91
5/8 x 23-7/8 x 90"
(1,6 x 60,6 x 228,6 cm)
5/8 x 42 x 96"
(1,6 x 106,7 x 243,8 cm)
Grid lines up
2" (5,1 cm)
Flush
Flush
Flush
Flush
FLOOR PANELS
DOOR

15

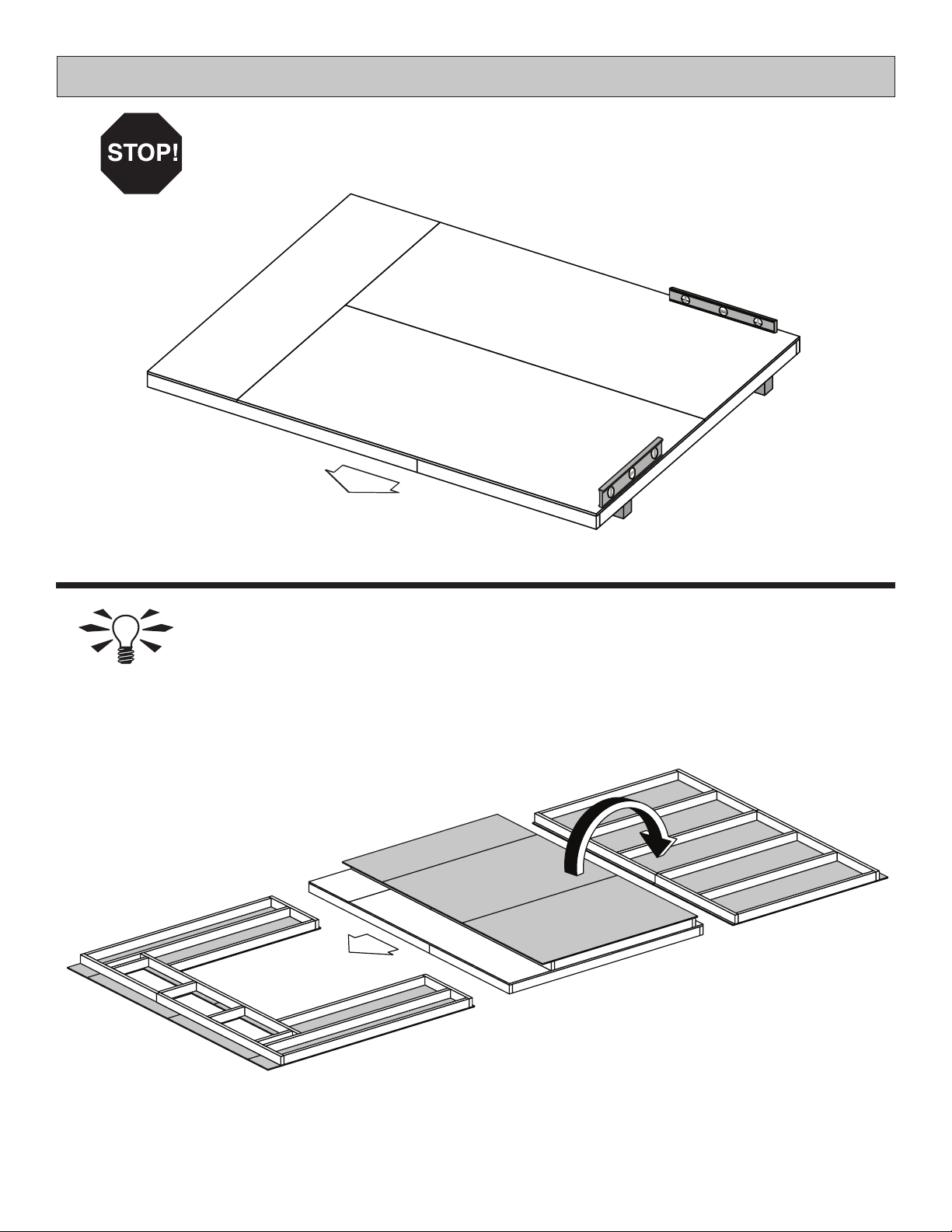

DOOR
Back wall
Front wall


HINT:
IMPORTANT!

 
 
DOOR

BACK WALL FRAME
PARTS REQUIRED:
120"
(304,8 cm)
96"
(243,8 cm)
72"
(182,9 cm)
48"
(121,9 cm)
48"
(121,9 cm)
72
"
(182,9 cm)
24"
(61 cm)
64"
(162,5 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
48"
(121,9 cm)
HINT:


x2 2 x 4 x 72" (5,1 x 10,2 x 182,9 cm)
TM
x6 2 x 4 x 64" (5,1 x 10,2 x 162,5 cm)
UX
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
SP
x28
16
3" (7,6 cm)
DOOR
BEGIN
1
Secure with 3" nails at each mark and (4) 3" nails at seams.
Arrange parts on edge on oor. Measure and mark.
UX x6
SP
TM
SP
TM

48"
(121,9 cm)
3/4"
(1,9 cm)
4"
(10,2 cm)
3/4"
(1,9 cm)
12"
(30,5 cm)
6"
(15,2 cm)
17



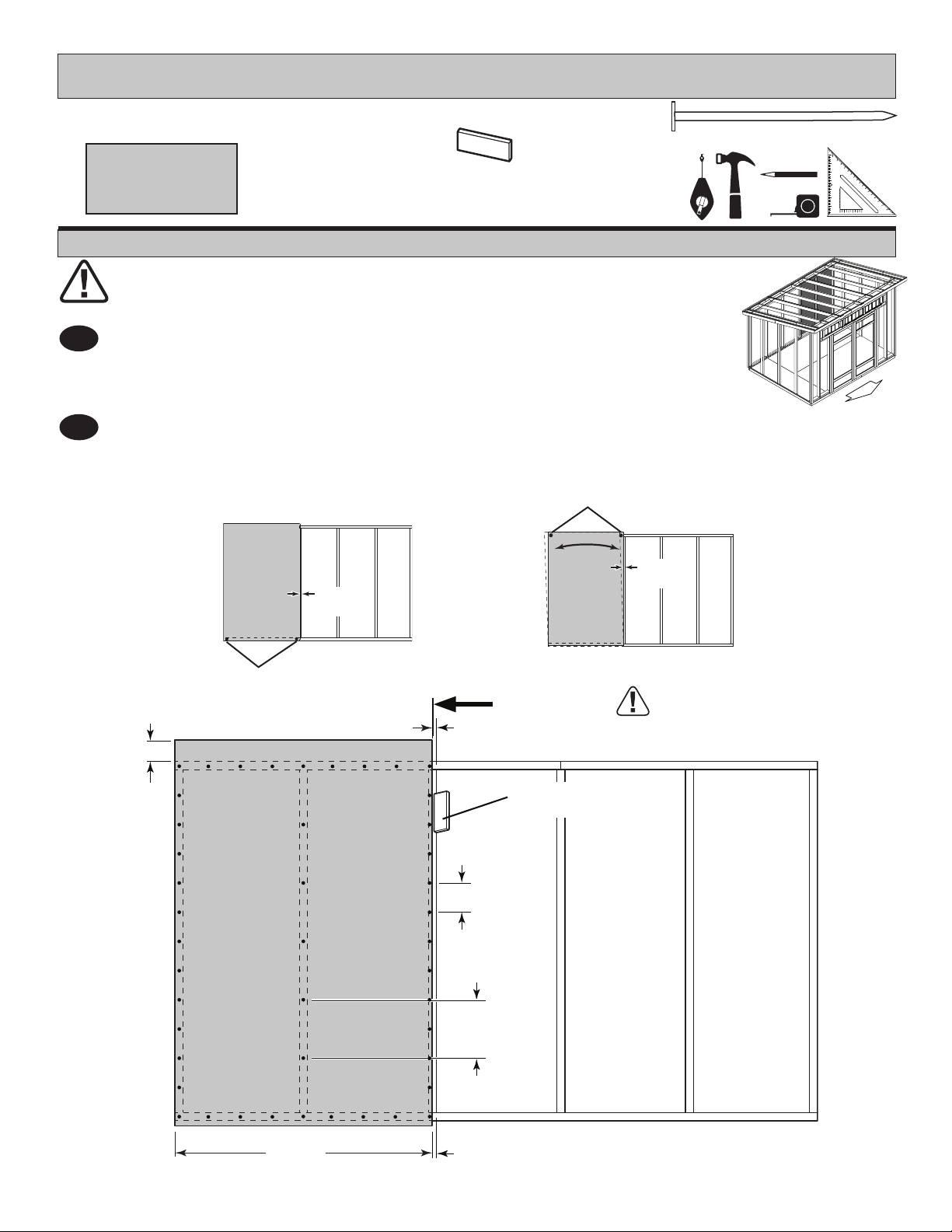

BACK WALL PANELS
Install all wall panels with the primed side facing up.
48 x 72"
(121,9 x 213,4 cm)
PARTS REQUIRED:
x1
x45 2" (5,1 cm)

BEGIN HERE

3/4"
(1,9 cm)
3/4"
(1,9 cm)
2 Nails
2 Nails
DOOR
Install 48 x 72" panel onto wall frame ush to top of frame, as shown.
Use the gauge block to mark the 3/4" measurement on the wall stud.
Secure panel with (2) 2" nails in the corners .

Move to the opposite end. Using the long edge of the panel as a lever, move the panel side-to-side
until you have a 3/4" measurement on the wall stud. Secure corner with (2) 2" nails .
Secure the panel using 2" nails spaced 6" apart on edges and 12" apart inside panel.
3
2

BLOCK
GAA

BLOCK

18
48"
(121,9 cm)
3/4"
(1,9 cm)
4"
(10,2 cm) 3/4"
(1,9 cm)
12"
(30,5 cm)
6"
(15,2 cm)
23-7/8"
(60,6 cm)
4"
(10,2 cm)
6"
(15,2 cm)




Install center 48" x 72" panel on frame
 ush to installed panel.
Secure with 2" nails spaced 6" apart on
edges and 12" apart inside panel.
4
Install panel on frame,
 ush to installed panel.
Secure with 2" nails spaced 6" apart on
edges and 12" apart inside panel.
5
Your back wall is now installed.
FINISH
48 x 72"
(121,9 x 213,4 cm)
23-7/8 x 72"
(60,6 x 213,4 cm)
x1 x1
x75

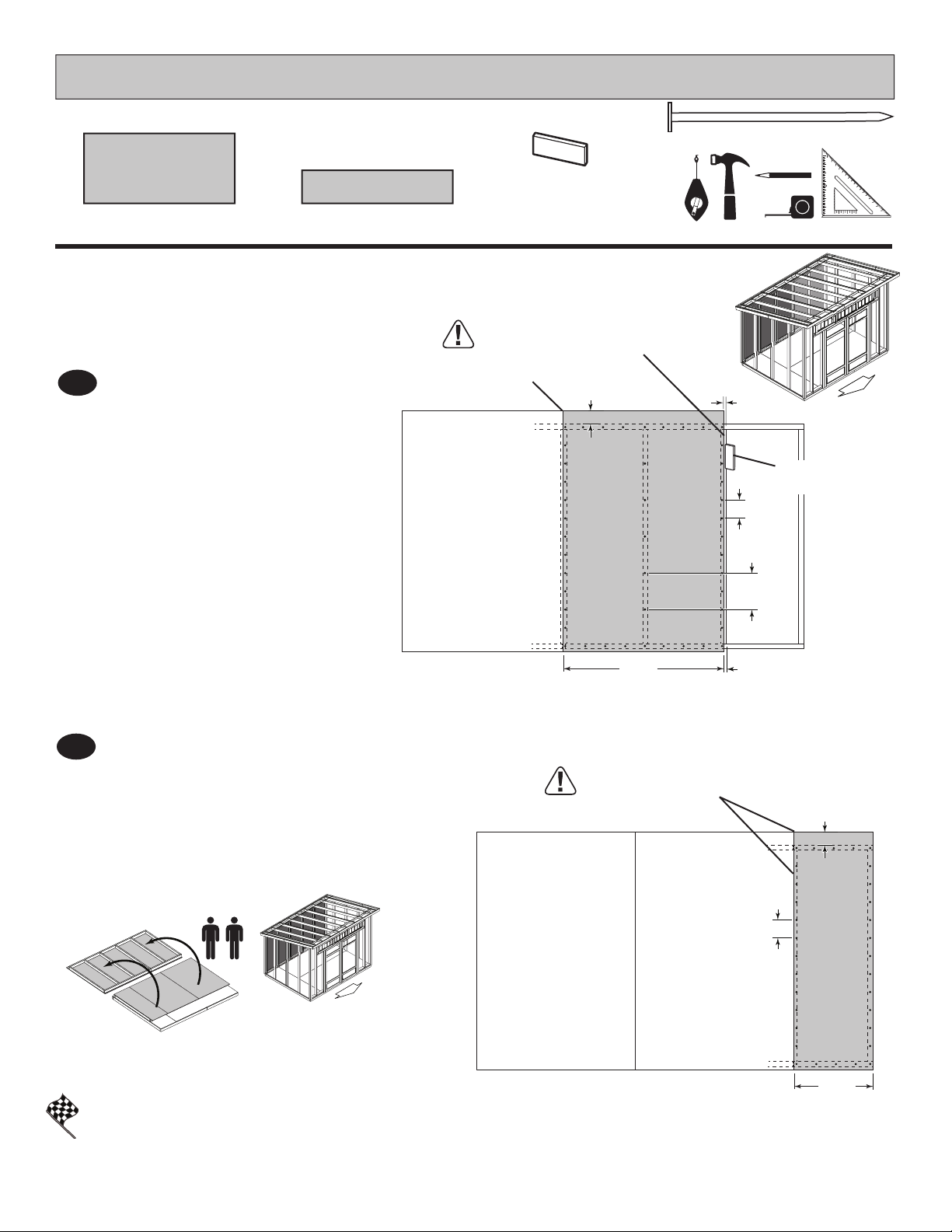

BACK WALL PANELS
PARTS REQUIRED: 2" (5,1 cm)
DOOR
Carefully  ip the wall over.
DOOR

BLOCK
GAA

BLOCK
Flush

19

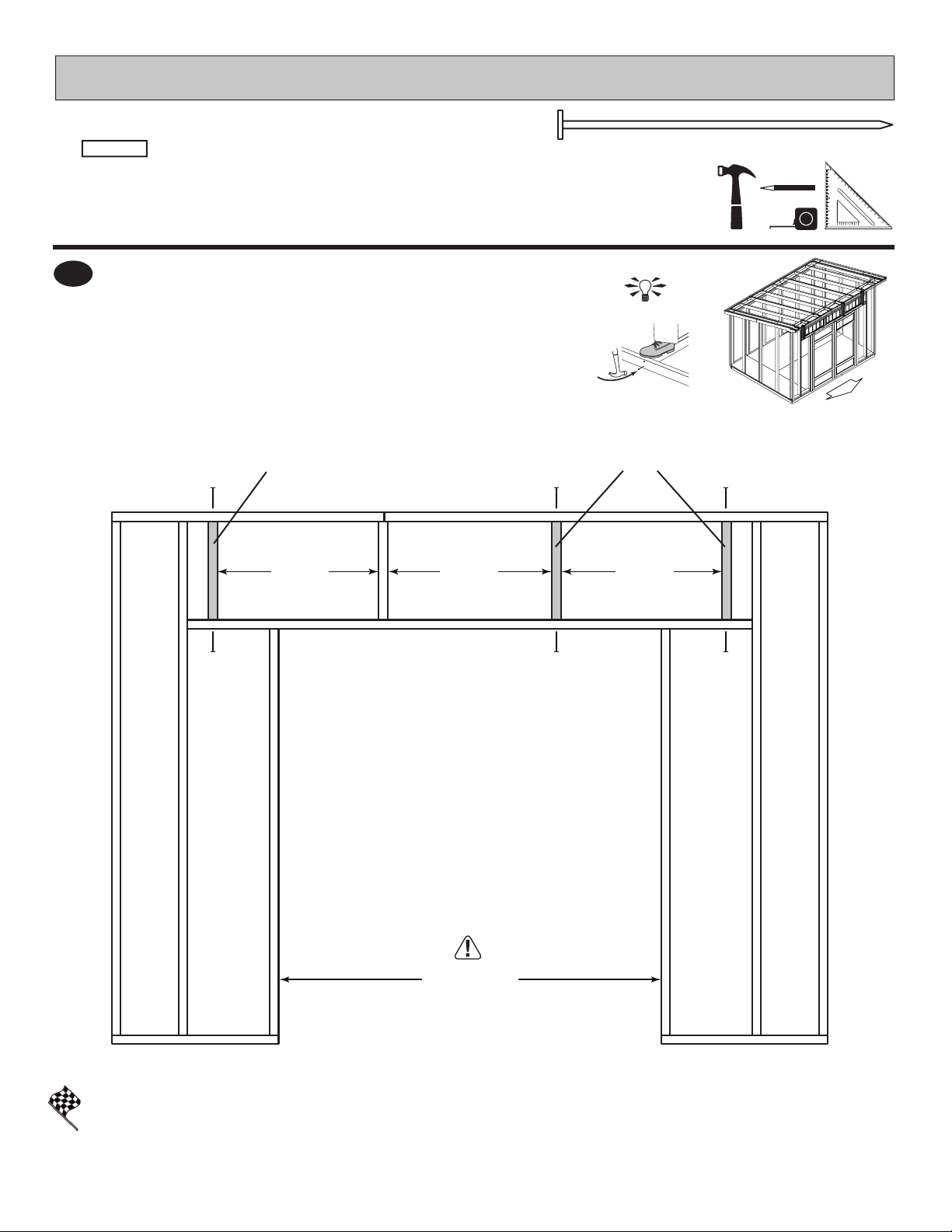

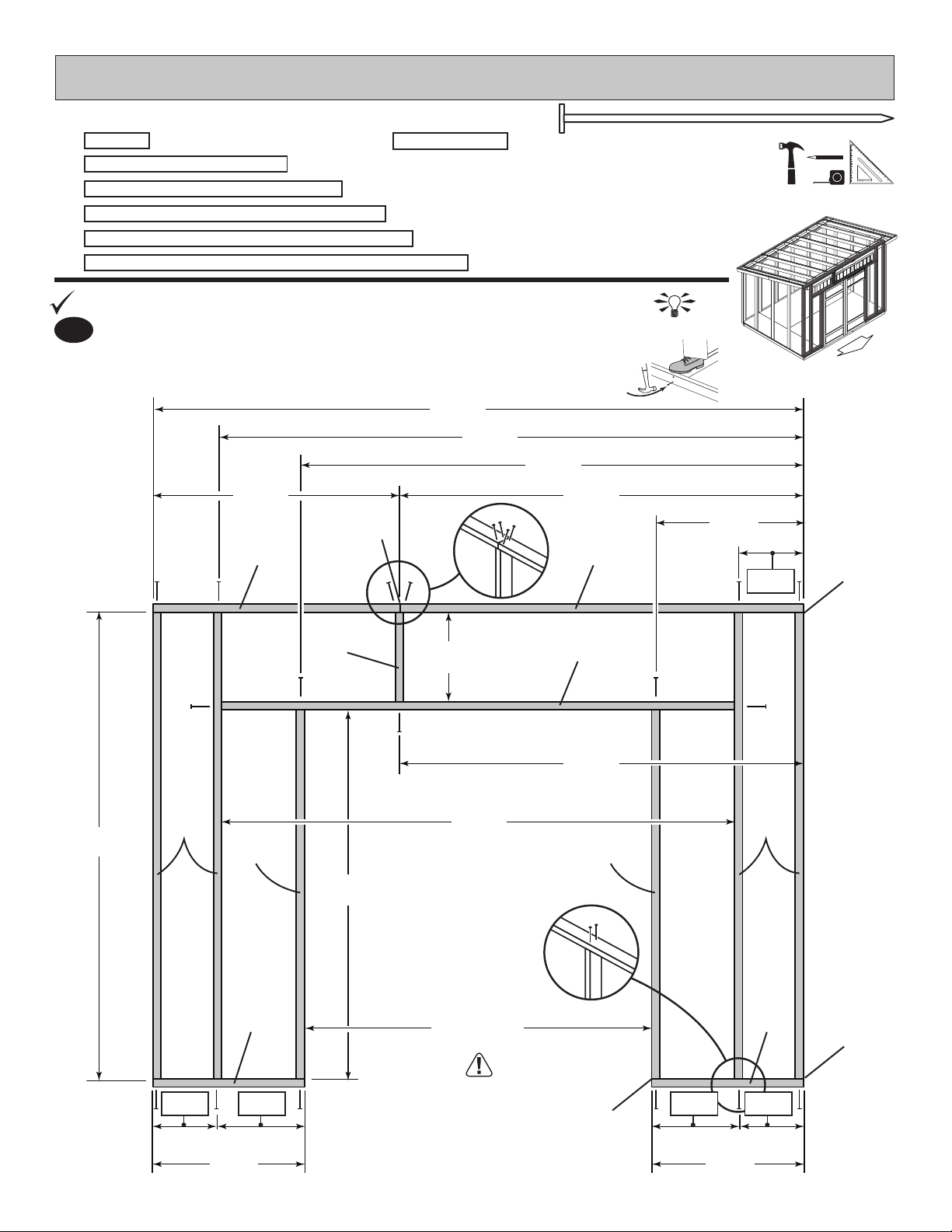

FRONT WALL FRAME
PARTS REQUIRED:
HINT:


x1
x2
x1
x4
x1
2 x 4 x 86" (5,1 x 10,2 x 218,4 cm)
2 x 4 x 94-1/2" (5,1 x 10,2 x 240,1 cm)
2 x 4 x 74-1/4" (5,1 x 10,2 x 188,6 cm)
2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
2 x 4 x 45-5/8" (5,1 x 10,2 x 115,8 cm)
BMA
UM
BNA
BLA
UN
2 x 4 x 28" (5,1 x 10,2 x 71,2 cm)
x2 RR
2 x 4 x 16-1/2" (5,1 x 10,2 x 42 cm)
x1 RD
x34 3" (7,6 cm)
DOOR
BEGIN
1
Secure with (2) 3" nails at each mark and (4) 3" nails at seam.
Arrange parts on edge on oor. Measure and mark.
Flush
Flush
Flush
Flush
16-1/2"
(42 cm)
28"
(71,2 cm)
28"
(71,2 cm)
74-1/4"
(188,6 cm)
45-5/8"
(115,8 cm)
74-1/4"
(188,6 cm)
94-1/2"
(240,1 cm)
86"
(218,4 cm)
68"
(172,7 cm)
120"
(304,8 cm)
108"
(274,3 cm)
12"
(30,5 cm)
12"
(30,5 cm)
12"
(30,5 cm)
16"
(40,6 cm)
16"
(40,6 cm)
BLA
X2
BLA
X2
UM
UN
RD
BNABMA
UM
RR RR
64"

27-1/4"
(69,2 cm)
92-3/4"
(235,6 cm)

27-1/2"
(69,9 cm)
27-1/2"
(69,9 cm)
20
DOOR
FRONT WALL FRAME
PARTS REQUIRED:
HINT:


2 x 4 x 16" (5,1 x 10,2 x 42 cm)
x3 RD
x12 3" (7,6 cm)
Secure with (2) 3" nails at each mark.
Install parts RD on edge as shown. Measure and mark.
2
27-1/2"
(69,9 cm)
64"

RD RD
Your front wall frame is now assembled.
FINISH
