KEEP THIS MANUAL FOR FUTURE REFERENCE
ASSEMBLY MANUAL
ACTUAL FLOOR SIZE IS 96 x 92-5/8" (244 x 235 cm)
GABLE 8' x 8' (244 x 244 cm)
16647-A
A Backyard Products Company
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
BEFORE YOU BEGIN
***CONTACT OUR CUSTOMER SERVICE TEAM
IF ANY PARTS ARE MISSING OR DAMAGED***
- Order form and warranty at back of manual -
Call: 1-734-242-6900 email: [e-mail]
• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check local building department and homeowners association for specic restrictions and/ or requirements before building.
• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface.
Recommended methods and materials to level your shed are listed on page 7.
• CHECK ALL PARTS
Inventory all parts listed on pages 5-6.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See page 4 for required and optional materials and quantities.

2
TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have nished the assembly or installation.
= Level
qGloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
qSafety Glasses
qTape Measure
qPaint Tools
qLadder
qWood Glue
qCaulk Gun
qHammer
qLevel
FINISH
BEGIN
qPencil
qPhillips
Screwdriver
qDrill / Driver
q3/8" Drill Bit
q1/4" Drill Bit
q1/2" Drill Bit
q1/8" Drill Bit
q#2 Philips Drive Bit
qTool Belt/
Nail Pouch
qChalk Line
qNail Gun
• gun nails
qTin Snips
(for drip edge)
qSquare or
qUtility Knife
qShingle Blades
B C

3

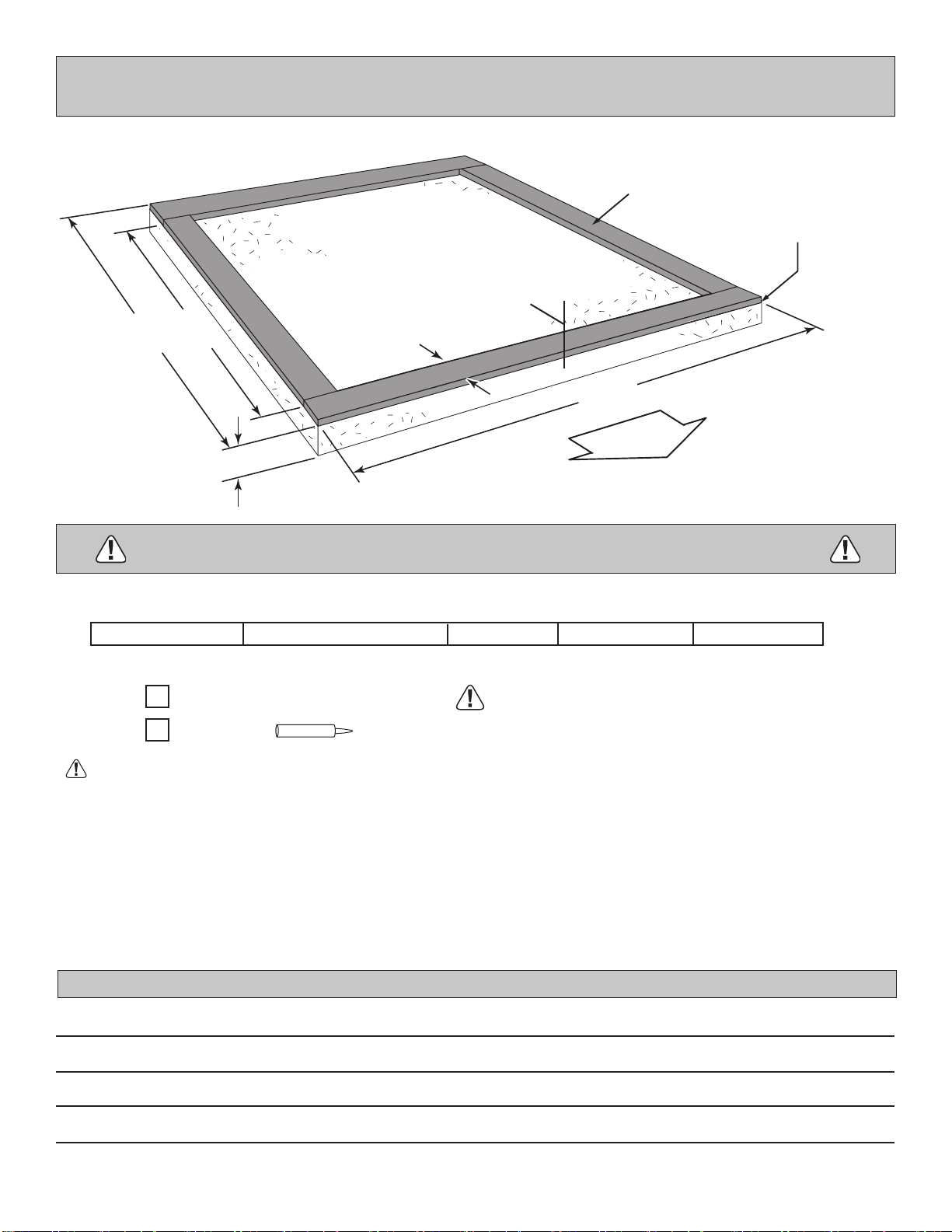

CONCRETE FOUNDATION
If you choose to install your kit on a concrete slab refer to the diagram below.
A
BC
4" (10,2 cm)
3-1/2"
(8,9 cm)
DOOR
Treated Sill Plate
Caulk between sill plate
and concrete.
A B CActual Floor SizeBuilding Size
• A treated 2 x 4" (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete. Hint: Use treated lumber in your kit or
purchase full length treated lumber.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4" (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
96" (243,8 cm) 85-5/8" (217,5 cm) 8'x 7'-8-5/8" (243,8 x 235,3 cm)
8'x 8' (243,8 x 243,8 cm) 92-5/8" (235,3 cm)
2 x 4 x 8' (5,1 x 10,2 x 243,8 cm)
Requires:
x4 MUST be treated lumber.
Caulk
x1
Allow new concrete slabs to cure for at least seven (7) days.
NOTES
Slab must be ush at the front of the shed for door opening clearance.
Any over-sized slab must have the excess at the sides or back of shed.
Flush

4
COMPLETING YOUR SHED
You will need these additional materials:
TO VALIDATE WARRANTY YOU MUST USE THE FOLLOWING:
ADDITIONAL MATERIALS
DRIP EDGE ..................... 34 Feet #15 ROOFING FELT
To cover 73 Sq. Ft. of roof area.
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS FOR
INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
3-TAB SHINGLES ............................ 4 Bundles
PAINT FOR SIDING .......................... 2 Gallons
Use 100% acrylic latex exterior paint. (2) coats recommended.
CAULK ................................................. 2 Tubes
Use acrylic latex exterior caulk that is paintable.
1" GALVANIZED ROOFING NAILS.... 2 Lbs
For shingles.
PAINT FOR TRIM .............................1 Quart
Use 100% acrylic latex exterior paint.

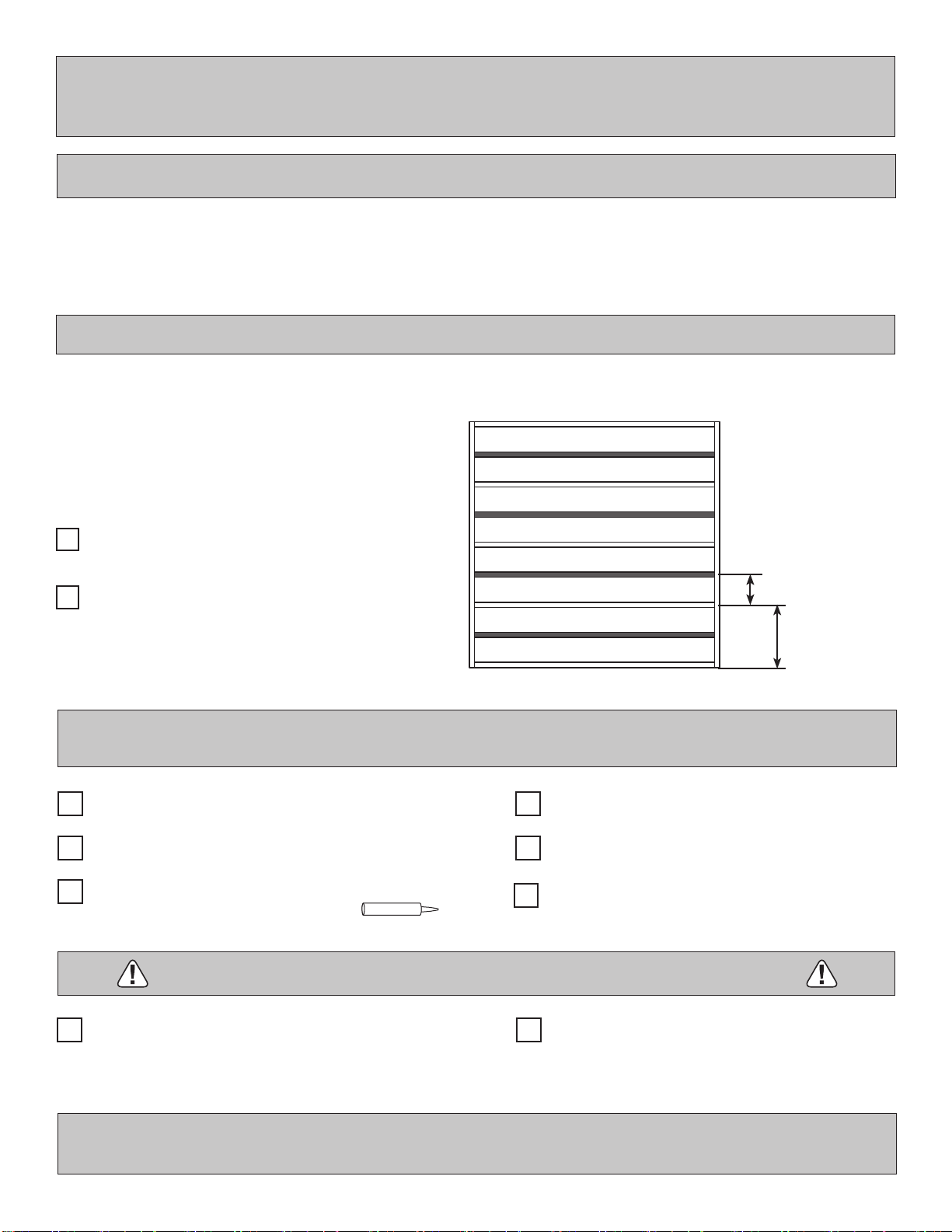

REINFORCED WOOD FLOOR FRAME (OPTIONAL)
IMPORTANT! The included oor has been designed for general use. Depending on your specic use you may want to construct a
heavy duty oor frame by adding additional oor joists (shown below as shaded). Below is a list of additional materials (not included):
x4
x16
2 x 4 x 8' (5,1 x 10,2 x 243,8 cm) Treated Lumber
Cut to 2 x 4 x 93" (5,1 x 10,2 x 236,2 cm)
ea. 3" (7,6 cm) Hot Dipped Galvanized Nails
Optional
12" (30,5 cm)
spacing
Standard
24" (61 cm)
spacing
FOUNDATION OR FLOOR MATERIALS
• This shed kit includes a wood oor system.
• This shed does not include any leveling materials.
• See the FLOOR LEVELING section on page 8 for recommended methods and suggested materials to properly level your

1" GALVANIZED ROOFING NAILS.........1/4 Lb
For roong felt.

5
PARTS IDENTIFICATION AND SIZES
RAFTERTRIM WALL
6 x 24" (15,2 x 61 cm)
x6

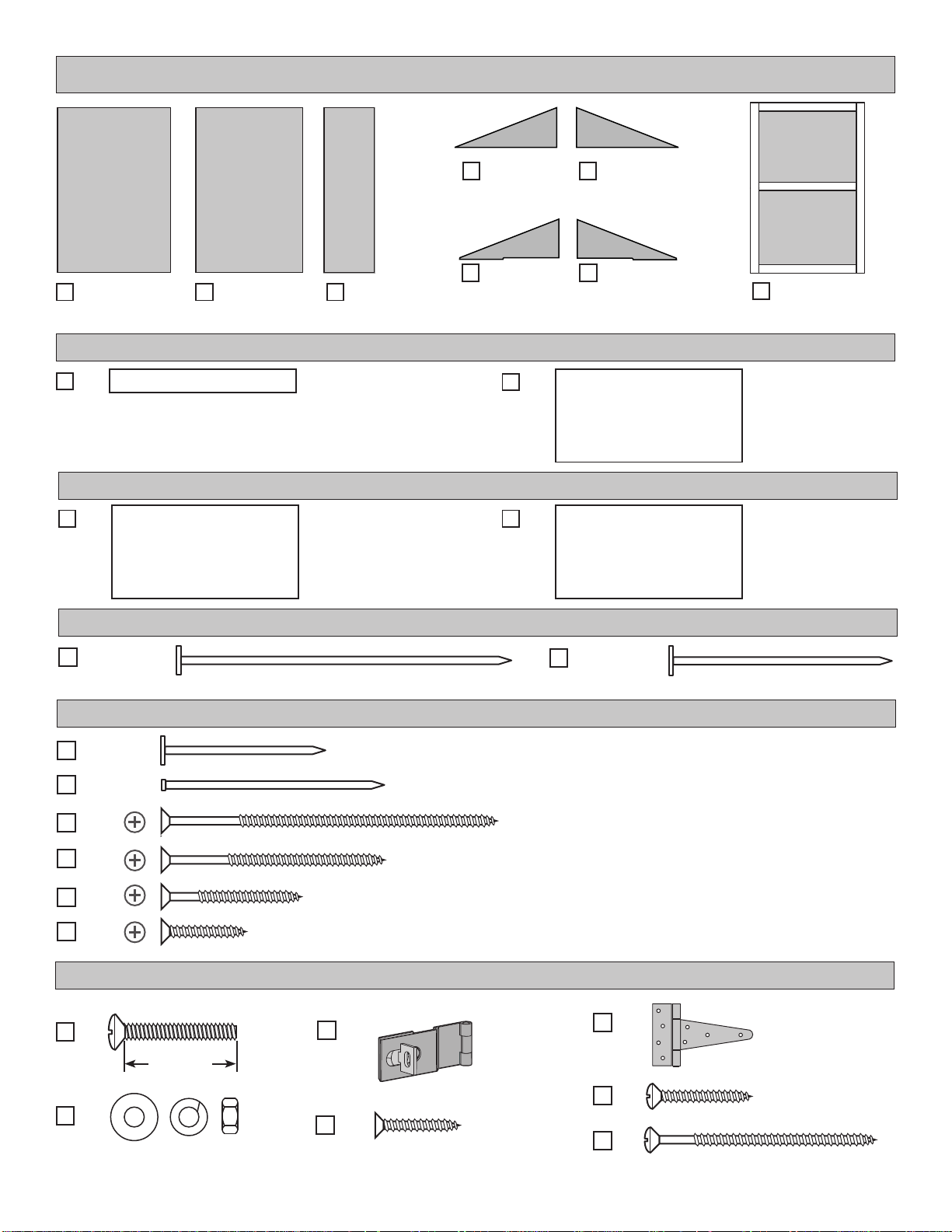

PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1 x 4
.................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4 ..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3 ..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3
.................3/4" x 2-1/2" (3,8 x 6,3 cm)
x2 2 x 3 x 17-1/2" (5,1 x 7,6 x 44,5 cm)
BV
x2 2 x 3 x 13" (5,1 x 7,6 x 33 cm)
RK
x10 2 x 3 x 67-3/8" (5,1 x 7,6 x 171,1 cm)
CJ
x2 2 x 3 x 69-1/2" (5,1 x 7,6 x 176,5 cm)
KU
x2 2 x 3 x 92-5/8" (5,1 x 7,6 x 235,3 cm)
PM
x2 2 x 3 x 96" (5,1 x 7,6 x 243,8 cm)
PT
2 x 4 x 52" (5,1 x 10,2 x 132,1 cm)
x6 CM
5/8 x 2-1/2 x 92-5/8" (1,6 x 6,4 x 235,3 cm)
x2
2 x 3 x 34" (5,1 x 7,6 x 86,4 cm)
x2 CI
Part identication is
stamped on some parts.
• Check these locations for part stamp.
RS RS
x1 2 x 3 x 91 " (5,1 x 7,6 x 231,1 cm)
PS
DOOR FLOOR
OO
x1 2 x 3 x 69" (5,1 x 7,6 x 175,3 cm)
2 x 4 x 93" (5,1 x 10,2 x 236,2 cm)
x5 TREATED
x2 2 x 4 x 92-1/2" (5,1 x 10,2 x 235 cm)
TREATED
x4 3/8 x 1-3/4 x 72" (1 x 4,4 x 182,9 cm)
x4 3/8 x 1-3/4 x 71" (1 x 4,4 x 180,3 cm)
x2 3/8 x 1-3/4 x 69" (1 x 4,4 x 175,3 cm)
2 x 4 x 53-11/16" (5,1 x 10,2 x 136,4 cm)
x4 CL
1 x 3 x 55" (2,5 x 7,6 x 137,2 cm)
x2 DS
Treated lumber is stamped:
Treated lumber is stamped:
x2 1 x 3 x 60" (2,5 x 7,6 x 152,4 cm)
GUA
x2 19/32" x 2-1/2" x 72-3/8" (1,5 x 6,3 x 183,8 cm)
KY

WALL PANELS, AND DOORS
FASTENER/HARDWARE BAG
NAIL BOXES
x13
x24
x73
x42
x25
3" (7,6 cm)
3" (7,6 cm)
2" (5,1 cm)
2" (5,1 cm)
2" (5,1 cm)
3/4" (1,9 cm)
1-1/4" (3,2 cm)
x1BOXES x4 BOXES
x2
3/8 x 48 x 72"
(1 x 121,9 x 182,9 cm)
x4
3/8 x 46-1/8 x 72"
(1 x 117,2 x 182,9 cm)
x2
3/8 x 23-7/8 x 72"
(1 x 60,6 x 182,9 cm)
x2 x2
5-7/8" x 96"
(14,9 x 243,8 cm) 48" x 96"
(121,9 x 243,8 cm)
x1 DOOR
ROOF PANELS
x107 1-1/2" (3,8 cm)
x3 Sets
x7 3/4" (1,9 cm)
NOTE:
If you are using a nail gun, nails
may be used where screws are
shown for quicker assembly.
Length of nail must match screw length.
6
Roof panels are
7/16" (1,1 cm)
thick.
DOOR HARDWARE
FLOOR PANELS
x1x1
x1
x1
x1
x1
48" x 96"
(121,9 x 243,8 cm)
44-5/8" x 96"
(113,3 x 243,8 cm)
Floor panels are
5/8" (1,6 cm) thick.
1-1/2"
(3,8 cm)
x3
x3
x4
x7
x5
2-1/2" (6,4 cm)
1" (2,5 cm)
x3

7

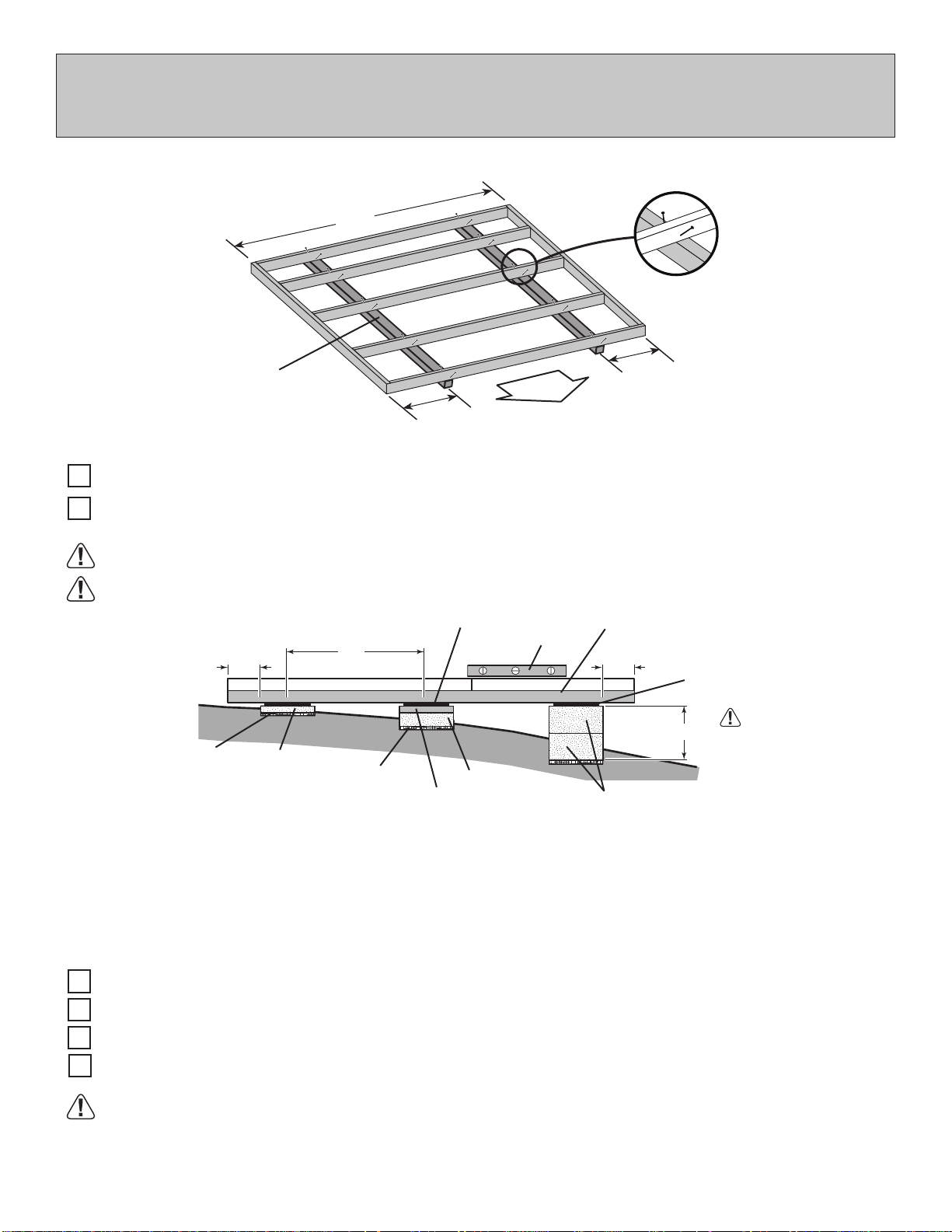

FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber. Never use
shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
• If you are building your shed on a concrete foundation see the following page.
CONCRETE
MATERIAL REQUIRED
x2 4 x 4 x 8' (10,2 x 10,2 x 243,8 cm) Treated Lumber
Fasteners for Frame to 4 x 4.
(3" Screws shown as one option.) Minimum (20) 3" screws / exterior grade.
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
4" Block
8" Block
Gravel
Gravel Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
DOOR
96"96"
(243,8 cm)(243,8 cm)
PREFERRED METHOD - 4x4 TREATED RUNNERS
12"
(30,5 cm)
12"
(30,5 cm)
Measurements to
centers of 4x4's.
• 3" Screw angled into 4x4.
• (2) at each point frame
and 4x4 touch.
4x4 Runners
(not included).

PARTS REQUIRED: NOTE:
Look for Stamp.
STANDARD FLOOR FRAME
3" (7,6 cm)
x5 2 x 4 x 93" (5,1 x 10,2 x 236,2 cm)
x2 2 x 4 x 92-1/2" (5,1 x 10,2 x 235 cm)
TREATED
TREATED
x20
HINT:
For easier nailing
stand on frame.
• FOR 10' x 12', SKIP TO PAGE 16
BEGIN
1
FINISH
8
96"
(243,8 cm)
92-1/2"
(235 cm)
93"
(236,2 cm)
48"
(121,9 cm) 24"
(60,9 cm)
20-1/2"
(52,1 cm)
72"
(182,8 cm)
92-1/2"
(235 cm)
Flush
at ends.
Center
on marks.
Center
on marks.

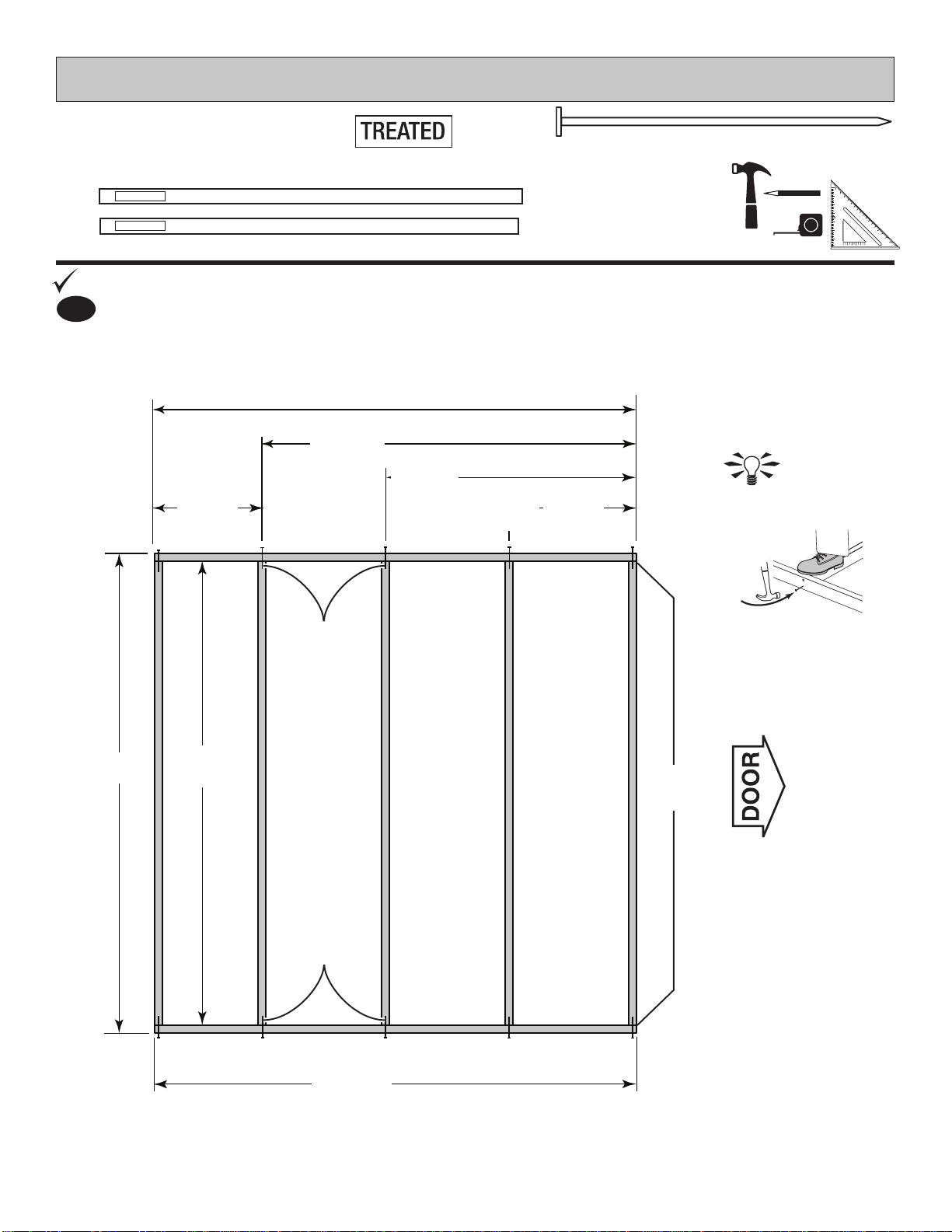

Arrange parts as shown on at surface. Measure and mark.
Secure with (2) 3" nails at each mark and (4) nails at seams.
Your oor frame is now nished. Proceed to level and square frame.

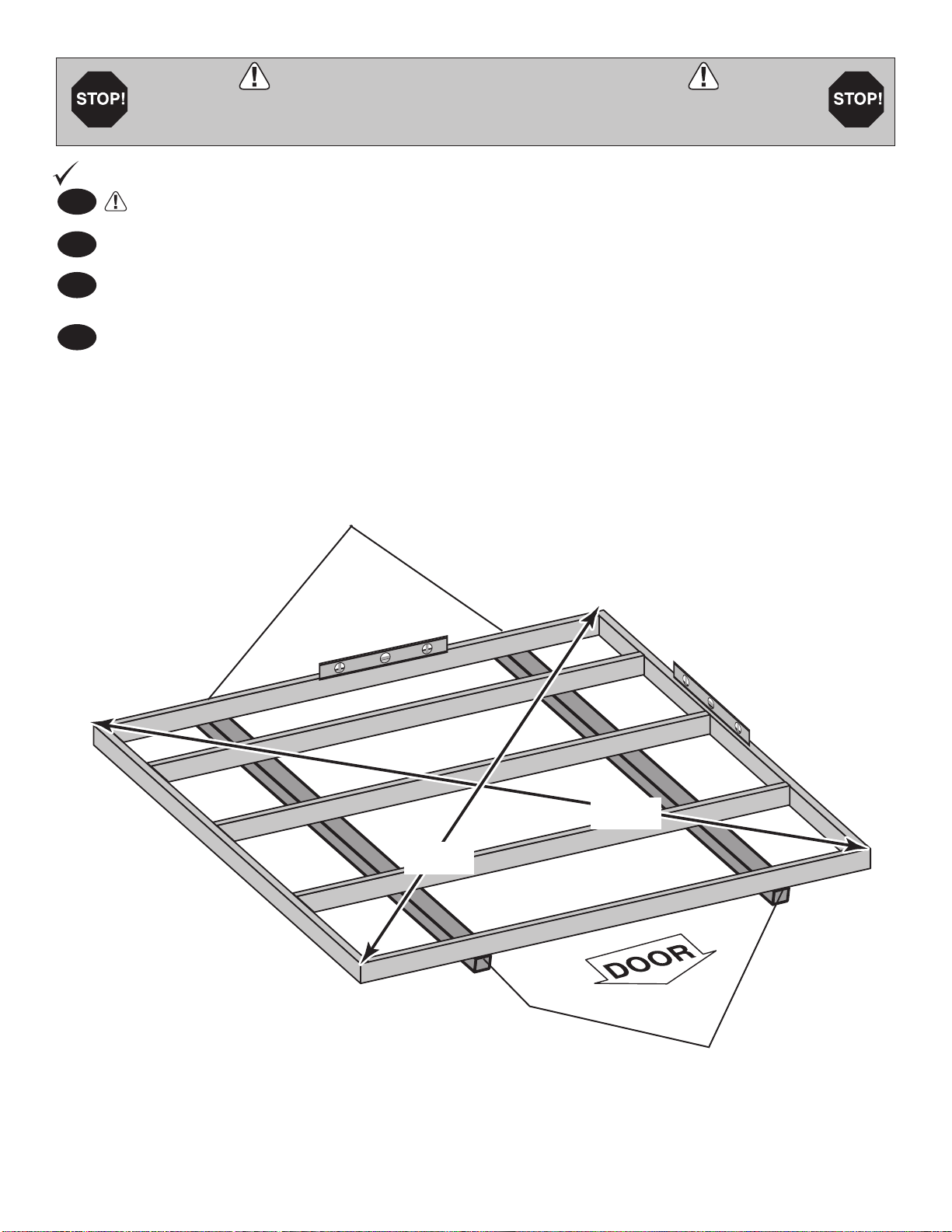

LEVEL AND SQUARE FLOOR FRAME
Before attaching oor decking, it is important to level and square the oor frame.
A level and square oor frame is required to correctly construct your shed.
FINISH
BEGIN
2
3
4
1
Use level and check the frame is level before applying oor panels.
Check for frame squareness by measuring diagonally across corners. If the measurements are the same,
the frame is square. The diagonal measurement will be approximately 133-5/16" (338,6 cm).
When the frame is level and square secure one side of frame to the 4x4 runners using one fastener at ends
of each runner. At the opposite end of the frame, secure the frame to 4x4 runners with one fastener at ends
of each runner making sure the frame remains square (Fig. A).
Once the oor frame is level and square fasten the frame at each point
where the frame contacts the 4x4 runners.
See page 7 for the preferred oor leveling method.
9
First, secure at ends
with one fastener.
Second, secure at ends
with one fastener.
133-5/16"
(338,6 cm)
133-5/16"
(338,6 cm)
Fig. A

5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
PARTS REQUIRED:

FLOOR PANELS
x1 2" (5,1 cm)
x53
92-1/2"
(235 cm)
48"
(121,9 cm)
Fig. C
133-5/16"
(338,6 cm)
133-5/16"
(338,6 cm)
(2) Nails
Flush
Fig. A
Flush
at top
corner
edge.
Fig. B
(2) Nails
10


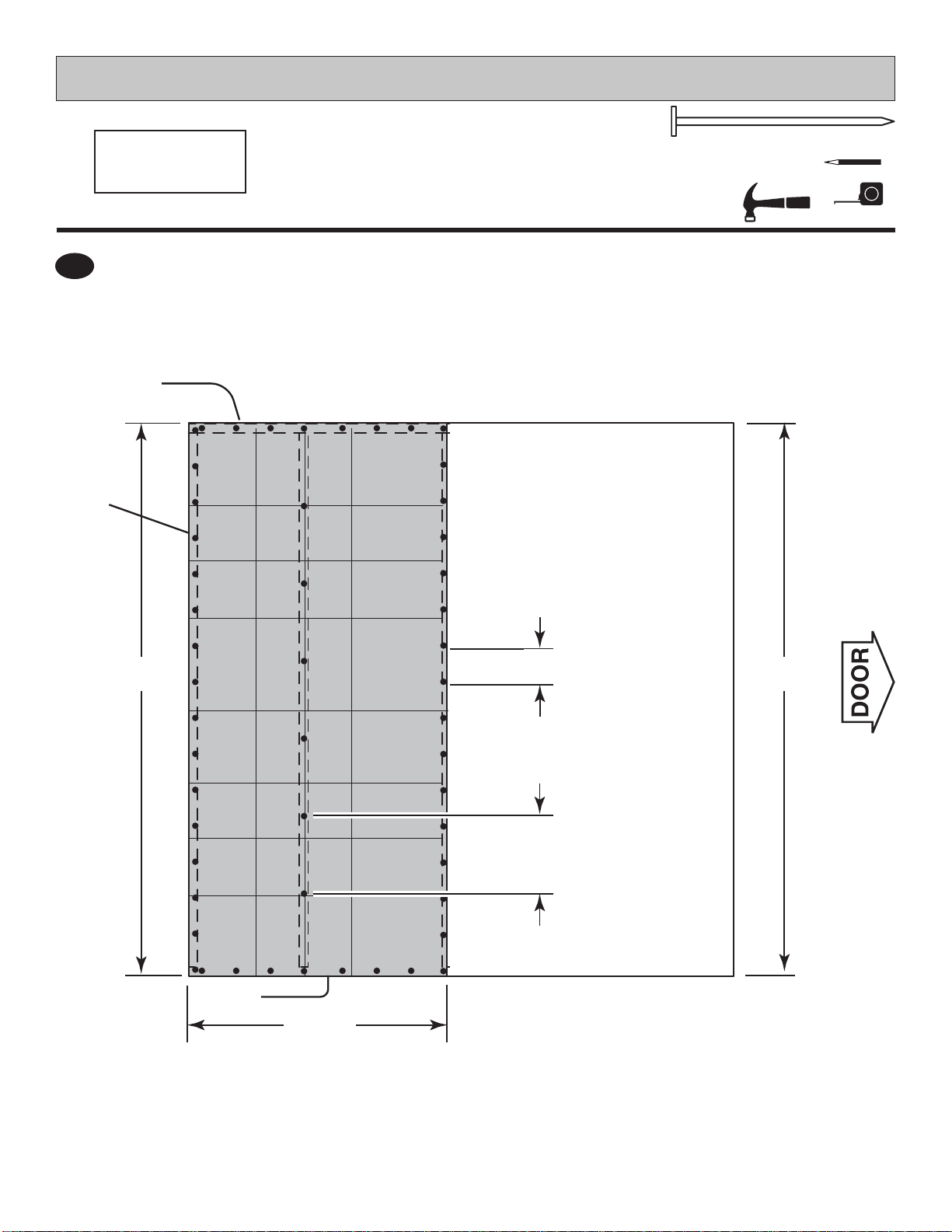

Move to the opposite side. Using the long edge of the panel as a lever, move the panel side-to-side until the
corner is ush to the oor frame (Fig. B). Use the gauge block to ensure 3/4" on the joist.
Secure panel with (2) 2" nails in the corners.
2
BEGIN
1
3
4Secure the panel with 2" nails spaced 6" apart on edges and 12" apart inside panel.
Use a chalk line or use pre-painted grid lines to locate joists.
Ensure that the oor frame is square by measuring diagonally across the frame corners. If the measurements
are the same, your oor frame is square. The measurement will be approximately 133-5/16" (338,6 cm).

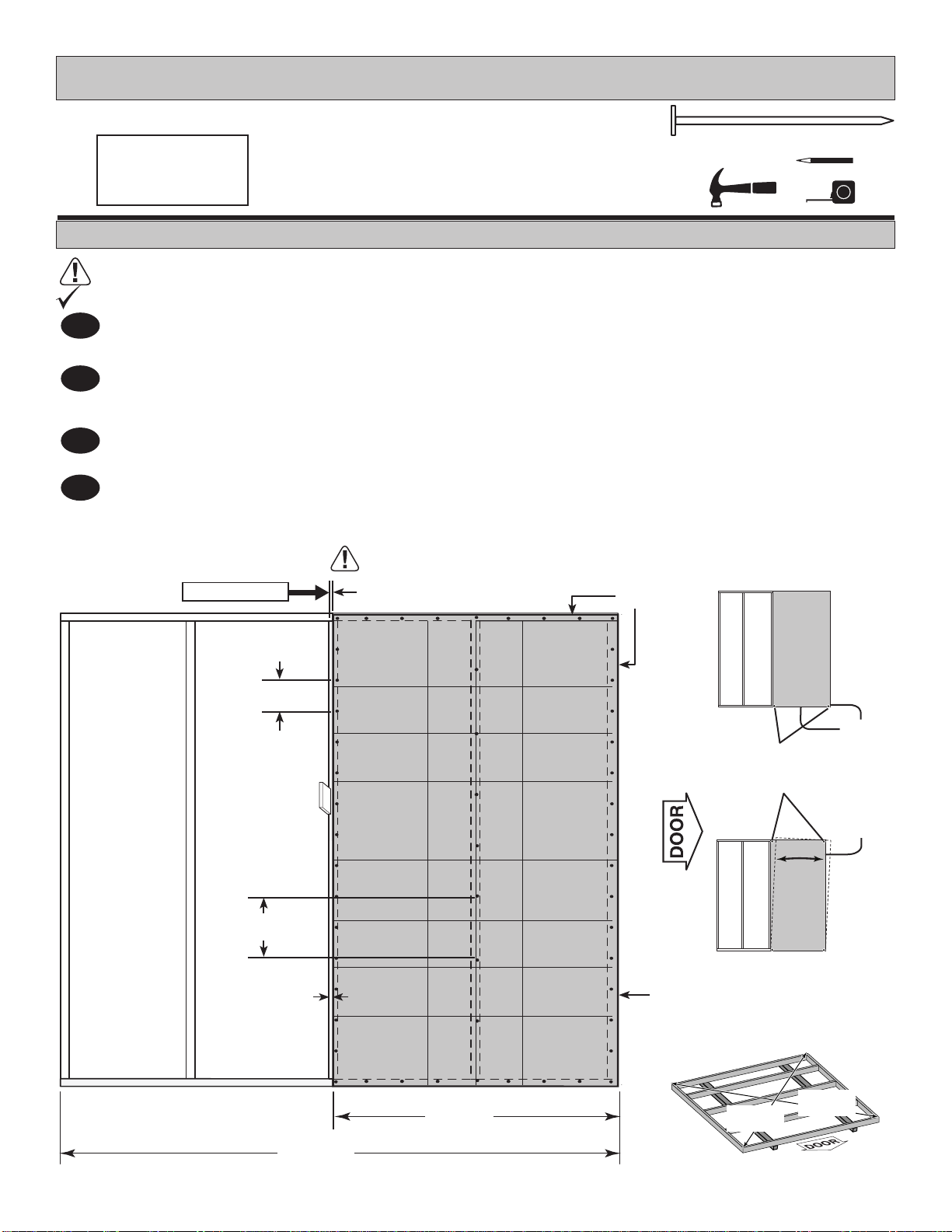

Place the
48" x 96" panel with the 48" edge and corner ush to the oor frame (Fig A).
Secure panel with (2) 2" nails in the corners.
3/4" Gauge
Block
For squareness maintain 3/4"
measurement along panel edge.
BEGIN HERE 3/4"
(1,9 cm) Flush
Flush
6" (15,2 cm)
12"
(30,5 cm)
3/4"
(1,9 cm)

FLOOR PANELS
2" (5,1 cm)
PARTS REQUIRED:
x1
96"
(243,8 cm) 96" (243,8 cm)
44-5/8"
(113,3 cm)
Flush
12"
(30,5 cm)
6"
(15,2 cm)
Flush
Flush
x53
11
5
FINISH
Your oor panels are now installed.
5/8 x 44-5/8 x 96"
(1,6 x 113,3 x 243,8 cm)
Place the 44-5/8 x 96" panel with the 48" edge and corner ush to the oor frame (Fig A).
Secure panel with (2) 2" nails in the corners.

12
IMPORTANT!


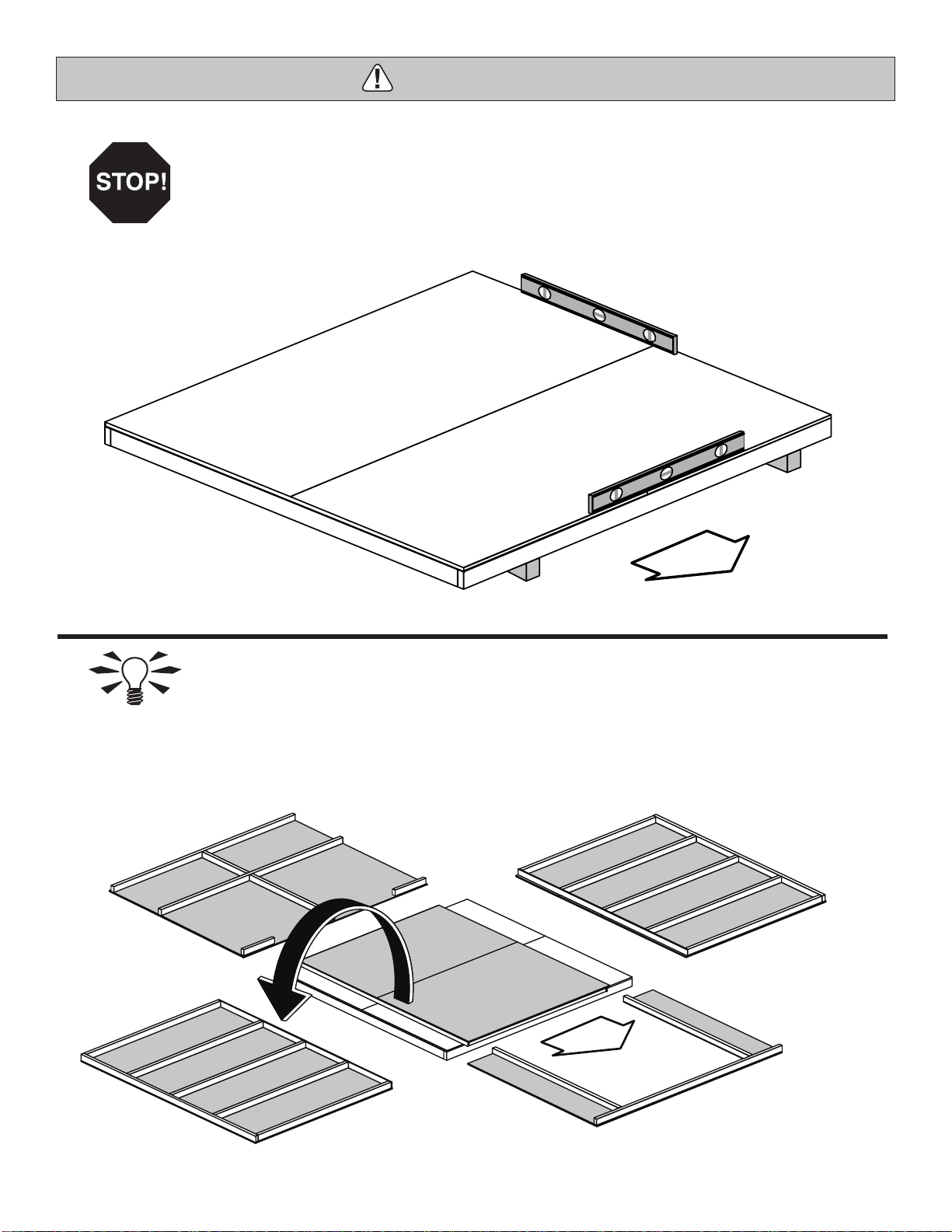

Re-level if needed.

• Organize your assembly procedure during the build process
to avoid over-handling of the walls.
HINT:
IMPORTANT!
DOOR
SIDE WALL
SIDE WALL FRONT WALL
BACK WALL
DOOR

22-5/16"
(56,7 cm)
24"
(61 cm)
24"
(61 cm)
22-5/16"
(56,7 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
5/8"
(1,6 cm)
92-5/8"
(235,3 cm)
13
SIDE WALL FRAMES
1
BEGIN
3" (7,6 cm)
PARTS REQUIRED: x20
2" (5,1 cm)
x20
Center on marks.
HINT:
3" (7,6 cm)
Nails
x10 2 x 3 x 67-3/8" (5,1 x 7,6 x 171,1 cm)
CJ
x2 2 x 3 x 92-5/8" (5,1 x 7,6 x 235,3 cm)
PM
5/8 x 2-1/2 x 92-5/8" (1,6 x 6,4 x 235,3 cm)
x2
PM
CJ

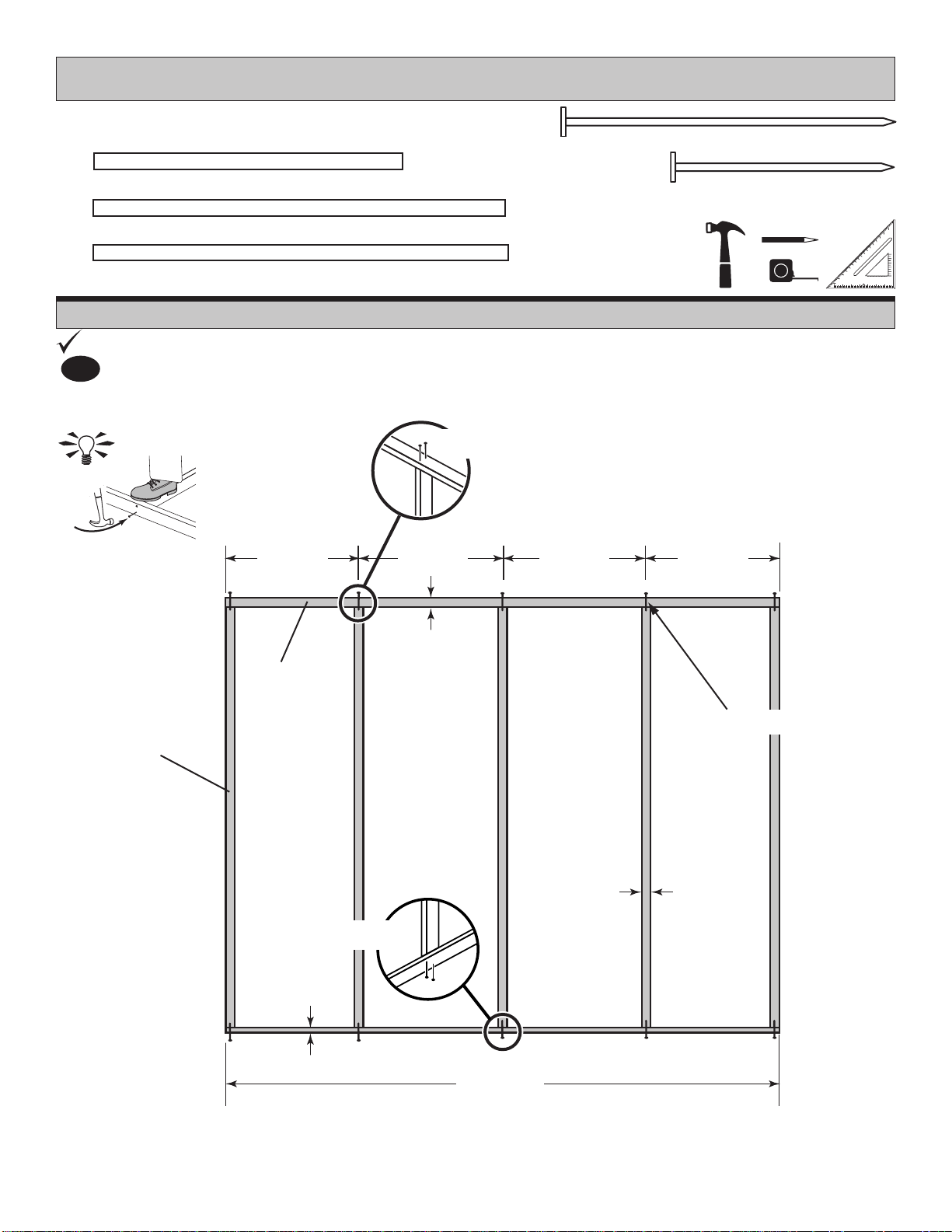

Arrange parts on edge on oor. Measure and mark from end of boards.
Secure with (2) 3" nails at each mark at top plate and (2) 2" nails at bottom plate.
IMPORTANT! You will build two walls the same.
2" (5,1 cm)
Nails

46-1/8"
(117,2 cm)
1-1/2"
(3,8 cm)
3/4"
(1,9 cm)
3/4"
(1,9 cm)
14
2" (5,1 cm)
PARTS REQUIRED:
3/8 x 46-1/8 x 72"
(1 x 117,2 x 182,9 cm)
x1
x90
SIDE WALL PANELS
BEGIN HERE
6" (15,1 cm)
12" (30,2 cm)
For squareness maintain 3/4" and 1-1/2"
measurement along stud.
Fig. A
Fig. B
3/4"
(1,9 cm)
3/4"
(1,9 cm)
2 Nails
Use RK as gauge block.
2 Nails

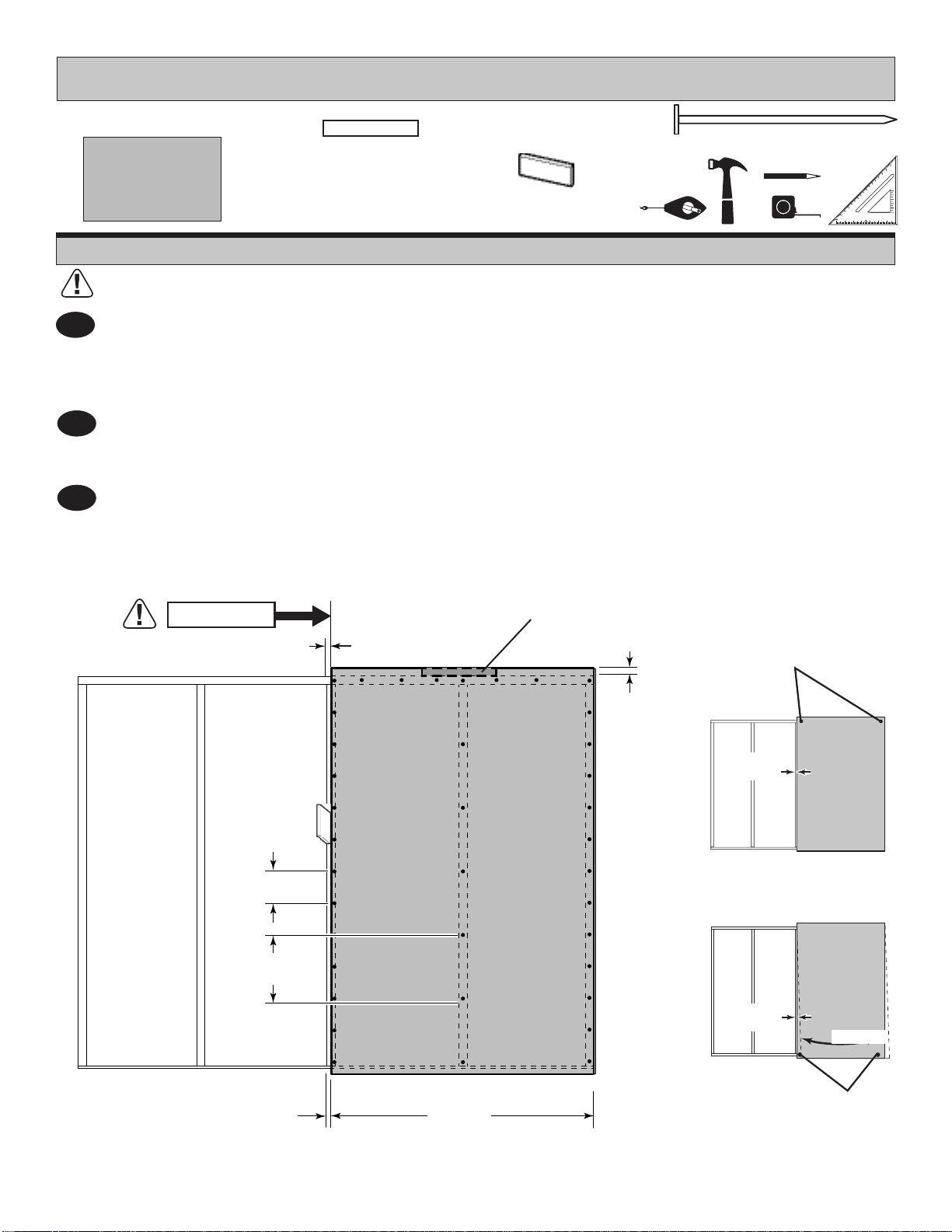

Place (1) 46-1/8 x 72" panel onto wall frame, as shown.
Ensure a 3/4" measurement along the wall stud and locate the panel to 1-1/2" above top plate.
Secure panel with (2) 2" nails in the corners (Fig. A).
5
4
3
Secure the panel with 2" nails spaced 6" apart on edges and 12" apart inside panel.
Ensure your wall frame is square by installing one panel and squaring frame.
Move to the opposite end. Using the long edge of the panel as a lever move the panel side-to-side
until you have a 3/4" measurement on the wall stud. Secure corner with (2) 2" nails (Fig. B).
2 x 3 x 13" (5,1 x 7,6 x 33 cm)
x1 RK
TEMPORARY SPACER
Install all wall panels with the primed side facing up.
3/4" GAUGE
BLOCK
GAA
3/4" Gauge
Block

1-1/2"
(3,8 cm)
15
2 x 3 x 13" (5,1 x 7,6 x 33 cm)
x1 RK 2" (5,1 cm)
PARTS REQUIRED: x90
SIDE WALL PANELS
Place (1) 46-1/8 x 72" panel on frame ush to installed panel.
Secure with 2" nails spaced 6" apart on edges and 12" apart inside panel.
6
Carefully ip your side wall over.
Repeat steps to assemble your second side wall.
You (2) side walls are now assembled.
FINISH
TEMPORARY SPACER
Use RK as a
gauge block.
3/8" x 46-1/8" x 72"
(1 x 117,2 x 182,9 cm)
x1
6" (15,1 cm)
12" (30,2 cm)
To draw panels
tight at seams,
angle nail. Flush
46-1/8"
(117,2 cm)

1-1/2
(3,8 cm)
2-1/2"
(6,4 cm)
2-1/2"
(6,4 cm)
34"
(86,4 cm)
45-1/2"
(115,6 cm) 45-1/2" (115,6 cm)
91"
(231,1 cm)
1-1/2"
(3,8 cm)
16
2 x 3 x 34" (5,1 x 7,6 x 86,4 cm)
x1 CI
x1 2 x 3 x 91 " (5,1 x 7,6 x 231,1 cm)
PS
BACK WALL FRAME
2
1
BEGIN
3" (7,6 cm)
PARTS REQUIRED:
HINT:
x3
CI
Flush
PS
(2) 3" (7,6 cm
Nails

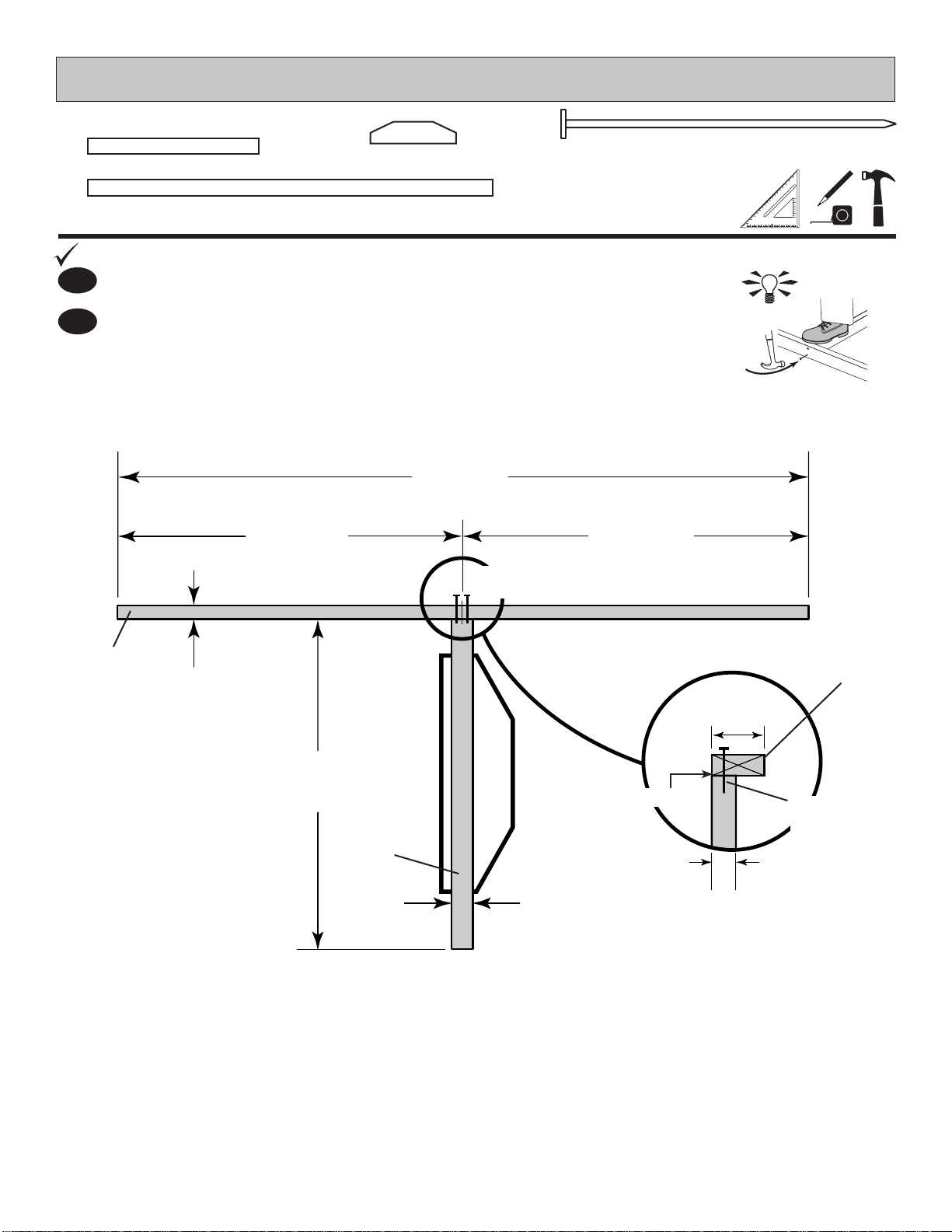

Center PS on CI on edge on oor as shown.
Secure parts with (2) 3" nails.
Place CI on at side. Use (3) gussets stacked under CI as support.
x3 GUSSET
TEMPORARY SUPPORT
PS
3" (7,6 cm)
Nails
GUSSET

48"
(121,9 cm) 48" (121,9 cm)
96"
(243,8 cm)
1-1/2"
(3,8 cm)
2-1/2"
(6,4 cm)
34"
(86,4 cm)
1-1/2
(3,8 cm)
2-1/2"
(6,4 cm)
17
Flush
3" (7,6 cm)
Nails
2 x 3 x 34" (5,1 x 7,6 x 86,4 cm)
x1 CI
x1 2 x 3 x 96" (5,1 x 7,6 x 243,8 cm)
PT
Fig. A
Fig. B
Center PT on CI on edge on oor as shown.
Secure PT to CI with (2) 3" nails (Fig. A).
Center CI on PS on at side. Use (3) gussets stacked under CI as support.
3" (7,6 cm)
BACK WALL FRAME
At the middle connection, connect PS to CI with (2) 3" screws angled (Fig. B).
3
4
5
FINISH
Your back wall frame is now nished.
PARTS REQUIRED: 3" (7,6 cm)
x2
PS
PT
CI 3" (7,6 cm)
Screws
3" (7,6 cm)
Nails
x2
x3 GUSSET
TEMPORARY SUPPORT
GUSSET

34"
(86,4 cm)
6"
(15,2 cm)
34"
(86,4 cm)
2-1/2"
(6,4 cm)
12"
(30,5 cm)
1-1/4"
(3,2 cm)
1-1/4"
(3,2 cm)
1-1/4"
(3,2 cm)
18
3/8 x 48 x 72"
(1 x 121,9 x 182,9 cm)
Flush
1-1/2" Nails
only in vertical
framing.
1-1/2" Nails
only in vertical
framing.
1-1/2" (3,8 cm)
Nails
2" (5,1 cm)
Nails
2" (5,1 cm)
Nails
x1
Place left panel on back frame, as shown.
BEGIN
2
3
1
Secure horizontal framing with 2" nails spaced 6" apart on edges and 12" apart inside panel.
Secure vertical framing with 1-1/2" nails spaced 6" apart on edges.
BACK WALL PANELS
PARTS REQUIRED:

at top and 1-1/4" measurement
along panel edges.
x11 1-1/2" (3,8 cm)
2" (5,1 cm)
x11
Install all wall panels with the primed side up.
