User’s Manual
Flash Drive
BF-23xx

Flash Drive User’s Manual 1
CONTENT
1. Introduction----------------------------------------------------------------------------------2
2. Package Content--------------------------------------------------------------------------2
3. Product Features--------------------------------------------------------------------------2
4. System Requirements------------------------------------------------------------------3
5. Part Name and Function------------------------------------------------------------3
6. Driver Installation-------------------------------------------------------------------------4
6.1 Windows®98 Driver Installation------------------------------------------------4
6.2 Windows®98 Driver Un-Installation------------------------------------------10
6.3 Windows®ME Driver Installation---------------------------------------------11
6.4 Windows®ME Driver Un-Installation----------------------------------------14
6.5 Windows®2000 Driver Installation-------------------------------------------15
6.6 Windows®2000 Driver Un-Installation--------------------------------------19
6.7 Windows®XP Driver Installation----------------------------------------------20
6.8 Windows®XP Driver Un-Installation-----------------------------------------23
6.9 MAC Driver Installation----------------------------------------------------------24
6.10 MAC Driver Un-Installation-----------------------------------------------------24
7. Utility Program Brief Description-----------------------------------------------25
8. FAQ----------------------------------------------------------------------------------------------26
9. Disclaimer----------------------------------------------------------------------------------27
10. FCC Statement--------------------------------------------------------------------------27
11. Technical Support---------------------------------------------------------------------27

Flash Drive User’s Manual 2
1. Introduction
The Flash Drive works as a friendly, secure, and lightweight removable mass
storage device disk. It plugs through the USB port so your host computer will
immediately detect and configure the removable drives without re-starting computer
again.
Unlike most USB Flash Drive, it also comes with a security feature that allows you
to require a password upon plugging the disk before use. This USB Flash Drive is
partitioned into a 1-Mbytes accessory disk and main disk. Users have to enter the
security password to gain access into the main disk. The 1MB accessory disk (no
password) can also be used to pre-load the driver and utility program of the USB
Flash Drive.
2. Package Content
Hardware:
 Flash Drive
 Strap for hanging on the neck
 USB A-A Cable
Software:
 Driver software CD
 User’s Manual
3. Product Features
 Smart and secure removable data storage for business and personal use
 Easy Plug and Play Function
 Offers 16MB, 32MB, 64MB, 128MB, 256MB, and 512MB
 Password security feature to prevent disk access
 Embedded hub function allows partitioning of the USB Flash Disk into a 1MB
auxiliary mass storage device disk and a primary secured main disk
 Data Write-Protect Switch
 Full compatible with the Universal Serial Bus Specification V1.1
 High performance write up to 800Kbyte/sec and read up to 970Kbyte/sec
 Windows mass storage device class compatible so no drive needed in
Windows ME, 2000, XP, or above. Only requires security device driver.
 No separate power supply or battery required
 State-of-the-art NAND Flash Memories
 Shock resistant and data retention of at least 10 years
 Advanced power management mechanism

Flash Drive User’s Manual 3
4. System Requirements
PC
 AMD or Intel Pentium 133MHz or better based computer
 Available USB port
 CD-ROM drive
 Windows®98SE, Windows®ME, Windows®2000, Windows®XP
MAC
 Power PC G3, G4, or I-Mac
 Available USB port
 CD-ROM drive
 Mac OS 8.x, OS 9.x and OS X (Without Security feature)
5. Part Name and Function
Write Protect
Power/Data Access
LED

Flash Drive User’s Manual 4
6 Driver Installation
6.1 Windows®98 Installation
First step Windows®will install “Mass Storage Device”. (6.1.2 through 6.1.6)
Second step Windows® will install “Security Device”. (6.1.7 through 6.1.14)
6.1.1 Connect the USB port of Flash Drive to PC with USB cable.
6.1.2 The “Add New Hardware Wizard” dialog box will appears as below, click
“Next” to continue.
6.1.3 Choose “Search for the best driver for your device (Recommended)”
then click “Next”.
6.1.4 Select “Specify a location” and type D:\DRIVER\BF-23XX\WINDOWS (D:
represents CD-ROM) in the dialog box, then click “Next”

Flash Drive User’s Manual 5
6.1.5 Windows®will search the driver for this device. Make sure the driver that
Windows® found is “D:\DRIVER\BF-23XX\WINDOWS\PL2315U.INF” then
click “Next”.
6.1.6 Click “Finish” to complete the installation procedure of “USB Mass
Storage Device”
6.1.7 System will start to install “SECURITY” device. If you don’t need the
“Security” feature then click on “Cancel” to exit else click on “NEXT”
to continue.

Flash Drive User’s Manual 6
6.1.8 Choose “Search for the best driver for your device (Recommended)”
then click “Next”.
6.1.9 Select “Specify a location” and type D:\DRIVER\BF-23XX\WINDOWS (D:
represents CD-ROM) in the dialog box, then click “Next”.
6.1.10 Windows®will search the driver for this device. Make sure the driver that
Windows® found is “D:\DRIVER\BF-23XX\WINDOWS\JUPITER.INF”
then click “Next”. .

Flash Drive User’s Manual 7
6.1.11 When installing the “Security” driver, Windows® will pop up a
“JUPITER_Check Password 1.0.0.0 ” dialog box, Click on “OK” to
continue.
6.1.12 Click on “More” to “JUPITER_Utility” dialog box.
6.1.13 Click on “Close” to close “JUPITER_Utility” dialog box and continue.

Flash Drive User’s Manual 8
6.1.13 Click on “Finish” to complete the “BAFO USB SECURITY DEVICE”.

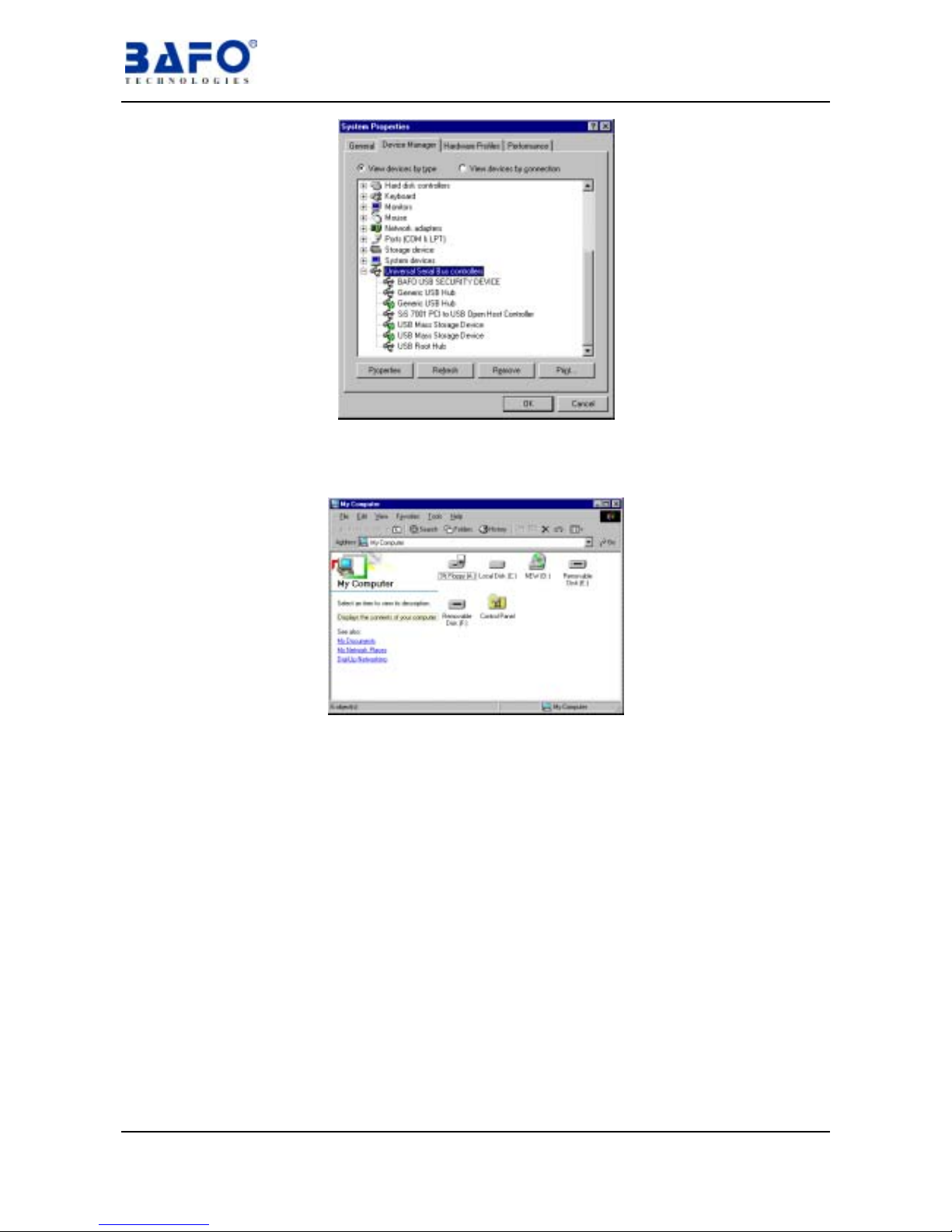

6.1.15 After Windows® installed all the driver, you have to check “My
Computer”-“Control Panel”-“System”-”Device Manager” to make
sure the driver has already installed. In the “Disk Drives” it will show
two items of “BAFO Usb Flash Disk”. While on the “Universal Serial
Bus controller”, you will find four additional devices: one “Generic
USB Hub”, one “BAFO USB SECURITY DEVICE”, and two “USB
Mass Storage Device”
If you did not install “Security” Device then “BAFO USB SECURITY
DEVICE” will not show.

Flash Drive User’s Manual 9
6.1.16 Double click on “My Computer” then you will find there are two new
Removable Disk [E:] and [F:].

Flash Drive User’s Manual 10
6.2 Windows®98 un-installation
6.2.1 Click on “My Computer” and point to the path of
“D:\DRIVER\BF-23XX\WINDOWS” (D: represents CD-ROM), click on
“Rm2315” icon to un-install driver.
6.2.2 Click “OK” to remove “JUPITER” (Security AP).
6.2.3 Click on “Yes” to restart computer and complete uninstall procedure.

Flash Drive User’s Manual 11
6.3 Windows®ME installation
Windows® will install “Security Device”
6.3.1 Connect the USB port of Flash Drive to PC with USB cable.
6.3.2 The “Add New Hardware Wizard” dialog box will appears as below.
6.3.3 If you don’t need “Security” feature then click “Cancel” to exit else
chose “Automatic search for a better driver [Recommended]” and
click “Next” to continue.
6.3.4 When installing the “Security” driver, Windows® will pop up a “Password
Check” dialog box, Click on “OK” to continue.
6.3.5 Click on “More” to continue.

Flash Drive User’s Manual 12
6.3.6 Click on “Close” to exit “JUPITER_Utility”.
6.3.7 Click on “Finish” to complete the “BAFO USB SECURITY DEVICE”
installation.
6.3.8 You should check “My Computer”-“Control Panel”-“System”-”Device
Manager” to make sure the driver has already installed. Then, in the
“Disk Drives” it will show two “BAFO USB Flash Disk”. In the “Hard
disk controllers” it will show two “USB Mass Storage Device”, one
“Generic USB Hub” and one “BAFO USB SECURITY DEVICE” (If you
did not install “Security” device then “BAFO USB SECURITY
DEVICE” will not show).

Flash Drive User’s Manual 13
6.3.9 Double click on “My Computer” then you will find two new items, that is,
Removable Disk [E:] and Removable Disk [F:].

Flash Drive User’s Manual 14
6.4 Windows®ME un-installation
If you did not install “Security” Device then you don’t have to un-install it.
6.4.1 Click on “My Computer” and point to the path of
“D:\DRIVER\BF-23XX\WINDOWS” (D: represents CD-ROM), click on
“Rm2315” icon to un-install driver.
6.4.2 Click “OK” to remove “JUPITER” (Security AP).
6.4.3 Click on “Yes” to restart computer and complete uninstall procedure.

Flash Drive User’s Manual 15
6.5 Windows®2000 installation
Windows® will install “Security Device”.
6.5.1 Connect the USB port of Flash Drive to PC with USB cable.
6.5.2 The “Add New Hardware Wizard” dialog box will appears as below.
6.5.3 If you don’t need “Security” feature then click “Cancel” to exit else
chose “Automatic search for a better driver [Recommended]” and
click “Next” to continue.
6.5.4 Choose “Search for a suitable driver for my device (Recommended)”
then click “Next”.
6.5.5 Chose “CD-ROM drives” and “Specify a location” then click on “Next”
to continue.

Flash Drive User’s Manual 16
6.5.6 Type D:\DRIVER\BF-23XX\WINDOWS (D: represents CD-ROM) in the
dialog box, then click “Next” to continue.
6.5.7 Windows® will search the driver for this device. Make sure the driver that
Windows® find is “d:\driver\bf-23xx\windows\jupiter.inf” then click
“next” to continue.
6.5.8 While Windows® install the driver, in the same time it will pop up a
“JUPITER_Check Password 1.0.0.0” dialog box. Click “OK” to continue.

Flash Drive User’s Manual 17
6.5.9 Click “More” to continue.
6.5.10Click on “Close” to exit “JUPITER_Utility”.
6.5.11Click on “Finish” to complete “BAFO USB SECURITY DEVICE”.

Flash Drive User’s Manual 18
6.5.12Please check “My Computer”-“Control Panel”-“System”-
“Hardware”-“Device Manager” to make sure the driver has already
installed. Then, in the “Disk Drives” it will show two “BAFO Usb Flash
Disk USB Device”. In the “Universal Serial Bus Controller” it will show
one “Generic Hub”, one “BAFO USB SECURITY DEVICE” and two if
you did not install “Security” device then. If you did not install “Security”
device then “BAFO USB SECURITY DEVICE” won’t show up.
6.5.13 Double click on “My Computer” then will find two new items, that is,
“Removable Disk (F:) “ and “Removable Disk (E:)”

Flash Drive User’s Manual 19
6.6 Windows®2000 un-installation
If you did not install “Security” Device then you don’t have to un-install it.
6.6.1 Click on “My Computer” and point to the path of
“D:\DRIVER\BF-23XX\WINDOWS” (D: represents CD-ROM), click on
“Rm2315.EXE” icon to un-install driver.
6.6.2 Click on “OK” to remove “Jupiter” (Security AP).
6.6.3 Click on “Yes” to re-boot system.
