BAK ErOn BL User manual

1
BAK Thermoplastic Welding Technology AG
OPERATING MANUAL

2
BAK Thermoplastic Welding Technology AG
SAFETY
Danger to life when opening the device as live components
and connections are exposed. Unplug the device before
opening it.
Danger of fire and explosion if the device is used
incorrectly. Demonstrate the necessary caution when using
the welding machine near combustible materials. Never use
the device in inflammable areas.
Danger of burns
Do not touch the hot air device when it is still hot. Let the
device cool down.
Connect the device to a socket with protective earth
conductor. Any interruption of the protective earth
conductor within or outside the device is dangerous! Only
use extension cables with protective earth conductor and a
minimum diameter of 2.5 mm².
The voltage rating stated on the nameplate must correspond
to the mains voltage.
Consult your local electricity supplier if necessary.
For personal protection, the device must be connected to a
residual current circuit breaker before using it on
construction sites.
Do not leave the device unobserved. Hot air radiation of
the hot air device may ignite combustible materials. Heat
may reach inflammable materials that are not visible or
obvious. The tool must not be used by children or people
with limited physically, sensory or mental ability. Children
must be supervised to prevent that they play with the tool.
Protect the device from damp and wet!

3
BAK Thermoplastic Welding Technology AG
WARRANTY AND LIABILTY
Warranty and liability apply from the date of purchase
(documented by the invoice/delivery note) according to the
currently valid general terms of business from BAK. BAK
refuses to honour any warranty for devices which are not in their
original condition. BAK devices may never be reconfigured
and/or modified.
BAK reserves the right to deny any responsibility if this is
ignored. No liability can be assumed by BAK for incorrect
installation and/or use as well as natural wear and tear of
components (e.g. heating elements).
Note:
This operating manual must be available to the installation and
operating personnel at all times. Read these operating
instructions carefully before installing and using the device.
Copyright:
This document must not be disclosed to third parties without the
explicit written approval of BAK. Any forms of reproduction or
copying and electronic storage are prohibited.
INTENDED USE
Heating-up for forming, bending and sealing of
thermoplastic semi-finished materials.
Drying of water-damp surfaces and joints.
Shrinking of heat-sink sleeves, films, tapes, solder sleeves
and moulded parts.
Activating / dissolving of of solvent free adhesives and
fusion adhesives.
Removing old shellac, oil and resin paints and under seals
on vehicles.
Defrosting of frozen water pipes.

4
BAK Thermoplastic Welding Technology AG
Welding thermoplastic materials as well as modified
bitumen.
Igniting of wood shavings, paper, coal or straw in furnaces.

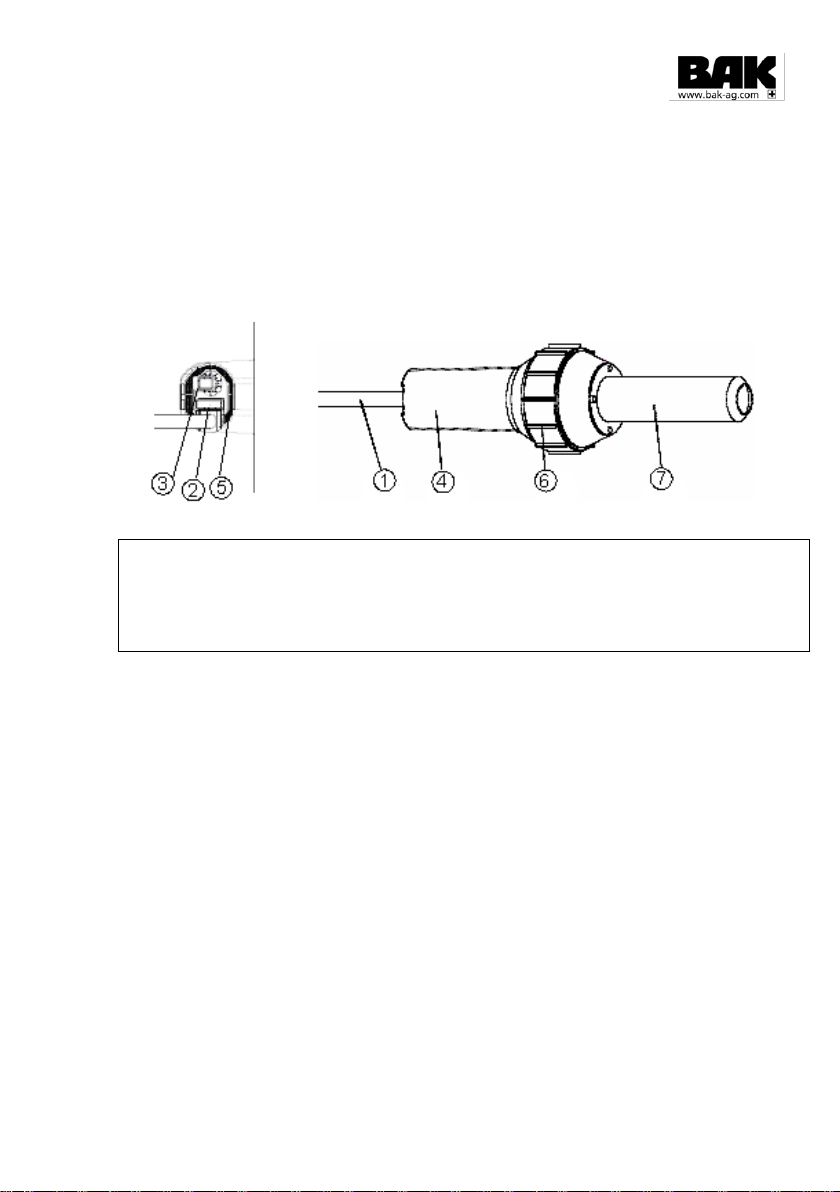

DEVICE DESCRIPTION
1
Power supply cord
5
Air filter
2
Main switch
6
Rubber stand
3
Potentiometer for temperature adjustment
7
Heater tube
4
Handle
OPERATING CONDITION
If it is not possible to start the motor, a reset is needed.
oReset: Turn off main switch –wait for 3 seconds –
Turn on main switch
Maintain the maximal allowed impedance
Zmax. =0.301+j0.188 and if necessary consult the power
supply company.
As required, push-fit appropriate nozzle or reflector.
Connect the tool to the mains.
Adjust the hot air temperature by the potentiometer (3),
Switch on (2) and let the tool heat up for about 5 minutes.

5
BAK Thermoplastic Welding Technology AG
CHANGE OF NOZZLES AND REFLECTORS
Allow the tool to cool down before changing
nozzles/reflectors or use only combination pliers.
Do not touch the hot nozzle/reflector and make sure to put it
only on a heat resistant surface, because of fire hazard.
The nozzles/reflectors are easily pushed on to the tapered
element housing (7) and are secured by fastening the screw
on the clamp.
TECHNICAL DATA
Technical Data
ErOn BL
Voltage
V
230
120
Frequency
Hz
50 / 60
Power consumption
W
2300
2700
3400
Temperature
°C
20 –650 stepless controlled
Max. air flow
l/min
600
Noise level (EN ISO
11203)
dB(A)
ca. 3000
Dimensions
mm (L x
W x H)
320 x 94, handle 64
Weight with 5 m
cable
kg
1.5 with 3m cord
Protection class
IP20
Conformity symbol
Protection type I
Electrical safety
double insulated
MAINTENANCE
Airfilter (5) should be cleaned with a brush.
Check power supply cord (1) and plug for any possible
electrical or mechanical damage.
Should the mains cable of the tool be damaged, it must be
immediately exchanged by the supplier, his customer service
or another qualified person to prevent danger.

6
BAK Thermoplastic Welding Technology AG
ASSISTANCE AND SUPPORT
The BAK group and its authorised service centres offer free
support and assistance in your application.
Our specialists will be pleased to help you.
Customer service and orders:
BAK Thermoplastic Welding Technology AG
Industriestrasse 6
CH-6064 Kerns/Switzerland
Telefon: [phone]
Telefax: [phone] 22 51
E-Mail: [email protected]
ACCESSORIES
Optimum results will be achieved when BAK accessories and
spare parts are used. Please refer to our brochures for additional
information.
SERVICE AND REPAIR
The hot air tool should be checked by an authorised service
centre approx. every 1000 operating hours.
Repairs have to be carried out exclusively by BAK authorised
service centres.
SHIPPING
For repairs, please return the device appropriately packed for
transport to your next BAK service centre.
Shipping to CUSTOMER ACCOUNT.

7
BAK Thermoplastic Welding Technology AG
Technical modifications reserved. In case of doubt, consultation
with BAK is required. Images and drawings may deviate from
the original. Changes reserved.
TRANSPORT –HANDLING –STORAGE
Transport:
The hot air tool is packed appropriately and must be protected
from moisture.
Handling:
The shipment must be checked if complete and for transport
damage. In the event of transport damage, the defect must be
confirmed in writing at the time of the delivery by the carrier.
The seller must be promptly informed in writing!
Storage:
In the case of temporary storage, the welding machine should be
kept packed and must be protected from moisture. In the case of
damage resulting from improper storage, no warranty claim will
be honoured.
DISPOSAL
Power tools, accessories and packaging should be
sorted for environmental friendly recycling.
Do not dispose power tools together with household
waste!
Only EU countries: According to the European
Directive 2012/19/EU on waste electrical and
electronic equipment and its incorporation into national
law, power tools that are no longer operational must be
separately collected and sent to be environmental
friendly recycled.
