Baker Hughes Panametrics PanaFlow LC User manual

PanaFlow™ LC
User’s manual
910-327 Rev. A

ii

PanaFlow™ LC
Panametrics liquid ultrasonic flowmeter
User’s manual
910-327 Rev. A
Sep 2019
iii

[no content intended for this page]
iv

Contents
Chapter 1. Introduction ..................................................................1
1.1 System description ...............................................................................1
1.2 Theory of operation ...............................................................................1
Chapter 2. Installation ..................................................................2
2.1 Installation guidelines ...........................................................................2
2.2 Unpacking the PanaFlow LC system ..............................................................2
2.3 Site considerations ..............................................................................4
2.4 Clamping fixtures and transducer installations ..................................................4
2.4.1 Strap clamping fixture ....................................................................................4
2.5 Determining the number of Traverses ............................................................5
2.6 Precautions......................................................................................6
2.6.1 Even number of Traverse method.........................................................................7
2.6.2 Odd number of Traverse method .........................................................................7
2.7 Transducer installation ..........................................................................9
2.8 Installing the V series clamping fixture and Transducers .........................................12
2.8.1 Installing the fixture ......................................................................................12
2.8.2 Installing the Transducers................................................................................12
2.9 Installing the PI fixture and Transducers..........................................................13
2.9.1 Surveying the pipe .......................................................................................13
2.9.2 Installing the first bracket with a chain...................................................................14
2.9.3 Installing the second bracket with a chain...............................................................14
2.9.4 Installing the Transducers................................................................................15
2.10 Making electrical connections .................................................................. 15
2.11 Transducer wiring............................................................................... 15
2.11.1 Installing the junction box................................................................................16
2.11.2 Single channel set up ....................................................................................16
2.11.2.1 Transducer wiring (ATEX installations). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.11.3 Two channel set up ......................................................................................16
2.11.3.1 Transducer wiring (ATEX installations). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.11.4 Three channel set up.....................................................................................17
2.11.4.1 Transducer wiring (ATEX installations). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Chapter 3. Programming .............................................................. 19
3.1 Introduction .................................................................................... 19
3.1.1 HMI features..............................................................................................19
3.1.2 Indicator Lights...........................................................................................19
3.2 Passcodes ......................................................................................20
3.2.1 Unlock from keypad lockout ............................................................................20
v

3.3 Measurement view, log-in and primary pages ..................................................20
3.3.1 Measurement view...................................................................................... 20
3.3.1a Changing display format .........................................................................21
3.3.1b Selecting a composite measurement to display .................................................21
3.3.1c Selecting a channel measurement to display ................................................... 22
3.3.1d Totalizer display .................................................................................. 23
3.3.2 Log-in and primary pages ..............................................................................24
3.4 System Settings.................................................................................25
3.4.1 Selecting unit ...........................................................................................25
3.4.1a Supported unit groups and units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.4.2 Meter settings...........................................................................................26
3.5 Inputs and outputs..............................................................................27
3.5.1 Modbus port settings ....................................................................................27
3.5.2 Standard analog output .................................................................................27
3.5.2a Setting up analog output .........................................................................27
3.5.2b Understanding the error handling option ........................................................28
3.5.2c Calibrating analog output .......................................................................30
3.5.3 Standard digital output ..................................................................................31
3.5.3a Setting up pulse output ..........................................................................31
3.5.3b Setting up frequency output .....................................................................33
3.5.3c Understanding the error handling option ........................................................34
3.5.3d Setting up alarm output .........................................................................36
3.5.4 Option Comm slot-1 (optional)..........................................................................38
3.5.4a Option slot-1 configured as HART.................................................................38
3.5.4b Option slot-1 configured as FF....................................................................38
3.5.5 Option I/O slot-2 (optional)..............................................................................39
3.5.5a Option IO (slot2): setting up analog output ......................................................39
3.5.5b 3Option IO (slot2): calibrating analog output ....................................................40
3.5.5c Option IO (slot2): setting up analog input .........................................................41
3.5.5d Option IO (slot2): calibrating analog input .......................................................42
3.5.5e Option IO (slot2): calibrating RTD input........................................................... 42
3.6 Programming menu options ....................................................................43
3.6.1 Programming the pipe..................................................................................43
3.6.2 Programming the fluid ..................................................................................45
3.6.3 Programming the path configuration ..................................................................46
3.6.4 Programming the flow and diagnostic limits ........................................................... 47
3.6.5 Programming advanced settings....................................................................... 47
3.6.6 Channel X programming ...............................................................................48
3.6.6a Programming the transducer ....................................................................48
3.6.6b Programming the placement....................................................................49
3.6.6c Programming advanced channel settings ......................................................50
3.6.7 Fluid speed of sound calibration........................................................................50
3.6.7a Fluid SOS calibration procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
3.7 Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
vi

Chapter 4. Error codes and troubleshooting............................................53
4.1 Introduction ....................................................................................53
4.2 Error classification and error codes .............................................................53
4.3 Flow errors (E-errors). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
4.3.1 General guidelines for troubleshooting flow errors with error codes....................................53
4.3.1a Single channel error .............................................................................53
4.3.1b Multi-channel error ..............................................................................54
4.3.1c Viewing channel specific error/warnings ........................................................54
4.4 Fluid and pipe problems ........................................................................58
4.4.1 Fluid problems ..........................................................................................58
4.4.2 Pipe problems...........................................................................................58
4.5 Transducer problems ...........................................................................59
4.5.1 Transducer problems ...................................................................................59
4.6 Service test points ..............................................................................59
4.7 System errors (S-errors) ........................................................................59
4.8 Communication errors (C-errors)...............................................................62
4.9 Transmitter errors...............................................................................63
4.10 Option I/O errors ................................................................................64
4.11 Diagnostics data................................................................................65
Chapter 5. Maintenance and service...................................................69
5.1 Transducer maintenance and inspection .......................................................69
Appendix A. Specifications and model configurations...................................71
A.1 Operation and performance .....................................................................71
A.2 Electronics .......................................................................................71
A.3 Part number information .......................................................................72
Appendix B. Using the clamping fixtures ...............................................75
B.1 Using the universal clamping fixture - UCF ......................................................75
B.1.1 Even Traverse method .................................................................................. 76
B.1.2 Odd number of-traverse method ........................................................................77
B.2 Using the general clamping fixture - GCF .......................................................79
B.2.1 Even Traverse method .................................................................................. 79
B.2.2 Odd number of-traverse method .......................................................................80
B.3 Using the magnetic clamping fixture - MCF .....................................................80
B.3.1 Even Traverse method ..................................................................................80
B.3.2 Odd number of-traverse method .......................................................................83
Appendix C. Data records..............................................................85
C.1 Electronics ......................................................................................85
C.1.1 Data entry...............................................................................................85
C.2 Initial settings...................................................................................87
C.3 Diagnostic parameters .........................................................................90
vii

Appendix D. Modbus map ............................................................. 91
D.1 Input registers map ............................................................................. 91
Appendix E. CE Mark compliance ......................................................93
E.1 Introduction ....................................................................................93
E.2 Wiring ..........................................................................................93
Appendix F. HART communication .....................................................95
F.1 Wiring the XMT1000 to the HART communicator .................................................95
F.2 HART write mode switch.........................................................................95
F.3 HART menu maps ...............................................................................96
F.3.1 HART output menu map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
F.3.2 HART review menu map................................................................................. 97
F.4 Configurable measurements ...................................................................98
Appendix G. Wireless HART communication...........................................103
G.1 Introduction ...................................................................................103
G.2 Installation and configuration .................................................................103
G.2.1 XMT1000 to Masoneilan VECTOR connection ............................................................103
G.2.2 XMT1000 configuration ..................................................................................103
G.2.3 Masoneilan VECTOR V1100 adaptor configuration.......................................................103
G.2.4 Emerson wireless gateway setup configuration ........................................................104
Appendix H. Foundation Fieldbus communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
H.1 Introduction ...................................................................................105
H.2 Installation ....................................................................................105
H.2.1 Network configuration ..................................................................................105
H.2.2 Polarity..................................................................................................105
H.2.3 Connection .............................................................................................105
H.2.4 FISCO (Fieldbus intrinsically safe concept)..............................................................106
H.2.5 DD file ...................................................................................................106
H.2.6 Default node address ...................................................................................107
H.3 Specifications.................................................................................. 107
H.3.1 General .................................................................................................107
H.3.2 Physical .................................................................................................107
H.3.3 Communication ........................................................................................108
H.3.4 User layer ...............................................................................................108
H.3.5 Function blocks .........................................................................................108
H.4 Resource block ................................................................................108
H.4.1 FF revision ...............................................................................................108
H.4.2 Password................................................................................................108
H.4.3 NAMUR NE107 ............................................................................................109
viii

H.5 XMIT Transducer block ..........................................................................112
H.5.1 Units.....................................................................................................113
H.6 Composite Transducer block....................................................................114
H.6.1 Clearing the totalizer .................................................................................... 117
H.7 Configurable measurements ...................................................................118
H.8 Channel Transducer block ......................................................................121
H.9 Analog input block............................................................................. 122
H.10 PID block....................................................................................... 122
H.11 Error handling.................................................................................. 123
H.12 Simulation mode .............................................................................. 123
H.13 Fieldbus troubleshooting guide ................................................................124
H.14 DPI620 FF modular communicator ............................................................. 125
Warranty ............................................................................. 127
ix

Product registration
Thank you for purchasing a model PanaFlow™ LC from
Panametrics. Please register your product at https://info.
bakerhughes.com/New-Product-Registration-LP.html for
product support such as the latest software/firmware
upgrades, product information and special promotions.
Services
Panametrics provides customers with an experienced staff
of customer support personnel ready to respond to technical
inquiries, as well as other remote and on-site support needs.
To complement our broad portfolio of industry-leading
solutions, we offer several types of flexible and scalable
support services including: Training, Product Repairs,
Service Agreements and more. Please visit https://www.
bakerhughesds.com/panametrics/services for more details.
Typographical conventions
Note: These paragraphs provide information that provides a
deeper understanding of the situation, but is not essential to
the proper completion of the instructions.
IMPORTANT:
These paragraphs provide information that emphasizes
instructions that are essential to proper setup of the
equipment. Failure to follow these instructions carefully may
cause unreliable performance.
CAUTION!
This symbol indicates a risk of potential
minor personal injury and/or severe damage
to the equipment, unless these instructions
are followed carefully.
WARNING!
This symbol indicates a risk of potential
serious personal injury, unless these
instructions are followed carefully.
Safety issues
WARNING!
It is the responsibility of the user to make sure
all local, county, state and national codes,
regulations, rules and laws related to safety
and safe operating conditions are met for
each installation.
Attention European customers!
To meet CE Mark requirements for all units
intended for use in the EU, all electrical
cables must be installed as described in this
manual.
Auxiliary equipment
Local safety standards
The user must make sure that he operates all auxiliary
equipment in accordance with local codes, standards,
regulations, or laws applicable to safety.
Working area
WARNING!
Auxiliary equipment may have both manual
and automatic modes of operation. As
equipment can move suddenly and without
warning, do not enter the work cell of this
equipment during automatic operation,
and do not enter the work envelope of this
equipment during manual operation. If you
do, serious injury can result.
WARNING!
Make sure that power to the auxiliary
equipment is turned OFF and locked out
before you perform maintenance procedures
on this equipment.
Qualification of personnel
Make sure that all personnel have manufacturer-approved
training applicable to the auxiliary equipment. Please make
the factory aware of any customer visits so that any further
support to the customer can occur immediately.
Personal safety equipment
Make sure that operators and maintenance personnel have
all safety equipment applicable to the auxiliary equipment.
Examples include safety glasses, protective headgear,
safety shoes, etc.
Unauthorized operation
Make sure that unauthorized personnel cannot gain access
to the operation of the equipment. Security levels need to be
set properly at the completion of any customer visit.
x

Environmental compliance
RoHS
The PanaFlow™ LC fully complies with RoHS regulations
(Directive 2011/65/EU).
Waste Electrical and Electronic Equipment (WEEE) directive
Panametrics is an active participant in Europe’s Waste
Electrical and Electronic Equipment (WEEE) take-back
initiative (Directive 2012/19/EU).
This equipment has required the extraction and use
of natural resources for its production. It may contain
hazardous substances that could impact health and the
environment.
In order to avoid the dissemination of those substances in
our environment and to diminish the pressure on the natural
resources, we encourage you to use the appropriate take-
back systems. Those systems will reuse or recycle most of
the materials of your end life equipment in a sound way.
The crossed-out wheeled bin symbol invites you to use
those systems.
If you need more information on the collection, reuse and
recycling systems, please contact your local or regional
waste administration.
Please visit https://www.bakerhughesds.com/health-
safetyand-environment-hse for take-back instructions and
more information about this initiative.
xi

[no content intended for this page]
xii

Chapter 1. Introduction
Thank you for purchasing a model PanaFlow™ LC from
Panametrics. Please register your product at https://info.
bakerhughes.com/New-Product-Registration-LP.html for
product support such as the latest software/firmware
upgrades, product information and special promotions.
1.1 System description
The PanaFlow™ LC flowmeter is a one, two, or three channel
ultrasonic transit time flowmeter that utilizes clamp-
on transducers on external pipe surfaces to allow for
uninterrupted flow operation during flow measurement. The
PanaFlow™ LC flowmeter has up to 3 independent channels.
These channels are capable of measuring the flow rate of
acoustically conductive single-phase liquid, which may
have limited amount of second phase. With the 3 channels,
the user will have the capability to average them with equal
weights, or with different weights that will better suit the flow
profile. The meter is designed for pipe sizes ranging from ½
in. (15 mm) to 300 in. (7600 mm) with wall thickness up to 4
in. (102 mm) for flow velocities up to 80 ft/s (25 m/s). For a full
list of its capabilities, see Appendix A. This manual will serve
as a guide to install the clamping fixture and transducers
necessary for accurate flow readings, programming
the meter for specific customer needs, error codes and
troubleshooting walk through, and maintenance and service
procedures.

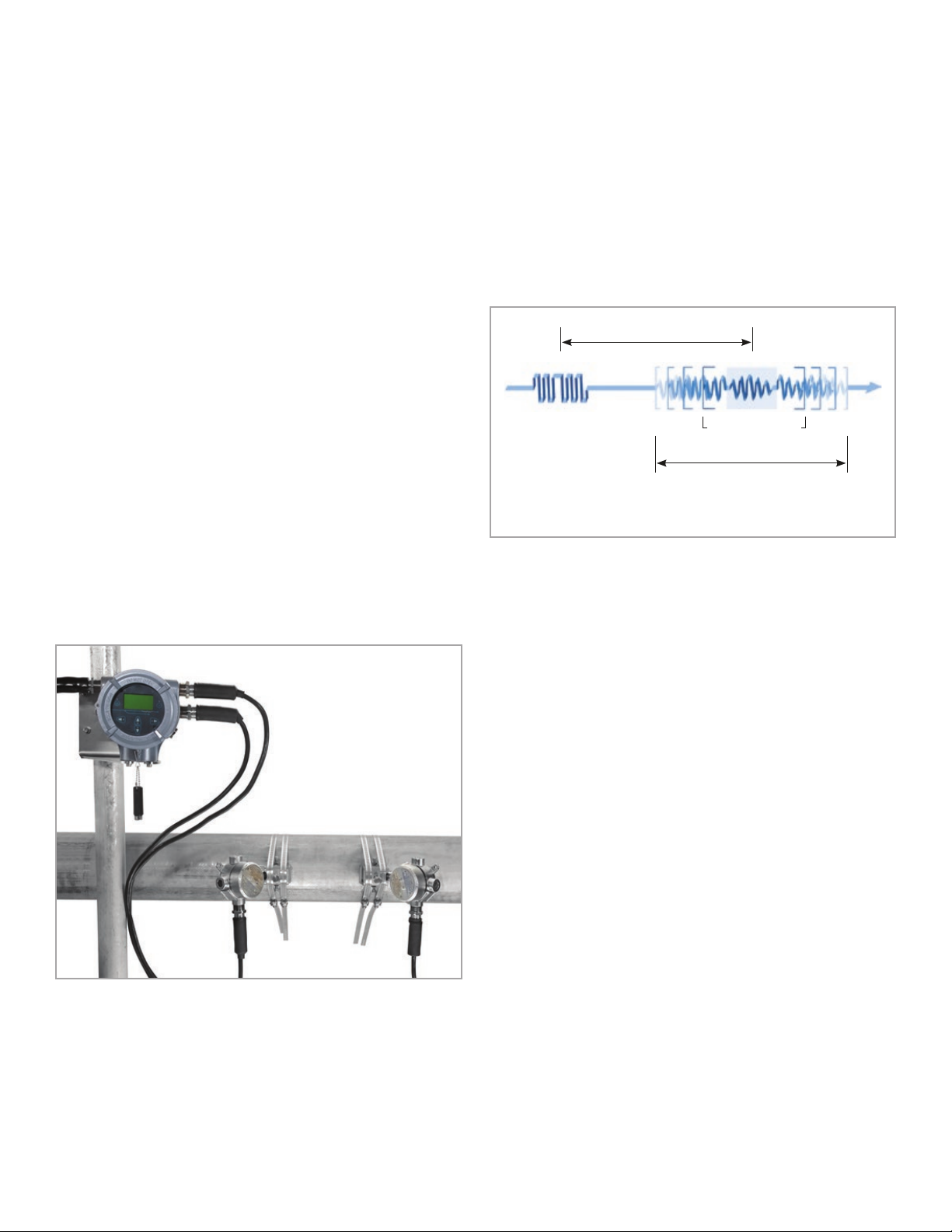

Figure 1: PanaFlow LC
1.2 Theory of operation
The PanaFlow™ LC uses a procedure called Transit-Time
Flow Measurement. In this method, the flowmeter transmits
ultrasonic pulses through a moving liquid. The pulses that
travel in the same direction as the fluid flow (downstream)
travel slightly faster than the pulses that travel against the
fluid flow (upstream). The difference in transit times is then
used to calculate flow velocity.
Tracking window
locked onto
receive signal
Range of tracking window
Time
Receive signalTransmit signal
Variable time interval
ATW ensures accuracy when fluid conditions change
Figure 2: Transit - time flow measurement
1

Chapter 2. Installation
2.1 Installation guidelines
This section provides general information with respect to
the mechanical and electrical installation, and should be
thoroughly reviewed before the system is installed. To ensure
safe and reliable operation of the PanaFlow™ LC, the system
must be installed in accordance with the established
guidelines. Those guidelines, explained in detail in this
chapter, include the following topics:
• Unpacking the PanaFlow LC System
• Site Considerations
• Making Electrical Connections
WARNING!
The PanaFlow™ LC flow meter can measure
the flow rate of many fluids, some potentially
hazardous. The importance of proper safety
practices cannot be overemphasized.
WARNING!
Be sure to follow all applicable local safety
codes and regulations for installing electrical
equipment and working with hazardous
fluids or flow conditions. Consult company
safety personnel or local safety authorities to
verify the safety of any procedure or practice.
Attention European customers!
To meet CE Mark requirements, all cables
must be installed as described in Appendix D,
CE Mark Compliance.
2.2 Unpacking the PanaFlow LC
system
Before removing the PanaFlow™ LC from its box, please
inspect both the box and the instrument carefully. Each
instrument manufactured by Panametrics is warranted
to be free from defects in material and workmanship.
Before discarding any of the packing materials, account
for all components and documentation listed on the
packing slip. The discarding of an important item along
with the packing materials is all too common. If anything is
missing or damaged, contact Panametrics Customer Care
immediately for assistance.
The PanaFlow LC flowmeter shall consist of one set of
XMT1000 Electronics, a pair of transducer cables, a pair of
clamp on transducers and a clamping fixture to mount the
transducers to a pipe.
Due to a variety of configurations your kit may include
additional cables, clamping fixtures, transducers and
junction boxes.
Please refer to your packing slip and ordered parts string
and lists for your specific components.
The PanaFlow™ LC is supplied with both a serial number
label and a certification label for identification of the
instrument (see Figure 3 below and Figure 4 on page 5).
2

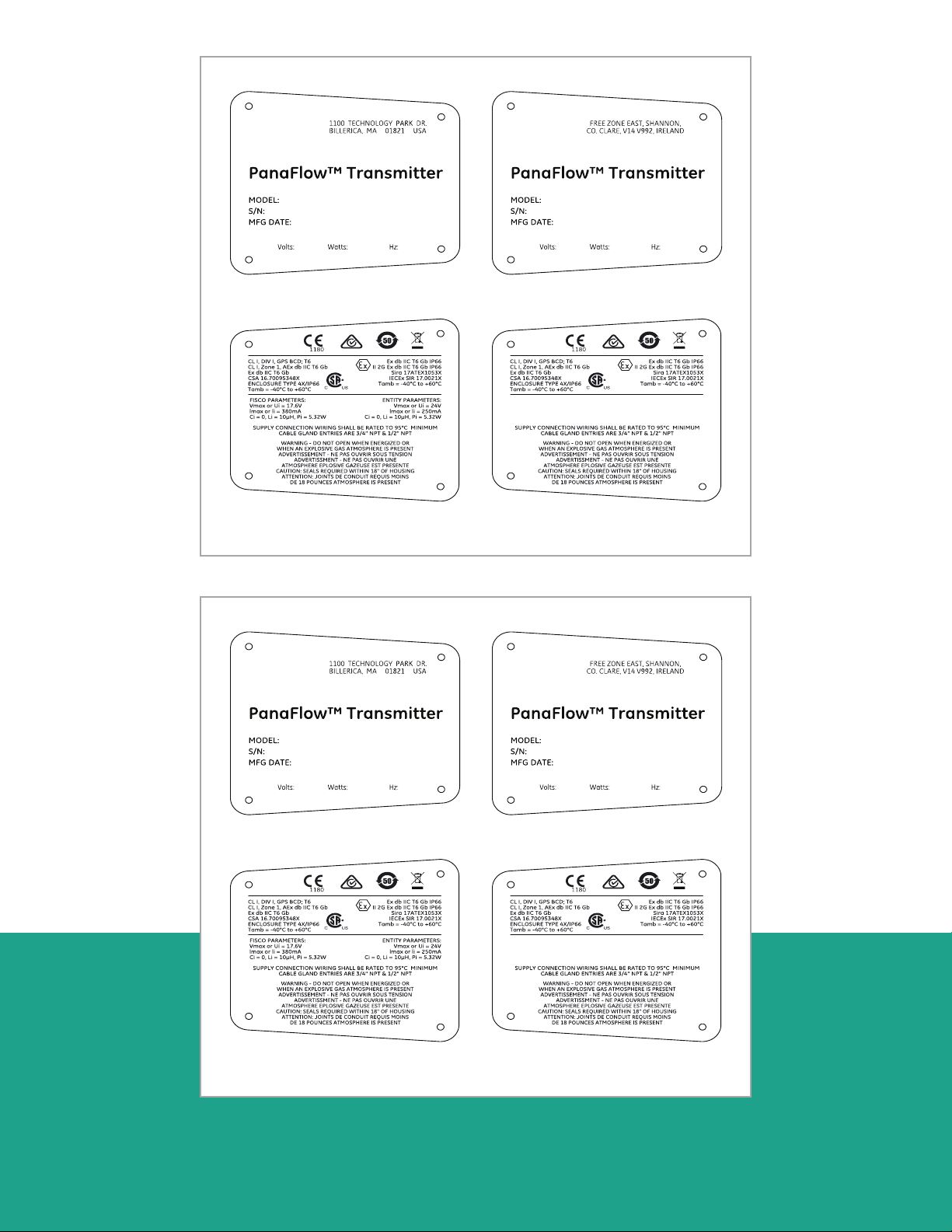

Model & Serial Number (Boston) Model & Serial Number (Shannon)
Certification (US/CAN, IECEx/ATEX)
[FISCO] [Standard]
Certification (US/CAN, IECEx/ATEX)
PANAMETRICS LLCPANAMETRICS LLC
Figure 3: Typical XMT1000 labels (aluminum enclosure)
Model & Serial Number (Boston) Model & Serial Number (Shannon)
Certification (US/CAN, IECEx/ATEX)
[FISCO] [Standard]
Certification (US/CAN, IECEx/ATEX)
PANAMETRICS LLCPANAMETRICS LLC
Figure 4: Typical XMT1000 labels
3

2.3 Site considerations
Proper installation of the PanaFlow™ LC is important to
achieve optimum performance from the system. The
following installation recommendations provide general
guidelines of how this system should be installed. If the
following recommendations cannot be met, please consult
the factory for a more detailed review of the application to
see what performance may be achievable. Following these
recommendations may not be the solution for all, since
every installation is different.
2.4 Clamping fixtures and
Transducer installations
Installation of clamp-on transducers for transit-time
measurements consists of mounting the clamping fixture
to the pipe and then mounting the transducers into the
clamping fixture. When installing transducers in clamp-on
applications, you can use one of the following methods to
hold the transducer against the pipe wall:
• Strap Clamping Fixture (SCF)
• Universal Clamping Fixture (UCF)
• General Clamping Fixture (GCF, permanent installation)
• Magnetic Clamping Fixture (MCF)
• Small Clamping Fixtures - 6” (150 mm) or 12” (300 mm)
long, with Velcro straps (SPCF)
This manual covers the installation for the Strap Clamping
Fixture (SCF), while the other fixtures can be found in the
Appendix B. Before beginning the transducer installation,
you must determine the number of traverses for your
configuration.
Note: The accuracy and performance of the flowmeter
depends on the location, spacing, and alignment of the
transducers. This manual provides general instructions for
locating and installing most transducer types. However,
the specific spacing of your transducers is unique to your
installation.
2.4.1 Strap clamping fixture
The Strap Clamping Fixture (SCF) (see Figure 5 below) acts
as a spacing device, a transducer holder, and a transducer
aligner. The SCF includes two U-shaped blocks connected
by a slotted bar and four hose straps.
The SCF is strapped around the pipe, and the blocks are
used to hold the transducers in position for accurate
measurements. The blocks must be positioned properly
using the spacing dimension calculated by the flowmeter.
Then, the transducers are mounted into the blocks.
Figure 5: Components of the SCF
4

2.5 Determining the number of
Traverses
The first step in the installation is determining the number
of traverses (see Figure 6 below). The transducers can be
mounted using one of two methods:
• Even number of-traverse method - the transducers
are mounted on the same side of the pipe and the
ultrasonic signal is transmitted from one transducer to
the other by reflection off the opposite pipe wall.
• Odd number of-traverse method - the transducers
are mounted diagonally across from each other. The
ultrasonic signal is transmitted across the pipe directly
from one transducer to the other.
Always try the even number of-traverse method first
because it is easier to configure and yields greater
accuracy. However, if the pipe has poor inside surface
conditions or the fluid is highly attenuating, you may not
be able to obtain a reliable signal. Therefore, you may
have to use the Odd number of-traverse method in such
applications. The spacing of the transducers is calculated
by the system after all the installation parameters have
been programmed into the flowmeter.
Figure 6: Even and odd number of Traverse installation
5

2.6 Precautions
Prior to installation the clamping fixture, it is HIGHLY recommended to keep the following in mind:
1. Position the clamp-on fixture(s) and transducer system so that there are at least 10 pipe diameters of straight,
undisturbed flow upstream and 5 pipe diameters of straight, undisturbed flow downstream from the measurement point
(see Figure 7 below). Undisturbed flow means avoiding sources of turbulence in the fluid such as valves, expansion joints,
elbows and other protruded mechanical components. For location after a set of out of plane double elbows, longer
upstream length is highly recommended.
2. If the clamping fixture is to be placed downstream of an elbow, the orientation of the clamping fixture must be placed in
such a way that the transducer path is perpendicular to the plane of the piping to compensate for swirl.
3. For permanent installations, the clamping fixture should be oriented in a way where the transducer paths are out of the
vertical plane. Pipe fouling can produce erroneous meter readings. If this placement contradicts with the placement
listed in the previous note, then the fixture can be oriented in the 11-5 o’clock or 1-7 o’clock positions. NEVER orient the
transducers in the 12 o’clock or 6 o’clock positions.
4. Once the location has been scoped out, make sure there is enough clearance around the area to install the clamping
fixture and transducers.
Figure 7: Recommended installation location and orientation
6

2.6.1 Even number of Traverse method
Note: The instructions in this section can also be used for a
multiple-traverse method. However, you must use an EVEN
number of traverses. The distance the signal travels from
one side of the pipe wall to the opposite side of the pipe wall
is considered one traverse. For installations with more than
two traverses, contact Panametrics for assistance.
The installation procedure for transducers using the even
number of-traverse method is as follows:
1. Ensure the location of your clamping fixture has been
properly scoped out following the criteria in Section 2.6:
Precautions.
2. Prepare the pipe where you intend to place the
clamping fixture by making sure it is clean and free of
loose material. Sanding, though usually not required,
may be necessary to remove any high spots. However,
be careful to preserve the original curvature of the pipe.
3. Secure one of the blocks to the alignment bar by
tightening one of the nuts on the block so the block will
not be able to slide along the alignment bar’s slot.
4. Obtain the transducer spacing dimension (S) after
programming the XMT1000 transmitter. Using the
alignment bar as a guide, move the second block so
that the distance between the blocks equals the S
dimension. Use the pressure bolts or the edges of the
blocks as reference points, as shown below.
Figure 8: SCF setup, spacing
5. Position the clamping fixture on top of the pipe and
wrap the clamping fixture blocks with the hose clamps.
Tighten the clamps until the blocks are snug but ensure
that they can still be rotated around the pipe.
6. Rotate the blocks so that they are away from the vertical
plane and in an orientation that satisfies the criteria
listed in Section 2.6: Precautions.
7. Fully tighten the hose clamps so no movement on the
fixture will occur.
Figure 9 below shows a completed even-traverse
installation without the transducers. Proceed to the section
on mounting the transducers later in this chapter.
Figure 9: Finished SCF installation without Transducers
2.6.2 Odd number of Traverse method
Note: The instructions in this section can also be used for a
multiple-traverse method. However, you must use an ODD
number of traverses. The distance the signal travels from
one side of the pipe wall to the opposite side of the pipe wall
is considered one traverse. For installations with more than
one traverse, contact Panametrics for assistance.
The procedure for mounting the SCF for the odd number of-
traverse method includes marking the pipe for the required
transducer spacing, fastening the fixture to the pipe, and
then mounting the transducers into the fixture.
To install the SCF odd traverse, complete the following steps:
1. Ensure the location of your clamping fixture has been
properly scoped out following the criteria in Section 2.6:
Precautions.
Note: For simplicity, all figures will show the clamping fixture
oriented on the horizontal plane (3 o’clock and 9 o’clock
positions). Exact orientation will depend on the piping
upstream and downstream of the fixture determined in
Section 2.6: Precautions.
2. Prepare the pipe where you intend to place the SCF
by making sure it is clean and free of loose material.
Sanding, though usually not required, may be necessary
to remove any high spots. However, be careful to
preserve the original curvature of the pipe.
7

3. Use a level to find the top of the pipe and then draw a
line parallel to the centerline of the pipe.
Figure 10: SCF odd number of Traverse installation, step 3
4. Using a level and center punch, make two marks on the
line drawn in step 3. These marks must be separated by
the transducer spacing distance S, as calculated by the
flowmeter.
Figure 11: SCF odd number of Traverse installation, step 4
5. From one of the marks on the top of the pipe, measure
around the pipe a distance equal to 1/4 of the pipe
circumference, or a distance that will satisfy the
orientation found in Step 1. Use the center punch to
make a mark at this point.
Figure 12: SCF odd number of Traverse installation, step 5
6. From the other mark on the top of the pipe, measure
around the pipe in the opposite direction a distance
equal to 1/4 of the pipe circumference, or the same
distance used in Step 5. Use the center punch to make a
mark at this point.
Figure 13: SCF odd number of Traverse installation, step 6
7. Center one of the blocks over one of the center punch
marks on the side of the pipe. Align the block so that the
pressure bolt is directly over the punch mark. Secure the
block by wrapping the two steel straps around both the
block and the pipe and tightening the straps.
Figure 14: SCF odd number of Traverse installation, step 7
8. Repeat Step 7 to install the other block on the pipe.
IMPORTANT:
Make sure both straps are perpendicular to the bottom of
the block. If the straps are slanted, the slack will cause the
block to move. Also, the transducer spacing dimension
may change after the transducers are mounted.
8
