STS M4-E User manual

Surface to Surface Inc. ®
Operators Manual
** M4-E **
USE IN CONJUNCTION WITH OEM MANUALS (ENCLOSED)
Unit Serial No. _______________
Teco-Westinghouse Motor
Optim HE PLUS – Serial No. ______________
Gorman-Rupp Pump
GR-84B2 – Serial No. ________________
Links relating to this Manual
www.stsmixers.com
www.twmi.com
www.grpumps.com
STS-123 Rev. 02/08/23 www.stsmixers.com
Dealer

2
*** NOTICE ***
THIS UNIT IS TO BE INSTALLED, SET-UP, AND
WIRED BY A QUALIFIED ELECTRICIAN TO BE
COMMISSIONED BY THE END USER (CUSTOMER).
ALL CODES AND REGULATIONS ARE TO BE
FOLLOWED. SURFACE TO SURFACE ASSUMES NO
RESPONSIBILITY FOR DAMAGES OR PERSONAL
INJURIES CAUSED BY IMPROPER INSTALLATION.
If a problem or concern is found while installation is being
done, a call to the appropriate party is recommended.
Teco-Westinghouse West 1-800-661-4023
East 1-800-268-4770
Surface to Surface Inc. 1-800-567-0978
STS-024 Rev. 01/04

3
****** CAUTION ******
BEFORE STARTING THIS MOTOR, DISENGAGE THE
MOTOR/PUMP COUPLER (LOVE JOY) AND CHECK THE
MOTOR FOR PROPER ROTATION. IF THIS STEP IS NOT
FOLLOWER, THE IMPELLER MAY BECOME SEPARATED
FROM THE SHAFT AND CAUSE SUFFICIENT DAMAGE TO
THE PUMP AND IMPELLER AND OR PERSONAL HARM.
To disengage the coupler, remove the guard, loosen the setscrew on each
coupler and slide the couplers back away from each other and TIGHTEN the
setscrews back up. Remove the black insert. Reinstall the guard, and then
switch the motor on/off and as the shaft slows down, you will be able to see the
rotation direction. If the need be, change the wiring to provide the proper
rotation.
STS-024 Rev. 09/16

4
TABLE OF
CONTENTS
PAGE
STS Inc Warranty………………………………………………………….. 7
Safety Statements………………………………………………...………… 8-11
Safety Markings……………………………………………………………. 12
Main Working Components (Photo)……………………………………… 13
M4 Hose Connections ……………….……………………………………. 14
Introduction to the M4-E ……………….………….………….…………. 15
M4-E Foot Print (top view)………………………………………………… 16
M4-E General Data Sheet…………………………………………………. 17
Identifying Your Machine & Components………………………………. 18
SECTION II (Description, Care and Maintenance)
Electric powered centrifugal pump.…….…………….………….…. 20-23
Filter shear system……………………………………………………. 24-25
Venturi mixing tee……………………………..………..……………. 26
Wash wand……………………………………………………...……. 27
Dry hopper with table & hopper valve…………………………..…… 28
Internal tank jets ……………………………………...……………… 29-30
SECTION III (Set-up and installation of unit in Detail)
Permanent mounting of unit…………………………...…………….. 32
Portable use of unit…………………….…………………….………. 32

5
TABLE OF
CONTENTS
PAGE
SECTION IV (Operating the M4 Unit.)
Site set-up and pre-check…………………………………………….. 34
Starting the motor and pump………………………....……………… 35
Typical mixing operation……………………….……………………. 36
Typical transfer / off-loading operation……………………………… 37
Shutdown, cleanup & storage
Warm weather…………………………………….…………. 38
Cold/ freezing weather………………………………….…… 39
Prolonged periods of storage………………………………… 40
**Optional self-loading feature……………………………...………… 41
SECTION V (Trouble shooting)
Trouble Shooting the M4 ……………….…………………....……… 43-44
SECTION VI (Periodic Maintenance & Repair Information)
Maintenance Schedule…………………….….………………….…... 46
Centrifugal Trash Pump Seal Replacement………………………..… 47
Bolt torque Specifications…………………………………….……... 48
Notes…………………………………………………….…………… 49

6
TABLE OF
CONTENTS
PAGE
SECTION VII (OEM Repair Information)
GR Centrifugal Pump Owner’s Manual……………………..………… 51-62
Teco-Westinghouse Owner’s Manual excerpts ………………………. 63-69
Gruvloc® Pipe Couplings……………………….………………..…… 70-72
Quick-Flex® Drive Coupling……………………….………………..…… 73-76
SECTION VIII (Parts Manual)
M4-E PARTS MANUAL…………………….……………….……. 78-80

7
Limited Warranty
United States and Canada
Surface to Surface Inc. or it’s subsidiary which last sold the product, warrants new products sold by it for use in the
United States and Canada to be, at the time of manufacture, free from defects in workmanship and materials. This
warranty covers for a period of Twelve (12) Months of operation from the date of delivery for initial use, whichever
comes first.
Exclusions and Additional Limitations
1. This warranty relates to the condition of the product at the time of manufacture and does not cover parts or
service as a result of:
(a) Normal wear and tear or required maintenance including, without limitation, adjustments or replacement of
components subject to wear and tear, such as belts, hoses, seals and/or packing, fuses, bulbs,
switches and ignition parts.
(b) Abuse including, without limitation, neglect, improper operation, misapplication, overloading, accident or
alterations not approved by Surface to Surface Inc.
(c) Lack of maintenance, including, without limitation, failure to inspect and maintain, improper repair, use of
“unapproved parts”, cracked engine heads and blocks unless caused by the failure of
an internally lubricated part or repair of engine valves, rings or guides.
2. The Company’s warranty does not apply to purchased components manufactured by others where separate
warranty is made by the manufacture of such components and will be applied as interpreted by
the supplier.
3. All claims under his warranty shall be submitted in writing by the distributor to the Company, which will be the
sole judge in determining the merits of the claim.
4. The company shall have the right to have all products or parts claimed to be defective returned to it and the
cost of shipping such items shall be borne by the distributor.
……………………………………………………………………………………
Warranty Registration Card
In order to help us provide complete service for our product, please complete this card and return it.
If not returned, all requests for warranty will be denied.
Print Name: …………………………………………………………………….….
Address: …………………………………………………………………………...
City: ……………………State/Province………………Zip/PC…………………...
Model No. ………………………….. Serial No. …………………………………
Date of Purchase ………………………… Dealer ………………………………..
Return to: Surface to Surface Inc.
5150 Forest Rd. RR#3
Watford, Ontario, Canada
N0M 2S0
01/14/08

8
M4-E
SAFETY STATEMENTS
Your personal safety and the safe operation of this unit are the concern of Surface to Surface Inc, and by
reading and understanding this manual and understanding the safety statements, you will decrease the risk of
personal and equipment damage.
Safety statements are listed here and throughout this manual to draw your attention to potential hazards that
may be encountered while operating this piece of equipment. While reading this manual, you will notice that
certain safety statements will relate directly to the operation, or maintenance of that particular part of the unit and
should be followed carefully. Decals on the unit also follow the same format as the warnings in this manual, and
therefore should be kept in good repair to alert the operator and others of the potential hazard.
The engine / motor manual also contains hazard warnings which pertain to the engine / motor and should
also be followed.
This safety alert symbol appears with most safety statements.
It means attention, become alert, your safety is involved!
Please read and abide by the message that follows the safety alert symbol.
DANGER
WARNING CAUTION
CAUTION
Caution "without the safety alert symbol"
indicates an potentially hazardous
situtation that can cause damage to the,
machine, personal property and / or the
environment or cause the machine to
operate improperly.
Danger (the word "DANGER" is in white
letters with a red rectangle behind it)
indicates an imminently hazardous
situation, which, if not avoided, will
result in death or serious injury.
Danger is limited to the most extreme
situations.
Warning (the word "WARNING" is in black
letters with an orange rectangle behind it)
indicates an potentially hazardous
situation which, if not avoided, could
result in death or serious injury.
Caution (the word "CAUTION" is in black
letters with a yellow rectangle behind it)
indicates an potentially hazardous
situation which, if not avoided, may
result in minor or moderate injury.

9
M4-E
SAFETY STATEMENTS
The following caution statements have been drawn from the instructions in this manual. They
have been assembled here for ready reference.
WARNING
NEVER USE BODY PARTS,
OR FOREIGN OBJECTS
in an attempt to unplug or clean the
hopper v alv e or mixing tee.
Serious personal injury or
damage will result.
WARNING
Serious personal injury will result.
DO NOT REMOVE OR MODIFY
SAFETY COVERS OR GUARDS.
WARNING
while the unit is in operation.
Serious personal injury will result.
NEVER ATTEMPT TO REMOVE
OR CLEAN THE FILTER SHEAR
CAUTION
DO NOT POSITION
ANY PART OF YOUR BODY
over the hopper, valve,
or mixing tee while cleaning.
CAUTION
WHEN THE UNIT
IS IN OPERATI ON,
the fluid in the piping may reach
pressures up to 50 p.s.i.
IN AN EMERGENCY
shut off all power (switch)
to halt the motor, pump, and fluid flow
DANGER
NEV E R A T T EM P T REP A I RS
OR DISASSEMBLY
without shutting off the motor and
disconnecting/lock-out the power source.
Serious personal inj ury will result.
DANGER

10
M4-E
SAFETY STATEMENTS continued
The following caution statements have been drawn from the instructions in this manual. They
have been assembled here for ready reference.
CAUTION
TRAPPED FLUID MAY BE PRESENT
and will spill out when piping, hoses,
pump or filter shear are removed.
CAUTION
AVOID ALLOW ING FOREIGN MATERIAL
into the Venturi Mixing Tee thru the
Hopper, by keeping the valve closed
when not in use.
CAUTION
NEVER LEAVE LIQUID IN THE
PUMP CASING, PIPING, OR HOSES
during freezing weather conditions,
as damage will result .
Follow instruction for winterizing.
CAUT ION
CAUT ION
CARE MUST BE TAKEN W HEN
INSTALLING THE COUPLER GASKETS.
If the gaskets are not properly lubricated
and installed, a leak may develop.
IMPROPER INSTALLATION OF THE
M EC H ANI C AL or GR EASE SEAL
will result in leakage and possible
damage to the seal. All maintenance,
operating and repair of this unit, must be
done per the instructions in the operators
manual for safety and reliability.
CAUT ION
WHEN TRANSFERRING FLUID
to the drill rig, fluid pressure may
reach or exceed 50 p.s.i.
CHECK the drill rig manufacturers
specif ications regarding maximum inlet
pressures allowed for their pump.
CAUTION
BEFORE STARTING THE MOTOR,
BE SURE THE PUMP IS PRIMED!
Check the pump by sl owly & carefully
ope ning the plug lo cate d on t he to p of t he
centrifugal pump beside the discharge elbow.
A v isual inspection can be made if the fluid
escapes around the plug as it is loosened.
Remove the plug to view inside flui d lev el.
The centrifug al pu mp s eal W ILL be
damage d if a llowe d to c av ita te or run d ry.
CAUT ION
BEFORE STARTING OR RESTARTING
the motor and centrifugal pump, make
sure any valves installed on the pump
suction inlet line are open, and the
fluid level in the tank is above
the suction line.

11
M4-E
SAFETY STATEMENTS continued
The following caution statements have been drawn from the instructions in this manual. They
have been assembled here for ready reference.
CAUTION
The manufacturer should be consulted
when considering alternative uses
for this piece of equipment.
This unit was designed for the mixing
and shearing of a dry additive, into a
liquid stream.
Other uses may create unforeseen safety
issues and personal inj ury risk.
CAUTION
LIFTING LUGS OR THE LIFTING POINT(S)
identified and labelled on the skid
structure must be used in order to
safely lift and transport the unit.
WARNING
REFER TO THE SAF ETY
STATEMENTS IN THE
OEM SUPPLIED MANU ALS
AND
THIS MANUAL
REGARDING THESE
OPERATIONS.

12

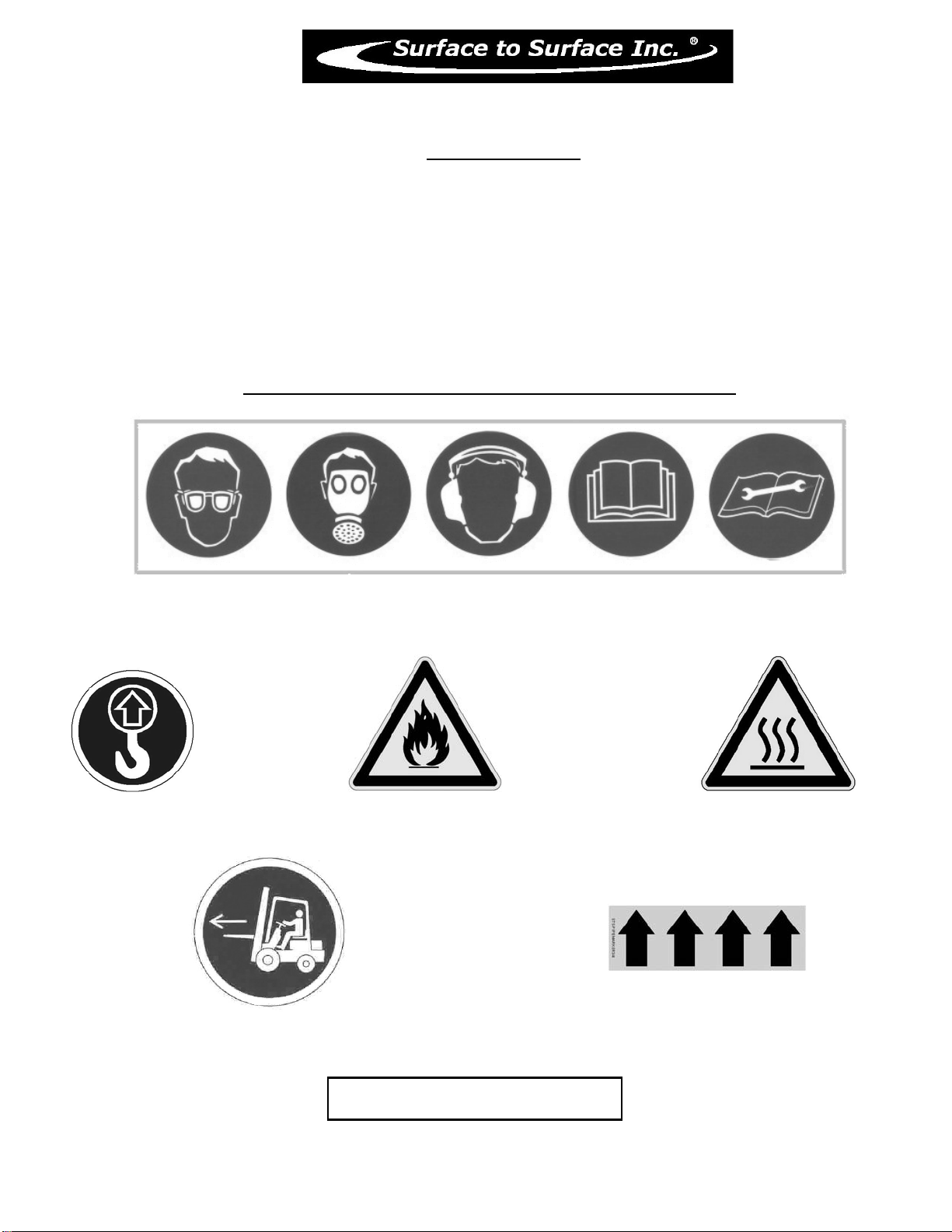

M4-E
Safety Markings
Hazard and warning markings have been placed at appropriate points on the unit. International symbols
have been used, in order to ensure universal understanding of the nature of the hazard. Please comply
with all warnings and markings to ensure safe use of the equipment. These include but are not limited to:
a) Lifting points b) Flammable Liquids
c) High temperature areas d) Personal Protection recommendations
e) Personal dangers f) Equipment dangers
g) Operating instructions h) Fluid flow direction
SOME EXAMPLES FOUND ON THE EQUIPMENT
Liftin
g
Point
Personal Protection
,
Read and understand O
p
erator’s manual and Maintenance manual
Flammable Li
q
uid Hot Surface
Fluid Flow Direction
Maintenance Instructions
Liftin
g
Point
CLEAN FILTER DAILY

13

14

15
M4-E
Operators Manual
Congratulations on your acquisition of the world renowned M4 Mixing System. You have acquired the
fastest and most efficient mixing system manufactured for mixing Bentonite drilling slurry (mud). As a
manufacturer of HDD support equipment, we are well aware of the extreme conditions that HDD
equipment is exposed to on a daily basis. Surface To Surface Inc. strives to overcome these conditions,
with better design and manufacturing practices. Please feel free to call our toll free number
(1-800-567-0978) if you have any questions or concerns about your M-4.
Thank you, for choosing the M4 series mixer.
The M4 mixing unit was designed to mix dry or liquid drilling products with clean
water, into a slurry. The slurry is continually circulated through the mixing cycle until it
reaches the desired consistency. The operator can then transfer the final product to a holding
reservoir or directly to the drilling equipment.
The M4 mixing unit consists of an electric powered centrifugal pump, filter/shear unit,
venturi mixing tee assembly, dry hopper with a table, a set of tank internal jets.
These components are all mounted on a frame type skid, built for lifting or solid mounting.
For ease of interpretation, looking at the mixing unit hopper straight on will be considered
looking at the front of the unit. Hence the other long side, will be the rear and the ends will be
right or left end.
RECORD OF OWNERSHIP:
• Unit Serial No. __________________________________________
• Motor Serial No.________________________________________
• Pump Serial No:_________________________________________
• Date Purchased/Leased:___________________________________
• Dealer Purchased/Leased From:_____________________________
• Special Custom Features:__________________________________

16
REV.
DATE.DWR. NUM.
Surface to Surface Inc. ®
* Dueto our continuing product improvement, specifications are subject to change withoutnotice.*

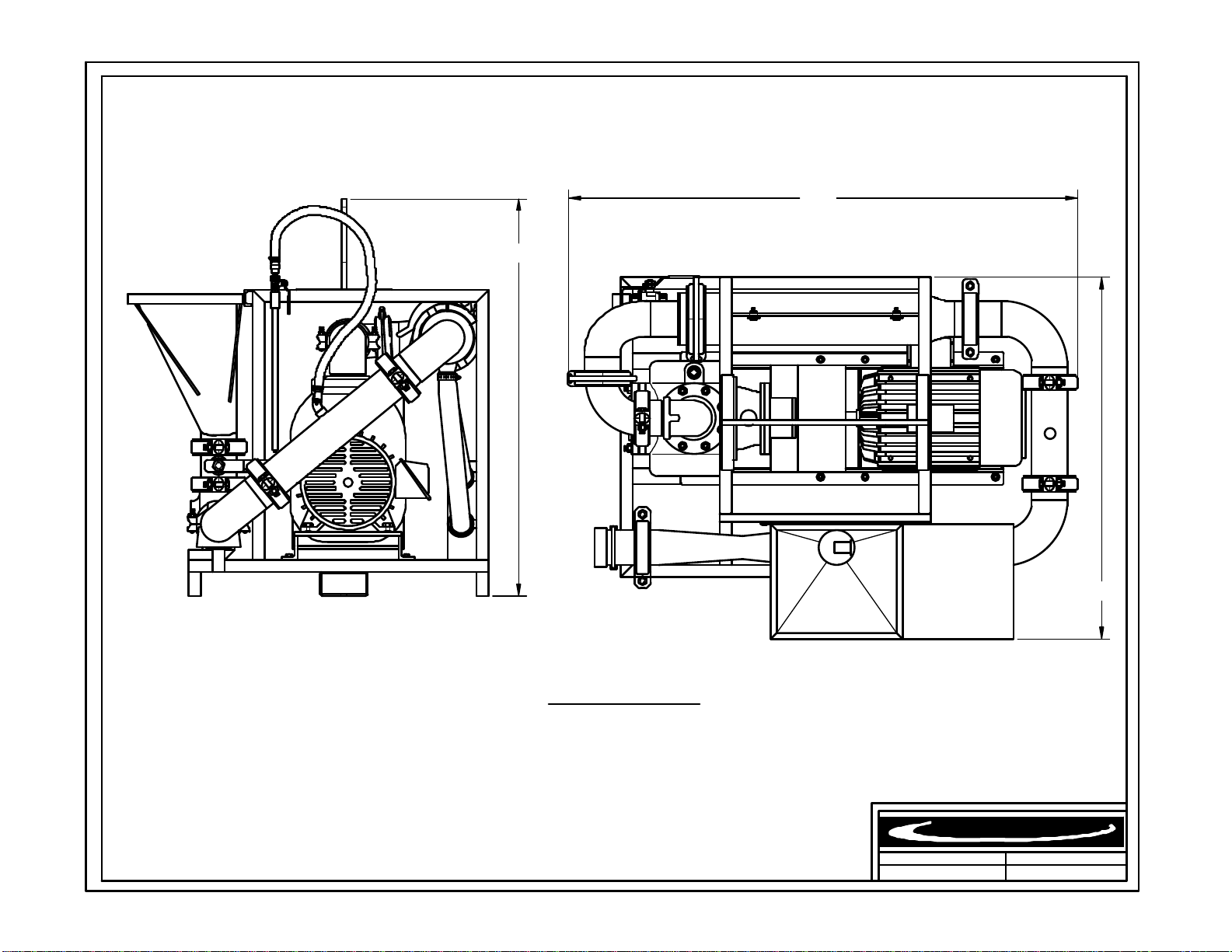

M4-E(GR) ( Electric )
DRY WEIGHT
1275 lbs.
03 / 03 / 11
M4-E(GR)
49.0"
64.0"
46.0"

17
Features and Benefits M4-E Mixer
The M4-E universal mixer is designed around the time proven M series mixers of STS. Powered by a 20 hp
Teco/Westinghouse electric motor, driving a 4” centrifugal pump, it makes effective use of the proprietary 4 point
mixing system. The M4-E can be used as a new installation or retrofitted into an existing system of tank(s). Since the
unit is connected by hose and not hard pipe, the placement of the mixer verses the tank(s) is less restricted and a
configuration to suit the needs of the contractor are easier to achieve. The small size also makes it a portable,
independent unit that is easier to transport from site to site.
Specifications M4-E Mixer Benefits
Dimensions 46” W x 64” L x 49” H Small space saving footprint.
Weight 1275 Lbs Light weight for easy transportation.
Hopper Height 38” High Waist high hopper reduces back strain.
Mixing System 4” Proprietary StS Mixing System Fast & efficient with high shearing ability.
Flow Valves Brass and Steel construction Withstand the abuse of daily operations
Skid Frame 1½” steel tube with Lifting bale Built tough for the construction trade.
Electric Motor 20 HP Teco / Westinghouse 230V/460V Industrial rated for longer service life.
Pump 4” Cast iron centrifugal trash pump Rugged & repairable for extended service life.
Pump Coupling Bearing Block to Lovejoy® Coupler Large bearings & oversized coupler (service life)
Vacuum Port 2” NPT Inlet Draw Fluid into system without additional pump.
Pipe Couplers Bolt & Snap-groove type Fast cold weather draining of system.
Pressure Wand Hopper maintenance wand Removal of blockages caused by additive.
Internal Tank Jets TurboMix™ Eductor Nozzles Fast and effective rolling and mixing action.
Also available in Diesel (M4-D), Gasoline (M4-G) or Hydraulic (M4-H) models.
∗∗∗
A
ll S
p
ecifications Sub
j
ect to Chan
g
e Without Notice ∗∗∗
Surface to Surface Inc.
Universal 4” Mixer
Model M4-E
Surface to Surface Inc.
5150 Forest Road, R.R.#3, Watford, Ontario, N0M 2S0
Tel: [phone]
Check our website for the latest products and specifications
www.stsmixers.com
03/03/11
46.0"
64.0"

18
M4-E
Identifying Your Machine & Components
Location of Tags and PIN Plates

19
SECTION #II
Description, Care and Maintenance

20
M4-E
Description, Care and Maintenance
Electric Powered Centrifugal Pump
Care and maintenance of the motor and pump are covered in this manual and/or the manufacturer
operator’s manuals supplied and should be read and understood. We suggest the following daily checks be
carried out prior to using the system. Visually check all electrical connections and wiring for pinches, frays
and loose or damaged parts. Check that all guards are in place and the condition of the drive coupler and
bearing block seals. Check the motor’s cooling fan cover and fins are clean and clear of debris. Check the
pump seal grease cup is full (see grease cup instructions Fig.5). Check that any water intake valve(s) are
open and the reservoir tank has sufficient liquid to supply the centrifugal pump.
The pump is connected to the motor with a drive coupler, that should be visually inspected. . The
bearings in the bearing block are factory greased to provide constant lubrication. The pump is the primary
component that will see the most wear due to the nature of the material it is handling therefore it will require
regular checks, adjustments and maintenance.
There is a section of this manual dedicated to the pump itself and should be read and understood
which will help should any problems or concerns arise in the field.
The pump should never be allowed to start or run dry, as this WILL damage the internal pump seal (grease
seal) and render the unit inoperable until the seal is fixed.
To prime the pump or check to visually see if the pump is primed, slowly undo the plug (priming
port) on top of the pump beside the discharge elbow (see Fig.4) and stop after about 3 turns. If the pump is
primed, fluid & air will escape from around the plug threads. This indicates that the pump housing is full,
and the plug can be tightened back up. If no fluid is escaping from around the threads, completely remove
the plug. Drill fluid or water can be poured into this opening to fill the pump cavity, and a visual of the fluid
level inside the pump can be made. The level should be approximately to the top of the pump housing.
Another way to prime the pump is to have the reservoir tank FULL of fluid, and standing off to the
side of the hopper, rotate the hopper valve SLOWLY to the open position. As the valve is opened, you will
hear air escaping followed by fluid, into the hopper itself. Close the valve as the fluid enters the hopper. This
means the fluid in the tank has filled the pump cavity of the pump and flowed from the outlet of the pump to
the remaining piping on the unit.
CAUTION
IMPROPER INSTALLATION OF THE
MECHANICAL or GREASE SEAL
will result in leakage and possible
damage to the seal. All maintenance,
operating and repair of this unit, must be
done per the instructions in the operators
manual for safety and reliability.
IN AN EMERGENCY
shut off all power (switch)
to halt the motor, pump, and fluid flow
DANGER
NEVER ATTEMPT REPAIRS
OR DISASSEM BLY
without shutting off the motor and
disconnect ing/lock- out t he power source.
Serious personal injury will result.
DANGER
CAUTION
BEFORE STARTING THE MOTOR,
BE SURE THE PUMP IS PRIMED!
Check the pump by sl owly & carefully
ope ning the plug lo cate d on t he to p of t he
centrifugal pump beside the discharge elbow.
A v isual inspection can be made if the fluid
escapes around the plug as it is loosened.
Remove the plug to view inside fluid lev el.
The centrifugal pump seal WILL be
damage d if a llowe d to c av ita te or run d ry.
