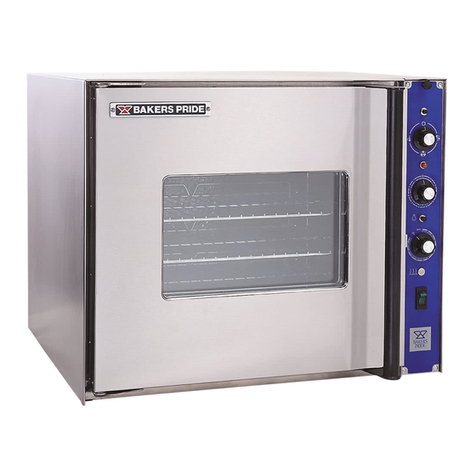

Bakers Pride Cyclone BCO-E1 User manual

STANDARD FEATURES
OPTIONS & ACCESSORIES
CERTIFICATIONS
SPECIFICATIONS
Stack any model EP/EB-2828 electric oven on any one of our full-
size electric Cyclone convection ovens to create a flexible bake and
roast center for high production in a small footprint.
Choose any model 2828 oven and any full-size Cyclone of your
choice.
Ovens and stacking brackets ship separately for field installation.
Separate utility connections required for each oven.
The E-2828 ovens feature hearth stone decks and are designed for
general baking and pizza either directly on the hearth stone deck or
on screens, in pans or on trays.
Cyclone convection ovens are full-sized and feature 10.5 kw, two-
speed, high-low fan with cool-down, interior oven lights, all
stainless steel exteriors, porcelain-enamel interiors, dual, double-
pane thermo glass windows in both doors and a 60-minute timer
with audible continuous ring alarm with manual shut-off.
Check individual specification sheets for greater detail.
o
o
o
o
o
o
o
EP series electric deck oven stacked on full-size Cyclone
electric convection oven
Stacking brackets included
Choose any model EP/EB oven and any model Cyclone
electric convection oven combination
EP/EB ovens available in single or double deck at 4,750 to
9,500 watts in 208v or 220/240v, 230v, or 230-400v
Cyclone convection ovens available in 10.5kw in 208v or
220/240v, single or 3 phase
Specify model EPBC stacking kit and your choice of EP and
Cyclone oven — each priced separately
See individual specification sheets for greater detail
