Bambino Elite Isofix User manual

Instruction Manual
GroupII: 15-25kg
GroupIII: 22-36kg
SEMI-UNIVERSALUNIVERSAL
GroupI: 9-18kg
“Elite Isofix” child car seat

page 1
Warning: NEVER leave your child unattended – your child’s safety is your responsibility.
Warning:
instructions. Incorrect installation could be dangerous.
Warning: This installation must only be performed by a competent adult. Don’t try to
install the seat when intoxicated or drowsy.
Warning: Always ensure that new or occasional users [e.g. grandparents] have read
the instructions or been taught the correct installation by someone who has read and
understood the instructions.
Warning: Always keep this instruction manual with the child car seat, or in the vehicle
in which you are carrying the child car seat. Some models of child car seat have a
pocket to store the instructions.
Warning:
Warning: Before installing the child car seat ensure that the passenger seat you are
Do not fit the child car seat in a rearward facing position
using is locked in the upright position.
Warning: Do not use the child car seat in the home - it has only been designed to be
used in the car.
Warning: Do not leave loose/unsecured objects on the back seat of your car or the
parcel shelf. They may be dangerous to your child if you are forced to brake suddenly.
should use it.
If your centre rear passenger seat does not have a three point seatbelt system (i.e. no
seatbelt at all, or only a lap belt)
- then you should use the rear left passenger seat or the rear right passenger seat.
GETTING STARTED
Before Starting
Read Carefully Before Attempting to Fit the Child Car Seat
THE CENTRE REAR PASSENGER SEAT
Notice
1.This is a ‘Universal’ child restraint for Group I (9-18kg), and Semi-universal child
restraint for Group II (15-18kg). It is approved to Regulation No. 44,04 series of
amendments, for general use in vehicles and it will fit most, but not all, car seats.
2.A correct fit is likely if the vehicle manufacturer has declared in the vehicle
handbook that the vehicle is capable of accepting a child restraint for this age
group.
3.This child restraint has been classified as ‘Universal’ child restraint for Group I
(9-18kg), and Semi-universal child restraint for Group II (15-18kg) which under more
stringent conditions than those which applied to earlier designs which do not carry
this notice.
4.If in doubt, consult either the child restraint manufacturer or the retailer.
Adult assembly required.
Only suitable if the approved vehicles are fitted with 3 point retractor safety-belts,
approved to UN/ECE Regulation No. 16 or other equivalent standards.
Child car seats can mark vehicle seat upholstery. The manufacturer cannot be
held responsible for damage or marking to vehicle seats.
The following situations could be illegal and will invalidate the warranty: 1) Any
modifications or change of use of the child car seat that have not been
authorised or advised by the manufacturer. 2) Any failure to fit the child car seat in
strict accordance with the instructions.
The manufacturer accepts no liability for issues arising from unauthorised
modifications, uses or fitting.
Please keep this manual safe for any possible queries you may have in the future.
You will need to keep your proof of purchase. We recommend you keep them
together.

page 2

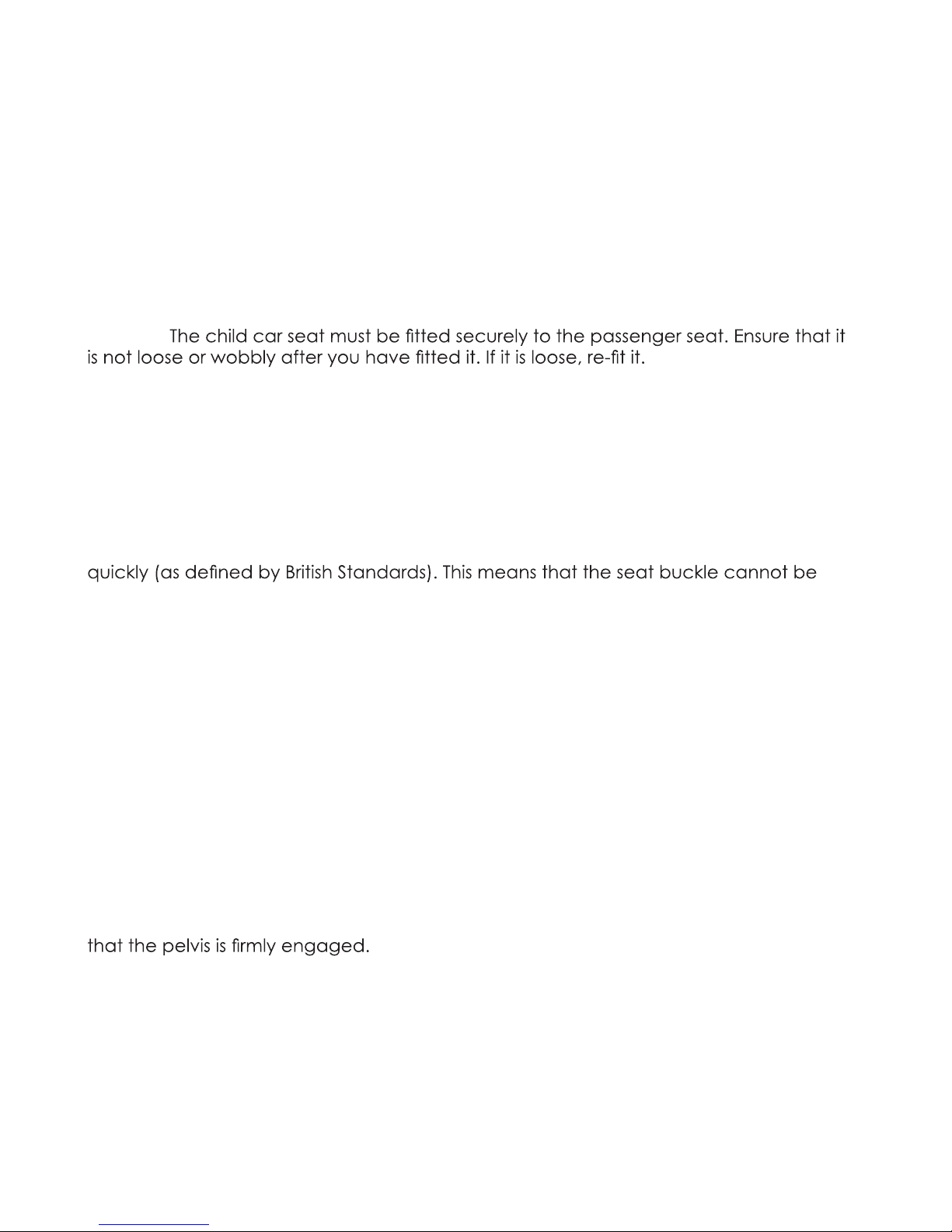

When Using the Child Car Seat
Seatbelt
Warning: Make sure that the child car seat is placed somewhere so that rigid items and
plastic parts do not become trapped in doors or movable seat units when the seat is in
everyday use.
Warning: Always use the vehicle’s door child safety lock system, if one is available, to
make it impossible for the child to open the car doors from inside.
Warning: Allow the child a break during long car journeys and make sure they don’t
get out of the car seat unaided and without supervision.
Warning:
Warning: Ensure that the child car seat is secured to the car seat at all times - even
when not in use.
Warning: The seat cover should not be replaced with any other than the one recommended by
the manufacturer, because the cover constitutes an integral part of the restraint performance.
Warning: Stop the car at regular intervals to check that the child car seat is in the
correct position and that both the car seatbelt AND
are still fastened and latched.
the child car seat harness (if required)
Warning: In the event of an emergency it is important to be able to release the child
fully tamper proof and you should actively discourage your child from playing with or
using the buckle.
Warning: Do not place anything under the child car seat (e.g. a towel or cushion) as
this could affect the performance of the seat in an accident.
Warning: Avoid winter clothing bundling - Bulky clothing can lead to incorrect harness
tightening. In an accident, the child can slip right out of the extra padding - and thus
out of the seat. Let the car warm up or cool down prior to placing your child in there if
possible. If your child is cold, place a blanket over the top of the harness.
Warning: NEVER use any load bearing contact points other than those described in
these instructions or marked on the child car seat.
Warning: Ensure that the lap section of the seatbelt or harness is worn low down, so
Warning: Make sure that ALL the passengers in your vehicle have their seatbelts
fastened, as unrestrained people can be very dangerous to the child in an accident.
Warning: NEVER use a seatbelt routing scheme that differs from these instructions.
Warning:
the child car seat.
Warning: Make sure that there are no twists in the seatbelt.
The lap and diagonal seatbelt must be used at all times when your child is in

page 3
Welcome 4
Parts checklist 4
Positioning the seat 5
Four-position seat recline 5
Installing for group I [9-18kg] 5-7
Adjusting the headrest and harness height 8
Placing your child in the seat - group I [9-18kg] 8-9
Converting for groups II [15-25kg] + III [22-36kg] 10-13

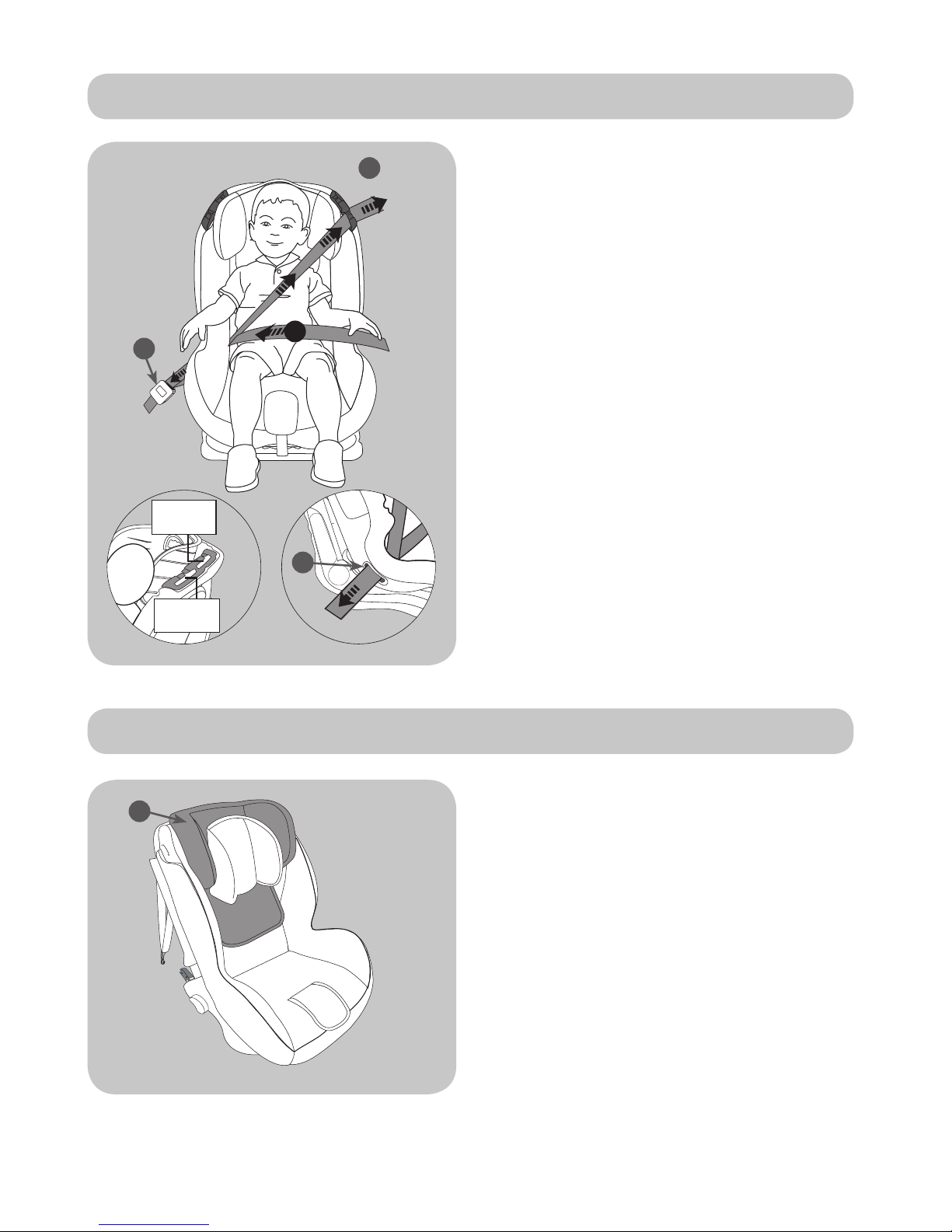

Installing for groups II [15-25kg] + III [22-36kg] 13-14
Removing the seat cover 14-15
Replacing the seat cover 15-16

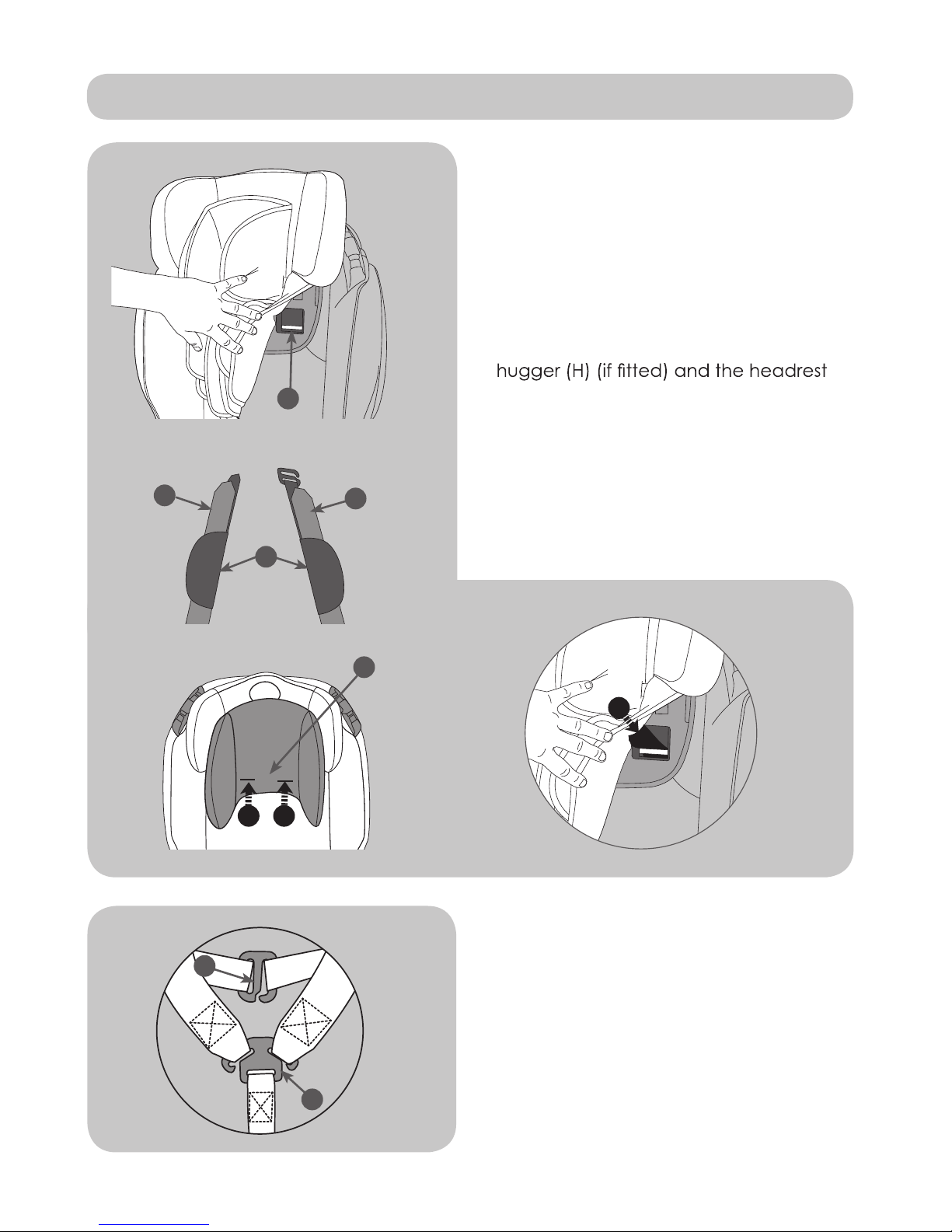

Replacing the harness 16-19

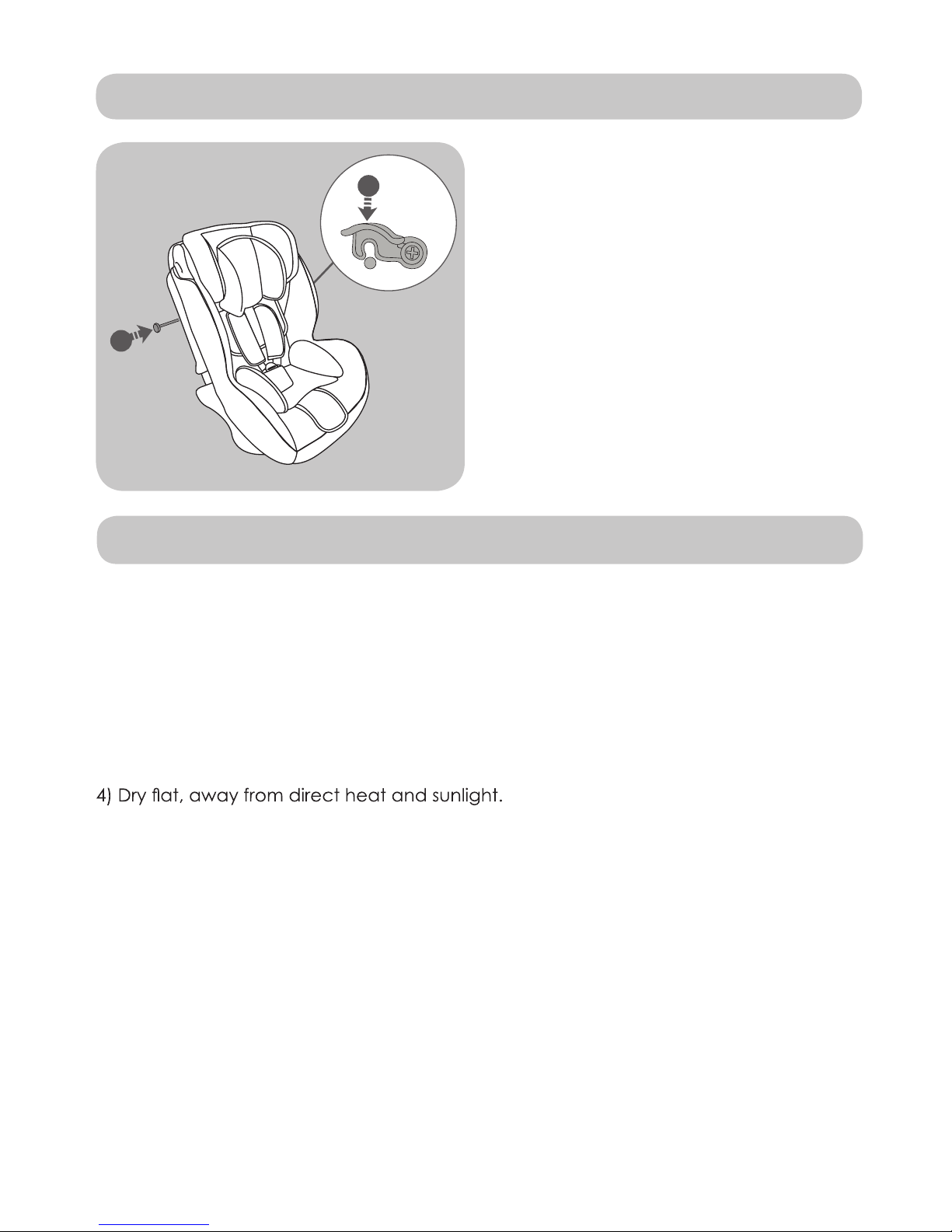

Maintenance and cleaning 19
Our promise is to repair, replace or refund the “Elite Isofix” Car Seat if it has an
identified manufacturing defect from the date of purchase for a full 1 year thereafter
at no extra cost.
Your 1 Year Warranty
Contents
Sunlight/Hot Days
Back of the Seat/Headrest
Second Hand or Damaged Child Car Seats and Seatbelts
Warning: Do not leave your child in the child car seat while parked in direct sunlight or
on a hot day.
Warning: Do not subject the child car seat to prolonged direct sunlight as this may be
cause the fabric to fade. You can reduce this problem by covering the child car seat
with a sheet when not in use.
Warning: Ensure that the child car seat is as close as possible to the backrest of the vehicle
seat.
Warning: REMOVE the head rest of the passenger seat being used if it obstructs the
proper installation of the child car seat. REMEMBER
car seat has been removed.
Warning: Never buy a second hand child car seat. It may have unseen damage.
Warning: The manufacturer only guarantees this product when the original owner uses
it.
Warning: You MUST replace the child car seat and your vehicles seatbelts if they
become badly worn or damaged.
Warning: You MUST replace the child car seat if it is involved in an accident – it may
have unseen damage and may not protect your child as well as it should. At the
very least send the child car seat to your retailer for inspection, together with the
accident report.

page 4
Parts checklist
1 Group II Belt guide slot
2 Group III Belt guide slot
3 Installation bar
4 Rear shell
5 Side protection system
6 Top Tether
7 Lap belt hook
8 Belt yoke
9 Isofix anchors
10 Isofix Adjuster Button
11 Headrest
12 Front shell
13 Belt guide hole
14 Base
15 Headrest and harness
height adjuster handle
16 Carry handle
17 Seat cover
18 Shoulder strap
19 Waist strap
20 Buckle pad & crotch strap
21 Adjuster button cover
22 Recline adjuster handle
23 Head cushion
24 Harness shoulder pads
25 Centre buckle
26 Booster cushion insert
27 Harness adjuster button
28 Harness adjuster strap
1
11
12
13
14
2
3
4
5
6
7
8
10
9
17
18
19
20
21
22
23
24
25
26
28
27
Thank you for purchasing the “Elite Isofix” child car seat. Please read these
instructions carefully before use to ensure safe and satisfactory operation of this product.
Your child’s safety is your responsibility. If you have a query with this product or require
replacement parts, please contact your nearest retail store.
Welcome
15
16

page 5

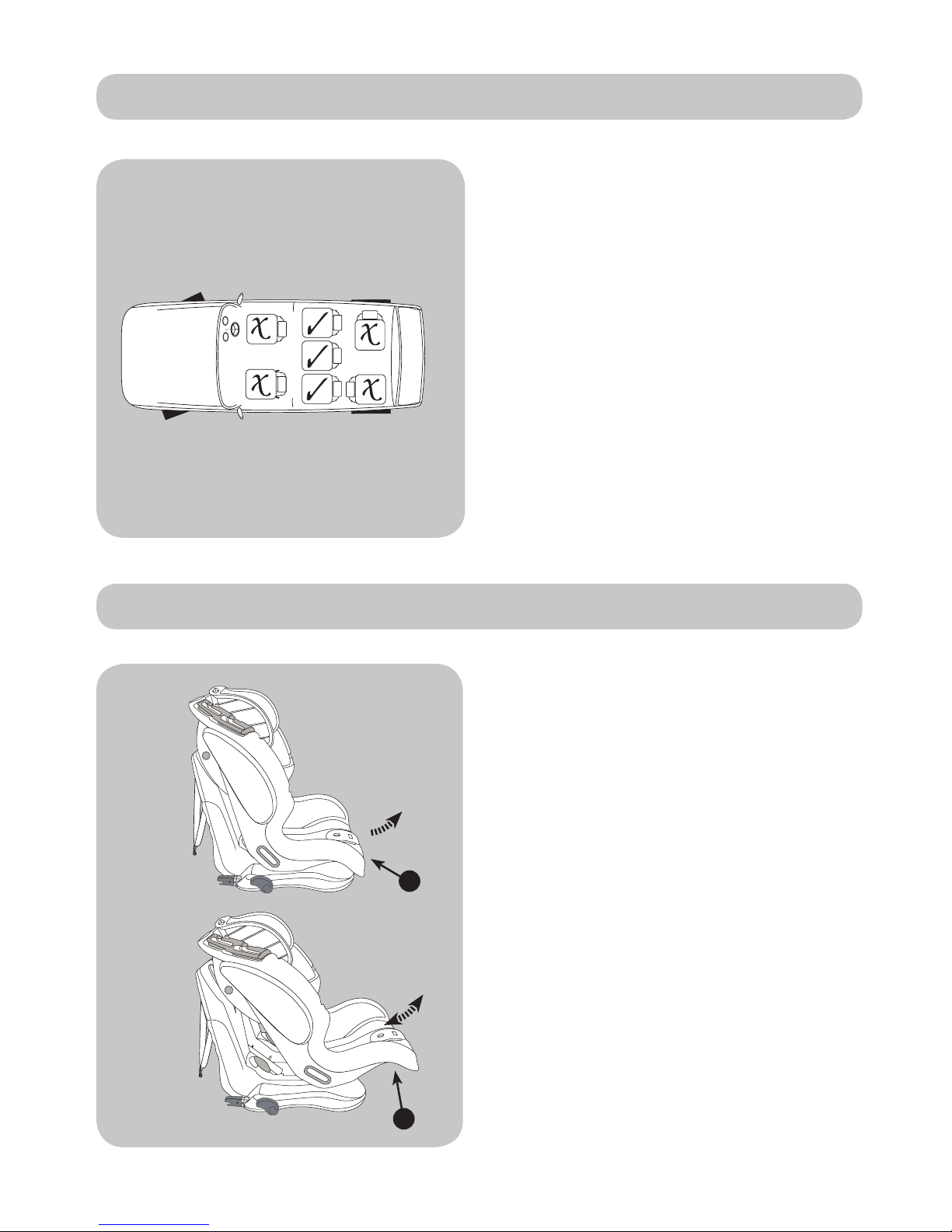

Positioning the seat
The child car seat can be secured in
a forward-facing position in the rear
seats of the vehicle by using the existing
seatbelts. However, on some seats, if
the installation is not properly secured,
we suggest you try another seat in your
vehicle.
WARNING: Never use in a seat with an
active airbag.
Four-position seat recline
The child car seat can be used in four
different seat positions, from seated
to a reclined position. Pull the recline
adjuster handle (A) under the front
of the shell and pull the shell forwards
or backwards, release the handle to
your required position when hearing a
distinct click.
upright
reclined
A
A
1) The “Elite Isofix” can be used with
isofix anchors and top tether for group I
9-18kg child.
2) The “Elite Isofix”must be used with an
ISOFIX anchor and top tether as well as
a 3-point seat belt for group 2 ,3 15-36kg
child.

page 6
Installing for Group I [9-18kg]
A B
a) Place the “Elite Isofix” on the
vehicles seat
b) Rotate the adjuster button in an
anti-clock wise direction(A),and pull
the isofix anchors outwards as far as
it goes, make sure it cannot be
pushed back (B)
B

page 7
Installing for Group I [9-18kg]
Push
Push
A
D
BC
c) Push the car seat towards the back
of vehicles seat(A)
d) Match the isofix anchors to the
vehicles anchoring point until you hear
a “click”(B)
e) Rotate the adjuster button in an
anti-clock wise direction(C),and push
the car seat to the back of vehicles
seat as much as possible(D)
f) Hook the top tether up and pull as
tight as possible(A)
B
Pull
A

page 8

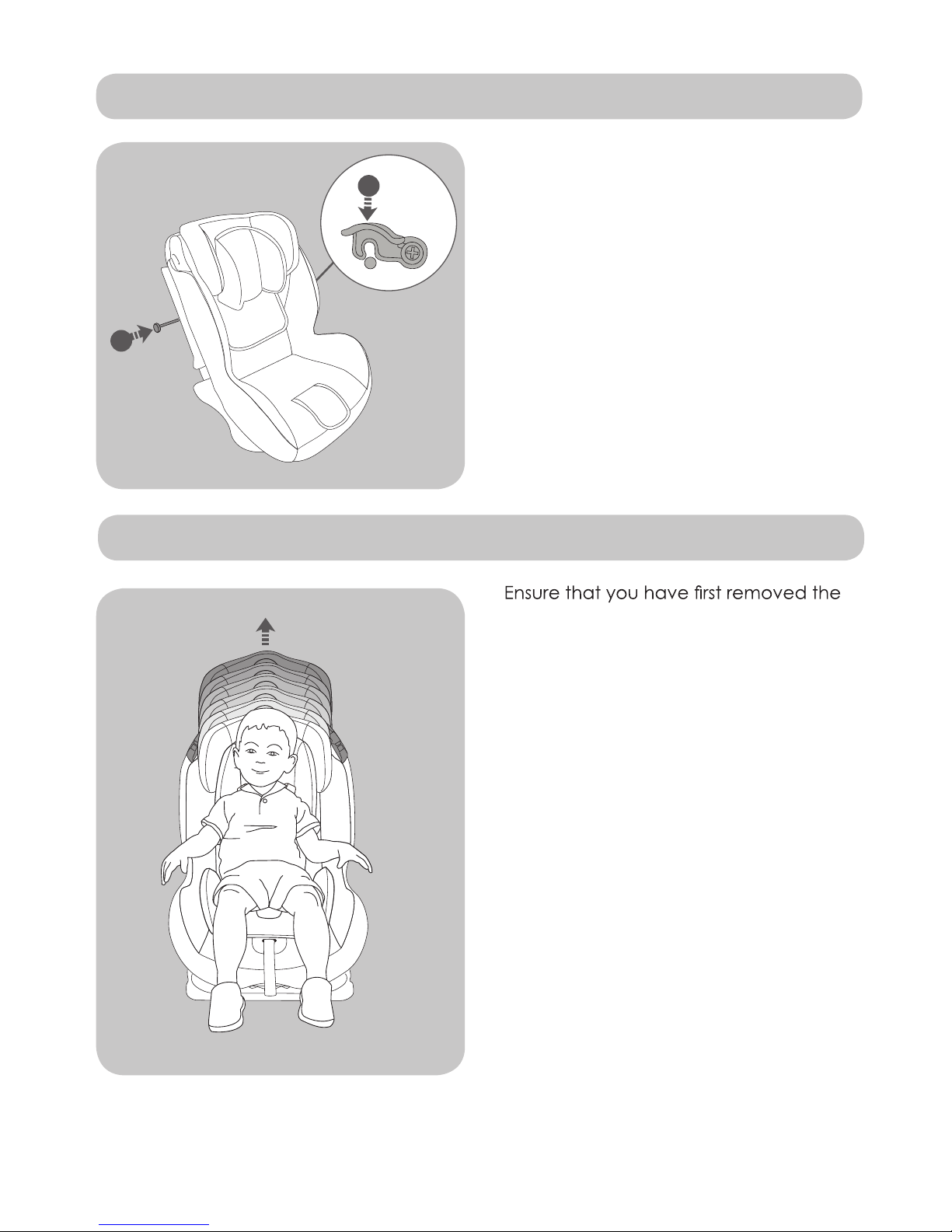

Adjusting the headrest and harness height
Adjust the headrest by pulling the
adjuster handle on the back of the
headrest and raise or lower
according to your child’s height.
The harness strap slots should be level
with your child’s shoulders.
Placing your child in the seat - Group I [9-18kg]
the child car seat correctly,
following the steps under
‘Installing for Group I [9-18kg]’,
Press button (A) and pull forward
on the shoulder straps (not the
shoulder pads) to loosen the
straps.
Press the red ‘buckle release’
button (B) and unbuckle the
harness.
IMPORTANT: DO NOT pull the
shoulder pads or the straps above
the shoulder pads.
AB

page 9

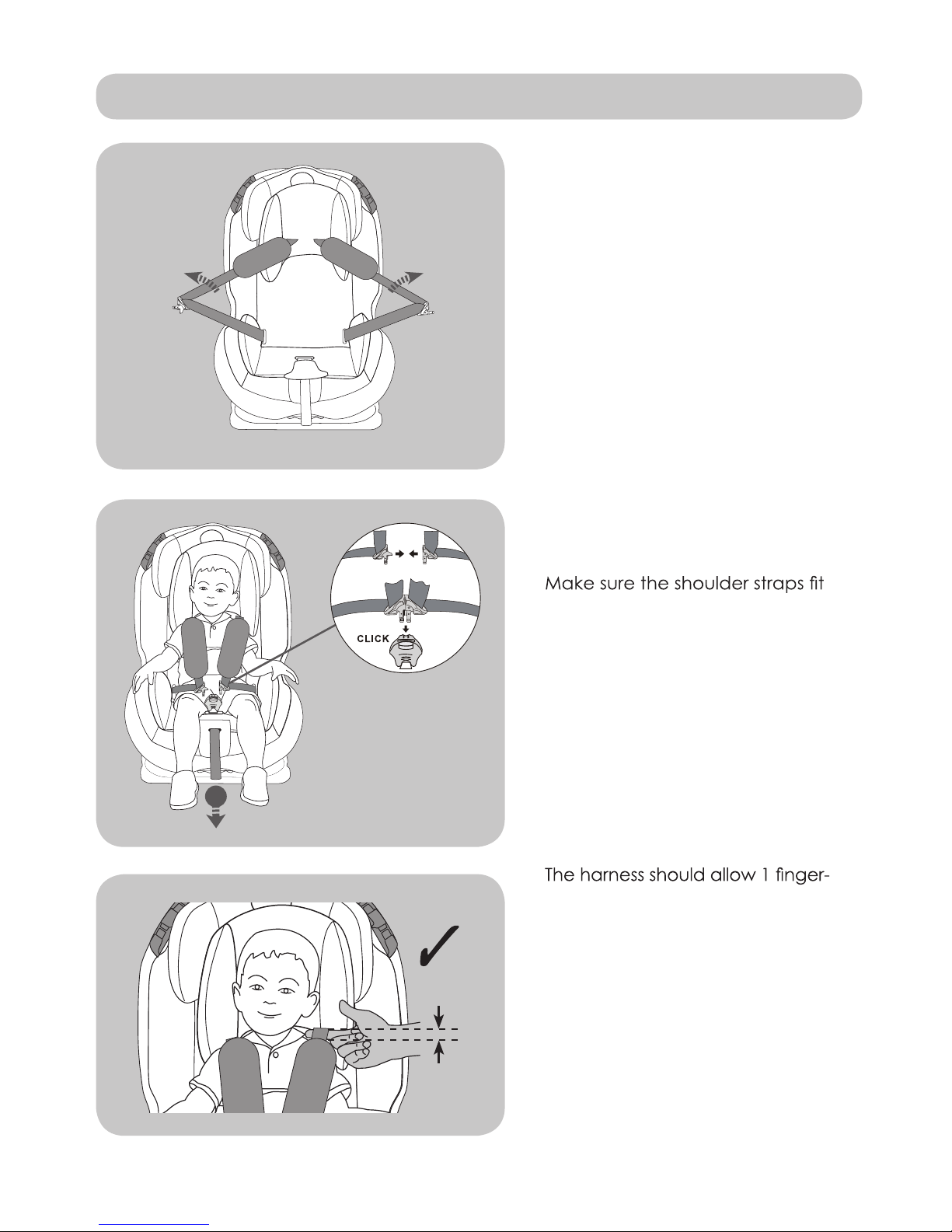

Placing your child in the seat - Group I [9-18kg] (continued)
Place the harness straps over the
side of the shell, position your child
in the child car seat ensuring no
toys or other hard objects are in the
seat.
After placing your child in the child
car seat, match the two halves of
the harness buckles together and
insert them into the crotch buckle.
your child snuggly by pulling the
adjuster belt (C).
C
1cm
width (1cm)of space at the top
of the shoulders. This is the ideal
tightness.
Note: check that the buckle is
secured by tugging the shoulder
and waist straps.

page 10
Converting for groups II+III [15-36kg]
It is recommended that you use the 5-point harness for as long as possible. If you remove
the booster cushion this could allow you to use the seat in group l configuration for longer.
A
B
C
Pull the recline adjuster handle under
the front of the shell and whilst holding it,
pull the shell forwards to its most reclined
position.
Release catch (D) on the top left
hand side of the shell and remove the
installation bar (E).
D
E
When your child has outgrown the group
I(9-18kg) configuration and you wish to
use the seat for a child in either
group II (15 - 25kg) or group III (22-36kg)
then you will need to remove the child
car seats integral 5-point harness.
Lift the fabric adjuster cover at the
front of the car seat and whilst pressing
button (A), pull forwards on the shoulder
straps (not the shoulder pads) to
completely loosen the harness straps
and shorten the adjuster strap (B) as
much as possible. Any remaining strap
can be rolled up and stored under the
red plastic cover (C).
IMPORTANT: DO NOT pull the shoulder
pads.
Note: the “Elite Isofix” must be used with Isofix anchors and top tether at the same
time with 3-point automatic seat belt for group Ⅱ/Ⅲat all times.

page 11
Pull and hold the shell forward.
Unhook the shoulder pad straps from
shoulder pad connector (F). Unhook the
shoulder harness straps from yoke (G).
Pass the shoulder straps through the slots
in the back of the shell (H).
F
G
H H
Converting for groups II+III [15-36kg] (continued)
Undo the two Velcro
®
tabs on each side
of the back of the head hugger (I) and
remove.
I

page 12
Converting for groups II+III [15-36kg] (continued)
To remove the crotch strap, ensure
the child car seat is in a fully reclined
position.
1. Push the crotch strap down through
the slot.
2. Whilst holding the strap locate the
metal retainer buckle underneath the
car seat shell, turn the retainer buckle
and post through the hole opening
and remove the crotch strap.
1
2
Locate the two metal retainer buckles (J) under the seat cover at points (1) and (2).
Pass the metal buckles on the waist harness from the front of the shell, through the inner
slots (K) on the back of the shell and back out the outer slots (L), to the front to remove
the harness.
KL
rear view of shell
J
2
1
Remove the booster cushion insert (M)
from the crotch strap.
M

page 13
Installing for groups II [15-25kg] + III [22-36kg]
child car seats integral 5-point harness,
following the steps under ‘Converting to
group II+III [15-36kg]’ pages 10-13.
You can use the booster cushion insert if
your child needs it.
Position your child in the child car seat,
adjust the headrest by pulling the
headrest and harness height adjustment
handle on the back of the headrest and
raise or lower according to your child’s
height.
Converting for groups II+III [15-36kg] (continued)
Return the shell to its original position
and re-insert the installation bar (N) and
secure the catch (O).
The child car seat can now be placed
into your vehicle.
WARNING: The child car seat should
always be strapped in using the
vehicle’s seatbelt, whether a child is
seated in the child car seat or not.
N
O

Push
page 14
Installing for groups II [15-25kg] + III [22-36kg] (continued)
Removing the seat cover
Place the seatbelt shoulder strap
through the most suitable belt guide slot
(A): Use the lower strap hook for children
in group II [15 - 25kg].
Use the higher strap hook for children in
group III [22 - 36kg].
Place the lap belt over your child’s lap
and thread through the belt guide hole
(B) on the side nearest the seatbelt
buckle (C). Fasten the seatbelt buckle
(C) and remove all slack from both the
lap and diagonal sections of seatbelt.
WARNING: The child car seat should
always be strapped in using the
vehicles seatbelt, whether a child is
seated in the child car seat or not.
WARNING: The cover is a safety feature.
Never use the child car seat without it.
Remove the harness straps, crotch
strap, head pad and seat pad (see
‘Converting to group II+III [15-36kg]’
pages 10-13.
Remove the headrest cover (A) by
grasping the elasticed band and pulling
the cover off.
B
A
B
C
Group II
(15-25kg)
Group III
(22-36kg)
A

page 15

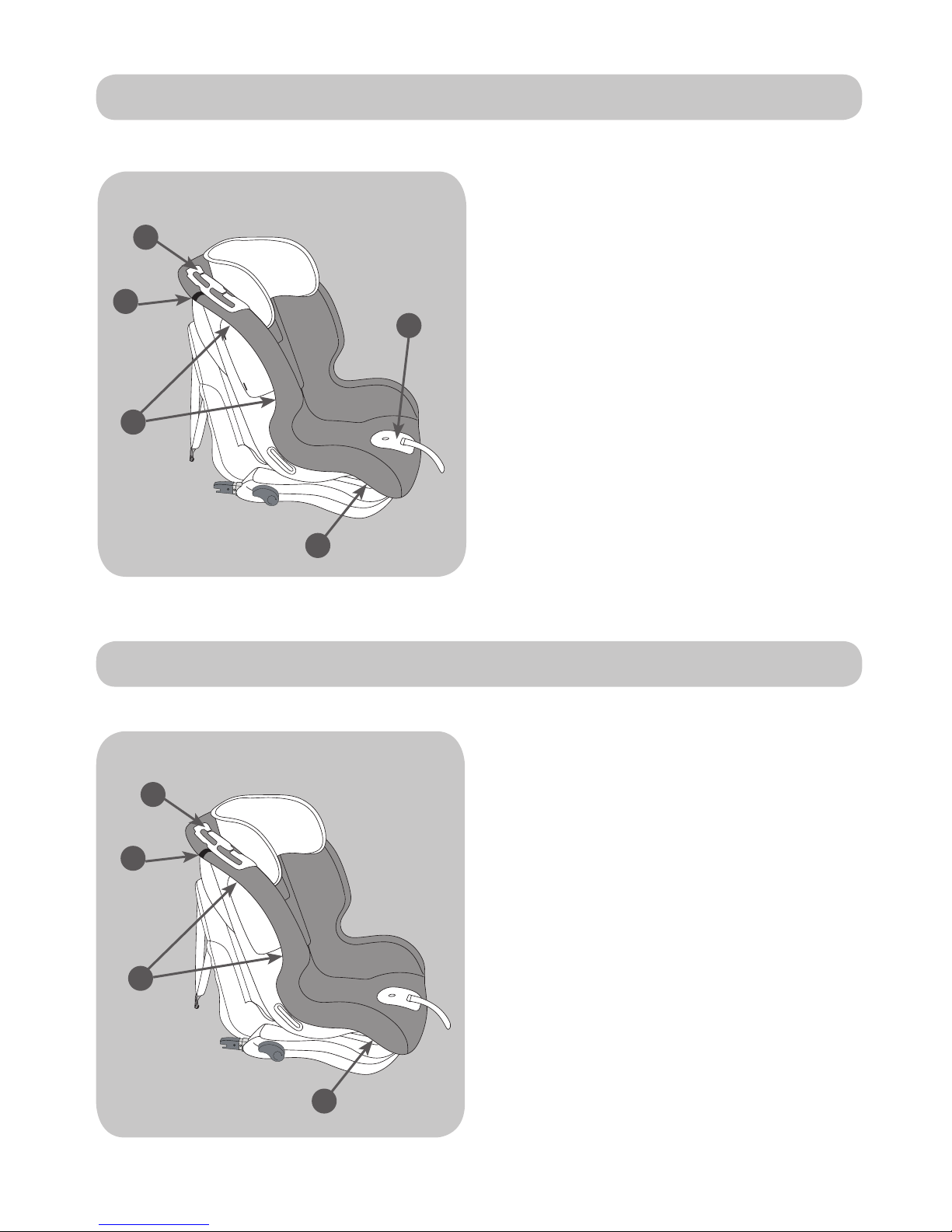

The main cover is held in place by a
series of hooks (B) located on the back
and underside of the shell. Unhook the
cover’s elastic from the hooks. Undo
the Velcro®tabs (C) on the shoulders
of the shell, work the cover from under
the strap hooks (D) and from around the
plastic adjuster panel (E) and remove
the cover.
Removing the seat cover (continued)
B
B
E
C
D
Replacing the seat cover
WARNING: The cover is a safety feature.
Never use the child car seat without it.
Place the main seat cover over the
child car seat and stretch the elasticed
band around the shell, taking care as
you work the cover over and around
the plastic parts. Ensure the Velcro®tabs
(A) pass under the strap hooks (B).
Once in place secure the cover on the
hooks (C) located on the back and
underside of the shell.
C
C
A
B

page 16
Replacing the seat cover (continued)
Replacing the harness
Stretch the headrest cover (D) over the headrest and tuck the lower part of the
headrest cover (E) behind the main seat cover.
D
E
Adjust the shell to its most reclined
position.
Pull the recline adjuster handle under
the front of the shell and whilst holding it,
pull the shell forwards to its most reclined
position.
Release catch (A) on the top left
hand side of the shell and remove the
installation bar (B).
A
B

page 17
Replacing the harness (continued)
Insert waist strap retainer buckles (C)
through the two slots (1) and (2) on the
cover and out through the outer slots on
the back of the shell then back through
the inner slots.
Insert crotch strap retainer buckle (D)
through slot (3).
21
3
C
D
Take the two harness shoulder straps
with the buckle clips and crotch strap
and match the buckle tongue sections
together and insert into the buckle.
With the buckle connected you will
have something similar to the illustration
opposite.
C

page 18
Replacing the harness (continued)
Adjust the headrest so that when you lift
up the headrest fabric you are able to see
the metal bar (E) through the backrest.
Slide the shoulder pads (F) over the
shoulder harness straps (G), ensuring the
seams of the shoulder pads are facing
outwards.
Push the shoulder pad and harness
straps through slots (1 & 2)on the head
fabric. Lift up the fabric and take the
straps through the shell over the metal
bar (I).
ATTENTION: The shoulder pad and
harness straps MUST pass over the metal
bar, failure to do so will result in an
incorrect installation.
Connect the narrow shoulder pad straps
to the shoulder pad connector (J).
Connect the wider shoulder harness
straps to the yoke (K).
ATTENTION: Check that the harness
straps are correctly attached to the
yoke and ensure the straps are not
twisted.
G
G
F
E
I
H
J
K
1 2

The seat cover should not be replaced with any other than the one recommended by
the manufacturer, because the cover constitutes an integral part of the restraint performance.
page 19
Maintenance and cleaning
Storage
1) Store this child car seat in a safe place when not in use.
2) DO NOT place heavy objects on top of it.
3) Always store the child car seat in a dry environment.
4) DO NOT store the child car seat near a direct heat source such as a radiator.
Cover
1) The seat cover is easily removable and should be handwashed with a pH neutral
soap and cold water.
2) Do not press, iron, dry clean, tumble dry or wring the covers.
3) Do not use solvents, caustic or abrasive cleaning materials.
5) If your seat cover needs to be replaced and is under warranty - contact your retailer.
Plastic/Metal Parts
1) Wipe clean using a mild soap and warm water.
2) You must not remove, dismantle or alter any part of the seat shell.
3) You must not oil or lubricate any part of the seat shell.
Inspection
1) Check your child car seat regularly for wear and tear.
2) The child car seat may have a slight rattle when not in use, this is normal. If in any
doubt, contact your retailer immediately.
Replacing the harness (continued)
Return the shell to its original position
and re-insert the installation bar (L) and
secure lock (M).
L
M
