Bancroft MAD SHARK V2 User manual

SKU #BNC1032-001
MAD SHARK V2 2.4GHz ARTR BRUSHLESS Mini F1 SPEED BOAT
1) Mad Shark V2 Racing Boat
2) Transmitter
3) Spare Nylon Propeller
4) Deans Plug W/Heat Shrinking Tube
Mad Shark is designed for use in fresh water only.It is not designed for use in salt water!
Mad Shark is not intended for persons under 14 years of age, unless closely supervised by an adult.
This model is capable of over 45 KPH, Personal injury or property damage may result from misue of
this product, take care and enjoy your model responsibly.
36
Mad Shark V2 2.4GHz ARTR Brushless Mini F1 Speed Boat
8
7
5) Boat Stand
6) Water proof ballon for RX
7) Rubber Band
8) 2.5mm Allen Key (For pushrod tighten)
2.0mm Allen Key (for Grub Screws)
5
4
ATTENTION:
IMPORTANT
Before racing your model boat, carefully check silicone tube for guarantee good water cooling system;
Avoid water inlet on the bottom of hull become deformed, otherwise, water cooling system failure, this
may lead to ESC burned out and motor defected.
CONTENTS OF SET
ESC with low voltage hard cut off at 3.2V per cell, when driving your boat , as soon as you notice boat
stop, that means ESC low voltage cut off effective, you should immediately drive boat back to shore in
slow speed , recharge battery and race again. don’t keep racing boat when ESC low voltage cut off
effective, otherwise, you will allow battery over discharge, battery voltage will reach very low and
won’t be recharged again.
Caution for LiPo battery:

2
2S/3S Balance Charger and adapter, or multi-functional intelligent charger (Not included)
kits bag)
One pack of 11.1V 1300mAh 35C Lipo battery (Not included)
Mad Shark V2 2.4GHz ARTR Brushless Mini F1 Speed Boat
BATTERY RECOMMANDATION
CHARGER RECOMMANDATION
INSTALLING TRANSMITTER BATTERIES
INSTALLING THE 11.1V LIPO IN THE MAD SHARK
1. Switch on transmitter power, the light glows bright red.
2. firstly rotate the plastic lock underneath the boat head, then rotate the four plastic lock at the hatch
as photo show to remove the hatch.
4XAA Batteries
(Not Included)
NOTE: The transmitter is not water resistant and should never come in contact with water.
1. Install four fresh “AA” batteries. Follow the diagram located in the bottom of the battery tray
for proper battery orientation
2. Turn the transmitter “ON” The battery light should glow bright RED

RECEIVER CONNECTION DIAGRAM
TRANSMITTER/RECEIVER BINDING
3

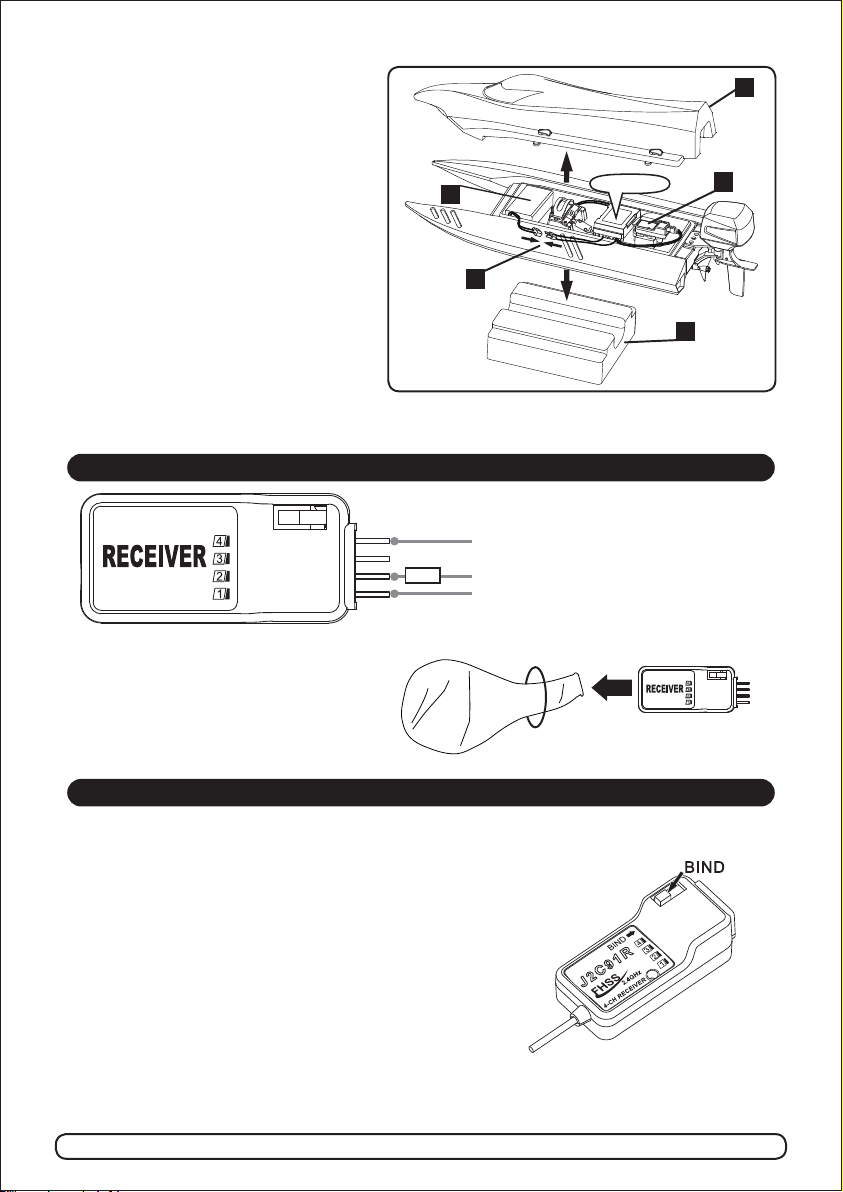

3. Place the boat hull on the polyfoam boat
stand
4. Fixt the charged finished battery inside the
hull with velco strap.
5. Attach battery connector to the matching
connector of ESC.
6. Receiver’s light glow green, ESC will mak
e sound of “ BE, BE, BE”.
7. Re-position hatch by rotating plastic locks
at the hatch firstly, then rotate the plastic
lock underneath the boat head.
NOTE: 1. There is a water proof rubber ring placed inside the slot of hull, always make sure it’s secured
positioned before re-position the hatch.
7
6
3
4
5
BE BE BE
The binding process effectively ties the transmitter and receiver together. Under normal circumstances,
both items are supplied like this from the factory. If, however, you find that your transmitter and receiver
are not bound(receiver’s red LED is on), you should do the following:
1) Switch “ON” the transmitter.
2) Switch “ON” the receiver by connecting battery to ESC,
and ESC cord is plug into Receiver properly(Note:ESC
has BEC function).
3) Press down the “BIND” button on the receiver, the
receiver’s green LED will be on to indicate that binding
has been successful and the receiver will now accept
commands from the transmitter.
Note 1: During binding process, transmitter and receiver should be no more than one meter apart
and no other similar devices should be within 10 meters.
Note 2: if the green light flashing, showing the binding failure, please do again as above indication.
Caution: Before racing boat,
Please use ballon supplied
in tool bag to wrap receiver
for water proof
Note: If ESC with BEC function, no need to connect battery with receiver.
BATT.(6V)
THROTTE
SERVO
ESC
Mad Shark V2 2.4GHz ARTR Brushless Mini F1 Speed Boat

4
AFTER USE
1. When you have finished using your Mad Shark, you should first switch ‘OFF’ the model (disconnect
the 11.1V LiPo), then switch ‘OFF’ your transmitter.
2. Remove all batteries from the transmitter and model.
3. Leave Mad Shark ’s upper deck off to allow moisture to evaporate. Ideally, place the model in this
way in a warm and dry place, like an airing cupboard, until you are sure it is dry and then store it away.
4. Remove the rubber ring from the slot of hull, so as to keep the rubber ring flexible for water proof
effective in next time boat racing.
NOTE: If Mad Shark begins to bob when running, it may have taken on an excessive amount of water.
In this case, you should immediately return to shore, remove the upper deck and drain the
water from the hull.
SELF-RIGHTING FEATURE
TRANSMITTER INTRODUCTION
Intelligent hull design with self-righting feature, separated left part of hull laser cutted with holes. When
boat accidentaly turn over in high speed racing in big wave, don’t worry, please wait for a while, the
water will come into left part of hull through holes, changing the CG of boat, then it will automatically
self-righting and keep racing, water will be drained out from the hole of rear hull.
Steering reverse switch
Steering trim-right
Steering trim-left
Throttle trim-brake
Throttle trim-forward
Steering traveling angle-right
Steering traveling angle-left
Power indicator
Power switch
Mad Shark V2 2.4GHz ARTR Brushless Mini F1 Speed Boat

Lubricate Here
5
Lubricating the flexshaft is vital to the life of the drivetrain. The lubricant
also acts as a water seal, keeping water from entering the hull through
the stuffing tube. Lubricating the flexshaft, propeller shaft after every
2 or 3 times of operation.
1. Use the 2mm Allen key to loose the two grub screws of the coupler
which connects the flexshaft, then slide the flexshaft w/ prop shaft
out of the stuffing tube.
2. Lubricate the flexshaft w/ prop shaft with the water proof marine
grease, reinstall the flexshaft w/ prop shaft in reverse order, be
sure to retighten the two grub screws of coupler.
IMPORTANT - Mad Shark
The bearing in the water cooled motor mount must be regularly
lubricated with oil, grease or Vaseline petroleum jelly to prevent
corrosion through the ingress of water.
Insufficient lubrication may lead to the premature failure of the
bearing. Note: Image shows drive shaft removed for clarity - the
bearing can be lubricated with the drive shaft in situ.
EPA ADJUSTMENT
When adjusting steering trim, make sure the direction
is in agreement with the boat direction, you can adjust
by the STEERING “REV-NOR” button.
Steering reverse switch
Steering reverse switch
Use this when performing left and right
steering angle adjustments. End Point
Adjustment (EPA) adjusting value range: 0%-100%
Function
Setting
1. Steering (right side) angle adjustment Rotate “ST/R”
knob to the left end point means minimum value 0%,
right end point means maximum value 100%.
2. Steering (left side) angle adjustment Rotate “ST/L”
knob to the left end point means minimum value 0%,
right end point means maximum value 100%.
When adjusting this function, make sure the direction is in agreement
with the boat direction, you can adjust by the STEERING “REV-NOR” button.
CAUTION:
Adjust “ST/TRIM” “R/L” so that rudder is centered prior to operation, you may adjust
this control to make the boat run straight during operation.
Adjust “TH/TRIM” “B/F” to stop propeller from turning
while the throttle trigger is in the neutral position.
CAUTION:
Steering trim
Throttle trim
Mad Shark V2 2.4GHz ARTR Brushless Mini F1 Speed Boat
TRIM ADJUSTMENT
MAINTAINING THE DRIVESHAFT

Check using the chart below before returning your Mad Shark for repair as many problems can be easily solved
11.1V LiPo
Please observe the following warnings.
DURING OPERATION
● The transmitter’s range will vary depending on your surroundings and battery strength.Do not
operate Mad Shark too far away or control will be lost.
● Ensure that all batteries are correctly installed and that the 11.1V LiPo is fully charged.
● Do not operate your Mad Shark in areas with strong currents, in salt water or areas of water with
large waves.
● Do not touch moving parts during operation, especially the propeller.
● Do not let your Mad Shark runs aground, as this can cause damage.
● If you lose control of your Mad Shark , never wade into deep water or water with strong currents to
retrieve it. First, hold the transmitter as high as you can to try to re-establish control. If this does not
work, find another way to move closer to the model, but do not endanger yourself in the process!
CAUTION!

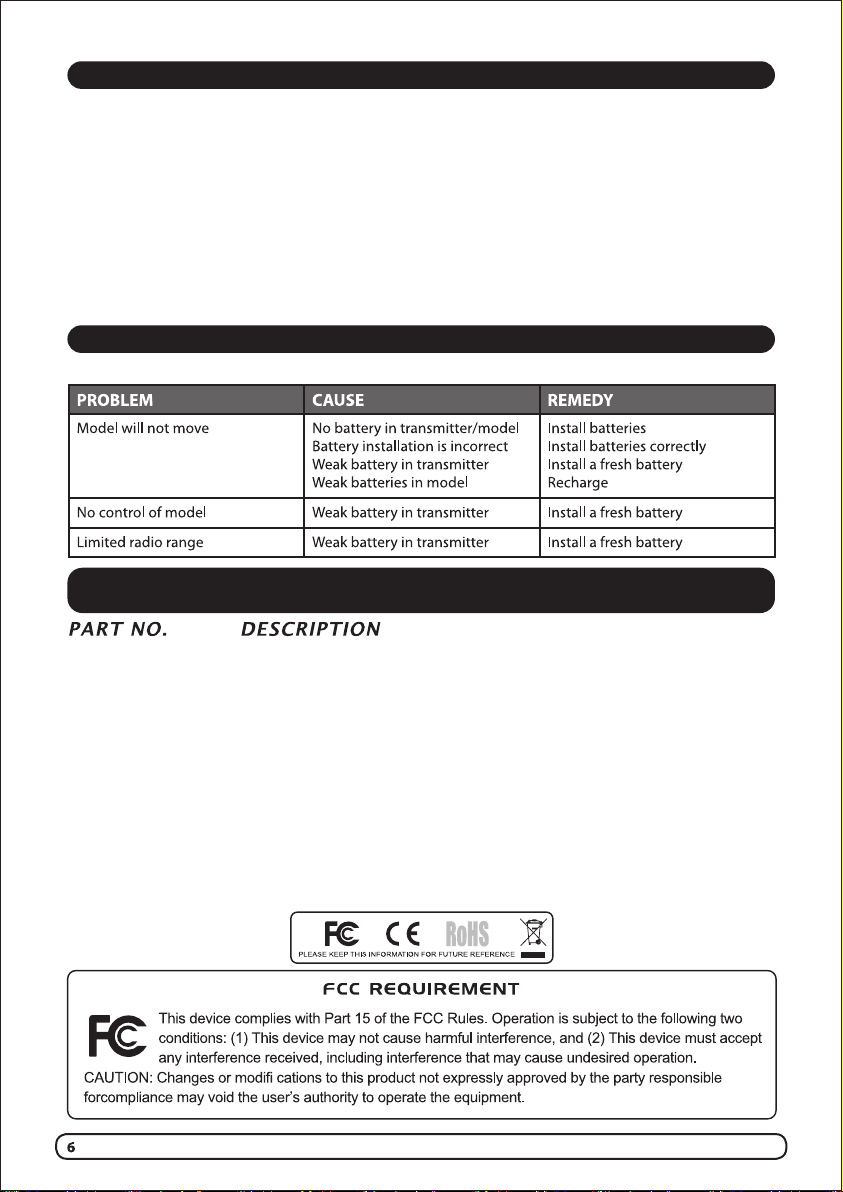

TROUBLESHOOTING
To Purchase Spare Parts or for Technical Assistance,Visit www.motionrc.com
or www.motionrc.eu
Mad Shark V2 2.4GHz ARTR Brushless Mini F1 Speed Boat V2
BNC1032-100 Bancroft Mad Shark Brushless Motor
BNC1032-101 Bancroft Mad Shark Deck(Red) & Water Proof Gasket With Plastic Lock Set
BNC1032-104 Bancroft Flex Shaft Set For Mad Shark
BNC1032-102 Bancroft Scale Outboard Engine And Rudder Set
BNC5077-002 Bancroft P1.4X35mm Φ3.1mm Two BLade Nylon Propeller (Pk2)
BNC1032-103 Bancroft Two Bearing Inside Rear Shaft Strut
BNC6024-003 Bancroft 11.1V 1300Mah 35C Lipo Pack With XT-60 Plug
BNC6026-003 Bancroft 2S/3S Balance Charger & EU Plug AC Power Cable
BNC6026-002 Bancroft 2S/3S Balance Charger & US Plug AC Power Cable
BNC5015-001 Bancroft Water Cooling Motor Mount Set
BNC5059-002 Bancroft Aluminium Alloy Coupler W/3 Screws
BNC5072-002 Bancroft Deck Plastic Lock Set
BNC6003-001 Bancroft 30A Water Cooled Brushless ESC With XT-60 Plug
BNC6008-004 Bancroft J2C93 2.4GHz 2Ch Transmitter
BNC6010-302 Bancroft J2C91R 2.4GHz 4Ch Receiver
