AV 4 0
Passive CAT-5 to RCA
Analog Audio/Composite Video
Conversion Module
User Manual
14192 051607
User Manual - AV40 © 2007 B&K Components Ltd. All rights reserved.
The information in this manual is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent
from B&K Components, Ltd. B&K Components Ltd. SHALL NOT BE LIABLE FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/
OMISSIONS MADE IN THIS MANUAL. The information in this manual is subject to change without prior notice.
Limited Warranty
B&K Components Ltd., referred to herein as B&K, warrants your B&K equipment against all defects in material and workmanship for a period of
five years from the date of purchase. This warranty applies only to the original purchaser and only to equipment in normal residential use and
service. Defective equipment must be returned to B&K, prepaid, accompanied by proof of purchase and sufficient payment to cover the cost of
return shipping and handling, and will be repaired or replaced at the discretion of B&K whose decision as to the method of reparation will be final.
This warranty shall not apply to any equipment which is found to have been improperly installed, incorrectly fused, misused, abused, or subjected
to harmful elements, used in any way not in accordance with instructions supplied with the unit, or to have been modified, repaired or altered in any
way without the expressed, written consent of B&K. This warranty does not apply to the cabinet or appearance items such as the faceplate or
control buttons, nor does it cover any expenses incurred in shipping the unit to and from the manufacturer's service department.
This warranty on B&K Components, Ltd. products is NOT VALID if the products have been purchased from an unauthorized dealer or an E-tailer or
if the original factory serial number has been removed, defaced or replaced in any way. B&K Components, Ltd. sells its products through author-
ized dealers in order to ensure that consumers obtain proper dealer service and support. Buying from an authorized B&K Components, Ltd. dealer
insures that you have a FACTORY WARRANTY on your B&K Components, Ltd. product. If you have any questions concerning your Factory
Warranty call
B&K Components, Ltd. at 716-656-0026.
THE EXPRESS FACTORY WARRANTY HEREIN CONTAINED IS IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESSED OR IM-
PLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, UPGRADEABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE. B&K
COMPONENTS, LTD. SHALL NOT UNDER ANY CIRCUMSTANCES BE LIABLE FOR DAMAGES, INCLUDING SPECIAL, INCIDENTAL,
EXEMPLARY, PUNITIVE OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PURCHASE, USE OR PER-
FORMANCE OF ANY B&K PRODUCT.
This warranty gives you specific legal rights. You may also have other rights which vary from State to State. Some States do not allow the exclu-
sion or limitation of incidental or consequential damages and the foregoing exclusions may not apply to you. No agent, representative, dealer or
employee of B&K has the authority to increase or alter the obligations or terms of this warranty.
Returning Equipment
No equipment may be returned to B&K Components Ltd. without a RETURN AUTHORIZATION (RA). Should you find it necessary to return
equipment to B&K, for any reason, a RETURN AUTHORIZATION (RA) number must be issued by B&K in respect to the equipment being returned.
You may request an RA number by calling B&K at the numbers below. We will need the following information to issue your RA number. Please
have it ready before you call.
1. Your name, address, and phone number.
2. The model and serial number of the equipment being returned.
3. A description of the problem being experienced.
4. Your sales receipt.
Your call will be referred to a Technical Service Representative who will work with you to resolve the problem. If it is determined that the unit must
be returned for repair, an RA number will be issued.
SIMPLY BETTER! is a registered trademark of B&K Components, Ltd.
Accessories Included
1– Users Manual
4– Felt Feet

CAT-5 cable allows audio/video runs of up to 50 feet. Shown is buffered output 2 on a CT unit to the RJ-45
input on an AV40. The AV40 then converts the signal to RCA to go into a Ref 50 S2. The same type of connec-
tivity can be used in other audio/video equipment. Also shown is the Control Out (set to IR output on the Ref 50
S2) minijack connected to the minijack IR input on AV 40. The IR signal when then be sent through to the IR
flasher outputs on the CT Receiver.
The AV40 is a passive device that will send a standard composite video and analog audio signal as well as
infrared commands over a short distance using CAT-5 cable. This device is bi-directional and is typically
used with the CT 600.3/600.1/300.3 series to convert the RJ-45 buffered output to standard RCA out-
puts/3.5mm output to link audio, video and infrared control with other audio/video equipment.
1. Dual Box and Decora Chassis Configuration - The AV40 is shipped default as a floor box design (F)
for use on a shelf, mounting behind a rack or even next to the other audio / video equipment. The AV40
may be configured for use in a decora wall plate by removing the screws of the chassis and extracting the
decora module assembly.
2. Master Input - RJ45 CAT-5 input. The conversion module uses this input as the source of audio and
video that is to be converted back to RCA. Maximum length of CAT-5 run should be no longer than 50
feet.
3. IR Input—IR Inputs to control source from other audio/video equipment. Only one source emitter is
needed from the CT to the source because of the IR routing through the AV40.
4. Gold Plated RCA Output- RCA outputs to connect using other audio/video equipment. Gold connec-
tors promote minimum signal loss and degradation.
RJ-45 Input
The RJ-45 input takes the CAT-5 output from the CT 600.3/ 600.1/ 300.3 and con-
verts it to RCA. CAT-5 RJ45 pinouts use the T568B standard.

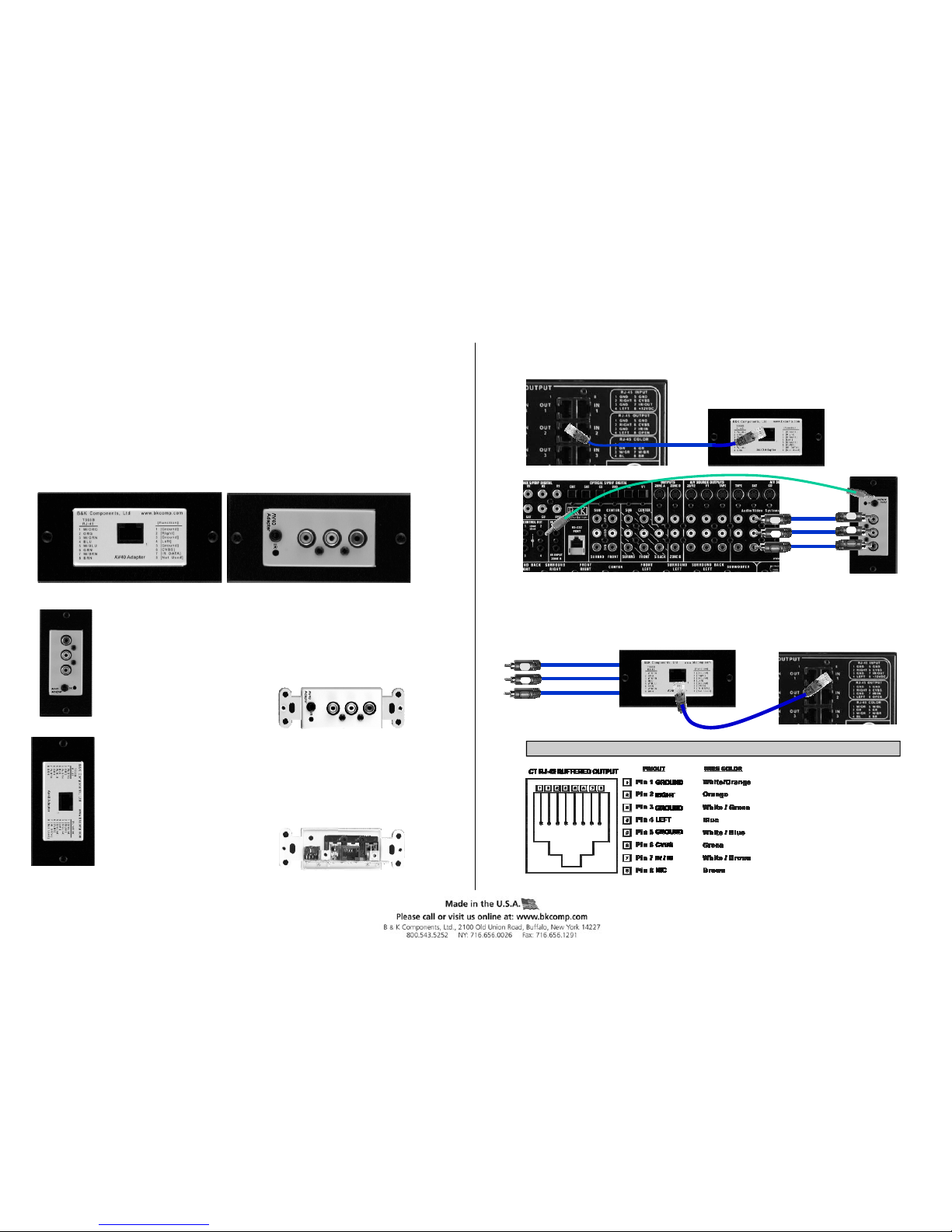

Front Panel Decora and Box Summary
RCA Output
Connect the red (right audio), white (left audio) and yellow (composite video) to the
other audio/video equipment input.
IR Input
Connect the IR output from the other audio/video equipment to the IR input on the
AV40 breakout box. This allows for only one IR flasher needed on the face of the
source piece.
Rear Panel Decora and Box Configuration Summary
CAT5 Audio/Video Drive Pinout
CAT-5 RJ45 pinouts use the T568B standard.
See the figure at left. Each color twisted pair
carries the differential audio / video signal
with IR to the corresponding A/V output and
IR Input. For use with CAT-5 cable up to 50
feet. Use of other CAT5 connection standards
may result in increased crosstalk between
signals with associated audio and video
degradation.
Connection to a Home Theater Unit
For use of up to 50 feet of CAT-5 cable, the AV40 is a passive device and does not need to be powered.
CAT-5 T568B Standard
1.
Back of AV40 Breakout Box
Front of AV40 Breakout Box
CT Buffered Outputs
Ref 50 S2 Control Out and A/V Inputs
2.
3.
4.
If sending L/R audio and composite video for distances under 50 feet from a local zone to the CT
600.1/600.3/300.3 an AV40 can be used to transfer the signals via CAT-5 cable directly into one of the CT Re-
ceiver’s buffered RJ45 inputs. This can be a useful application of the AV40 when using distances under 50 feet.
Connection to a CT Receiver RJ45 Buffered Input
Signal from Local Zone
