B&K TCV31 User manual

B&K Components, Ltd.
TCV 31
Differential RCA to CAT-5
Video Conversion Module
User Manual
14194 051607
User Manual TCV 31 © 2007 B&K Components Ltd. All rights reserved.
The information in this manual is copyright protected. No part of this manual may be copied or reproduced in any form without
prior written consent from B&K Components, Ltd. B&K Components Ltd. SHALL NOT BE LIABLE FOR OPERATIONAL,
TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL. The information in this manual is subject to
change without prior notice.
Limited Warranty
B&K Components Ltd., referred to herein as B&K, warrants your B&K equipment against all defects in material and workman-
ship for a period of five years from the date of purchase. This warranty applies only to the original purchaser and only to equipm-
ment in normal residential use and service. Defective equipment must be returned to B&K, prepaid, accompanied by proof of
purchase and sufficient payment to cover the cost of return shipping and handling, and will be repaired or replaced at the
discretion of B&K whose decision as to the method of reparation will be final.
This warranty shall not apply to any equipment which is found to have been improperly installed, incorrectly fused, misused,
abused, or subjected to harmful elements, used in any way not in accordance with instructions supplied with the unit, or to have
been modified, repaired or altered in any way without the expressed, written consent of B&K. This warranty does not apply to the
cabinet or appearance items such as the faceplate or control buttons, nor does it cover any expenses incurred in shipping the
unit to and from the manufacturer's service department.
This warranty on B&K Components, Ltd. products is NOT VALID if the products have been purchased from an unauthorized
dealer or an E-tailer or if the original factory serial number has been removed, defaced or replaced in any way. B&K Compo-
nents, Ltd. sells its products through authorized dealers in order to ensure that consumers obtain proper dealer service and
support. Buying from an authorized B&K Components, Ltd. dealer insures that you have a FACTORY WARRANTY on your B&K
Components, Ltd. product. If you have any questions concerning your Factory Warranty call
B&K Components, Ltd. at 716-656-0026.
THE EXPRESS FACTORY WARRANTY HEREIN CONTAINED IS IN LIEU OF ANY AND ALL OTHER WARRANTIES, EX-
PRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, UPGRADEABILITY OR OF FITNESS FOR
ANY PARTICULAR PURPOSE. B&K COMPONENTS, LTD. SHALL NOT UNDER ANY CIRCUMSTANCES BE LIABLE FOR
DAMAGES, INCLUDING SPECIAL, INCIDENTAL, EXEMPLARY, PUNITIVE OR CONSEQUENTIAL DAMAGES ARISING OUT
OF OR IN CONNECTION WITH THE PURCHASE, USE OR PERFORMANCE OF ANY B&K PRODUCT.
This warranty gives you specific legal rights. You may also have other rights which vary from State to State. Some States do not
allow the exclusion or limitation of incidental or consequential damages and the foregoing exclusions may not apply to you. No
agent, representative, dealer or employee of B&K has the authority to increase or alter the obligations or terms of this warranty.
Returning Equipment
No equipment may be returned to B&K Components Ltd. without a RETURN AUTHORIZATION (RA). Should you find it neces-
sary to return equipment to B&K, for any reason, a RETURN AUTHORIZATION (RA) number must be issued by B&K in respect
to the equipment being returned. You may request an RA number by calling B&K at the numbers below. We will need the
following information to issue your RA number. Please have it ready before you call.
1. Your name, address, and phone number.
2. The model and serial number of the equipment being returned.
3. A description of the problem being experienced.
4. Your sales receipt.
Your call will be referred to a Technical Service Representative who will work with you to resolve the problem. If it is determined
that the unit must be returned for repair, an RA number will be issued.
SIMPLY BETTER! is a registered trademark of B&K Components, Ltd.
Accessories Included
1-12VDC Power Adapter
1– Users Manual
4– Felt Feet

The TCV31 is a video conversion module for use with converting differential analog video pairs to a CAT-5
cable for distances up to 1000 feet. The TCV31 requires a 12VDC external power source (supplied). To
convert the signals from the TCV31 module from CAT-5 to a standard component video signal, a RCV30 is
needed.
1. Dual Box and Decora Chassis Configuration - The TCV31 is shipped default as a floor box design (F)
for use on a shelf, mounted behind a rack or even next to the source. The TCV31 may be configured for use
in a decora wall plate by removing the screws of the chassis and extracting the decora module assembly.
2. RCA Input - Component video input connectors using gold plated RCA connectors for minimal signal
loss and degradation. The conversion module uses this input as the source of video that is to be converted to
RJ45.
3. 12V DC Input— Connect to an external DC power source (adapter included).
4. Output 1 and 2 - RJ45 CAT-5 video output. Two outputs are available to send to up to two RCV30
modules for up to 1000 feet total.
Video Output 1 and 2
The TCV31 module provides two outputs to connect to RCV30 modules. Simply connect the
output from the TCV31 to the Master Input on the RCV30. The total CAT-5 cable run cannot
exceed 1000 feet. ALL TCV31 modules must each be individually powered and all RCV30 mod-
ules will be powered from the TCV31 up to 500 feet total. When using a distance over 500 feet
total or when using the Slave Output feature on the RCV30, all modules including the TCV31 and
all RCV30 must be individually powered.
Front Panel Decora and Box Summary
RCA Input
Connect the Red, Blue and Green RCAs to the source component video outputs (Y, Pb, Pr).
12 VDC IN
Connect to an external DC power source (adapter included). The TCV31 ALWAYS has to be
powered using an external power source.
Rear Panel Decora and Box Configuration Summary
CAT5 Audio/Video Drive Pinout
CAT-5 RJ45 pinouts use the T568B standard.
See the figure at left. Each color twisted pair
carries the differential component video signal
with pin 7 and 8 sending power for up to 500
feet. Use of other CAT-5 connection standards
may result in increased crosstalk between
signals with associated audio and video degra-
dation.
CAT-5 cable allows differential video runs of up to 1000 feet. The TCV31 converts signals from RCA to RJ-45
and allows direct connection to RCV30 modules for use in converting the video signal back to RCA. The TCV31

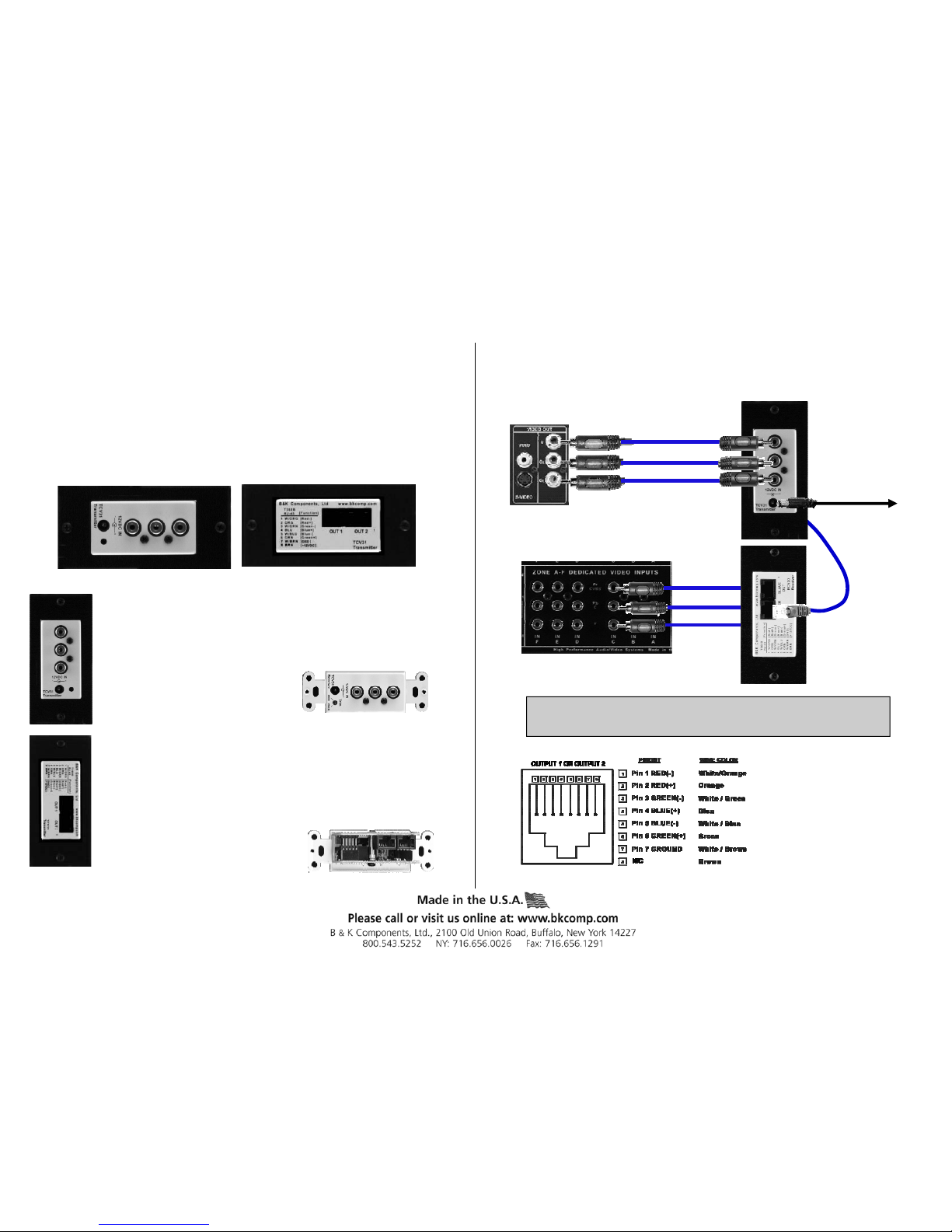

allows both decora wall plate and stand alone box configuration. The diagram below shows the TCV31 connected
from RCA to CAT-5 termination with the RCV30 from CAT-5 to RCA video conversion modules to the Zone C
dedicated input on a CT Receiver.
Connection to an RCV30
The TCV31 modules must each be individually powered and all RCV30 modules will be powered from
the TCV31 up to 500 feet total. When using a distance over 500 feet total or when using the Slave Output
feature on the RCV30, all modules including the TCV31 and all RCV30 must be individually powered.
CAT-5 T568B Standard
Dedicated Source Component Outputs
HD6 Dedicated Inputs
Back Panel of
RCV30
Front Panel of
TCV31
1.
2.
3. 4.
To External Power
